China Manufacture Export Double Interlink Truck Trailer 2 Axles Superlink Tandem Shipping 20FT Container Skeleton Semi Trailer
- Category: >>>
- Supplier: Shandong Kairui Import & Export Co. Ltd.Shandong Ltd.
Share on (1601352333891):
Product Overview
Description
Product Description
Specification
Tare Weight | About 6.0T |
Dimension | 12400mm*2500mm*1575mm（Size can be choose freely) |
Loading Capacity | 30-60T |
Axle | 13T/16T/20T BPW or FUWA or EAST |
Rim | 9.00-22.5/8.00-20/8.5-20 |
Tire | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
Suspension | Mechanical Spring or Air Suspension System |
Spring leaf | 90(W)mm*13(Thick)mm*10 Layer |
King pin | 2” or 3.5” |
Support leg | heavy duty 28ton landing leg |
Main beam | Height:500mm,upper plate is 14mm,middle plate is 8mm, |
Down plate is 16mm;Material is Q345B Steel. | |
Side beam | 16mm channel steel(Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |

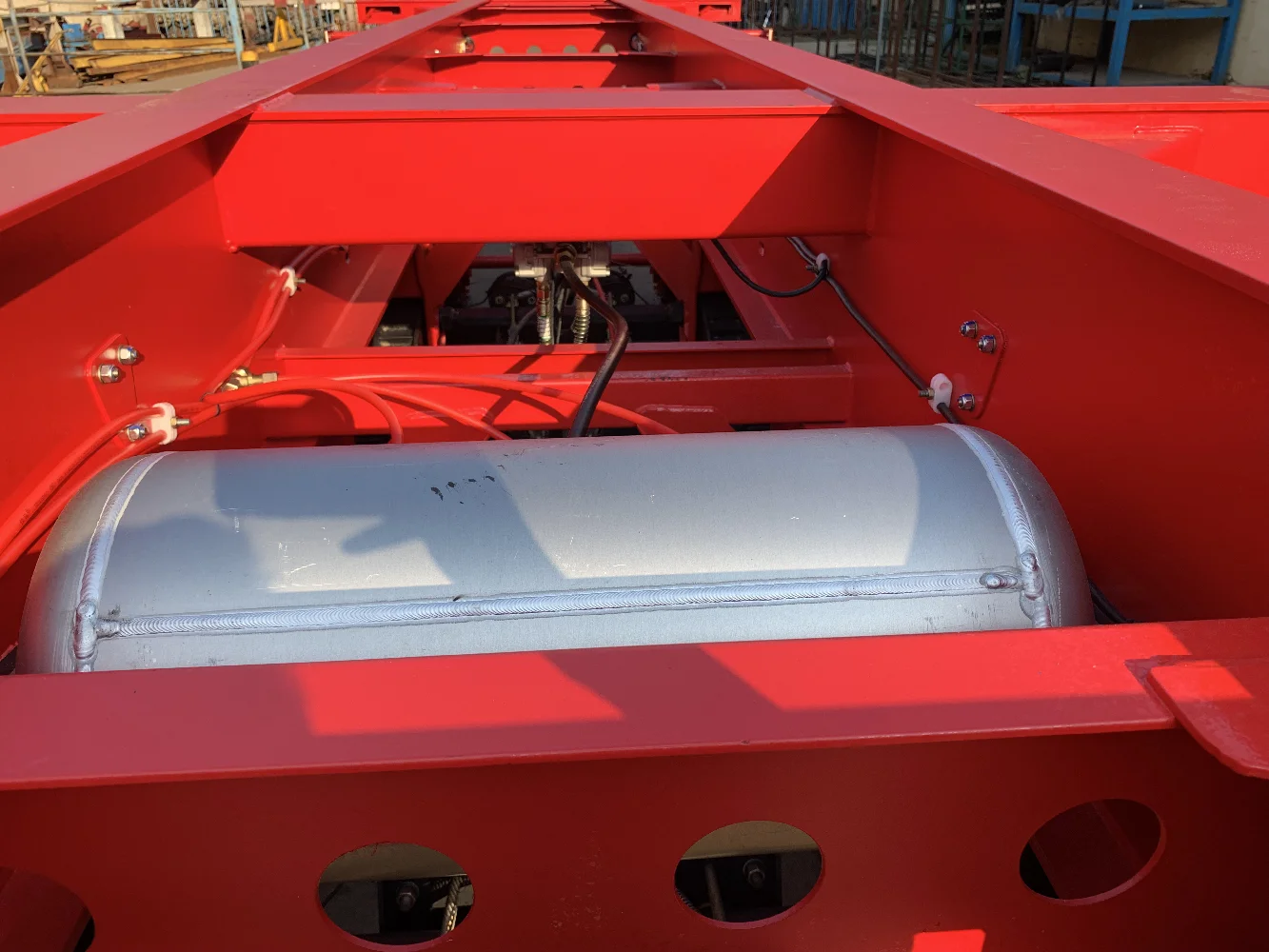

Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber;Two pieces of 45L air tanks |
ABS | Optional |
Twist Locks | Four,Eight or Twelve pieces(Lifting type or Twist screw type) |
Valve | WABCO valve (especial for exporting market) |
Light | LED light (especial for exporting market) |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Tool box | One piece,1m×0.5m×0.5m(Size can be choose freely)(equipped with 1 unit |
Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint |
Shipping Terms: | By bulk cargo carrier,RORO or 40HQ container |

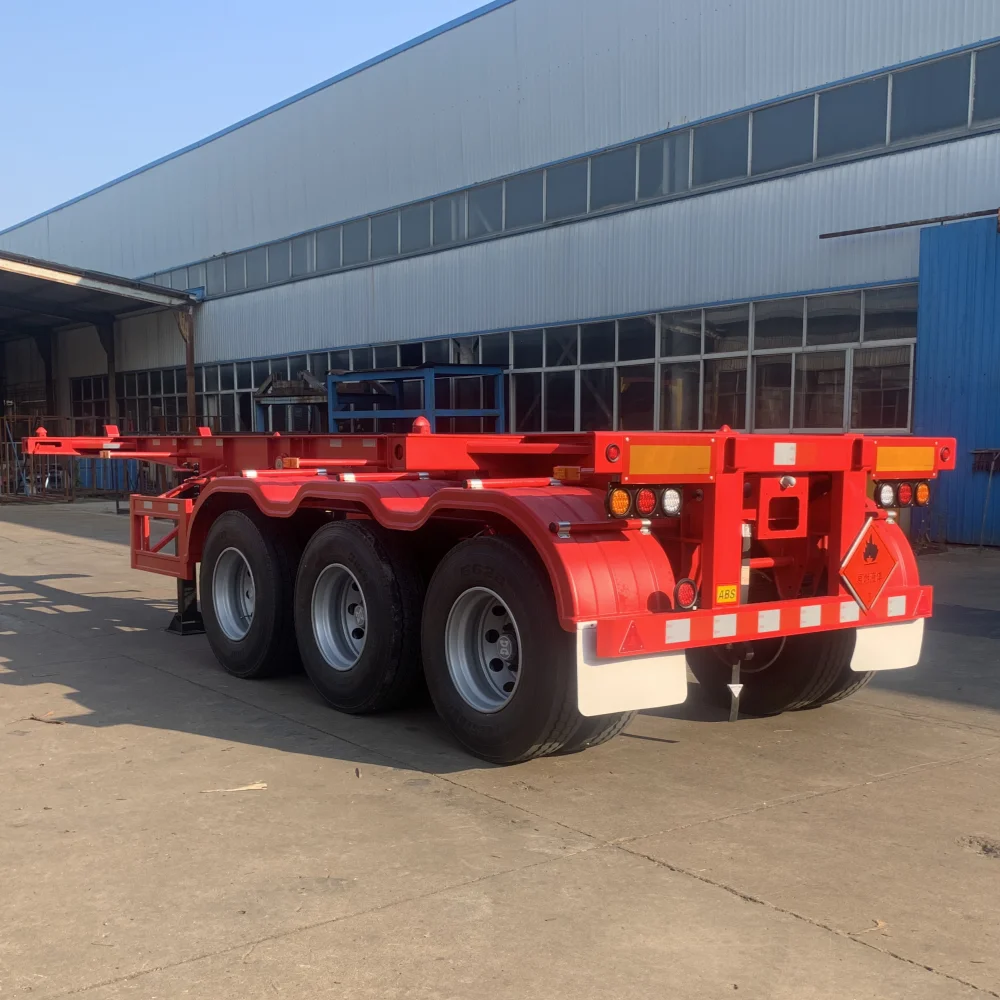

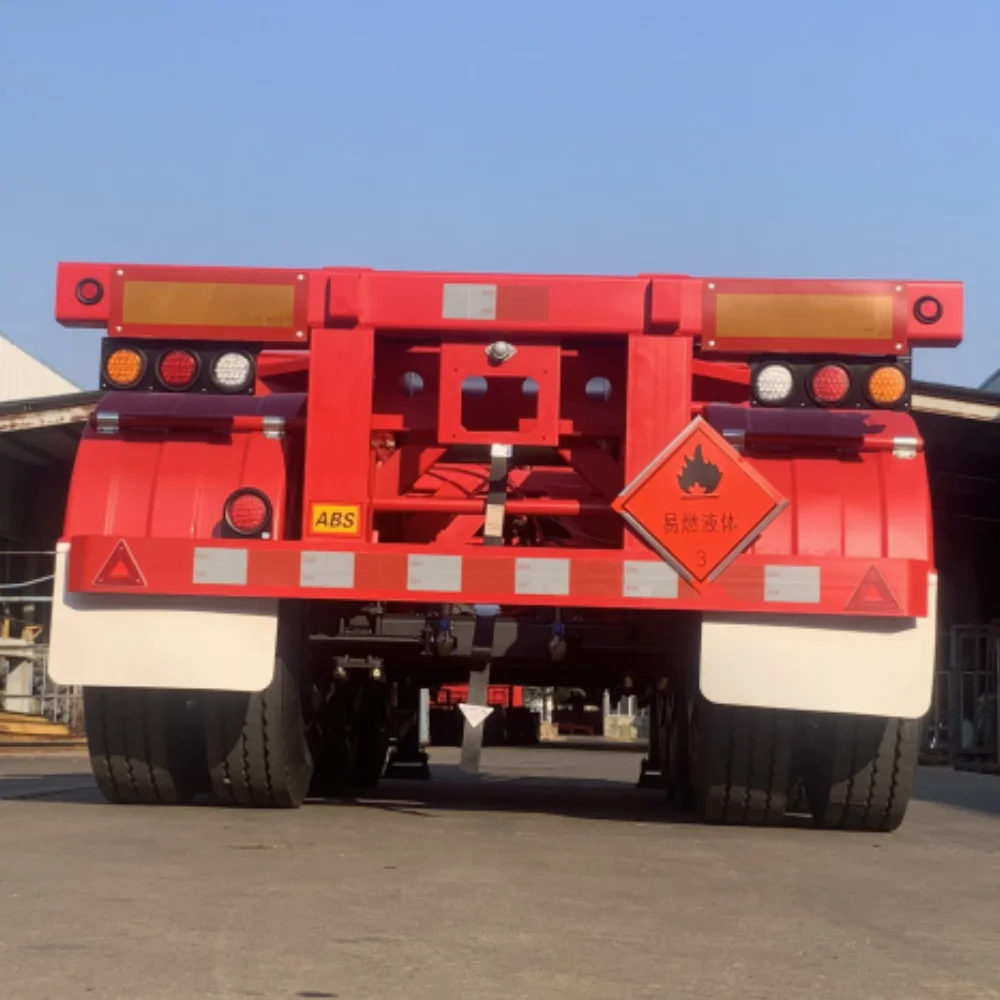

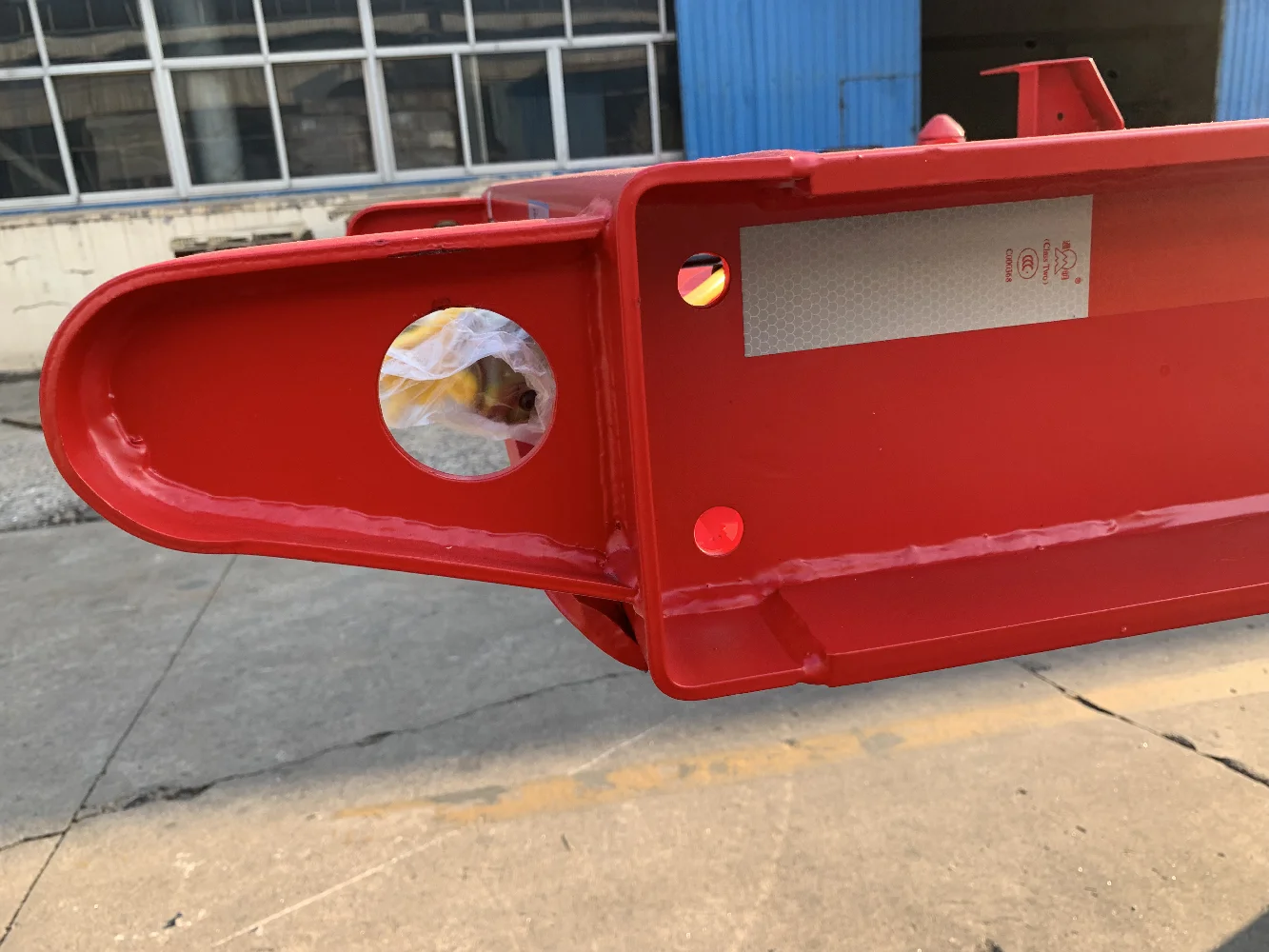

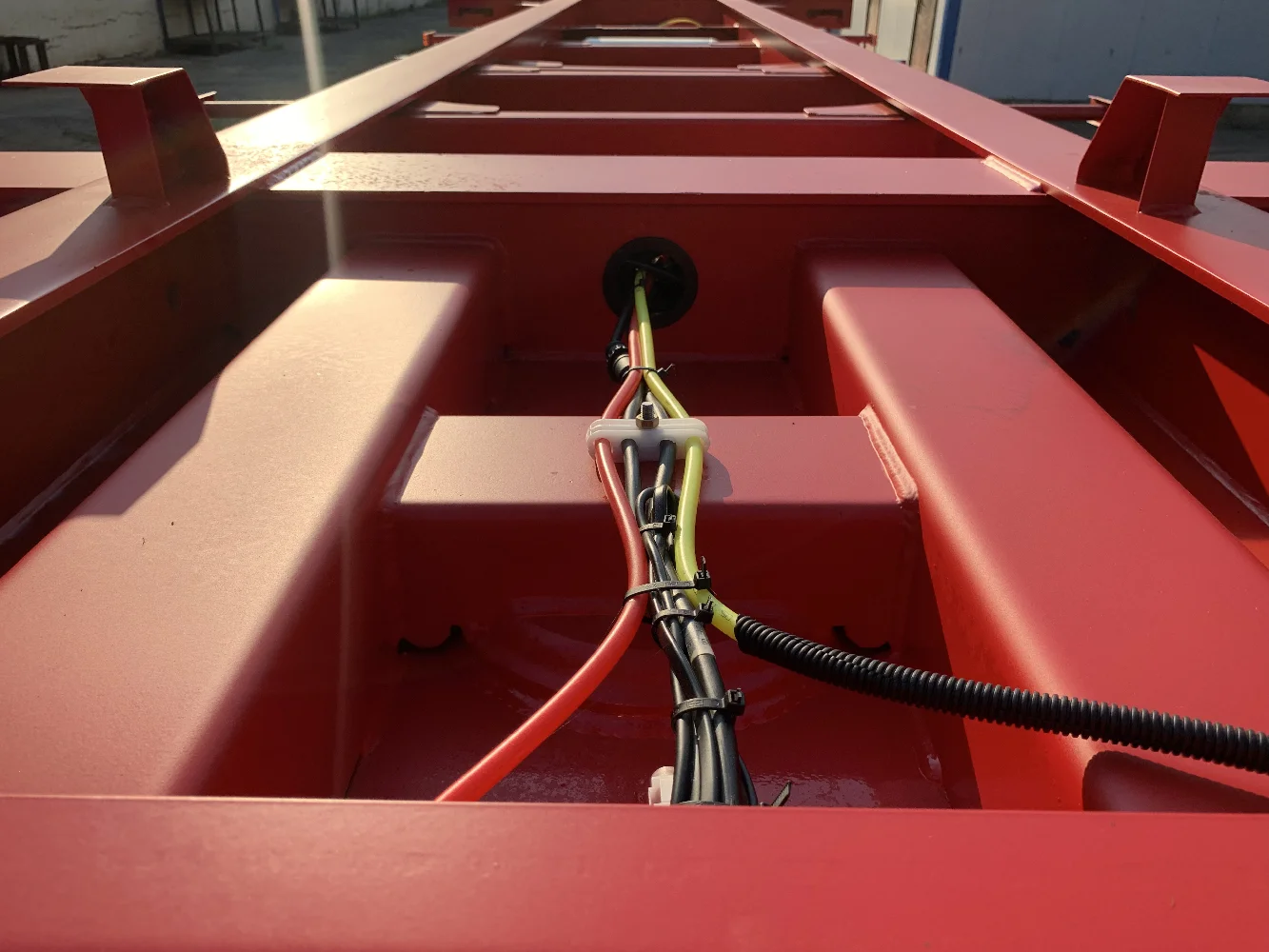

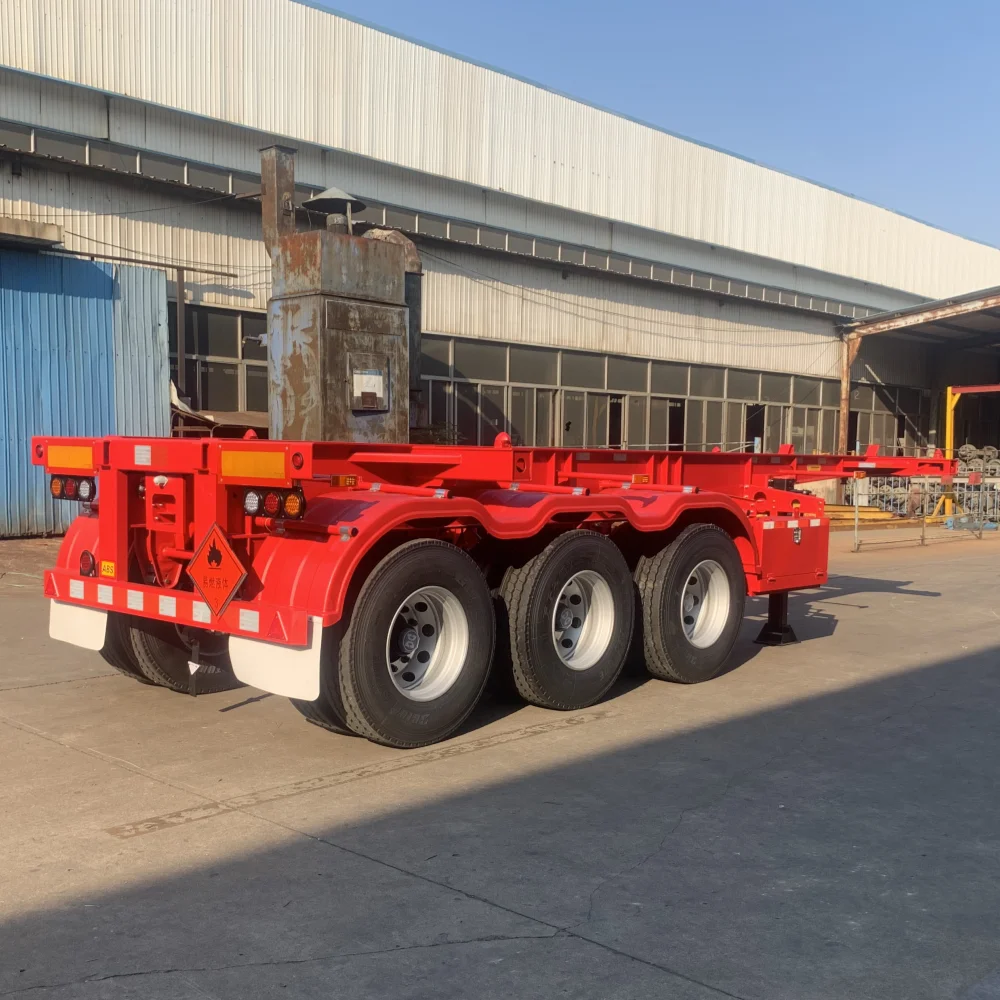

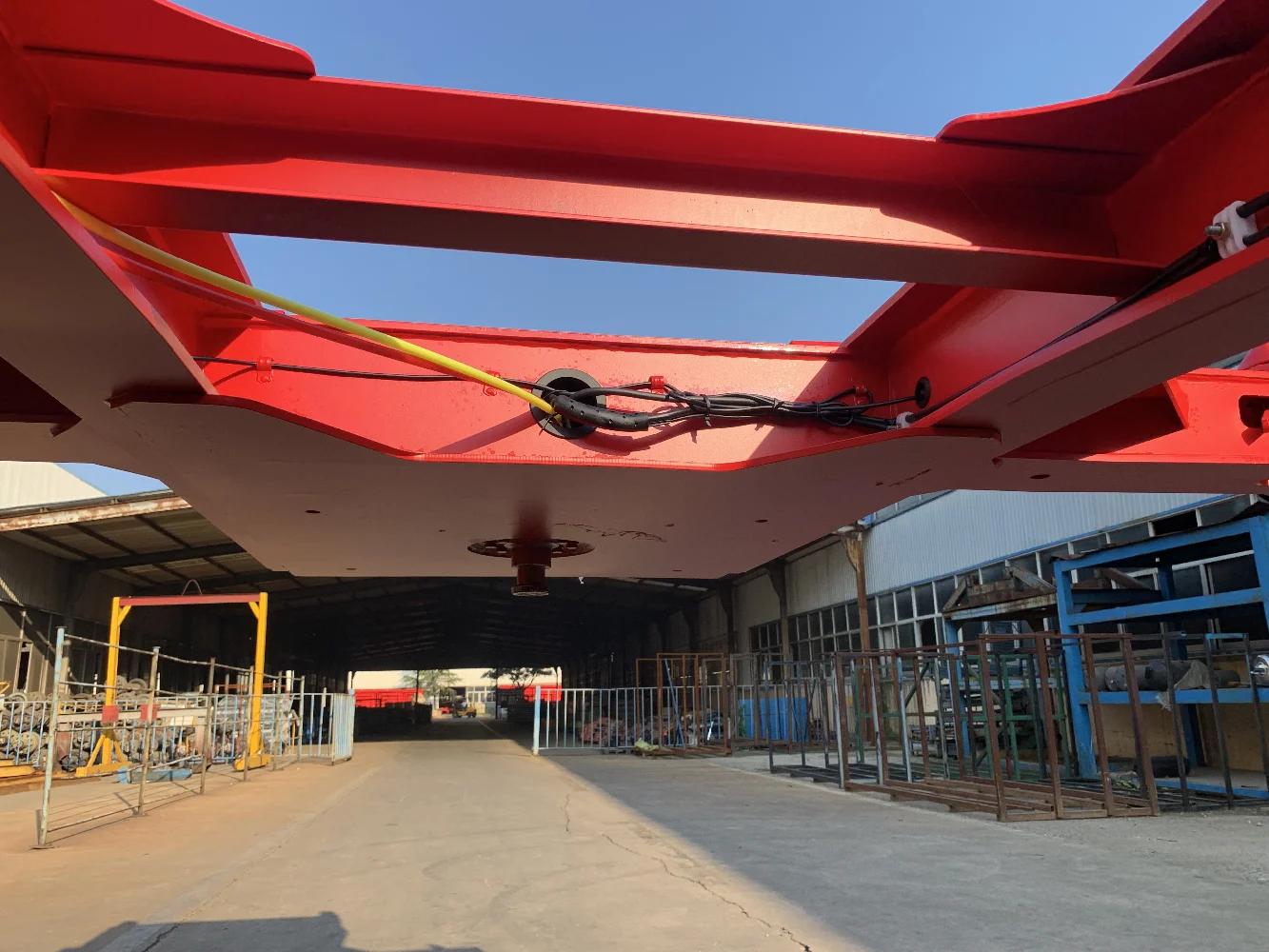

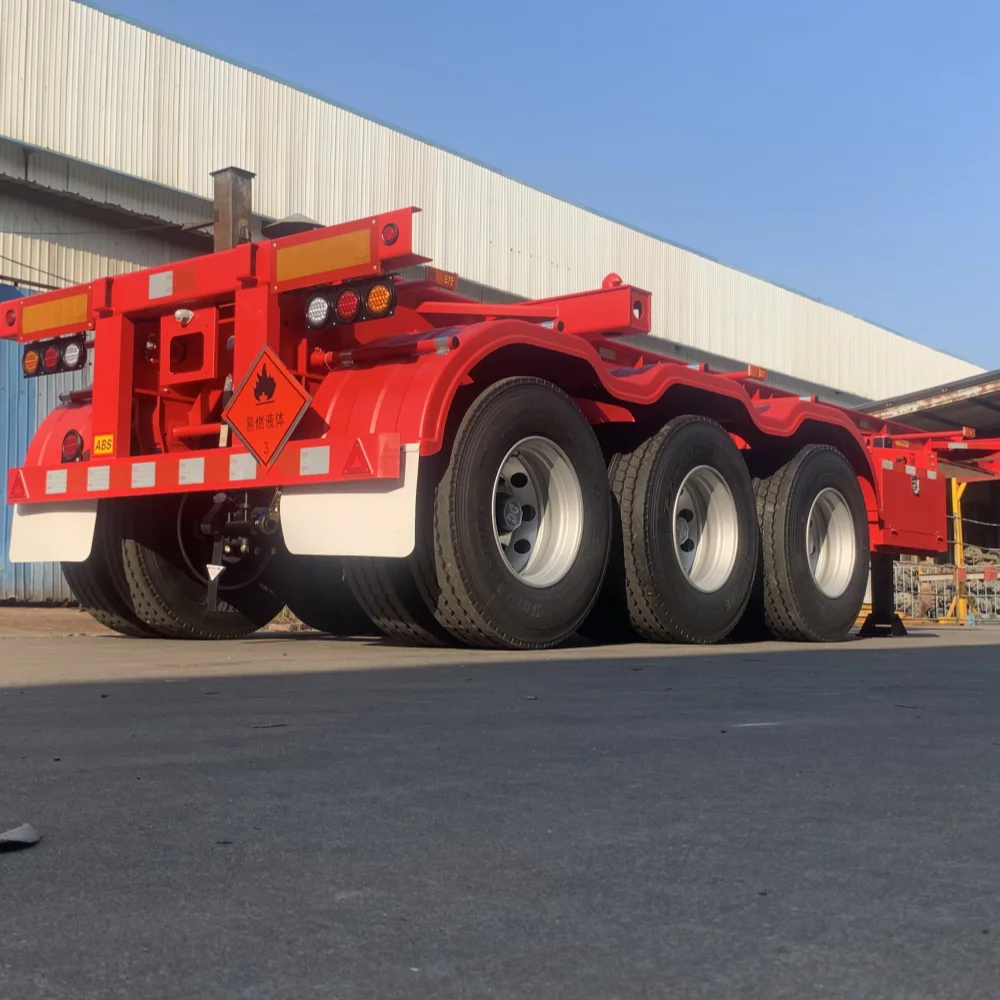

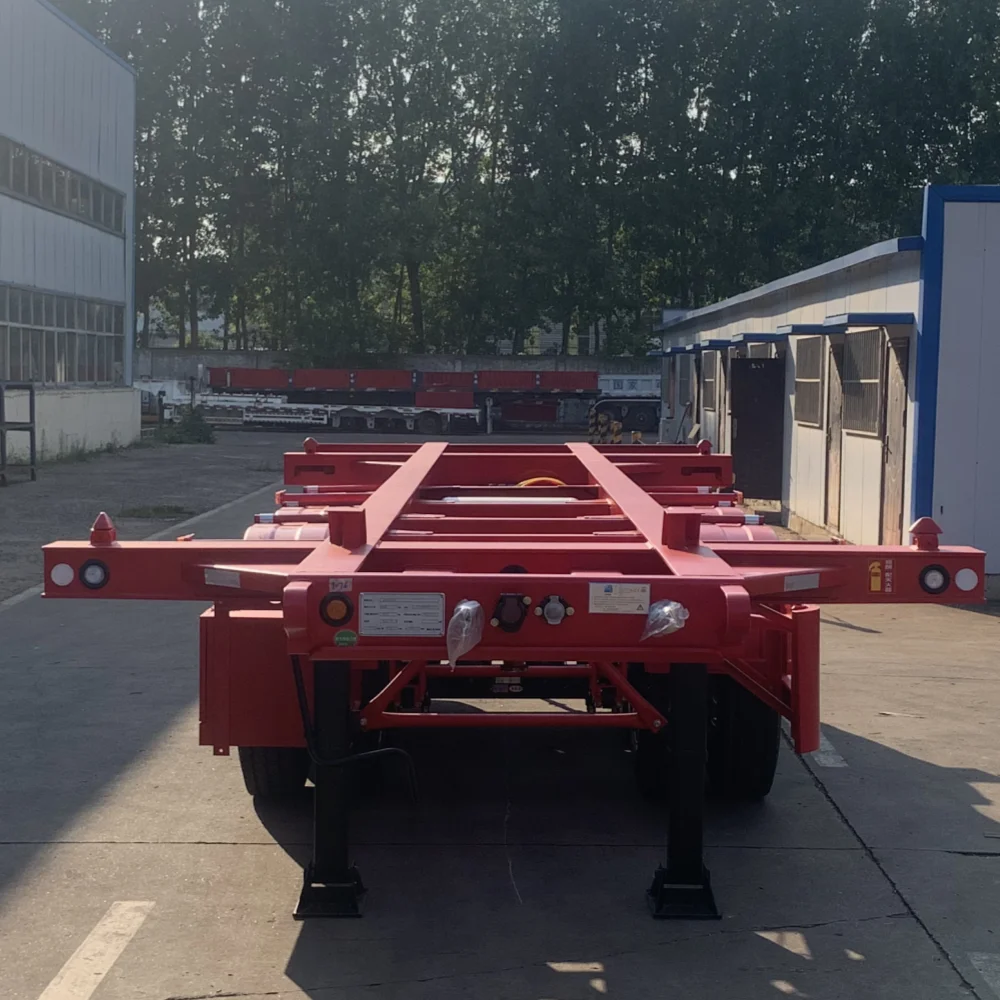

Details Images
Packing & Delivery
could be shipped by Flat rack container, Bulk or RO-RO.
(1)Wax: Do wax spray process to against the truck suffer seawater corrosion
(2)Package: Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping: Reliable logistic service from famous freight supplier makes transport process safely and promptly
We always use the best transport solution to decrease transportation cost .If you want to know more, please contact us and we will
give a satisfactory solution！
(1)Wax: Do wax spray process to against the truck suffer seawater corrosion
(2)Package: Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping: Reliable logistic service from famous freight supplier makes transport process safely and promptly
We always use the best transport solution to decrease transportation cost .If you want to know more, please contact us and we will
give a satisfactory solution！
