Product Overview
Description

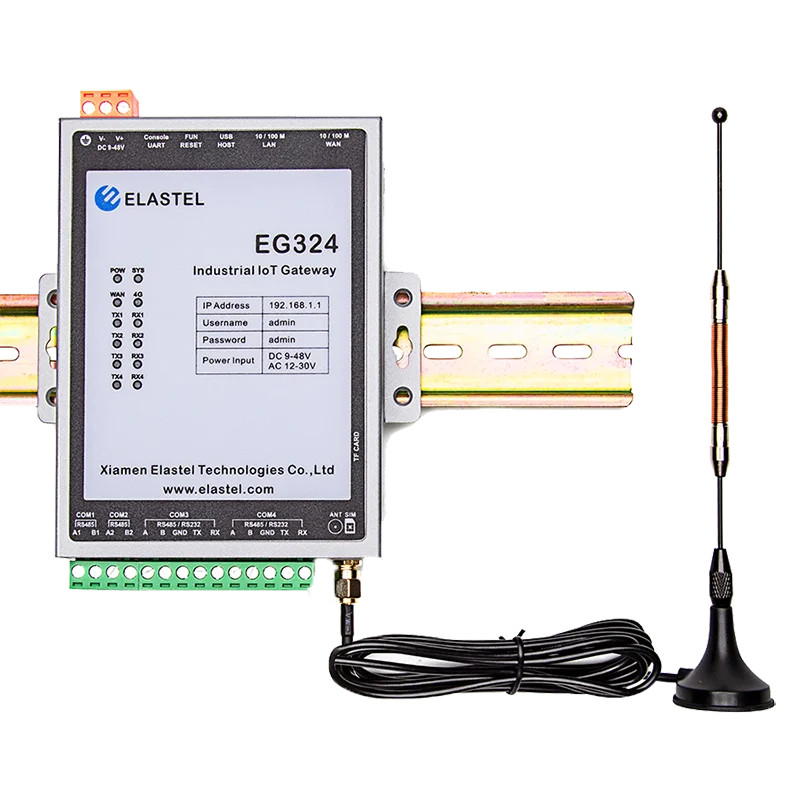

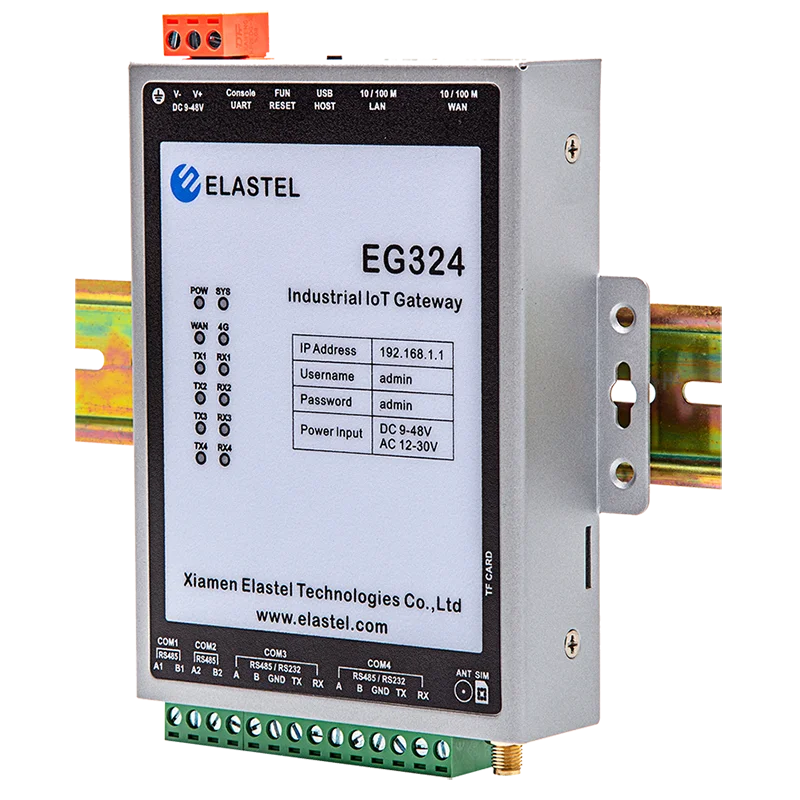

The Elastel EG324 Lite IoT Gateway is an ARM-based IoT gateway reduced CPU and RAM capabilities from EG324 for balancing sufficient performance and cost saving.
- ARM Quad-core A35@800MHz CPU, 128MB RAM + 8GB eMMC
- 4x Isolated RS485/RS232 for industrial data acquisition
- Dual auto-sensing 10/100 Mbps Ethernet
- Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- -40°C to +85°C Operating Temperature.
- Linux OS with prebuilt Web-based data acquisition programs
These features allow EG324 Lite easy be configured and large-scale deployments for data acquisition, remote monitoring and communication… applications.
Description
The EG324 is an Arm-based high-performance industrial gateway. Compared with EG324 model, EG324 Lite has reduced CPU and RAM capabilities for optimized and balance sufficient performance and cost saving.
It provides an ARM dual-core A35 @ 800MHz CPU, 128MB RAM + 8GB eMMC hardware computing platform, comes with 4 x RS485/232 serial ports, dual 10/100 Mbps Ethernet ports, and a Mini-PCIe socket for 4G LTE/3G/2G/Cat M1/NB-IoT cellular modules.

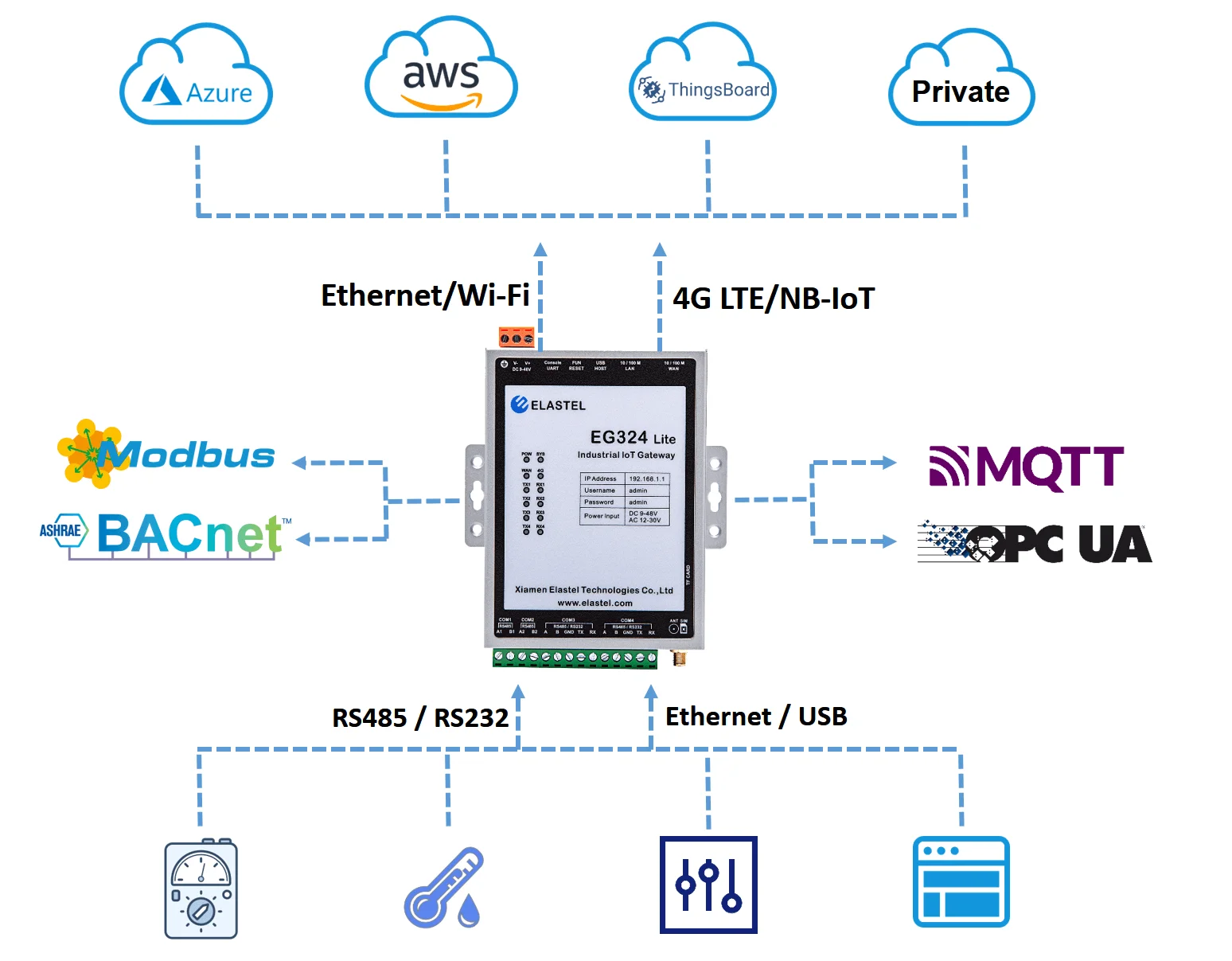

Leverage the Linux OS, pre-built common data acquisition drivers like Modbus, MQTT, OPC UA, and a WebUI for easy configuration and programming, the EG324 Lite is capable of easy and simple implementation for your various complex Industrial IoT solutions

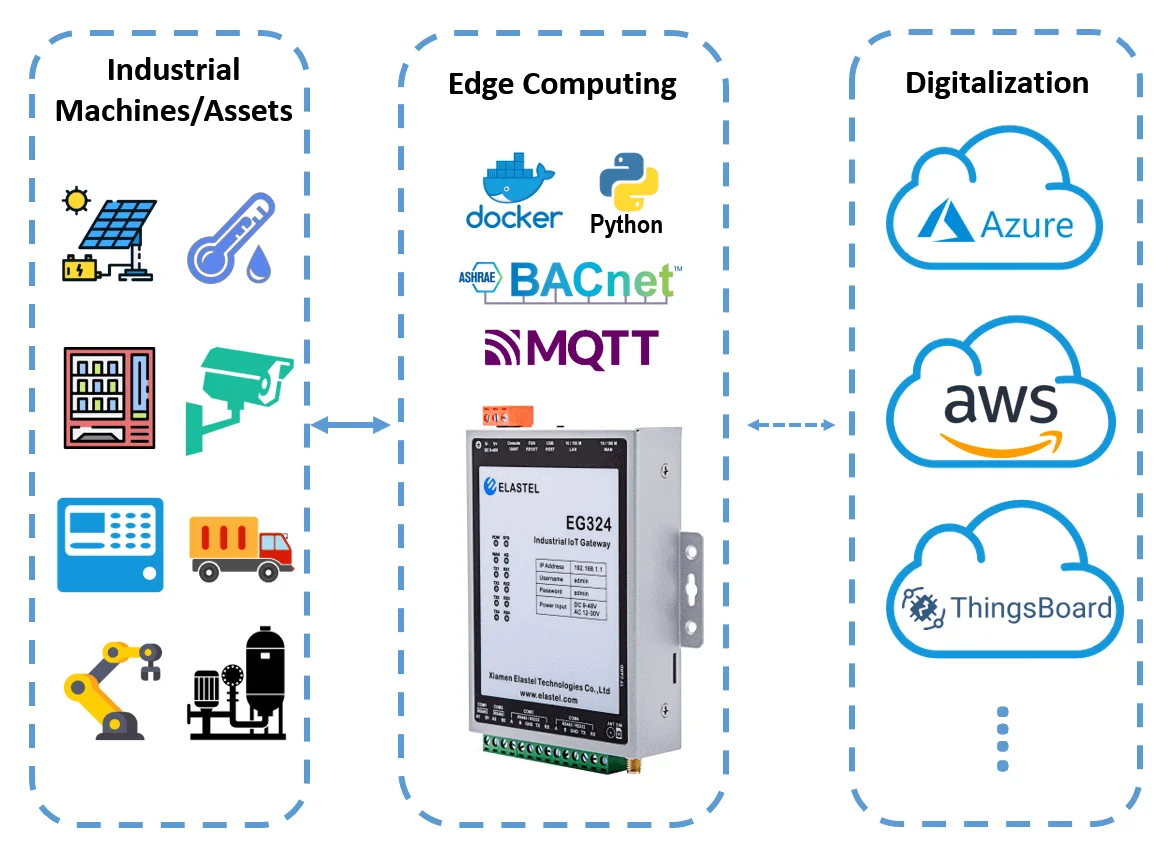

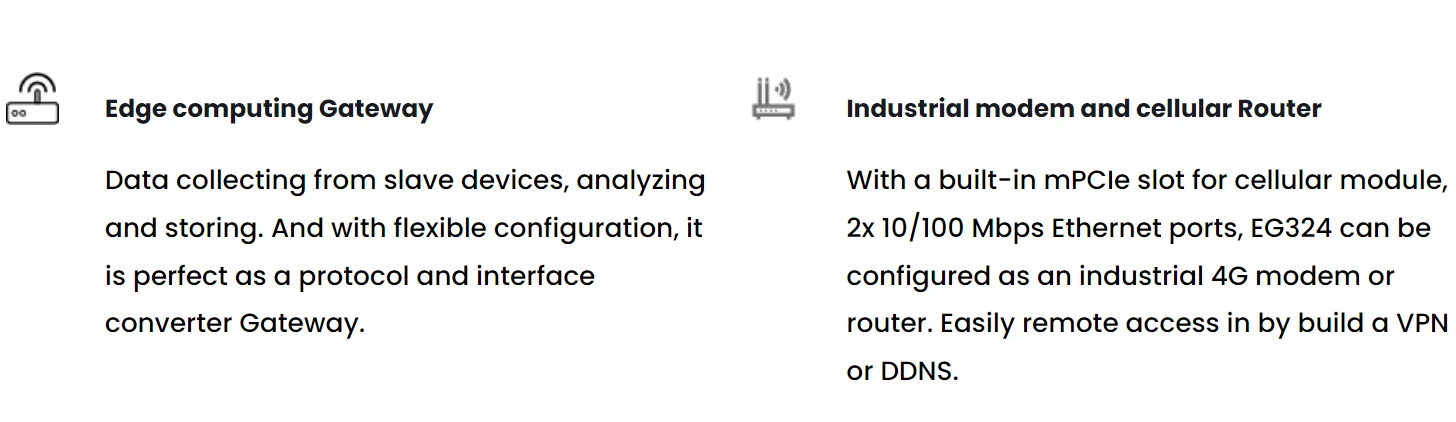

Applications
With the Arm-based CPU running up to 1.4GHz computing capability, and flexible Linux OS, EG324 Lite could be in any kinds of your applications and PoC.
Specification
| CPU | ARM Dual-core A35 @800MHz |
| Pre-installed OS | Linux 5.10 with webUI management system |
| DRAM | 128MB DDR3 |
| Storage Pre-installed | 8 GB eMMC |
| Storage Slot | SD slot x 1 |

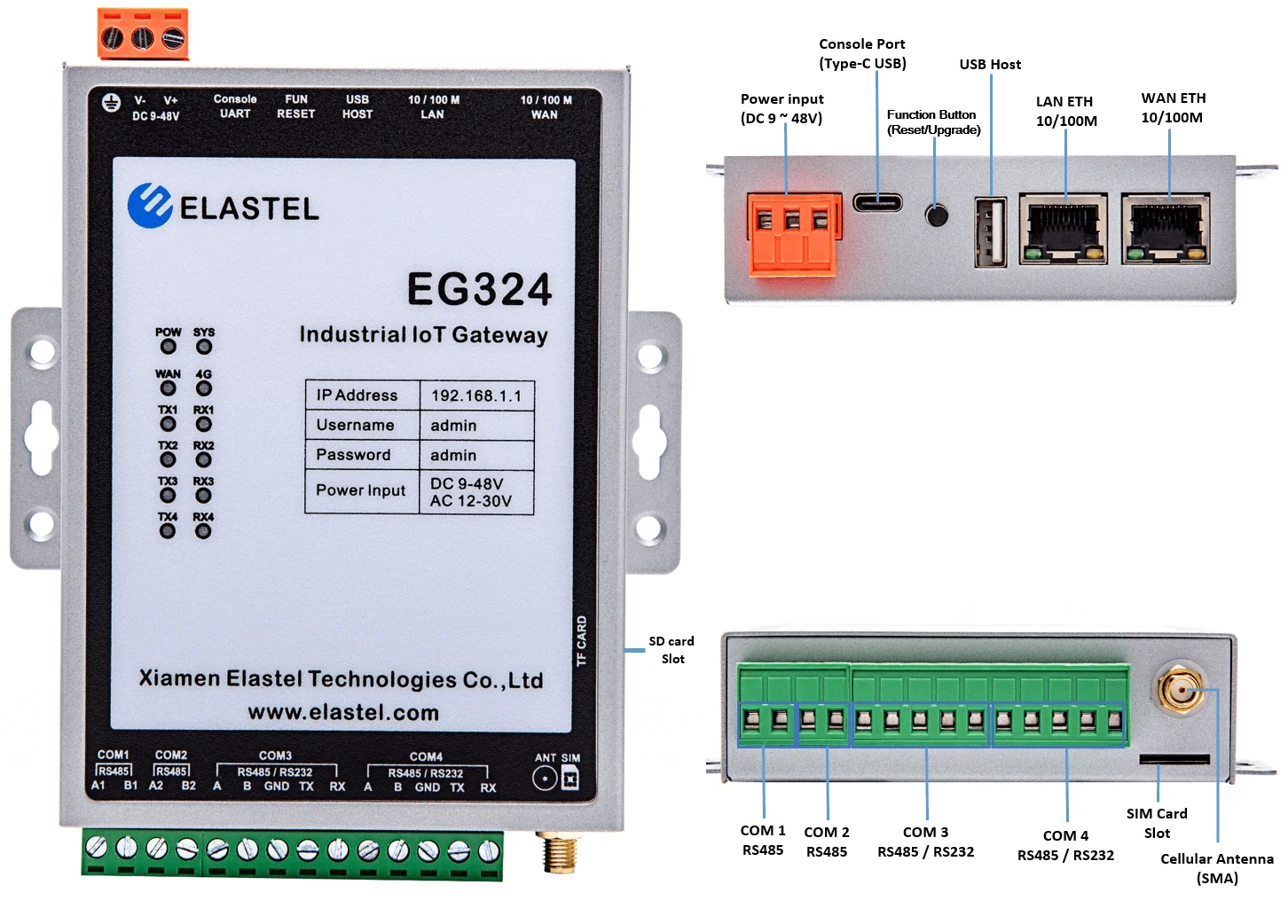

| Serial Ports | 2 x RS485 + 2 x RS-232/485 |
| Ethernet Ports | 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) , 1x WAN, 1xLAN or 2xLAN configurable |
| Cellular module Slots | 1 x mPCIe slot for Cellular module |
| Number of SIMs | 1 |
| USB 2.0 | 1 x USB 2.0, type-A connector |
| Console Port | 1 x UART type-C connector |
| Buttons | 1x button for Reset and Upgrade |
| Power Input Voltage | 9 ~ 48 VDC, 12 ~ 30 VAC |
| Power Consumption | Working Mode: 6 W Peak Power: <10 W |
| LED Indicators | Power x 1, System (programmable) x1, Cellular WAN x1, WAN x1, COM trans x 8 (TX + RX) |
| Buzzer | Built-in buzzer x 1, for Warning alarm ( Programmable) |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| Dimensions | 128.8mm×117mm×28mm (L×W×H) |
| Housing | Metal |
| Installation | DIN-rail mounting Wall mounting |
| Weight | 470 g (1.04 lb) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| OT-to-IT Protocols | Modbus RTU/ASCII Master/Slave, Modbus TCP/IP Server/Client, SNMP, Siemense PLC S7, Mitsubishi FX serial, BACnet, MQTT, OPC UA... |
