Yingli Gain solar BIPV System Customization BIPV Modules Solar Panel Roof Tile BIPV Design Scheme system
- Category: >>>
- Supplier: Baoding Jiasheng Photovoltaic Technology Co. Ltd.Baoding Ltd.
Share on (1601352967321):
Product Overview
Description
ELECTRICAL PARAMETERS(STC) | ||||||||
Module type | JS115DG-13.5e 1/2 | JS75DG-13.5e 1/2 | JS60DG-13.5e 1/2 | JS105DG-13.5e 1/2 | ||||

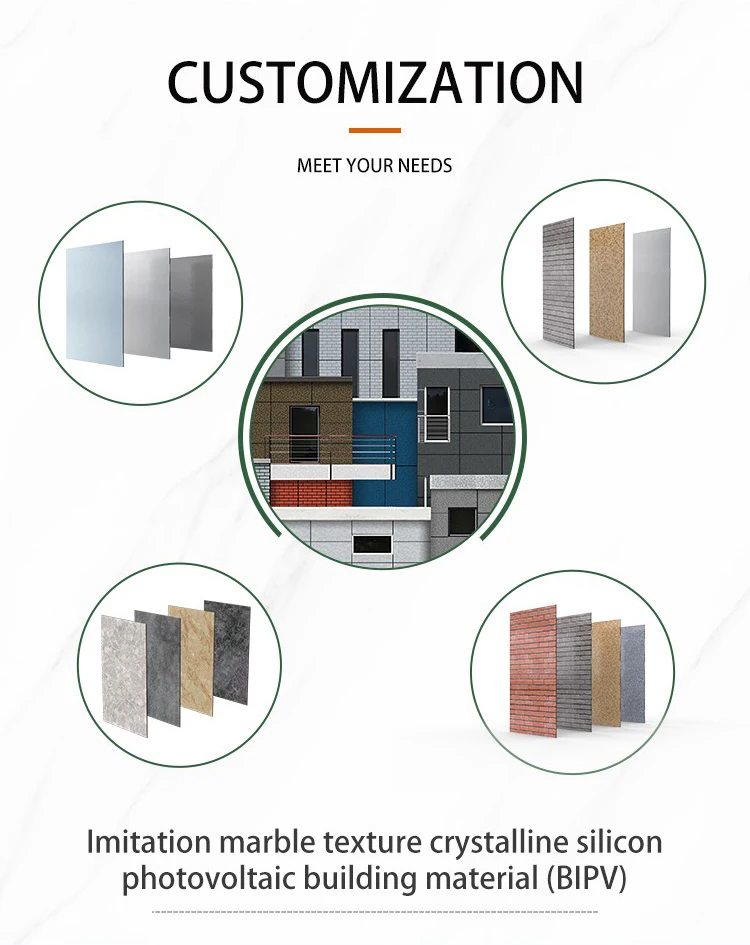

Color(customizable) | JSA01105-LG | JSC1101-WFX | JSC0801-SSD | JSA10-110-XS-S | ||||
Power output(Pmax) | 115W | 75W | 60W | 105W | ||||
Power output tolerances（ΔPmax） | 0-5W | 0-5W | 0-5W | 0-5W | ||||
Module efficiency(ηm) | 15.97% | 10.42% | 8.30% | 14.58% | ||||
Current at Pmax(Impp) | 5.47A | 2.80A | 2.4A | 4.85A | ||||
Open-circuit current(Voc) | 24.90V | 29.95V | 27.92V | 24.75V | ||||
Short-circuit current(Isc) | 5.67A | 2.97A | 2.59A | 5.01A | ||||

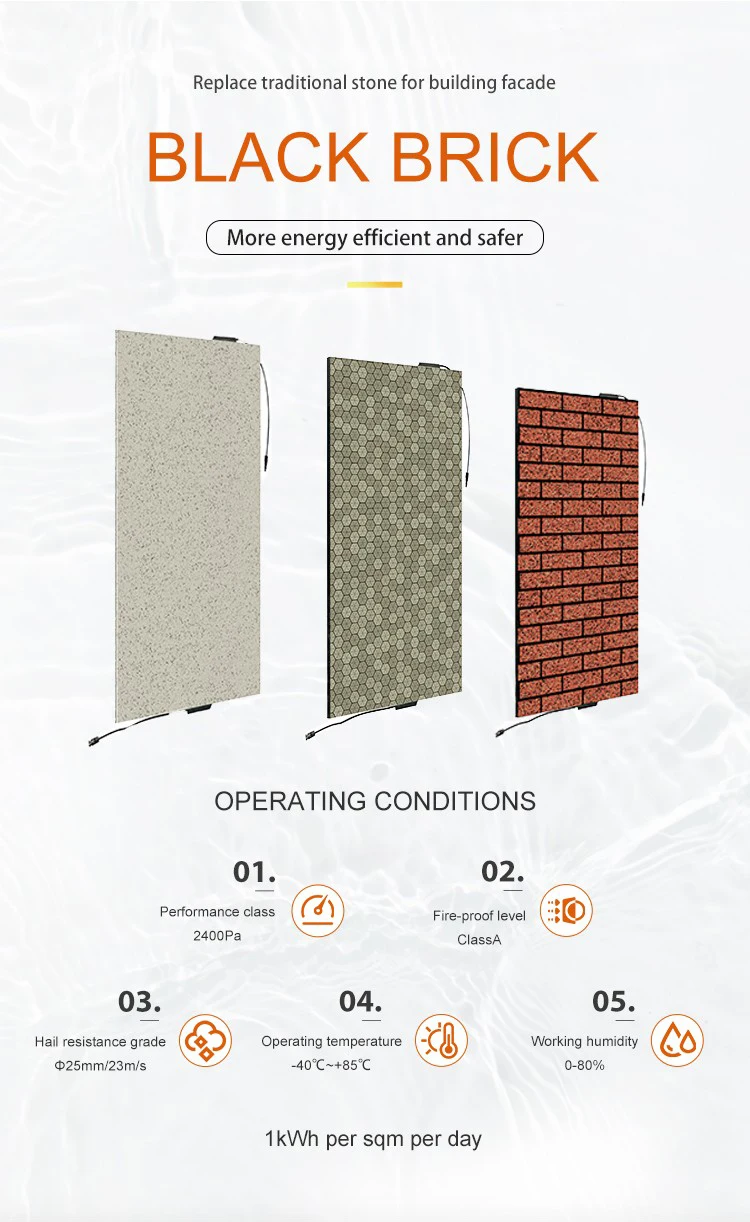

OPERATING CONDITIONS | ||
Maximum system voltage | 1500VDC | |
Maximum fuse rating | 20A | |
Operating temperature | -40℃~+85℃ | |
Max.static load, infront(e.g.,snow and wind) | 5400Pa | |
Max.static load,back(e.g.,wind) | 2400Pa | |
Max.hailstone impact(diameter/velocity) | 25mm / 23m/s | |
Culture
Core Idea:
Pursue excellence and achieve perfection
Corporate Vision:
Provide Green Energy For All
Company Mission:
Sunlight support carbon neutral
Core values:
Innovative Green Open Shared
Slogans:
Provide 0 Bill Green Energy solution for Sustainable Architecture

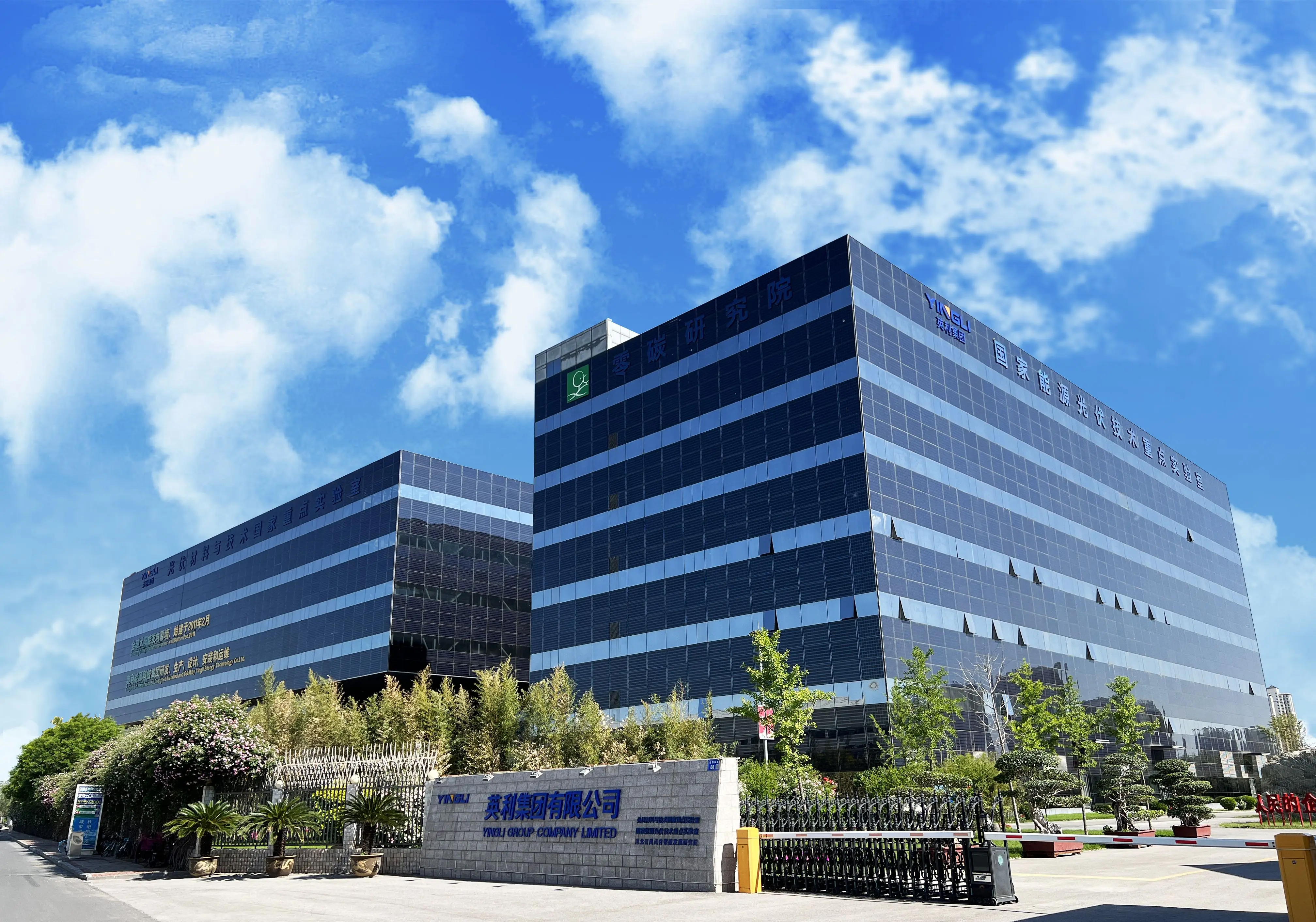

Gain Solar is a an carbon neutral solutions expert company established in 2007, which it is the daugher company of Yingli Group.It can provide the building photovoltaic-integrated (BIPV) green material, we envision a world where solar energy is generated by any surface touched by the sun.
As the prodeesinal BIPV R&D and sales company, we under the support of four National R&D and innovation platforms,including the State Key Laboratory of Photovoltaic Materials and Technology and the National Key Laboratory of Energy Photovoltaic Technology. Ten(10) billions RMB in R&D funds, cultivated over 2,000 professionals in related fields, and launched a total of 12 Generation of BIPV products, hundreds of photovoltaic + products, applied in thousands of PV green buildings. Also Gain Solar have accumulatively applied for 292 patents, edited and participated in the compilation of 16 various standards, the number of patent authorizations and participation in standards ranked first in the industry .
How long does a solar panel last?
Most solar panels have a guaranteed lifespan of 25 years-30years.
Can the solar panel be damaged by wind/snow?
Solar panels are well attached to the roof and can take a beating. The panels are so well secured that they can even withstand speeds of up to 150 km/h . Since the surface of the solar panels is very slippery, the snow will slide off in most cases. As a result, the generation of solar energy is often not hindered. An ice layer can form on the solar panel, which will melt away automatically as soon as it stops freezing.
How much maintenance do I have to do on my solar panel?
Solar panels require little maintenance. Solar panels last at least 25 years, while the inverter lasts 10-12 years. This inverter will therefore have to be replaced halfway through its use. It is advisable to clean the solar panels once in a while, so that optimal solar energy can be generated.
