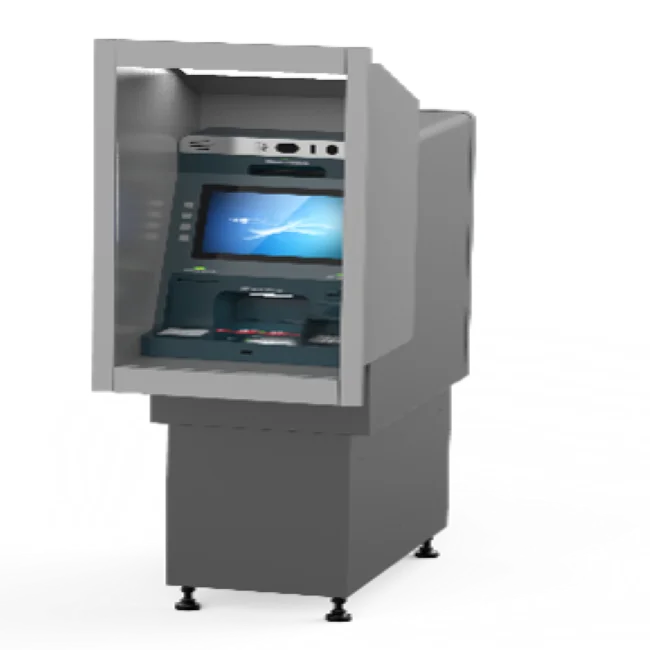

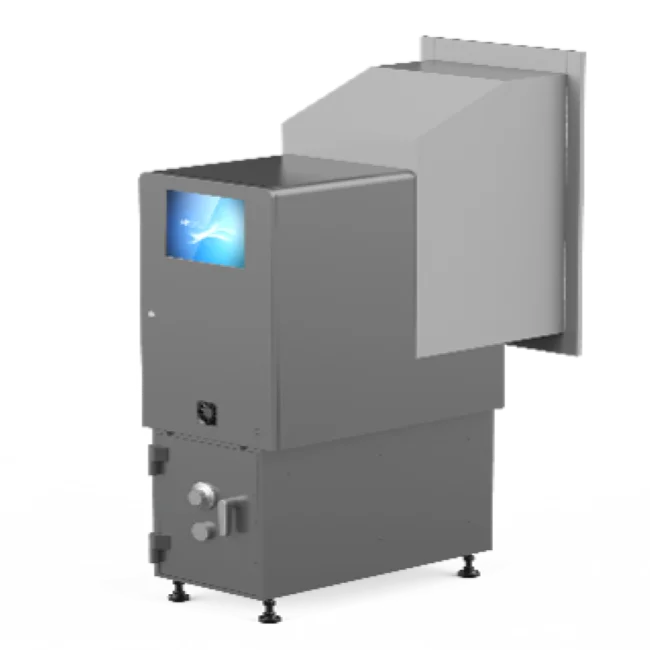

SNBC CRS Bank ATM Machine Cash Payment Kiosk with Touch Screen SDK Function Efficient Cash Dispenser for Banks

Item

Specifications

Cash

CNY, EUR, JPY, HKD, GBP, INR, PKR, RUB, BRL, THB, NPR, BDT, MOP, PHP, AZN, MYR, IDR, SGD, CHF, EGP, BYR, MXN, AED, IRR, AUD, ZAR, CAD, ARS, TRY, LKR, CLP, KZT, COP

Cash Size

Length: 120-180mm  Width 60-85mm

Speed

Deposit: ≥12/S   Withdraw: ≥12/S

Cash-in/out Pocket Capacity

With shutter ≥300 circulating notes(Equal to 600PCS new notes with thickness of 0.11mm)

Metal Shutter

Support

Escrow

≥300 (Equal to 600PCS new cash with thickness of 0.11mm)

Cassette

1 Appearance Cassette. 4 Recycling Cassettes

Cassette Capacity

Single denomination recycling cassette, acceptance cassette; ≥3400 new notes ( thickness: 0.11mm)

Dual denomination recycling cassette:

Cassette 1 ≥1800 new notes ( thickness: 0.11mm)

Cassette 2 ≥450 new notes ( thickness: 0.11mm)

Power

AC 100-242V,50Hz±1 HzZ

Max. 600VA (working),200VA(Idle)

Reliability

Lifetime: 10 years

MTBF≥6000 hours

MCBF (Withdraw) ≥20000 Transactions

MCBF (Deposit) ≥10000 Transactions3

MTTR ≤ 30 minutes

Environment

Operation:0℃~45℃,20%~90% RH(40℃)

Storage:-40℃~55℃,20%~93% RH(40℃)
