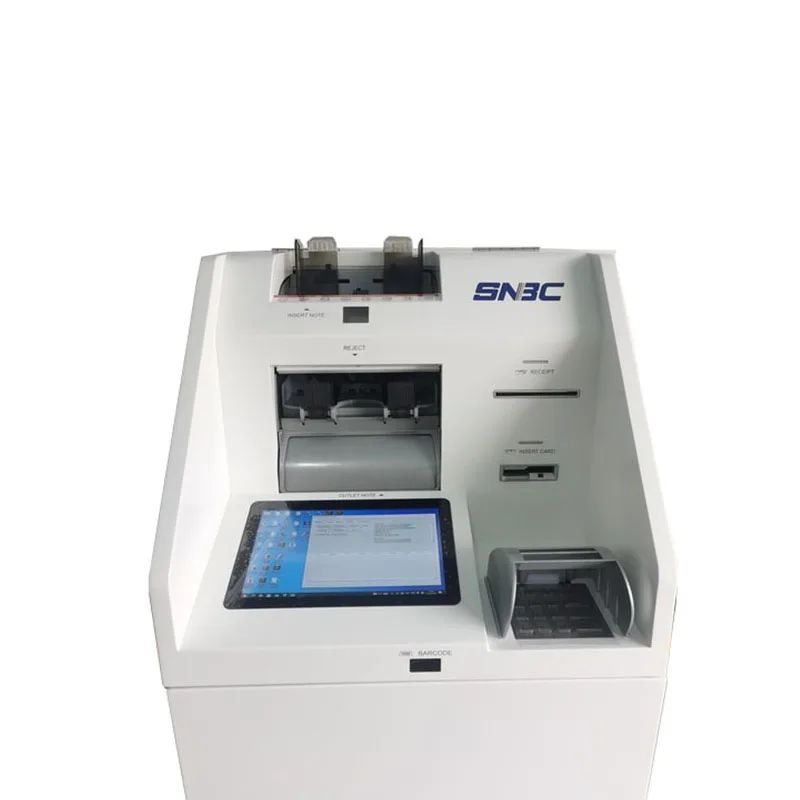

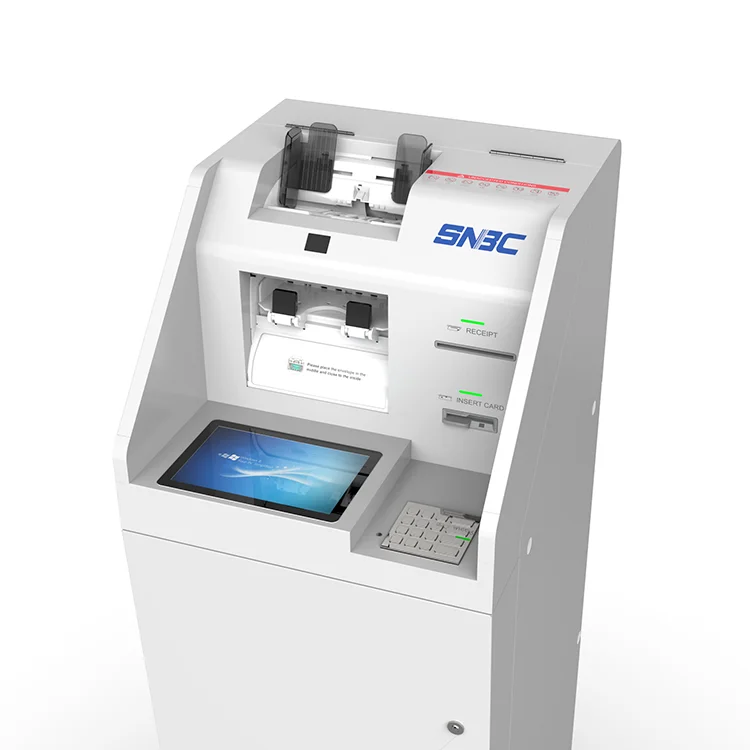

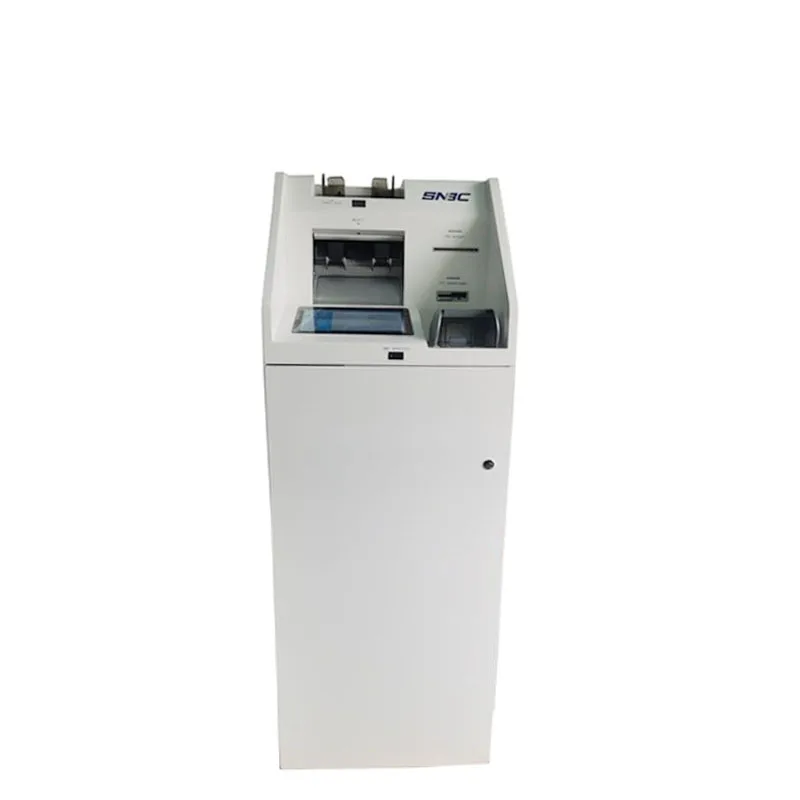

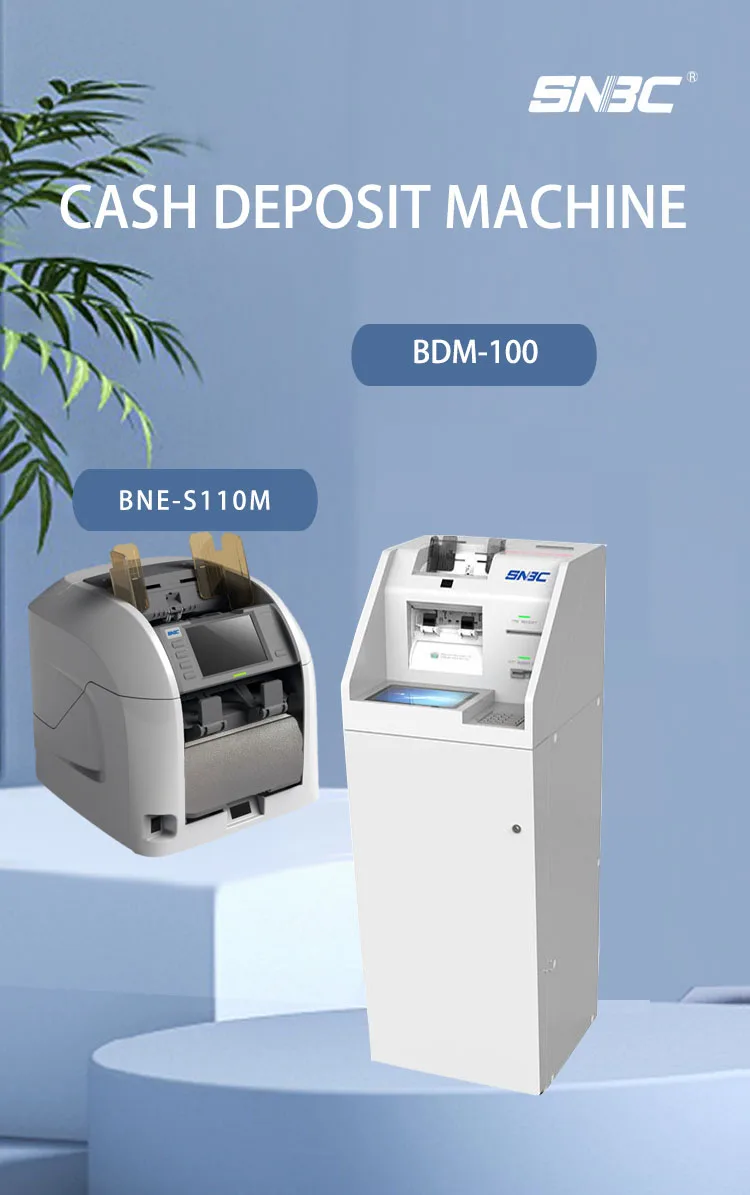

SNBC CDM Modern Design Cash Deposit Machine Undercounter bank cash deposit atm machine with Cheque Scanner Bill Acceptor

Item

Spec.

Size

750mm*550mm*420mm ( H*W*D)

(Width of safe 340mm , 550mm is width for installation)

Banknote processing

Counterfeit detection, mix counting, denominations sorting

Currency

All denomination of fifth version CNY

EURO, RUBLE, RUPEE, REAL etc.

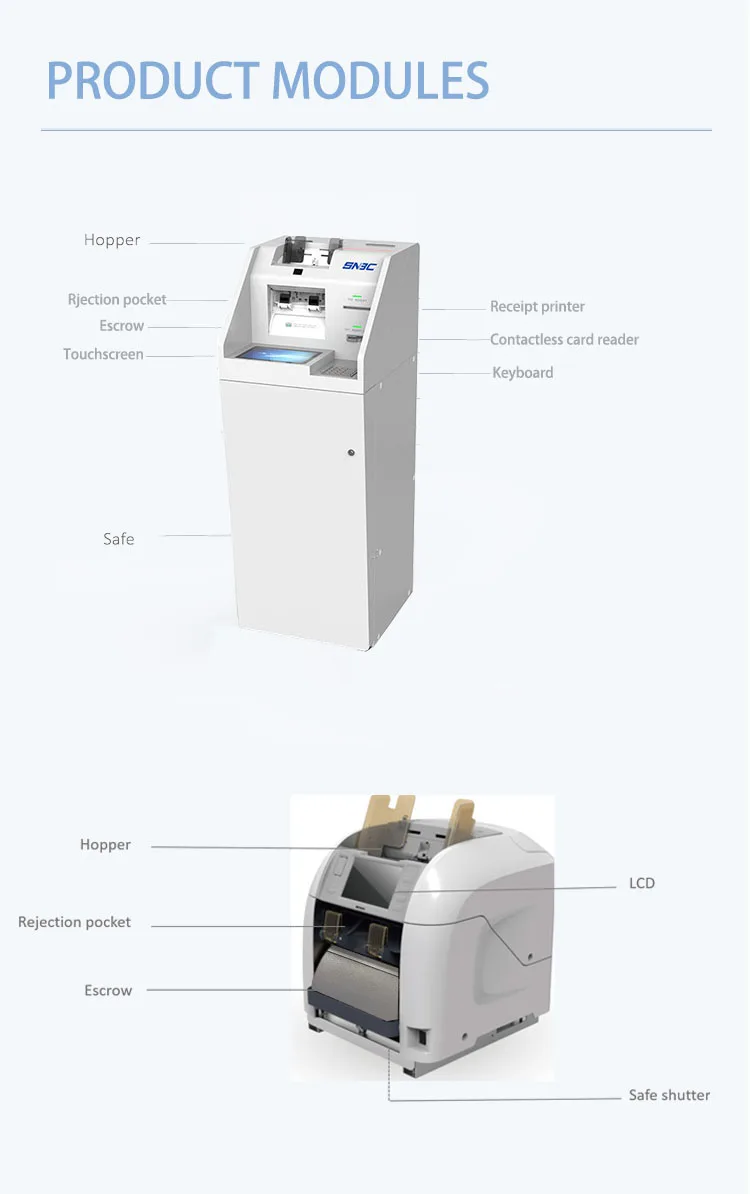

Hopper

500pcs capacity, feeding speed 700pcs/min, paper exist sensor

Detection technology

White light IR, MG, UV thickness, Optically Variable Ink

Reject

100pcs capacity; reject full sensor

Escrow

200pcs capacity anti-fishing anti clamp hand, special design to push notes into safe completely

Cash bag

Size 281(L)*268(W)*327(H)mm or 673(H)mm , Weight 3Kg, Capacity 3500pcs or 8000 pcs(Max.)

Material: 5052-H32 aluminum alloy

Key to open the bag is the same as key to open other bags

Sensors to detection capacity of cash bag and shutter status

Safe

8mm steel coded lock

Touch screen

5inch touch screen, resolution 800*480dpi

Thermal printer

Print wide 48mm, paper width 57mm (Max.), tear off, paper roll OD 50mm(Max.)

Interface

RS232,USB, Ethernet WIFI, 3G/4G antenna

Contactless card reader

Support ISO14443 Type A & Type B contact less card

Reading distance of Type A card is less than 4cm

Reading distance of Type B card is related to card
