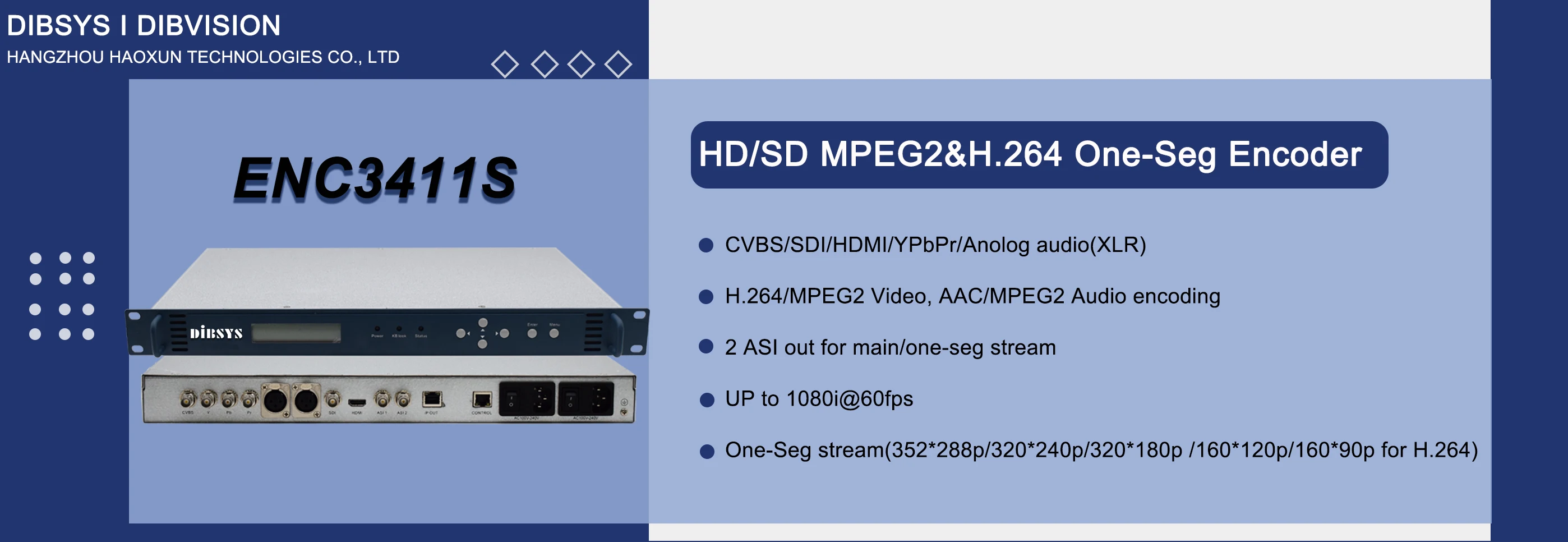

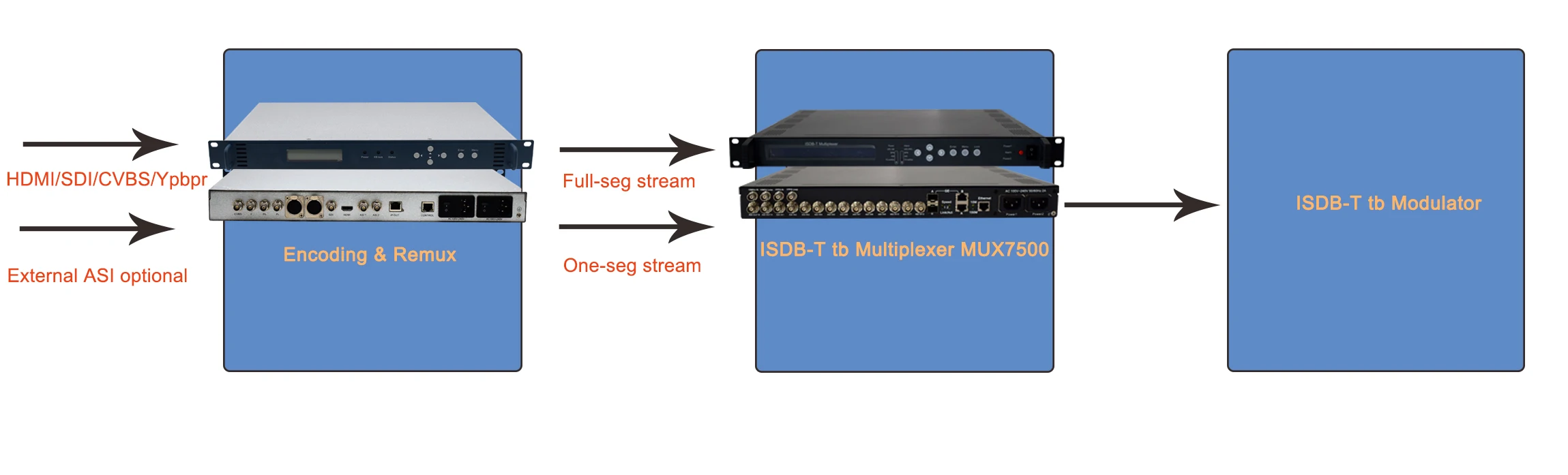

Encoder single channel hd mi sdi cvbs input encoding and remux to one seg full seg 1080i60 hd/sd encoder

 Input

Video Input

1 x CVBS, 75Ω, BNC

1 x Digital SMPTE 292M (HD-SDI )

digital video, BNC

Connector: BNC

HD/SDI embedded audio

DVB-ASI Input  (optional)

Built-in multiplexer for encoder cascading

Output

DVB Interface

Two identical ASI, Comply to EN 50083-9 ASI Standard, BNC, 75Ω

IP output

100/1000M Base-T Ethernet UDP/RTP output,Multicast/Unicast supported

Output Format

188 /204 bytes per UDP packet

Output Rate

0.25Mbps~20Mbps

Video One SEG/PIP

Resolution

PAL

352*288i/320*240i/320*180i/

176*144i/160*120i/160*90i @50Hz

NTSC

352*288i/320*240i/320*180i/

176*144i/160*120/160*90i @59.94Hz

Encoding

MPEG-2; H.264; Auto (follow the main stream format: MPEG-2 or H.264)

Aspect ratio

4:3; 16:9 Auto (follow the main stream)

Video PID

32 – 8190

Audio PID

Frame Rates

50fps, 59.94fps

Video Full-seg

Video format

MPEG-2/H.264 MP@ML 4:2:0

Resolution

1920 x 1080i @60/50fps,                                          1280 x 720P@60/50fps,

720 x 480i @60fps, 720x576i @50fps

In MPEG-2 encoding, only support SD output

Bit rate mode

GOP Structure

IBBP, IPPP, IBP, IBrBBP

Audio Encoding

Sampling Rates

48KHz, 44.1Khz, 32Khz

Bit rate

64, 128, 192, 256, 320 384kbps

MPEG-1 Layer II, MPEG-2 AAC-LC,

MPEG-4 AAC-LC, MPEG-2 HE-AAC,

MPEG-4 HE-AAC

24bit

0 ,+-6db, +-12db

Data Processing

PSI/SI Edition

PMT PID, Video  Audio, PCR PID, Service ID

Program Name, Service Provider TS id

PCR Interval

Management

Interface

1*RJ-45, 10/100 Base-T, for equipment IP Control

Remote Control

Web management

Local Control

LCD display and keypad

Environment

Comply to GB13837-92 & GB8898-88 standard

Power Supply

AC 100-250V 50/60Hz

Power consumption

20 W

Operation temperature

-10 - 50°C

Storage temperature

-10 - 75°C

Dimensions

450*350*44mm  (1RU)

Weight

5Kg

ENC3411S

ENC3411

ENC3711Pro

video interface

1×SDI, 1×CVBS, 1×YPbPr, 1×HD

1×SDI, 1×CVBS, 1×YPbPr, 1×HD

1×HD, 1×HD-SDI

Video Encoding

MPEG-2/SD;

MPEG-4 AVC/H264 HD/SD

MPEG-2 HD/SD;

MPEG-4 AVC/H.264 HD/SD

HEVC/H.265 HD

MPEG-4 AVC/H.264 HD

Rate Control

CBR/VBR

CBR/VBR

CBR/VBR

GOP

IBBP, IPPP, IBP, IBrBBP

IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB

IPPP, IBBP

Bit Rate

0.25-20Mbps

0.25Mbps~60.5Mbps

HEVC/H.265: 0.5 – 20.00 Mbps

MPEG-4 AVC/H.264: 4 – 20.00 Mbps

Resolution

One-seg

PAL ---352*288i/320*240i/320*180i

/176*144i/160*120i/160*90i @50Hz

NTSC---352*288i/320*240i/320*180i/

176*144i/160*120/160*90i @59.94Hz

1920×1080i

1280x720p

720×576i

720×480i

One SEG/PIP: 96×96, 128×96, 128×128, 192×192, 352×240, 352×288, 416×240

1920×1080p @60/59.94

1920×1080p @50

1920×1080i @60/59.94

1920×1080i @50

1280×720p @60/59.94

1280×720p @50

1920 x 1080I@50/59.94/60fps

1280x720p @50/59.94/60fps

720x480, 720x576

Audio Interface

2*XLR(balanced) SDI/HD embed audio

1*Digital (AES3/EBU), 2*Analog R /L and 2*XLR (balanced/unbalanced)

2×XLR, 2×AES, 2×RCA, SDI/HD embeded audio

Audio Encode

MPEG-1Layer2/MPEG2/AAC Audio

MPEG-1 Layer II,HE-AAC (v1&v2),

LC-AAC; DD AC3 passthrough

MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 passthrough (for SDI and HD)

Audio Channel

1 Stereos

Up to 2 stereos

Up to 2 stereos

Chroma

4:2:0

4:2:0

4:2:0

ASI output

YES

YES

YES

IP out

MPTS/SPTS over UDP/RTP

MPTS/8*SPTS over UDP/RTP

MPTS over UDP / RTP /RTSP
