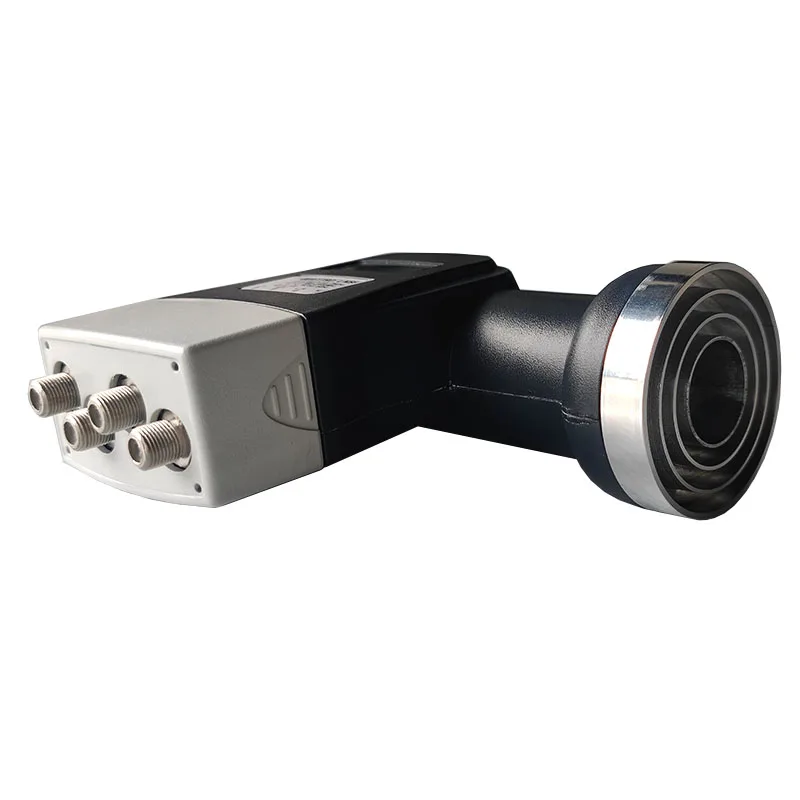

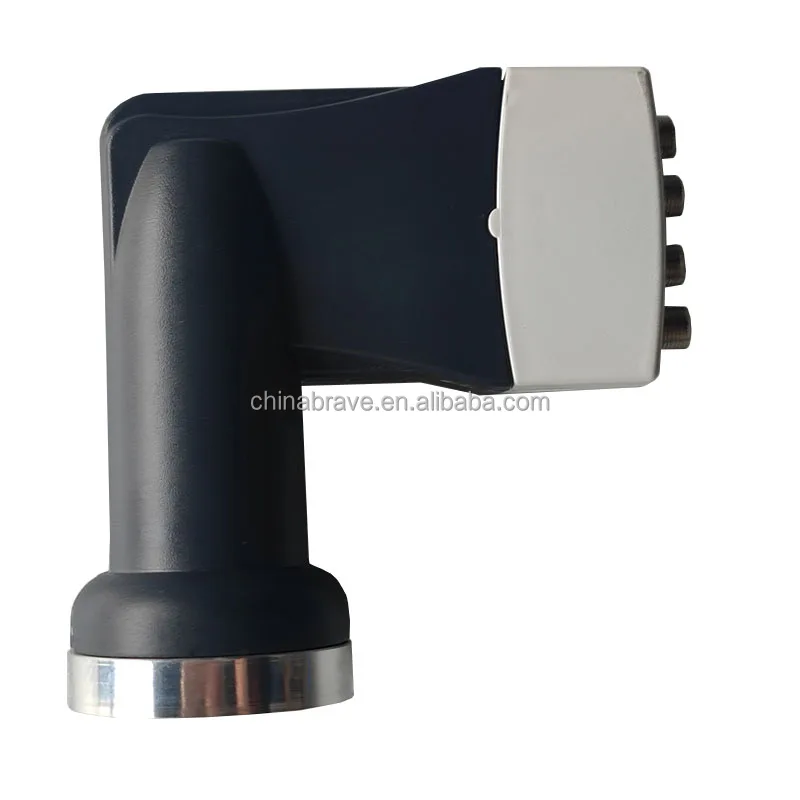

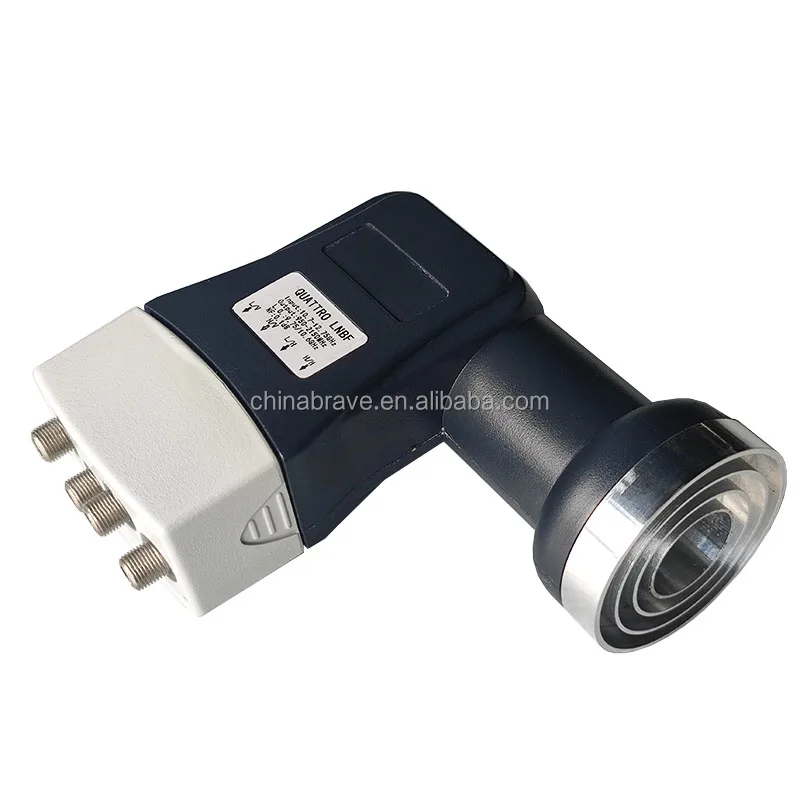

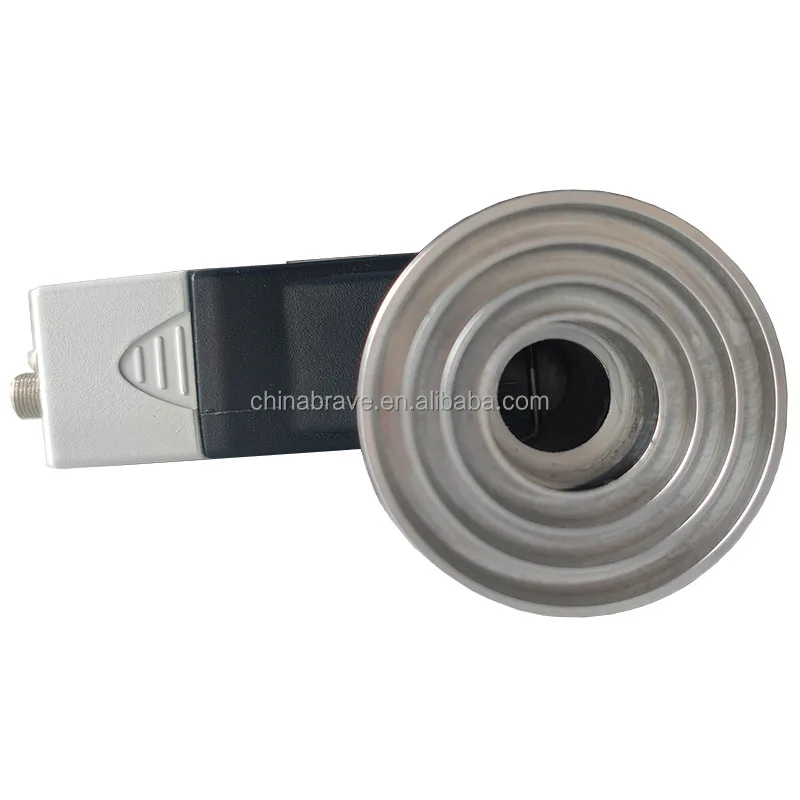

High gain Quattro LNB KU band 9.75GHZ 10.6GHZ with four ports Low Noise

Product Overview

Description



KU band Quattro LNB  with prime focus Separated V/H  Quattro LNB  4 outputs

Input Frequency	10.7-11.7GHZ ,11.7-12.75GHZ
Output Frequency	950-1950MHZ ,1110-2150MHZ
L.O. Frequency	9.75GHZ, 10.6GHZ
L.O. Stability	Low Band:±1MHz(-40centigrade to +70centigrade) High Band:±1MHz(-40centigrade to +70centigrade)
Noise Figure	0.1dB
Conversion Gain	65db
Intput VSWR	2.5:1(max)
Output VSWR	2.0:1(max)
Output Connector	F-female Connector
Output Impedance	75Ω
Cross Polar Isolation	20dB(min)
Supply Voltage	1)Ca:11.5-14.0v(Vertical Polarization) 13VDCType  2)Cb:16.0-19.0v(Horizontal Polarization)18VDCType
Direct Current	150mA
Control Signals	1).Low Band:Ca or Cb(see below) 2).High Band:Cc or Cb(see below) 3)Cc:continues 22KHz
Operating Temperature	-40centigrade to +70centigrade
Storage Temperature	-40centigrade to +80centigrade
Relative Humidity	0%-95%
Phase Noise	1)-50dBc/Hz@1kHz(max)  2) -75dBc/Hz@10kHz(max)  3) -95dBc/Hz@100kHz(max)
Image Rejection	45 dB (min)

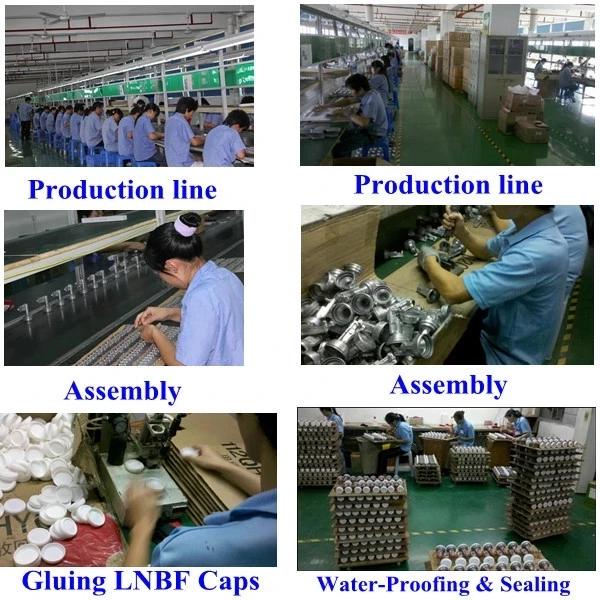

Factory show:

Welcome to Anhui Bowei Electronics Technology Co., Ltd

Bowei Electronics is a professional manufacture 26 years specialized in LNB, MMDS down converter and Antenna etc.Anhui Bowei Electronics Technology Co., Ltd is a National High-tech Enterprise mainly engaged in the research, development, production, fabrication, marketing of microwave high frequency electronics and over-voltage and over-current protection equipment



Our products command a good market both at home and abroad. Microwave High Frequency Electronics are mainly exported to Europe, Southeast Asia, Middle East, North America etc. 86 countries and areas. In the domestic markets, Anhui Bowei Electronics services for the national Radio and Television“Hu Hu Tong” Household Project and also supports the digital improvement for Regional Radio and TV Cable Network Companies. Meanwhile, Over-voltage and Over-current Protection Equipment are widely distributed around the country and mostly applied in fields of electricity, petroleum, chemistry, metallurgy, cement and steel.
