Factory price fully automatic portable YHZS60 60M3/h concrete batching plant for sale
- Category: >>>
- Supplier: Zhengzhou Unique Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601353702826):
Product Overview
Description
Product description

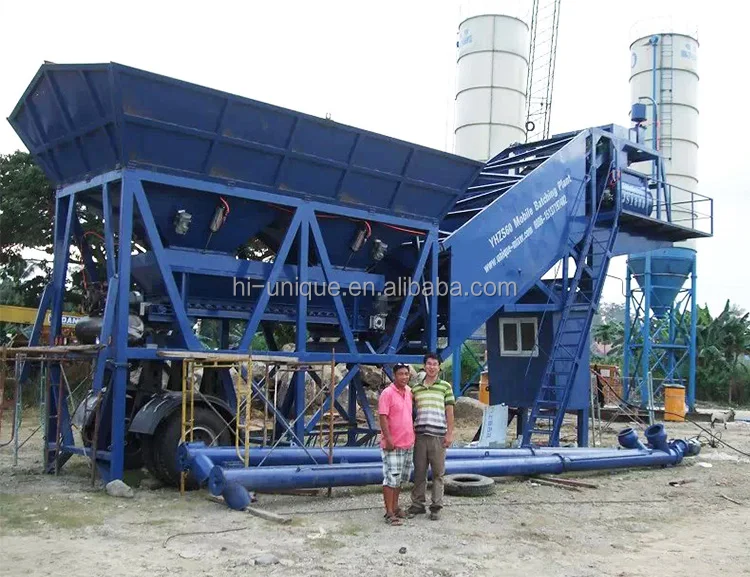

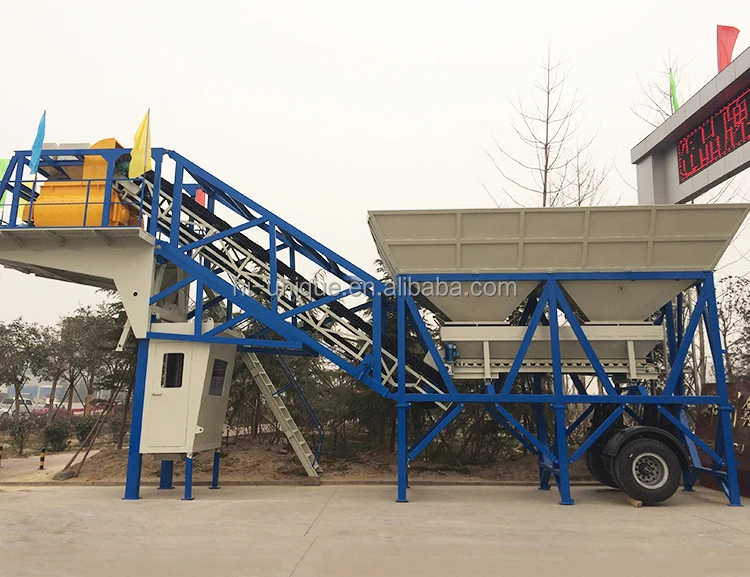

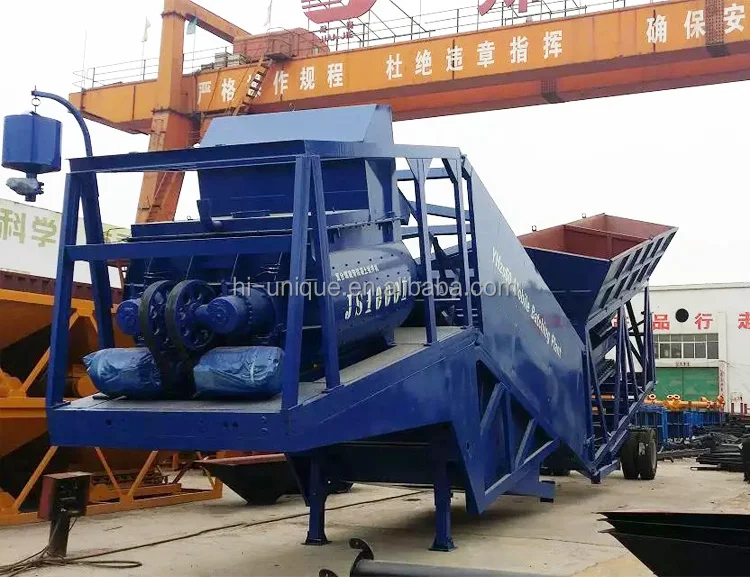

Mobile Concrete Batching Plant is a movable equipment, which is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc.YHZS series concrete batching plant is a fully automatic concrete mixing equipment consisting of batching, mixing, electrical control system, powder system, etc. It has a high-precision microcomputer control system.
Introduction:

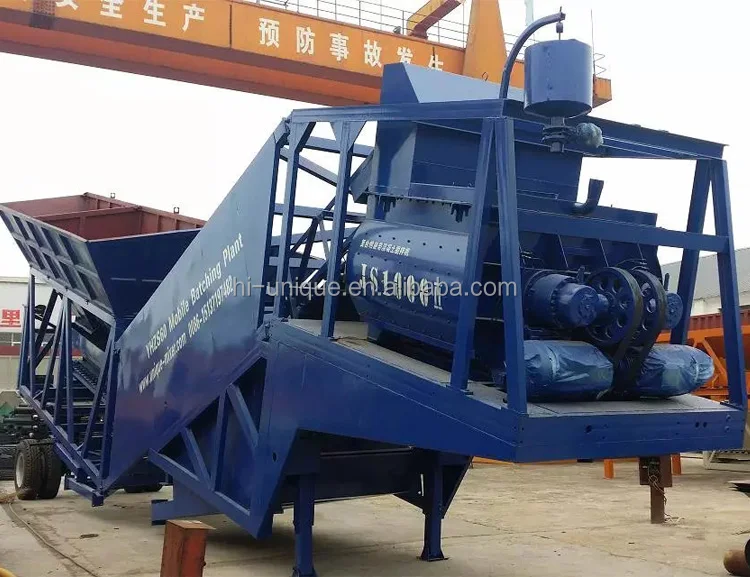

Hauling type mobile concrete mix plant adopts the semi-pulling design. With running system and standard traction pin, YHZS series hauling type mobile concrete mix plant can be dragged by a tractor, which enables convenient and quick movement and installation without foundation and debugging. It takes only one day from installation to operation.
Parameters:
| Model | YHZS25-30 | YHZS35-40 | YHZS50-60 | YHZS75-85 | YHZS90-100 |
| Capacity | 25-30m3/h | 35-40m3/h | 50-60m3/h | 75-85m3/h | 90-100m3/h |
| Mixing system | Twin shaft concrete mixer | ||||

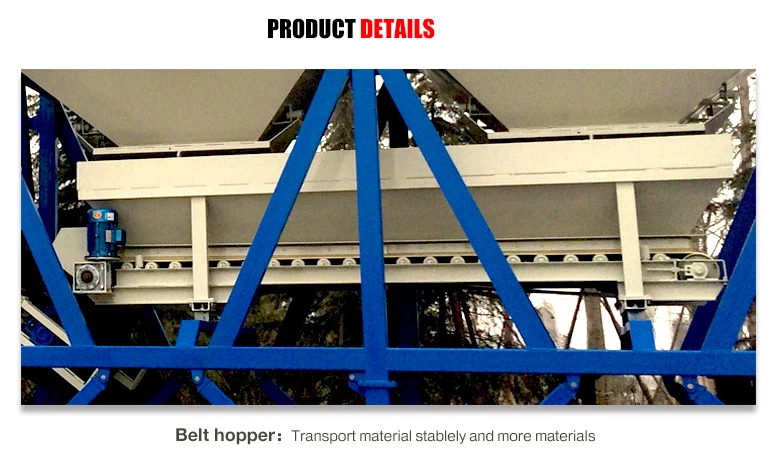

| Aggregate feeder | Belt conveyor | ||||
| After-sale service | Erection & commissioning, operator training | ||||
| Warranty | 12 months after erection | ||||
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Discharging volume | 500L | 750L | 1000L | 1500L | 2000L |
| Mixing circle | 72s | ||||
| Max. mixing size | 80/60mm | ||||
| Aggregate Bins | 4x4m3 | 4x5m3 | 4x6m3 | 4x7m3 | 4x8m3 |
| Weighing system | Water, Cement, Additive | ||||
| Control System | SIEMNS PLC+PC | ||||
| Weighing precision | ±1% | ||||
| Air system | Air compressor, etc | ||||
| Control system type | Computer auto-control module (PLC can be optional item) | ||||

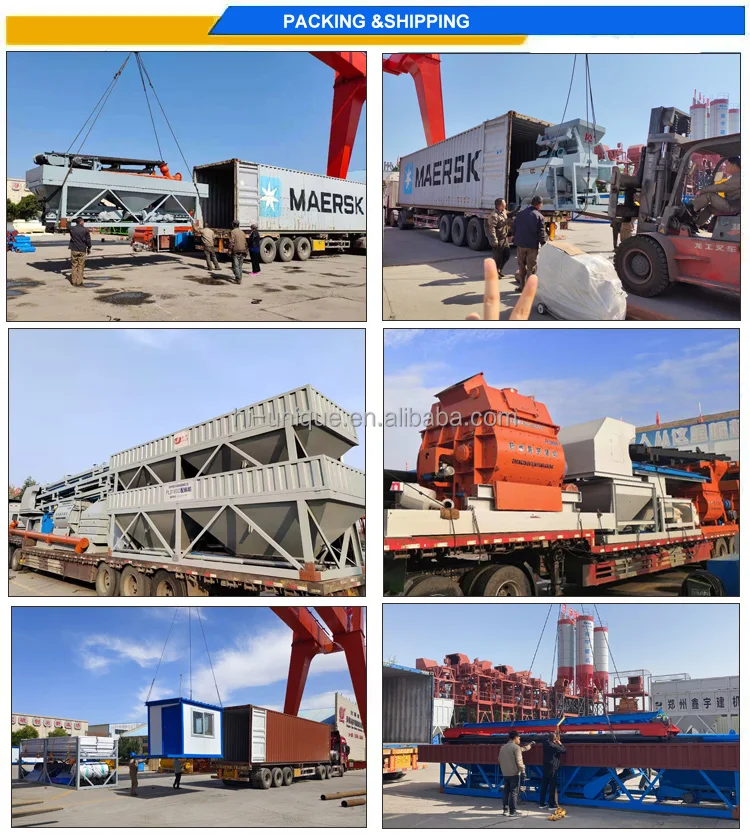

Packaging & Shipping
Customer visit
Company profile
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Pumps and Block Making Machines and etc…
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: How many types of concrete batching plant you have?
A:Two types. We have stationary concrete batching plant and mobile concrete batching plant.
Q5: What’s the capacity of concrete batching plant do you have?
A:The capacity of concrete batching plants range from 25m3/h to 150m3/h.
Q6: Is the belt conveyor necessary?
A: No. The discharging height of concrete batching plant is 1m. If your discharging height is higher, the belt conveyor is necessary. It can reach 3.5/3.8/4.0 meters.
Q7: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
