JNN 4KW 7.5KW 15KW 3 phase Automatic Intelligent Pressure Control Pump Controller For Water Pumps
- Category: >>>
- Supplier: Yueqing Haiyin Electric Co. Ltd.Yueqing Ltd.
Share on (1601353720095):
Product Overview
Description
Product Introduction
S5-1 Pressure pump controller

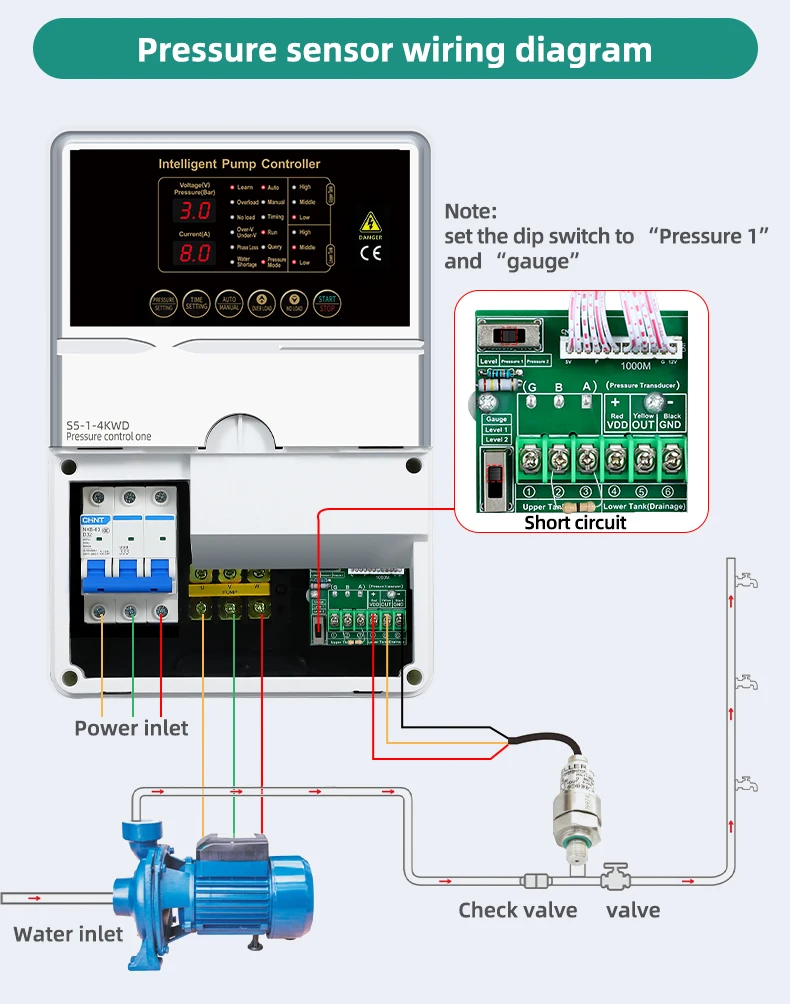

This model is designed for pumps that need to be controlled using pressure sensors, level sensors, remote pressure gauges with pressure tanks, and also supports water level controllers. It is equipped with water shortage protection, real-time display of current, voltage and pressure. If you are looking for pressure sensor water pump controller, this is what you need.

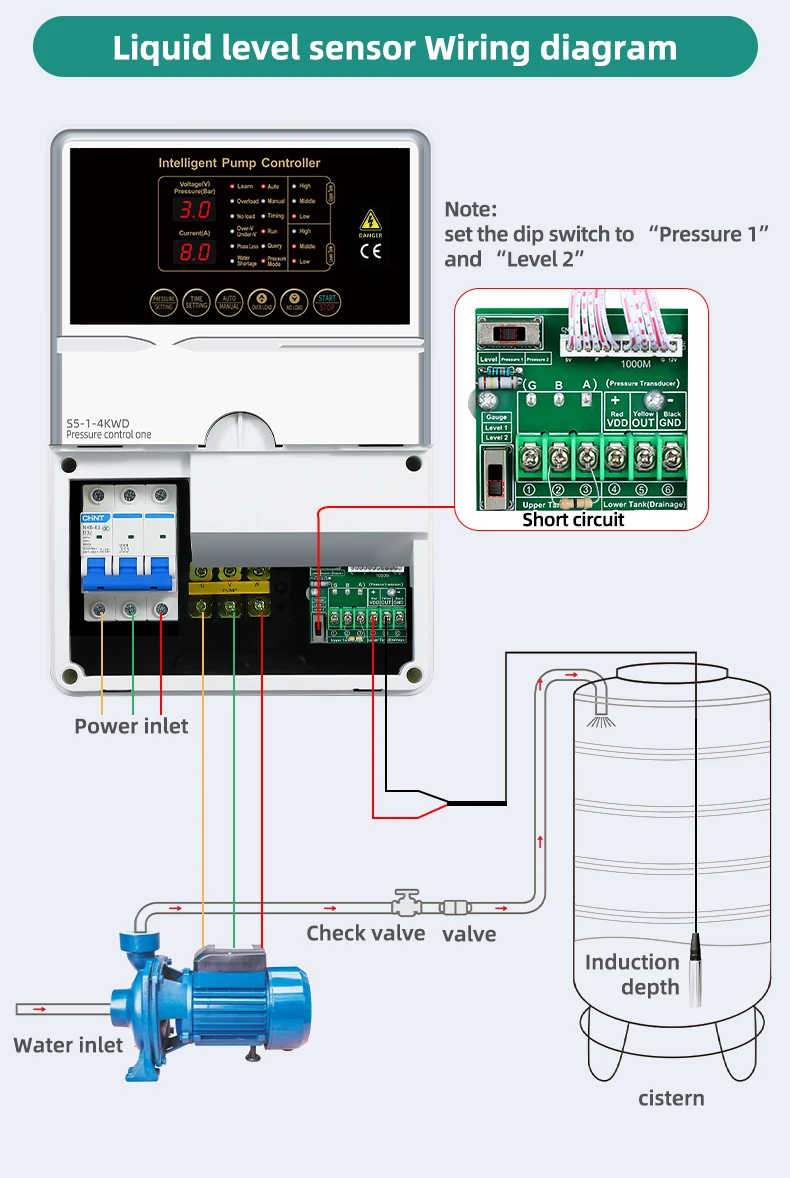

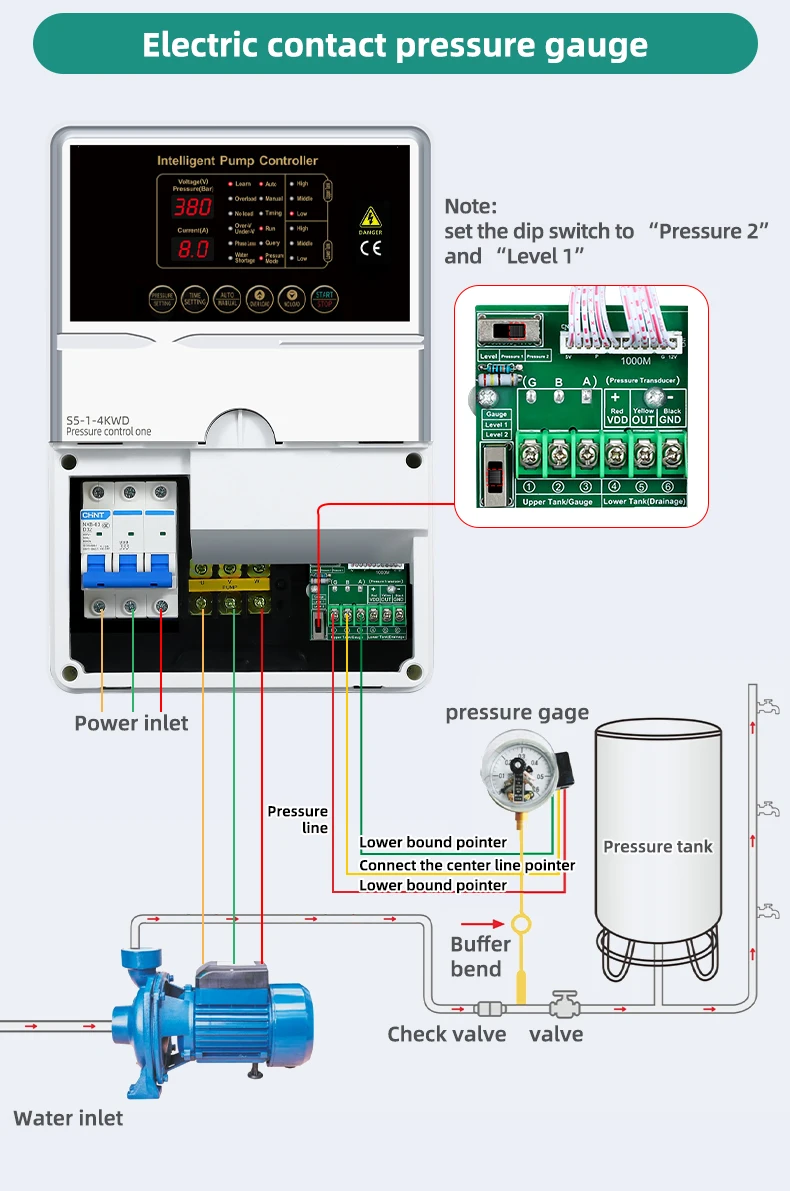

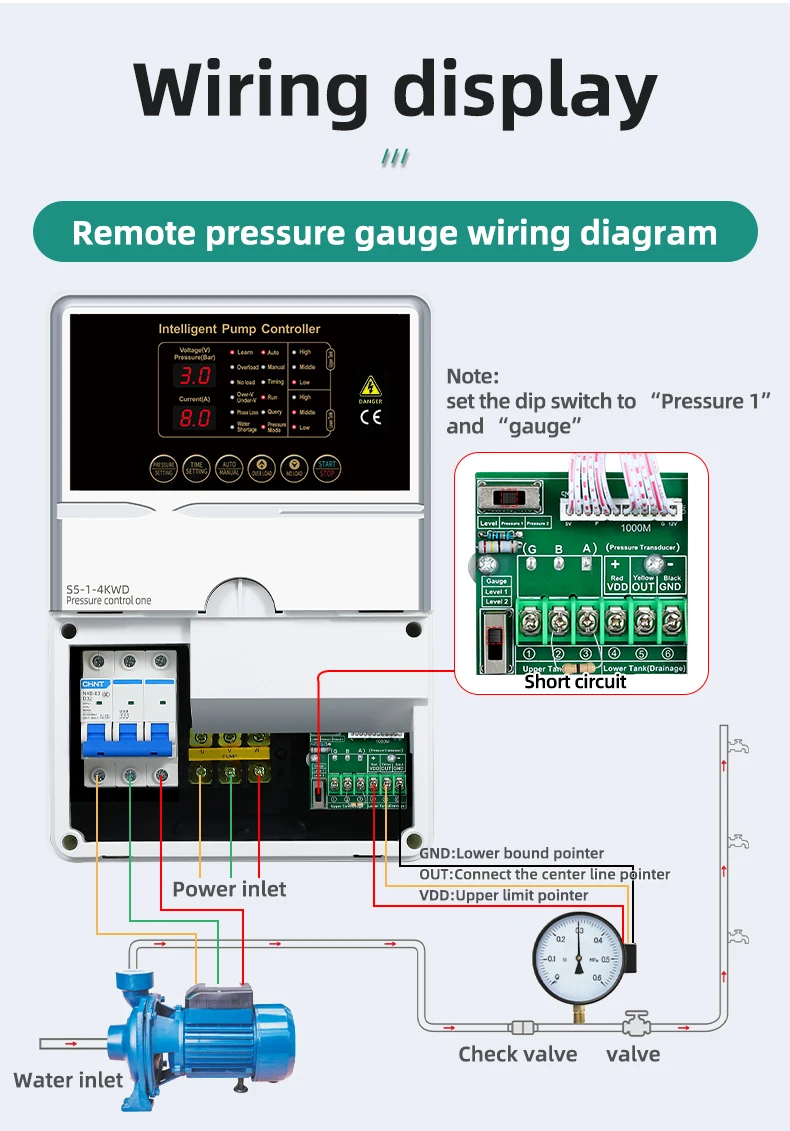

Supports the use of pressure sensors, level sensors, remote pressure gauges, electric contact pressure gauges, water level probes, float ball
Support control of various water pumps: submersible pumps, deep well pumps, sewage pumps, booster pumps, pipeline pumps, centrifugal pumps, etc.
Wide range of applications, using a variety of use scenarios
1：Residential water supply system
2：Industrial water supply
3：Sewage treatment
4：Building fire protection
5：Secondary water supply pressure
6：Irrigation for garden&farm
7：Agricultural irrigation
8：Swimming pool circulating water
4：Building fire protection
5：Secondary water supply pressure
6：Irrigation for garden&farm
7：Agricultural irrigation
8：Swimming pool circulating water
Multiple Function
Timed start/stop，Anti-rust
Automatic re-starting pump from dry running
Latest 10 Fault indication
Automatic learning of overload and no-load currents.
Automatically restarts when power is restored.
Automatic re-starting pump from dry running
No-load restart

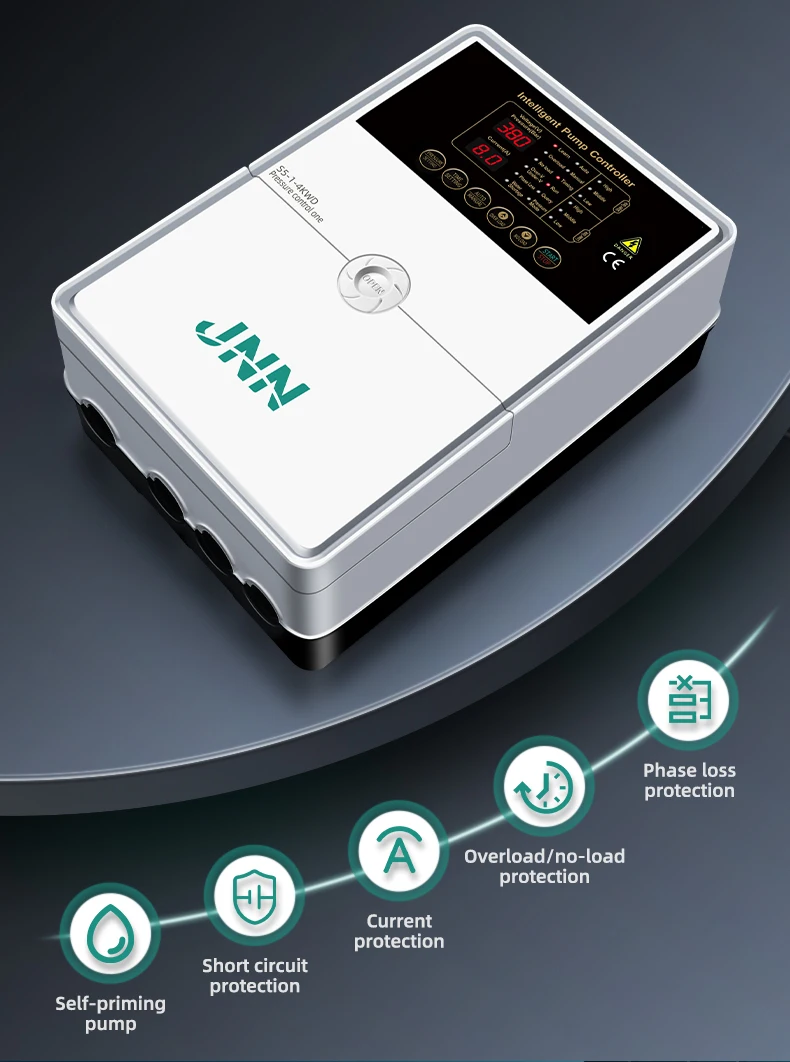

Multiple Protection
Dry run，Overload，No load，Over/under-voltage，Water shortage，Pump stalled，Anti-seizing，Short circuit，Phase loss，Pipeline water shortage
Details Images

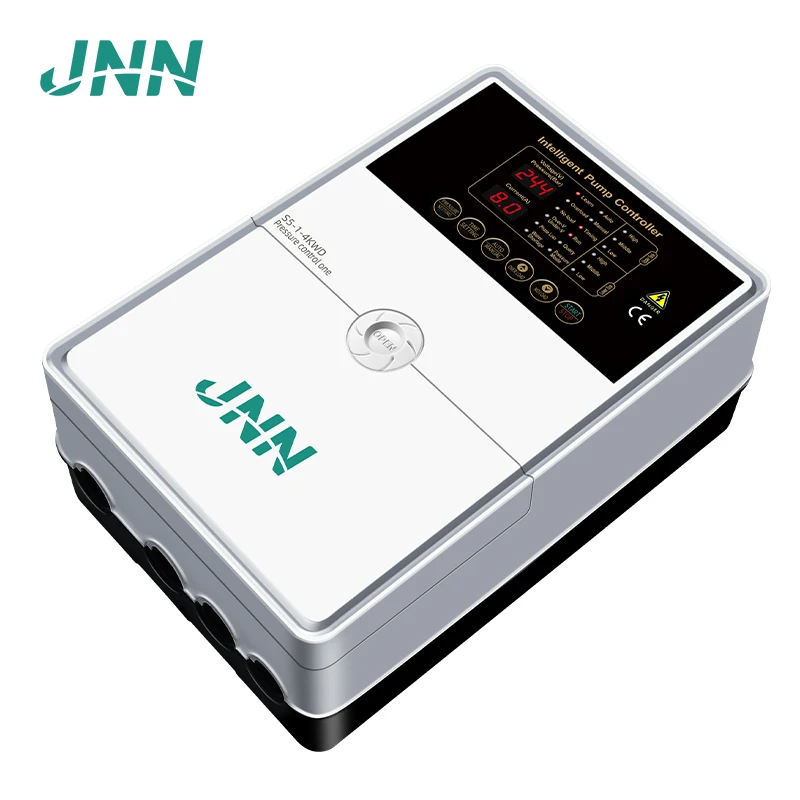

Single pump controller, built-in small circuit breaker and AC contactor, receive the product, you can connect the pump and power use. Simple installation, convenient operation

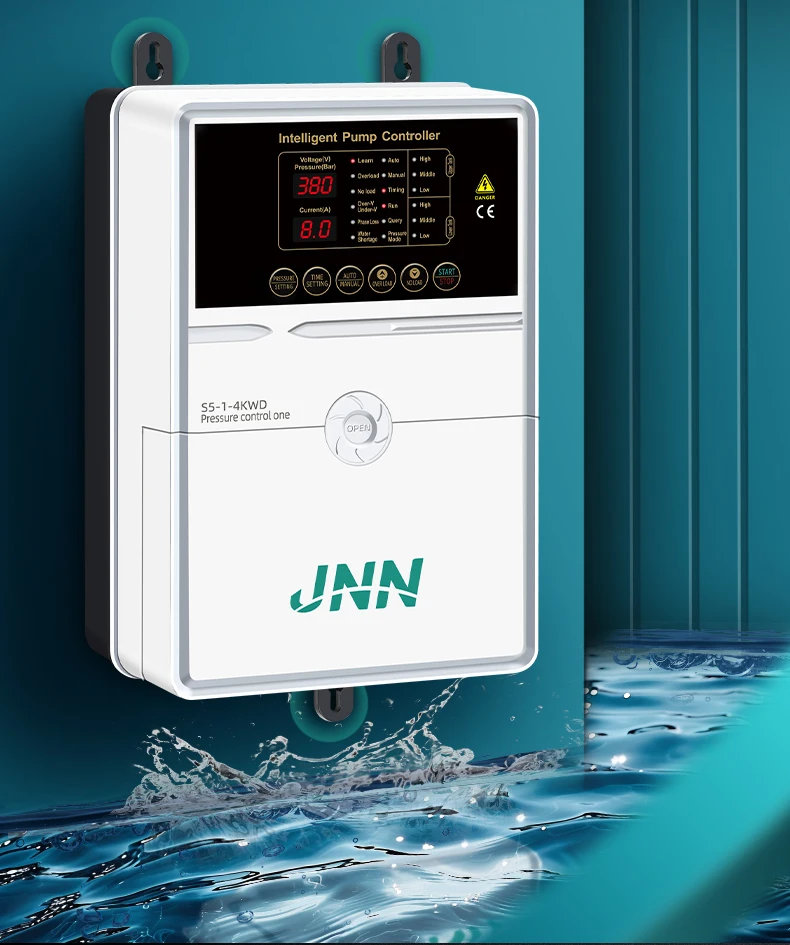

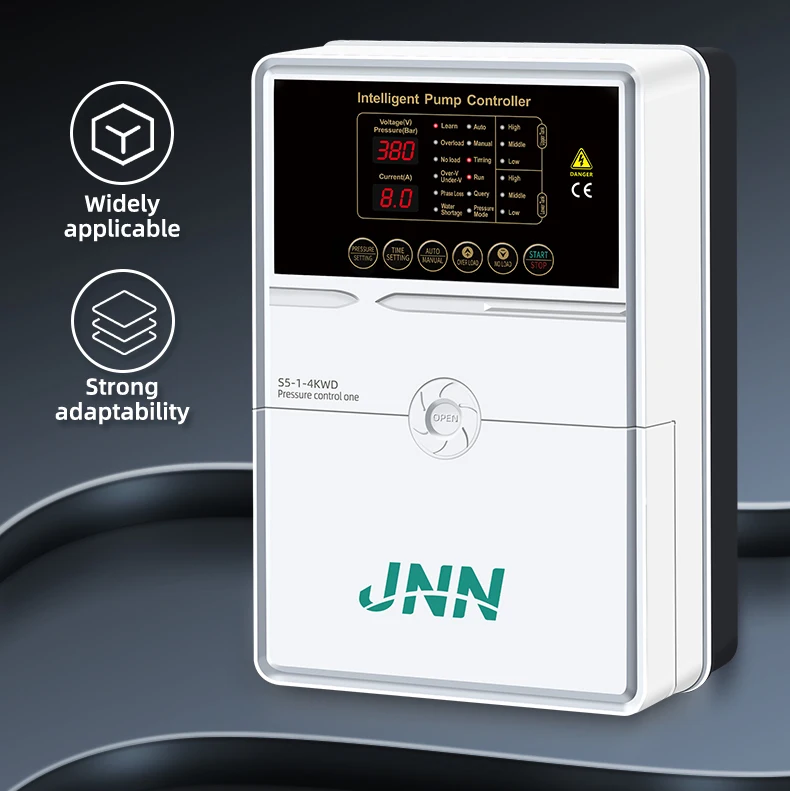

LED display screen with water level indicator, function indicator, current and voltage display. Function and fault enquiry are clear and easy to understand
Product Name | Intelligent Water Pump Controller | ||||||||||||
Type | S5-1 | ||||||||||||
Model | 4KW-15KW | ||||||||||||
Main Parameters | 1,Rated voltage:3-phase AC380V+10% or 1/3-phaseAC220V+10% (50Hz-60Hz) 2,IP rating: IP26 3,Material: stainless steel shell 4,Working temperature:-20ºC-- +80ºC 5,Max. control distance:≤2000m without strong electric and electromagnetic fields 6,Working humidity:20%--90%RH, no drips concreted 7,Qty.of Controlled Pump:Single pump 8,Over-voltage/under-voltage: default AC304V-456V or AC176V-264V (adjustable) 9,Over-voltage/under-voltage trip time: ≤3 seconds 10,Phase loss trip time:<2 seconds | ||||||||||||
Qty.of Controlled Pump | Single pump | ||||||||||||
Installation Instructions
Company Profile
Yueqing Haiyin Electric Co, Ltd.

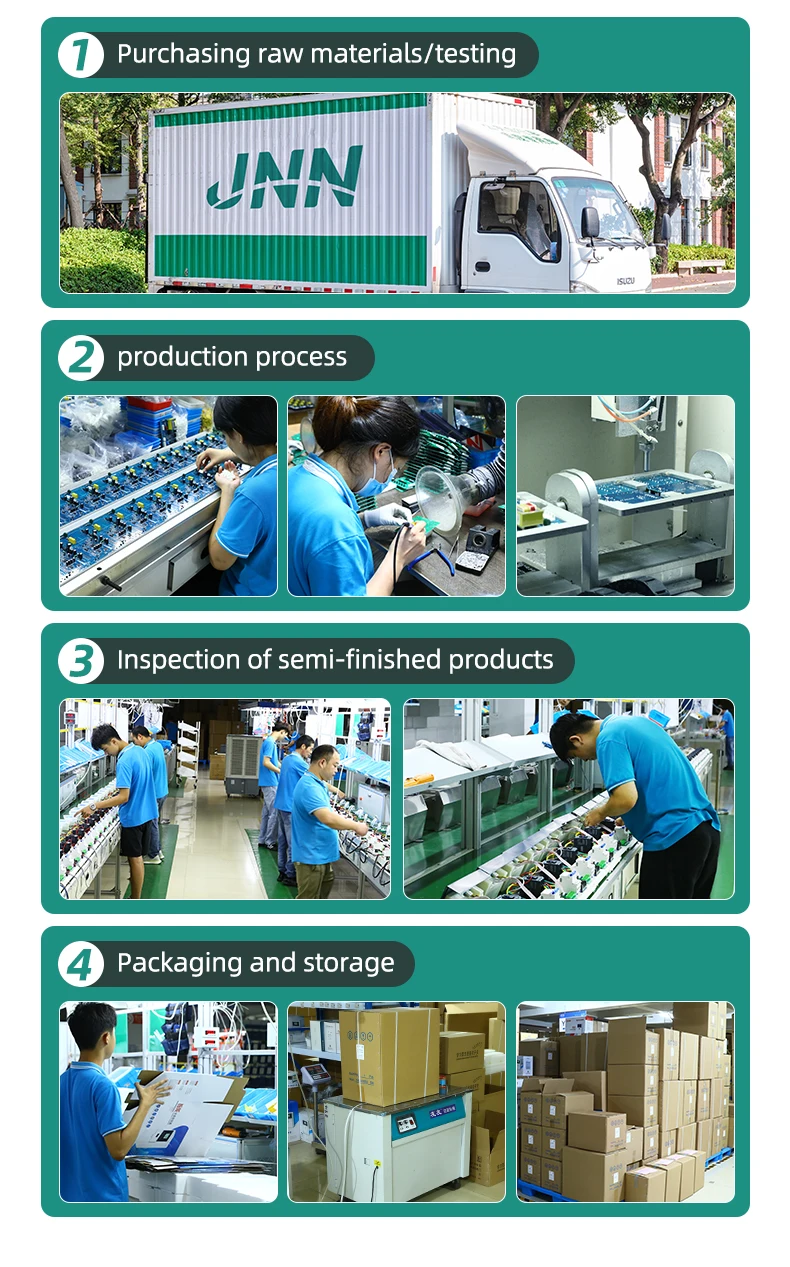

is a technology company specializing in intelligent motor control and protection system solutions. Our company has technical,production, engineering and business epartments, with strong R&D and production
capabilities,and can provide users with water pumps, motors,fans,fire protection, boilers and other intelligent controller series product design, development, system integration,automation and other services.
At present, the company has mainly developed several major categories of products,namely: intelligent water pump controller, fan, auto-coupling step-down starter cabinet, soft starter cabinet, frequency conversion cabinet, fire protection intelligent controller, boiler floor heating and air energy circulation pump intelligent control protector.
capabilities,and can provide users with water pumps, motors,fans,fire protection, boilers and other intelligent controller series product design, development, system integration,automation and other services.
At present, the company has mainly developed several major categories of products,namely: intelligent water pump controller, fan, auto-coupling step-down starter cabinet, soft starter cabinet, frequency conversion cabinet, fire protection intelligent controller, boiler floor heating and air energy circulation pump intelligent control protector.
FAQ
Q1 What is Intelligent pump controller?
A:Intelligent pump controller is a device used to control the operation of water pumps. Multiple protection functions, including over-current protection, under-voltage protection, overload protection, etc., to ensure a safe and stable operation of the pump. It is widely used in various water pump systems in industry, agriculture, construction and other fields, which improves the operation efficiency and reliability of pump.
Q2 What is the maximum power of the pump that can be controlled?
A:The maximum power of water pump controller is 30KW, more than 30KW, we recommend you to use inverter or soft starter.
Q3 Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and after shipment we will give you CE /Packing list/ Commercial Invoice/Sales contract for customs clearance.
Q4 Payment terms?
A:Alibaba trade assurance/TT/West Union/PayPal/LC/Cash and so on.
Q5 I don't know how to use after I receive or I have problems when use, how to do?
A:We can provide technical support, Whatsapp/Email/Phone till all of your problems finished.
Q6 I don't know which one is suitable for me?
A:please tell us below information:
1)local voltage:AC/DC,220V/380V,12V/24V
2)Power of the pump:1kw=0.75hp,
3)Number of pumps to be controlled
A:Intelligent pump controller is a device used to control the operation of water pumps. Multiple protection functions, including over-current protection, under-voltage protection, overload protection, etc., to ensure a safe and stable operation of the pump. It is widely used in various water pump systems in industry, agriculture, construction and other fields, which improves the operation efficiency and reliability of pump.
Q2 What is the maximum power of the pump that can be controlled?
A:The maximum power of water pump controller is 30KW, more than 30KW, we recommend you to use inverter or soft starter.
Q3 Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and after shipment we will give you CE /Packing list/ Commercial Invoice/Sales contract for customs clearance.
Q4 Payment terms?
A:Alibaba trade assurance/TT/West Union/PayPal/LC/Cash and so on.
Q5 I don't know how to use after I receive or I have problems when use, how to do?
A:We can provide technical support, Whatsapp/Email/Phone till all of your problems finished.
Q6 I don't know which one is suitable for me?
A:please tell us below information:
1)local voltage:AC/DC,220V/380V,12V/24V
2)Power of the pump:1kw=0.75hp,
3)Number of pumps to be controlled
