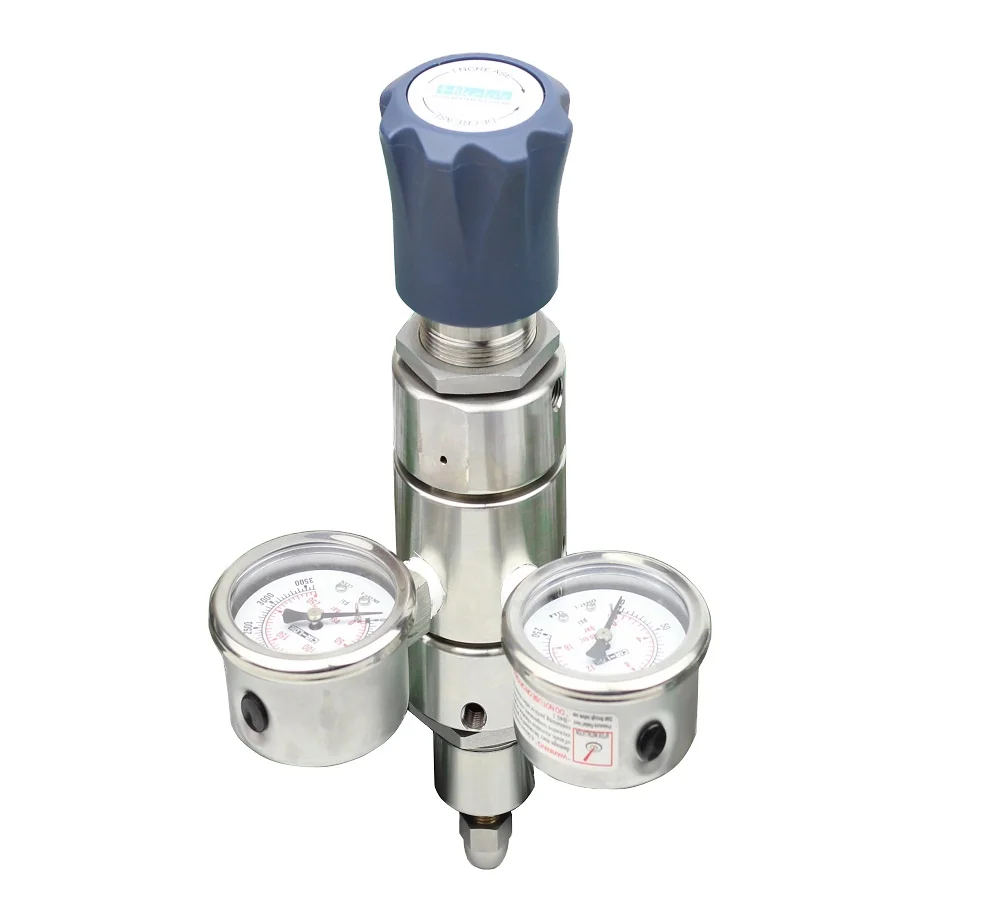

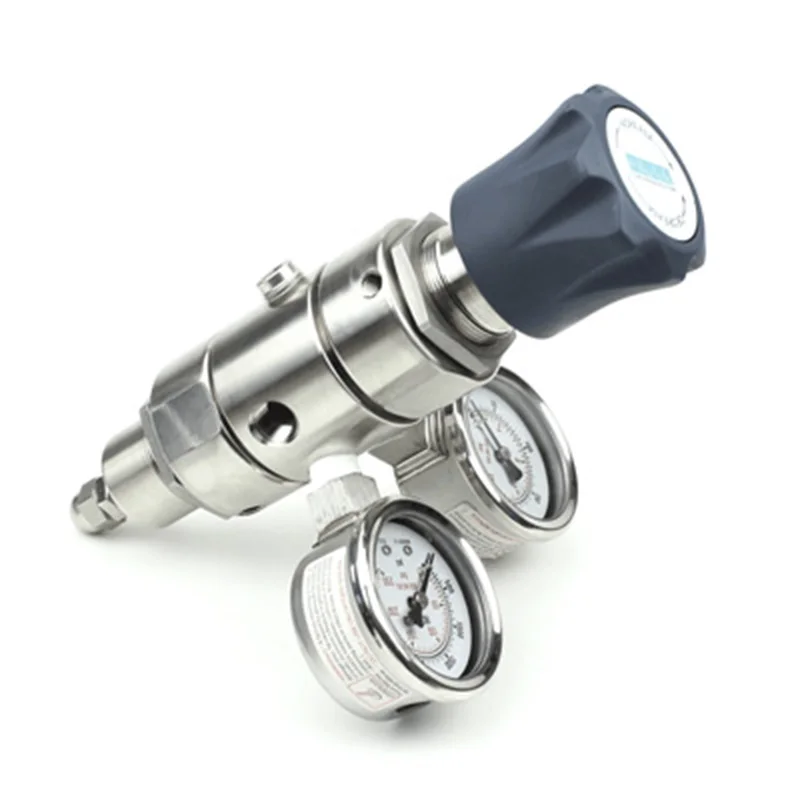

High pressure 3500 psi stainless steel 1/4' female NPT dual stage two stage pressure regulator
- Category: >>>
- Supplier: Sailuoke Fluid Equipment Inc.Sailuoke Inc.
Share on (1601353783552):
Product Overview
Description
Specification
Product name | Dual stage pressure regulator |
Inlet pressure | Max 3500 psi |
Outlet pressure | 0~25 psig (0~1.7 bar), 0~50psig (0~3.5 bar),0~100 psig (0~6.9 bar), 0~150 psig (0~10.3 bar), 0~250psig ( 0~17.2 bar) |
Flow capacity | Cv=0.05 |
Product Description
Applications:
- Laboratory and point-of-use gas systems
- Sampling systems, zero, span and calibration analyzer gases
- Specialty and industrial gas cylinder regulator
- Chromatograph flame detector fuel supply
- Sampling systems, zero, span and calibration analyzer gases
- Specialty and industrial gas cylinder regulator
- Chromatograph flame detector fuel supply
Features:
- Application: Specialty flammable, industrial gases and liquid.
- Two-stage decompression structure provides more stable outlet pressure
- Watery diaphragm provides higher precision and sensitivity
- Low operating torque for easy adjustment
- Two-stage decompression structure provides more stable outlet pressure
- Watery diaphragm provides higher precision and sensitivity
- Low operating torque for easy adjustment
Operating Parameters:
Maximum inlet pressure
3500psig (241.4bar)
Outlet pressure range:
0~25 psig (0~1.7 bar), 0~50psig (0~3.5 bar),0~100 psig (0~6.9 bar),
0~150 psig (0~10.3 bar), 0~250psig ( 0~17.2 bar)
Leakage:
Internal: bubble-tight
External: design to meet ≤ 2 x 10-8 atm cc/sec He
Design proof pressure:
1.5 × Maximum rated pressure
Optional seat: PCTFE(standard), PTFE, PEEK, PI(optional)
PCTFE: -40°F to 176°F (-40°C to 80°C)
PEEK: -40°F to 392°F (-40°C to 200°C)
PI: -40°F to 500°F (-40°C to 260°C)
Flow capacity: Cv=0.05
Outlet pressure range:
0~25 psig (0~1.7 bar), 0~50psig (0~3.5 bar),0~100 psig (0~6.9 bar),
0~150 psig (0~10.3 bar), 0~250psig ( 0~17.2 bar)
Leakage:
Internal: bubble-tight
External: design to meet ≤ 2 x 10-8 atm cc/sec He
Design proof pressure:
1.5 × Maximum rated pressure
Optional seat: PCTFE(standard), PTFE, PEEK, PI(optional)
PCTFE: -40°F to 176°F (-40°C to 80°C)
PEEK: -40°F to 392°F (-40°C to 200°C)
PI: -40°F to 500°F (-40°C to 260°C)
Flow capacity: Cv=0.05
