Epever Intelligent regulator lithium battery automatic 48v 36v 24v 12v 10 20 30 40 amp mppt solar charge controller
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601353785394):
Product Overview
Description

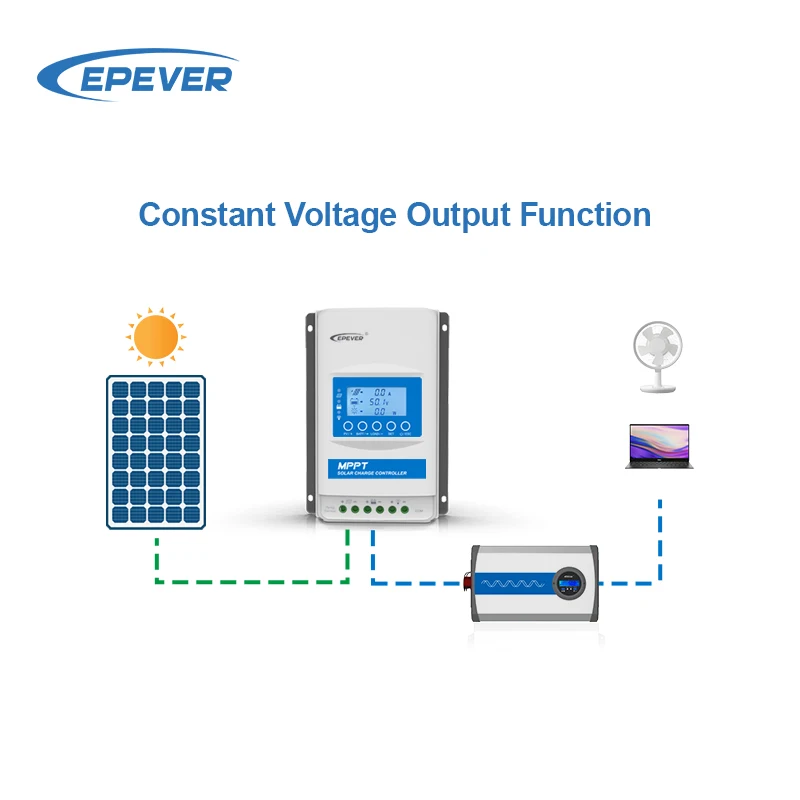

*Constant voltage output
*Rated Charging Power & Current Limitation
*Certain models support Bluetooth for parameter reading and modification via app
*Operates at full load within the working temperature range

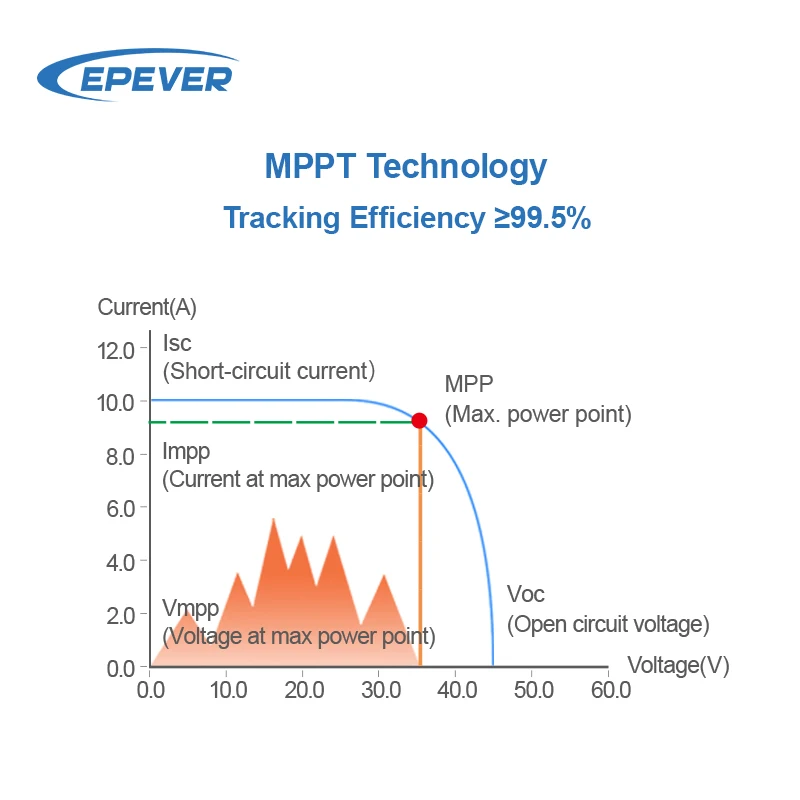

*Innovative MPPT technology & ultra-fast tracking speed
*Tracking efficiency is no less than 99.5%
*Compatible with various types of batteries: lithium, gel, sealed, etc
*Wide MPPT voltage range, maximizes the utilization of PV modules
*Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries
*RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
*Low self-consumption, lower than 10mA
*IP33 enclosure, Comprehensive electronic protections
*Rated Charging Power & Current Limitation
*Certain models support Bluetooth for parameter reading and modification via app
*Operates at full load within the working temperature range
*Innovative MPPT technology & ultra-fast tracking speed
*Tracking efficiency is no less than 99.5%
*Compatible with various types of batteries: lithium, gel, sealed, etc
*Wide MPPT voltage range, maximizes the utilization of PV modules
*Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries
*RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
*Low self-consumption, lower than 10mA
*IP33 enclosure, Comprehensive electronic protections
Product Description
Technical Specifications

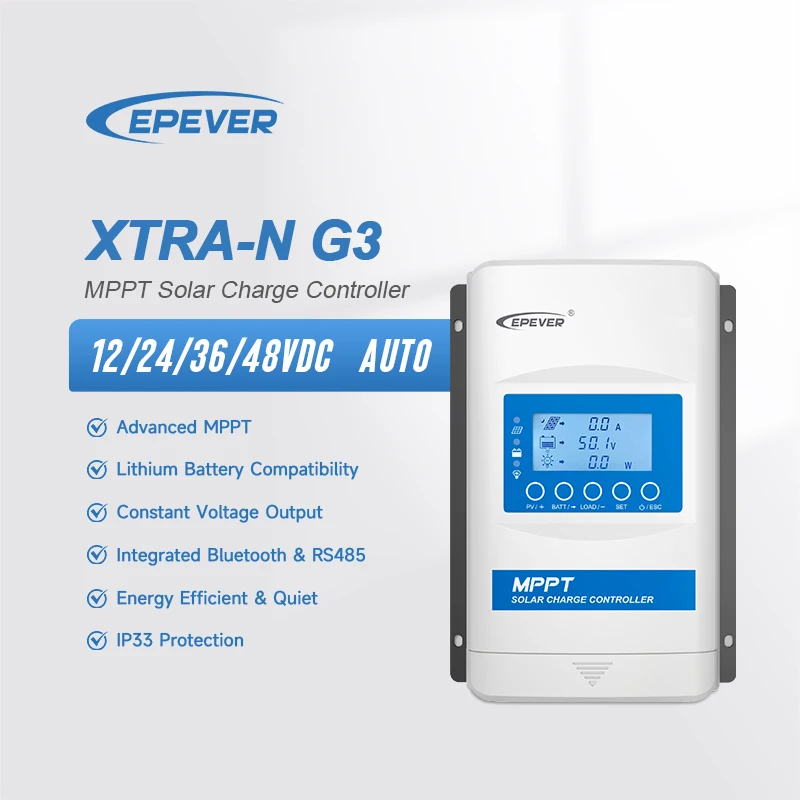

EPEVER XTRA-N G3 Series 10A 20A 30A 40A MPPT Solar Charge Controller
Item | XTRA3215N G3/G3 BLE | XTRA4215N G3/G3 BLE | XTRA3415N G3/G3 BLE | XTRA4415N G3/G3 BLE | ||||
Electrical Parameters | ||||||||
Battery Rated Voltage | 12/24VDC★ Auto | 12/24/36/48VDC★ Auto | ||||||
Rated Charging Current | 30A | 40A | 30A | 40A | ||||
Rated Discharging Current | 30A | 40A | 30A | 40A | ||||
Controller Work Voltage Range | 8~31V | 8~31V | 8~62V | 8~62V | ||||
PV Maximum Open-circuit Voltage | 150V(At minimum operating environment temperature) | |||||||
138V(At 25℃ environment temperature) | ||||||||
MPPT Voltage Range | (Battery voltage+2V)~108V | |||||||
Rated Charging Power | 390W/12V | 520W/12V | 390W/12V | 520W/12V | ||||
780W/24V | 1040W/24V | 780W/24V | 1040W/24V | |||||
1170W/36V | 1560W/36V | |||||||
1560W/48V | 2080W/48V | |||||||
Maximum Conversion Efficiency | 97.60% | 97.90% | 98.10% | 98.50% | ||||
Maximum Load Efficiency | 95.10% | 95.40% | 96.90% | 97.20% | ||||
Static Losses (Enable the com. port) | ≤15mA(12V) | ≤15mA(12V) | ≤14mA(12V) | ≤14mA(12V) | ||||
≤9mA(24V) | ≤9mA(24V) | ≤9mA(24V) | ≤9mA(24V) | |||||
≤8mA(36V) | ≤8mA(36V) | |||||||
≤7mA(48V) | ≤7mA(48V) | |||||||
Static Losses (Disable the com. port) | ≤8mA(12V) | ≤8mA(12V) | ≤8mA(12V) | ≤8mA(12V) | ||||
≤5mA(24V) | ≤5mA(24V) | ≤5mA(24V) | ≤5mA(24V) | |||||
≤5mA(36V) | ≤5mA(36V) | |||||||
≤5mA(48V) | ≤5mA(48V) | |||||||
Discharge-circuit Voltage Drop | ≤0.23V | |||||||
Temperature Compensation◆ | -3mV/℃/2V (Default) | |||||||
Grounding Type | Common negative | |||||||
RS485 Port | 5VDC/200mA(RJ45) | |||||||
LCD Backlight Time | Default: 60S, Range: 0~999S(0S: the backlight is ON all the time) | |||||||
