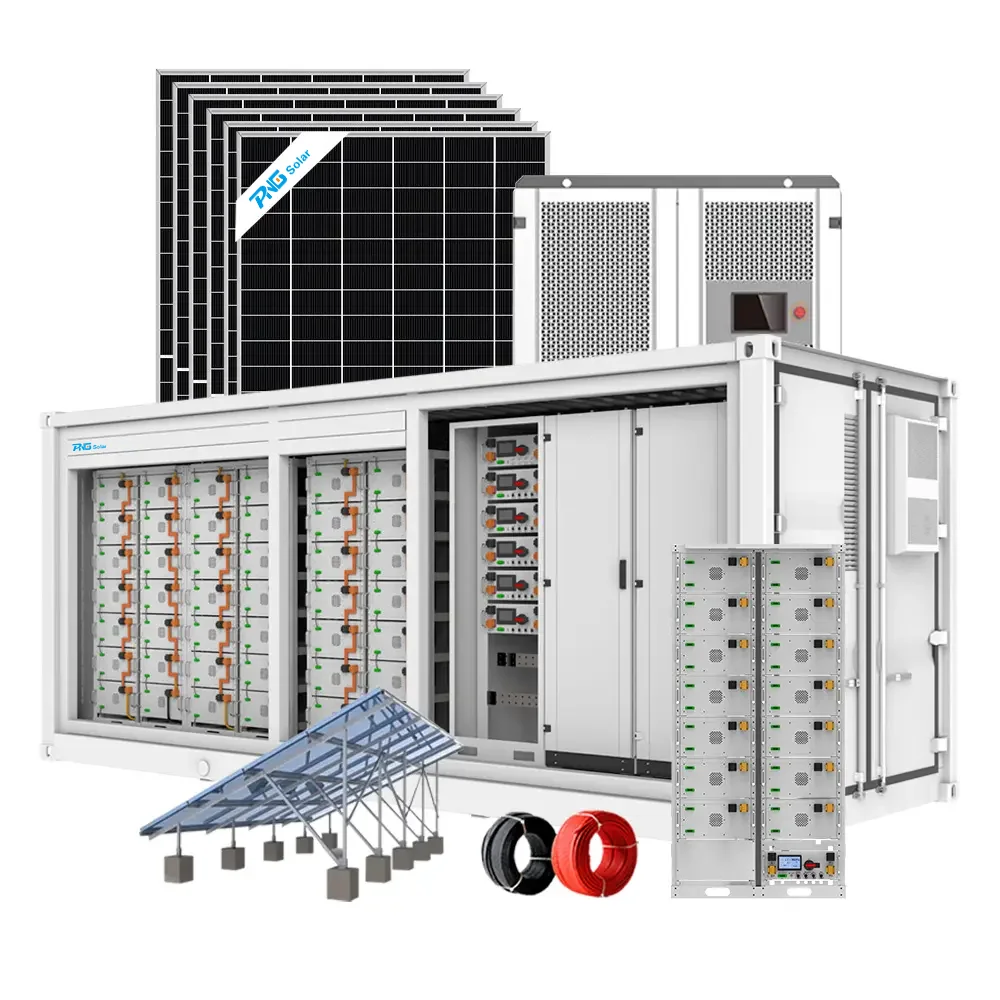

  • PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System
PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System
PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System
PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System
PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System
PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System
PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System

PNG Container ESS 2 mwh 5 mwh lifepo4 lithium battery bess 1mwh 1 mw 5 mw 10 mw on Off grid Solar Energy System

Share on (1601354060272):


Price:$60,000.00-80,000.00

Quantity:


Product Overview

Description



Product Description






Specification


Container Energy Storage System
Rated output power
1000KW
500KW
250KW
250KW
Rated capacity
2000KWH
1000KWH
500KWH
250KWH
AC Phases
Three-phase Four-wire
Grid discharge mode
Rated voltage
380V
Voltage range
380±15%V
Rated frequency
50Hz
Frequency range
47.5～51.5Hz
Total current waveform


<5%
distortion rate(THD)
Output power factor
≥0.99
Isolated network operation mode
Rated voltage
380V
Voltage accuracy
<±3%
Output voltage distortion
<5%
Rated output frequency
50±2％Hz
Voltage transition range
<10％
Can withstand three - phase load imbalance
100%
Grid-connected charging operation mode
Rated voltage
400V
Voltage range is allowed
380±15%V
Frequency range
47.5~51.5HZ
Power factor
≥0.99（absolute value）
Noise
＜70dB
IP GRADE
IP54
External communication
Ethernet

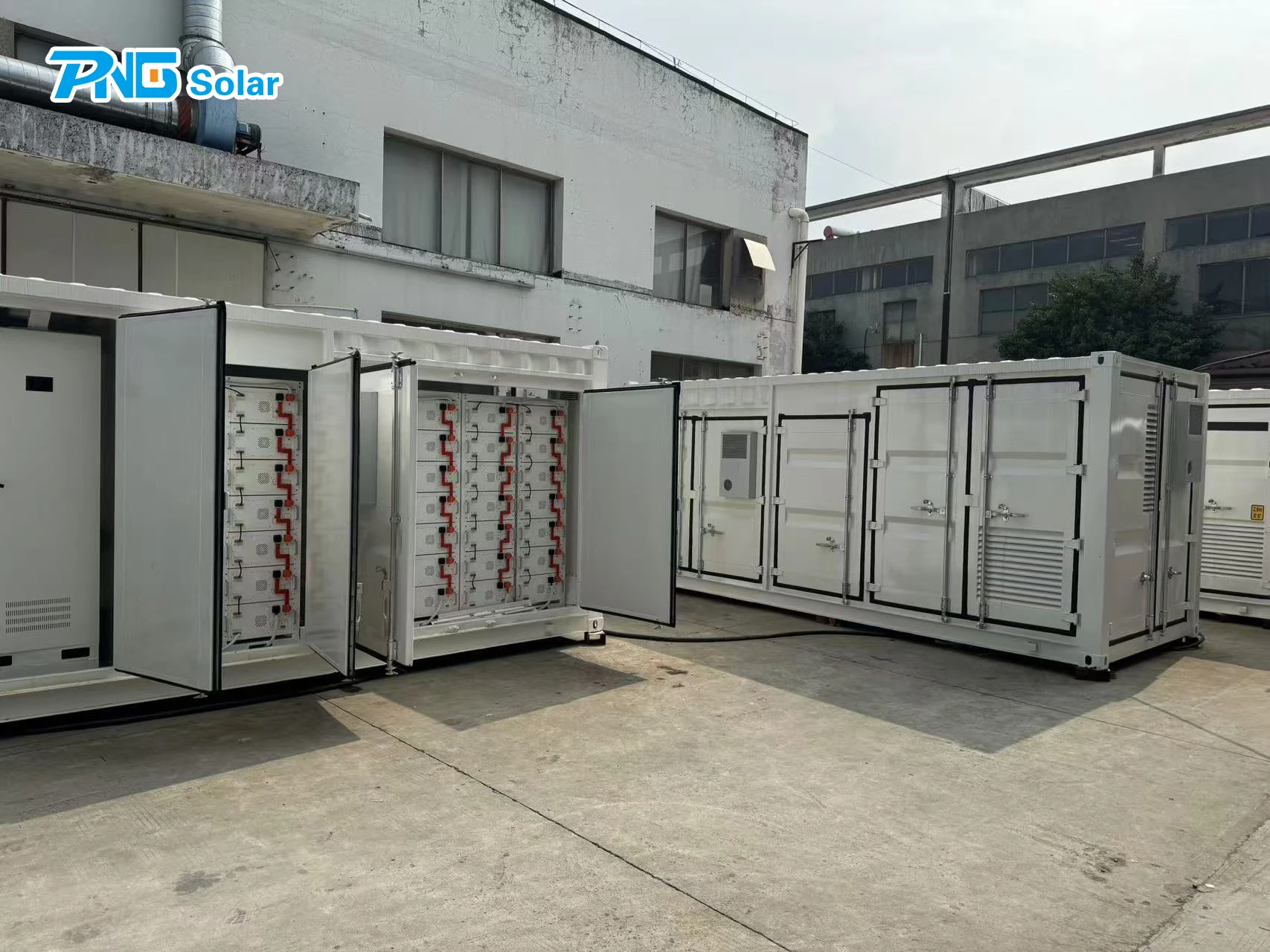

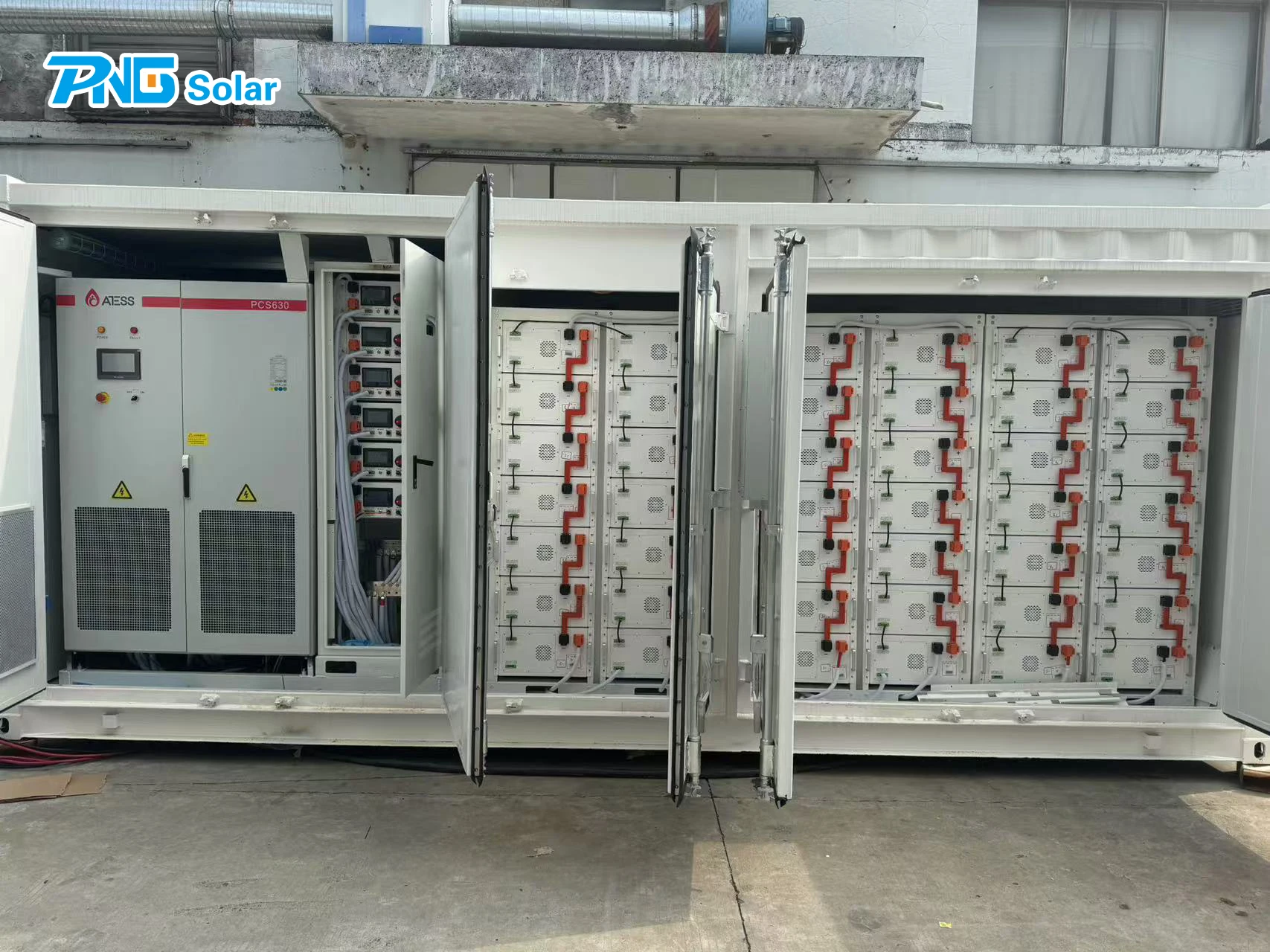

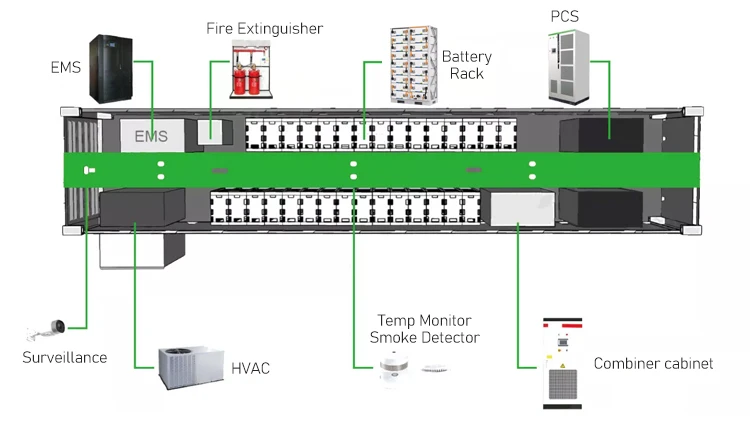

Customized Container
Fire Extinguisher/Lighting system/Air conditioner(Water cooling system optional/Anti fire Layer etc
Dimension
12192mm(L)*2438mm( W)*2591mm(H)
5898mm(L)*2352mm( W)*2392mm(H)
Weight
20 Ton
12 Ton
10Ton
8 Ton

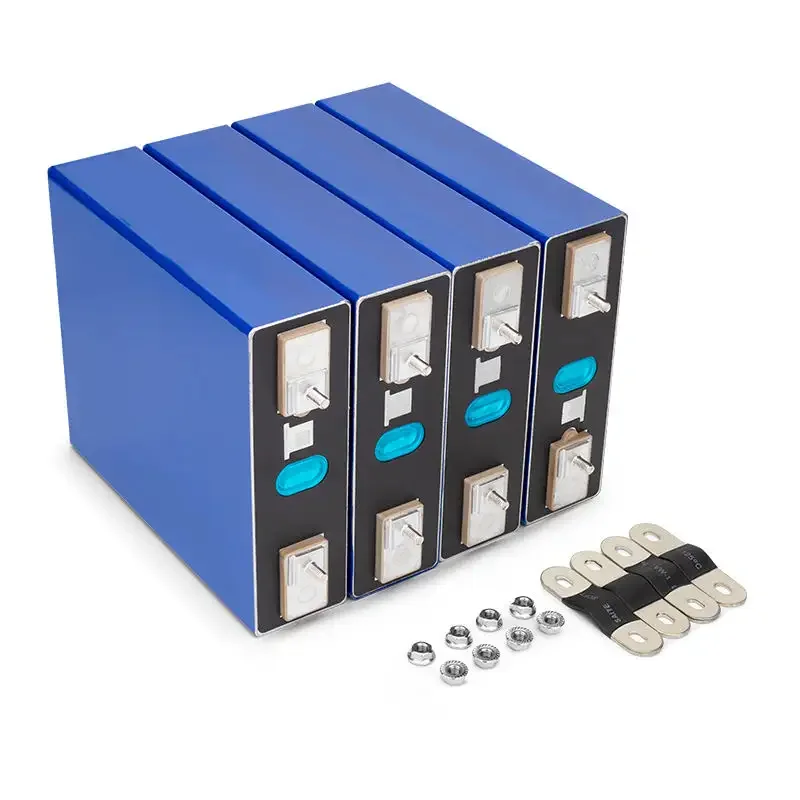

Prismatic lifepo4 battery cell
We adpact 3.2V100AH 50AH lithium battery cell for our storage system
working voltage range is 2.5~3.65V, the monthly self-discharge rate of the battery is ≤3%.


Single Cluster High voltage main BMS

High voltage lithium battery cluster adapt Centralized battery managment system,each battery cluster has one high votlage main BMS
controller to make sure each battery cell works well.

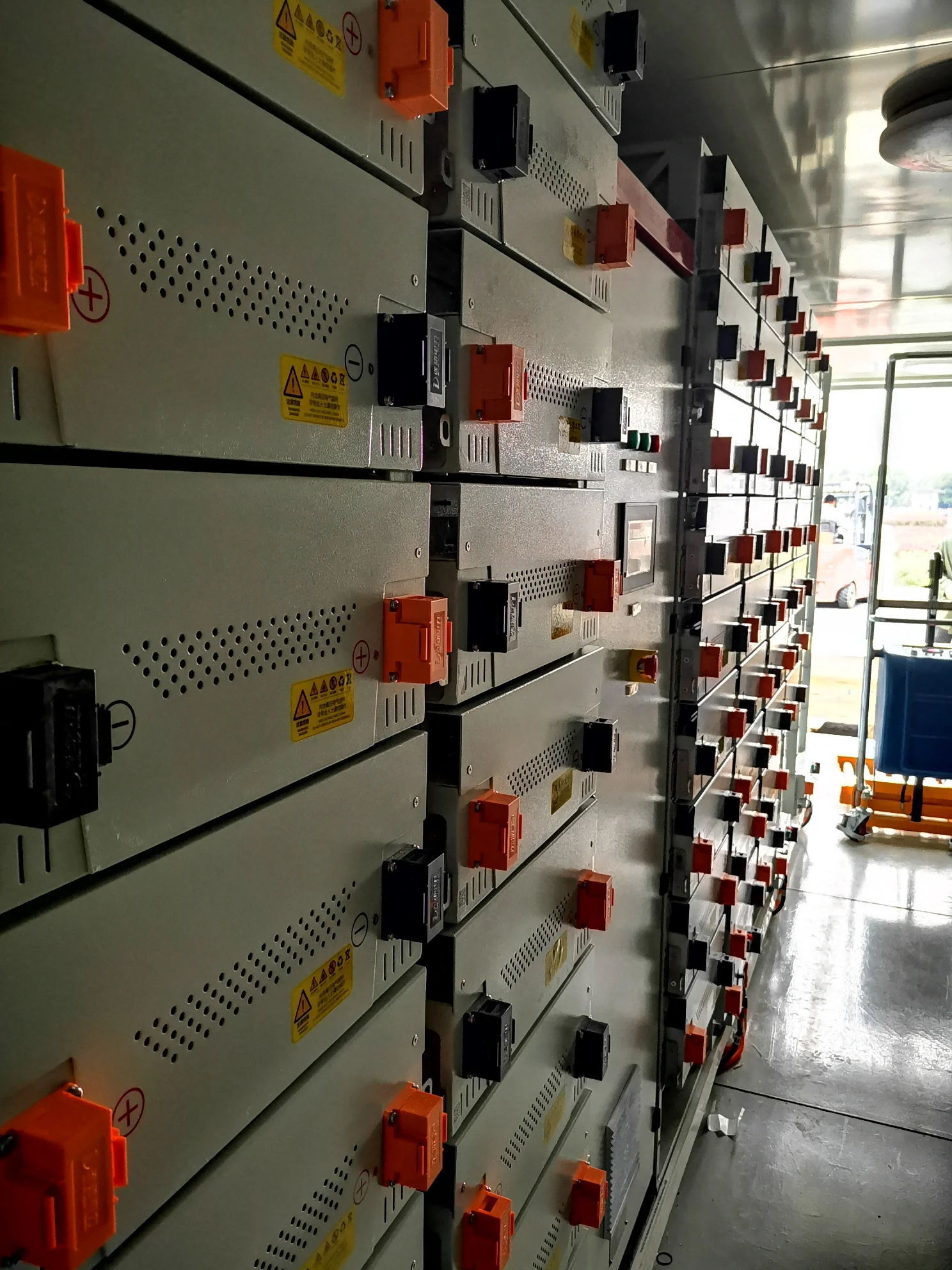

Battery Module

3U 4U standard moudle make installation more easier,25.6V 48V 51.2V 50AH 100AH 120AH 200AH 280AH 0.5C 1C rate are optional,meet
most of the market requirements

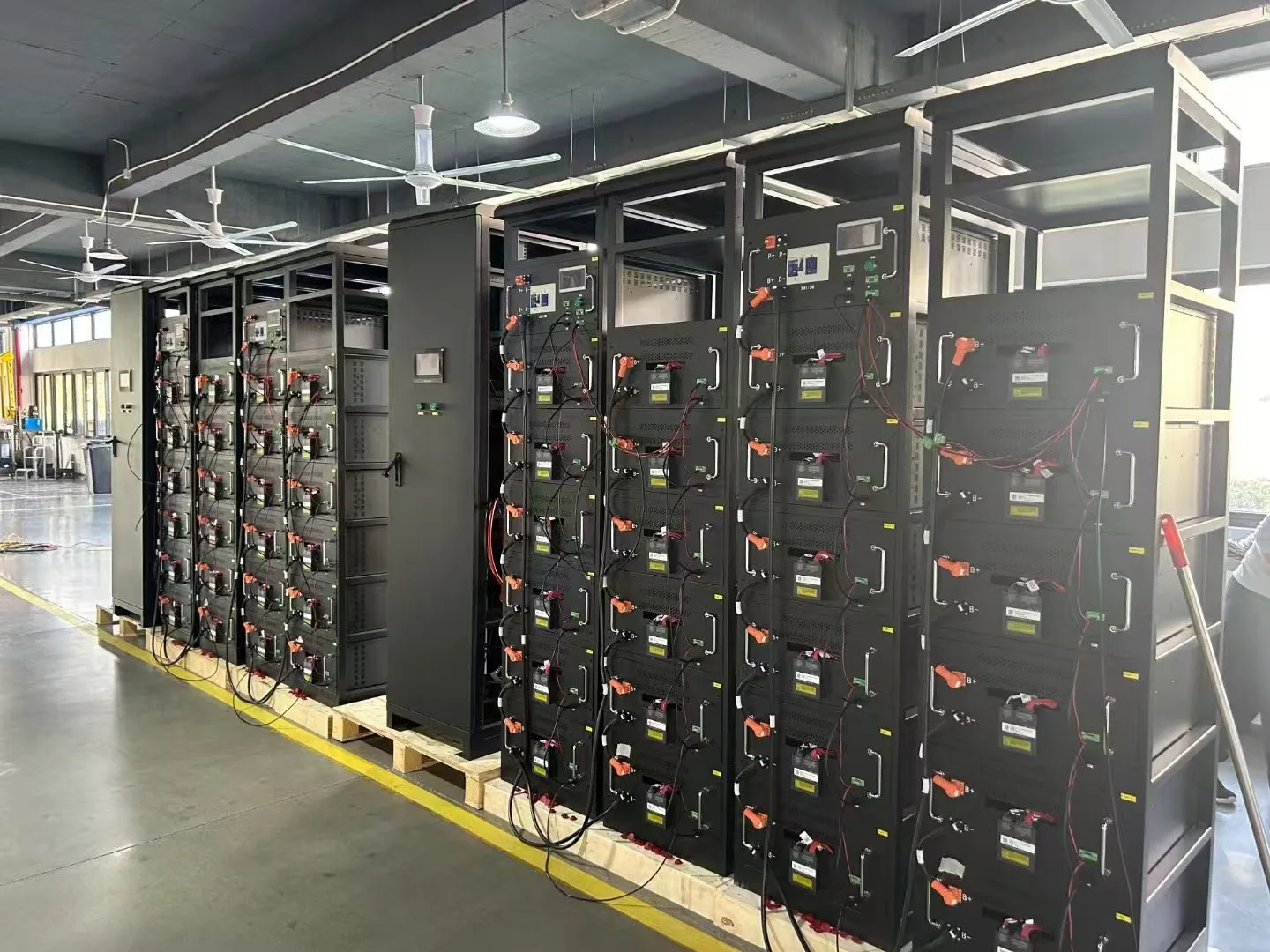

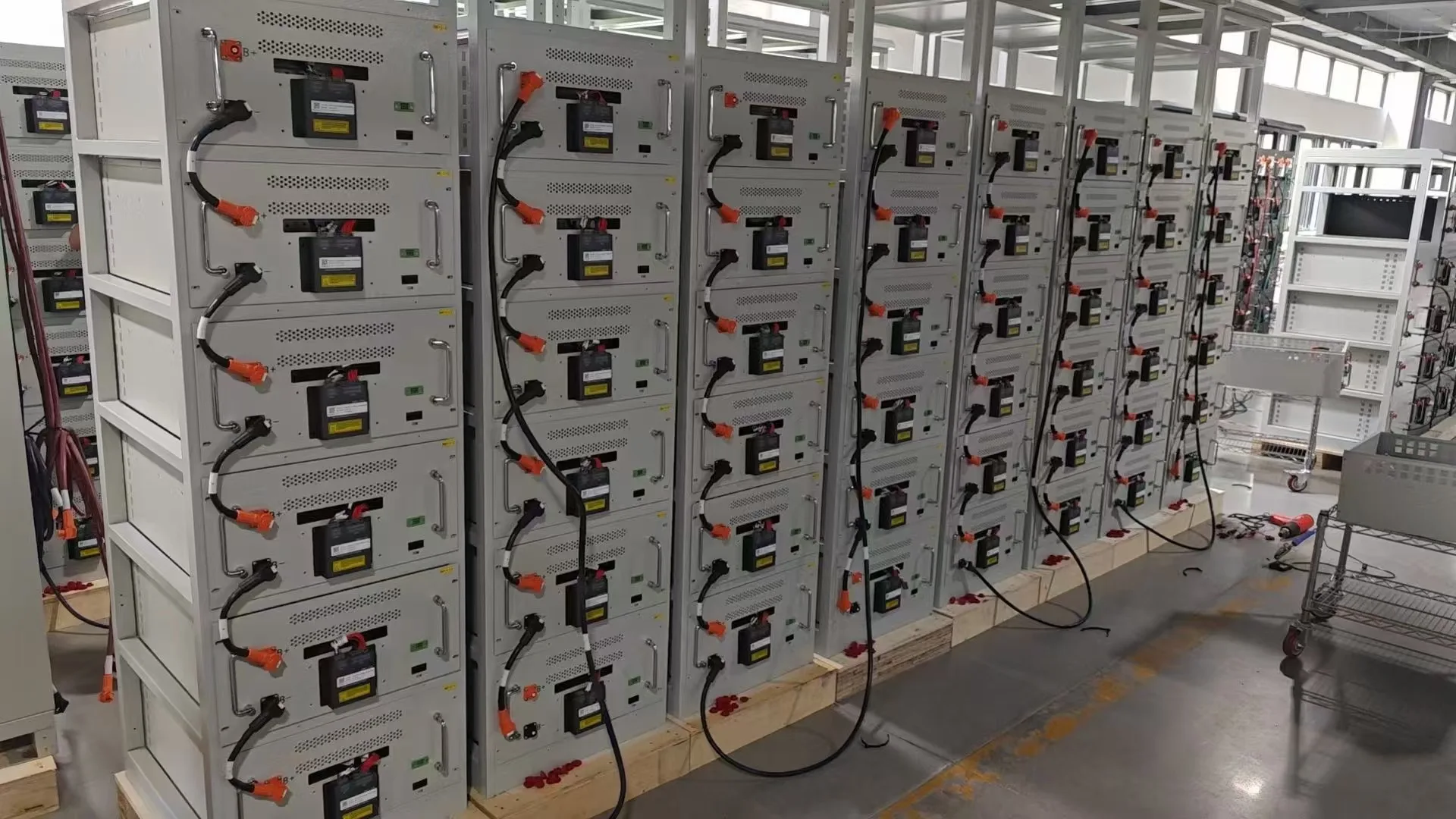

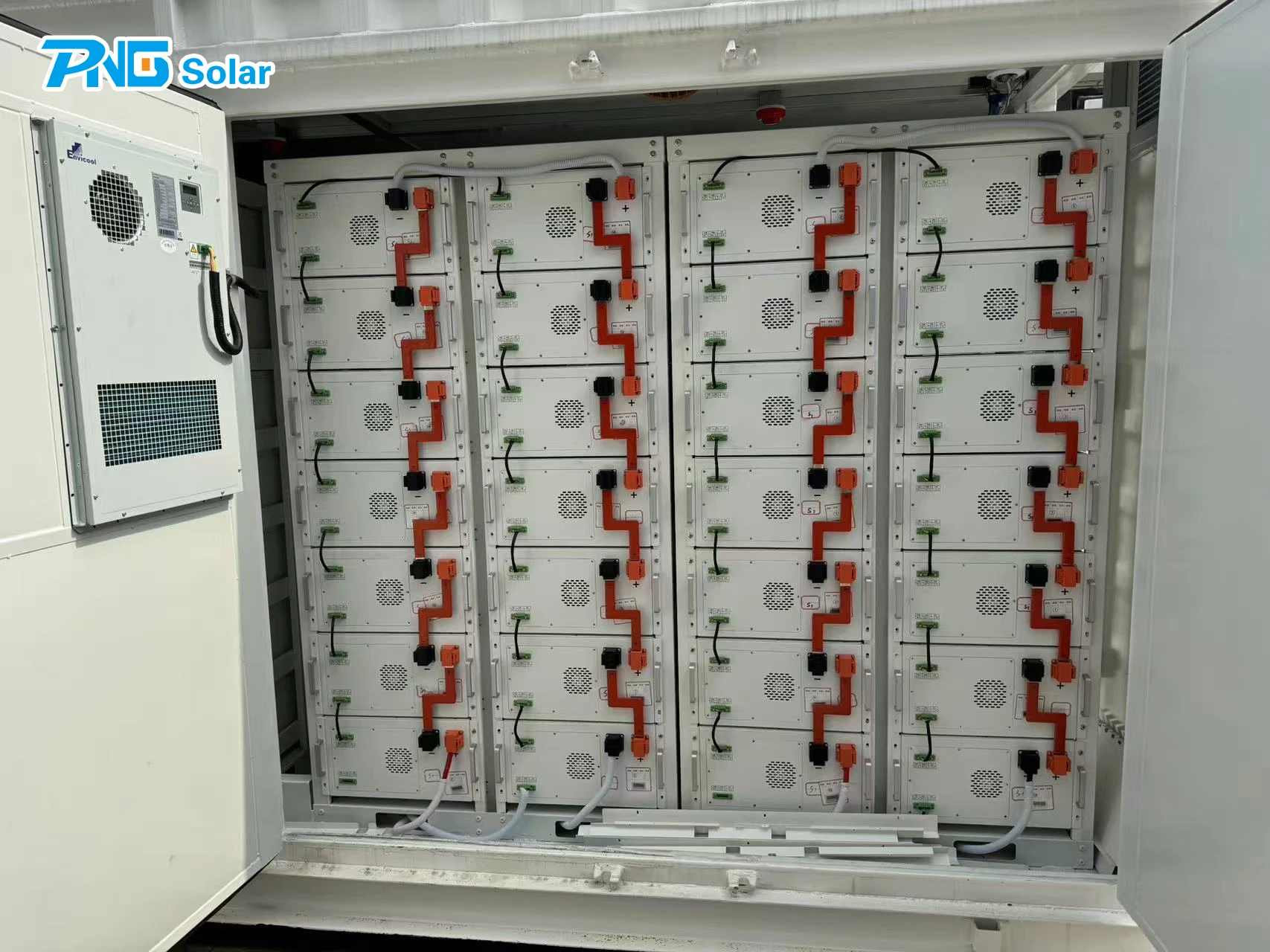

Battery cluster

Battery cluster could be customized,voltage up to 1000V,Hot sale voltage is 192V 384V 512V combined by serveral 48V100AH 50AH
modules connect in series.

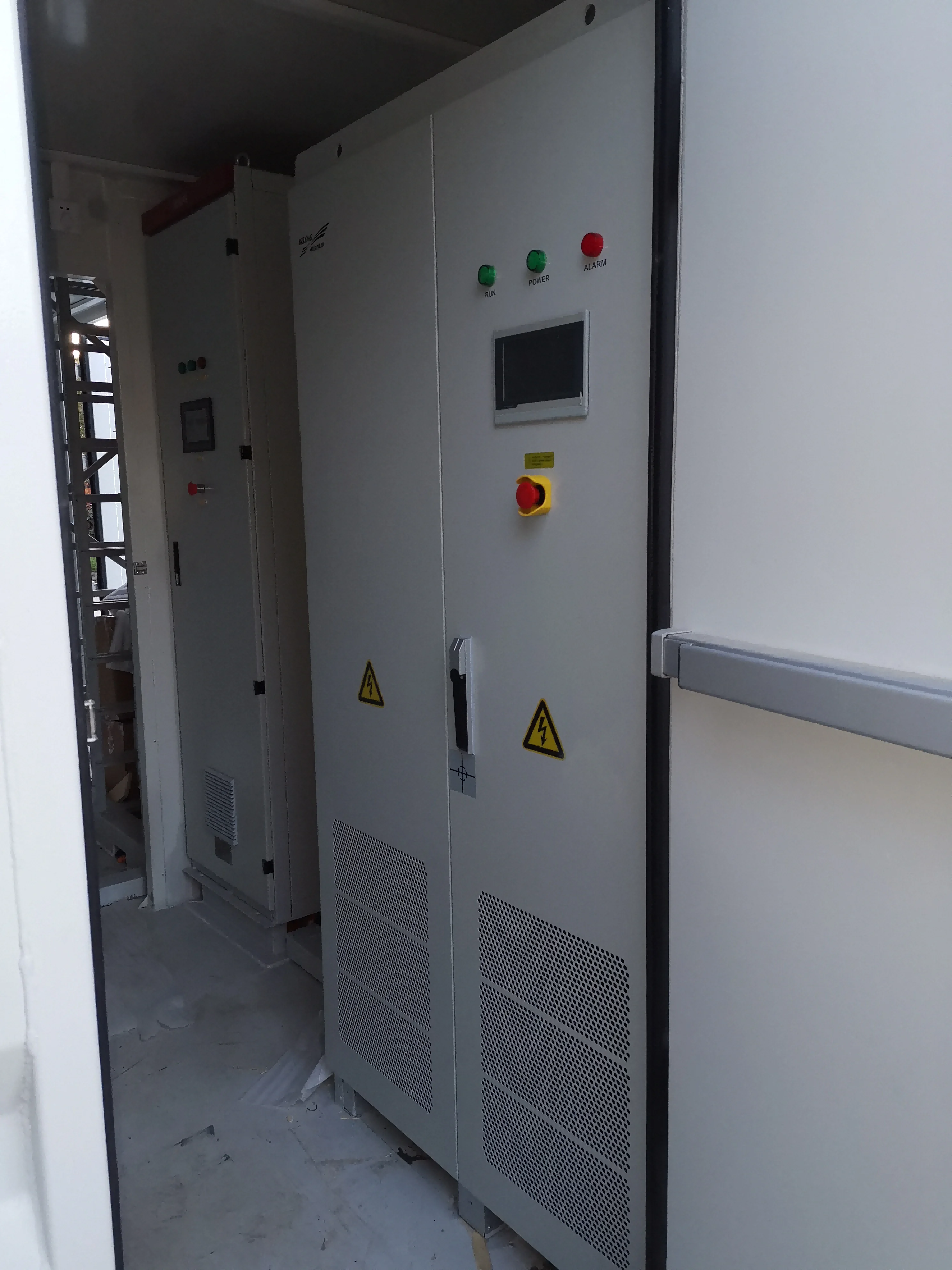

Main controller&Combiner cabinet
The bus cabinet is the dc side bus control unit of the energy
storage battery system, which is connected with the high
voltage box and storage.Intermediate unit capable of converter; The power pool
system (stack) is installed in the bus cabinet.
Switch off/circuit breaker (optional), three-level BMS (ESMU), and UPS power supply.


All in one hybrid inverter
Bidirectional battery inverter 100KW 250KW 500KW, can be used alone or with solar charger and other accessories for different
application
scenario. Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen
LCD..
PCS(bidirectional energy storage converter）100KW 250KW 500KW 630KW

● Equipped with two-way inverter to charge and discharge the battery
● Charging has pre-charging, constant
current charging, equalizing charging, and floating charging modes
● Discharge with constant power discharge, constant current
discharge mode grid adaptability
EMS(Energy Management System
Suitable for energy management and monitoring in applications such as microgrids - Support various communication protocols and
standard power dispatching interface to meet the requirements of power grid dispatching - Support multiple networking methods,
multiple power supply backup switching control, support time-sharing mode control, battery automatic charge and discharge control
- Real-time display of operating parameters of various devices




Product Details






Company Profile

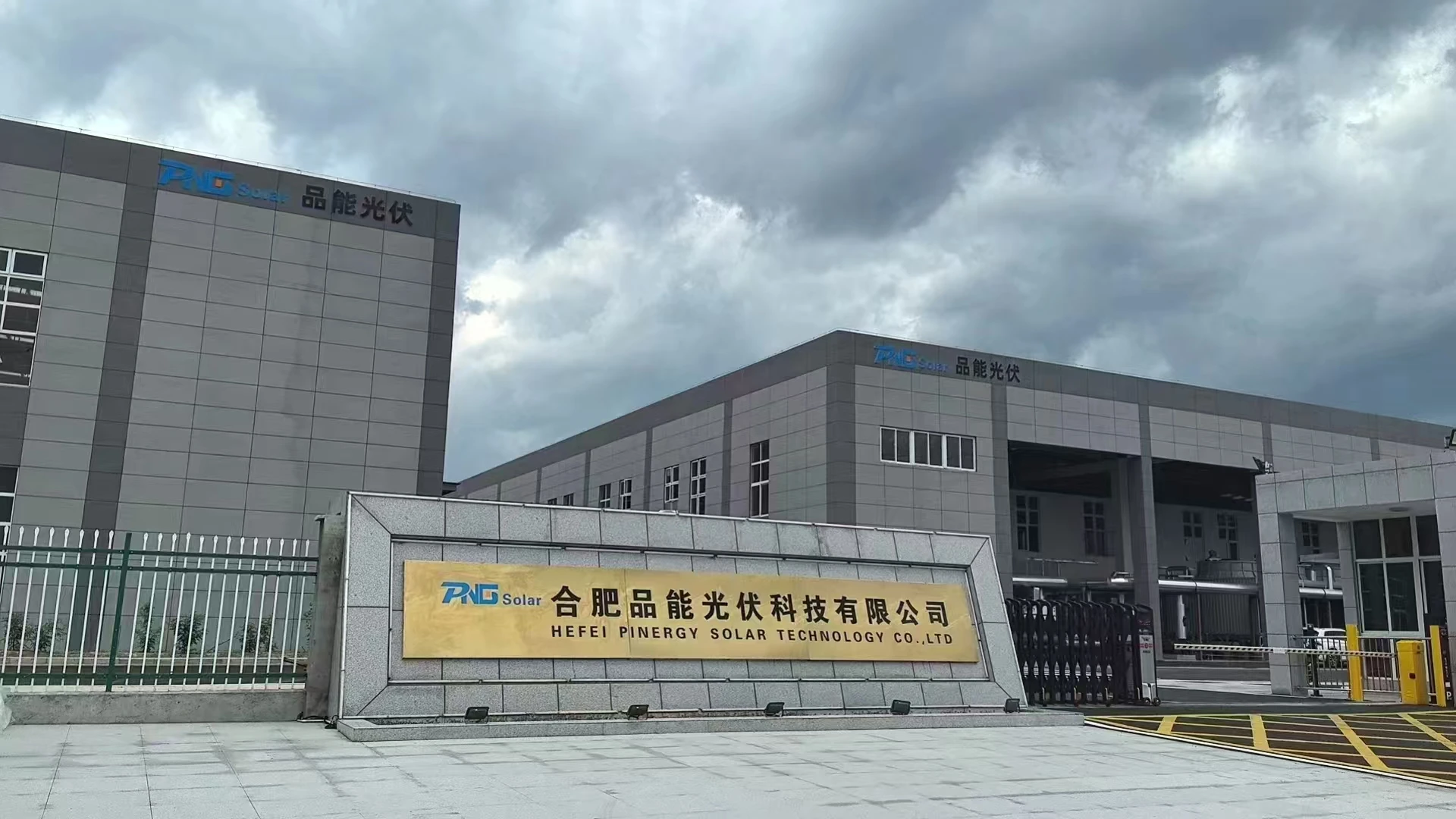

Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar
moduls.PNG SOLAR is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. Jinko, JA, GCL, Sungrow and BYD all sit here . PNG SOLAR has been certified by Alibaba several years ago. The businesscovers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.

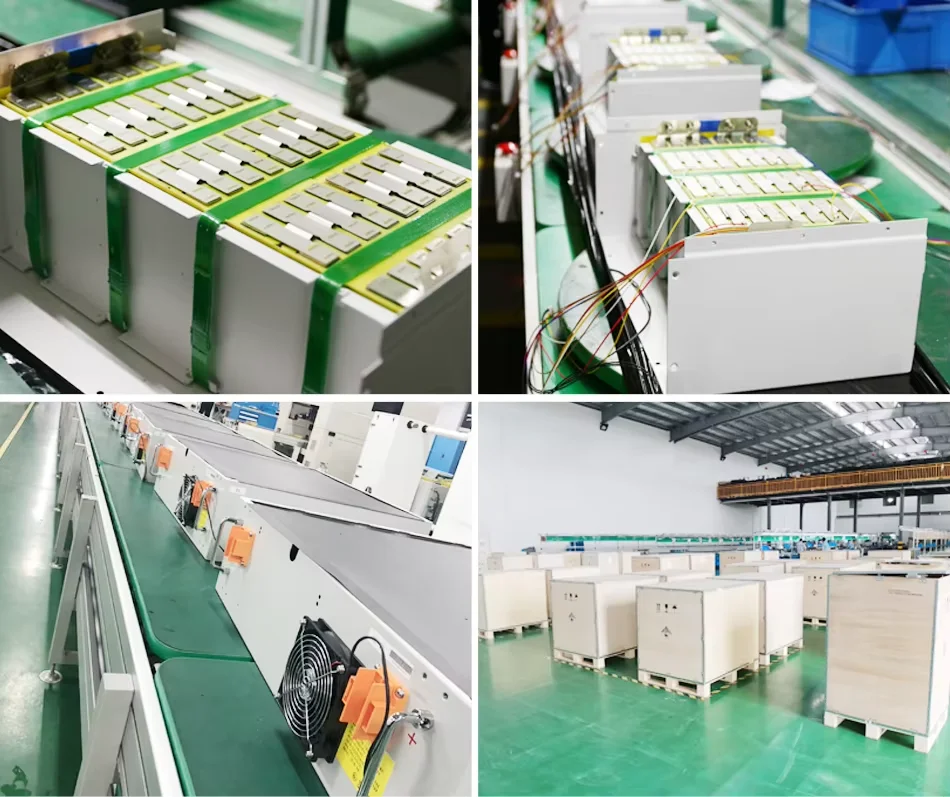

3 production lines with annual capacity 1.2GW facilitate the lead produciton time , with more than 200 exployees.
Sophistificated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.
Our principles: Integrity, Win-Win, Innvation !We aim at long-term partnership .

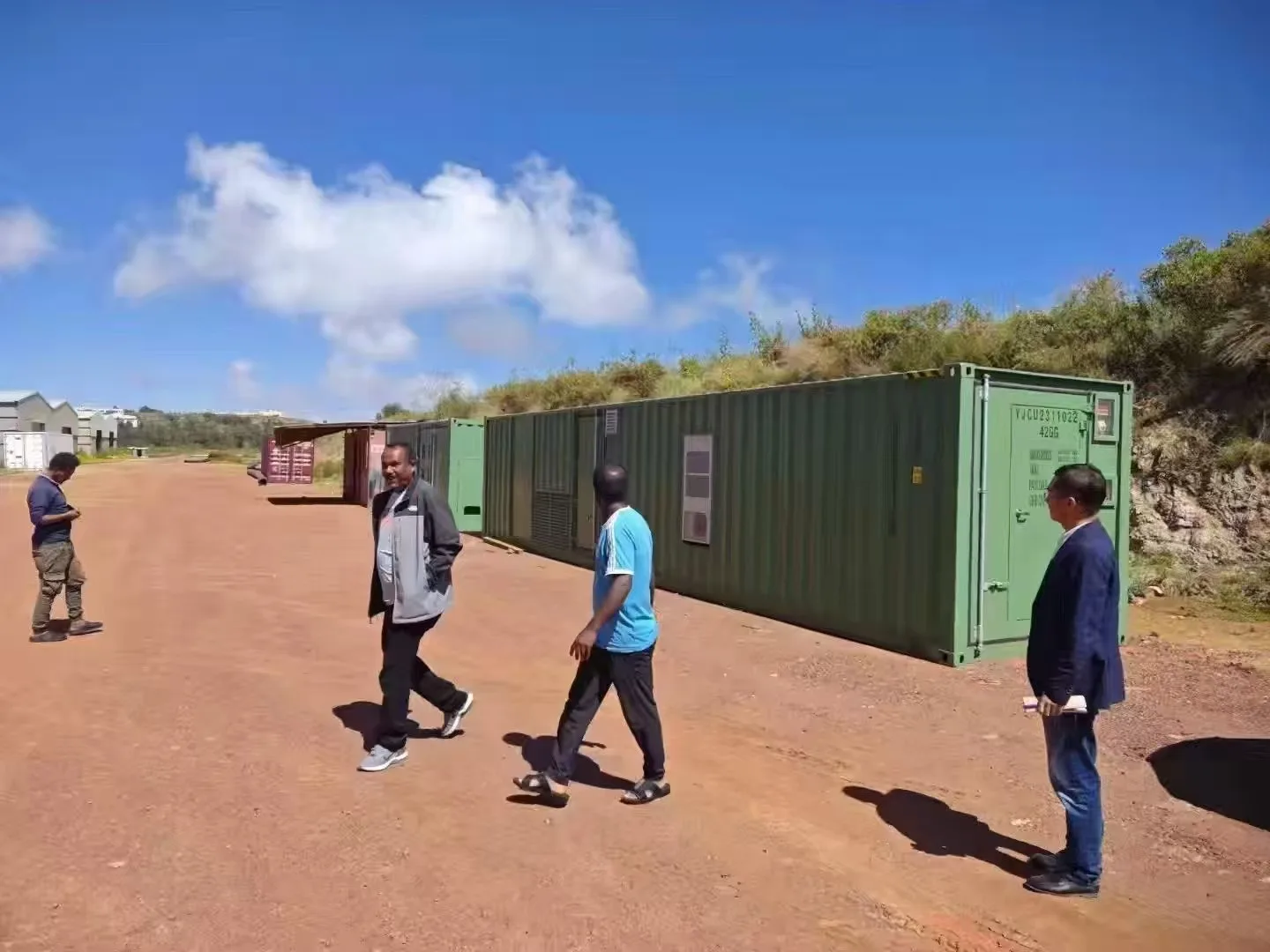

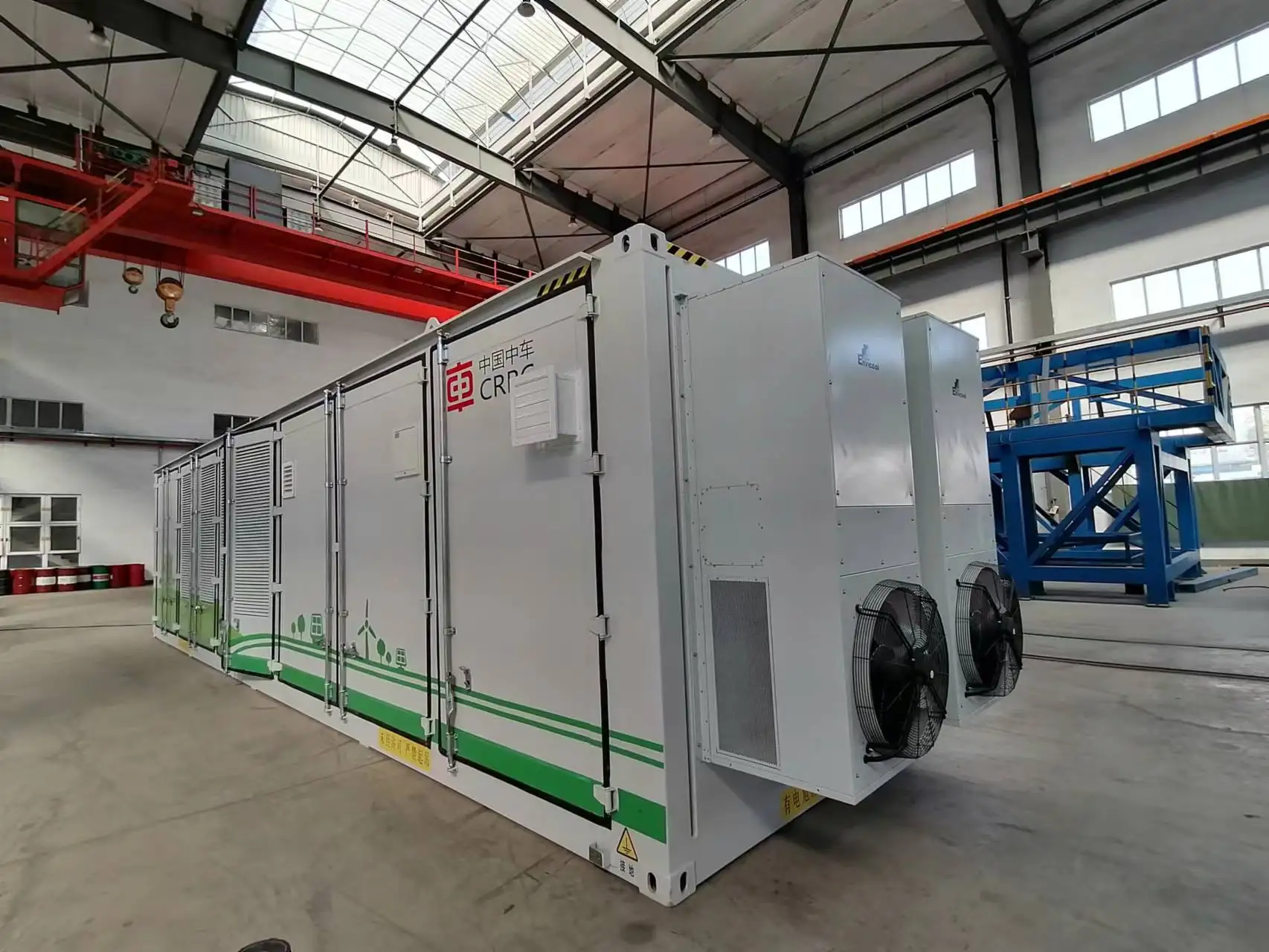

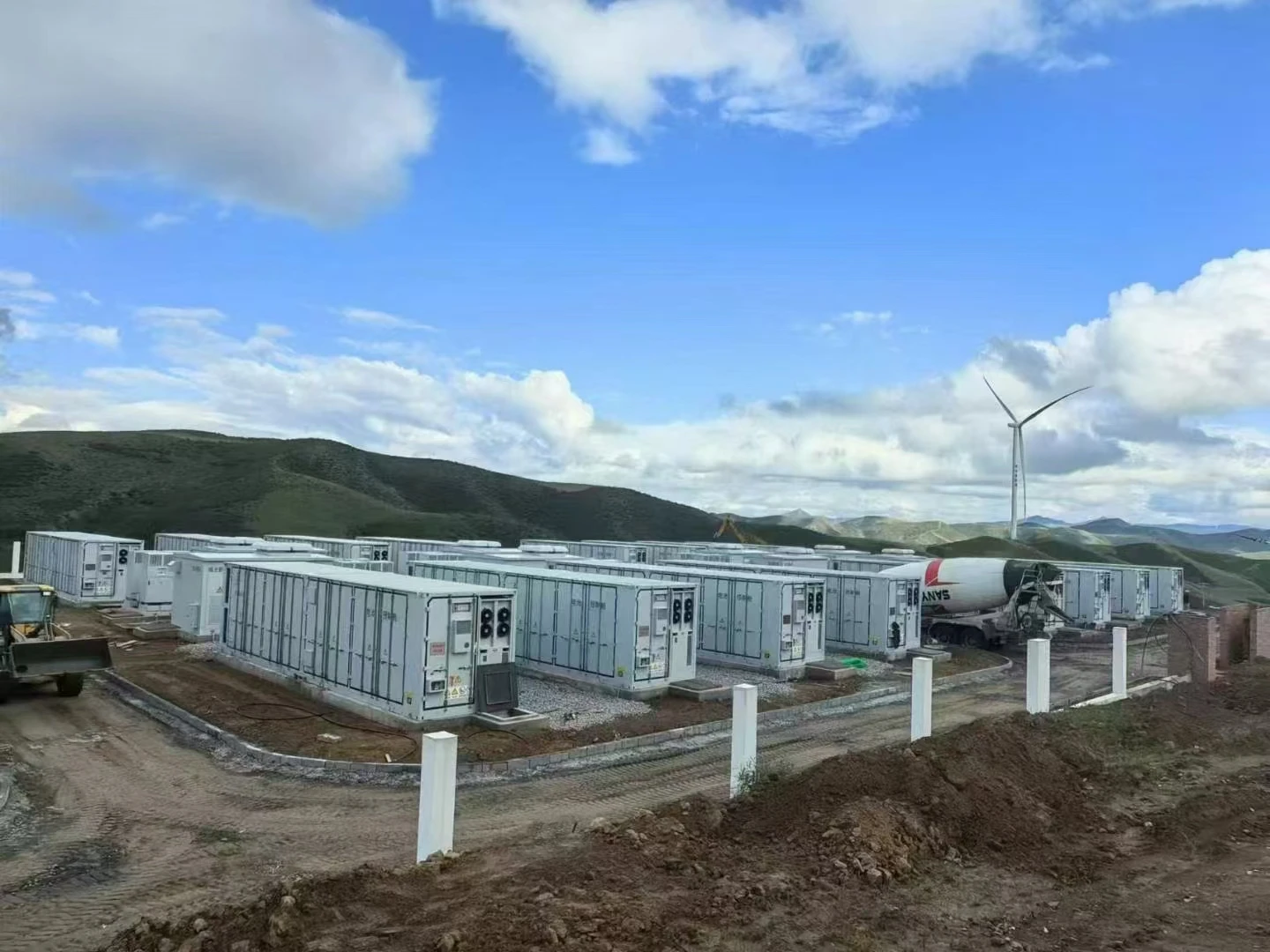

Project Case












FAQ


1. who are we?
We are based in Anhui, China, start from 2017,sell to Northern Europe(10.00%),Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Southern Europe(10.00%),Western Europe(10.00%),Domestic Market(8.00%),Oceania(5.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(3.00%),Central America(2.00%),North America(2.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar panel,Solar system,Solar inverter,Solar battery,Solar cell

4. why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
