Deye 12kw 3 phase hybrid inverter 6kw 8kw 10kw inverter for solar energy system
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1601354110638):
Product Overview
Description
Product Description

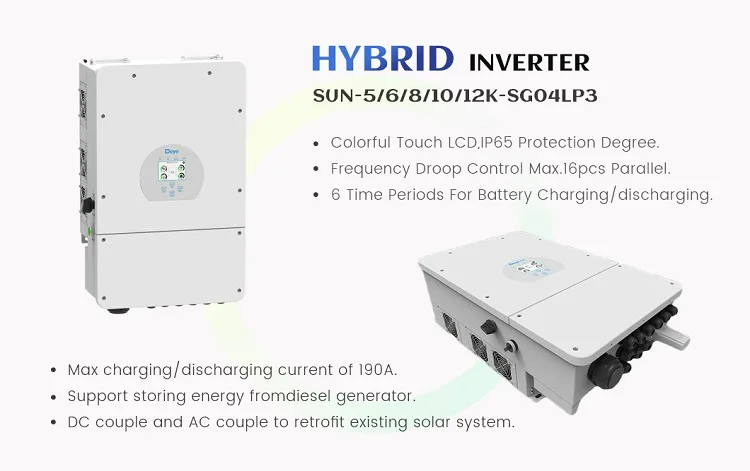

SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN-5/6/8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Detailed Parameters
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60V | |||||||||
Max. Charging Current (A) | 120A | 150A | 190A | 210A | 240A | |||||
Max. Discharging Current (A) | 120A | 150A | 190A | 210A | 240A | |||||
Charging Curve | 3 Stages / Equalization | |||||||||
External Temperature Sensor | Yes | |||||||||
Charging Strategy | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 6500W | 7800W | 10400W | 13000W | 15600W | |||||
Rated PV Input Voltage (V) | 550V(160V～800V） | |||||||||
Start-up Voltage (V) | 160V | |||||||||
MPPT Range (V) | 200V-650V | |||||||||
Full Load DC Voltage Range (V) | 350V-650V | |||||||||
PV Input Current (A) | 13A+13A | 6000W | 26A+13A | 10000W | 12000W | |||||
Max. PV ISC (A) | 17A+17A | 6,600VA | 34A+17A | 11,000VA | 12,000VA | |||||
Number of MPPT | 2/1+1 | 2/2+1 | ||||||||
AC Output Data | ||||||||||
Rated AC Output and UPS Power (W) | 5000W | 6000W | 8000W | 10000W | 12000W | |||||
Max. AC Output Power (W) | 5500W | 6600W | 8800W | 11000W | 13200W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||||
AC Output Rated Current (A) | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 | |||||
Max. AC Current (A) | 11.4 | 13.6 | 18.2 | 22.7 | 27.3 | |||||
Max. Continuous AC Passthrough (A) | 45A | |||||||||
Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |||||||||
Grid Type | Three Phase | |||||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.6% | |||||||||
Euro Efficiency | 97.00% | |||||||||
MPPT Efficiency | 99.90% | IP66 | ||||||||
General Data | ||||||||||
Operating Temperature (℃) | -45~60℃, >45℃ Derating | |||||||||
Cooling | Smart cooling | |||||||||
Noise (dB) | 《45dB | |||||||||
Communication with BMS | RS485; CAN | |||||||||
Weight (kg) | 33.6 | |||||||||
Size (mm) | 422W×699.3H×279D | |||||||||
Protection Degree | IP65 | |||||||||
Installation Style | Wall-mounted | |||||||||
Warranty | 5 years | |||||||||

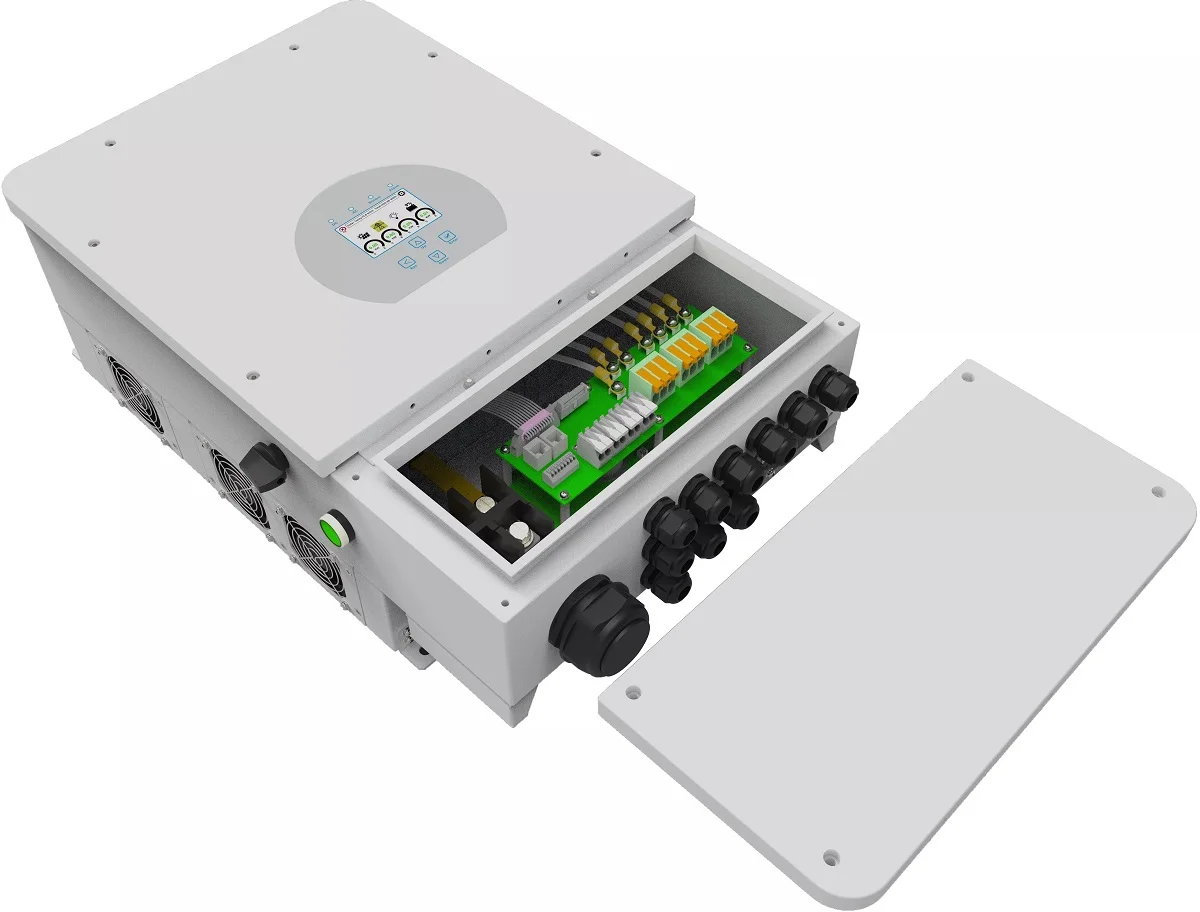

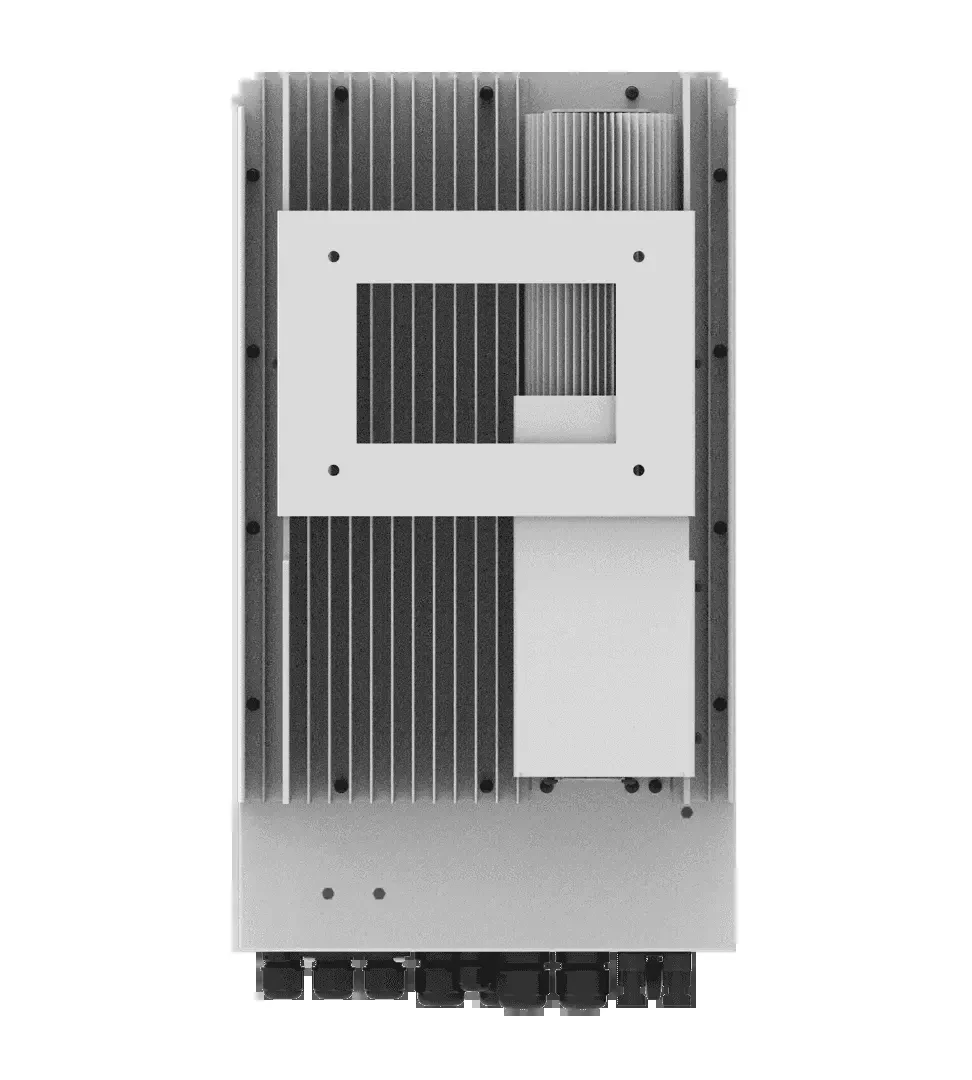

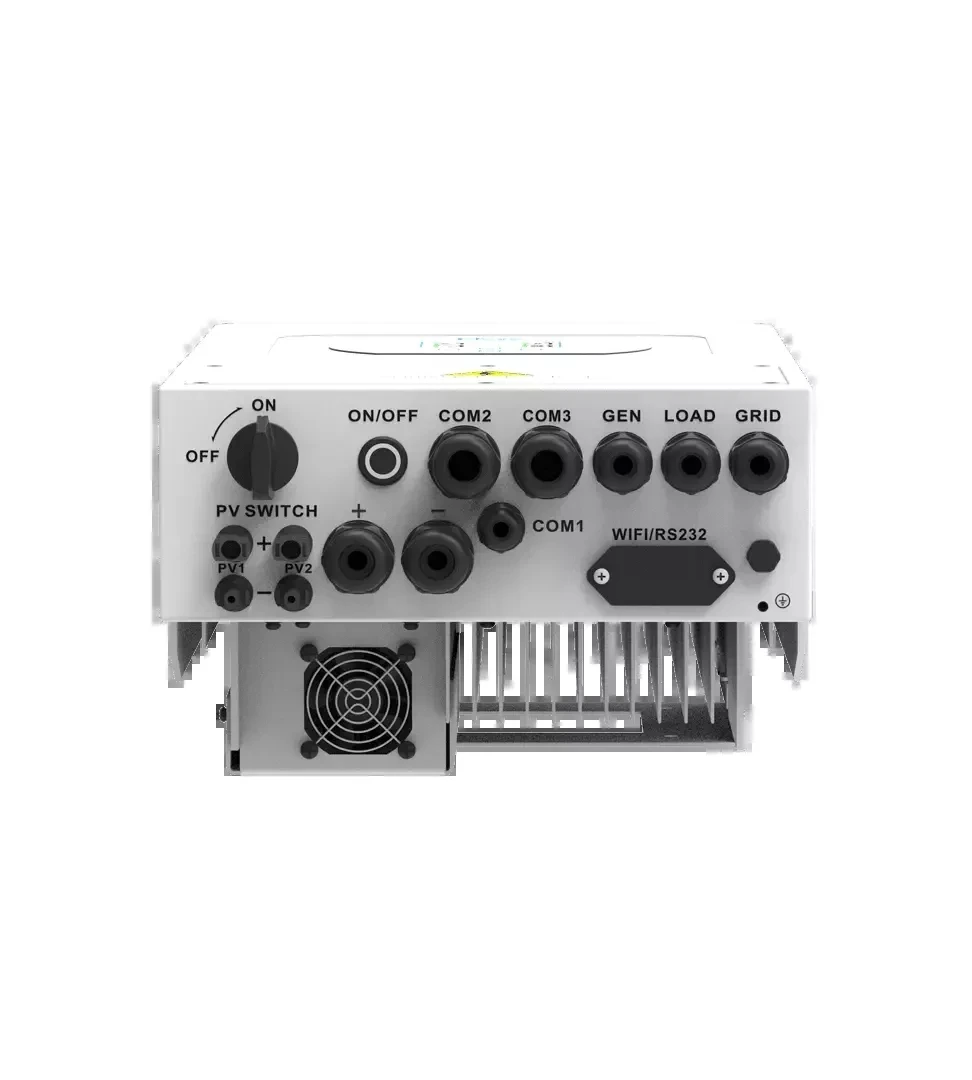

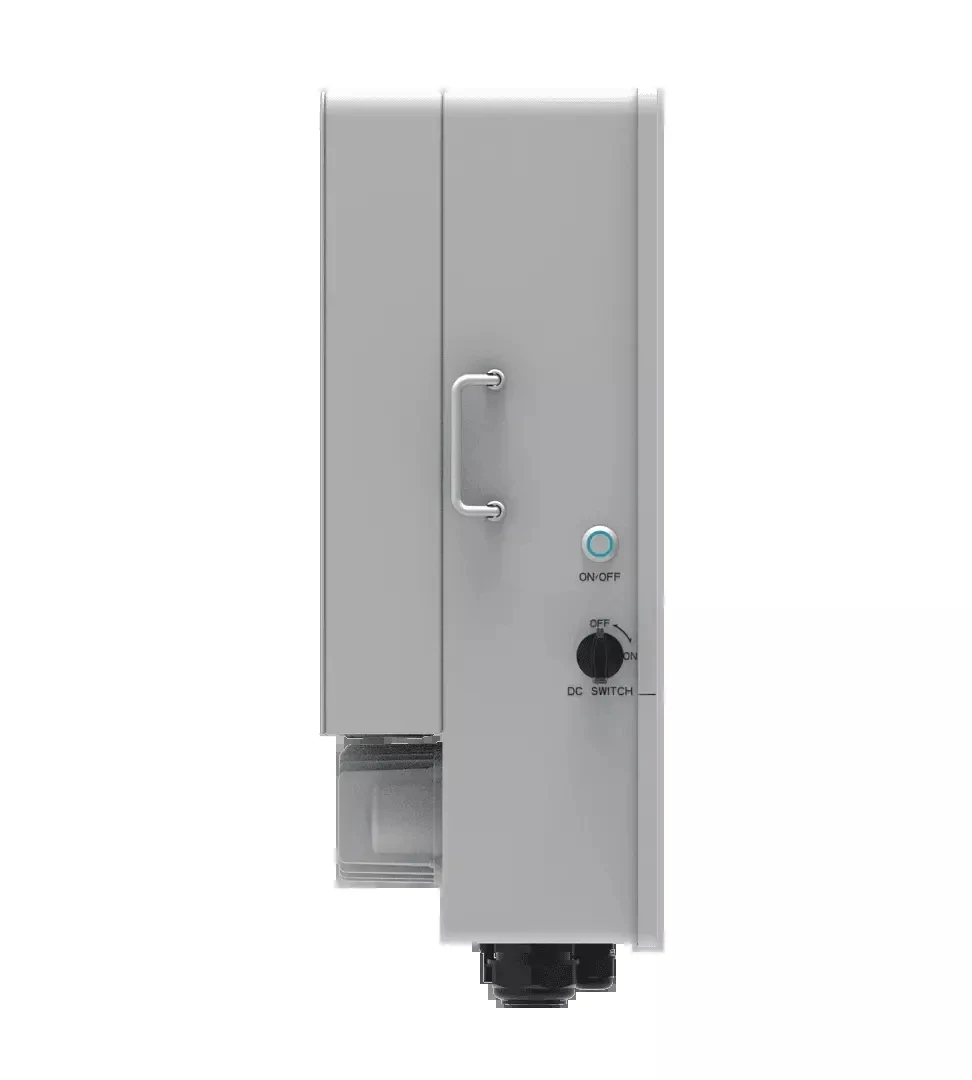

Detailed Images

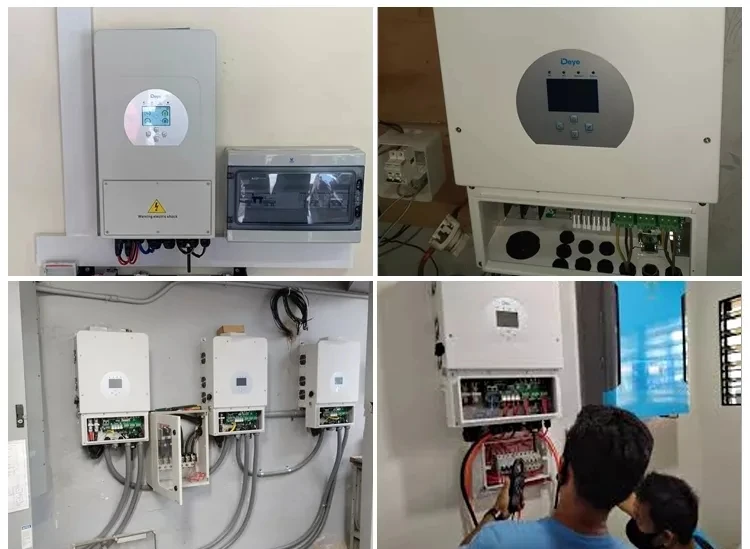

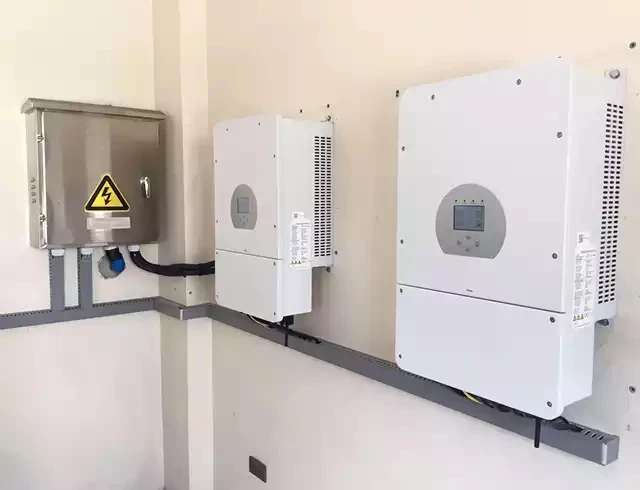

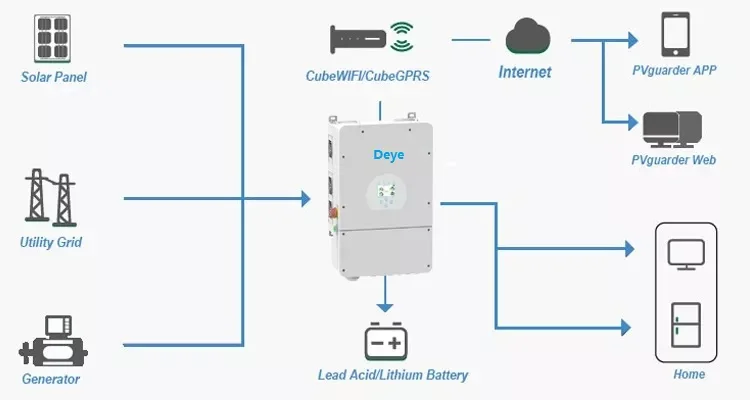

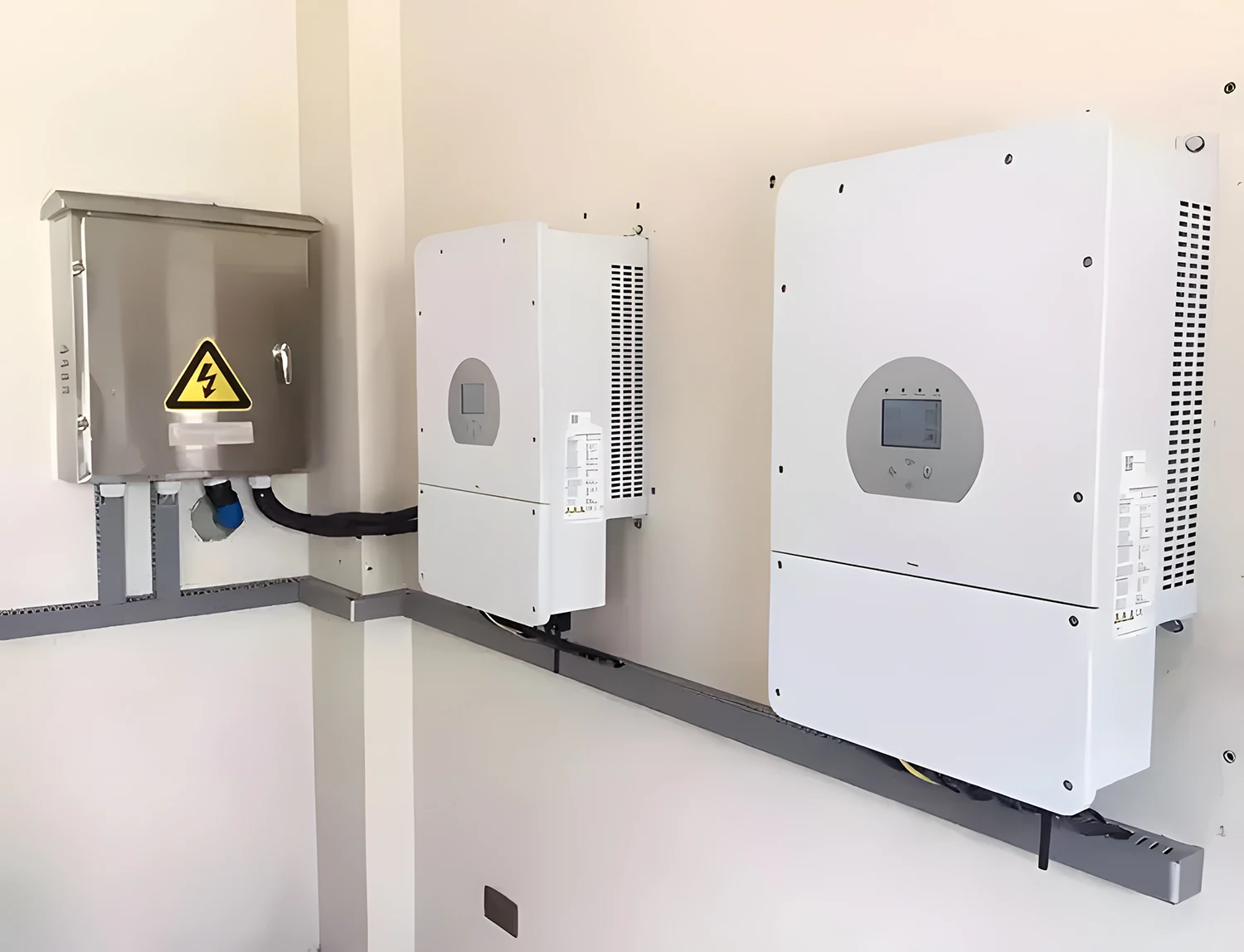

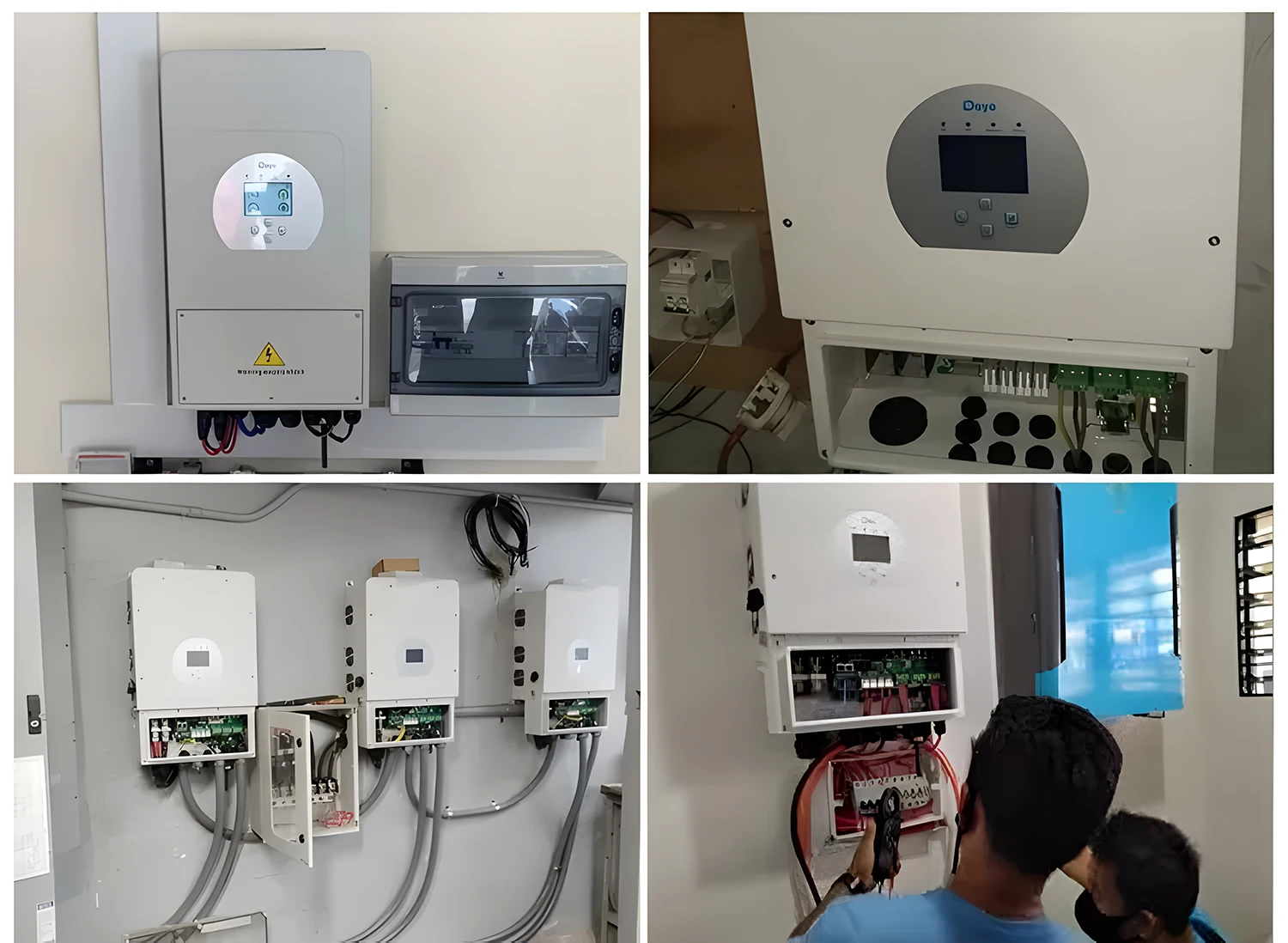

Product Applications

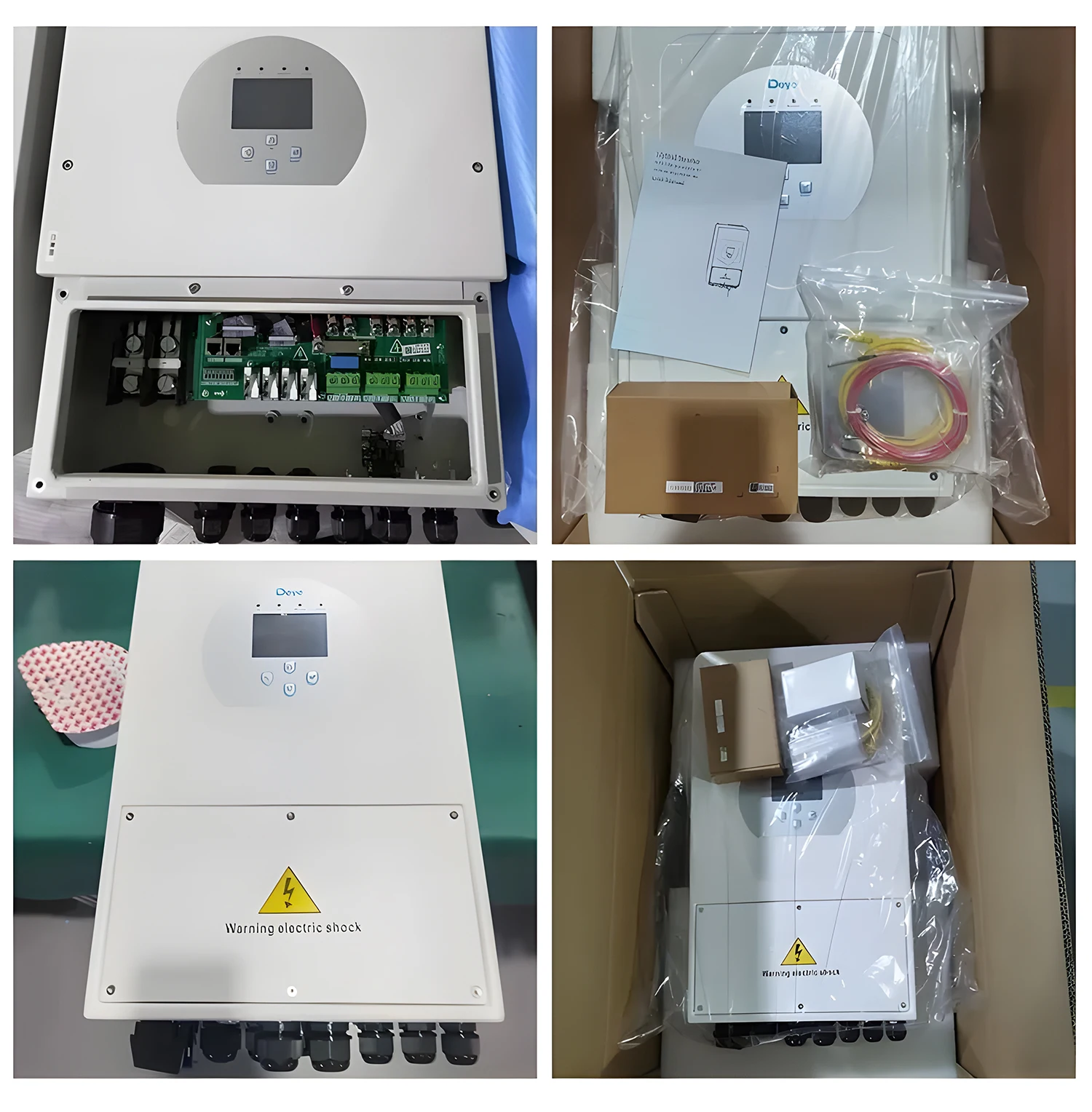

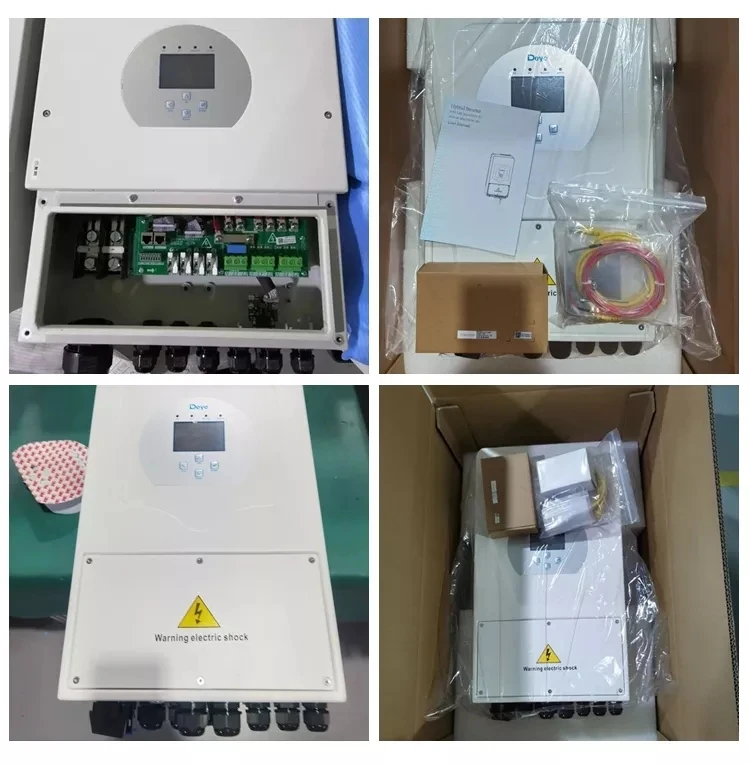

Product packaging
