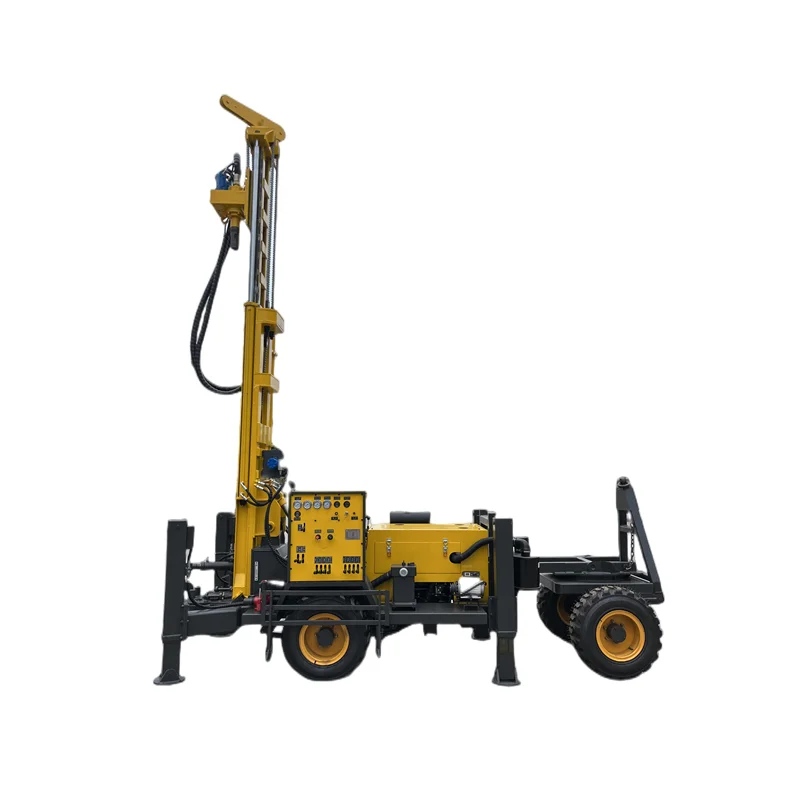

PW260 Hot sale trailer mounted water well drilling rig machine on wheels
- Category: >>>
- Supplier: Henan Power Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601354272503):
Product Overview
Description
PW260 Factory good price trailer mounted water well drilling equipment
Product Parameters
Water Well Drilling Rig
1.Centralized operating system
2.Matching triple pump
3.Strong lifting capacity
4.Standard winch(high speed regulation performance)
The Specification of PW260 Water Well Drilling Rig | ||||||
Name | PW180 | PW200 | PW260 | |||
The Weight(T) | 5 | 5.2 | 5.5 | |||
The hole diameter(mm) | 140-254 | 140-254 | 140-305 | |||
Drilling depth(m) | 180 | 200 | 260 | |||
One-time advance length(m) | 3.3 | 3.3 | 3.3 | |||
Equipped capacitor(KW) | 55 | 65 | 75 | |||
Using air p pressure(MPA) | 1.7-2.5 | 1.7-2.5 | 1.7-3.0 | |||
Air consumption(m³/min) | 17-31 | 17-31 | 17-31 | |||
Rotary speed(r/min) | 45-70 | 45-70 | 45-70 | |||
The penetration efficiency(m/h) | 10-35 | 10-35 | 10-35 | |||
The engine brand | Quanchai engine | Quanchai engine | Yuchai engine | |||
Drill pipe diameter(mm) | Φ76 Φ89 | Φ76 Φ89 | Φ76 Φ89 | |||
Drill pipe length (m) | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m | |||
Rig lifting force(T) | 12 | 13 | 15 | |||
Rapid rise speed ( m/min ) | 20 | 30 | 24 | |||
Rapid feeding speed (m/min) | 40 | 60 | 28 | |||
Width of loading(m) | 2.4 | 2.4 | 2.73 | |||
Hoisting force of winch(T) | 1.5 | 1.5 | 2 | |||
Rotary torque(N.m) | 3200-4600 | 3400-4700 | 4000-5300 | |||
Dimension | 4800*1900*2200mm | 4800*1900*2200mm | 4800*1900*2200mm | |||
Equipped with Hammer | Medium and high wind pressure series | Medium and high wind pressure series | Medium and high wind pressure series | |||
Product Description

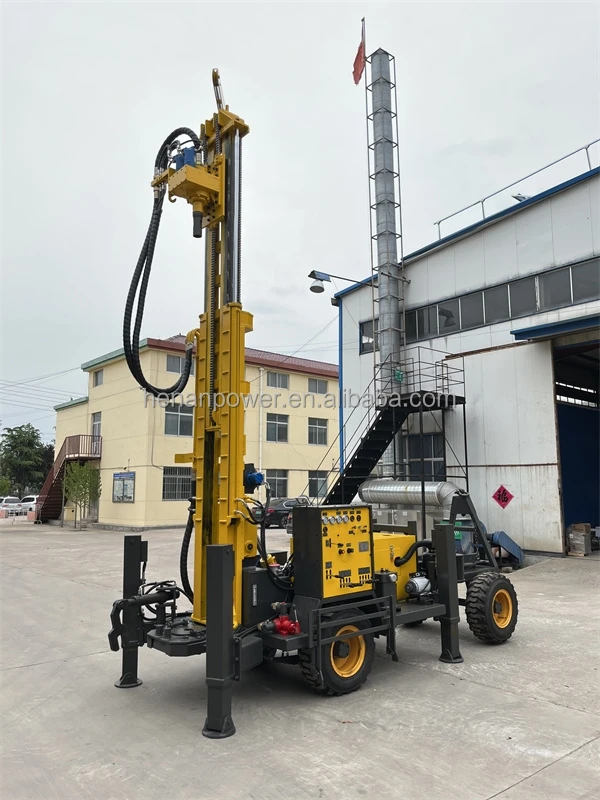

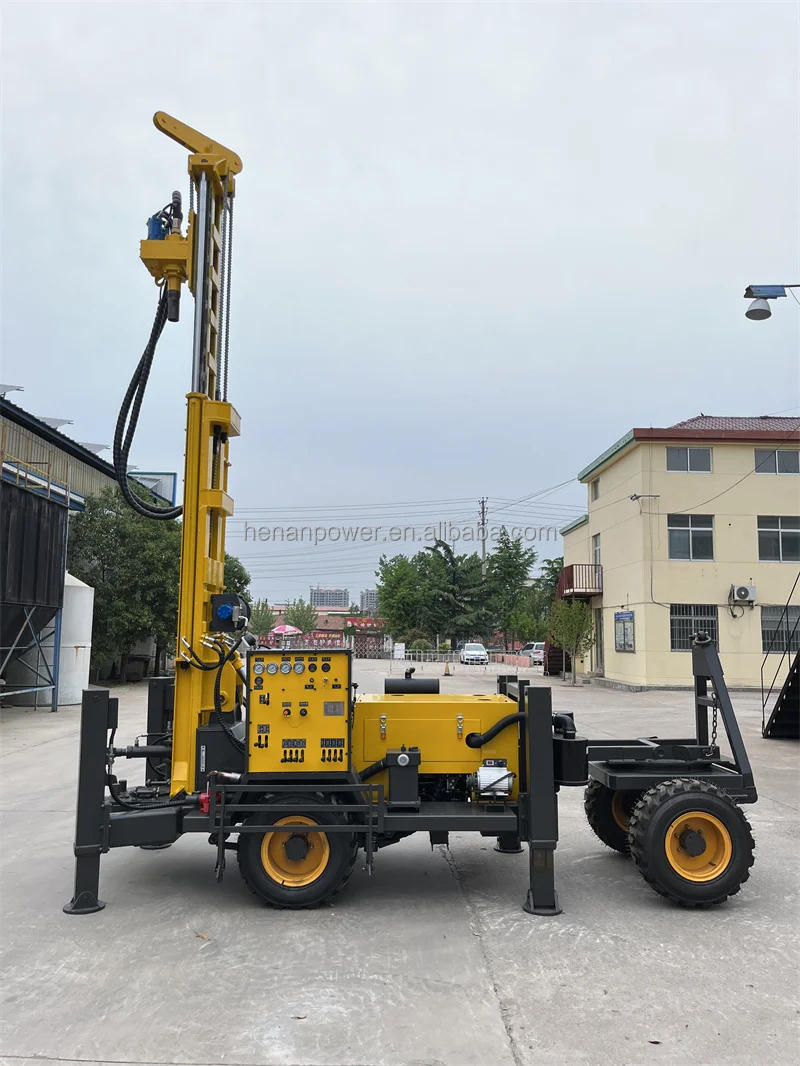

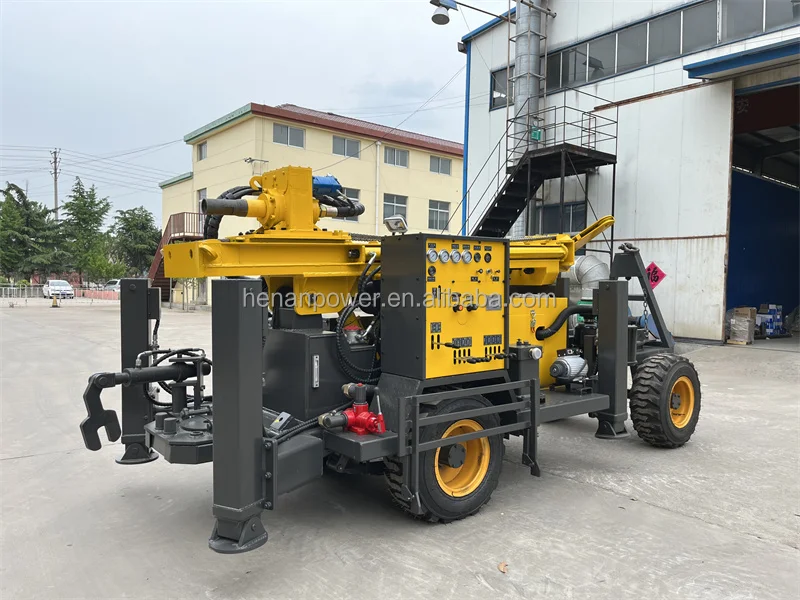

1.PW260 rotary trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment.
2.The paint surface adopts laser rust removal process, which is brighter and more durable.
3.Centralized operating system.Falling tower for hydraulic operation, convenient and reliable.
4.Diesel engine with electric start, labor saving.
3.Centralized operating system.Falling tower for hydraulic operation, convenient and reliable.
4.Diesel engine with electric start, labor saving.
Product Details

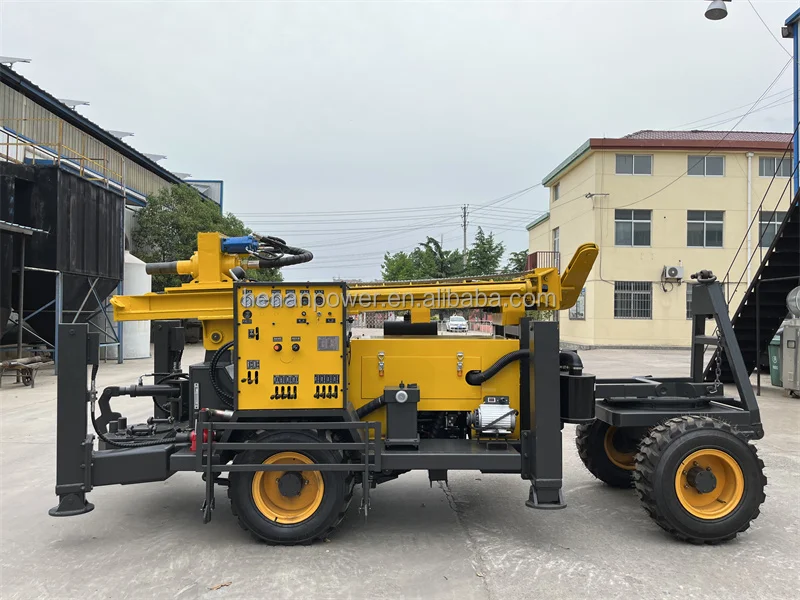

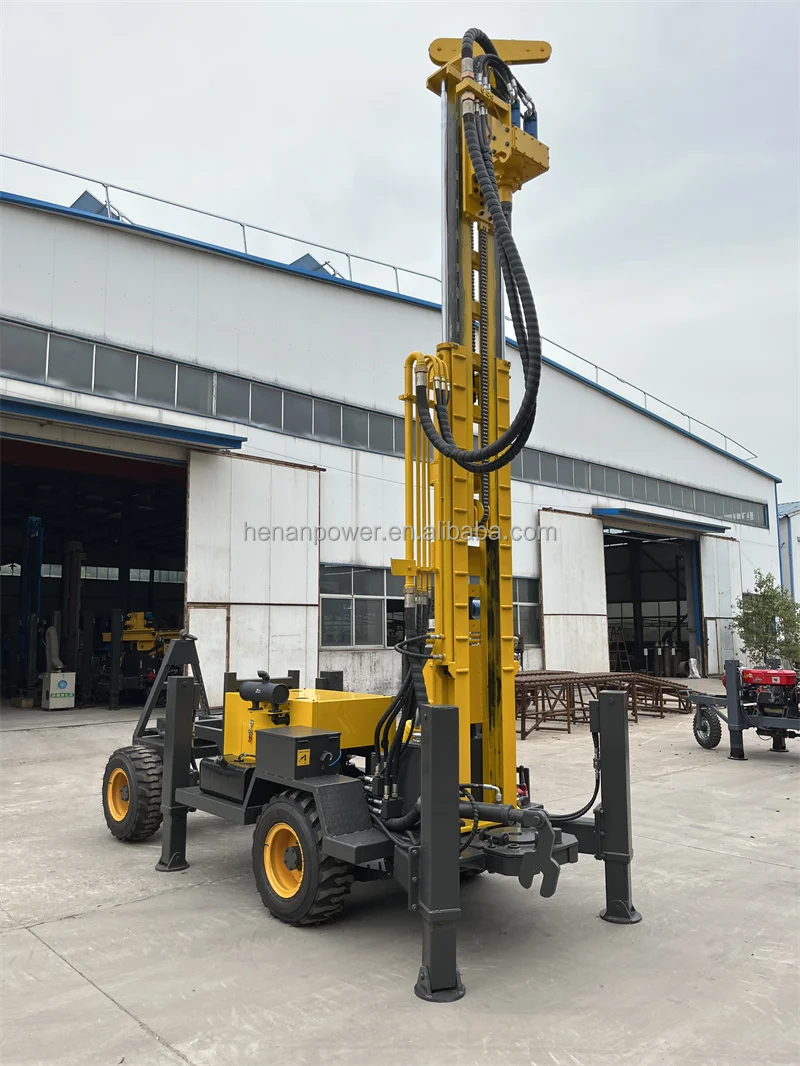

1. The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder props. The machine is highly mobile, and it is convenient to adjust it horizontally.
2. Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for real-time monitoring of the operation inside the hole.
3. The lifting towers are hydraulically driven, which is convenient and reliable.
4. Power head device,high quality.
Related Products

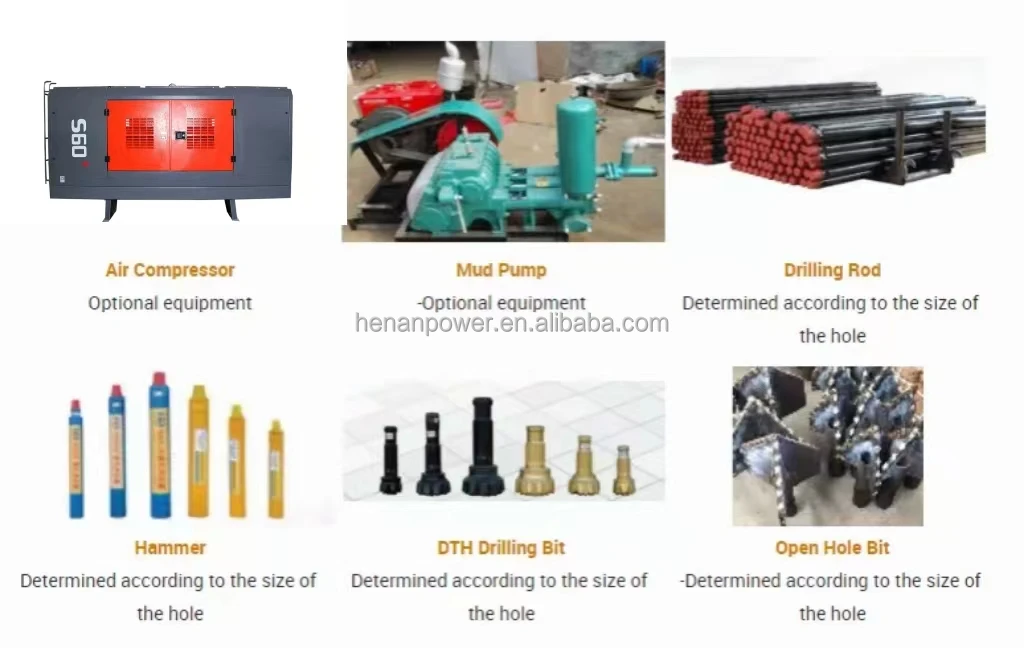

We can supply all series of drilling equipment and drilling tools.Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Product Application

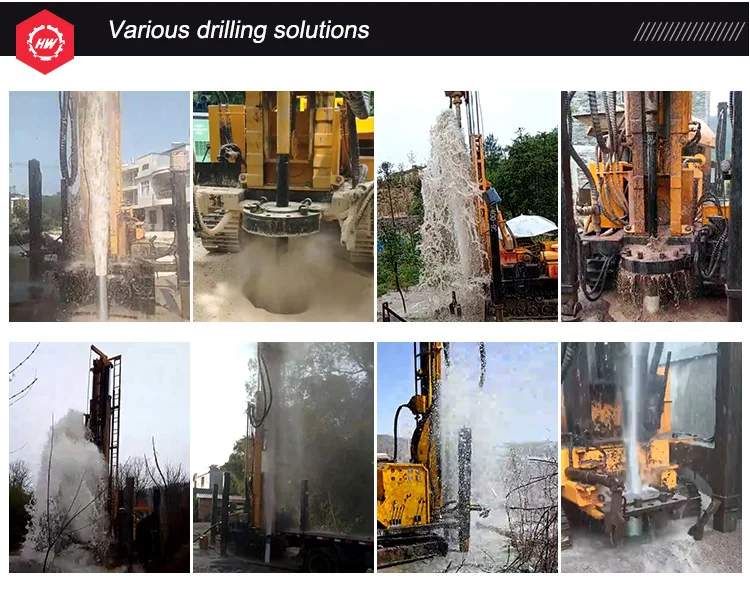

PW260 is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agricultural irrigation well, geothermal well and other type well holes. It is special suitable for mountain area and rock stratum water sourcing project.This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system.
If you want to know more,please do not hesitate to contact me!

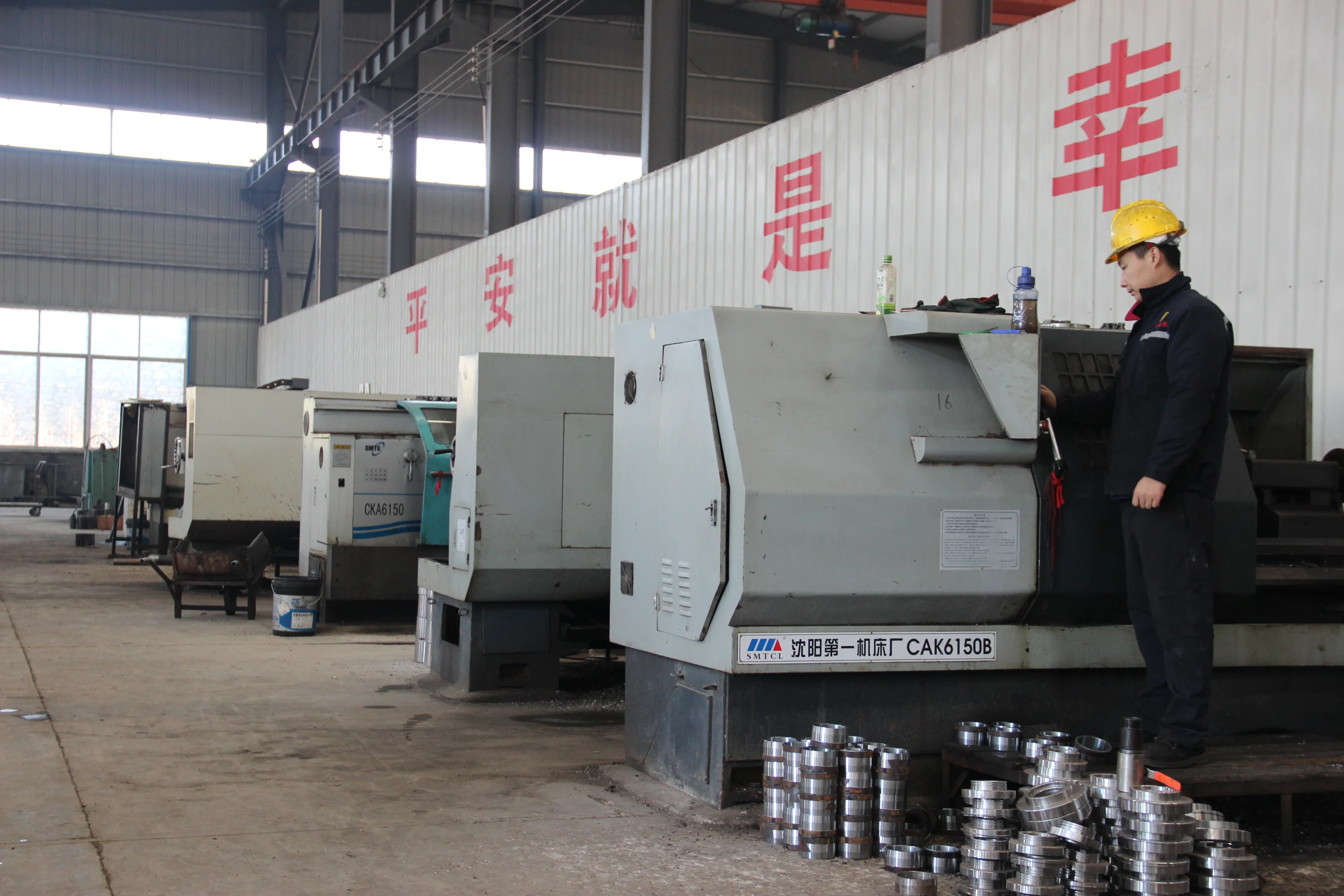

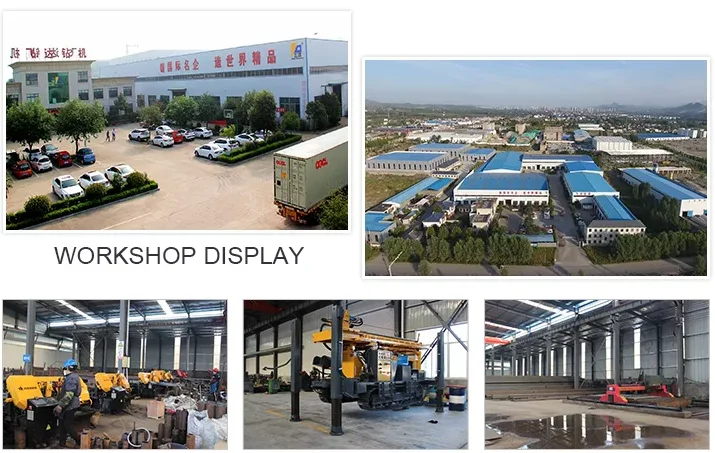

Company Profile
FAQ
1. Why customer choose us?
Our drilling rigs have the characteristics of high drilling speed, economy and low failure rate,We warmly welcome your small trial order for quality or market test.
2. What can you buy from us?
Well Drilling Machine,DTH mine drilling rig,Drilling Tools and Accessories,Screw Air Compressor
3. How can we guarantee quality?
Always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
4. Are you a manufacturer or trading company?

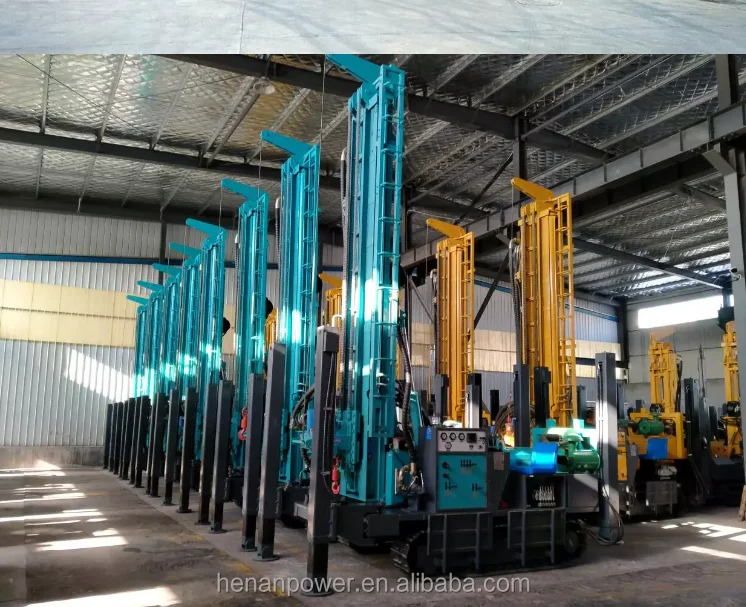

We are professional manufacturer with big modern factory in China.
