Wenzhou DDSP2 PV 2P 3P 40kA Lightning Surge Protective Device Arrestor DC SPD 1000V 1200V Best Home Surge Protector
- Category: >>>
- Supplier: Didun Holding Group Co. Ltd.Didun Ltd.
Share on (1601354347023):
Product Overview
Description
Model | DDSP2-PV | ||
Pole | 2P | 3P | |
SPD Type | Type 2/ClassⅡ | ||
Technology | MOV/MOV+GDT | MOV+GDT | |
Protection Mode(s) | DC+PE.DC- | MOV/MOV+GDT | |
Max.continuous operating voltage (D.c)[Ucpv] | 600/800/1000/1200 | 800/1000/1200/1500 | |
Nominal discharge current(8/20μs)[In] | 20kA | ||
Max.discharge current(8/20μs)[Imax] | 40kA | ||
Protection level [Up] | ≤3.2kV ≤3.6kV ≤4.0kV ≤4.5V | ≤3.6kV ≤4.0kV ≤4.5V ≤5.2kV | |
Response time [tA] | ≤25ns | ||
Admissible short-circuit current [Isccr] | 25kA | ||
Max.backup fuse | 125A gL/Gg | ||
SPD configuration | DC System | ||
Pluggable | Available | ||
Mounting | 35mm DIN rail | ||
Housing Material | PA66 flame retardant | ||
Operating temperature | -40℃~+80℃ | ||
Protection rating | IP20 | ||
Operating state/fault indication | Green/Red | ||
Remote Signaling | Optional | ||
Wiring for remote signaling | Max 1.5mm solid/flexible | ||
Max. Voltage/Current for remote signaling | 250V/0.1A;125V/0.2A;75V/0.5A | ||
Product Introduction：

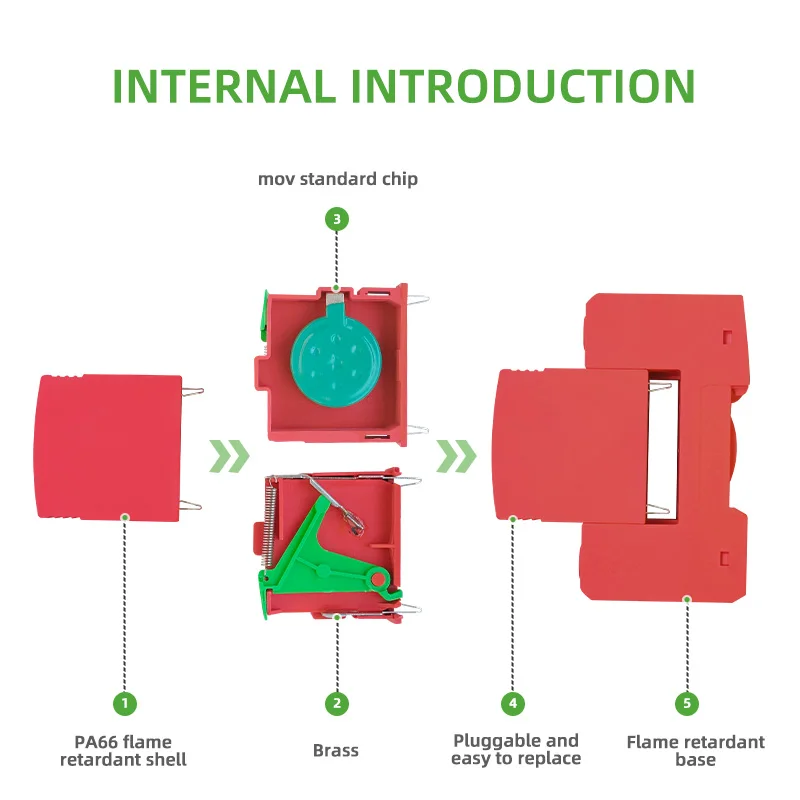

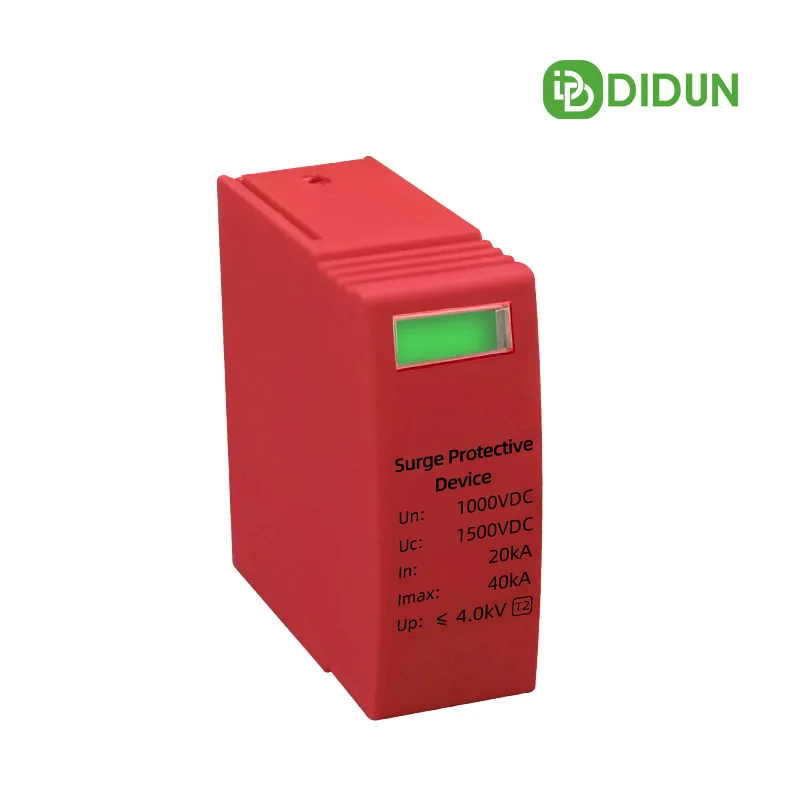

The DDSP2-40PV DC surge protection device (SPD) is designed for DC power supply systems.These units must be installed in parallel on the Dc networks to be protected and provide common and different modes protection, Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOV equipped with specific thermal disconnectors and related failure indicators. The DDSP2-40PV features a 35mm standard rail mount and incorporates a failure release mechanism. In cases of overheating, over-current, or SPD failure, the failure release automatically disconnects the protected equipment from the power supply and provides status indication (green for normal, red for abnormal). The module is also replaceable under operating voltage conditions.
Product Features：
1.inside over-current and over-heat protection, temperature control open circuit.
2.Module design, convenient installation, could be replaced.
3.Time of response <25ns.
4.The color of visible window shows operating status, green means normal, red means abnormal.
5.Based on zinc oxide technology-Using 34S high-performance MOV the maximum will be up to 8/20us40kA.

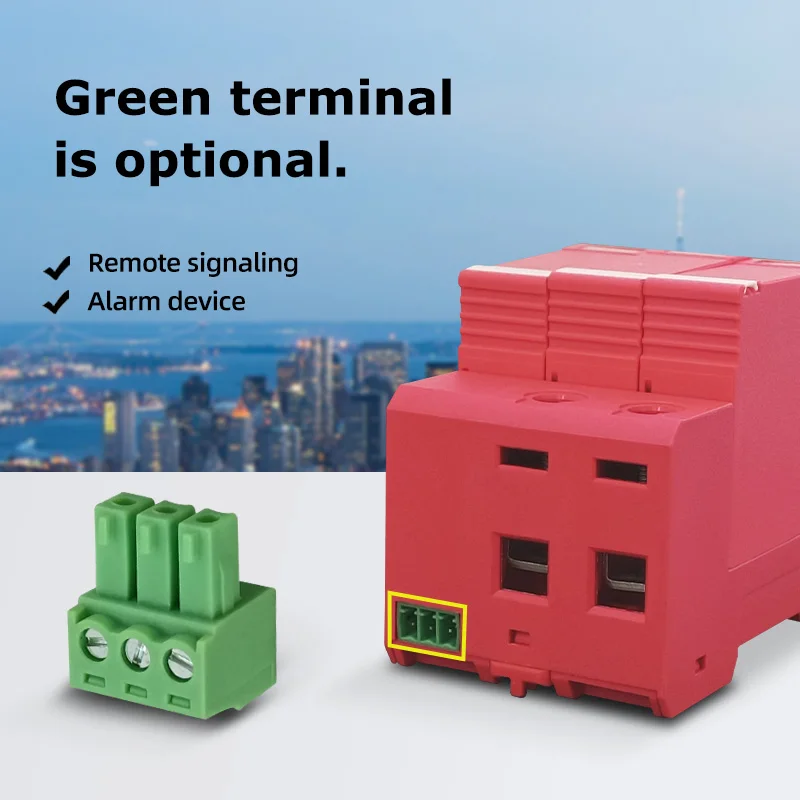

6.Remote signaling function is optional.
The DDSP2-40PV DC surge protection device (SPD) is designed for DC power supply systems.These units must be installed in parallel on the Dc networks to be protected and provide common and different modes protection, Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOV equipped with specific thermal disconnectors and related failure indicators. The DDSP2-40PV features a 35mm standard rail mount and incorporates a failure release mechanism. In cases of overheating, over-current, or SPD failure, the failure release automatically disconnects the protected equipment from the power supply and provides status indication (green for normal, red for abnormal). The module is also replaceable under operating voltage conditions.
Product Features：
1.inside over-current and over-heat protection, temperature control open circuit.

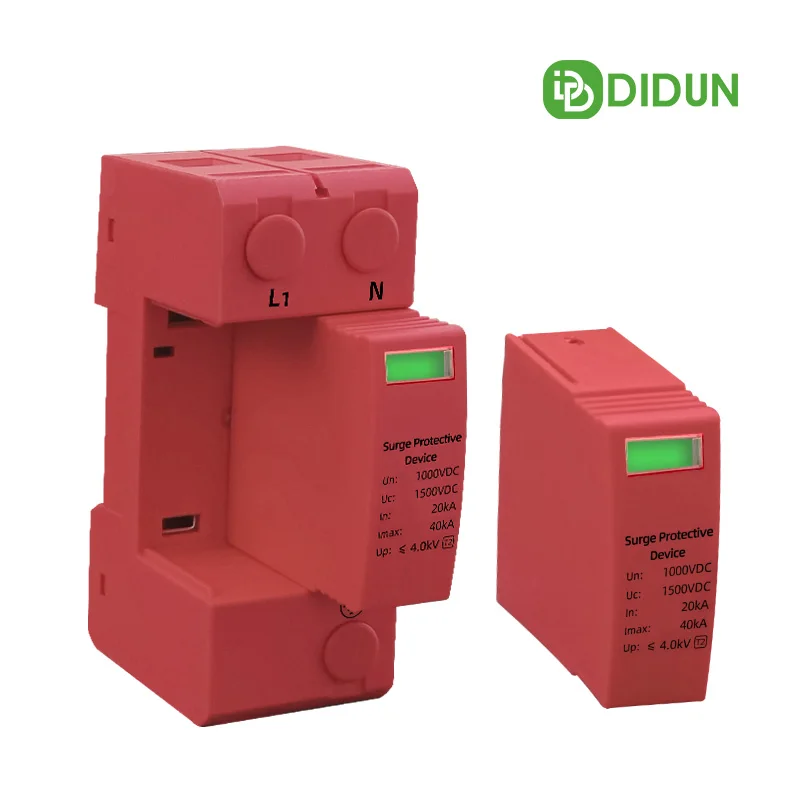

2.Module design, convenient installation, could be replaced.
3.Time of response <25ns.
4.The color of visible window shows operating status, green means normal, red means abnormal.
5.Based on zinc oxide technology-Using 34S high-performance MOV the maximum will be up to 8/20us40kA.
6.Remote signaling function is optional.
