ZHENHUA QZD Packing Making Corrugated Carton Box Folding Gluing Automatic Folder Gluer For Making Box Folder Gluer Machine
- Category: >>>
- Supplier: Cangzhou Golden Wings Machinery Co. ltdCangzhou ltd
Share on (1601354415731):
Product Overview
Description
PRODUCT DESCRIPTION
Intelligent Automatic Folder Gluer
Use And Characteristics:
The intelligent automatic folder gluer is composed of three parts: vacuum paper feeding part, gluing and folding part, and counting and stacking output part.All motors are from Taiwan Shengbang motors, except frequency conversion motors. Frequency conversion speed regulation, standard PLC touch screen control (double PLC, double touch screen), electric adjustment of the whole machine, only need to input three data (length, width, height) on the touch screen, the machine will automatically adjust in place. The operation is simple and reliable, the maximum speed of the box gluer is 180 m/min, and the average gluer speed is 150 m/min; high speed saves energy and saves labor costs.
Model | 1226 |

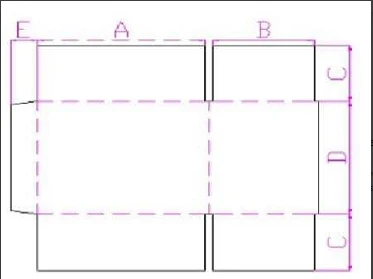

Max Paper Size (A+B)*2 | 2600 mm |
Min Paper Size (A+B)*2 | 420 mm |
Max Carton Length A | 900 mm |
Min Carton Length A | 130 mm |
Max Carton Width B | 650 mm |
Min Carton Width B | 80 mm |
Max Carton Height (C+D+C) | 1200 mm |
Max Carton Height (C+D+C) | 170 mm |
Max Carton cover C | 350 mm |
Min Carton cover C | 50 mm |
Min Carton Height D | 100 mm |
Machine Speed | 180 m/min |
Paper Feeding Department
The paper feeding by suction can better adapt to the curved cardboard; the frequency conversion control enables the paper feeding part to control the paper feeding independently, and the operation is simple and reliable; Enter the carton data and adjust the order with one key.
Glue&Folding Section

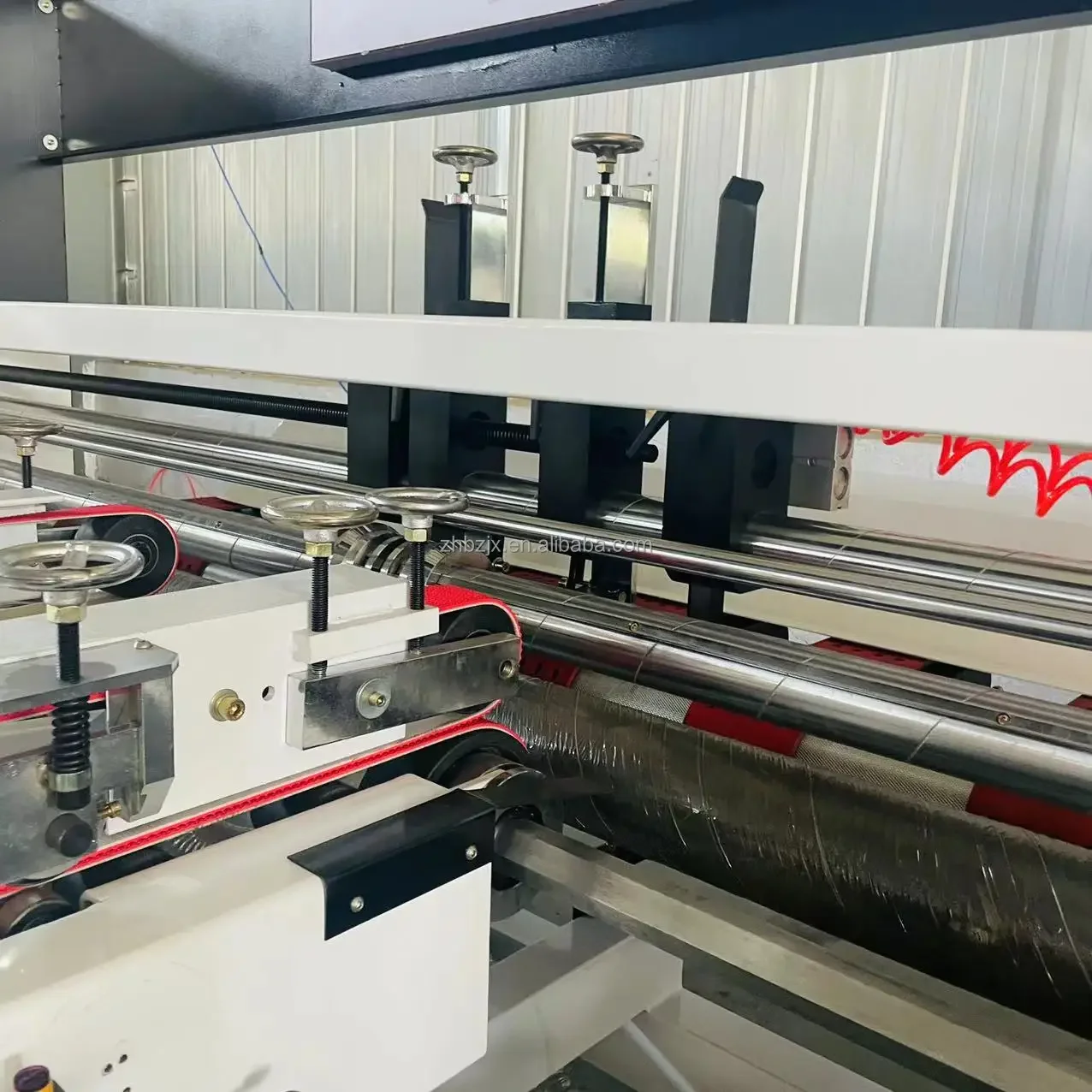

The imported wear-resistant rubber belt transports the cardboard, which lasts longer; the cardboard straightening device and creasing device, and the creasing wheel are adjustable, suitable for cardboard thickness 2-8mm; the secondary creasing mechanism can perform secondary creasing on the creasing quality of the cardboard secondary indentation.
Counting And Stacking Output Unit
The principle of counting and stacking is simple and reliable, and the stacking part moves horizontally electrically to ensure stable output of cartons with large deviations.
CUSTOMIZED PROCESS
PRODUCT DISPLAY
COMPANY PROFILE
About us
Cangzhou Golden Wings Machinery Co.,Ltd. was established in 1999, located in Cangzhou City, Hebei Province, China, Dongguang packaging machinery Industrial zone.
The company has a professional R & D production team, committed to the R & D and manufacturing of intelligent high-end packaging equipment, after more than 20 years oftechnological innovation and development, the company's products continue to update, and gradually develop into a leadern the packaqnng macnmery industry.
Since its establishment, we have been adhering to the pursuit of excellence, quality frst concept, to provide our customers with excellent packaging solutions.
Products and Services
We are specialized in providing all kinds of packaging machinery and equipment, including automatic printing and qluing box linkage line, high-defnition high-speed ink printing press die-cutting machine and other carton machinery and equipment.
Whether you are in the food pharmaceutical, chemical, daily chemical, electronics or other industries, we can tailor the most suitable packaging solutions for you.
At the same time, we also provide a full range of services including equipment installation, commissioning, training, etc, to ensure that you get the maximum value and benefts in the use of the process.
COMPANY CERTIFICATE
EXHIBITIONS & CUSTOMERS

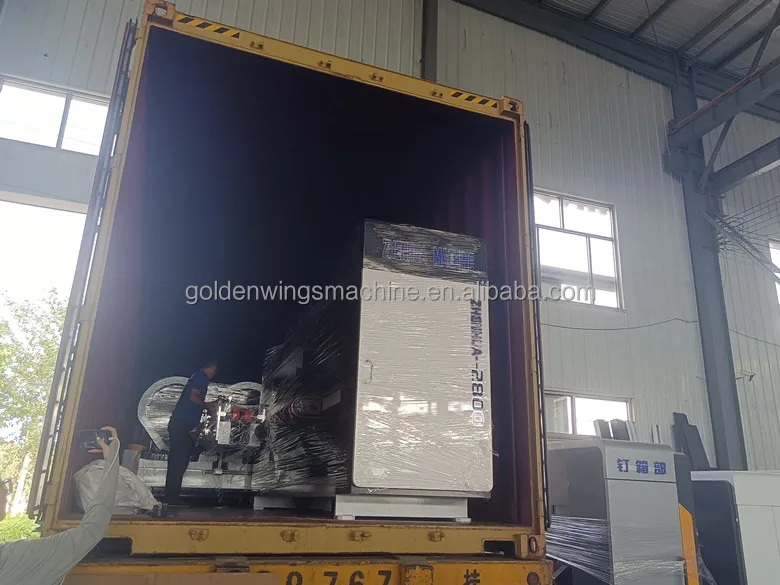

PACKAGING LOGISTICS
FAQ
1. How can we guarantee quality？
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.What is the failure rate of the machine？
Our machine has been tested and improved many times, and the failure rate is very low. We also provide preventive maintenance services to ensure that machines are kept in good running condition.
3.How to ensure the durability and reliability of the machine？
High quality steel and castings are selected to ensure that the machine is strong and durable. Perform strict machine performance test and quality inspection to ensure machine reliability. Provide professional maintenance services, prolong the life of the machine.
4.ls it safe on the payment for me as we are the first cooperation？
We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
