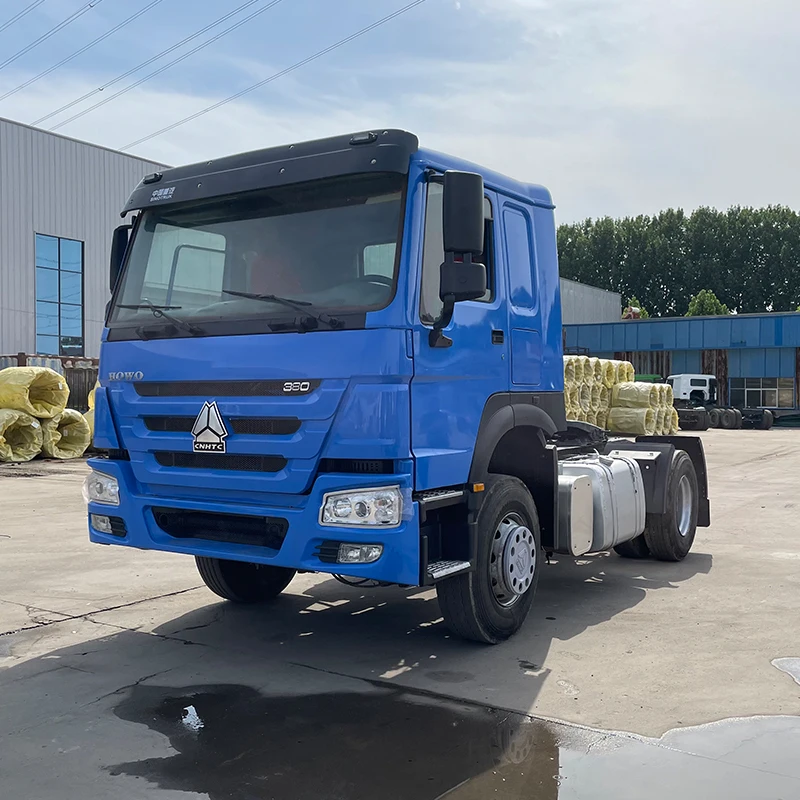

Best price Sinotruk 4x2 Heavy Duty Trailer Truck 6W heeler 380HP 20Tons Tractor Head Truck For Sale

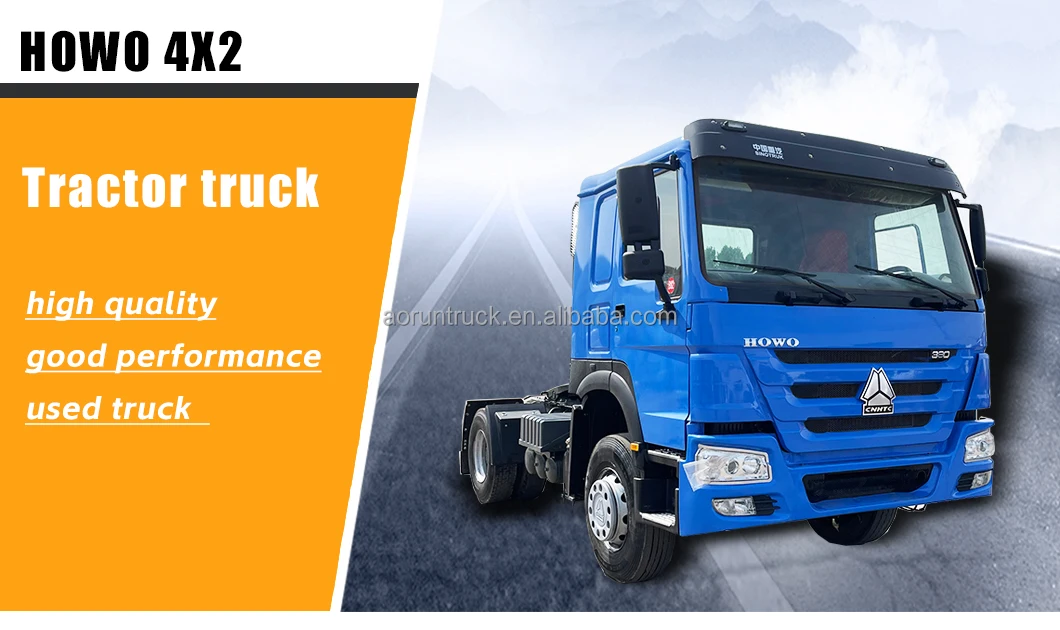

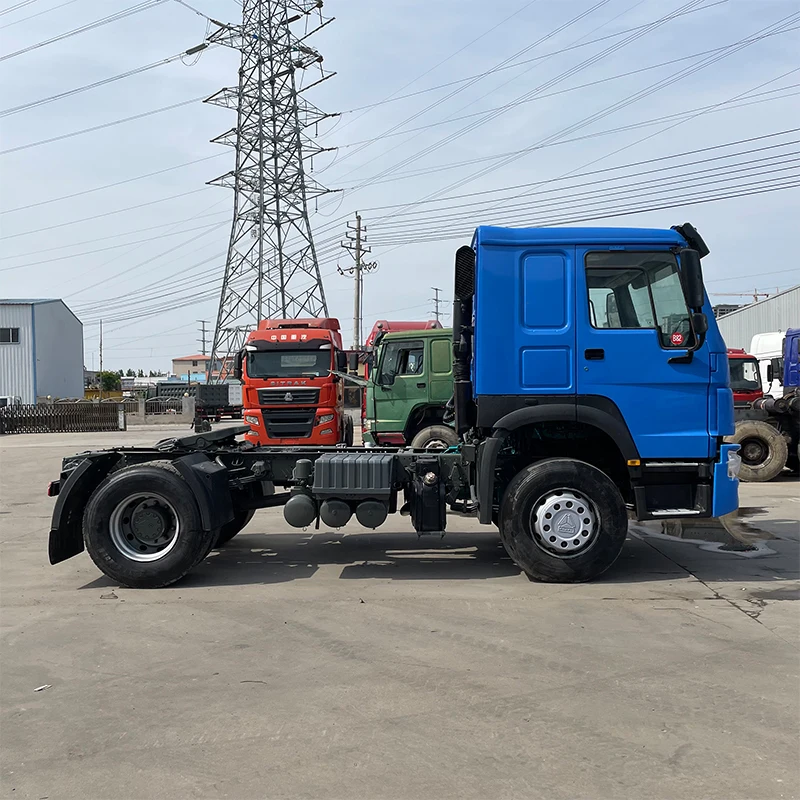

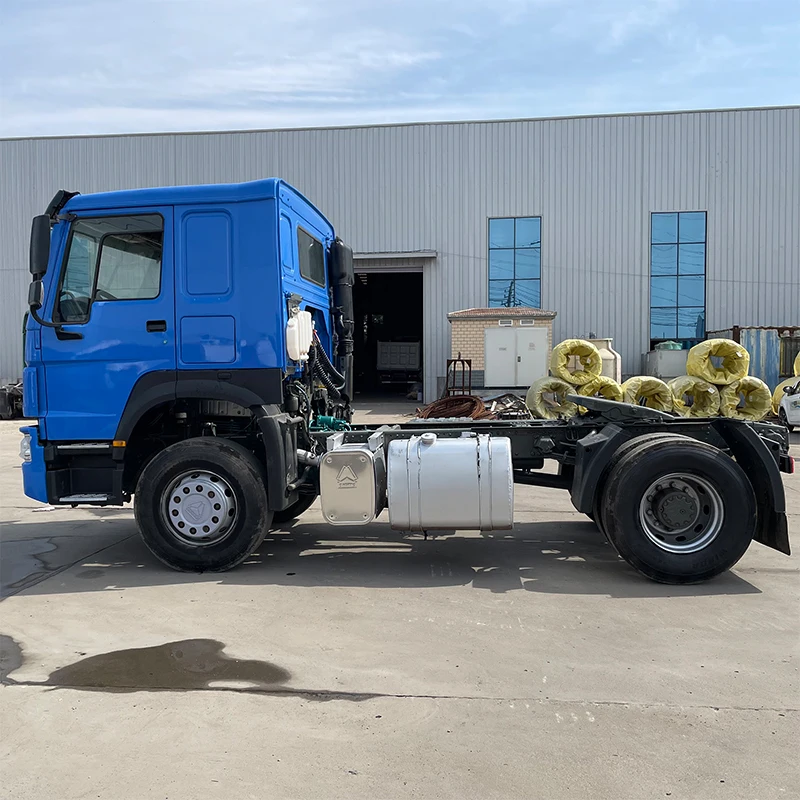

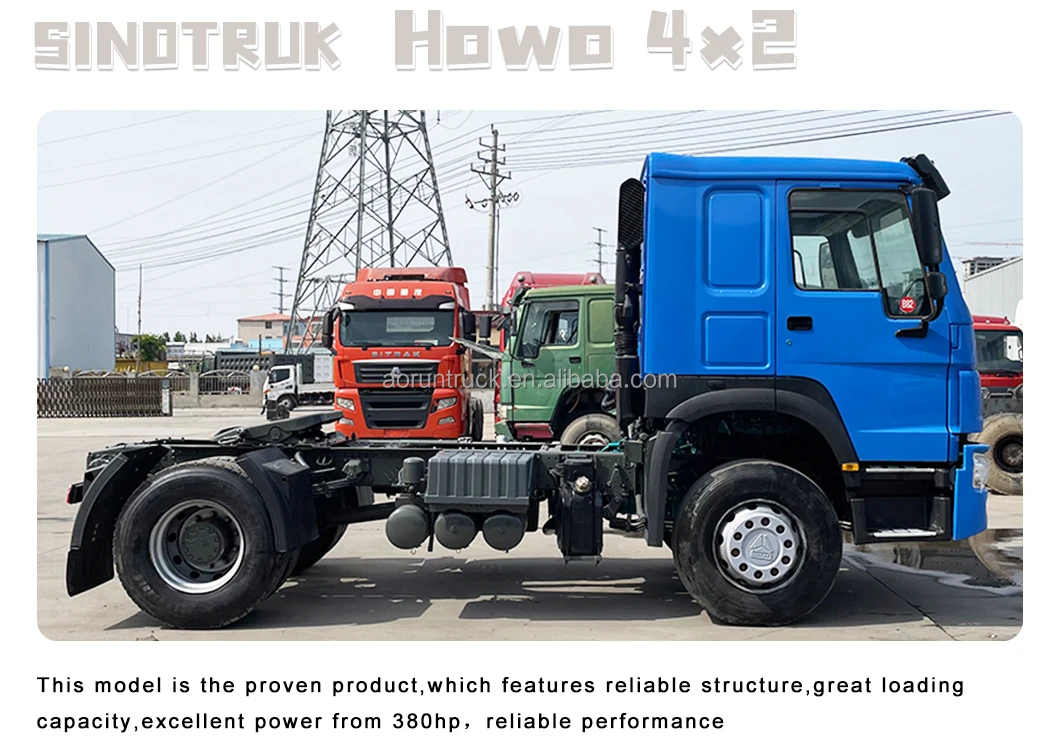

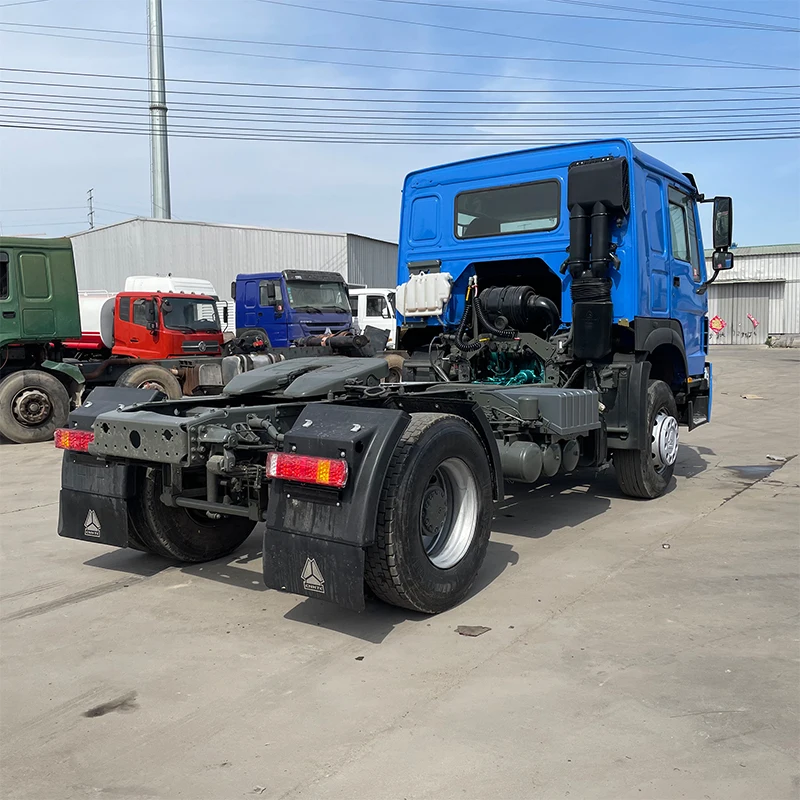

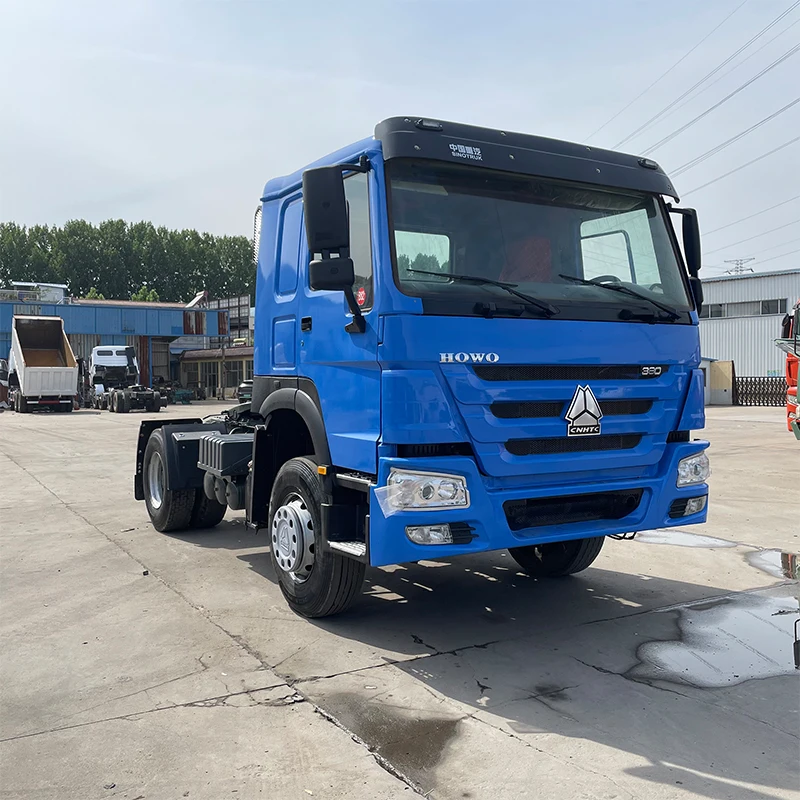

HOWO 4×2 300HP TRACTOR

FOB SHANGHAI US$ 37,4500/set

SPECIFICATION

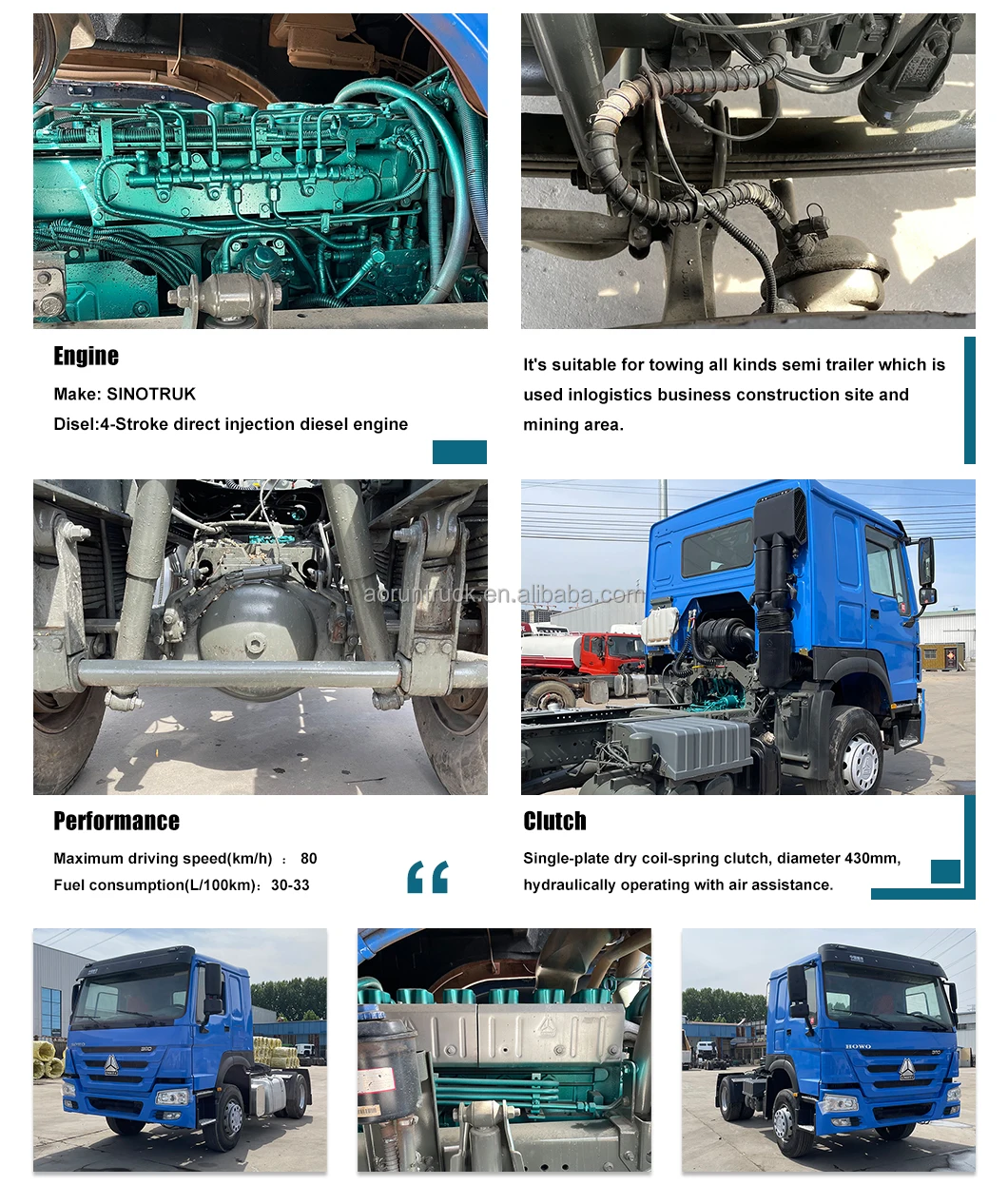

Engine

Make: SINOTRUK
Disel:4-Stroke direct injection diesel engine
Engine model: Euro III,WD615.97C
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output:300hp at 1900 rpm according to DIN
Maximum torque:1340Nm at 1200-1500 rpm
Displacement:9.726L
Bore:126mm
Stroke:130mm
Compression ratio:17:1
Specific fuel consumption:195g/kWh
Engine oil filling quantity:23L
Cooling system filling quantity(long-term filling):40L
Thermostat with 71℃ opening begin
Twin cylinder air compressor

Clutch

Single-plate dry coil-spring clutch, diameter 430mm,
hydraulically operating with air assistance.

Transmission

HW13710CL, 10 forward, 1 reverse

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section beam

Rear Axles

Pressed axle housing, central single reduction with planetary wheel reduction
and with differential lock

Chassis

Frame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced
subframe, all cold riveted cross members. Aluminum fuel tank: 300 L capacity with
locking fuel cap, fitted to the off side of the chassis

Steering

ZF power steering, model ZF8098,hydraulic steering with power assistance.
Ratio: 22.2-26.2

Braking System

Service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Tyres

295/80R22.5, 7pics

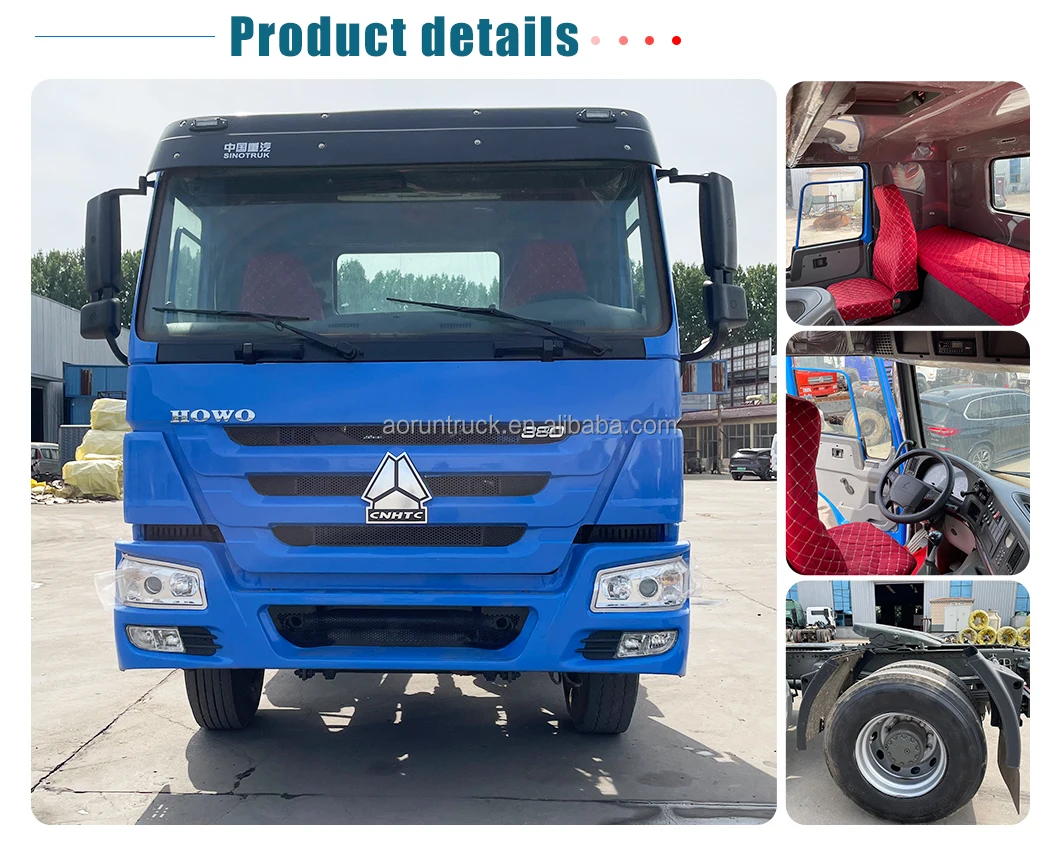

Cab

HW76 Cab, one berth, all steel forward control, 55°hydraulically tiltable to the front, 2-arm
windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial,
hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,
with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo
radio/cassette recorder, safety belts, adjustable steering wheel, air horn, with 4-point support
fully floating suspension + shock absorbers

Electrical System

Operating voltage:24V,negative grounded
Starter:24V.7.5Kw
Alternator:3-phase,28V,1500W
Batteries:2*12V,165Ah/180Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Instrument

Active check central controller with indicators, with this integral instrument the daily manual checks
on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil
pressure and battery charging.

Dimensions in mm

Wheel base 3500
Overall length 6110
Overall width 2496
Overall height 3668

Weight in kg

Dead weight 7100
Front axle loading capacity 6500
Rear axle loading capacity 11500

Performance

Maximum driving speed(km/h) 80
Fuel consumption(L/100km) 30-33
