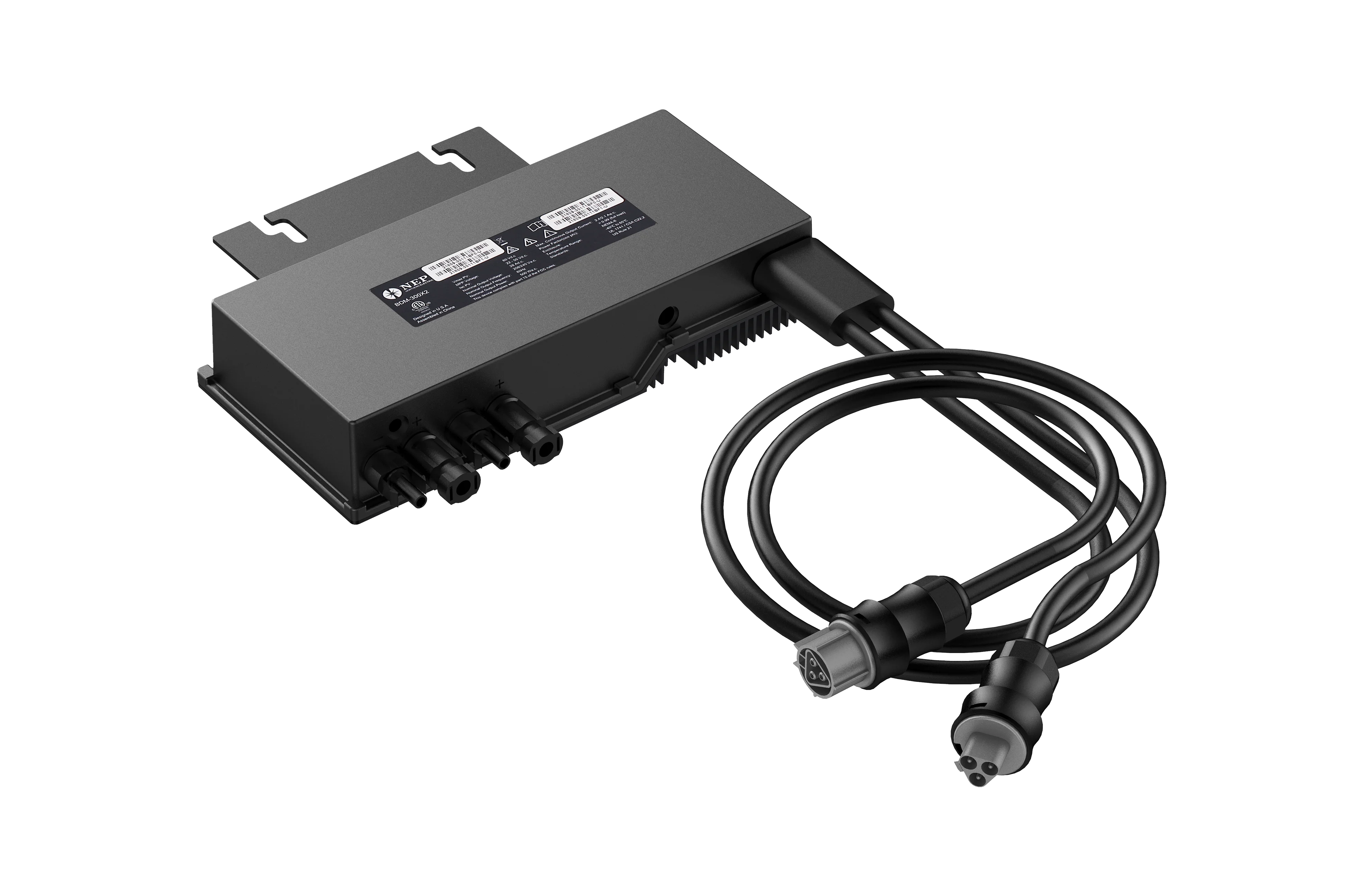

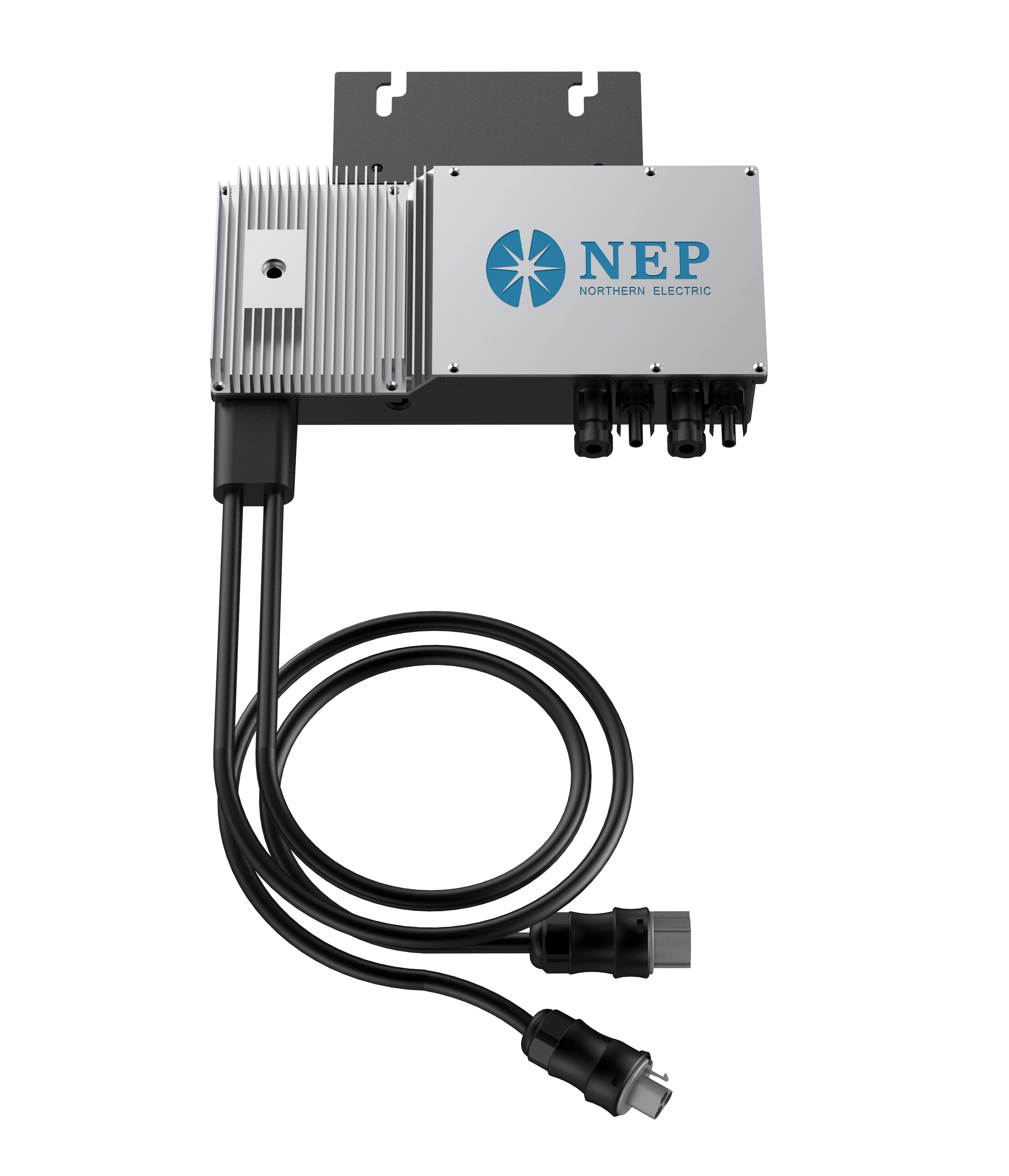

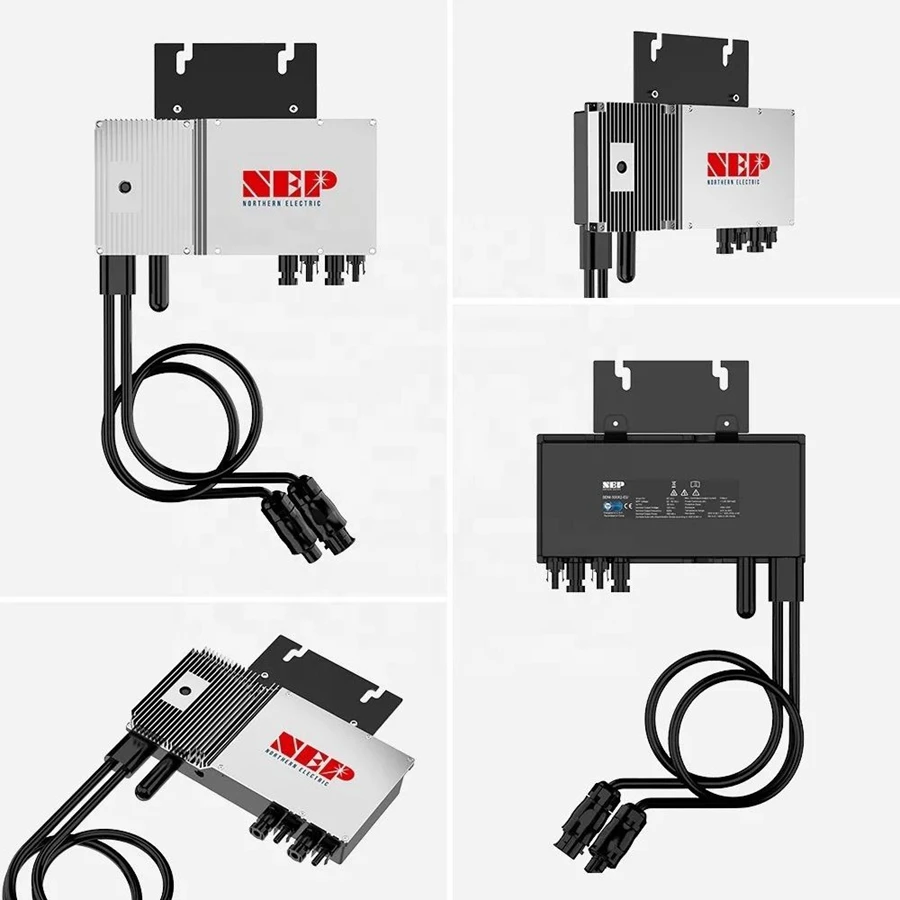

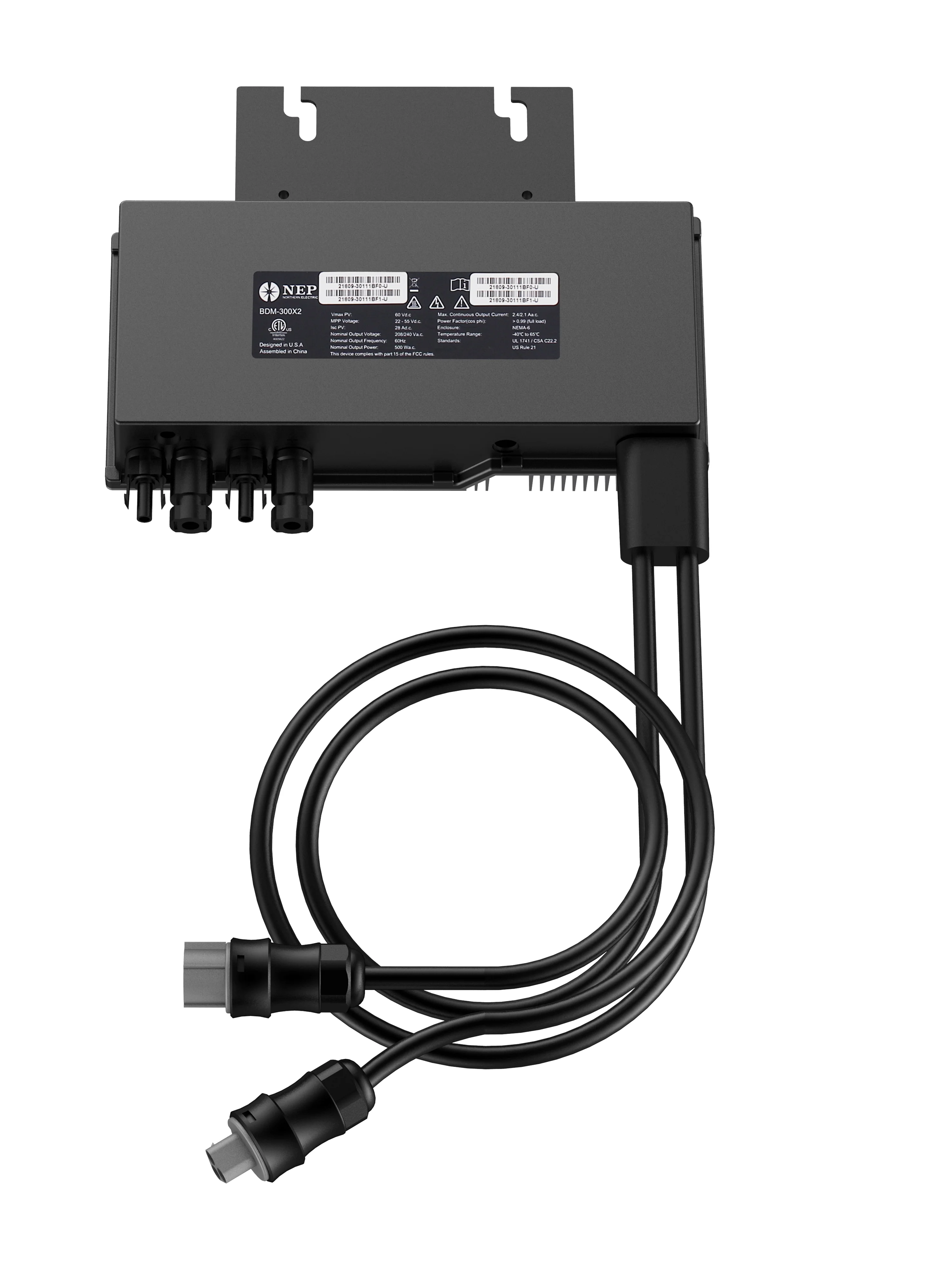

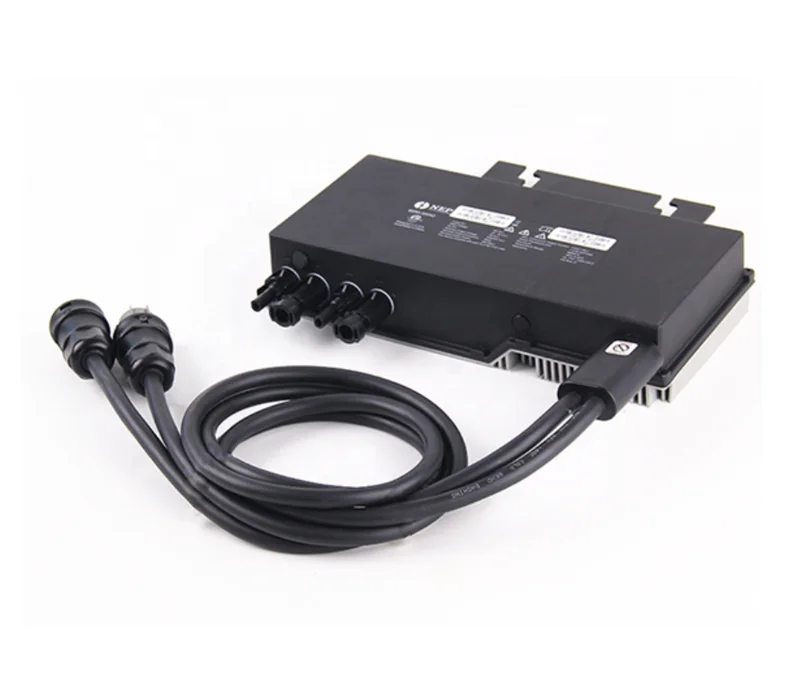

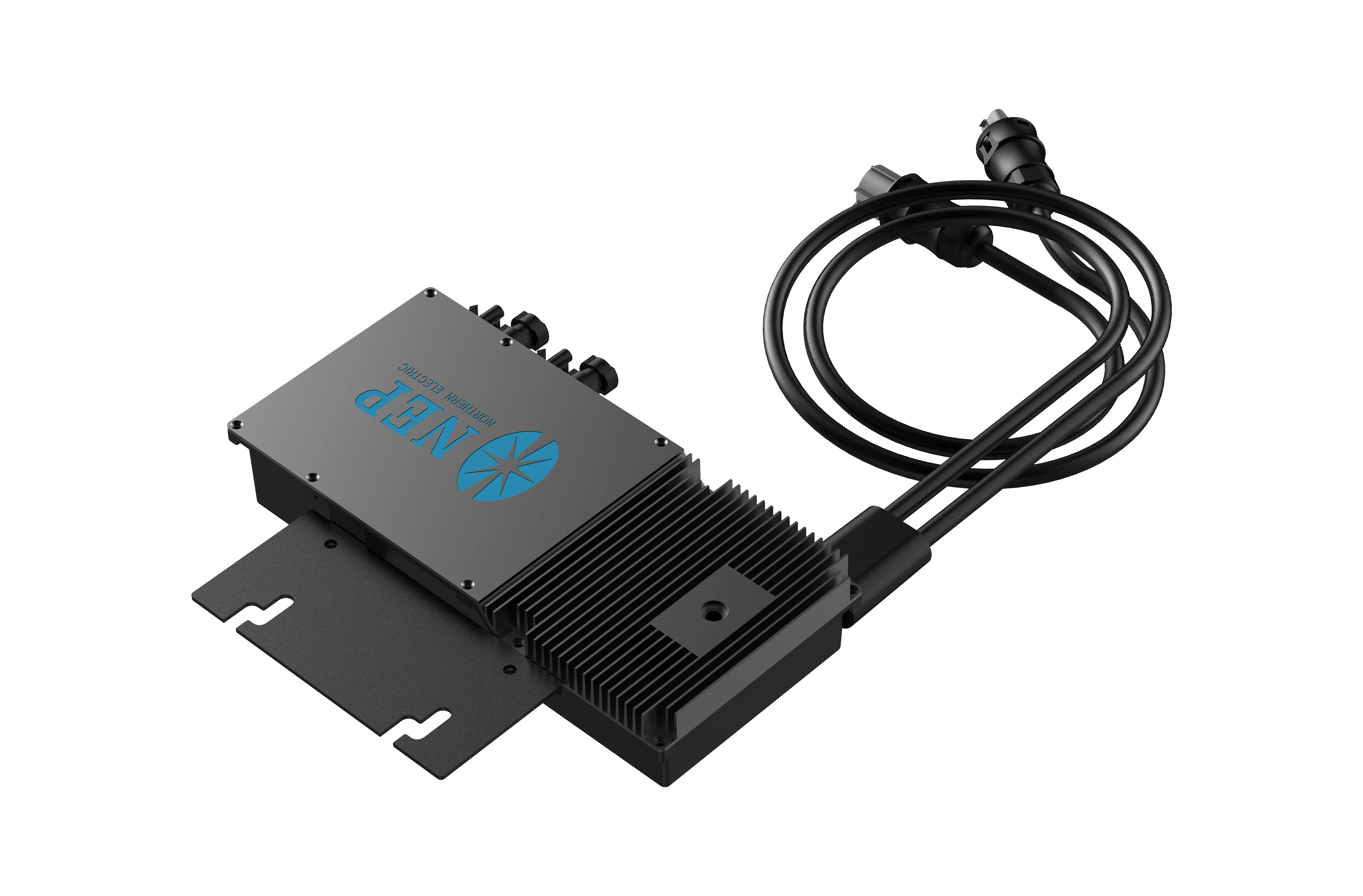

Cost effective Solar Micro Inverter 500w 600w Grid connected Inverter Solar Panel Inverter
- Category: >>>
- Supplier: Wuxi Smaraad New Energy Technology Co. Ltd.Wuxi Ltd.
Share on (1601354429010):
Product Overview
Description
Product Description
Product Description
Model | BDM-600-240A | BDM-600-208A | BDM-600-EU BDM-600-AU | |||
INPUT (DC) | Max Recommended PV Power (Wp) | 450*2 | ||||
Max DC Open Circuit Voltage (Vdc) | 60 | |||||
Max DC Input Current (Adc) | 14*2 | |||||
MPPT Tacking Accuracy | >99.5% | |||||
MPPT Tracking Range (Vdc) | 22-55 | |||||
Isc PV (absolute maximum) (Adc) | 18*2 | |||||
Maximum Inverter Backfeed Current to the Array0 | 0 | |||||
OUTPUT( AC) | Peak AC Output Power(Wp) | 580(continuous)actual 600 | ||||
Rated AC Output Power(Wp) | 500 actual 580 | |||||
Nominal Power Grid Voltage (Vac) | 240 | 208 | 230 | |||
Allowable Power Grid Voltage (Vac) | 211-264* | 183-229* | configurable* | |||
Allowable Power Grid Frequency (Hz) | 59.3-60.5* | configurable* | ||||
THD | <3%(at rated power) | |||||
Power Factor (cos phi, fixed) | >0.99% | |||||
Rated Output Current (Aac) | 2.42 | 2.78 | 2.52 | |||
Current (inrush) (Peak and Duration) | 24A,15us | |||||
Nominal Frequency (Hz) | 60 | |||||
Maximum Output Fault Current (Aac) | 4.4A peak | |||||
Maximum Output Overcurrent Protection (Aac) | 10 | |||||
Maximum Number of Units per Branch (20A)(ALL NEC adjustment factors have been considered ) | 7 | 6 | 6 | |||
SYSTEM EFFICIENCY | Weighted Averaged Efficiency (CEC) | 95.50% | ||||
Night Time Tare Loss (Wp) | 0.11 | |||||
PROTECTION FUNCTIONS | Over/Under Voltage Protection | YES | ||||
Over/Under Frequency Protection | YES | |||||
Anti-Islanding Protection | YES | |||||
Over Current Protection | YES | |||||
Reverse DC Polarity Protection | YES | |||||
Overload Protection | YES | |||||
Protection Degree | NEMA-6 / IP66 / IP67 | |||||
Ambient Temperature | -40℉to+149℉(-40℃to+65℃) | |||||
Operating Temperature | -40℉to+185℉(-40℃to+85℃) | |||||
Display | LED LIGHT | |||||
Communications | Power Line Communication | |||||
Dimension (W-H-D mm) | 10.91’*5.20’*1.97’(277*132*50mm) | |||||
Weight (Kg)(including AC cable) | 6.4 lbs.(2.9kg) | |||||
Environment Category | Indoor and Outdoor | |||||
Wet Location | Suitable | |||||
Pollution Degree | PD 3 | |||||
Overvoltage Category | II (PV), III (AC MAINS) | |||||
Product Saftey Compliance | UL 1741 CSA C22.2 No.107.1 | |||||
Grid Code Compliance* (Refer to the label for the detailed grid code compliance) | IEEE 1547 | |||||
Products Category
Products Category
Why Choose Us
Why Choose Us
Certifications
Certifications
Exhibition and Cooperation
Exhibition and Cooperation

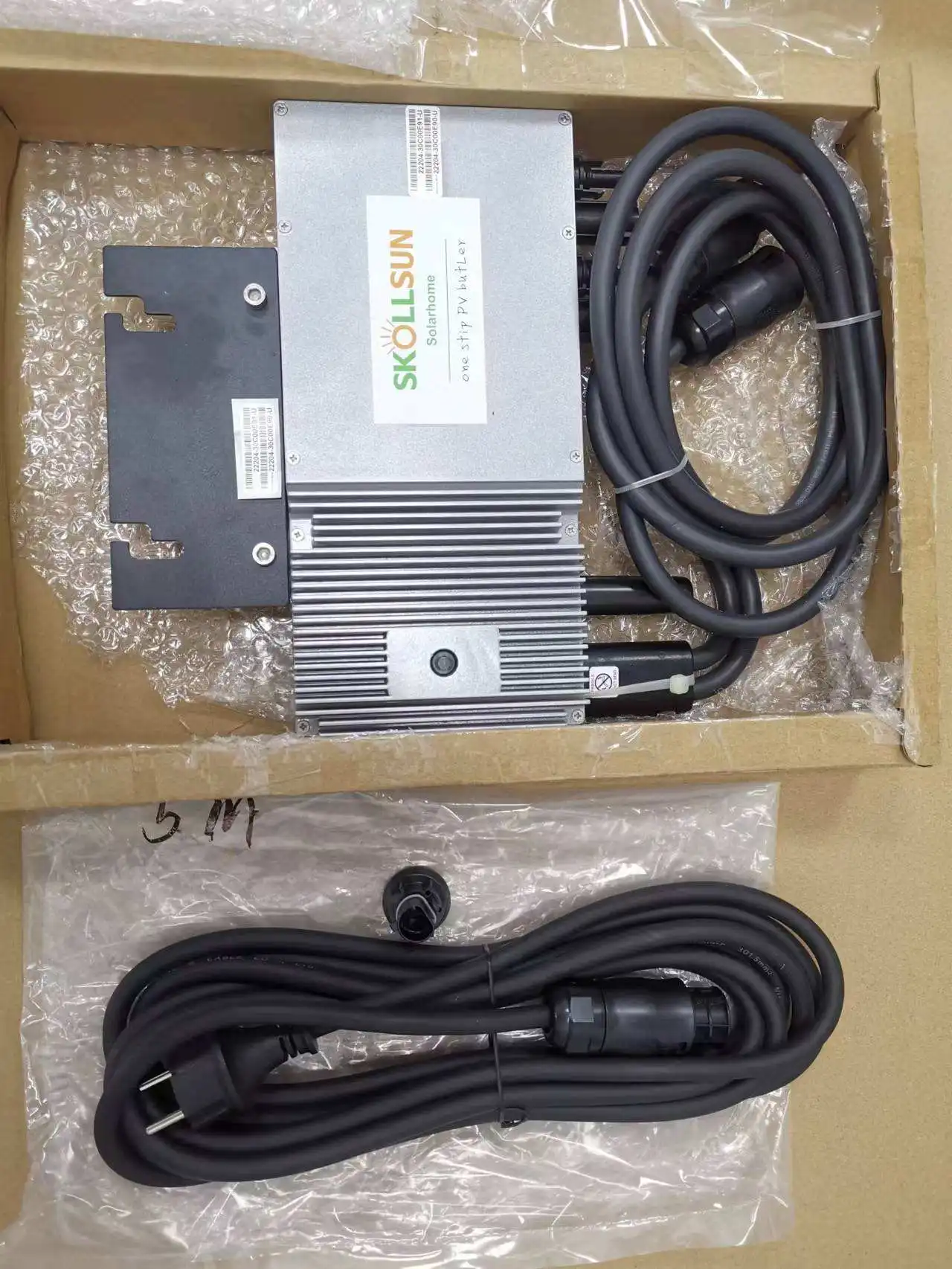

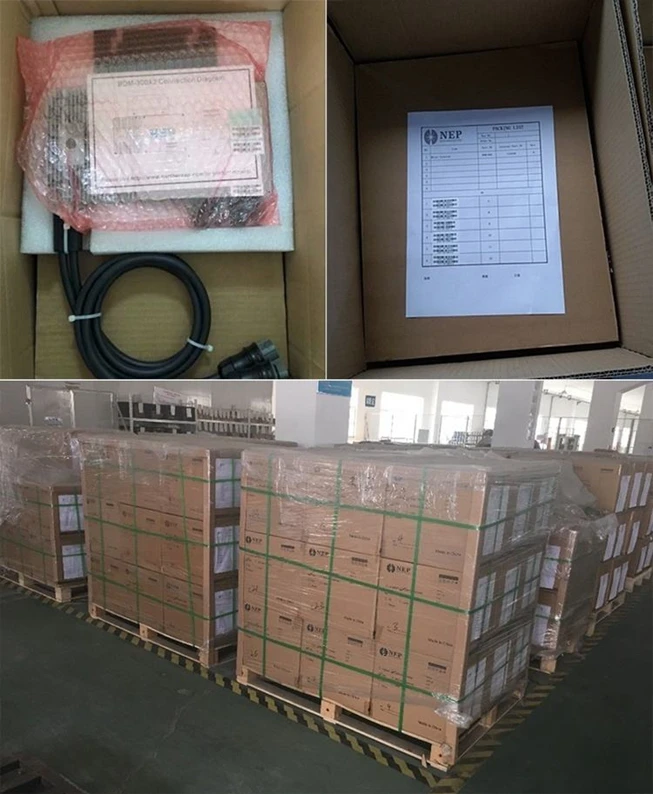

Packaging&Transportation
Packaging&Transportation
FAQ
FAQ
What are the advantages of microinverter compared to conventional inverters?
1. Compared with the traditional inverter, the micro-inverter is directly attached to the back of the component board, which not
only has a strong sense of technology, but also saves household space.
2. The micro-inverter system is all designed in parallel. The high-voltage direct current brought by the series system is no
longer on the roof, which avoids the fire risk caused by high-voltage DC arc spark and is safer on the roof of the home.
3. The parallel circuit design of the micro-inverter AC system, the shadow, dust and leaves partially block the panel, no longer
have the short board effect, eliminating the mismatch problem caused by the different orientation and angle of the component,
greatly improving the power generation. The amount can generate 5%~25% of the total power generation, which is very suitable for
the application of household photovoltaics such as urban villas and new rural areas.
4. The micro inverter also has a communication function, which can be used in conjunction with the ECU monitoring system to
realize real-time monitoring of parameters such as power generation (voltage and current frequency) and equipment temperature of
each solar panel. This information is transmitted through PLC communication technology. Access to the Internet to reach the global
server, so that users can instantly see the power generation of each solar panel in any place with network signals.
5. NEP' micro-reverse parallel design features make each solar panel operate independently, and also provide great flexibility for
disassembly, modification and expansion of balcony space and roof renovation.
only has a strong sense of technology, but also saves household space.
2. The micro-inverter system is all designed in parallel. The high-voltage direct current brought by the series system is no
longer on the roof, which avoids the fire risk caused by high-voltage DC arc spark and is safer on the roof of the home.
3. The parallel circuit design of the micro-inverter AC system, the shadow, dust and leaves partially block the panel, no longer
have the short board effect, eliminating the mismatch problem caused by the different orientation and angle of the component,
greatly improving the power generation. The amount can generate 5%~25% of the total power generation, which is very suitable for
the application of household photovoltaics such as urban villas and new rural areas.
4. The micro inverter also has a communication function, which can be used in conjunction with the ECU monitoring system to
realize real-time monitoring of parameters such as power generation (voltage and current frequency) and equipment temperature of
each solar panel. This information is transmitted through PLC communication technology. Access to the Internet to reach the global
server, so that users can instantly see the power generation of each solar panel in any place with network signals.
5. NEP' micro-reverse parallel design features make each solar panel operate independently, and also provide great flexibility for
disassembly, modification and expansion of balcony space and roof renovation.
How does the grid tied micro inverter system work?
A solar micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single solar module to
alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to
multiple solar modules or panels of the PV system.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced
with the microinverter solution.
alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to
multiple solar modules or panels of the PV system.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced
with the microinverter solution.
What conditions do i need to meet my roof when installing a solar power system?
After the relevant materials are prepared, the owner submits an application for access to the local customer service center of the
State Grid Corporation. After approval, the grid company will install smart meters, sign the electricity sales contract and
dispatch agreement, complete the grid connection acceptance and commissioning, and finally Realize grid-connected power
generation. This series of processes NEP can help you complete the process, saving you peace of mind and time.
State Grid Corporation. After approval, the grid company will install smart meters, sign the electricity sales contract and
dispatch agreement, complete the grid connection acceptance and commissioning, and finally Realize grid-connected power
generation. This series of processes NEP can help you complete the process, saving you peace of mind and time.
What does this warranty lasting time?
This Warranty Period lasts for 25 years from the date of purchase at the point of sale to you, the original end user customer,
unless otherwise agreed in writing.
unless otherwise agreed in writing.
