Spray Dryer For Milk centrifugal milk Powder mini Spray Dryer Machine
- Category: >>>
- Supplier: Liaoyang Conoval Technology Co. Ltd.Liaoyang Ltd.
Share on (1601354467048):
Product Overview
Description
Product Description
LPG/ZPG series OF SPRAY DRYER
Vacuum Spray Dryer
APPLICATION
of
CENTRIFUGAL AND PRESSURE SPRAY DRYER
spray dryer for Juice Milk Herb egg powder spray drying
Introduction of Egg Powder
Egg powder is a form of human cell membrane, particularly important component of brain cells, its human cell growth, metabolism and regulate the physiological functions of organs heart and brain play an important role. Lecithin contains choline is an essential component nutrients, at the same time is a good natural emulsifier and fat metabolism in the body to purify the blood and body care has a unique effect.
LPG Egg Powder Spray Dryer Description
Egg powder spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
LPG Egg Powder Spray Dryer Application
It's widely used in foodstuff, and chemical industrial, such as whey, egg powder, geltain,coffee powder, white egg, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa,
mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, chemical, gum and acacia etc.

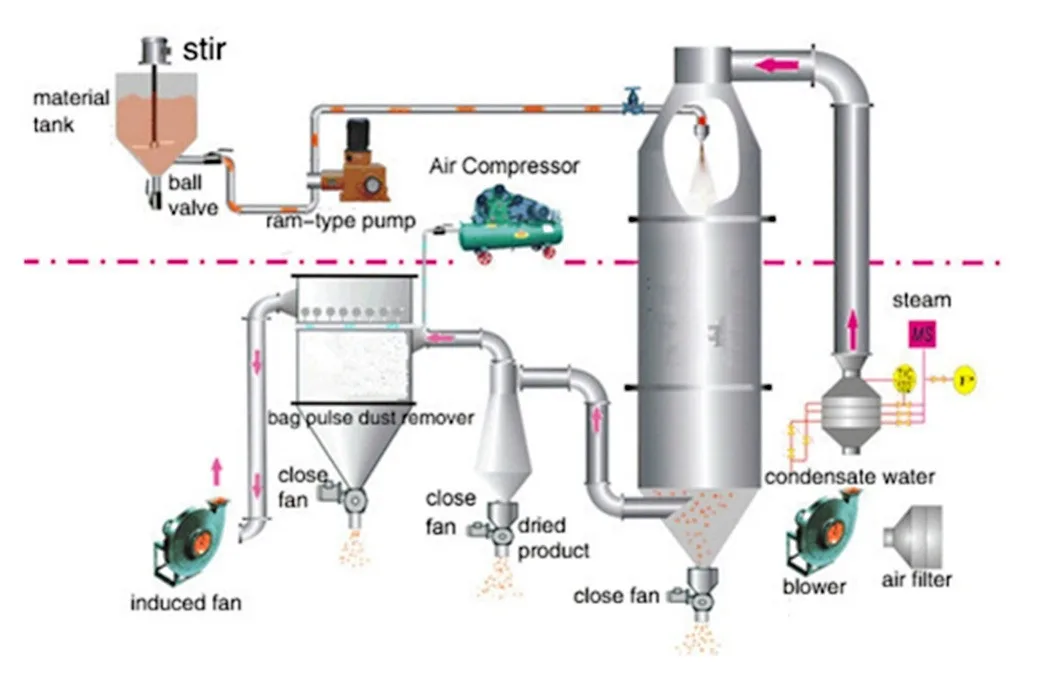

LPG Working Principle of Egg Powder Spray Drying Machine
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral
way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Details of LPG Egg Powder Spray Drying Equipment :
Egg powder is a form of human cell membrane, particularly important component of brain cells, its human cell growth, metabolism and regulate the physiological functions of organs heart and brain play an important role. Lecithin contains choline is an essential component nutrients, at the same time is a good natural emulsifier and fat metabolism in the body to purify the blood and body care has a unique effect.
LPG Egg Powder Spray Dryer Description
Egg powder spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
LPG Egg Powder Spray Dryer Application
It's widely used in foodstuff, and chemical industrial, such as whey, egg powder, geltain,coffee powder, white egg, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa,
mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, chemical, gum and acacia etc.
LPG Working Principle of Egg Powder Spray Drying Machine
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral
way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Details of LPG Egg Powder Spray Drying Equipment :
LPG50
LPG10
LPG100
Details Images
WPC WHEY PROTEIN POWDER DRYING PROJECT
SPINACH POWDER DRYING RPOJECT
MILK POWDER
MANGO POWDER
FEATURE
of
spray dryer machine for make fruit powder
1.With the 3-stage purifying device, the air meets the 100000-grade standard.
2.There are cooling devices for the reactor, the temperature of the container wall is less than 80℃, and even the raw products are stayed on the wall, will not be burned.
3.With the flushing device, the machine can be applied for the drying for many kinds of products.
4.The wet-type dust collecting is adopted, which meets the environment protecting standard.
5.There is the air cleaning device.
6.In the atomizer, the variable-frequency speed regulating is equipped.
7.There is the touch screen and the PLC.
8.CIP
3.With the flushing device, the machine can be applied for the drying for many kinds of products.
4.The wet-type dust collecting is adopted, which meets the environment protecting standard.
5.There is the air cleaning device.
6.In the atomizer, the variable-frequency speed regulating is equipped.
7.There is the touch screen and the PLC.
8.CIP
SUS304 hot air furnace
inlet air blower
inlet air filter
cyclone joint
cyclone separator
water cleaning ball
drying tower of 3.8 meter inner diamer
300 liter cleaning unit
Specification
TECHNICAL PARAMETER
of
Industrial Spray Dryer for Juice Milk Herb egg powder spray drying
Temperature range of Inlet air: 150°C -200°C
Temperature range of outlet air: 80°C -100°C
Dryer time: 1.0-1.5 S
S.N. | Items | Requirement |
1 | Raw product | Concentrated liquid from fruit puree |
2 | Air temperature at inlet | 150 ~ 200℃ |
3 | Air temperature at outlet | 80 ~ 100℃ |
4 | Dewatering | 90Kg/h |
5 | Water content in raw product | 80 ~ 90% |
6 | Water content in final product | 1 ~ 3% |
7 | Heating | Electric heating: 210Kw / Natural gas: 220m2 |
8 | Electric high-speed centrifugal atomizer | 1 set |
9 | Vibrator for tower wall | 3pcs |
10 | Total power | 38.25Kw (Electric heating of 270Kw is not included) |
11 | Gas furnace(optional) | 600000kilocalorie |
12 | Material | Stainless steel 304 Thickness of inner plate in the drying tower: 3mm Insulation: 80mm Outer seal: 1.2mm (Stainless steel 304) |
Notes:If any change of data of Sdry milk powder making machine, we will not notify further
Packing & Delivery
ZPG200 model in FR containers.
ZPG200 model in FR containers with cover before loading into vessel
