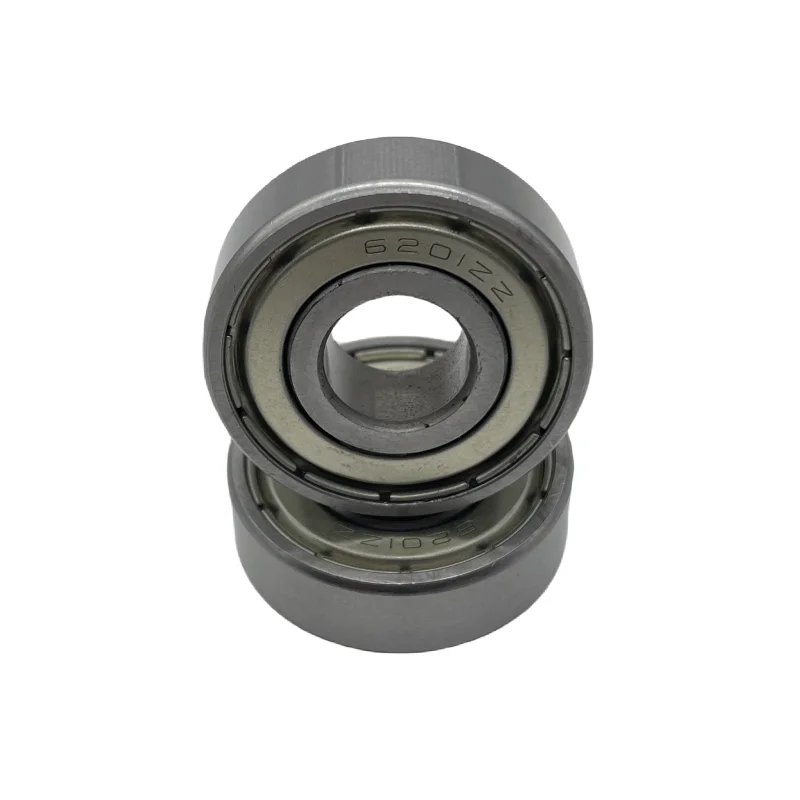

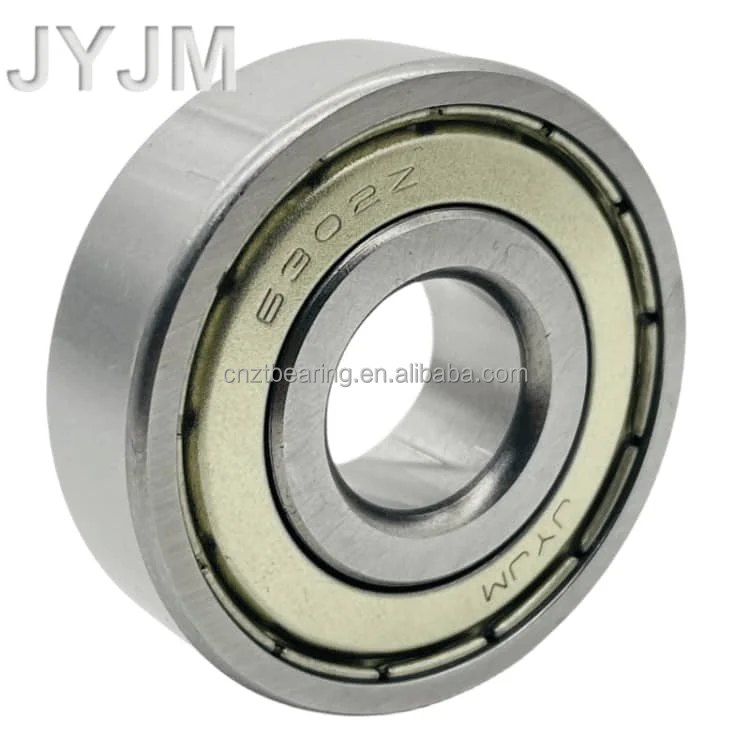

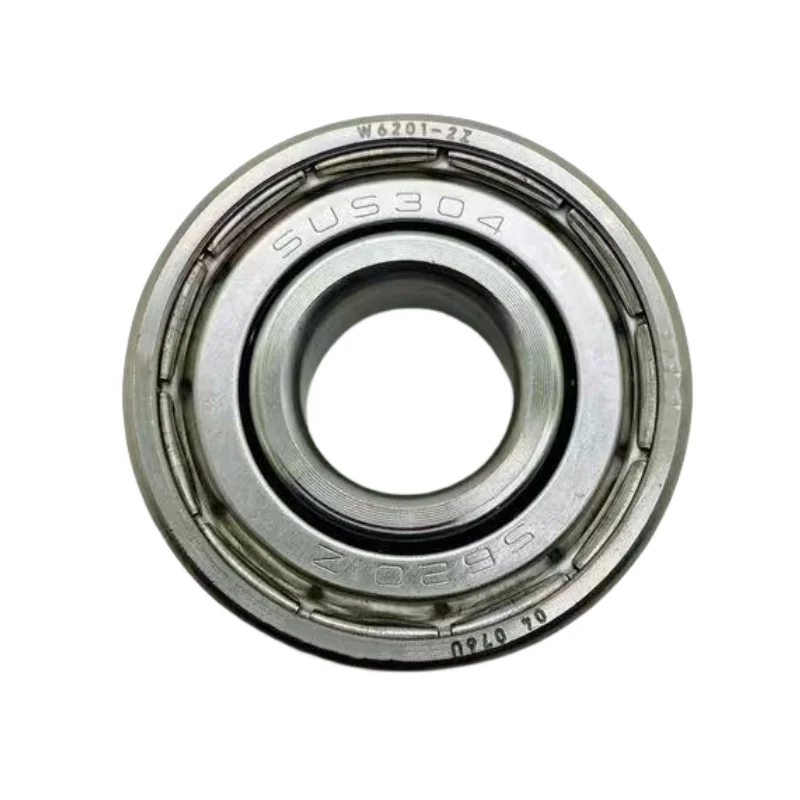

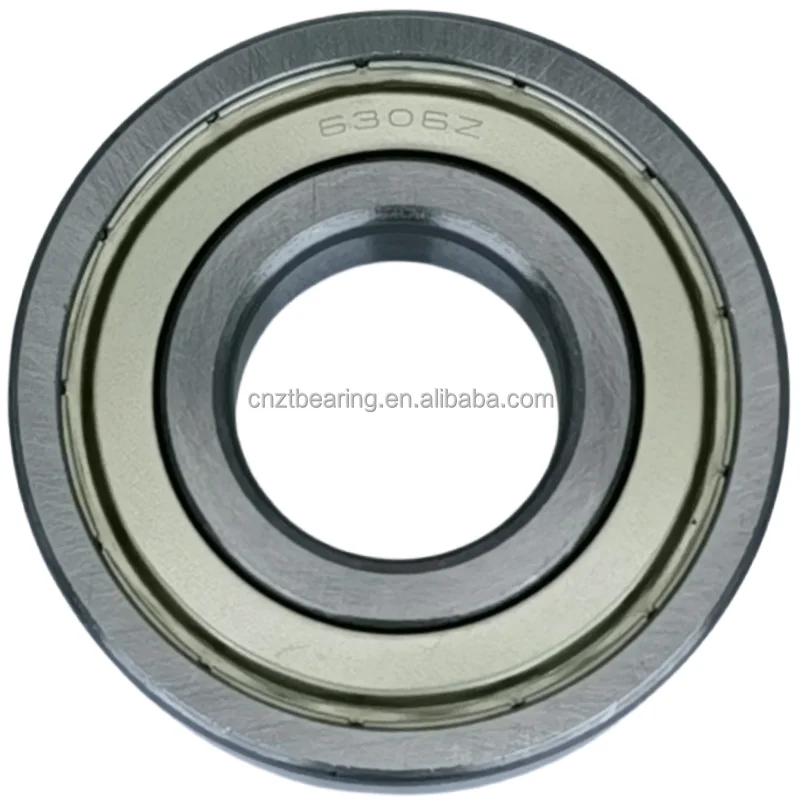

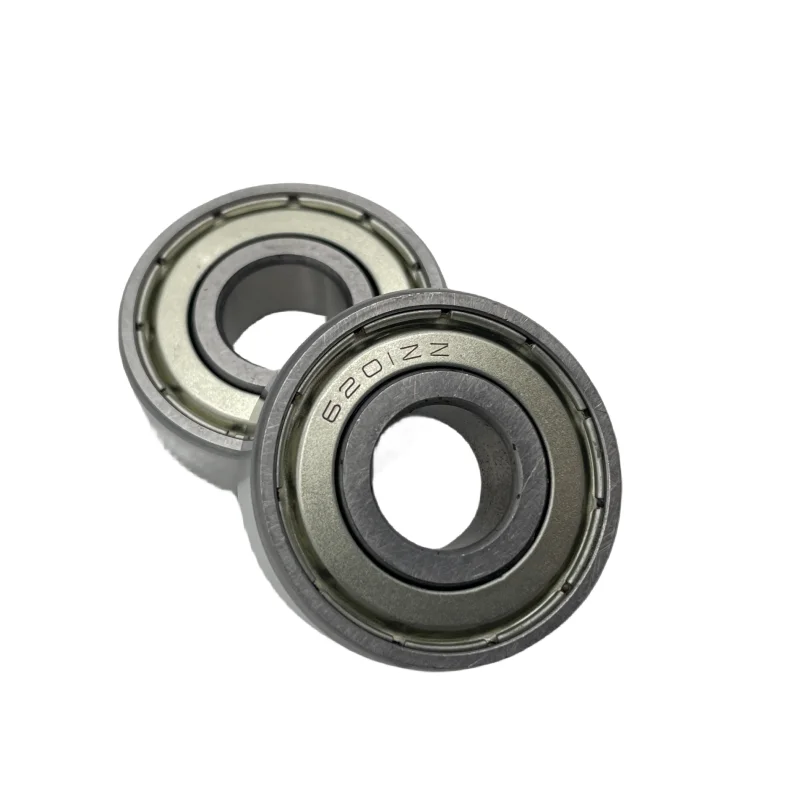

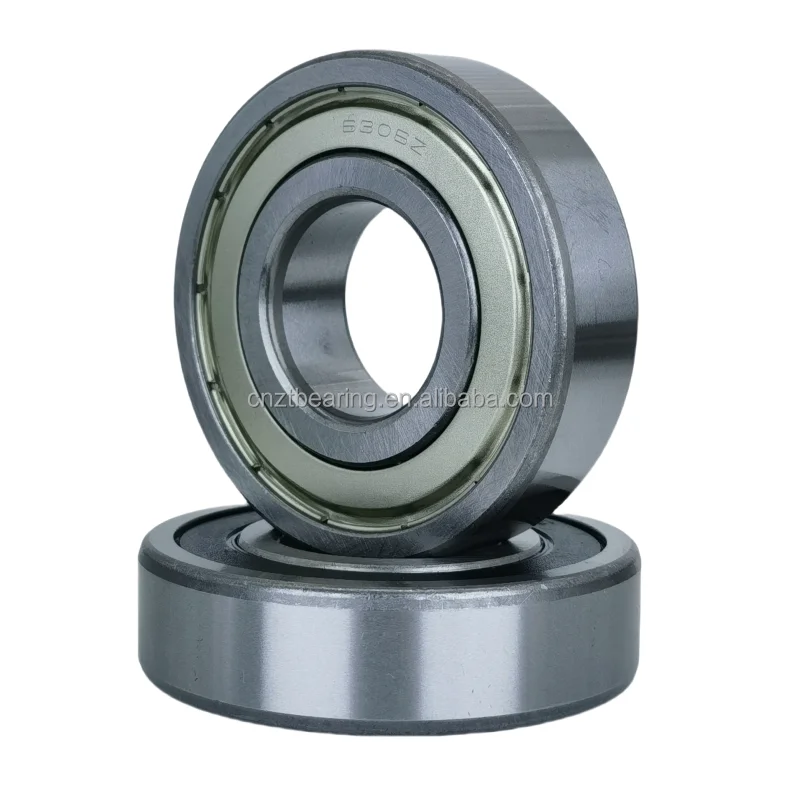

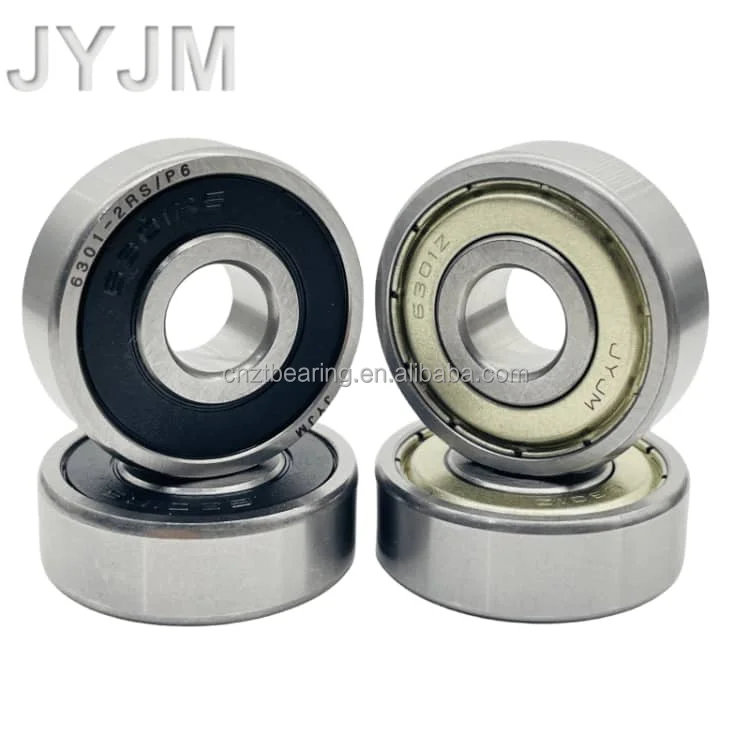

JYJM All Type Bearings 6316 80*170*39mm Open ZZ 2RS machine bearings Chrome Steel deep groove ball bearing
- Category: >>>
- Supplier: Shandong Zhongtuo Bearing Co. Ltd.Shandong Ltd.
Share on (1601354504441):
Product Overview
Description
Specification
Part No & Size | Deep groove ball bearing |
Production place | Shandong ,CHINA |
Applicable vehicle type | Availble |
Packing&Shipping | Standard packing |
MOQ | 2 PC |
Delivery Time | 7-15 DAYS |
Payment | T/T, Western Union, PayPal, MoneyGram |
Shipping Ways | DHL ,UPS ,FedEx ,TNT,EMS |
Selling Units | Single item |
Package Type | Neutral packing carton for bearing |
Product Description
Item Code | d（mm） | D（mm） | B=Breadth(mm) | Weight(g) | dynamic load(N) | Static load (N) |
6300 | 10 | 35 | 11 | 53 | 8100 | 3450 |
6301 | 12 | 37 | 12 | 60 | 9750 | 4250 |
6302 | 15 | 42 | 13 | 82 | 11400 | 5400 |
6303 | 17 | 47 | 14 | 115 | 13600 | 6550 |
6304 | 20 | 52 | 15 | 144 | 15900 | 7900 |
6305 | 25 | 62 | 17 | 232 | 23600 | 12100 |
6306 | 30 | 72 | 19 | 346 | 26700 | 15000 |
6307 | 35 | 80 | 21 | 457 | 33500 | 19200 |
6308 | 40 | 90 | 23 | 633 | 40500 | 24100 |
6309 | 45 | 100 | 25 | 833 | 53000 | 32000 |
6310 | 50 | 110 | 27 | 1070 | 62000 | 38000 |
6311 | 55 | 120 | 29 | 1370 | 71500 | 44500 |
6312 | 60 | 130 | 31 | 1700 | 82000 | 52000 |
6313 | 65 | 140 | 33 | 2080 | 92500 | 59500 |
6314 | 70 | 150 | 35 | 2520 | 104000 | 68000 |
6315 | 75 | 160 | 37 | 3020 | 113000 | 77000 |
6316 | 80 | 170 | 39 | 3590 | 123000 | 86500 |
6317 | 85 | 180 | 41 | 4230 | 133000 | 96500 |
6318 | 90 | 190 | 43 | 4910 | 143000 | 107000 |
6319 | 95 | 200 | 45 | 5670 | 153000 | 118000 |
6320 | 100 | 215 | 47 | 7000 | 173000 | 141000 |
6321 | 105 | 225 | 49 | 8050 | 184000 | 153000 |
6322 | 110 | 240 | 50 | 9540 | 205000 | 179000 |
6324 | 120 | 260 | 55 | 14600 | 207000 | 185000 |
6326 | 130 | 260 | 58 | 18200 | 229000 | 214000 |
6328 | 140 | 300 | 62 | 21800 | 253000 | 246000 |
6330 | 150 | 320 | 65 | 26200 | 274000 | 284000 |
6332 | 160 | 344 | 68 | 28600 | 278000 | 287000 |
6334 | 170 | 360 | 72 | 34000 | 325000 | 355000 |
6336 | 180 | 380 | 75 | 35600 | 355000 | 405000 |
6338 | 190 | 400 | 78 | 48200 | 355000 | 415000 |
6340 | 200 | 420 | 80 | 46300 | 410000 | 500000 |

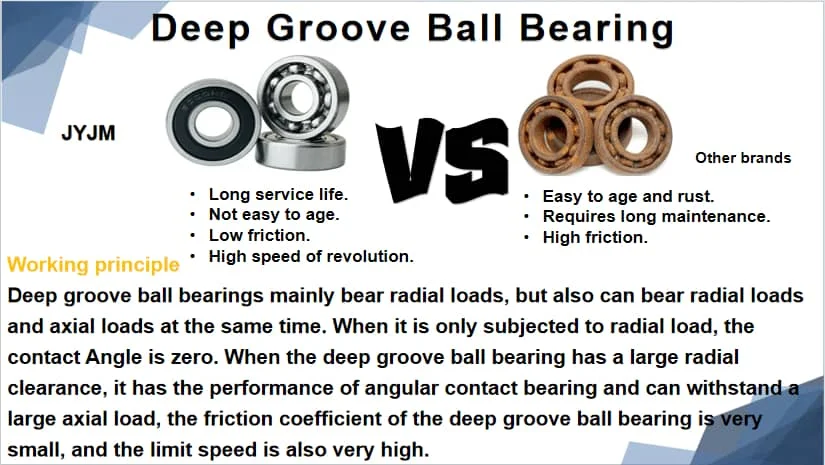

Deep groove ball bearing detail diagram
The basic type of deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.
See home page for more models
Why Choose Us
We provide one-to-one customized services to fully meet your needs
Application Scenarios
Certificate

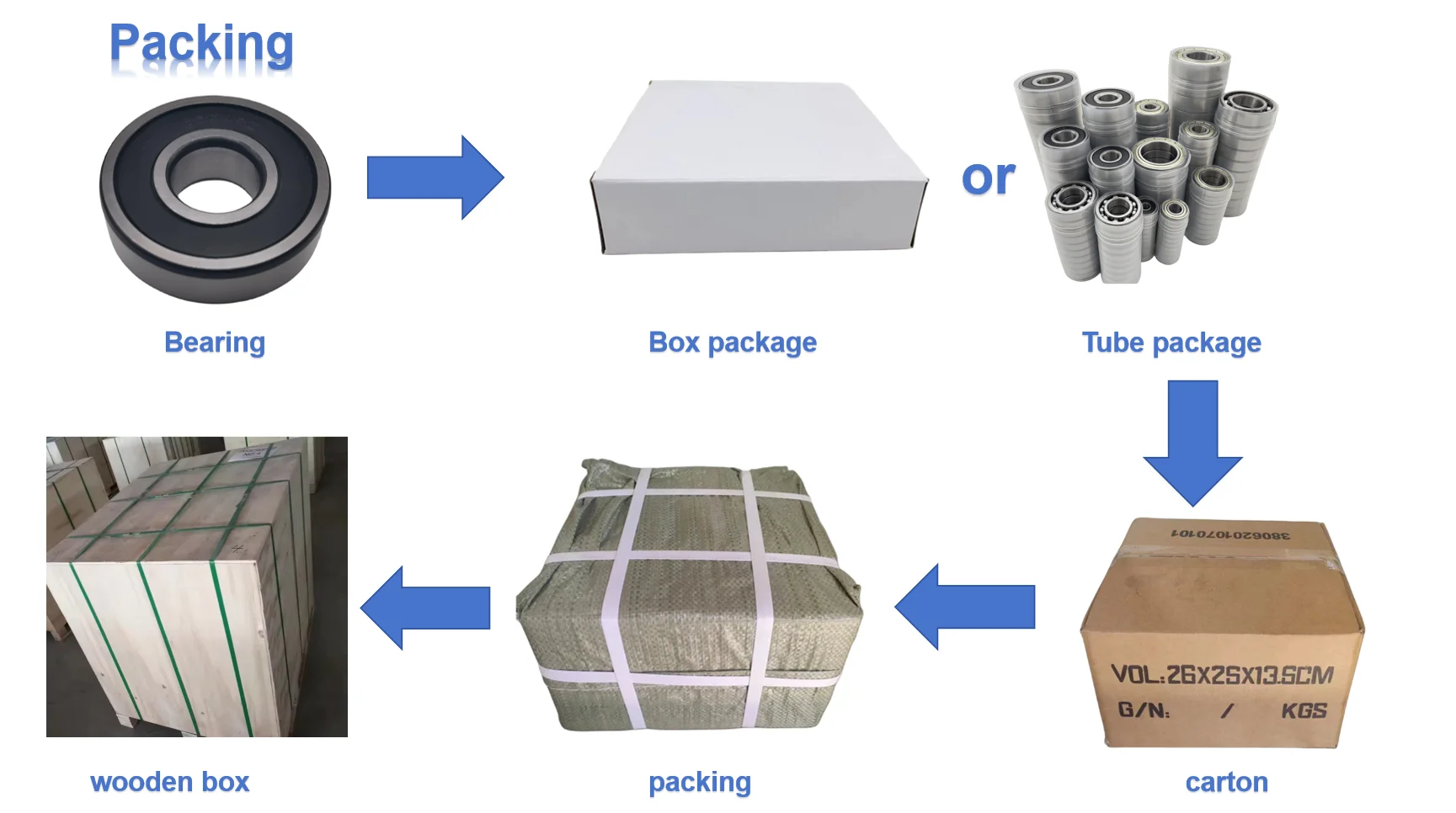

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We use shock-resistant, pressure-resistant, moisture-resistant packaging materials such as foam, bubble film, foam boxes, wooden boxes, etc., to ensure that the goods are properly protected during transportation.
We use shock-resistant, pressure-resistant, moisture-resistant packaging materials such as foam, bubble film, foam boxes, wooden boxes, etc., to ensure that the goods are properly protected during transportation.
Company Profile
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a comprehensive factory - Zhongtuo Bearing Co.,Ltd.,integrating production, trade, investment, and sales.
Q: Can we have our logo or brand on the package?
A: Yes, we offer OEM and ODM services, allowing customization of packaging according to your requirements.
Q: What is your delivery time?
A: Typically, our production cycle ranges from 7 to 15 working days, depending on the specifications and quantity of your order. For in-stock bearings, we can arrange immediate shipment upon receipt of payment.
Q: Do you provide samples? Is there a charge?
A: Yes, we provide free samples for quality inspection. However, shipping costs and taxes are the responsibility of the buyer.
Q: What are your payment terms?
A: For orders less than $1,000, full payment is required in advance. For orders over $1,000, we require a 30% deposit via T/T in advance, with the balance due before shipment.
Q: What are your warranty terms?
A: We offer different warranty periods for different components.
A: Yes, we offer OEM and ODM services, allowing customization of packaging according to your requirements.
Q: What is your delivery time?
A: Typically, our production cycle ranges from 7 to 15 working days, depending on the specifications and quantity of your order. For in-stock bearings, we can arrange immediate shipment upon receipt of payment.
Q: Do you provide samples? Is there a charge?
A: Yes, we provide free samples for quality inspection. However, shipping costs and taxes are the responsibility of the buyer.
Q: What are your payment terms?
A: For orders less than $1,000, full payment is required in advance. For orders over $1,000, we require a 30% deposit via T/T in advance, with the balance due before shipment.
Q: What are your warranty terms?
A: We offer different warranty periods for different components.
