Product Description

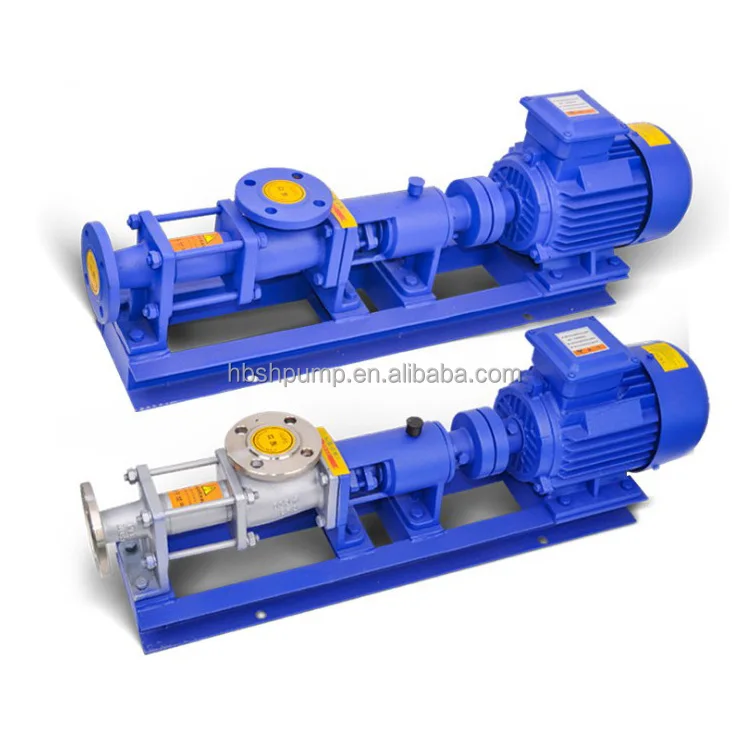

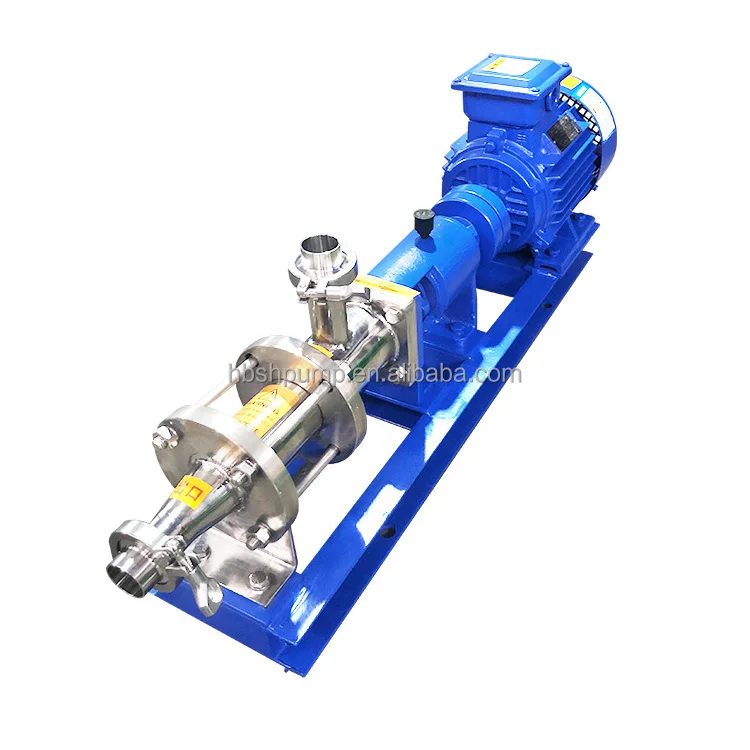

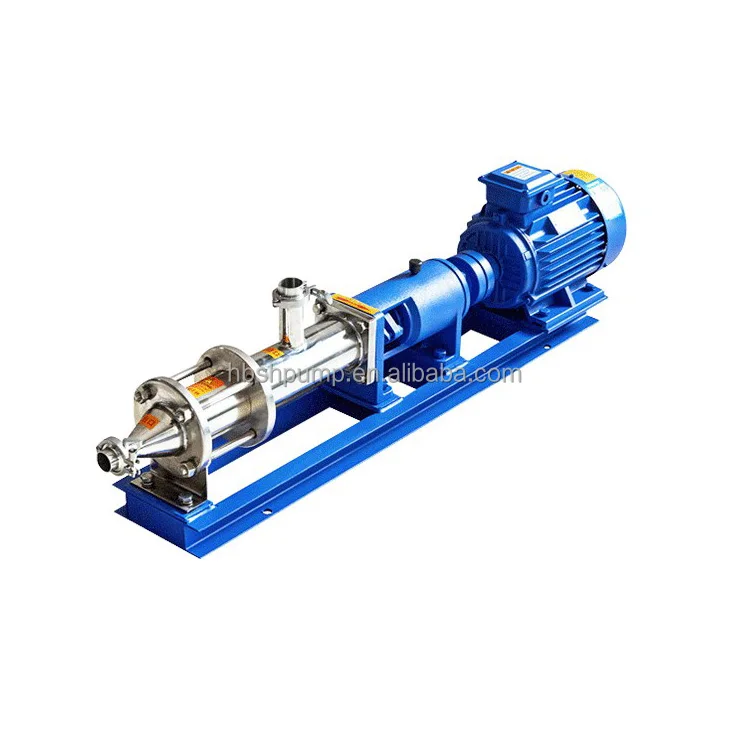

G Series Screw Pump

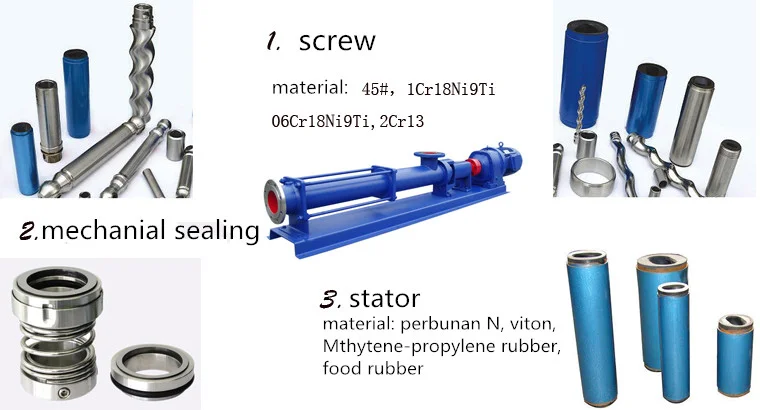

The G series single-screw pump main working parts are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometry of the two components, a separate sealed cavity is formed, the medium is uniformly flowed from the axial direction, the internal flow velocity is low, the volume remains unchanged, and the pressure is stable, so that eddy current and agitation are not generated. The output pressure of each pump is 0.6MPa, the head is 60m (clean water), and it is suitable for conveying medium temperature below 80 °C (special requirements up to 150 °C).




Features:
1.High solid content(diameter of the biggest particle is 50mm)or no solid content
2.Medium with all viscosities(1mPas-3, 000, 000mPas)
3.Medium that is easy to be generated and swelled
4.Shearing sensitive medium
5.Medium with erosion
6.Medium with/without self lubrication
7.Erosive medium(PH=0-14)
8.Adhesive medium
9.Toxicity hazard medium

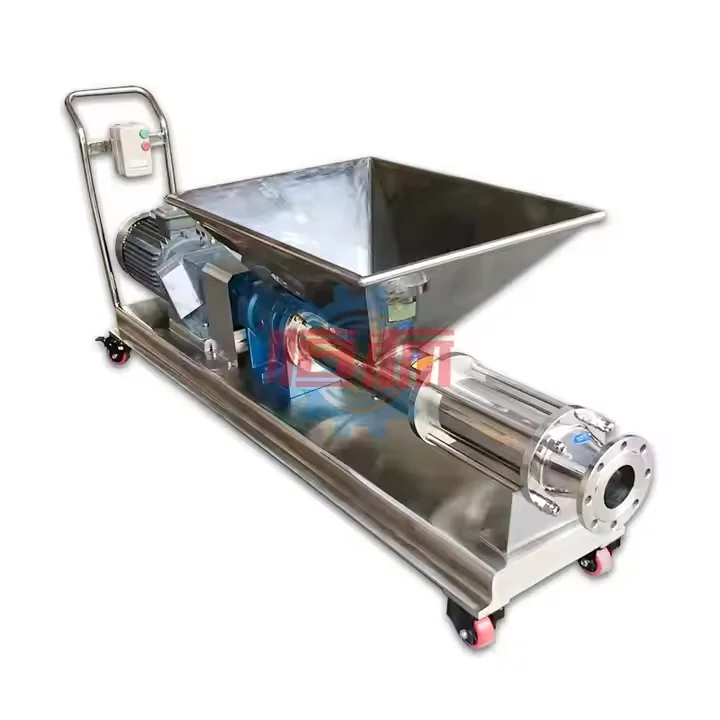

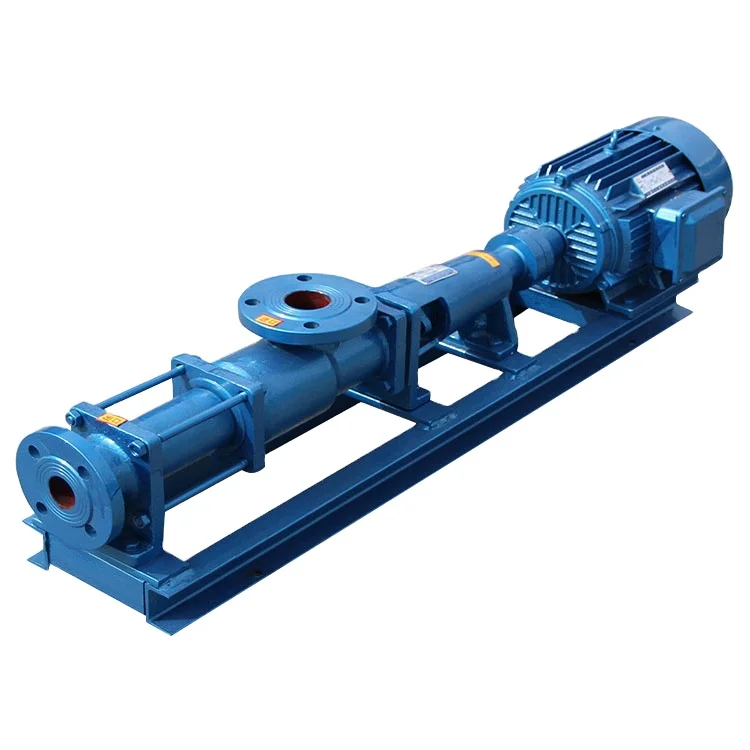

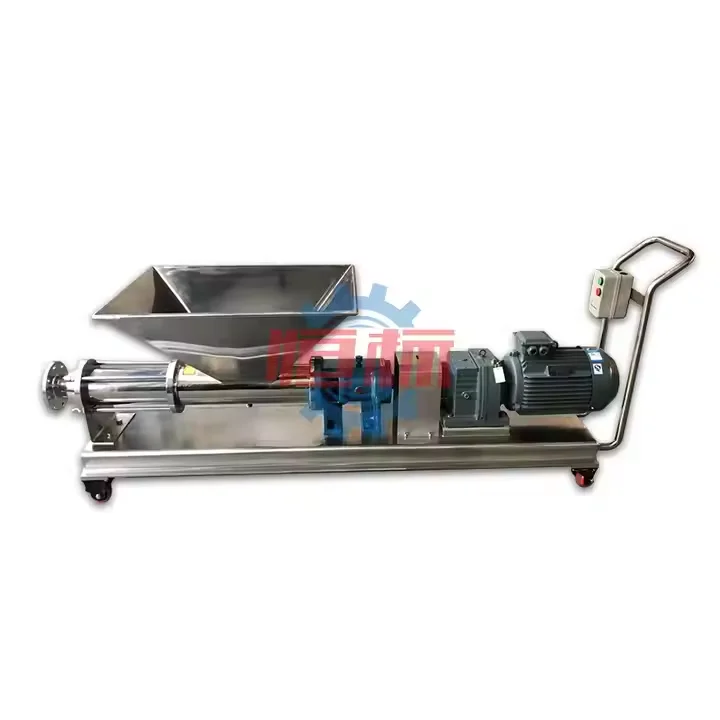

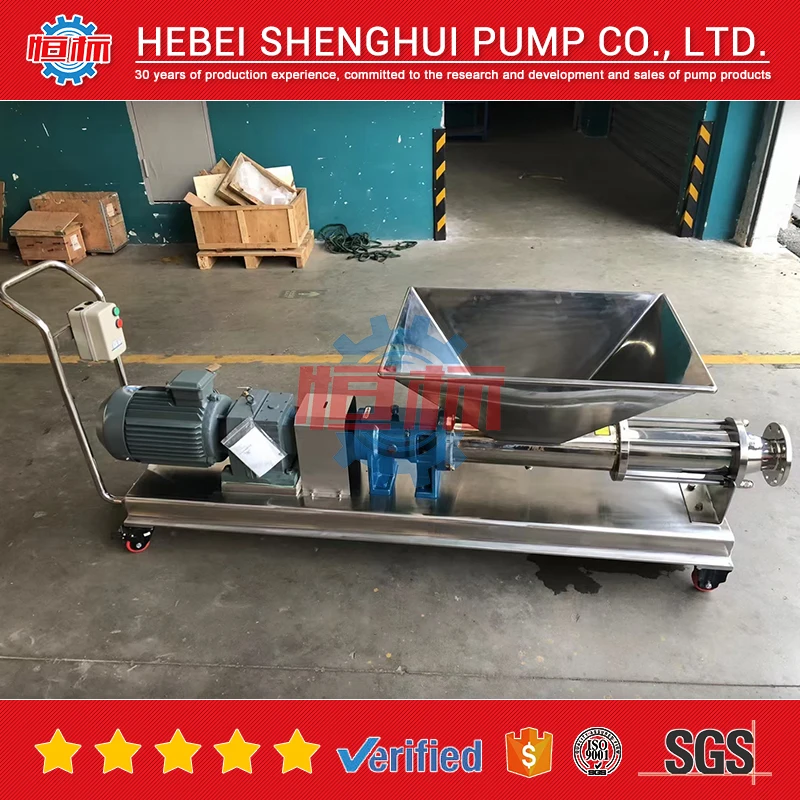

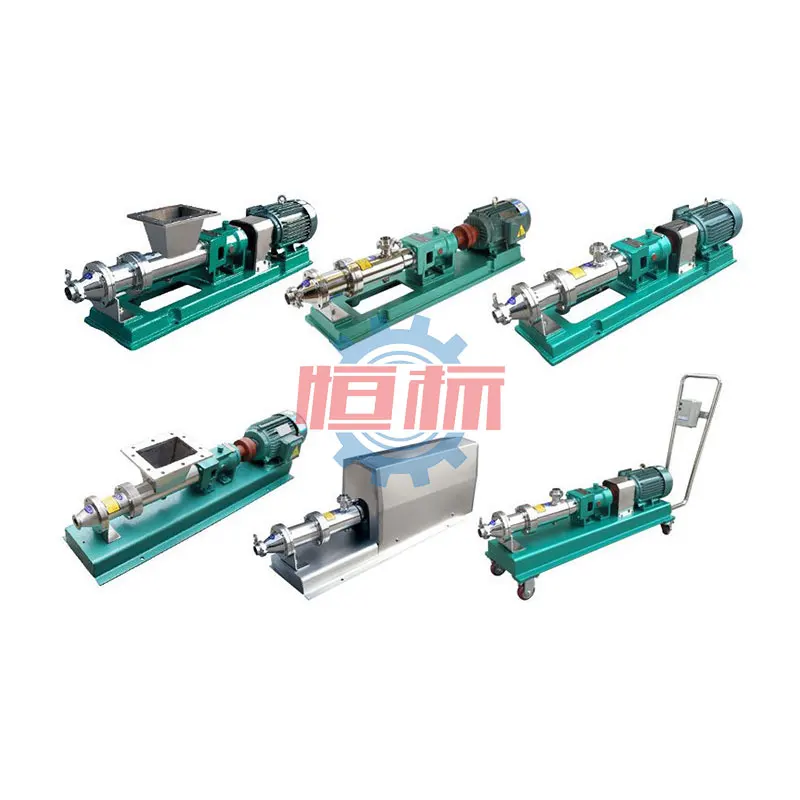

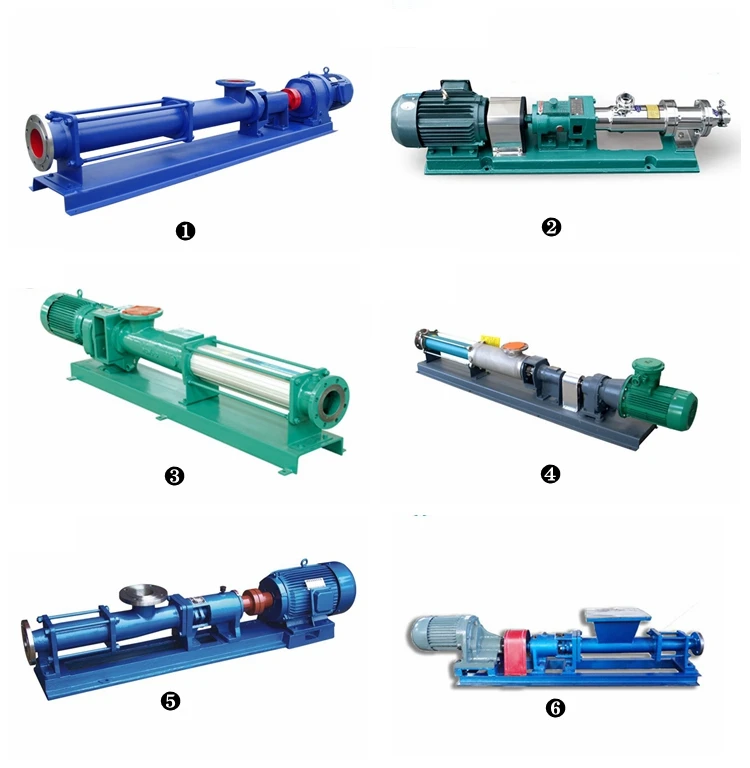

Details Images














Product Paramenters


Model
Q
m3/h
Pressure
(Bar)
Max Rev
(r/min)
Motor Power
(kw)
NPSHr
(m)
Inlet Size
(mm)
Outlet Size
(mm)
Max Particles Size
(mm)
Max Fiber Size
(mm)
G20-1
0.8
6
960
0.75
4
25
25
1.5
25
G20-2
12
1.5
G25-1
2
6
960
1.5
40
32
2
30
G25-2
12
2.2
G30-1
5
6
960
2.2
50
40
2.5
35
G30-2
12
3
G35-1
8
6
960
3
65
50
3
40
G35-2
12
4
G40-1
12
6
960
4
80
65
3.8
45
G40-2
12
5.5
G50-1
14
6
720
5.5
4.5
100
80
5
50
G50-2
12
7.5
G60-1
22
6
720
11
5
125
100
6
60
G60-2
12
15
G70-1
38
6
720
11
150
125
8
70
G70-2
12
18.5
G85-1
56
6
630
15
150
150
10
80
G85-2
12
30
G105-1
100
6
500
30
200
200
15
110
G105-2
12
35
G135-1
150
6
400
45
250
250
20
150
G135-2
12
90


Application


1.High solid content(diameter of the biggest particle is 50mm)or no solid content
2.Medium with all viscosities(1mPas-3, 000, 000mPas)
3.Medium that is easy to be generated and swelled
4.Shearing sensitive medium
5.Medium with erosion
6.Medium with/without self lubrication
7.Erosive medium(PH=0-14)
8.Adhesive medium
9.Toxicity hazard medium
1. Environmental protection: Industrial sewage, domestic sewage, and sludge turbid water containing solid particles and short fibers are especially used in oil-water separator plate and frame filter press equipment.
2. Shipbuilding industry: round bottom cleaning, oil water, oil residue, oil sewage and other ring. transportation.
3. Petroleum industry: transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation, and the like.
4. Medicine, daily: a variety of thick paste, emulsion, various ointment cosmetics.
5. Food canning industry: all kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry.
6. Construction industry: spraying of cement mortar, lime slurry, paint and paste.
7. Mining industry: solid particles, groundwater, and slurry water in mines.
8. Chemical industry: various suspensions, greases, various colloidal pastes, various adhesives.
9. Printing, paper making: high viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry.
10. Industrial boilers, power plants: coal water slurry transportation.


Packaging&Shipping




Comanpy information




Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology and get clients' acceptation to cooperate with Globe 500 enterprises .Rely on high precision numerical control and advanced testing equipments, and level B bed stand, the company can ensure the products quality and precision. The company has passed ISO9001:2008 certificate.
Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.
