Hot Sale Fiber Optic Splicing Machine with OEM Service optical Fusion Splicer JW4109 blue Welding Multi language for telecom

Share on (1601354622179):


Price:

Quantity:


Product Overview

Description







Item

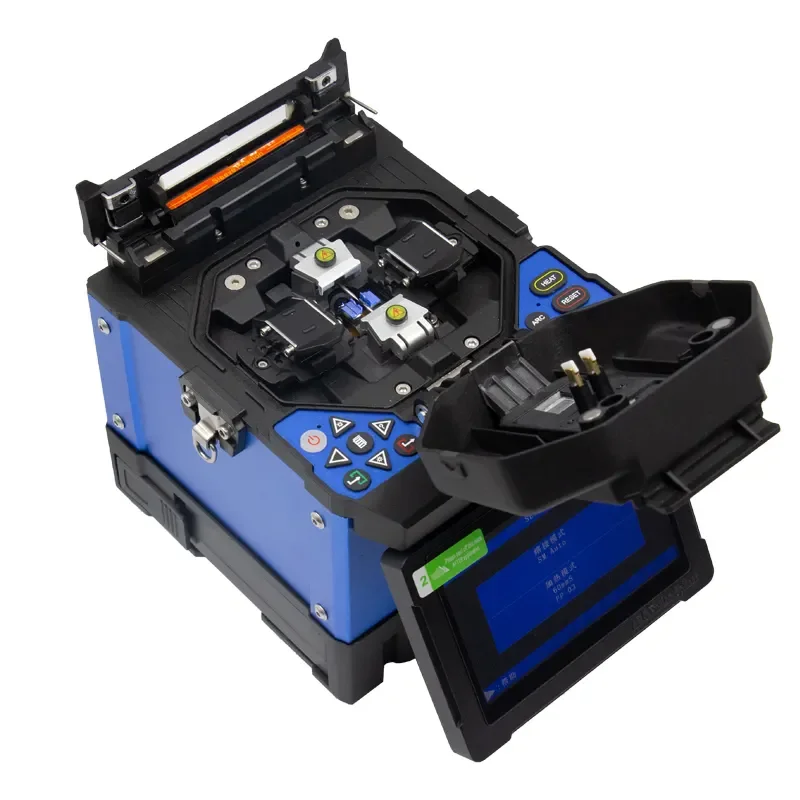

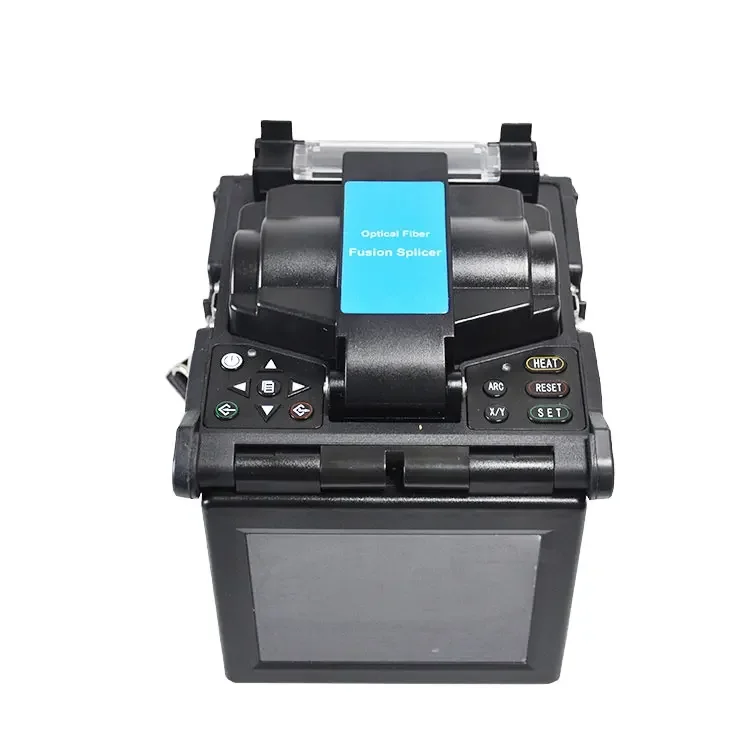

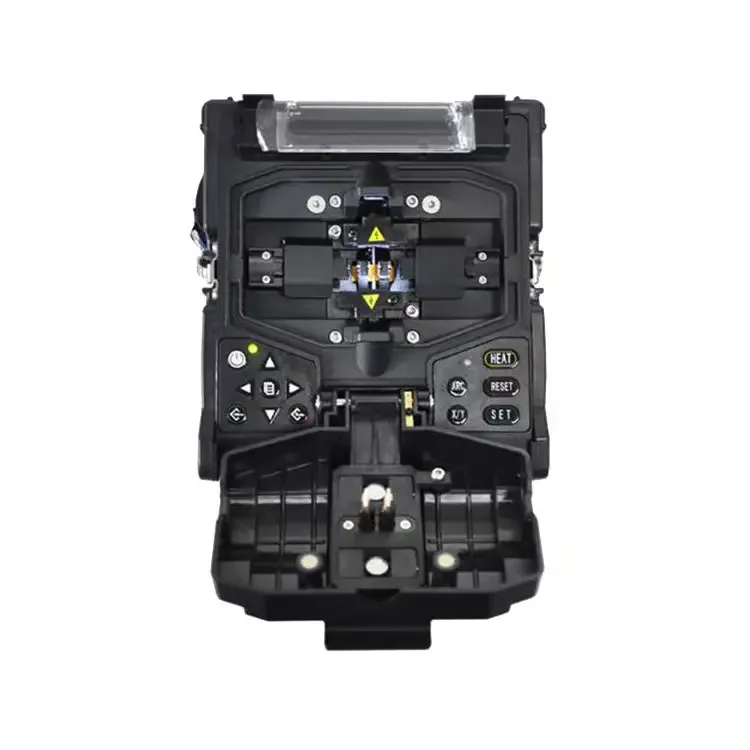

JW4109S Fiber Optic Fusion Splicer
Type
single-mode, multi-mode, dispersion shifted, non-zero dispersion shifted and erbium-doped fibers
Cladding diameter
80µm~150µm
Coating diameter
0.1mm~1.0mm,2.0mm,3.0mm,2.0mm*3.1mm
Effective heating length
≤60mm
Heating time
10s~255s, settable as required.
Typical heating time
≤25s(standard 40mm sleeve),≤28s(standard 60mm sleeve).
Splice Program
6 groups of preset programs, 74 group of manual setting
External DC power input
Input voltage is 13.5±0.5V; input current≥4.4A; socket center is positive.
Built-in lithium-ion battery for power supply.
The lithium-ion battery is 11.1V, ≥5.2Ah, full charging time is approx. 2.5h.
Typical splice time
7s(FAST mode, typical)
Monitor

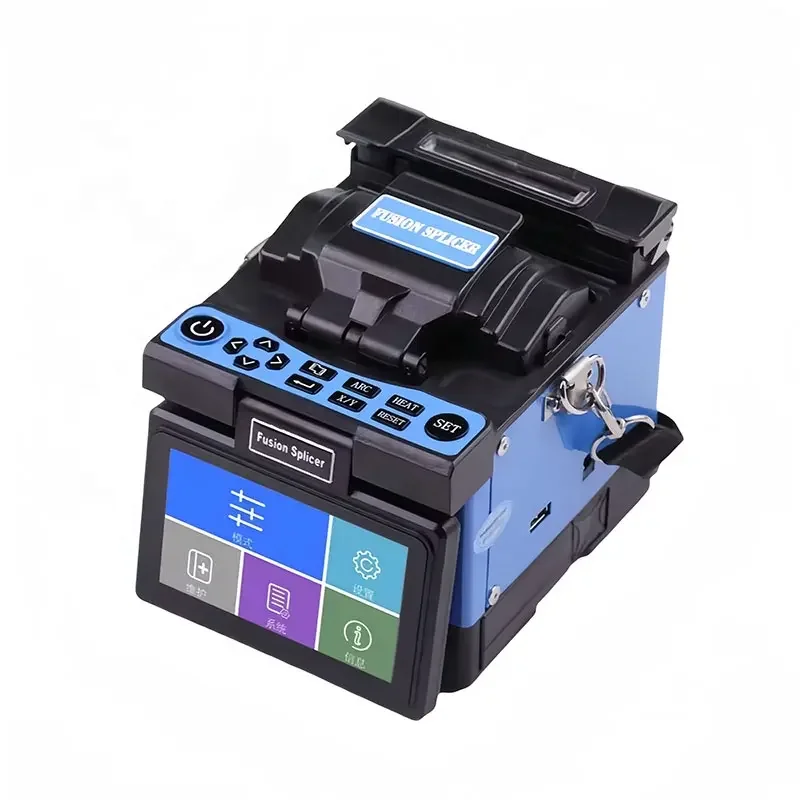

with touch screen function, 4.3 inch TFT color LCD
USB port
system update and data transmission
Dimensions
120mm×130mm×154mm(without vibration-free rubber pad)
Weight
approx.1.95kg(with the lithium-ion battery), approx.1.75kg(without the lithium-ion battery).
Operating temperature
-10℃~+50℃
Temperature limit
-20℃~+55℃
Operating humidity
95%RH and below(non-condensing)
Max. wind speed
15m/s
Storage temperature
-40℃~+80℃
Storage humidity
95%RH and below (non-condensing)
Water-resistant, dust-resistant and shock-resistant in design Water-resistant and dust-resistant can meet IP52 requirements.
Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s


























Q1: Are you a factory or a trading company?
A1: We are a professional production of all kinds of communication equipment and consumables communication factory, has more than 10 years of history.

Q2: Do you accept OEM service?
A2: Yes, we do. Custom designs are also accepted.

Q3: Can I try it for free? How long is the trial?
A3: Samples are available, but not free. The sample fee depends on the quantity and item you choose and can be refunded once the official order is fulfilled. Samples take about 10-20 days.

Q4: What if we can't meet your minimum order quantity?
A4: We also accept small trial orders. Please feel free to contact us and we will be happy to help you.

Q5: How do you guarantee quality?
A5: We have a professional QC team, in the production process and before shipping quality inspection, and passed BSCl,RoHS, iso9001.fcc. International quality product certification.

Q6: What are your delivery items?
A6: We can express, air and sea. We accept EXW,FOB,DDU,DAP, etc.
You can choose the most convenient and economical way.
