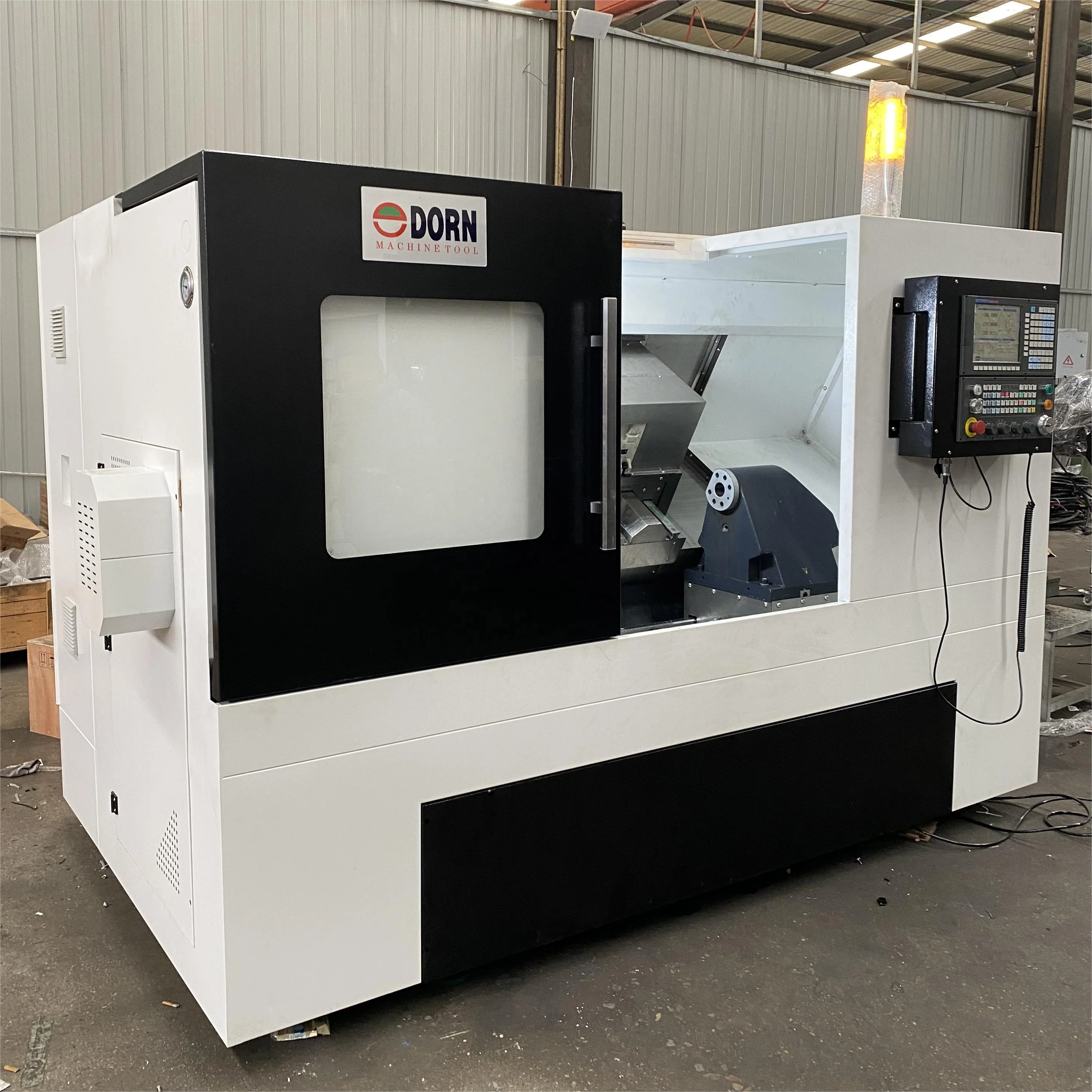

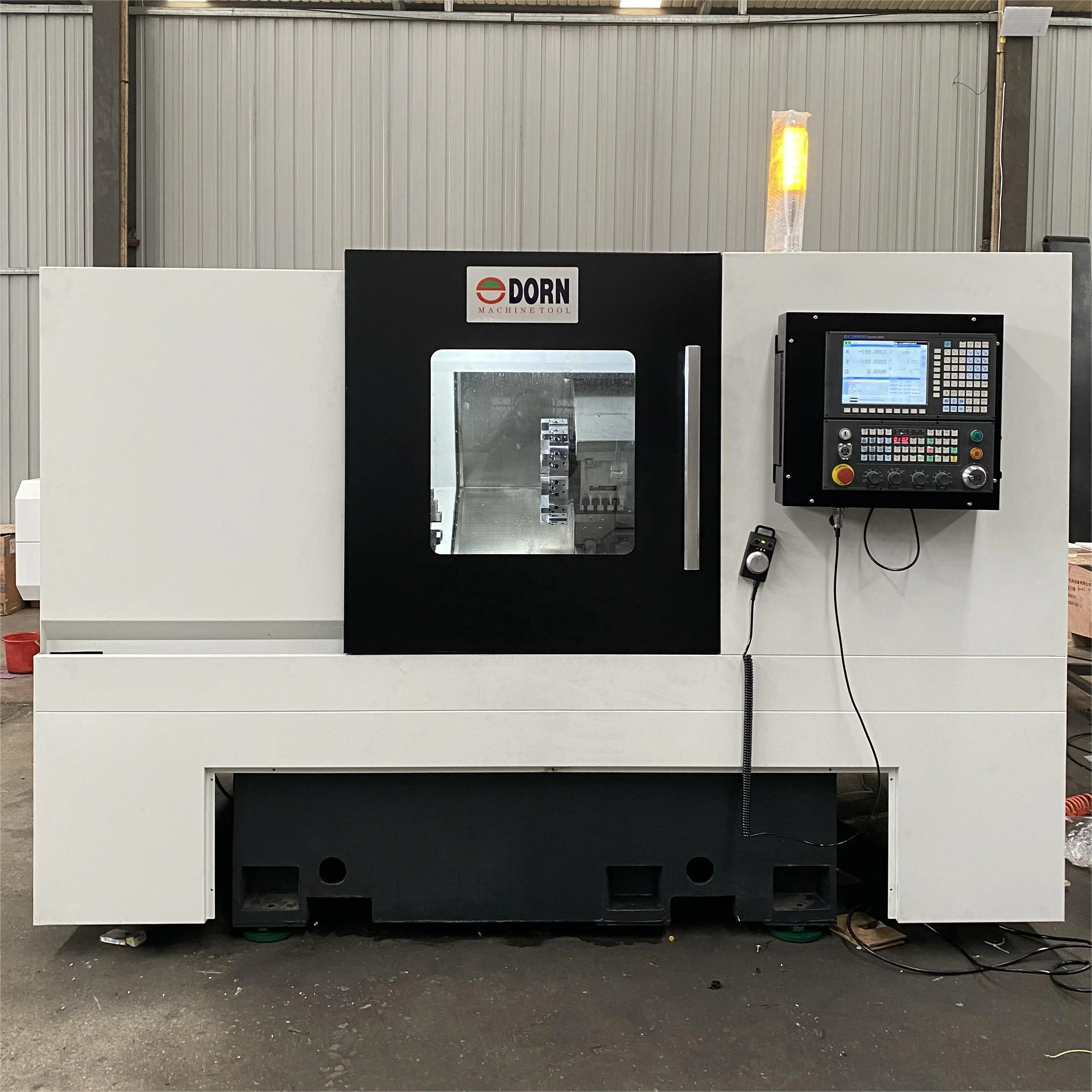

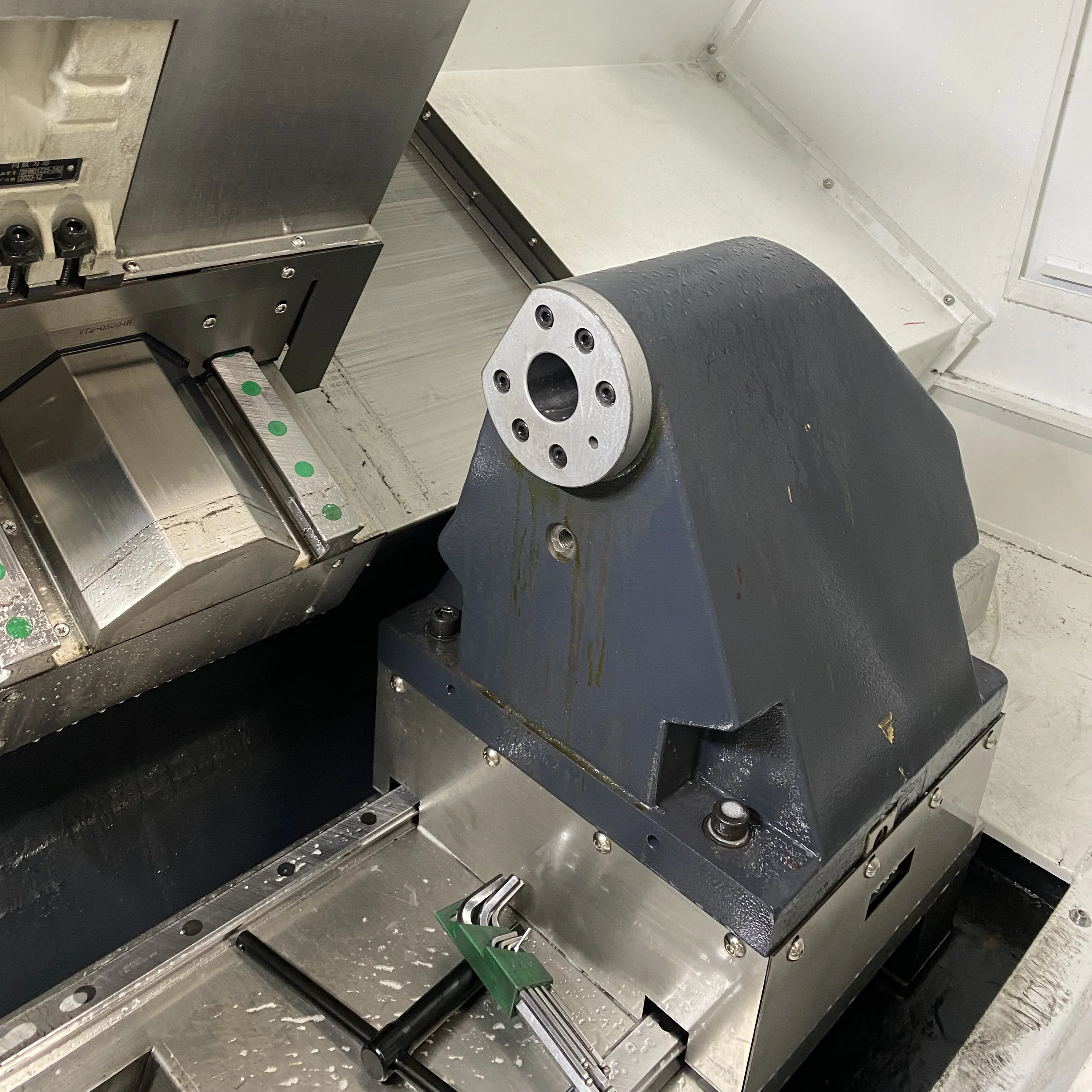

TCK50 Automatic GSK Control System Single Spindle CNC Turning Lathe Machine Heavy Duty Slant Bed Lathe Chinese Cheap Lathe Sale
- Category: >>>
- Supplier: Shandong Dorn Mechinery Co. Ltd.Shandong Ltd.
Share on (1601354948183):
Product Overview
Description

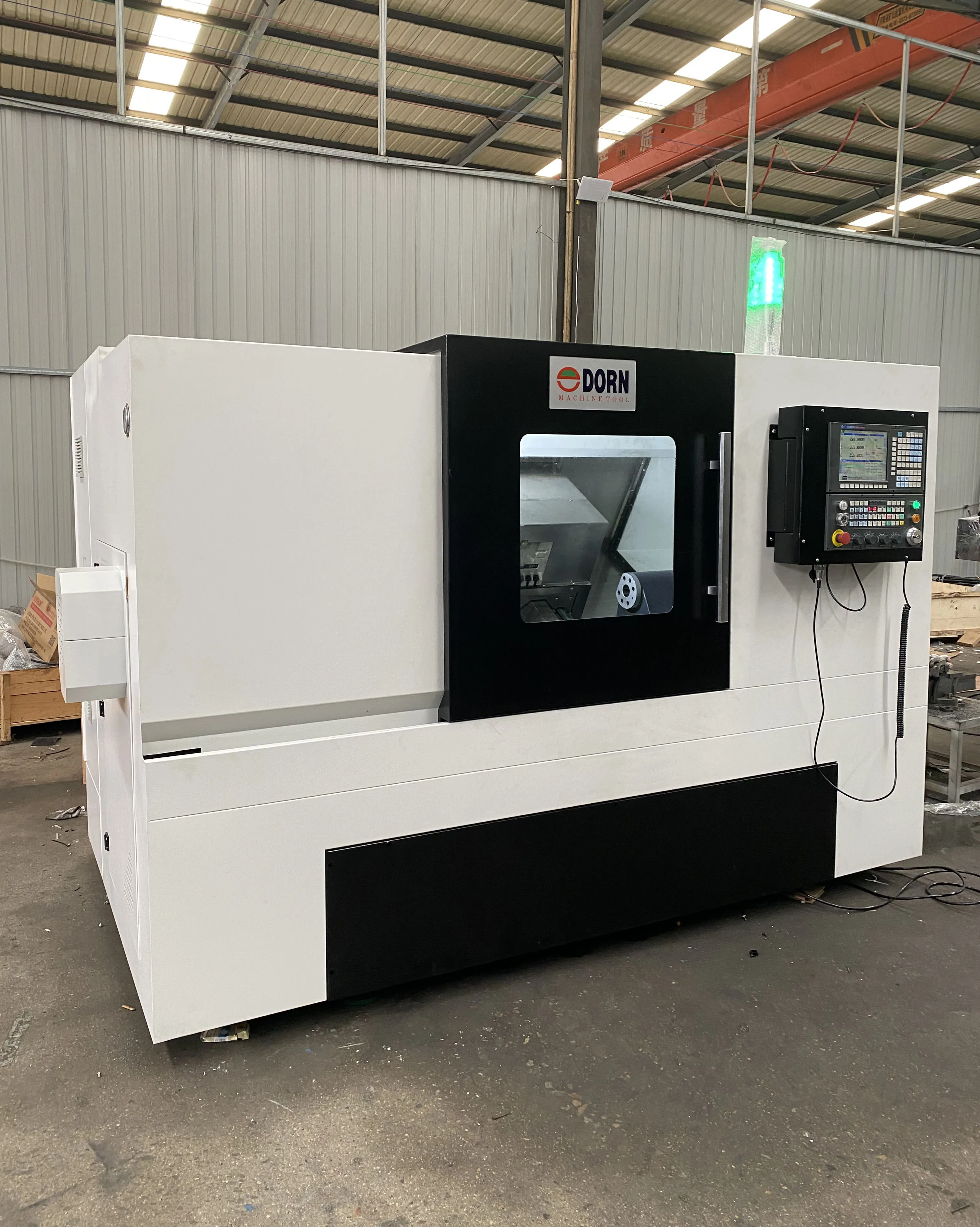

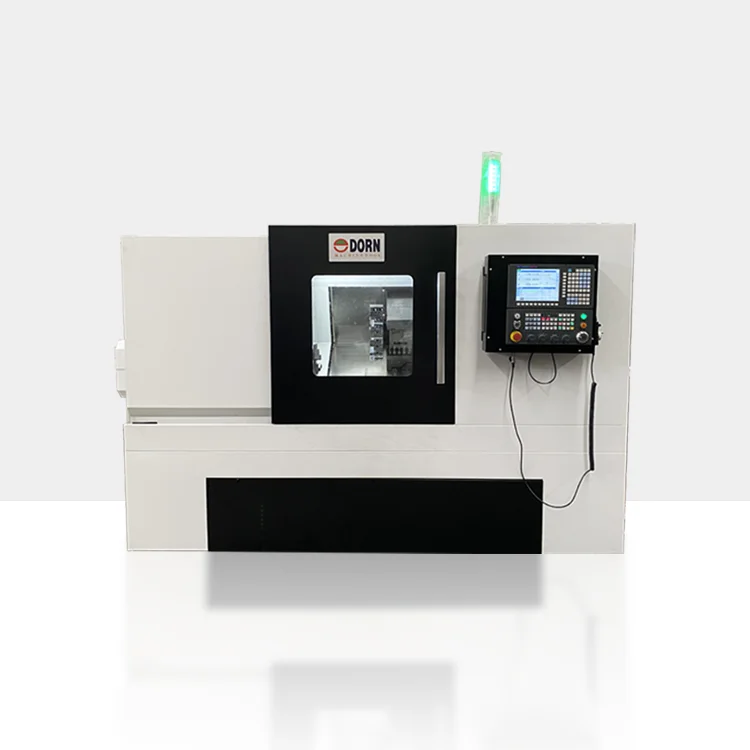

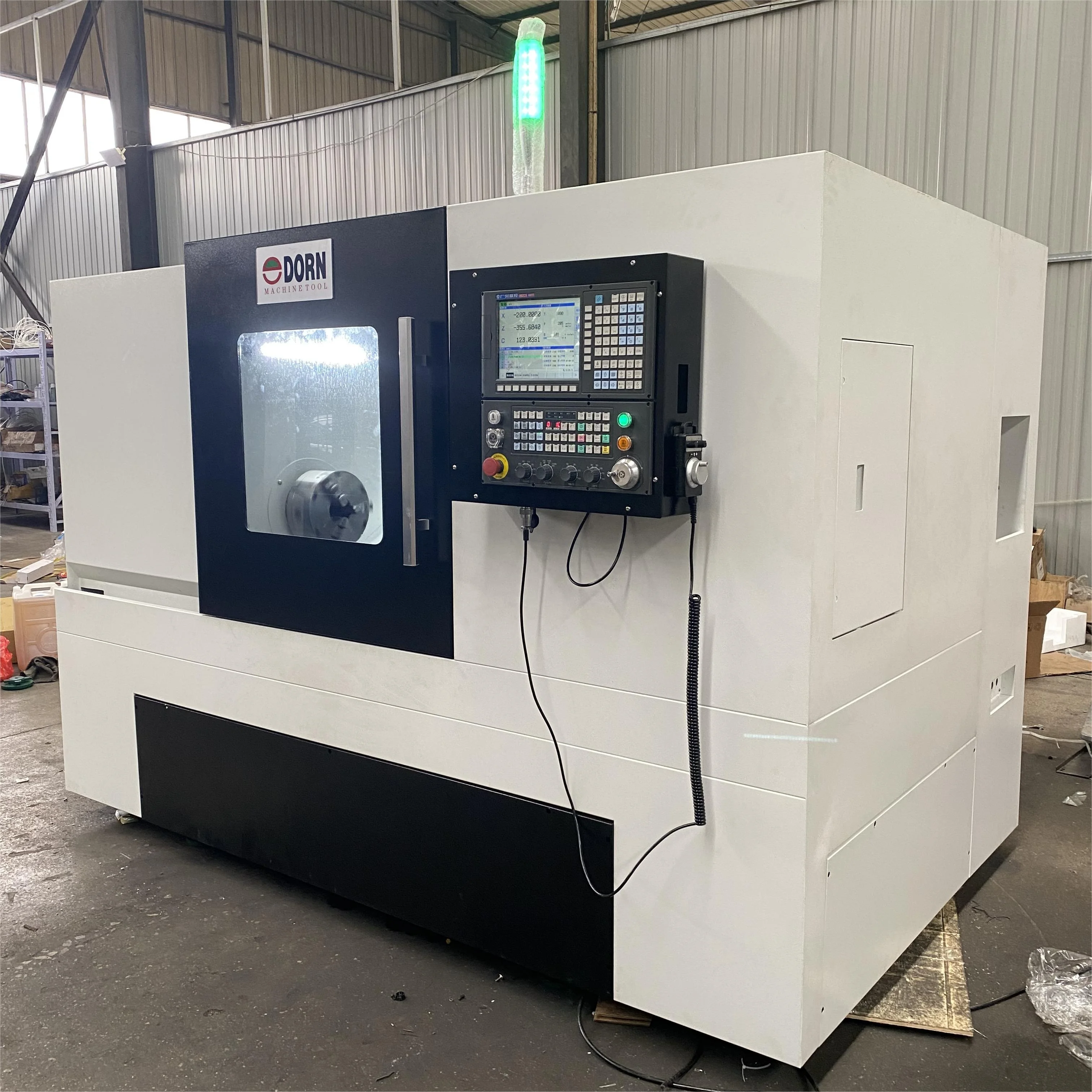

TCK50 Slant Bed CNC Lathe
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
SPECIFICATION | UNIT | TCK50 |
Max. swing diameter over bed | mm | Φ550 |
Max. swing over cross slide | mm | Φ320 |
Max. Z axis travel | mm | 620 |
Max. X axis travel | mm | 300 |
Max. processing length | mm | 600 |
Spindle nose | - | A2-6 |
Spindle bore | mm | φ82 |
Max. spindle speed | rpm | 3000 |
Chuck size | Inch | 10 |
Spindle motor | KW | 11 |
X/Z axis repeatability | mm | ±0.003 |
X/Z rapid traverse | m/min | 24/24 |
Guide way type | - | 45 degree |
Machine dimension (L*W*H) | mm | 2700*1800*1900 |
Net. weight (about) | kg | 4600 |

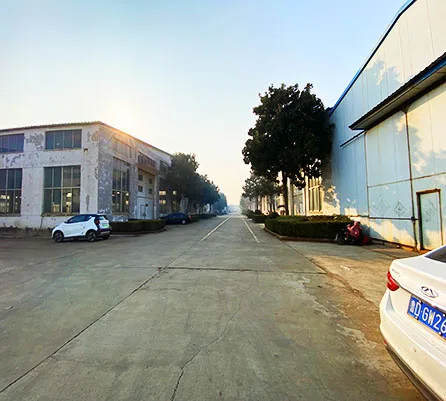

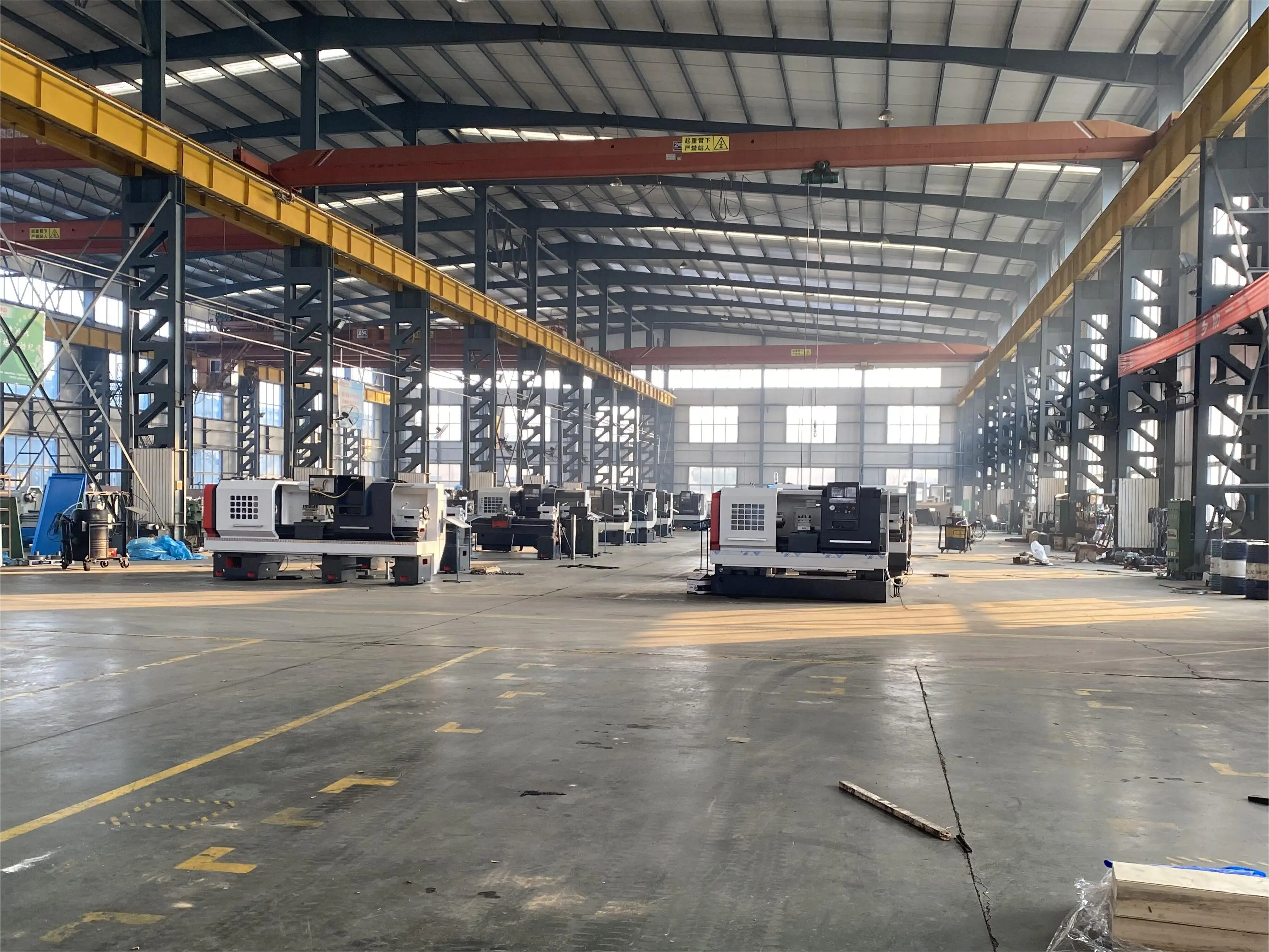

Shandong Dorn Machinery Co., Ltd.

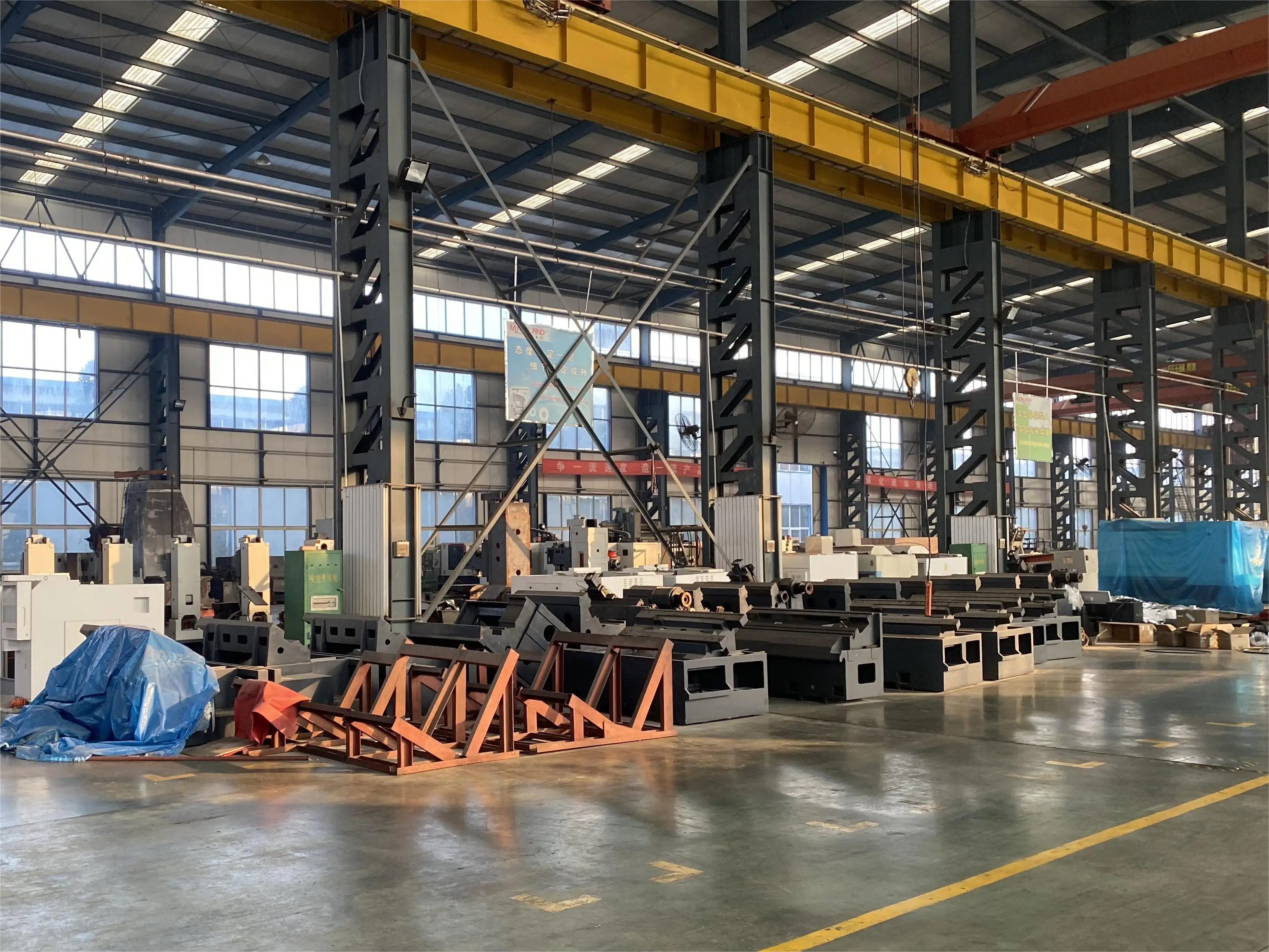

Shandong Dorn Machinery Co., Ltd.is a professional CNC machine tool manufacturer that integrates research and development, production, sales, and service.
The company has a research team of industry experts in industrial automation equipment, CNC machine tools, and mechanical equipment. At present, our main products include CNC vertical lathes and customized machines for customers. The product is widely used in various fields such as aerospace, ships, high-speed rail, automobiles, mines, environmental protection, and machinery.
The company has a research team of industry experts in industrial automation equipment, CNC machine tools, and mechanical equipment. At present, our main products include CNC vertical lathes and customized machines for customers. The product is widely used in various fields such as aerospace, ships, high-speed rail, automobiles, mines, environmental protection, and machinery.
