Free version of Windows 10, if you need a Windows 10/11 license, please contact us, you need to add USD 30/Unit. Please let us know which language you want to install. If you don't leave a message, we will install the English language for you.
We offer permanent technical support and a 3-year warranty

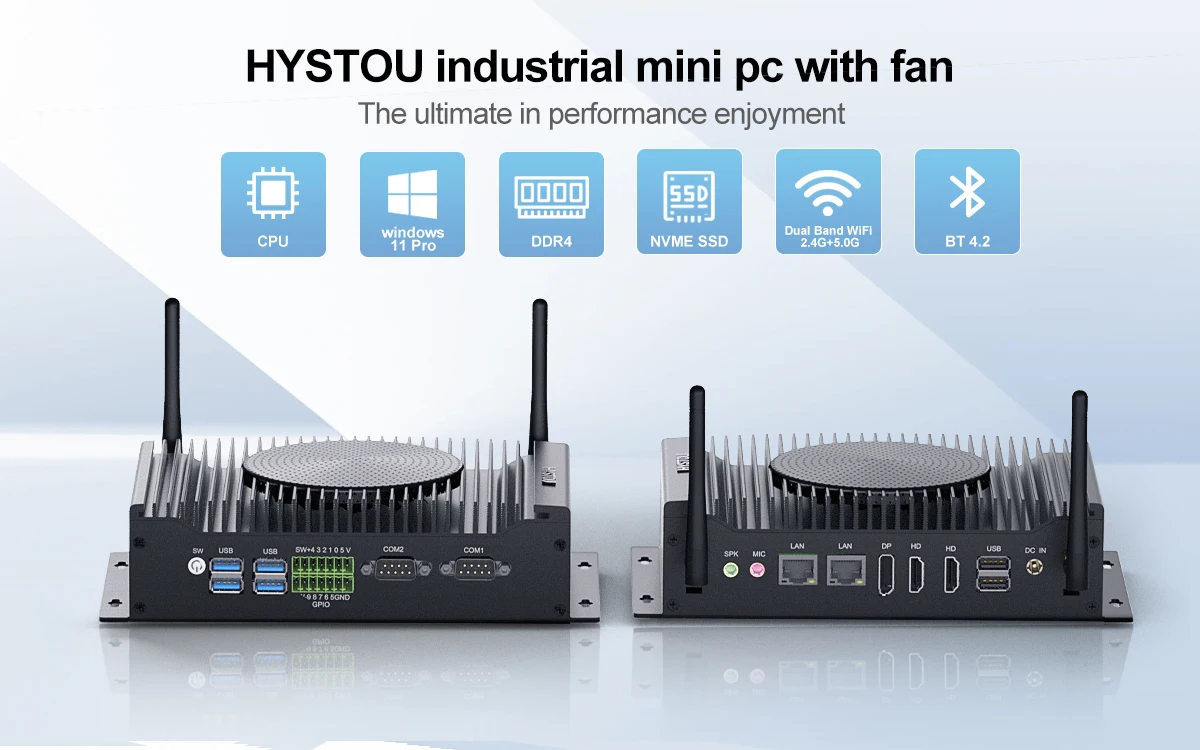

Hystou Industrial PC H6 Fan Model Specifications::
Processor
|
CPU
|
intel core i5-8260U (4-core, 8-thread, 1.6GHz main clock, 3.4GHz RX, 6MB L3 cache)
|
TDP
|
15W
|
CPU Lithography
|
14 nm
|
Cooling System/CPU Fan Decibel
|
Air-cooled, Maximum CPU fan speed: 2500RPM, Maximum noise level: <40db
|
Memory Specifications
|
Max Memory Size
|
64GB
|
Memory Types
|
2*DDR4 SO-DIMM 260 pin
|
Memory Channels
|
Dual Channels
|
ECC Memory
|
Don’t support
|
Storage Specification
|
m.2 SSD
|
1*M.2 2280 M KEY PCIE3.0
|
SANTA
|
1*SATA3.0 Slot for 2.5 inch HDD/SSD
|
mSATA
|
NO mSATA slot
|
Graphics
|
Processor Graphics
|
Intel UHD Graphics 620 for 8th CPU, Intel UHD Graphics for 10th CPU
|
HDMI
|
1*HDMI 4096*2160@30Hz(4K) + 1*HDMI 4096*2160@60Hz(4K)
|
DP
|
1*DP 4096*2160@60Hz(4K)
|
Power Specification
|
Adapter Output
|
DC 12V/5A
|
Adapter Input
|
AC 110-240V, 50/60HZ
|
Consumption
|
50W
|
Auto Power On
|
Support Auto Power On Function
|
In & Out interfaces
|
USB Port
|
2*USB 2.0 port,4*USB 3.0 port
|
Audio
|
1*3.5mm MIC in & SPK out
|
Video
|
HDMI 4096*2160@30Hz + HDMI 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
|
Audio Cards
|
USB Audio Device
|
Lan Port
|
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
|
Com Port
|
2*RS232 Com port,Support RS422/RS485 Com port
|
GPIO
|
1*14pin GPIO Phoenix Terminal(5*Input 5*Output GPIO)
|
Wi-Fi
|
Inside Wifi & Bluetooth Combo
|
Others
|
System
|
Support Windows 10/11, Linux
|
BIOS
|
Support RAID, AUTO POWER ON, Wake On LAN, Resume By Alarm, PXE
|
SIM
|
1*SIM slot, supports Nano-SIM, SIM Size:9mm*12mm
|
MPCIE
|
1*MPCIE,Support 3G/4G module
|
Work Environment
|
-10℃--60℃(14F~140F) , 30%--90% Humidity
|
Case Material
|
Aluminum Alloy
|
Dimension
|

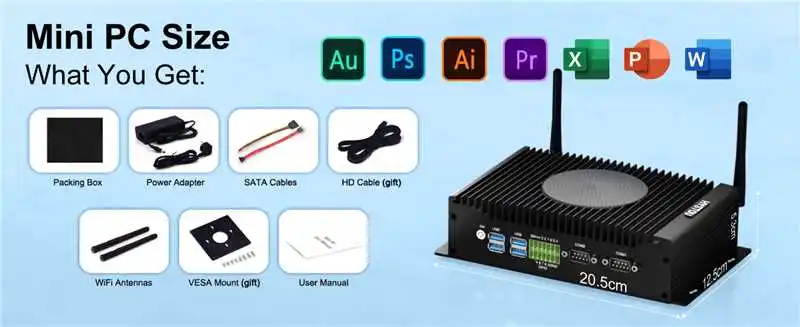

PC size 205*126*58mm
|
Weight
|
Net 1.15kg
|
