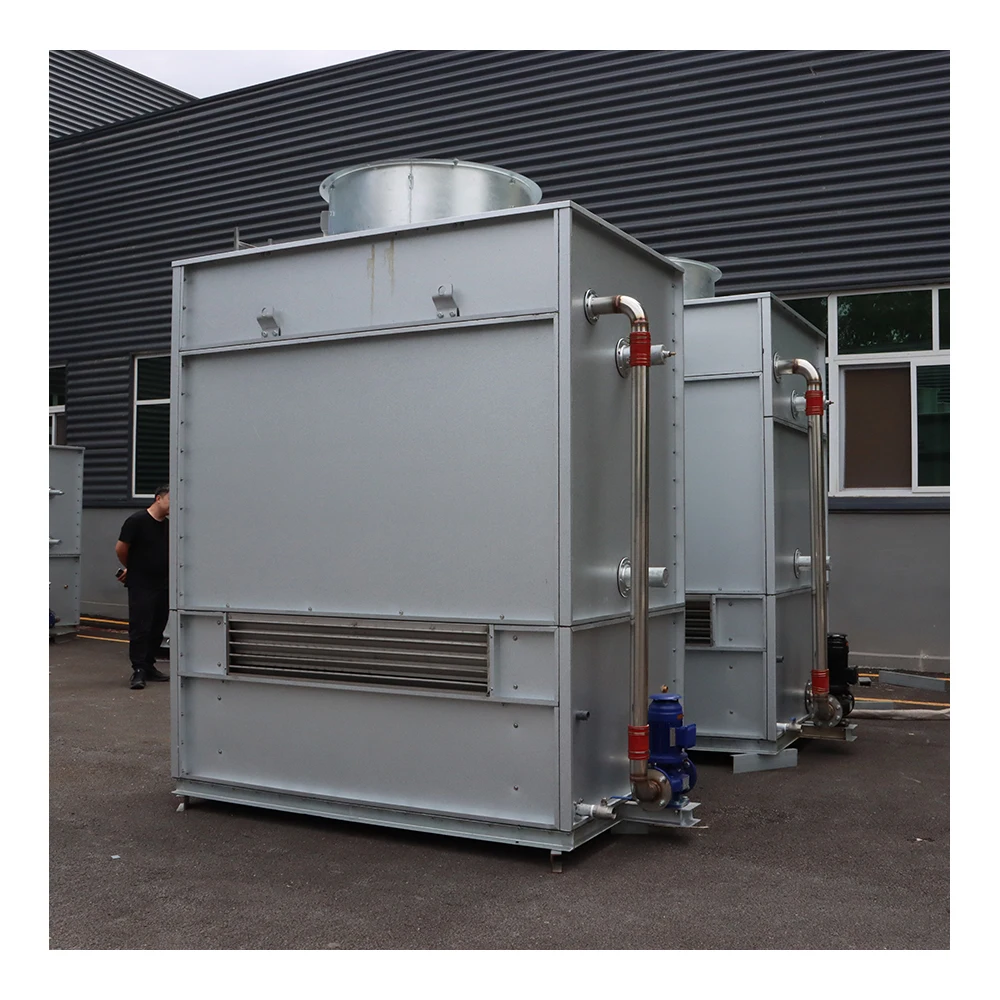

Hot Sale large evaporative condenser industrial heat exchanger Cooling Water Towers temperature control Copper Tube

Share on (1601355614536):


Price:$2,988.00-4,588.00

Quantity:


Product Overview

Description



evaporative condense

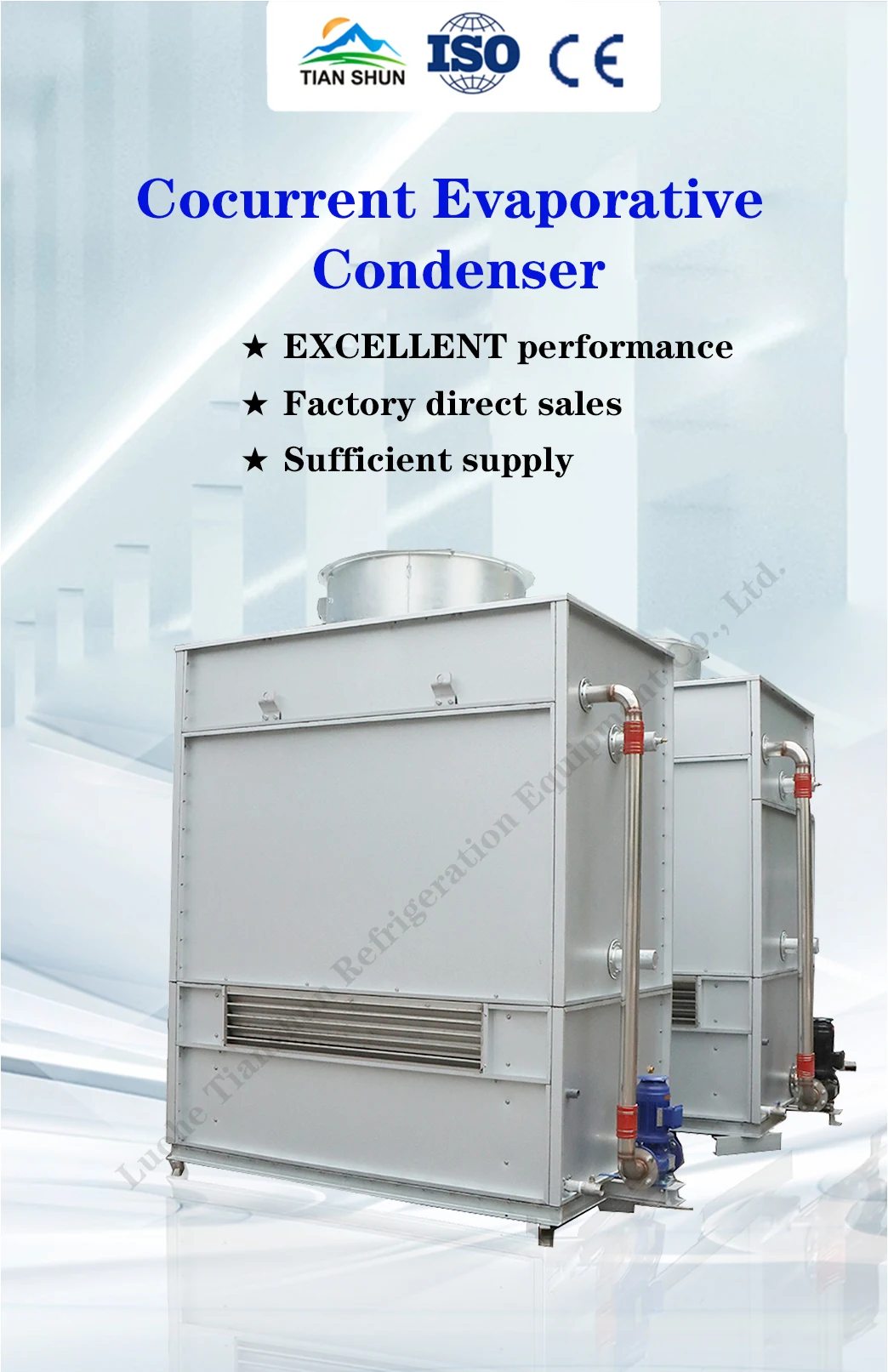

Hot Sale large evaporative condenser industrial heat exchanger Cooling Water Towers temperature control Copper Tube


0102

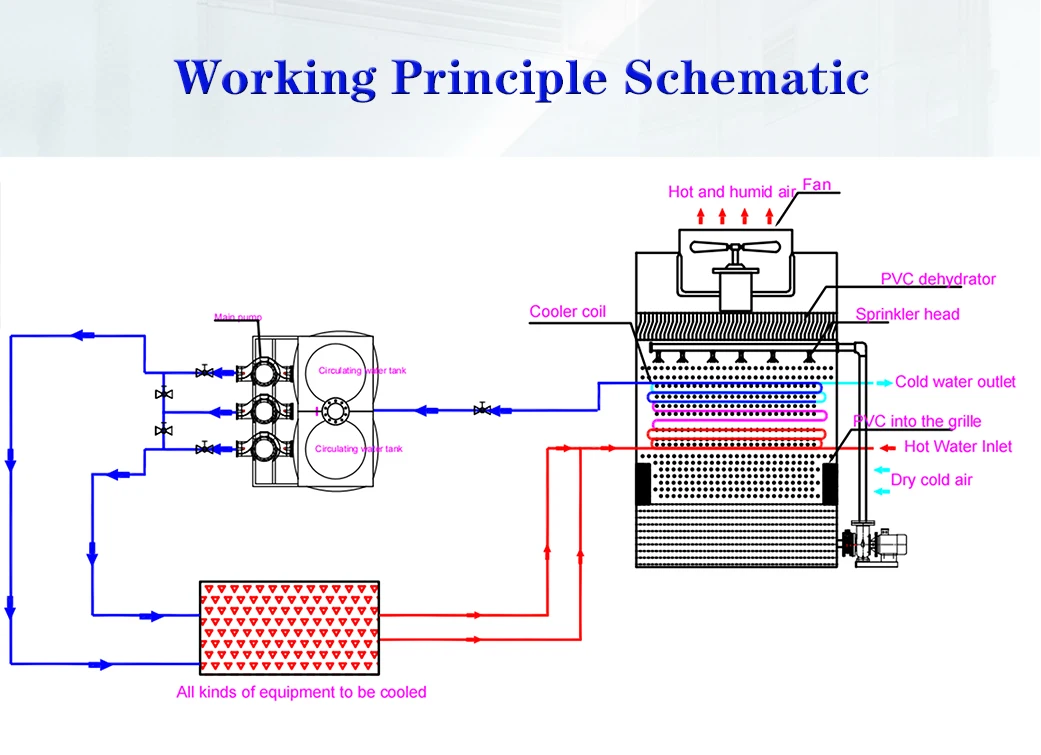

Process principle




The heated working fluid inlet from cooling coils, then the waste heat be took away by the fall down spray water and reverse flow with the cold dry air which is inlet from the bottom of the tower and form to saturated vapor in the process. The heat is exhausted out of tower by the top fan and the water is collected to bottom tank and circulate continuously by the special evaporator.

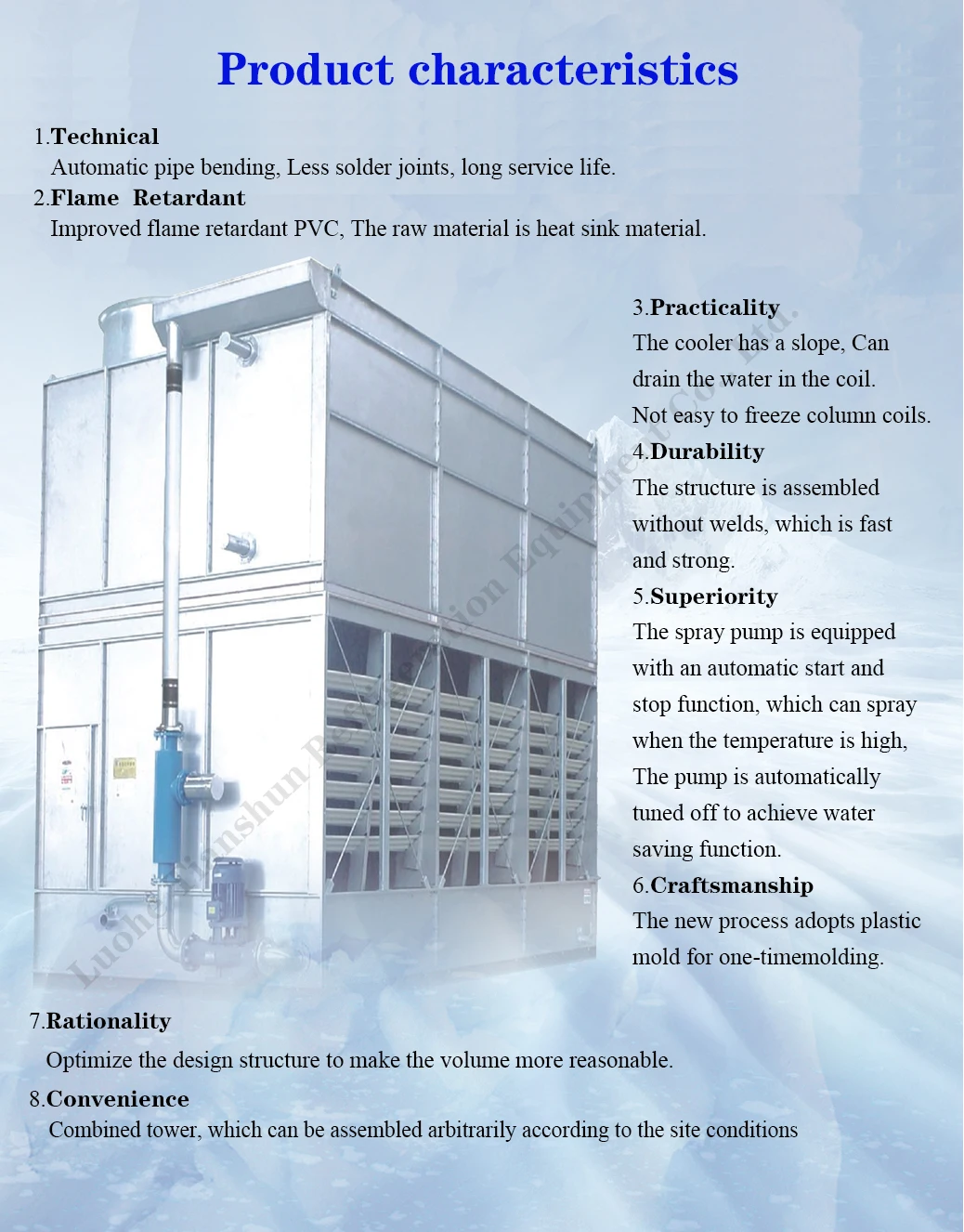

Characteristics




1.Compact Structure
Counter-flow closed tower has four faces for wind inlet,which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.






030405







































































































































































































































































































































































































































































































































































HELENG EVAPORATE PARAMETER
TypeIntake(Dia)RuntAxial fan Pump Dimension
KW liquid(Dia)Type KWSetKWSetsA(L)B(W)H1H2H(H)
ZFLA10057578#1.51DN65 1.1116951126~~2303
ZFLA12057578#1.51DN65 1.1116951324~~2303
ZFLA15057578#1.51DN65 1.1116951090~~2525
ZFLA20057578#1.51DN65 1.1116951380~~2525
ZFLA25057577#0.752DN65 1.1121751078~~2755
ZFLA30076577#0.752DN65 1.1121751258~~2755
ZFLA35076577#0.752DN65 1.1121751370~~2755
ZFLA40089768#1.52DN80 2.2121501280105016103268
ZFLA45089768#1.52DN80 2.2121501440105016103020
ZFLA50089768#2.22DN80 2.2121701320105018203226
ZFLA55089768#2.22DN80 2.2121701420105018203226
ZFLA600897612#4.0*11DN80 2.2121701540105018203226
ZFLA650897612#4.0*11DN80 2.2121701640105018203226
ZFLA700765710# 2.22DN80 2.2128881630115016933245
ZFLA700897610# 2.22DN80 2.21
ZFLA800897610#3.0*22DN80 2.2128951836115018633415
ZFLA900897610#4.0*22DN80 2.2128952056115018283415
ZFLA950897611.2#4.02DN80 2.2128952140115018633415
ZFLA1000765711.2#4.02DN100 4.0130712170117018283400
ZFLA1050765711.2#4.02DN100 4.0132602148117018283400
ZFLA1100765712 4.0*22DN100 4.0134262148117018283400
ZFLA1200897613 4.0*22DN100 4.0136902170117018633035
ZFLA1200897613 4.0*22DN100 4.01
ZFLA1300897613 4.0*22DN100 4.0138082148117017403415
ZFLA1400897613 4.0*22DN100 4.0140722148117017403415
ZFLA1500897611.2#4.03DN100 4.0143362148117017403415
ZFLA1600897611.2#4.03DN100 4.0148882170117018303400
ZFLA1700897611.2#4.03DN100 4.0151442170117018303400
ZFLA1800897615#5.5*22DN100 2.2240122880117018303360
ZFLA1900897615#5.5*22DN100 2.2241802880117018303360
ZFLA2000897615#5.5*22DN100 2.2244002880117018303360
ZFLA2100897615#5.5*22DN100 2.2246202880117018303360
ZFLA2200897613#5.53DN100 4.0251402880117018653395
ZFLA2300897613#5.53DN100 4.0250802880117018653395
ZFLA2400897613#5.53DN100 4.0251902880117018653395
ZFLA2500897613#5.53DN100 4.0254102880117018653395
