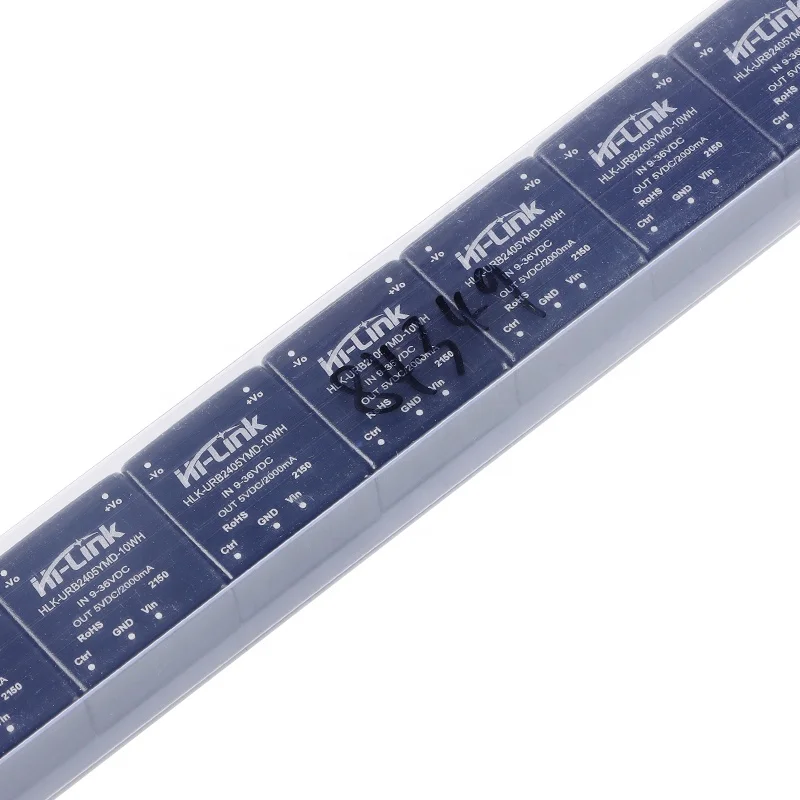

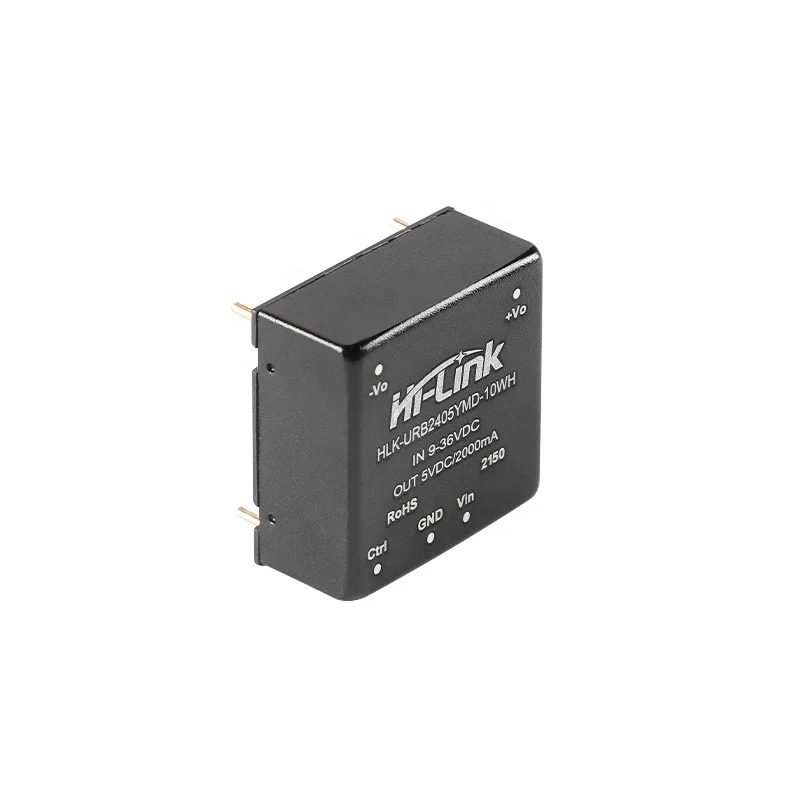

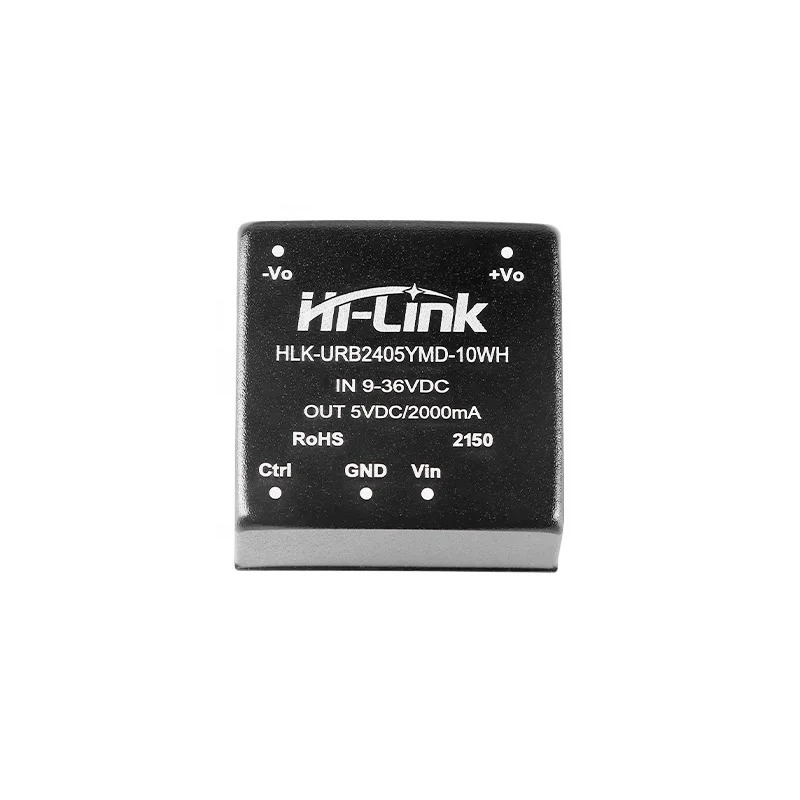

Hi Link DC DC 24V to 5V 10W 2A Isolated Switching Power Module Short Circuit Protection HLK URB2405YMD 10WH URB2405YMD 10WH
- Category: >>>
- Supplier: Shenzhen Youxin Electronic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601355654752):
Product Overview
Description
Product Description
Specification
Place of Origin | China |
Guangdong | |
Brand Name | Hi-Link |
Operating temperature:-40 ~ +85 ℃
Storage temperature:-55 ~ +125 ℃
Relative humidity: 5 ~ 95% RH without condensation
Heat dissipation method: natural cooling
Atmospheric pressure: 80 ~ 106Kpa
Altitude: ≤ 2000m
Vibration coefficient: 10-500Hz, 2G, 10 Min.each along X, Y and Z
(24VDC input)
Input current (full load/no load):502/5mA(423/5mA 3.3V)
Reflected ripple current: 40mA
Impulse voltage (lsec.max):-0.7 ~ 50VDC
Starting voltage: 9VDC(Max.)
Input undervoltage protection: 6.5VDC(Typ.)
Input filter type: PI type
Hot plug: not supported
Output Load (Percentage of Load):10%-100%
Output voltage accuracy: 1.0%(Typ.)
Linear adjustment rate (input voltage 1%): 0.2% (other outputs)
Output ripple noise:(mVp-p)≤ 80mVp-p
Output short circuit protection: sustainable, self-recovering
Storage temperature:-55 ~ +125 ℃
Relative humidity: 5 ~ 95% RH without condensation
Heat dissipation method: natural cooling
Atmospheric pressure: 80 ~ 106Kpa
Altitude: ≤ 2000m
Vibration coefficient: 10-500Hz, 2G, 10 Min.each along X, Y and Z
(24VDC input)
Input current (full load/no load):502/5mA(423/5mA 3.3V)
Reflected ripple current: 40mA
Impulse voltage (lsec.max):-0.7 ~ 50VDC
Starting voltage: 9VDC(Max.)
Input undervoltage protection: 6.5VDC(Typ.)
Input filter type: PI type
Hot plug: not supported
Output Load (Percentage of Load):10%-100%
Output voltage accuracy: 1.0%(Typ.)
Linear adjustment rate (input voltage 1%): 0.2% (other outputs)
Output ripple noise:(mVp-p)≤ 80mVp-p
Output short circuit protection: sustainable, self-recovering
