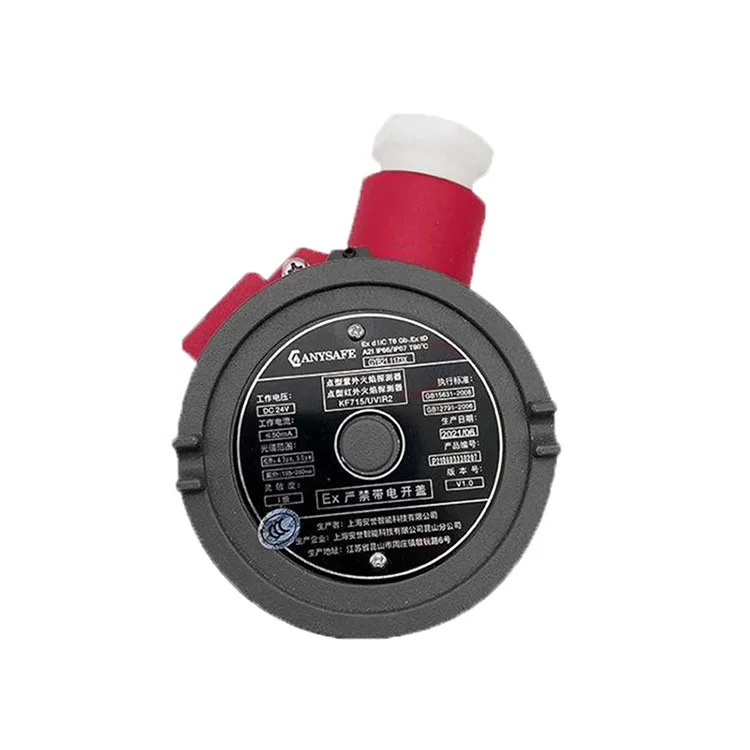

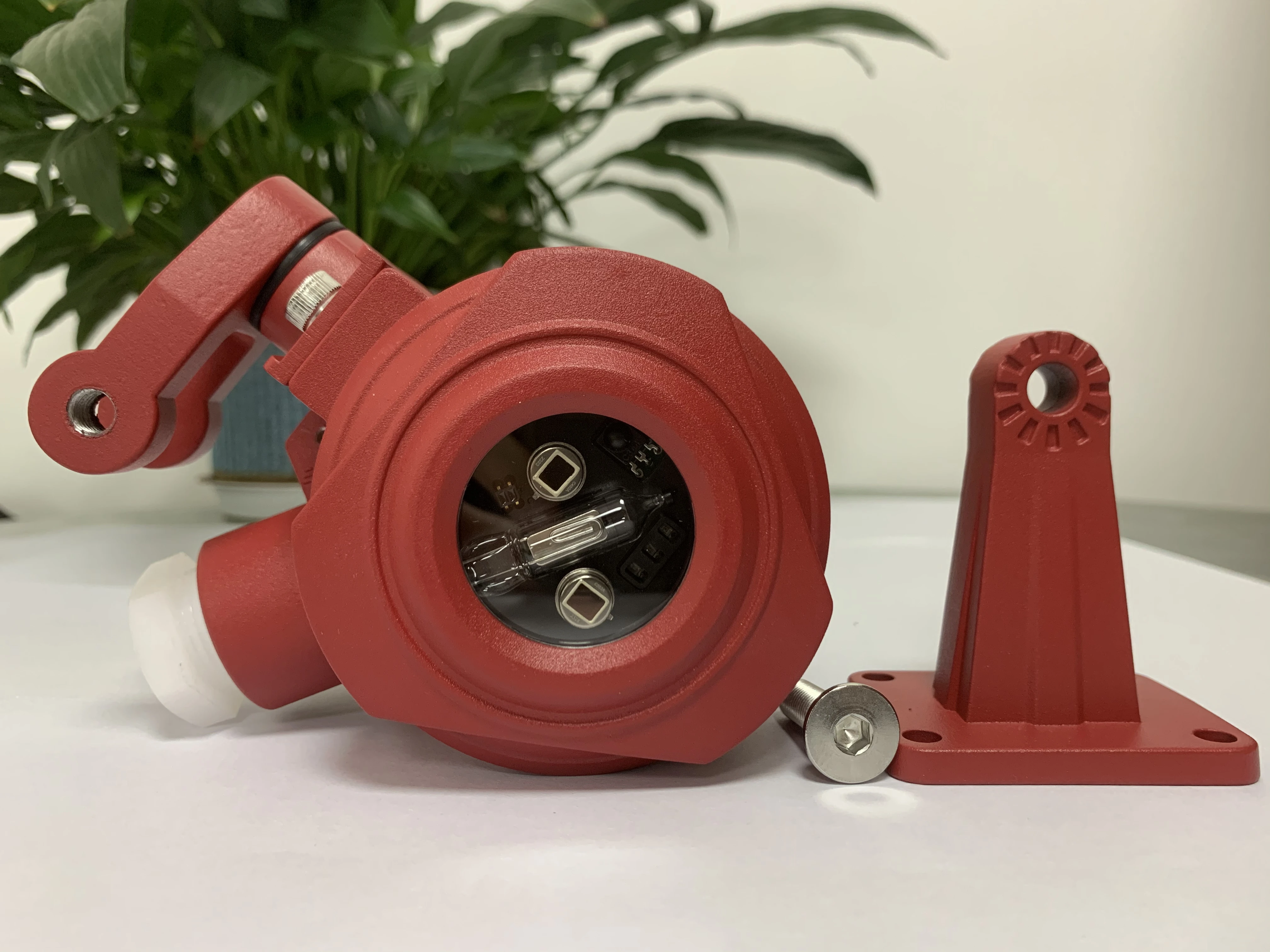

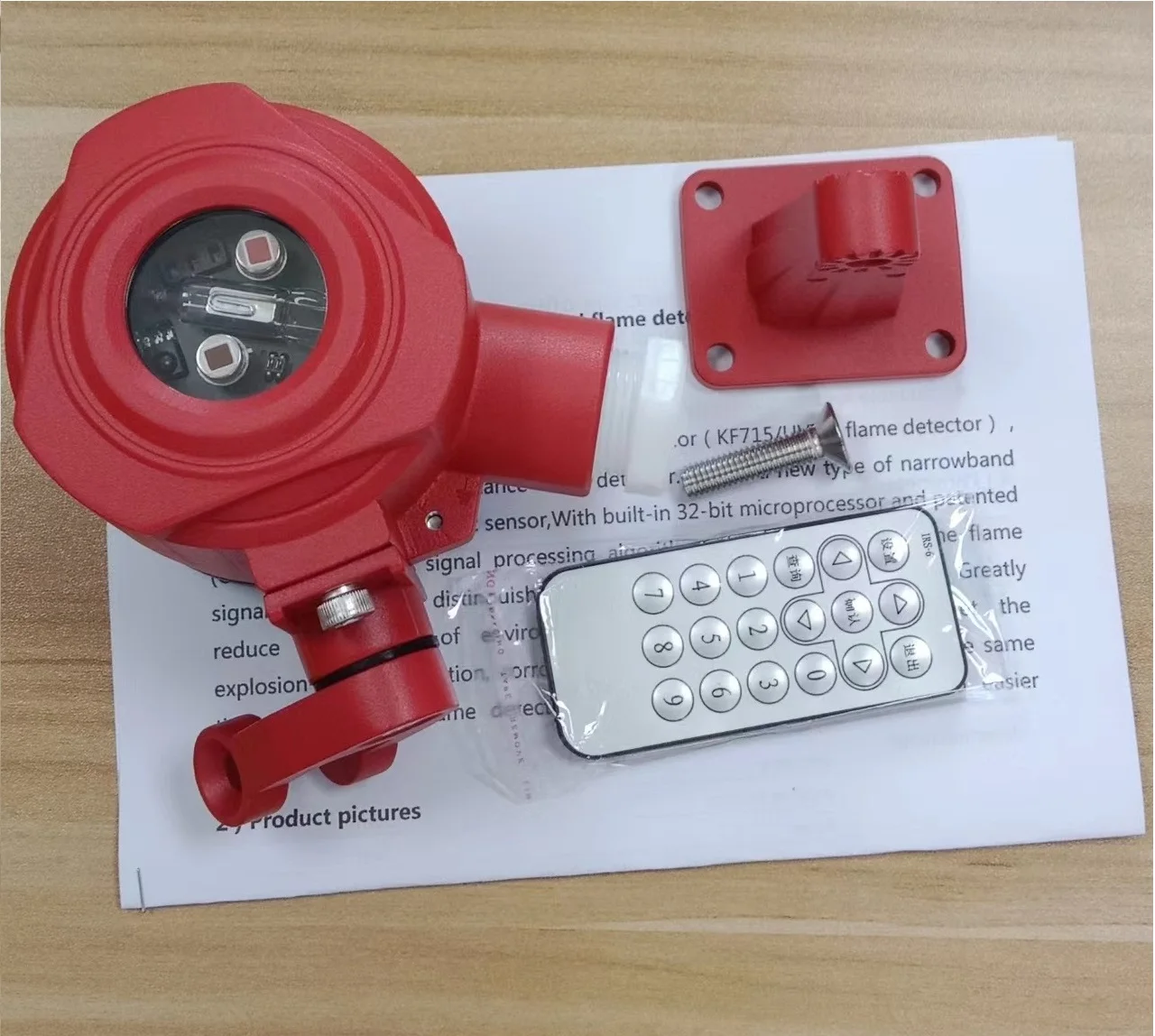

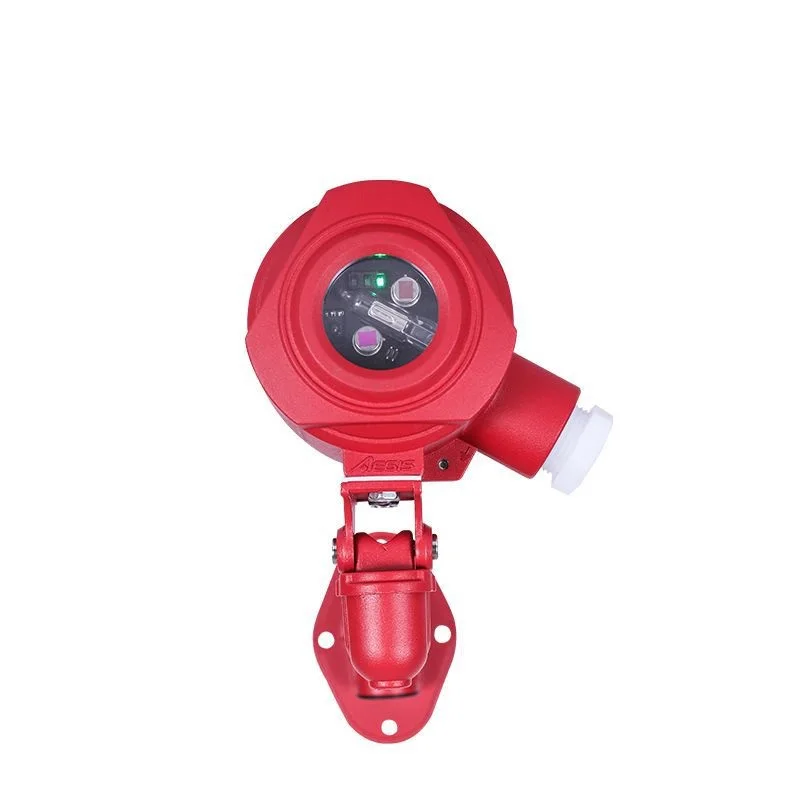

Factory Price Explosion Proof Flame Detector Ir3 Infrared Flame Detector

item

value

Place of Origin

China

Model Number

KF715/IR3

Product Name

Explosion-Proof Point-Type Infrared Flame Detector

Voltage range

DC24V（voltage range 18～30V）

Detection Angle

120°

≤50mA（With a working status indicator light, normal monitoring state green shining; With a fire alarm confirmation light, fire
alarm state red steady on; With a fault indicator, the fault state is steady yellow；）

Relay Output

Fire alarm relay ，1A@30VDC ，Normally open contact output ，Monitoring state normally open contact is disconnected ，Fire alarm state
normally open contact closed ； Fault relay ，1A@30VDC ，Normally open contact output ，The normally open contact in monitoring state
is closed ，Fault alarm state normally open contact is disconnected ；

Signal Output

Relay-type ,2 way fire alarm, fault relay output

Ex-Atex Protection Level

Exd ⅡC T6 Gb/tD A21 IP66/IP67 T80℃

Protection Class

IP 66 /IP67

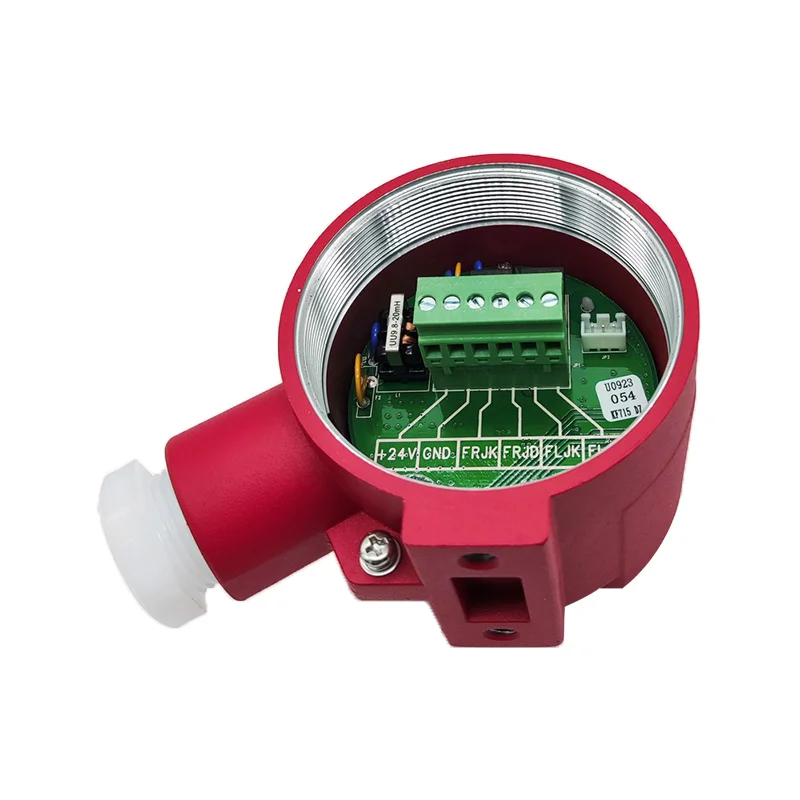

Electrical interface

1 × 3/4NPT、M25*1.5 、G3/4 (Adaptor can be customized according to demand)

Size/Weigh

120mm ×95mm ×85mm/ About 0.7Kg

Operating Environment

Operating Temperature:-40℃ ~ 70℃;Storage temperature:-40℃ ~ 85℃; Operating humidity:0～96%RH(Non-condensate)

Packaging Details

Standard carton package

Outer box size

25*18*13cm

Gross weight

1kg/1PCS
