small portable borehole rotary drilling rig machine truck mounted 500/600 m water borehole mine drilling rig machine
- Category: >>>
- Supplier: Henan Xuanhua Imp.& Exp. Trading Co. Ltd.Henan Ltd.
Share on (1601355850115):
Product Overview
Description
Product Description
Truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and groutingholes of cofferdam, dam and reinforced base, as well as drilling of open pit mininganchor reinforcement project and defense project.
For our truck mounted drilling rig, it is customized products, like the truck chassis, you can choose the 4*2,4*4,6*4,6*6 and other ones. And for the working method, you can choose mud, air or both types according to your soil layer. We need remould the chassis to install the drilling rig, mud pump and air compressor, you can also send us your drawing, we can customize it for you.
For our truck mounted drilling rig, it is customized products, like the truck chassis, you can choose the 4*2,4*4,6*4,6*6 and other ones. And for the working method, you can choose mud, air or both types according to your soil layer. We need remould the chassis to install the drilling rig, mud pump and air compressor, you can also send us your drawing, we can customize it for you.
Main Technical Parameters
ITEM | YCT-300 | YCT-350 | YCT-400 |
Max Drilling Depth (m) | 300 | 350 | 400 |
Drilling Diameter (mm) | 105-305 | 105-305 | 105-305 |
Air Pressure (Mpa) | 1.2-3.5 | 1.2-3.5 | 1.2-3.5 |
Air Consumption (m³/min) | 16-55 | 16-55 | 16-55 |
Rod Length (m) | 3 | 6 | 3 |
Rod Diameter (mm) | 89 | 89 | 89/102 |
Main Shaft ressure (T) | 5 | 4 | 6 |
Lifting Force (T) | 16 | 18 | 22 |
Fast Lifting Speed (m/min) | 14 | 20 | 34 |
Fast Forwarding Speed (m/min) | 21 | 40 | 34 |
Max Rotary Torque (Nm) | 6100/3050 | 7700/3850 | 7700/3850 |
Max Rotary Speed (r/min) | 55/10 | 65/130 | 80/160 |
Small Secondary Winch Lifting Force (T) | 1.5 | 1.5 | 1.5 |
Jacks Stroke (m) | 1.6 | 1.35 | 1.6 |
Drilling Efficiency (m/h) | 10-35 | 10-35 | 10-35 |
Moving Speed (km/h) | 2.5 | 2.5 | 3 |
Uphill Angle (°) | 21 | 21 | 21 |
Weight Of The Rig (T) | 8 | 10 | 11 |
Dimension (m) | 6.4*2.1*2.8 | 6*1.7*2.4 | 6.4*2.1*2.55 |

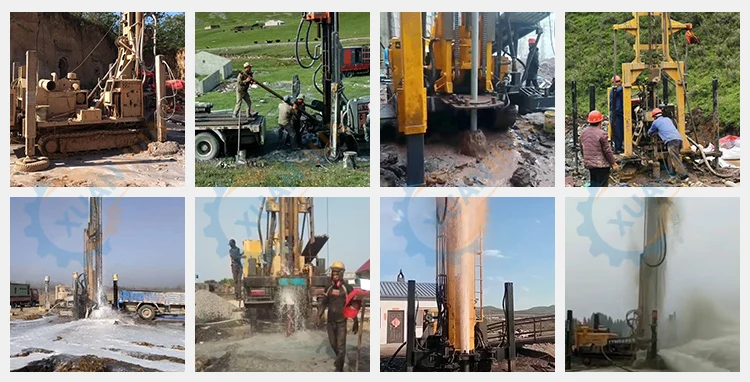

CONSTRUCTION CASS
Our engineer team have more than 15 years’ working experience in Africa market, you will get the most correct solution from us to start your promising business. Because the full set cost is large accordingly compare with another models, you can feel free to share your rough budget with us, so that we can check which configuration is suitable to you.

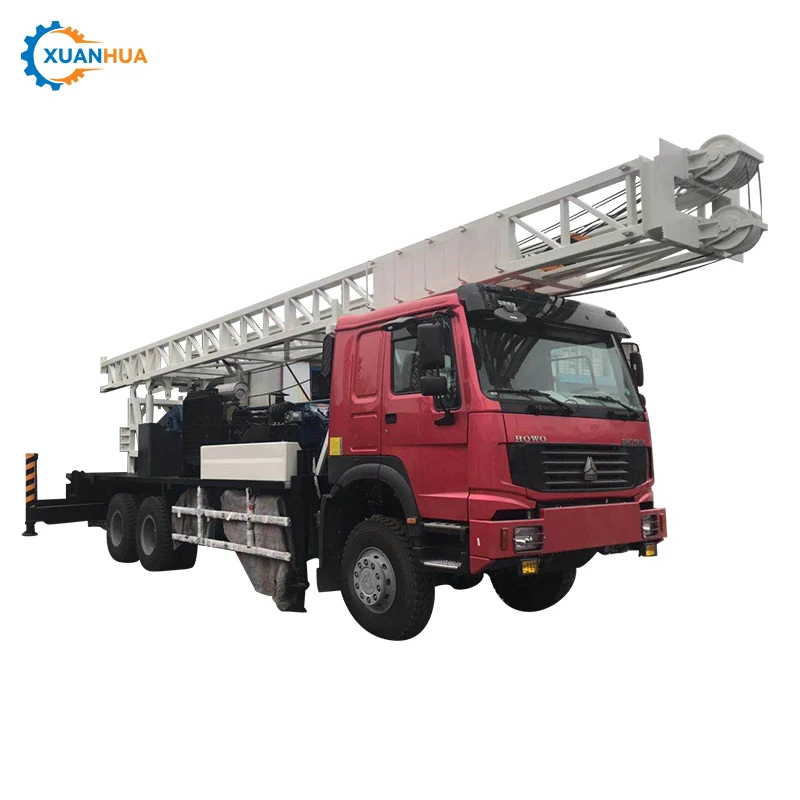

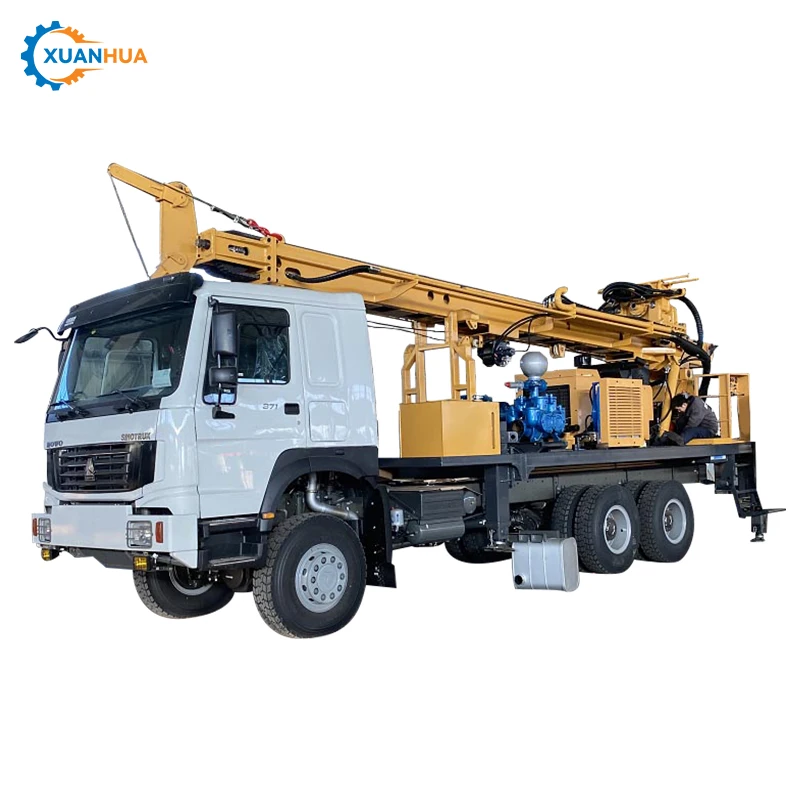

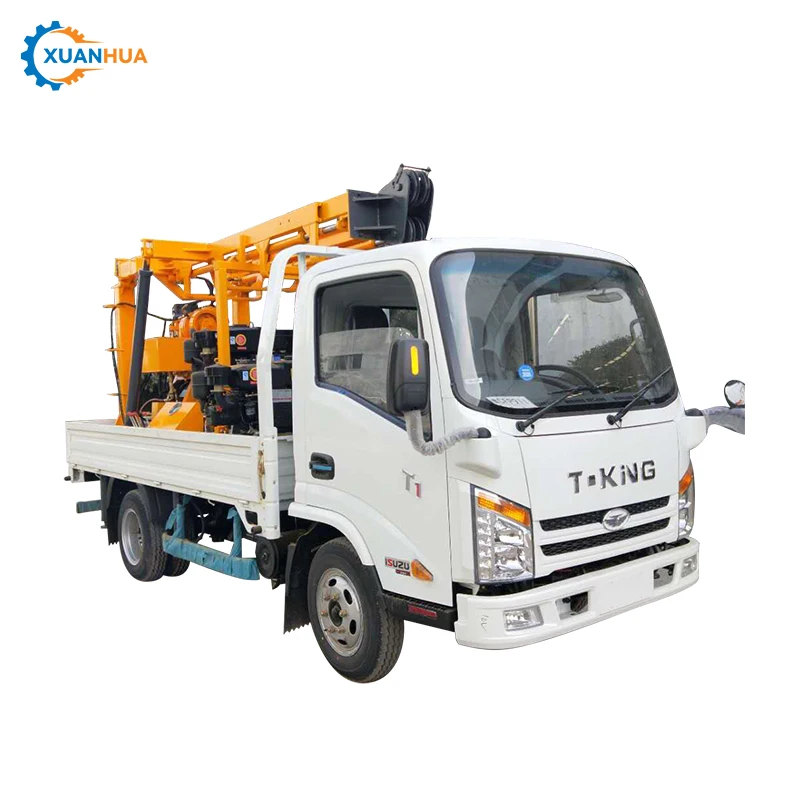

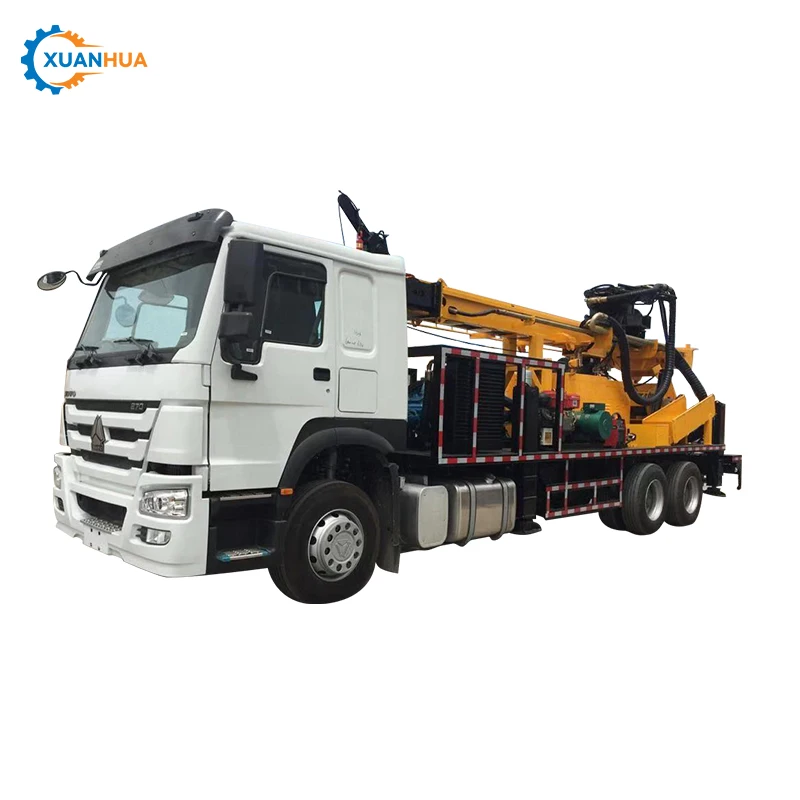

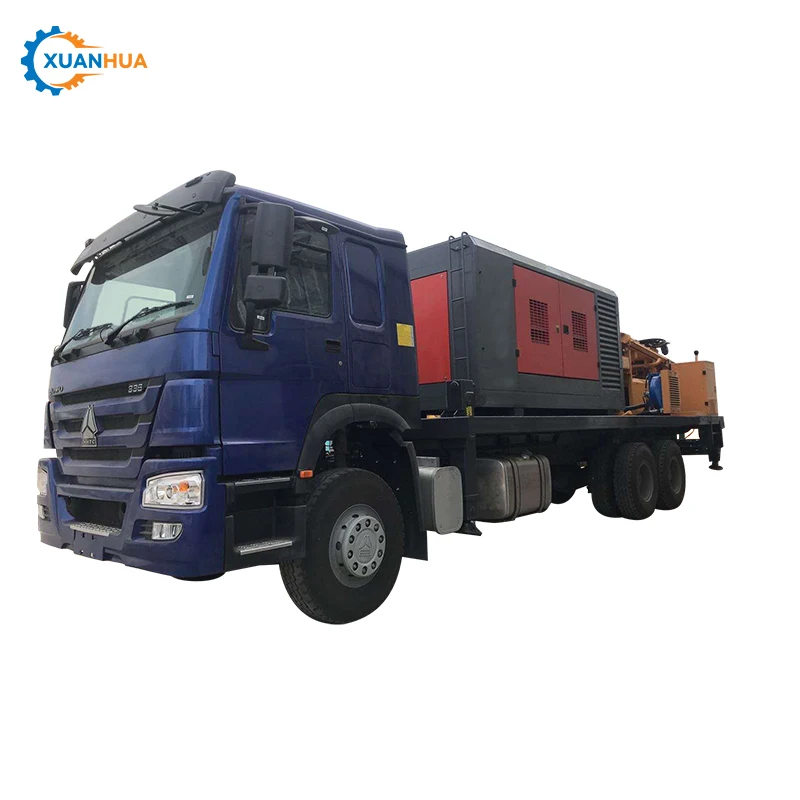

Product Photo

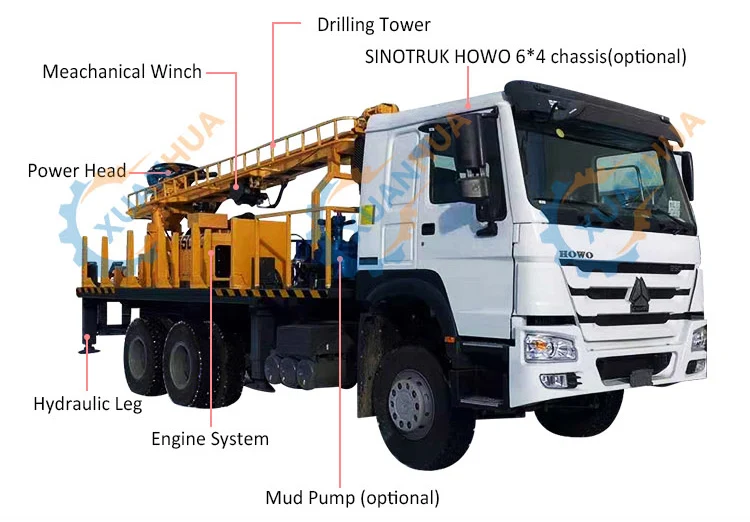

Product Detail
PRODUCT ADVANTAGES
According to your local market needs and budget, we can design the right machine for you.
Core Valve
It has double lifting force than the single one. It is more powerful.
Oil Pump
With features of small engine, low fuel consumption and high efficiency.
Meachanical Winch
It would be much easy to bear the machine body, and help the drilling rig keep stable when drilling well.
Customized Chassis
Power head device, gearbox integrated casting, dual motor power, torque, durability, small maintenance costs.

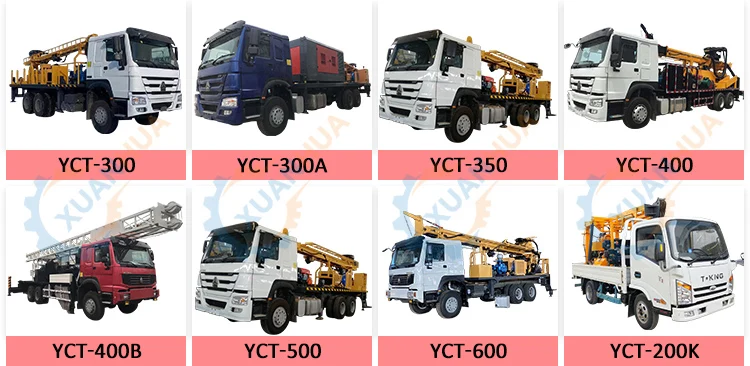

Similar Products
