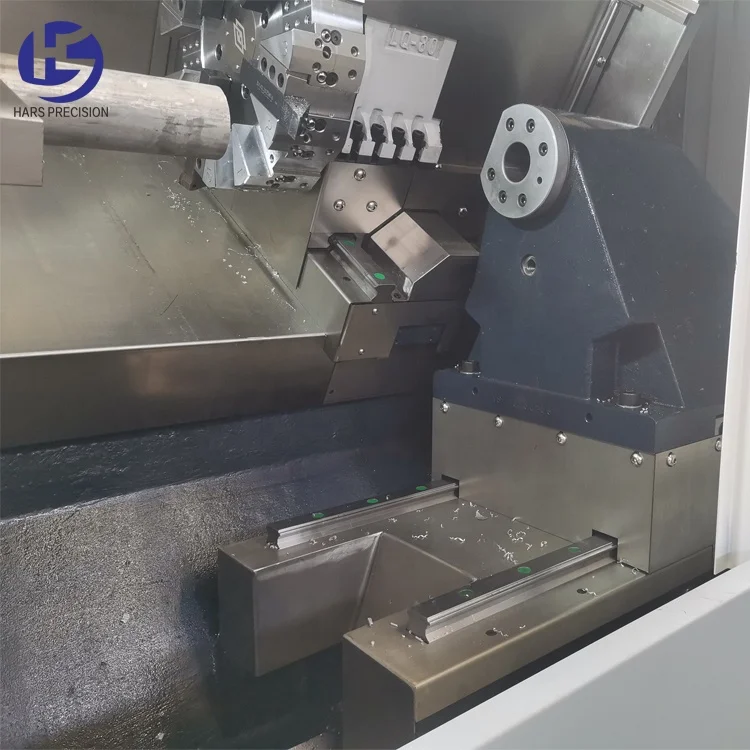

CNC Lathe Machine China Factory Customized TCK50 CNC Slant Bed CNC Lathe
- Category: >>>
- Supplier: Taian Hars Precision Machinery Co. Ltd.Taian Ltd.
Share on (1601355963959):
Product Overview
Description

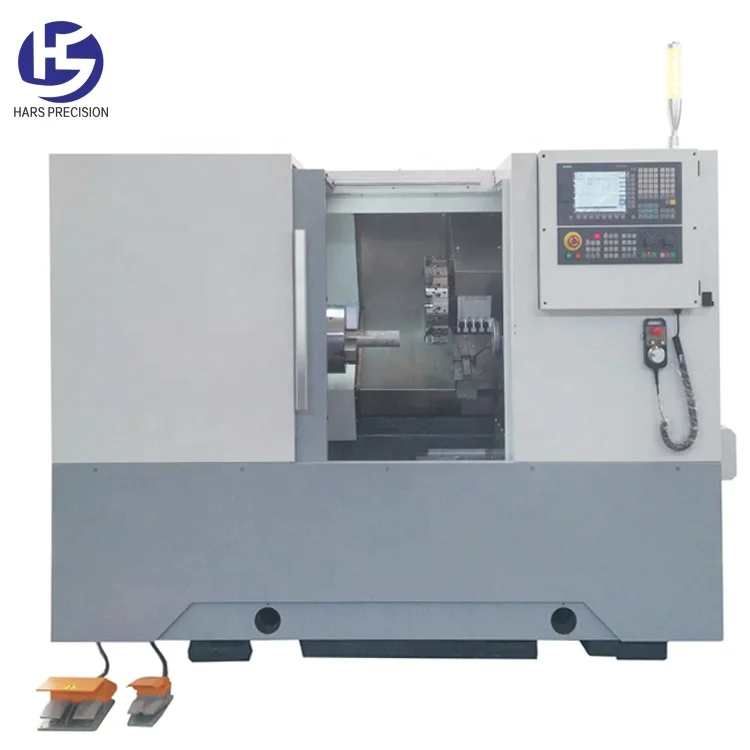

CNC Lathe Machine TCK50
Application:
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.tapping, boring, etc.
STANDARD CONFIGURATION:

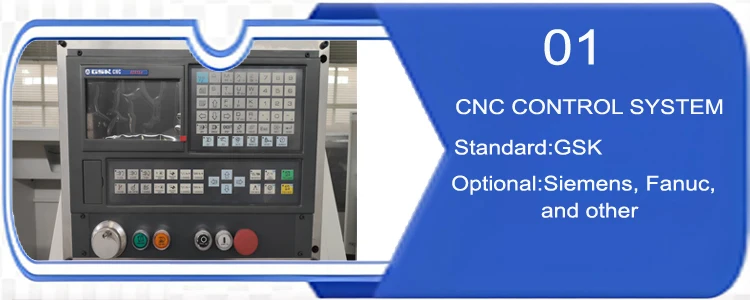

1) System:GSK980TDi.

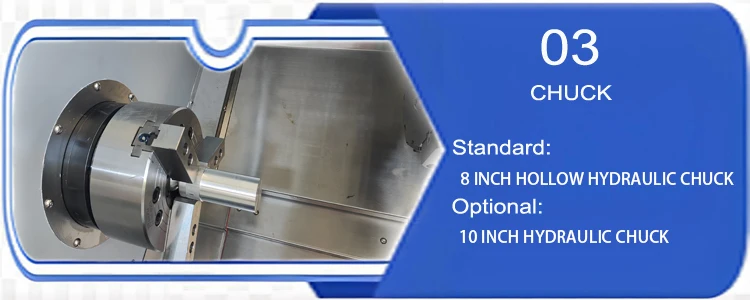

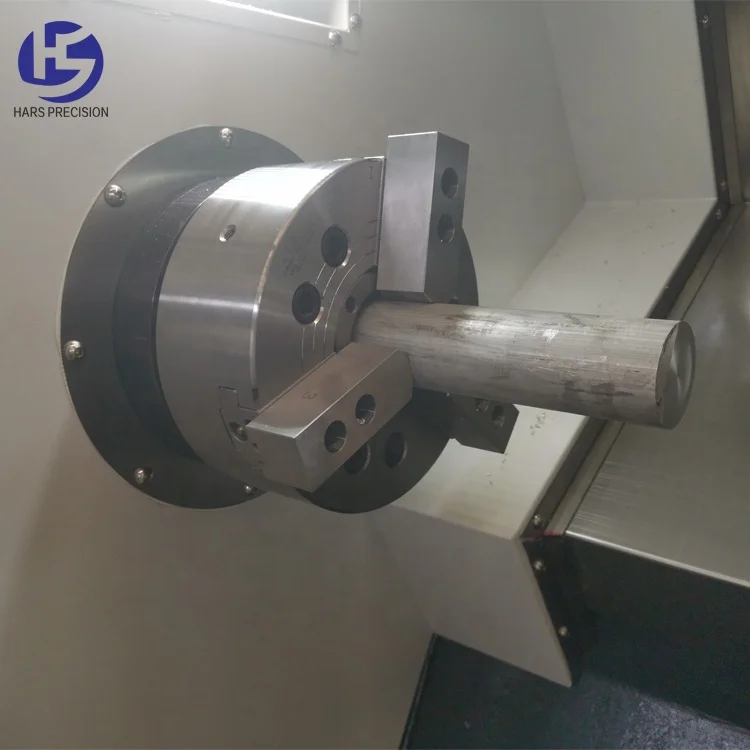

2) 8 inch hollow hydraulic chuck.

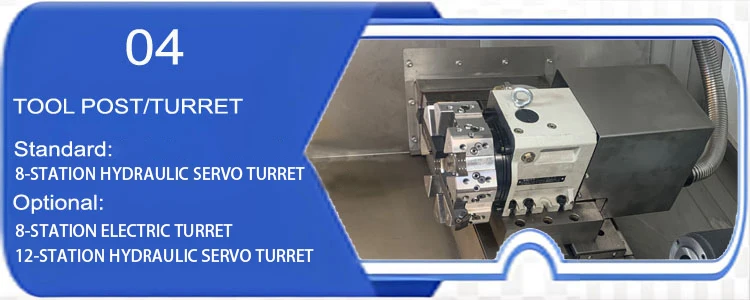

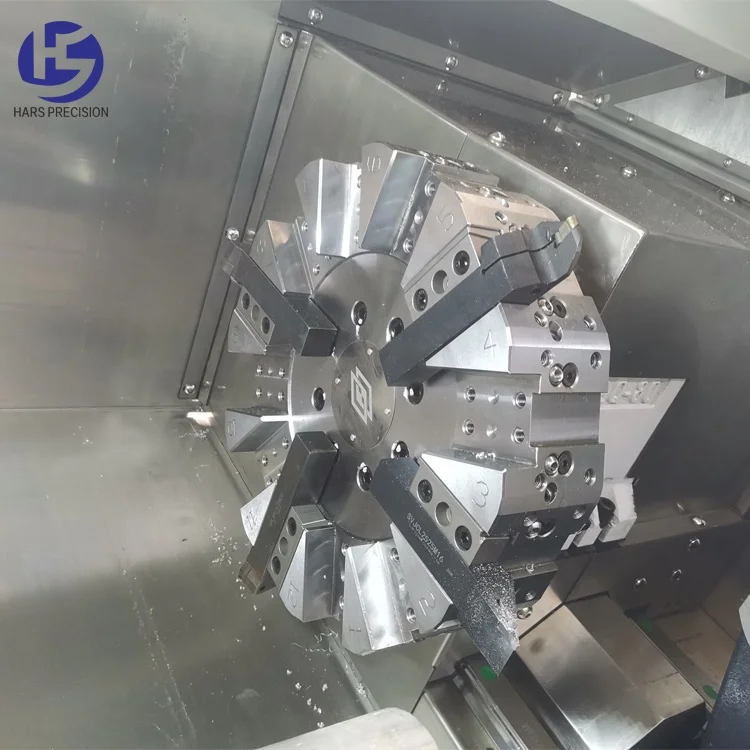

3) 8-station hydraulic servo turret.
2) 8 inch hollow hydraulic chuck.
3) 8-station hydraulic servo turret.

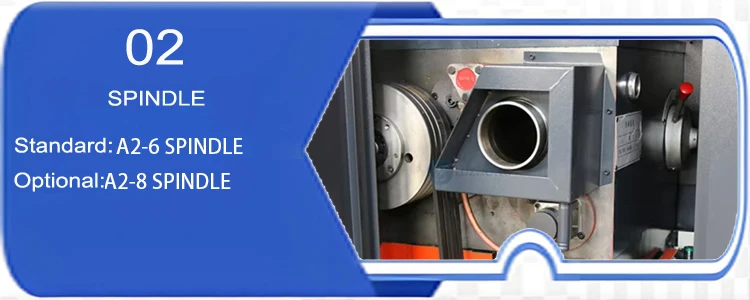

4) A2-6 Spindle.
5) Servo main motor GSK main motor 7.5kw.
5) Servo main motor GSK main motor 7.5kw.

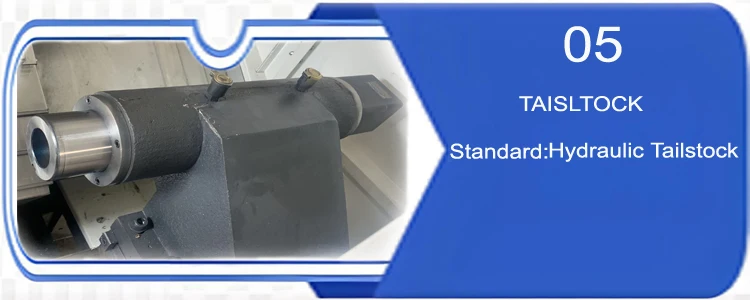

6) Hydraulic tailstock (tailstock overall hydraulic jog, including hydraulic station).
7) Taiwan Linear Guide Screw.

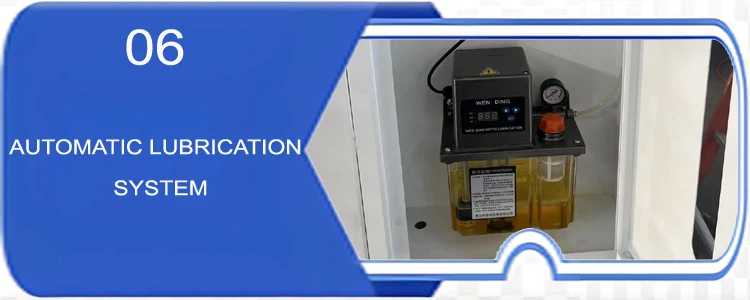

8) Automatic lubrication system/Cooling system/Lighten system.
8) Automatic lubrication system/Cooling system/Lighten system.
OPTIONAL CONFIGURATION:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). A2-8 Spindle.
3). 8-station electric turret.
2). A2-8 Spindle.
3). 8-station electric turret.
4).12-station hydraulic servo turret.
5). 10 inch hydraulic chuck.
6). Automatic bar feeder, Chip conveyor.
6). Automatic bar feeder, Chip conveyor.
Important note::
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Specifications | UNIT | TCK50 |
Max. Swing over bed | mm | 500 |
Max. Swing over cross slide | mm | 320 |
Max. Cutting diameter | mm | 400 |
Z axis Travel | mm | 550 |
X axis Travel | mm | 200 |
Max. process length | mm | 500 |
X/Z Fast feed | m/min | 30 |
Spindle bore | mm | 65 |
Through hole bar diameter | mm | 50 |
Spindle speed range | r/min/Nm | 50～4000/177 |
Spindle nose type | A2-6 | |
Main motor power | kw | 7.5 |
Chuck | mm | 8 inch hollow hydraulic chuck |
Number of tool turret | 8-station hydraulic servo turret | |
Tailstock travel | mm | 350 |
Tailstock spindle taper | MT5 | |
Processing accuracy | IT6 | |
Positioning accuracy | mm | 0.008 |
Repeatability Positioning accuracy | mm | 0.004 |
Diameter uniformity | mm | 0.01/150 |
Flatness | mm | 0.01/200 |
Roundness | mm | 0.0025/φ75 |
Surface Roughness | Ra1.25μm | |
Disk type parts (max. load) | kg | 200 |
Axle type parts (max. load) | kg | 300 |
Machine weight | kg | 3650 |
Machine size | mm | 2100×1890×1945 |

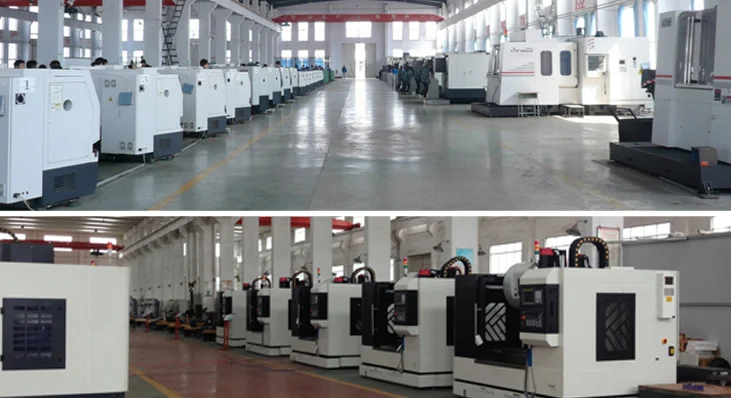

Taian Hars Precision Machinery Co., Ltd. is a manufacturing enterprise specializing in the research and development, production, sales and service of CNC machine tools. It has brilliant performance and a long history. We are committed to strict quality control and thoughtful customer service. Our experienced engineers are always available to discuss your requirements and customize them for you according to your requirements. Efficient after-sales service, always guide the use of the machine and the problems you encounter. Our main products are wheel repair CNC lathes, vertical CNC lathes, horizontal CNC lathes, inclined bed CNC lathes, universal lathes, pipe threading CNC lathes, CNC milling machines and CNC vertical machining centers. The annual production capacity is more than 2,000 units, which are widely used in military aerospace, automobile, electric power, engineering machinery, shipbuilding, petroleum and other industries, and have won many awards and patents.
Adhering to the principle of "quality and service" first, we provide better quality machines
Provide customers with more professional and efficient after-sales services,
Sincerely welcome friends from all over the world to visit our company for exchanges and win-win cooperation
Provide customers with more professional and efficient after-sales services,
Sincerely welcome friends from all over the world to visit our company for exchanges and win-win cooperation
1. Customers can provide drawings or send samples to us by express, and we can process some samples to test the machines you ordered.
2. All our machines can be customized according to requirements, such as color, appearance and machine nameplate, etc.
3. Engineers can train how to use the machine and machine maintenance services
4. Our experienced engineers can answer your technical questions and in many cases, can effectively solve your problems by phone/WeChat/Whatsapp, and can also provide door-to-door installation and debugging services.
5. If the parts are damaged during the warranty period due to quality problems, we will provide them free of charge.
2. All our machines can be customized according to requirements, such as color, appearance and machine nameplate, etc.
3. Engineers can train how to use the machine and machine maintenance services
4. Our experienced engineers can answer your technical questions and in many cases, can effectively solve your problems by phone/WeChat/Whatsapp, and can also provide door-to-door installation and debugging services.
5. If the parts are damaged during the warranty period due to quality problems, we will provide them free of charge.
1: How can I choose the most suitable machine?
A: Please tell us your requirements for the machine, or you can also send us the product drawings, our engineers can help you choose the best model. Or you can choose the exact model.
2: What are the main products of your company?
A: We specialize in producing many kinds of CNC machine tools, such as horizontal CNC lathe, slant bed CNC lathe, vertical CNC lathe, wheel repair CNC lathe, universal lathe, pipe threading CNC lathe, CNC milling machine and CNC vertical machining center, CNC turning center, etc.
3: Where is our factory? How can I visit there?
A: Our factory is located in Tai'an City, Shandong Province, China, zip code 271000. The transportation is very convenient, you can come by plane or high-speed rail. You are warmly welcome to visit.
4. What are your trade terms?
A: FOB, CFR and CIF are all acceptable.
5: What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment;
If other payment terms are adopted, we can discuss.
6. How long is the warranty period of the machine?
A: The machine warranty period is 12 months after receipt. During the warranty period, we can provide new parts for replacement free of charge. Please contact your Taian Taizhuo sales representative for details.
7. Can your engineers come to us to help install and debug the machine?
Yes, our engineers can go to your place. The round-trip air tickets and accommodation costs are borne by you.
8. What is the minimum order quantity?
A: The minimum order quantity is 1 set.
A: Please tell us your requirements for the machine, or you can also send us the product drawings, our engineers can help you choose the best model. Or you can choose the exact model.
2: What are the main products of your company?
A: We specialize in producing many kinds of CNC machine tools, such as horizontal CNC lathe, slant bed CNC lathe, vertical CNC lathe, wheel repair CNC lathe, universal lathe, pipe threading CNC lathe, CNC milling machine and CNC vertical machining center, CNC turning center, etc.
3: Where is our factory? How can I visit there?
A: Our factory is located in Tai'an City, Shandong Province, China, zip code 271000. The transportation is very convenient, you can come by plane or high-speed rail. You are warmly welcome to visit.
4. What are your trade terms?
A: FOB, CFR and CIF are all acceptable.
5: What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment;
If other payment terms are adopted, we can discuss.
6. How long is the warranty period of the machine?
A: The machine warranty period is 12 months after receipt. During the warranty period, we can provide new parts for replacement free of charge. Please contact your Taian Taizhuo sales representative for details.
7. Can your engineers come to us to help install and debug the machine?
Yes, our engineers can go to your place. The round-trip air tickets and accommodation costs are borne by you.
8. What is the minimum order quantity?
A: The minimum order quantity is 1 set.
