Business card cutter/card cutting machine a4 manufacturer
US $100.00-$120.00

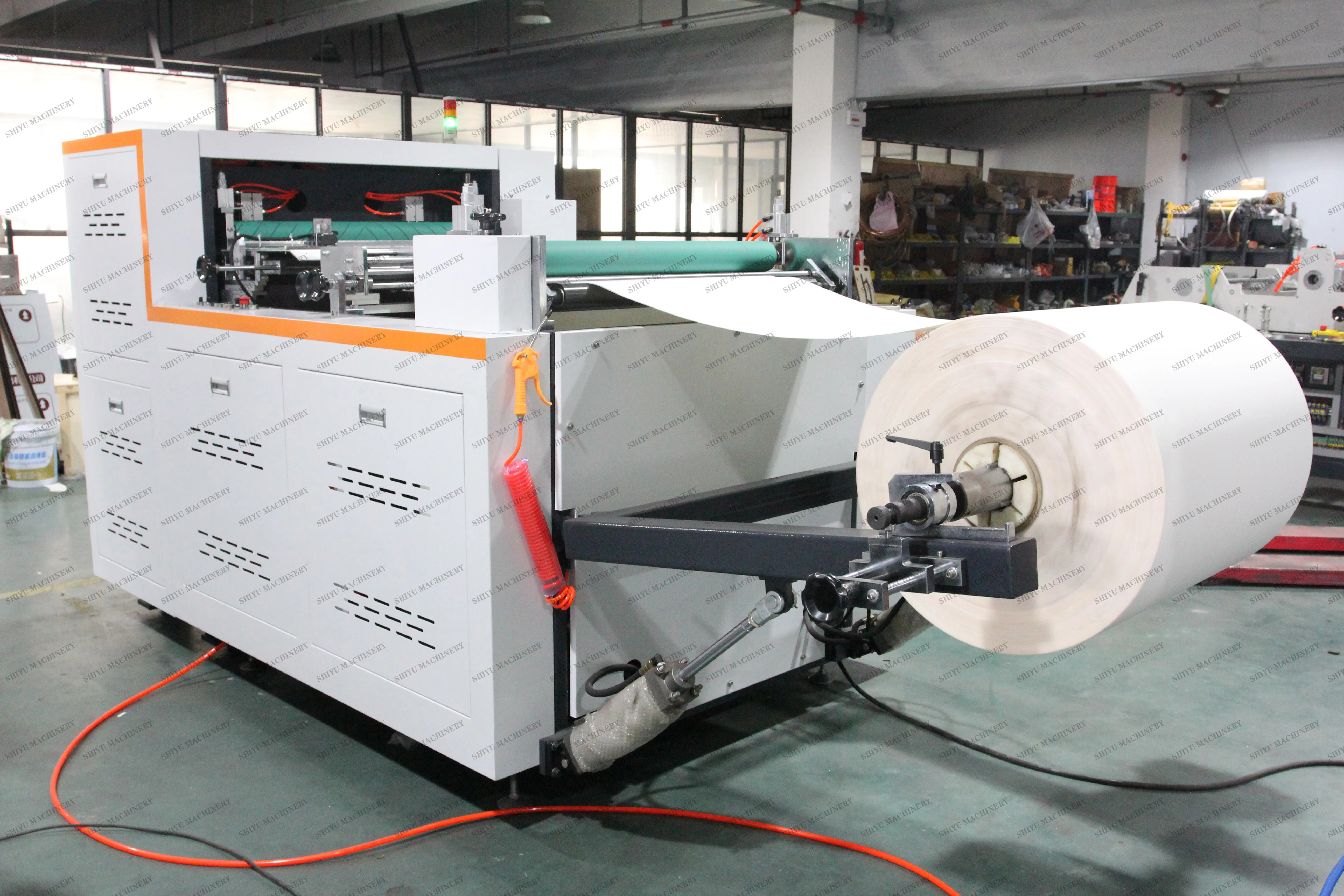

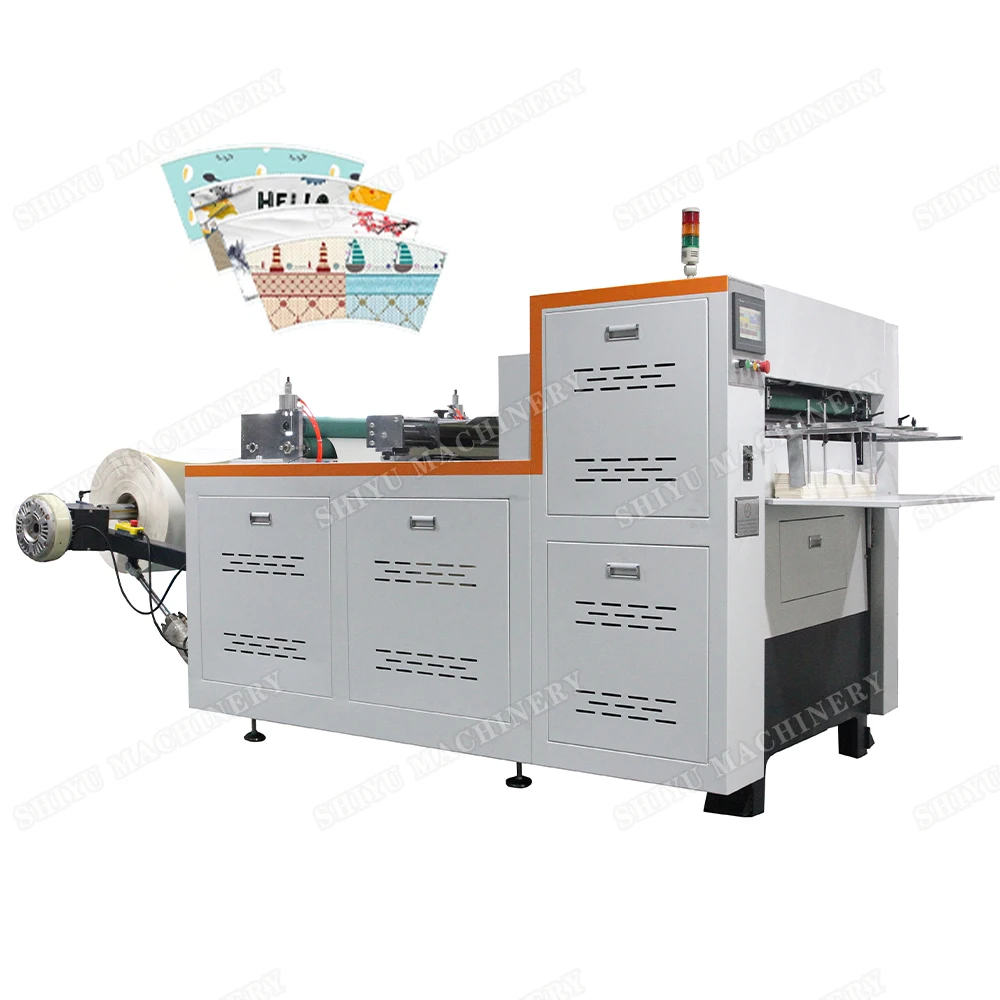

High speed automatic 850 950mm roll to sheet paper cup box bowl fan die cutting machine paper cup machine
- Category: >>>
- Supplier: Shanghai Shiyu Machinery Co. Ltd.Shanghai Ltd.
Share on (1601356041776):
Product Overview
Description
850S is special for press cutting all kinds of ordinary paper rolls, PE coated paper rolls, etc. It is suitable for paper cup
making, printing, packaging and other paper container product industries. Paper rolls under the traction of servo motor, into flat die cutting device, the amount of input can be set up through the screen, convenient and accurate, all kinds of white paper and printing paper can be cutting.
making, printing, packaging and other paper container product industries. Paper rolls under the traction of servo motor, into flat die cutting device, the amount of input can be set up through the screen, convenient and accurate, all kinds of white paper and printing paper can be cutting.
Main Features
1)Using imported electric eye tracking servo motor feeding, ensure the feed speed and die-cutting speed synchronization.
2)According to the figure after printing die cutting or no text pattern die cutting, can be used to identify the color of light
magic eye with servo motor,guarantee after printing product die-cutting and die cutting location and pattern of perfectly.Die cutting for no printing products,as long as the die cutting length can be on the microcomputer controller settings.
3) die cutting knife size is 850 mm * 283 mm (also can be made according to user requirements).
4) die shear force provided by the 4 kw variable frequency motor, not only save electricity and can realize stepless speed
regulation,particularly with large flywheel to cooperate，make the die shear is large and stable and further to save electricity.
5) the highest die cutting speed can reach 12000 times per hour, has a very high production efficiency.
6)adopts flat die cutting method, cutter plate for cheap.
1)Using imported electric eye tracking servo motor feeding, ensure the feed speed and die-cutting speed synchronization.
2)According to the figure after printing die cutting or no text pattern die cutting, can be used to identify the color of light
magic eye with servo motor,guarantee after printing product die-cutting and die cutting location and pattern of perfectly.Die cutting for no printing products,as long as the die cutting length can be on the microcomputer controller settings.
3) die cutting knife size is 850 mm * 283 mm (also can be made according to user requirements).
4) die shear force provided by the 4 kw variable frequency motor, not only save electricity and can realize stepless speed
regulation,particularly with large flywheel to cooperate，make the die shear is large and stable and further to save electricity.
5) the highest die cutting speed can reach 12000 times per hour, has a very high production efficiency.
6)adopts flat die cutting method, cutter plate for cheap.
Model | SY-850S |
Normal speed | 100-180 times/min |
Fastest speed | 180 times/min |
Max pressure | 60 tons |
Workbench size | 850mm*270mm |
Eccentric gear range | 30mm |
Weight | 3000kgs |
Height on land | ≤3000mm |
Feed paper roll diameter | ≤1.4m |
Feed paper roll weight | ≤3tons |
Overall size | 2800mm*1900mm*1850mm(L*W*H) |

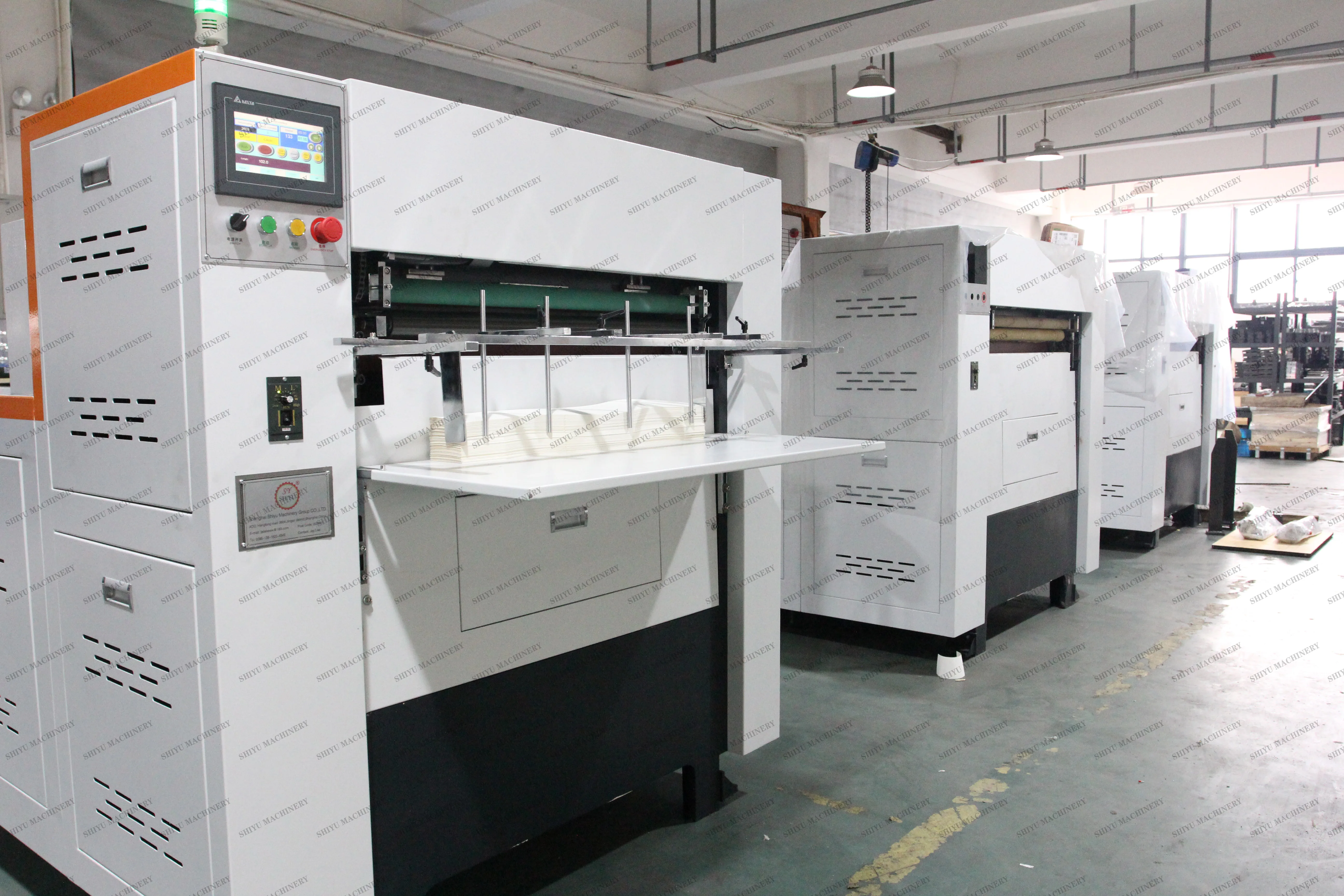

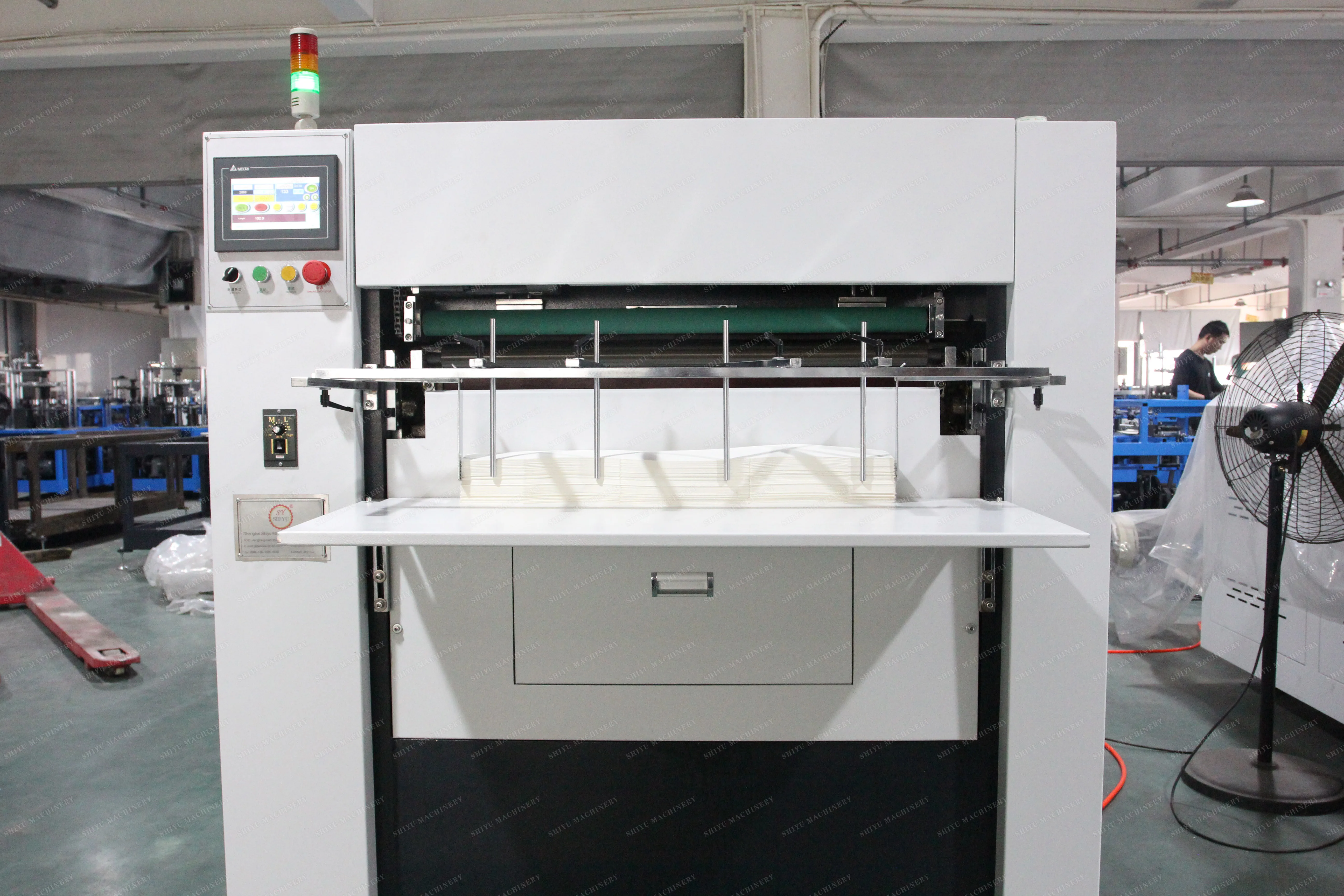

control panel
Power Supply, Stop Button, Start Button and Emergency Stop.And adjust the machine's die-cutting speed
Worm Gear Structure
Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure. Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron , which has features of high tensile strength, anti-deformation and anti-fatigable.

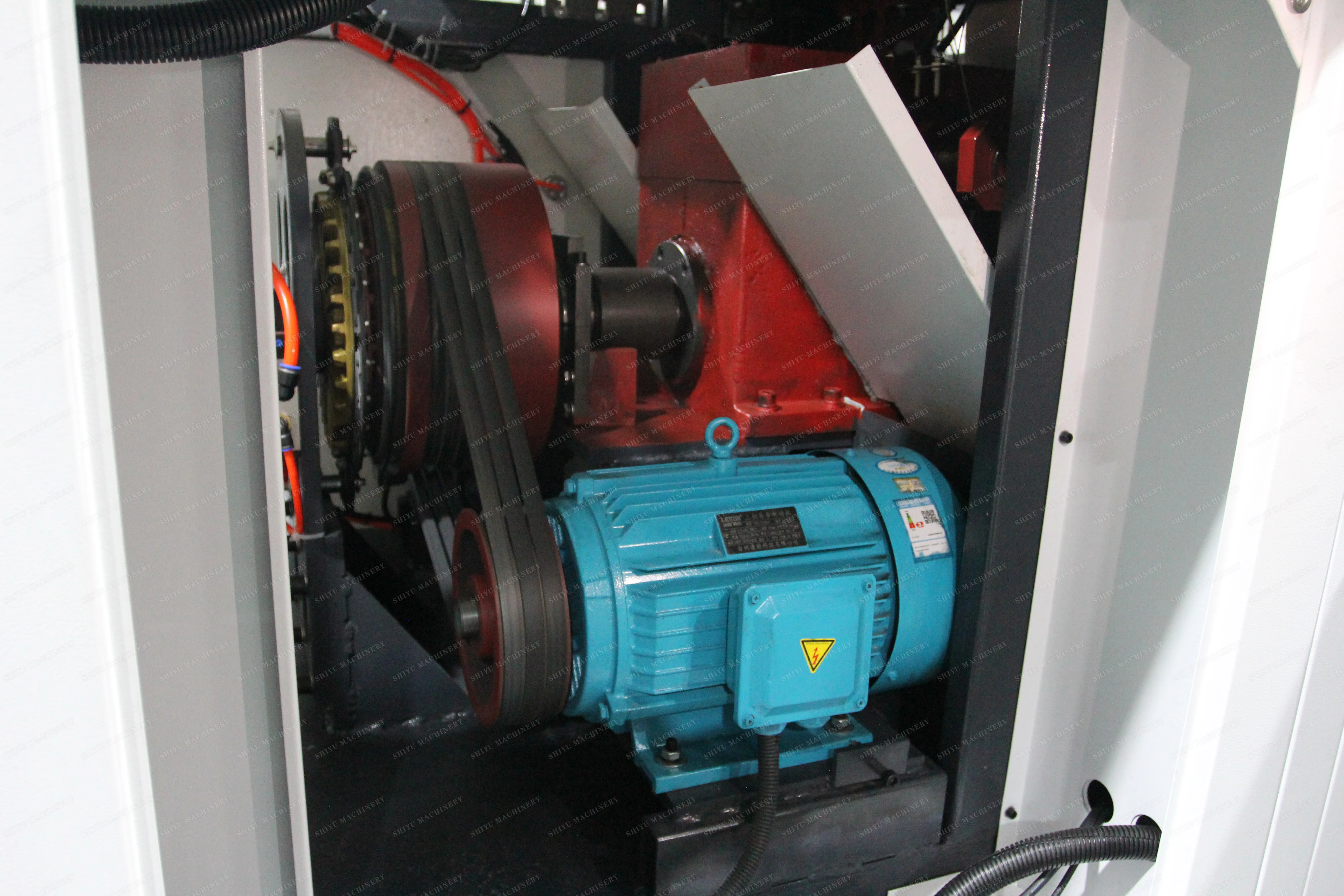

inverter motor
It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

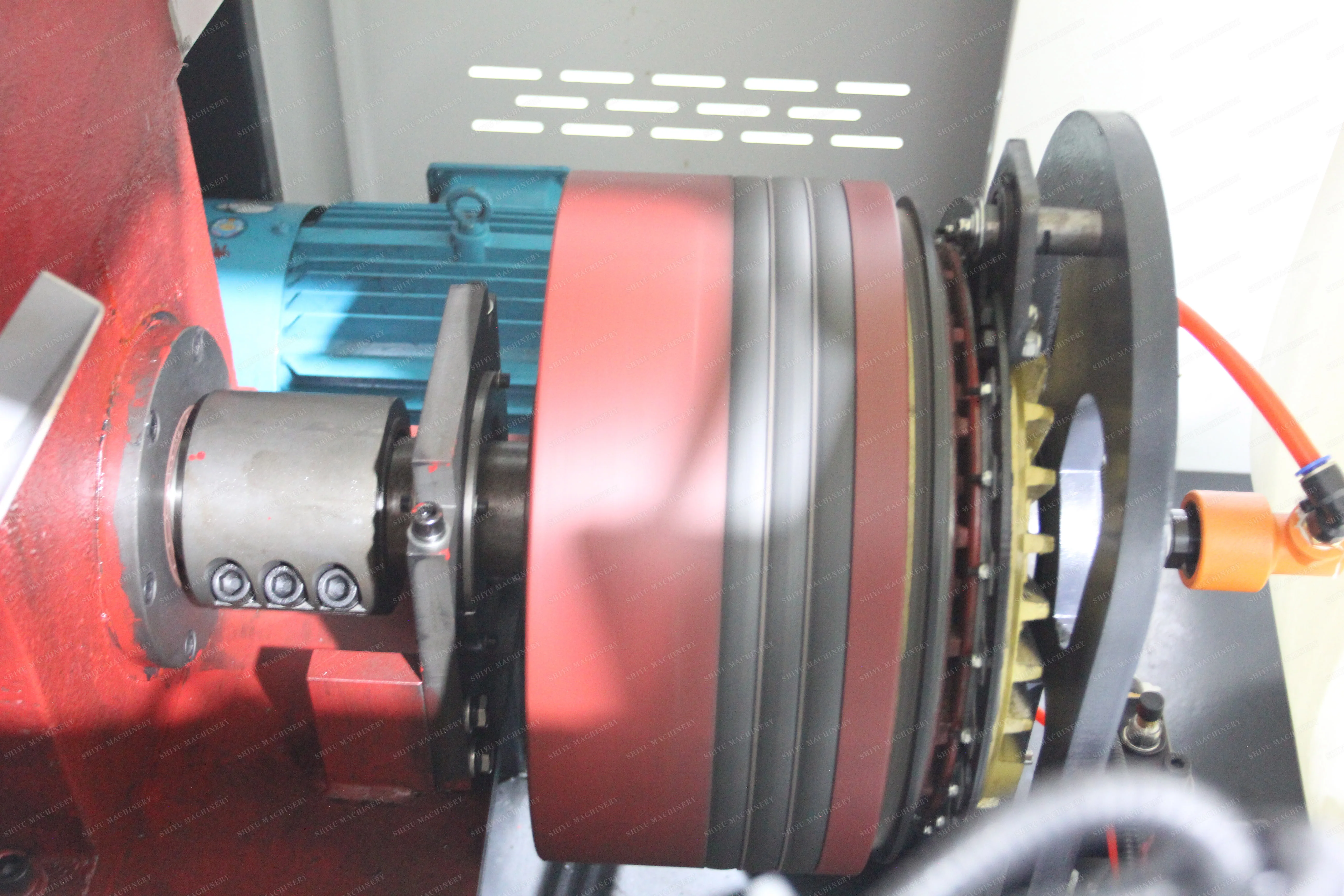

Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.
Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

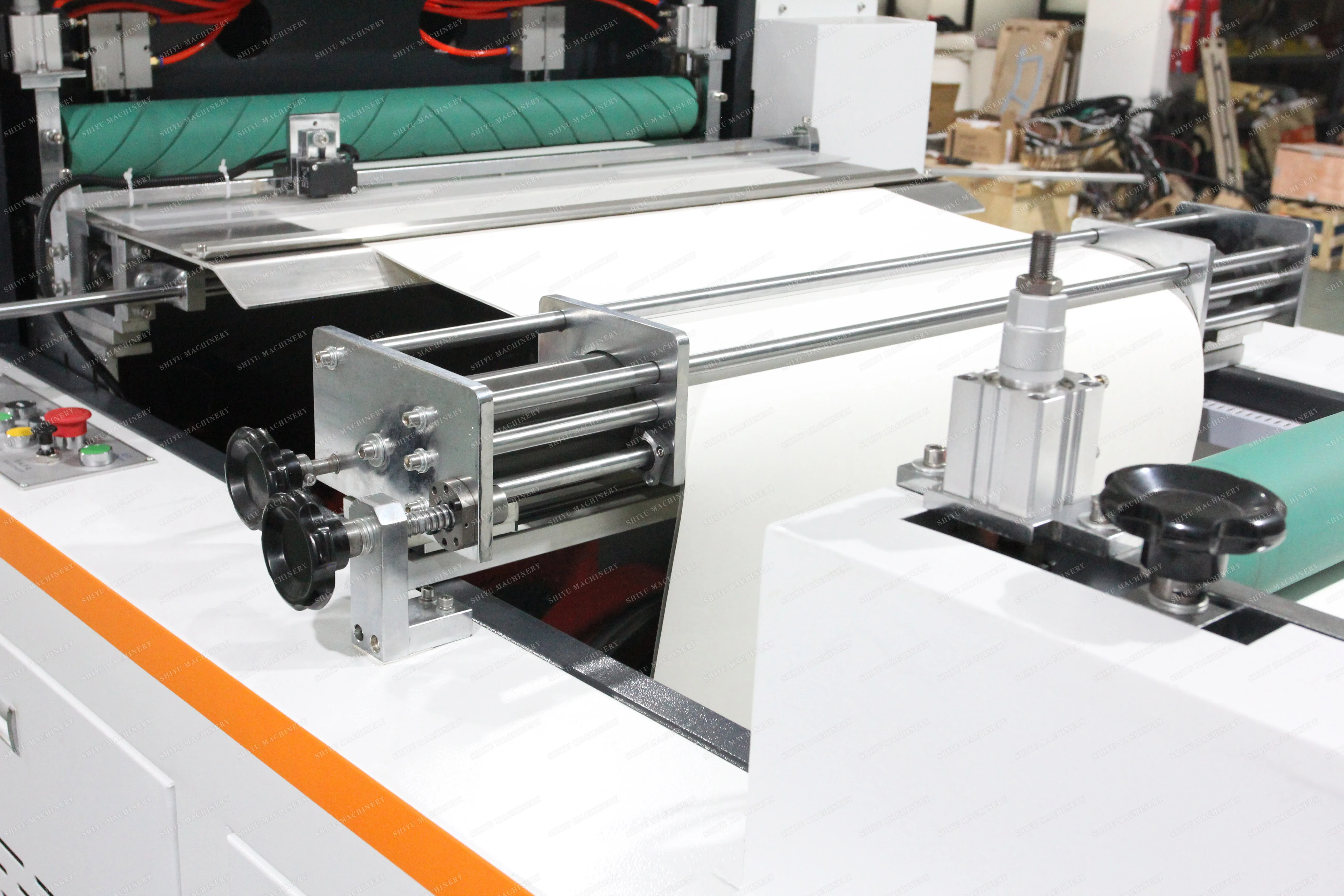

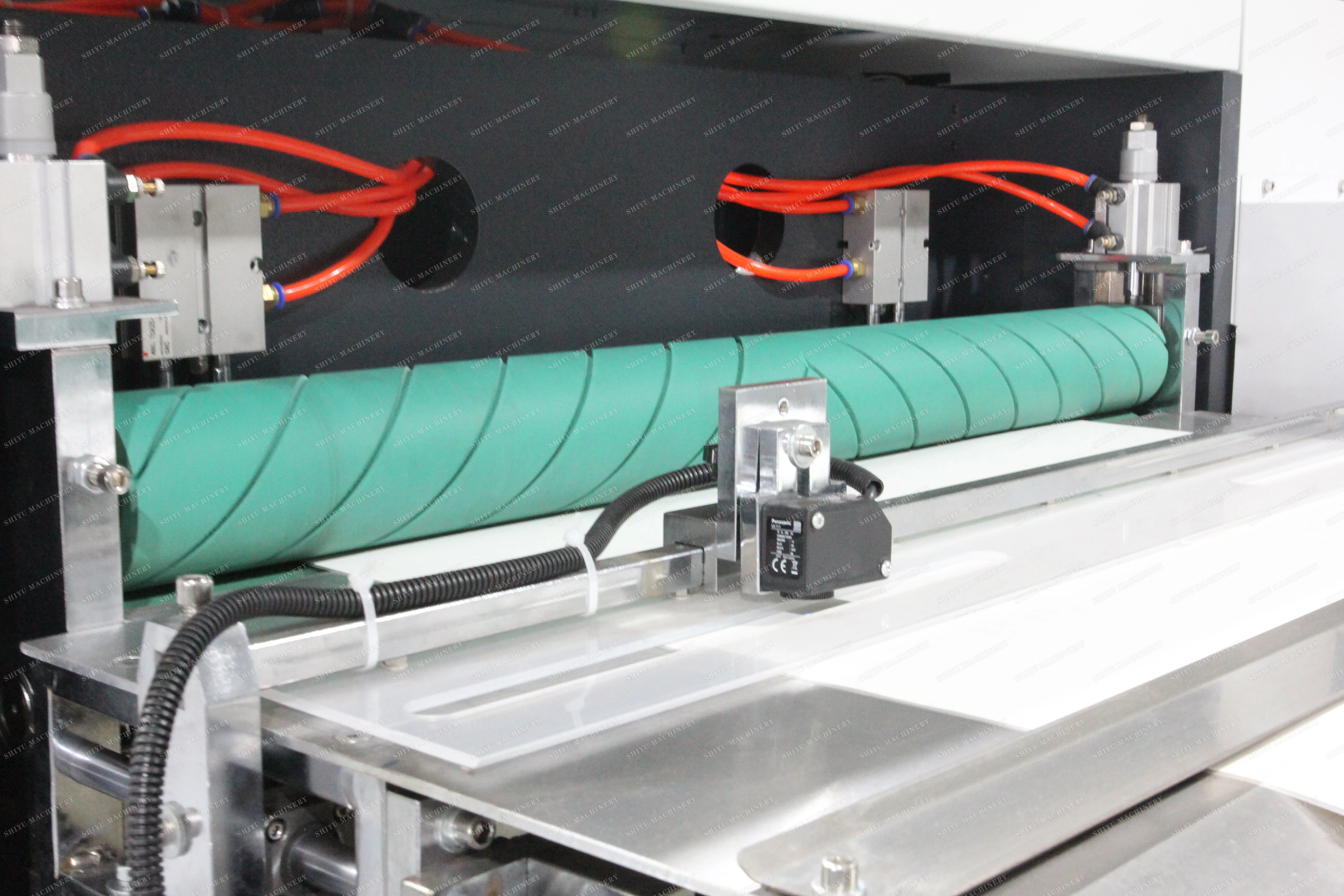

motor and photoelectric eye
The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.

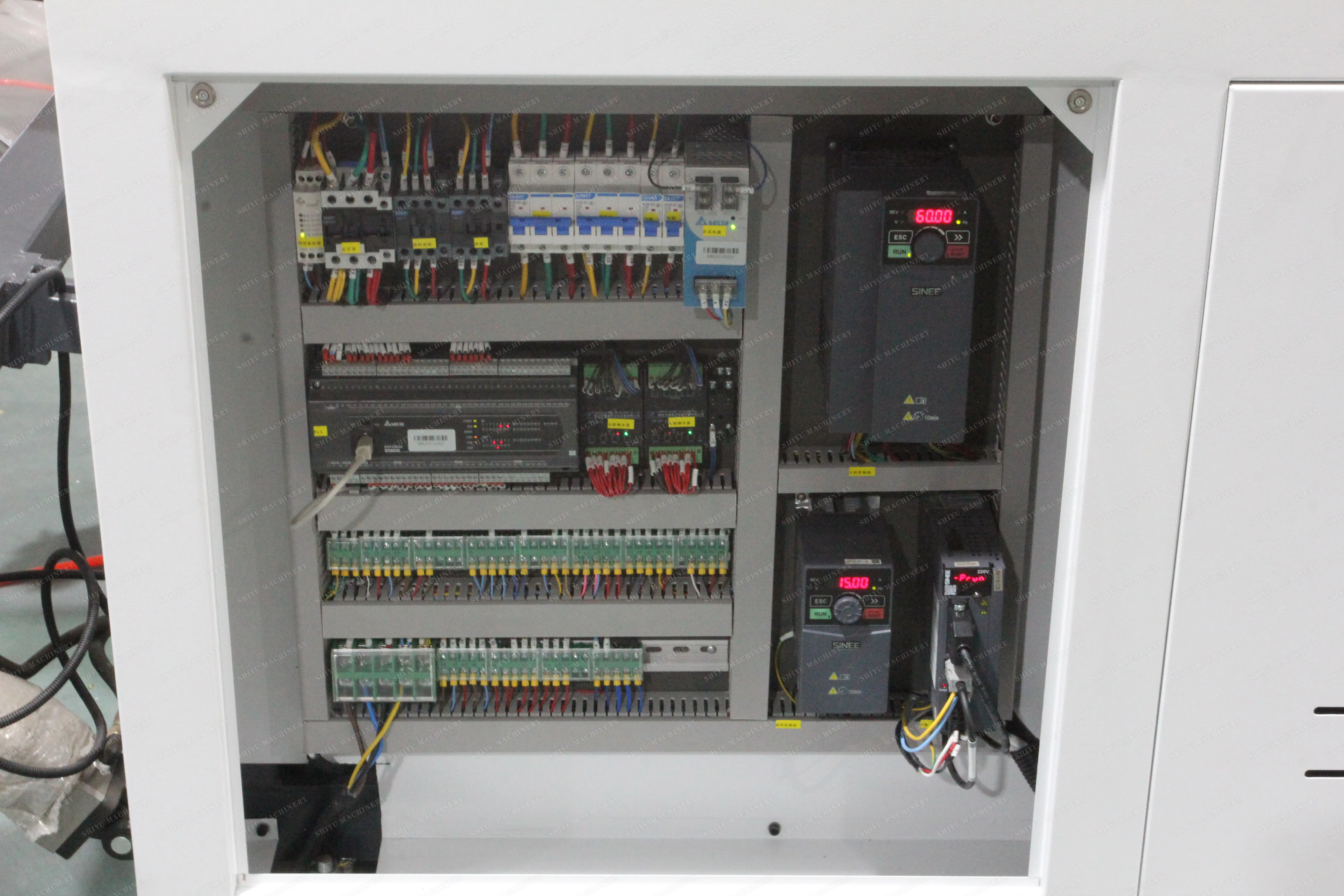

cabinet of electric appliances
Motor: frequency converter controls the main motor, which has the characteristics of low energy consumption and high efficiency.

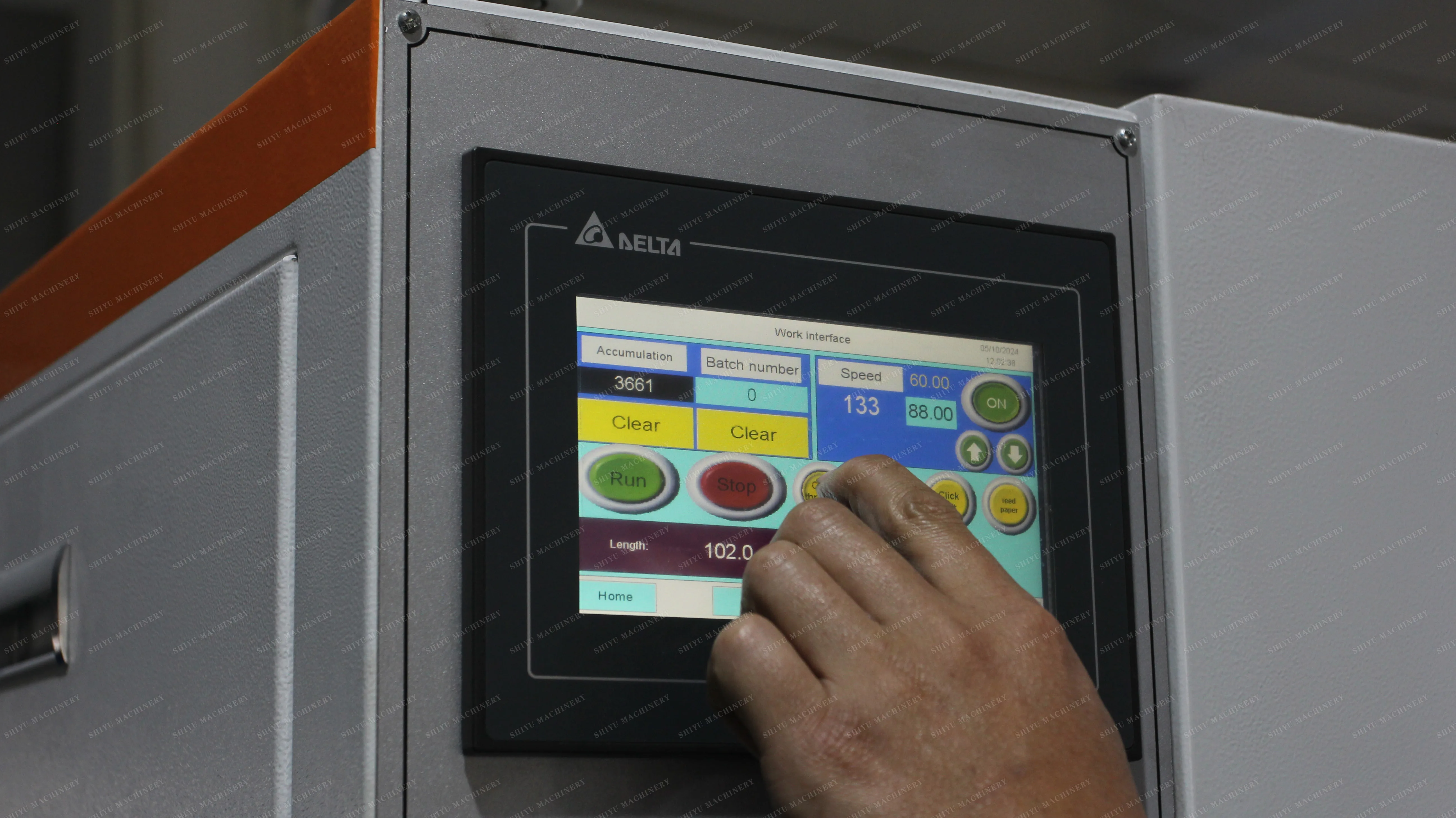

PLC and HMI: Operation data and status are displayed on the screen, and all parameters can be set through the screen.
PLC and HMI: Operation data and status are displayed on the screen, and all parameters can be set through the screen.
Electrical control system: microcomputer control, encoder angle detection and control, photoelectric tracking and detection are adopted to realize automatic control and detection from paper feeding, conveying, die cutting and paper feeding.
Safety equipment: when the machine fails, it gives an alarm and automatically shuts down to provide protection.
Safety equipment: when the machine fails, it gives an alarm and automatically shuts down to provide protection.
Die-cutting pneumatic plate locking device

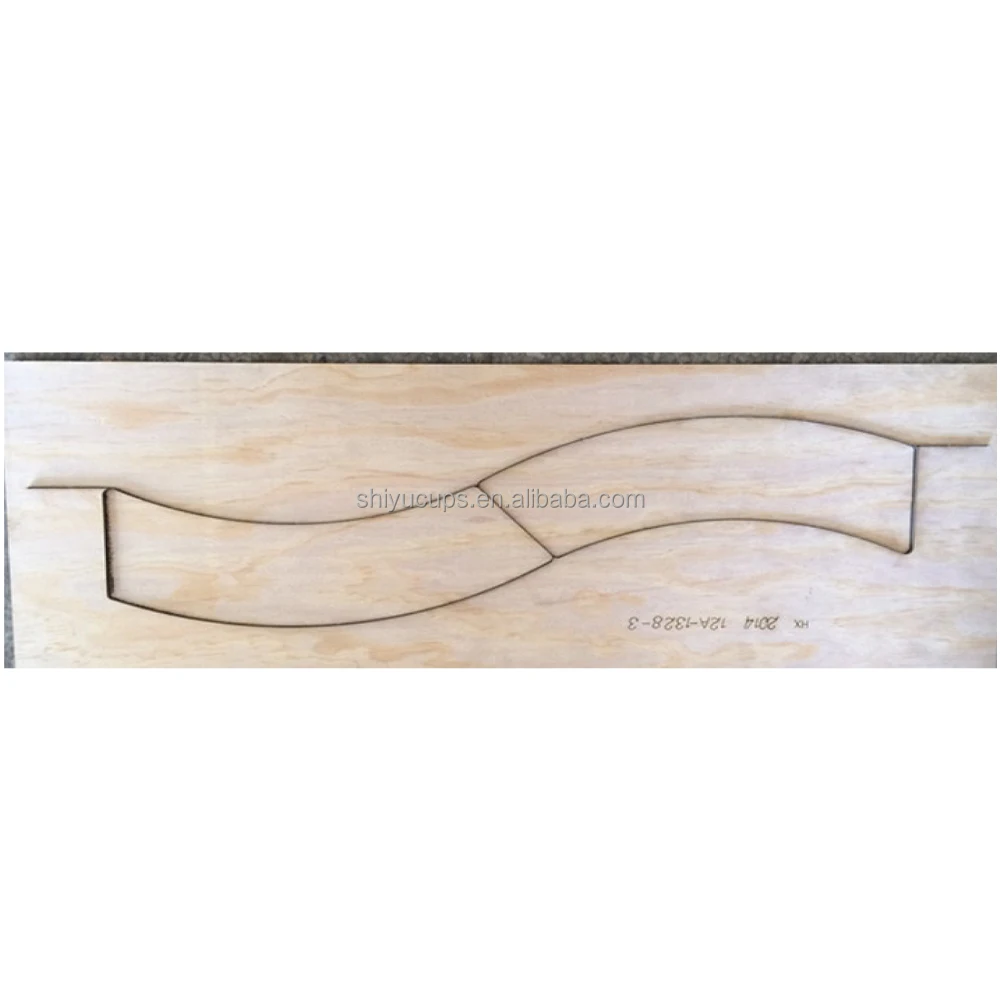

Die cutting plate: steel plate heating treatment, high hardness and flatness.
Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
