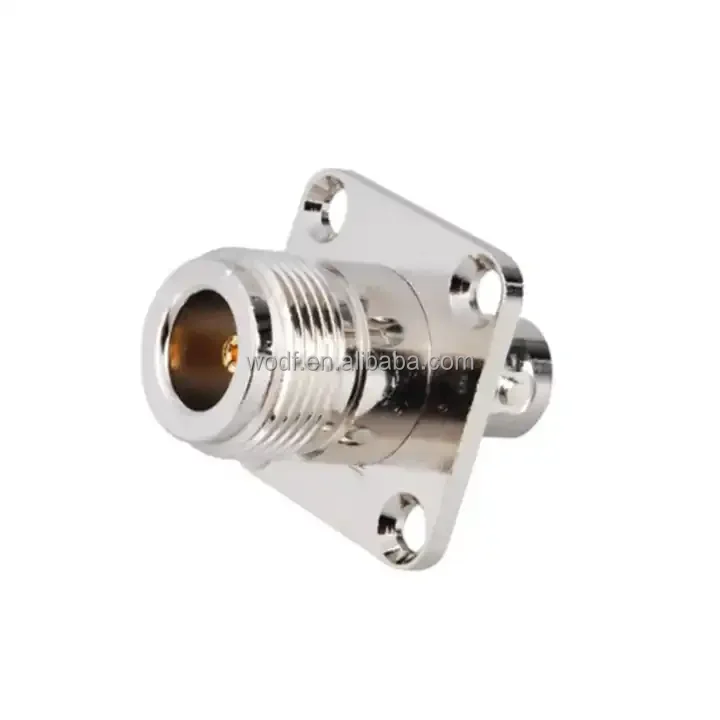

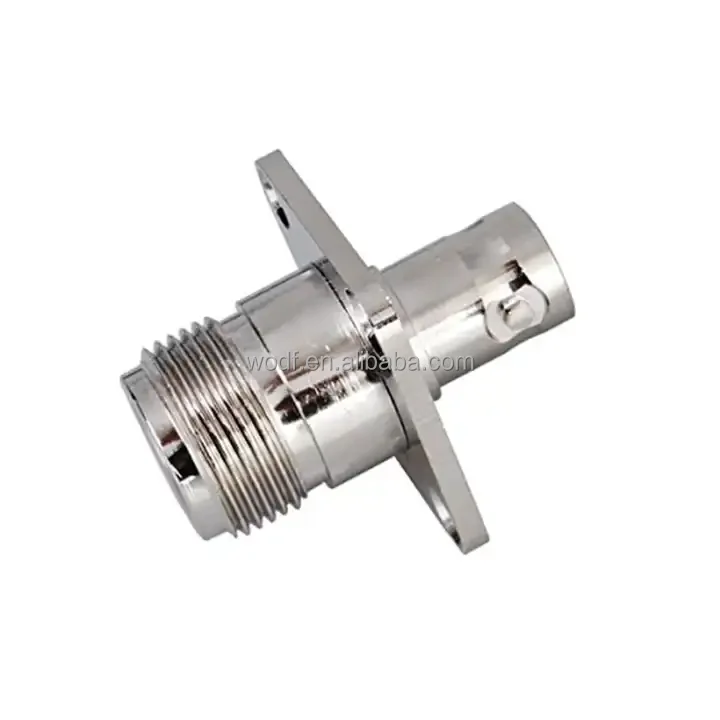

4 Hole Flange N Female Jack to BNC Female Jack straight square panel mount RF coaxial coax Adapter adaptor connector

Share on (1601356270468):


Price:

Quantity:


Product Overview

Description



We are the WORLDPEAK




Product Description





Factory brass BNC Female jack to UHF Male pl259 pl-259 plug RF Coaxial Adapter BNC to UHF Coax Jack connector
☀ We are Worldpeak. We focus on rf coaxial cable and cable connectors for a long time.
☀ SMA connector is a type of RF connectors. SMA's compact design, high durability and outstanding electronic performance have made
it one of the most widely used connectors in RF and Microwave applications across the board.Normally utilized in frequency ranges
from DC-18GHz, there are also precision versions that can reach as high as 27GHz
☀SMA connector has a reliable characteristic with long life-span that the width, performance are excellent, high frequently.
Suitable for the microwave equipment and body of the digital communication system and join in the cable for the microstrip line
frequency in the loop frequently..
☀ We can provide various din connectors for different coaxial cables, such as RG213, RG58, LMR240, LMR400 ect.
☀ We can also produced coaxial cable assembly used din connectors, if you need, you can contact our sales and tell the length of
the cable, we can customized for you.
☀ Any questions, click to contact our sales on the right.



Factory brass BNC Female jack to UHF Male pl259 pl-259 plug RF Coaxial Adapter BNC to UHF Coax Jack connector



Factory brass BNC Female jack to UHF Male pl259 pl-259 plug RF Coaxial Adapter BNC to UHF Coax Jack connector
Characteristic Impedance
50ohm
Vibration
100m/s2(10-500Hz)
Frequency range
DC-4Ghz
Dielectric Withstanding Voltage
2000V rms@ sea
Working Voltage
750V Max
Average Power
3KW Max
VSWR:
≤1.20
Contact resistance:

-center contact

-outer contact


≤5mΩ

≤ 5mΩ
Insulation resistance
≥5000MΩ
Durability
Mating cycles ≥500
Temperature Range
-55~+155°C (PE Cable -40~+85°C)


Piece part
Material
plating
Body
Brass
Nickel plated
Center conductor
Brass
Gold or silver plated
Crimping suite
Copper alloy
Nickel plated
O-ring sealing
6146 silastic
Insulator
PTFE


Note: We can provide other materials and plating specifications according to customers'requirements.




Our company




Zhenjiang WORLDPEAK electronic products co.,ltd is located Jingkou Road,zhenjiang City jiangsu Province China.

Specializing in the design,research,production and sales of a variety of RF coaxial connectors and rf coaxial cable,our company has advanced technique,perfect and full testing means and 100-bed CNC maching equipment.

The company passed ISO9001:2000 quality management system certification in 2001,and started to use the software of ERP management to organize the production control since 2006.
The main products are RF coaxial connectors,cable assemblies,totally more than 20 series , about 2000 varieties,N,BNC,TNC,SMA,SMB,L9,MCX,7/16DIN, CC4,MMCX/FME/QMA and so on.

Our production process is in accordance with international standards,the products meet the IEC and MIL technical standards throngh performance testing of authorities,widely used in the field of communications.
Our tenet is “Qualtiy is the first,customer is king",we export our goods to many countries and enjoy a high reputation both at home and abroad.
Our products have been exporting to East Europ, Weatern Europ ,Mid east, Africa, Southeast Asia.





We are sincere suppliers, by the good faith to win customers' trust in the world, protect the interests of the customers and can have a better and more long-term cooperation.







Factory aim: Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.





Packing & Delivery




packaging:

The company strictly according to the standard process for packaging products, ensure transportation safety. We support customers a variety of customized requirements, according to customer requirements for packaging.





Delivery:

Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.



We can do it


We can do it:


• Rf Coaxial Adapter Connector Copper Male To Bnc Adapter N Connector factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Customization advantages Reliable performance Perfect production management system
(ISO9001,ISO14001) we have experience about RF components more than 20 years
Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.



FAQ


Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
