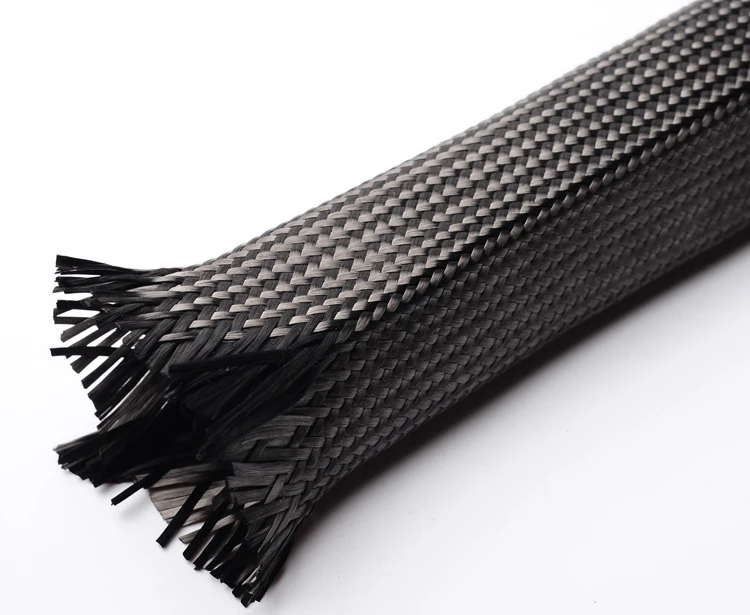

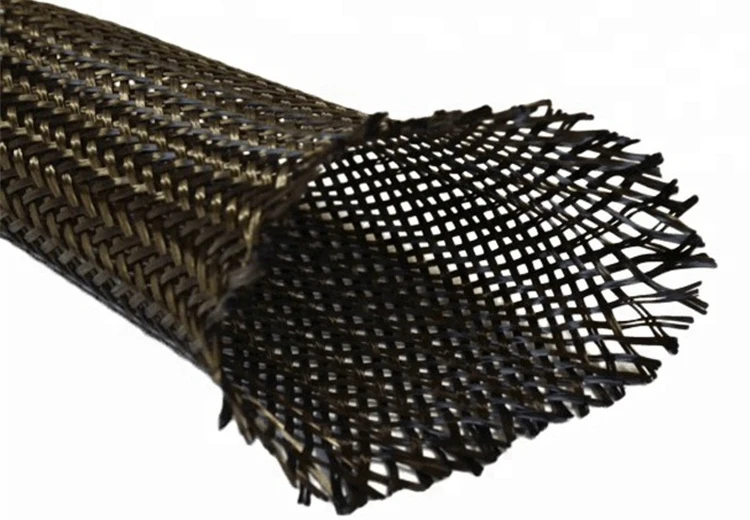

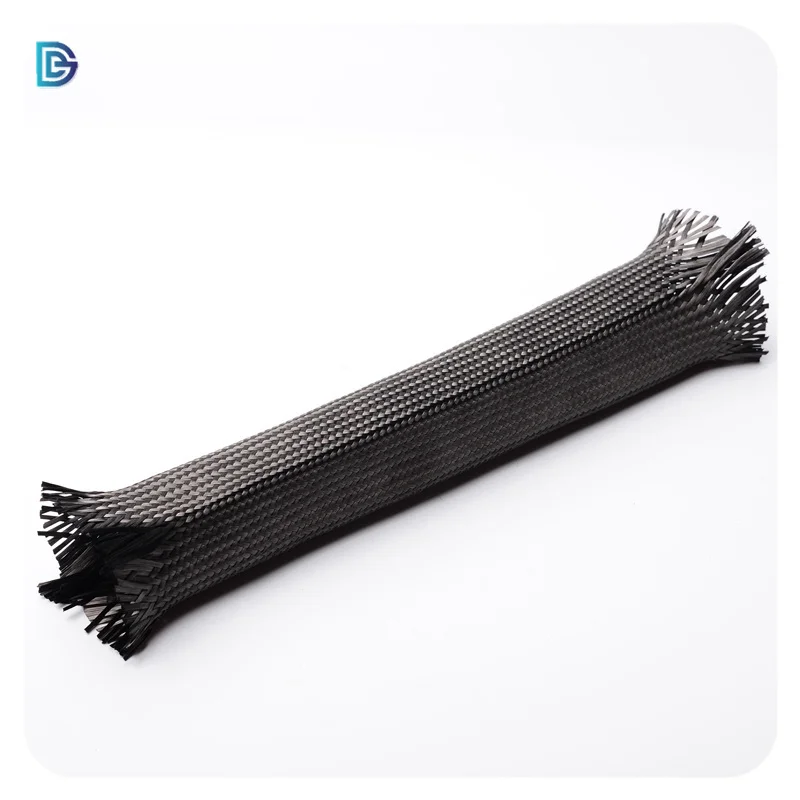

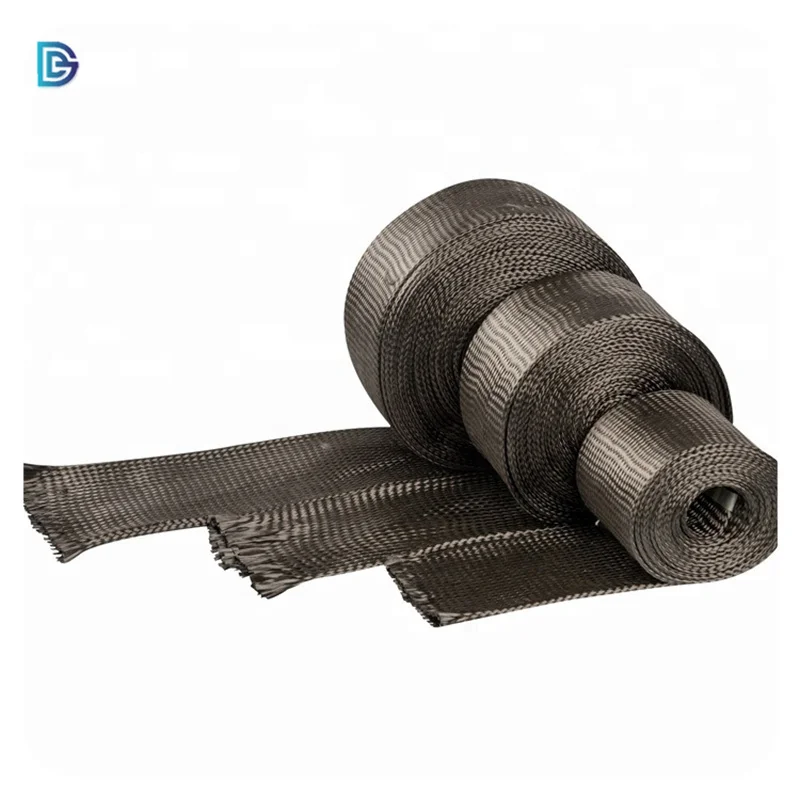

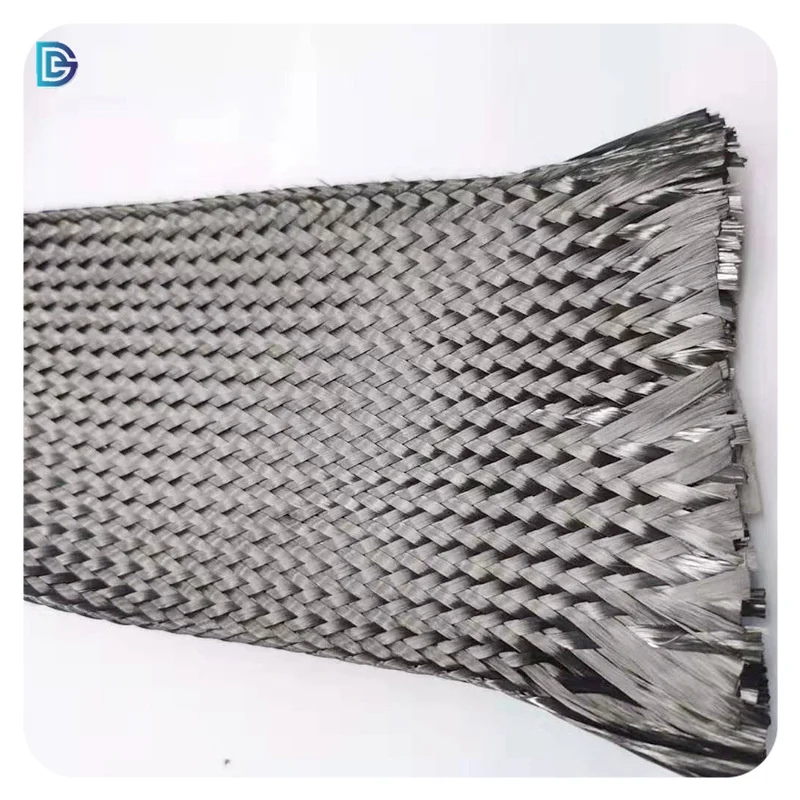

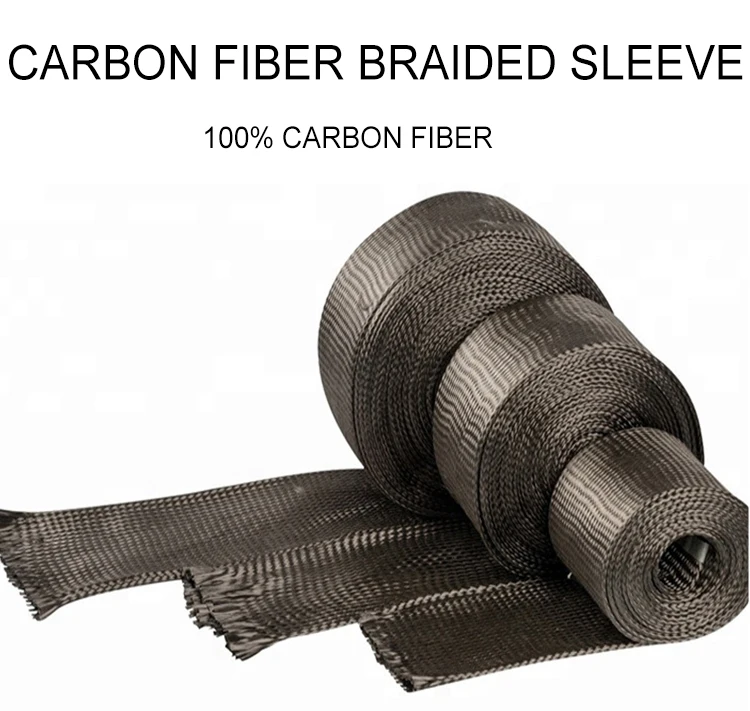

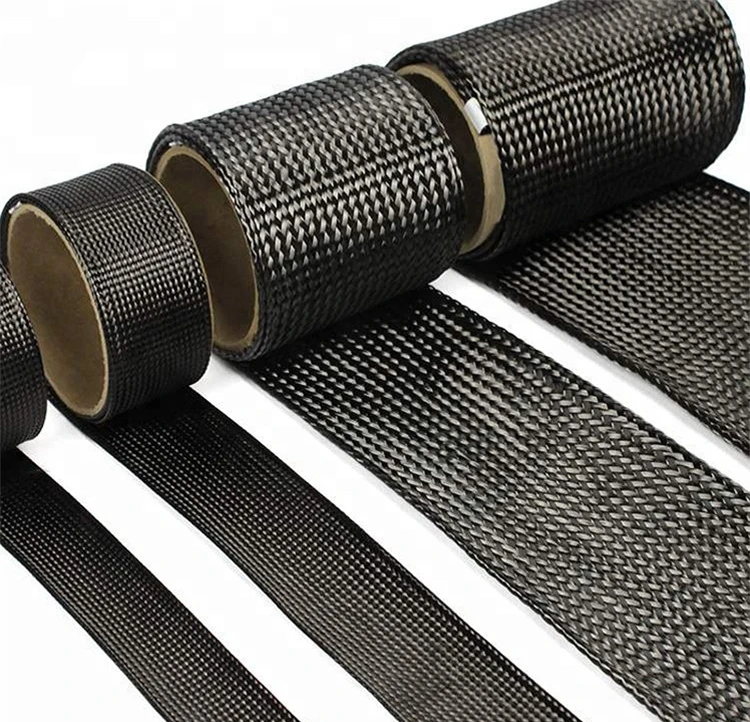

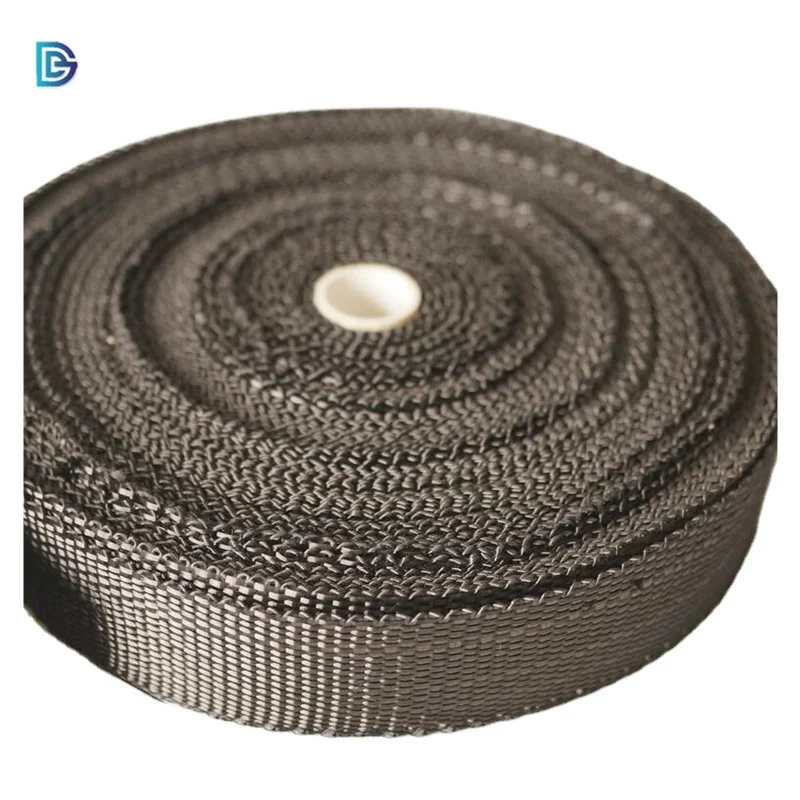

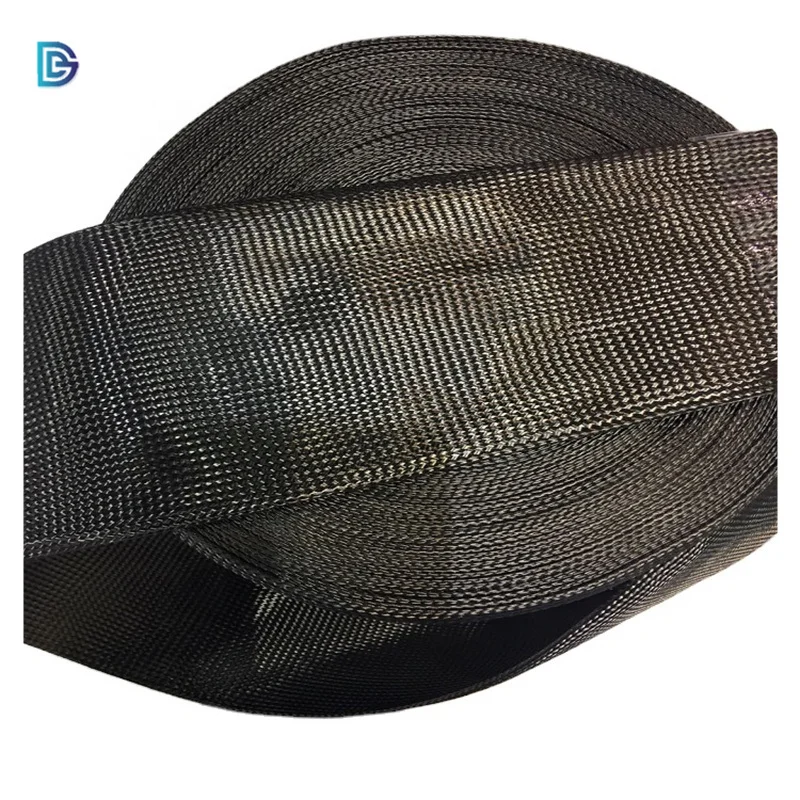

Carbon Fiber Braided Sleeve can contract and expand when pulled or pushed resulting in a smaller diameter and longer length or a larger diameter and shorter length. As a result of this it is very difficult to measure woven sleeves by length when cutting. Measuring by length can result in a final cut length off by +/- 25% or more. To account for this problem we weigh all our sleeves and cut based on the weight not the length. This will result in a more accurate final cut length. Still using this method, lengths may be off by +/- 5%.
Type | Yarn | Strength diameter (mm) | Double Wall(mm) | Weight(g/m2) |
GDE-10 | 3K Carbon fiber | 8-12 | 0.8-0.9 | 10 |
GDE-13 | 3K Carbon fiber | 13-18 | 0.8-0.9 | 13 |
GDE-15 | 3K Carbon fiber | 19-22 | 0.8-0.9 | 15 |
GDE-20 | 3K Carbon fiber | 20-40 | 0.8-0.9 | 20 |
GDE-24 | 3K Carbon fiber | 40-50 | 0.8-0.9 | 24 |
GDE-26 | 3K Carbon fiber | 50-60 | 0.8-0.9 | 26 |
GDE-20 | 6k Carbon fiber | 15-25 | 1-1.2 | 20 |
GDE-26 | 6k Carbon fiber | 18-30 | 1-1.2 | 26 |
GDE-29 | 6k Carbon fiber | 19-35 | 1-1.2 | 29 |
GDE-39 | 6k Carbon fiber | 30-50 | 1.2-1.5 | 39 |
GDE-48 | 6k Carbon fiber | 50-65 | 1.2-1.5 | 48 |
GDE-58 | 6k Carbon fiber | 60-80 | 1.2-1.5 | 58 |
