Hardford VTL500/650/750/850 High Speed Single Column Vertical Lathe Cnc Lathe Vertical Lathe CNC Machine
- Category: >>>
- Supplier: Shandong Hardford Mtec Co. Ltd.Shandong Ltd.
Share on (1601356344856):
Product Overview
Description
Product Description

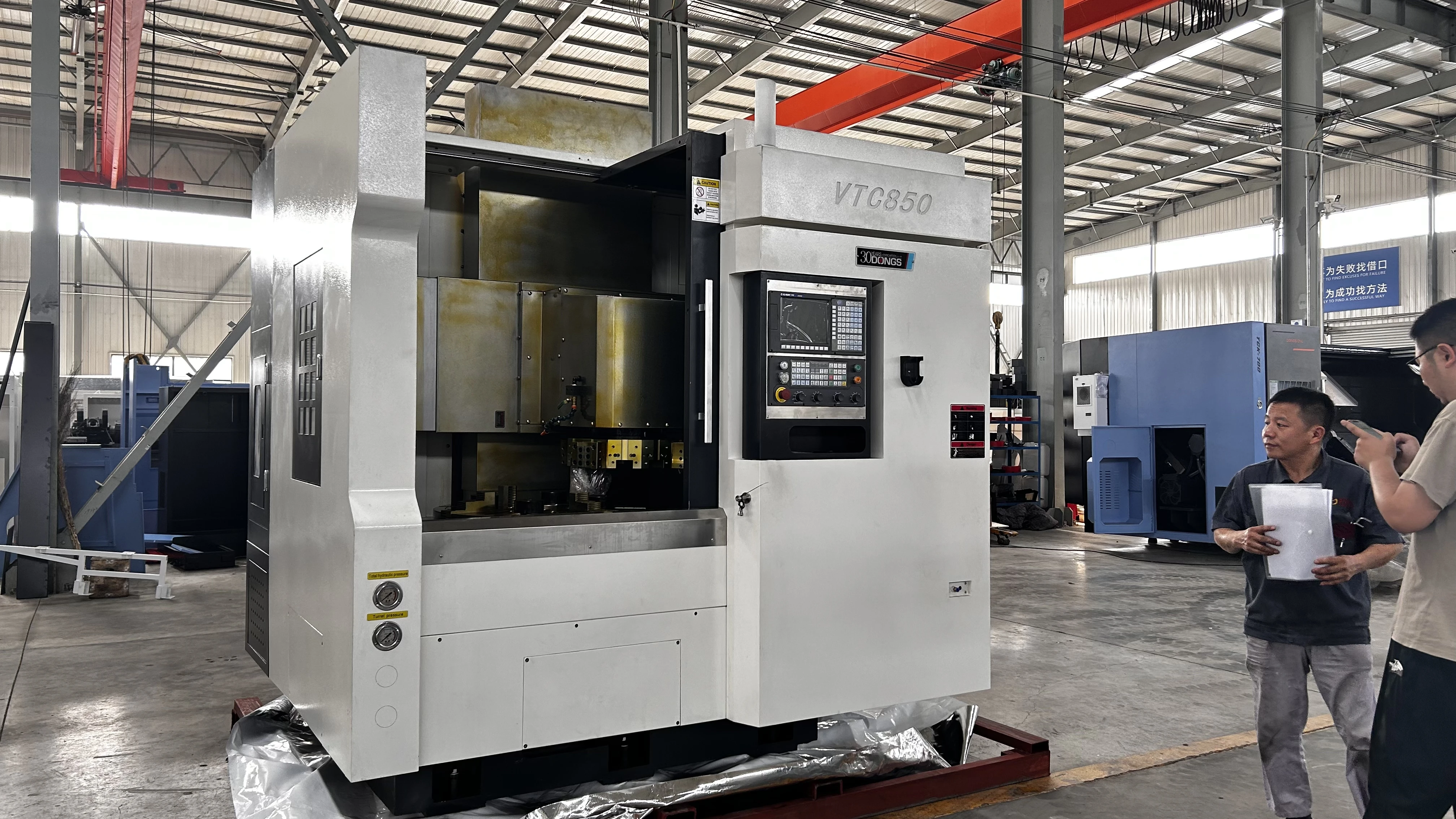

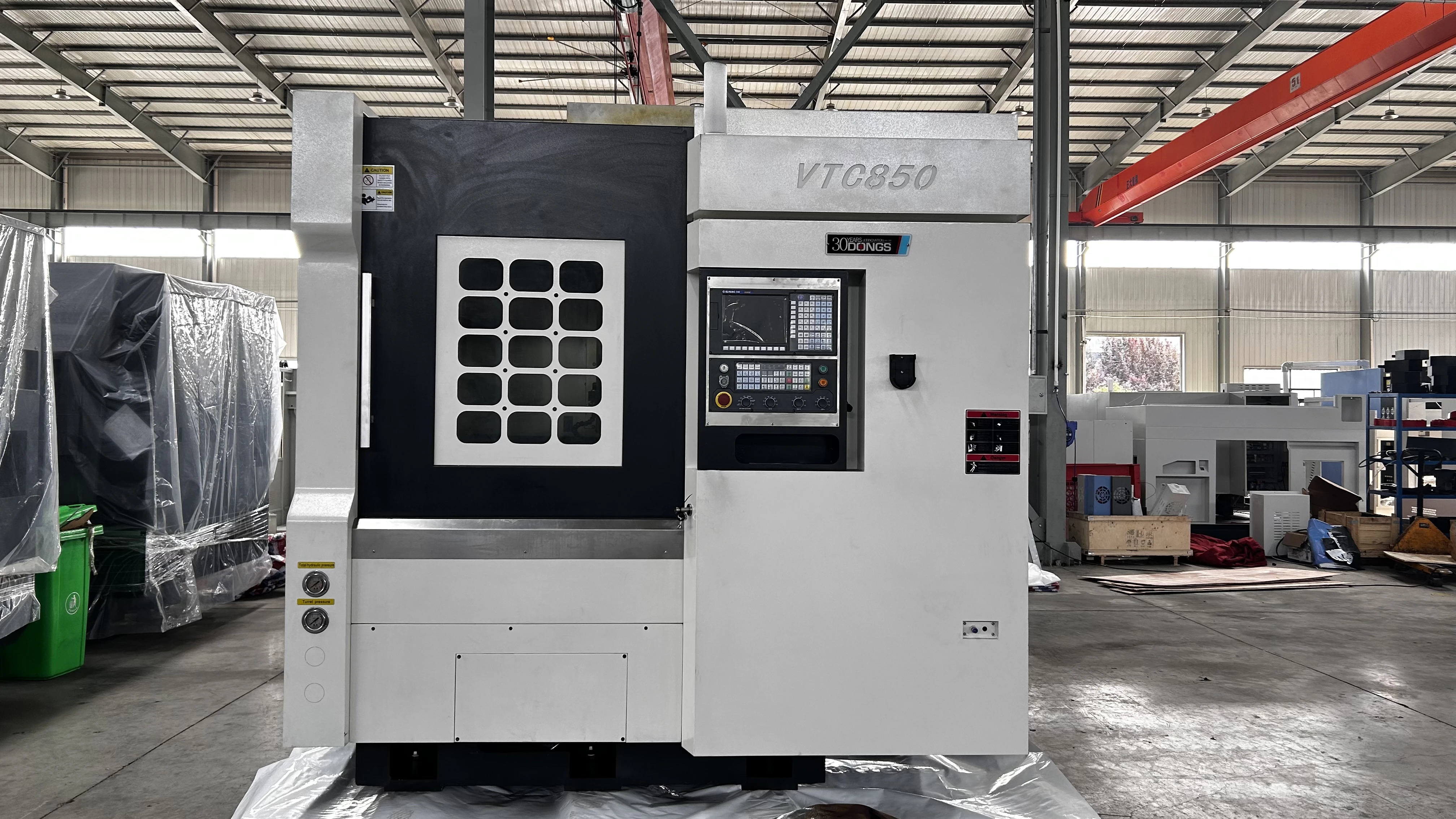

VTC850 CNC Verrical Lathe
Standard configuration:
1、（Taiwan's silver wire gauge and lead screw） 2. （Taiwan Jiaquan Hydraulic Chuck）
3 、（Hongquan spindle (HRB bearing)） 4、（Taiwan Maikun turre Pagoda）
5 、（Volumetric lubrication） 6 、（Cooling and chip flushing）
7 、（Chain chip conveyor） 8 、（Supporting hydraulic station）
9 、（Protection inside the screw line rail）
3 、（Hongquan spindle (HRB bearing)） 4、（Taiwan Maikun turre Pagoda）
5 、（Volumetric lubrication） 6 、（Cooling and chip flushing）
7 、（Chain chip conveyor） 8 、（Supporting hydraulic station）
9 、（Protection inside the screw line rail）
10（Fully protective sheet metal cover; Pneumatic sliding door）
11 、（ Work lights; Three color alarm light; Foot switch; Electric cabinet air conditioning）
Specification
Item | Unit | Size | ||
Capacity | Max. swing diameter | mm | 1000 | |
Max. turning diameter | mm | 800 | ||
Max. Work piece height. | mm | 400 | ||
Spindle | Speed range | r/min | 20-800 | |
Spindle rated torque | N.m | 764 | ||
4 jaw manual chuck | mm | 800 | ||
Spindle nose type | / | A2-11 | ||
Spindle bearing(front) | mm | 240 | ||
X/Z | X axis travel | mm | -50-500 | |
Z axis travel | mm | 400 | ||
X axis rapid feed rate | m/min | 16 | ||
Z axis rapid feed rate | m/min | 16 | ||
Motor | Spindle motor(rated/30min) | kW | 22-30 | |
X axis servo motor | N.m | 18 | ||
Z axis servo motor | N.m | 18 | ||
Turret | No. of tools | Vertical | 4 station | |
Tool rest max. tangential moment | N.m | 6000 | ||
Circular tool size | mm | 32X32 | ||
Boring tool size | mm | 50 | ||
Accuracy | Processing accuracy | / | IT6-IT7 | |
X/Z position accuracy | mm | 0.008 | ||
X/Z repeat position accuracy | mm | 0.004 | ||
Machine size(LXWXH) | mm | 2300X2250X2500 | ||
Machine weight | kg | 10500 | ||
Hot Products
Standard configuration
GSK 980TDi Control system
Optional FANUC/SIEMENS/KND/SYNTEC

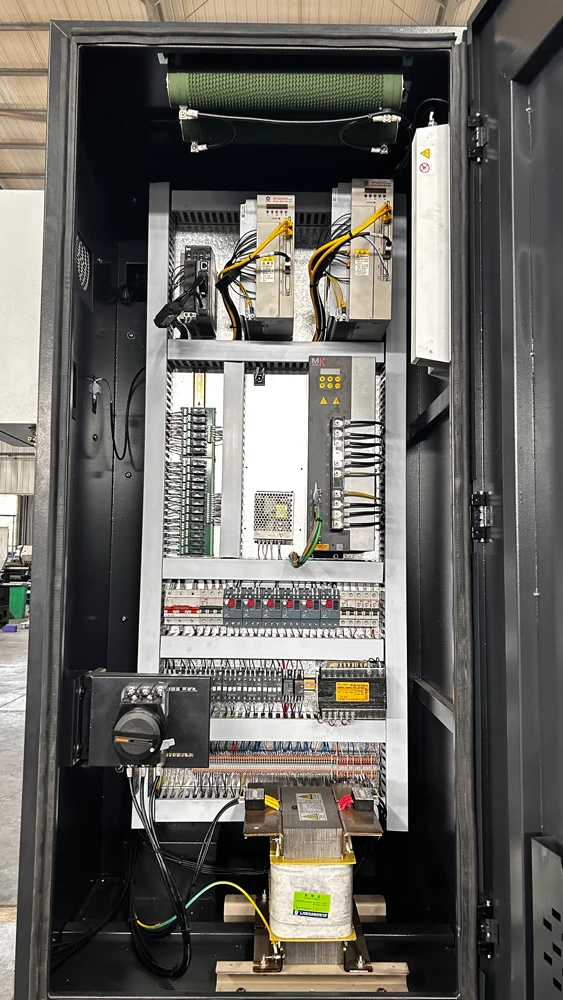

Electric cabinet air conditioning

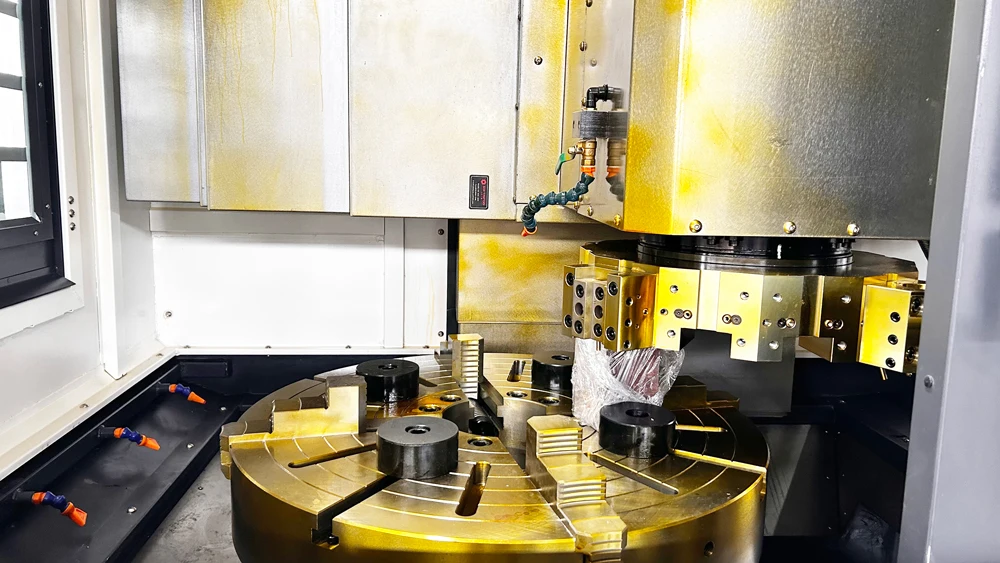

Taiwan Jiaquan Hydraulic chuck
8 station servo hydraulic turret
Company Profile
SHANDONG HARDFORD MTEC CO., LTD.is a professional technology enterprise specializing in the research and development,production,sales and service of CNC machine tools.We are committed to the innovation of machining technology and solutions,so as to promote the progress of China's machinery manufacturing level. In just a few years,we have become the dominant supplier of CNC lathes,vertical machining centers,horizontal machining centers,drilling and milling centers,CNC gantry milling and boring machines and other products is China.
HARDFORD MTEC interoduced and long-term adhere to the implementation of ISO9001 quality system and on-site 6S management mode,every link is meticulous,strict management to every process of production.
HARDFORD MTEC is close to customers for innovative research and development. It's products are of high starting point and high standard to meet customer's needs to the greatest extent.Many large enterprises in many countries and some domestic authoritative research institutes,aviation,aerospace and other militery enterprises have used our products.at the same time,they are also exported to Europe,America,Southeast Asia and other countries and regions,which are highly praised by users.
HARDFORD MTEC transposition thinking for the sake of customers is the same service principle.Through cose service,we have won customer's long-term dependence and satisfaction.We have established long-term cooperation and common development strategic partnership with more and more customer.
HARDFORD MTEC adheres to the concept of "creation and innovation, co prosperity and sharing",and consistently pursues the goal of "first-class enter-prise,first-class product,first-class service and first-class benefit",striving to "Creating greater value"for our customers.
HARDFORD MTEC interoduced and long-term adhere to the implementation of ISO9001 quality system and on-site 6S management mode,every link is meticulous,strict management to every process of production.
HARDFORD MTEC is close to customers for innovative research and development. It's products are of high starting point and high standard to meet customer's needs to the greatest extent.Many large enterprises in many countries and some domestic authoritative research institutes,aviation,aerospace and other militery enterprises have used our products.at the same time,they are also exported to Europe,America,Southeast Asia and other countries and regions,which are highly praised by users.
HARDFORD MTEC transposition thinking for the sake of customers is the same service principle.Through cose service,we have won customer's long-term dependence and satisfaction.We have established long-term cooperation and common development strategic partnership with more and more customer.
HARDFORD MTEC adheres to the concept of "creation and innovation, co prosperity and sharing",and consistently pursues the goal of "first-class enter-prise,first-class product,first-class service and first-class benefit",striving to "Creating greater value"for our customers.
FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Eastern Europe(60.00%),Western Europe(20.00%),North America(5.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC slant bed Lathe, Vertical machining center, CNC flat bed lathe, Gantry machining center, Horizontal machining centers
4. why should you buy from us not from other suppliers?
A professional technical enterprise that has been engaged in the research and development, production, sales, and service of machine tools for 20 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2016,sell to Eastern Europe(60.00%),Western Europe(20.00%),North America(5.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC slant bed Lathe, Vertical machining center, CNC flat bed lathe, Gantry machining center, Horizontal machining centers
4. why should you buy from us not from other suppliers?
A professional technical enterprise that has been engaged in the research and development, production, sales, and service of machine tools for 20 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
