JST BD Connectors 3.5mm Pitch 2Pin Connector for Powering LCD Backlights Wire to Board Wiring Harness Assembly

Product Overview

Description

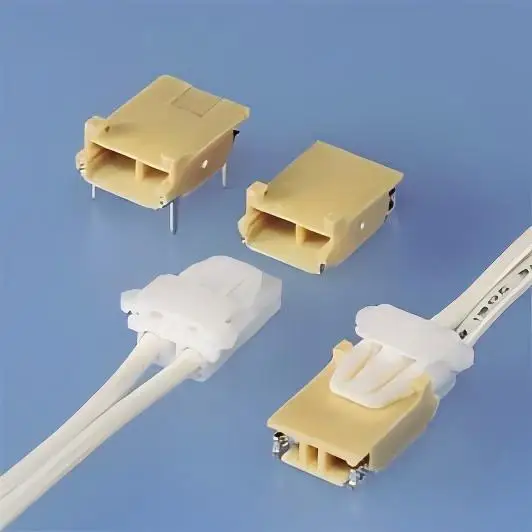

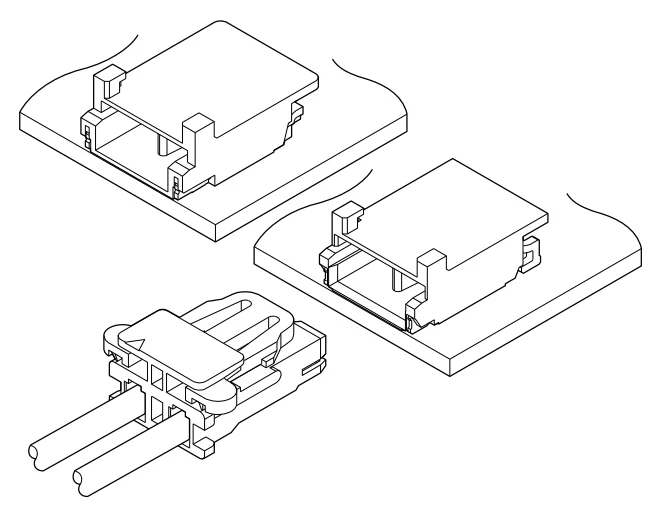

JST BD Connector, Wire to Board Type



The JST BD Connector is a reliable wire-to-wire connector designed for applications requiring high withstand voltage, such as powering LCD (Liquid Crystal Display) backlights. This connector features a secure locking mechanism that ensures a firm and vibration-resistant connection, enhancing safety and stability in demanding environments. With its high withstand voltage capability, it effectively supports the stringent requirements of power supply systems while maintaining a low-profile design for space-constrained installations. The BD Connector’s compact form factor is paired with excellent compatibility, making it a versatile choice for various electronic applications requiring durability and efficient performance.







Specificatios



• Connector type: Wire to Board, Disconnectable Crimp style


• Connector pitch: 3.5mm


• Current rating: 1.0A AC, DC (AWG #24)


• Voltage rating: 1,400V AC, DC


• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)


• Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.


• Insulation resistance: 1,000MΩ min.


• Withstanding voltage: 3,000V AC/minute


• Applicable wire: AWG #28 to #24

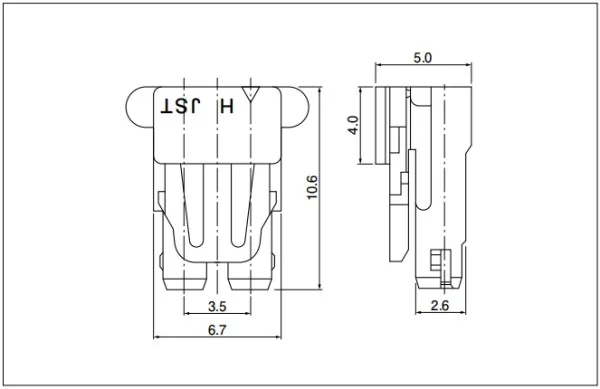

Housing



Specs:

• No. of Circuits: 2


• Model No.: BDMR-02VS-2


• Q'ty/reel: 1000pcs


• Materials and Finish: PA 66, UL94V-0, natural (white)


• RoHS Compliance

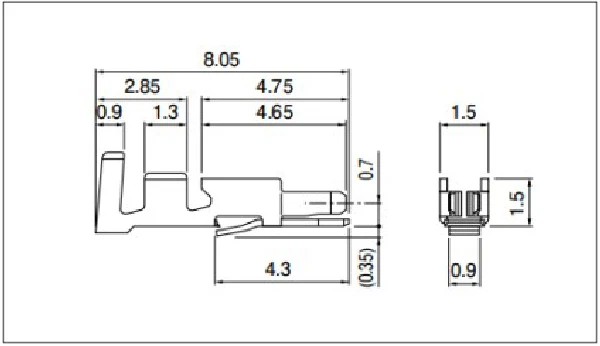

Terminal



Spcs:

• Model No.: SBHS-002T-P0.5A


• Applicable Wire: 0.08 - 0.22mm² (24 - 28AWG)


• Insolations O.D. (mm): 0.9 - 1.7


• Q'ty/reel: 10000pcs


• Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)


• RoHS compliance





Header

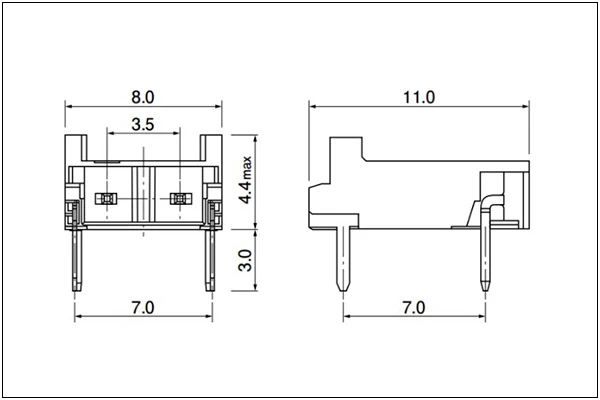

Through-hole Type



Specs:

• No. of Circuits: 2


• Model No.: S02-BDS-3-B


• Q'ty/reel: 1000pcs


• Materials and Finish:



  • Press pin: Brass, Copper-undercoated, tin-plated (reflow treatment)


  • Wafer: Heat resisting resin, UL94V-0, natural (ivory)


  • Solder tab: Brass, Copper-undercoated, tin-plated (reflow treatment)






• RoHS Compliance

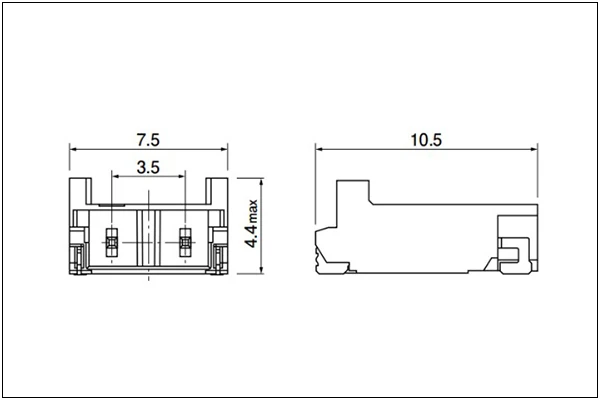

SMT Type



Specs:

• No. of Circuits: 2


• Model No.: SM02-BDS-3-TB


• Q'ty/reel: 1000pcs


• Materials and Finish:



  • Post: Brass, Copper-undercoated, tin-plated (reflow treatment)


  • Wafer: Heat resisting resin, UL94V-0, natural (ivory)


  • Solder tab: Brass, Copper-undercoated, tin-plated (reflow treatment)






• RoHS Compliance


• This product displays (LF)(SN) on a label.


• The product listed above is supplied on embossed tape.





Support Custom Wiring Harness Assembly



• Connector: 2pin


• Wire gauge: 28 - 24AWG


• Wire length: as long as your needs


• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.


• Custom type:



  • wire to wire


  • wire to tinned end


  • wire to open end


  • wire to any suitable connectors






• Minimum Order: 100 pieces per order.







Customize Your Wire Harness
