Banqcn WIFI Controller 2.4G Remote Control RN1205 ip67 Rgbic 24v Cob 720m Silicone Neon Rope Light Kit For Home Decorate
- Category: >>>
- Supplier: Shenzhen Banq Technology Co. Ltd.Shenzhen Ltd.
Share on (1601356562301):
Product Overview
Description
Product Presentation

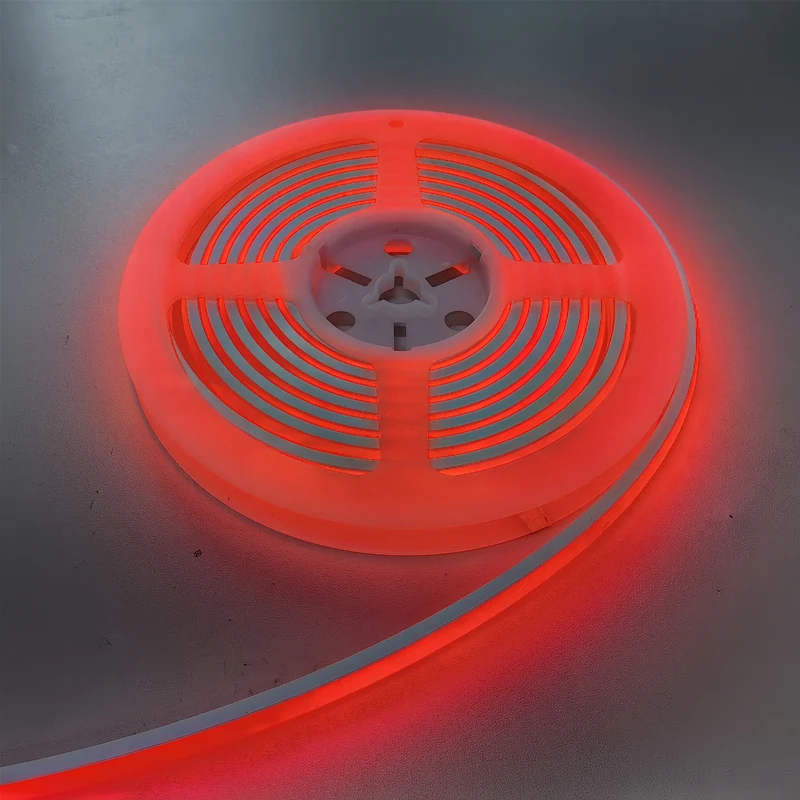

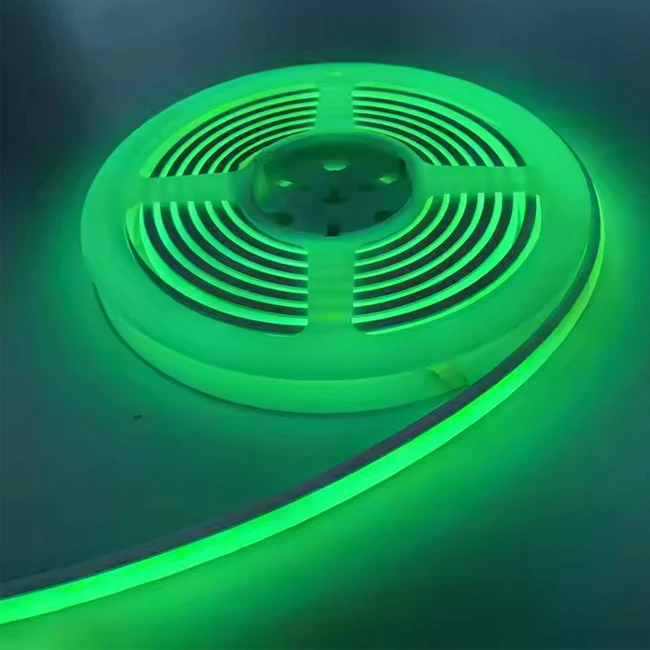

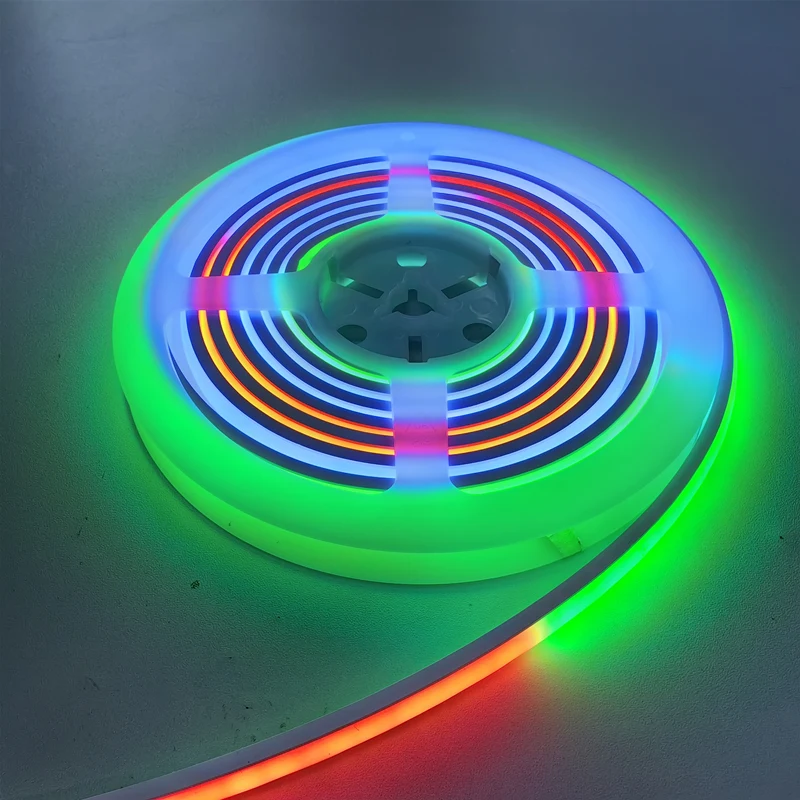

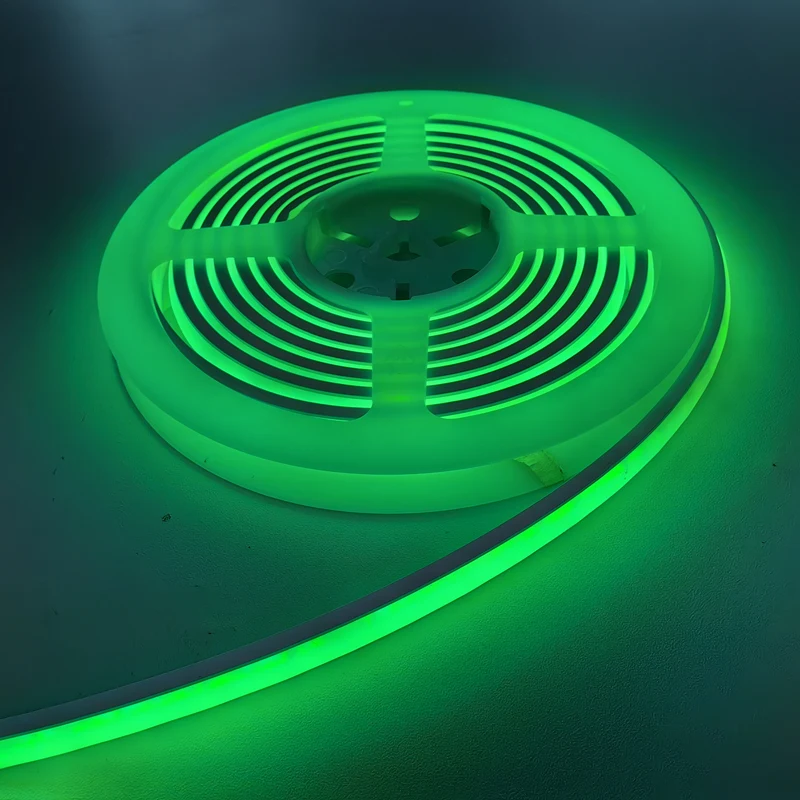

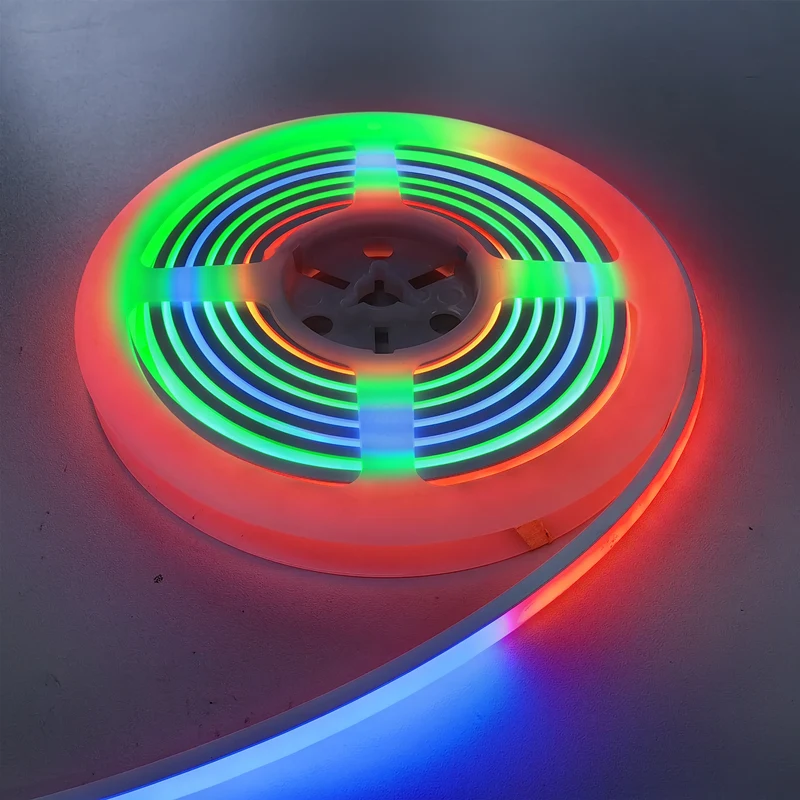

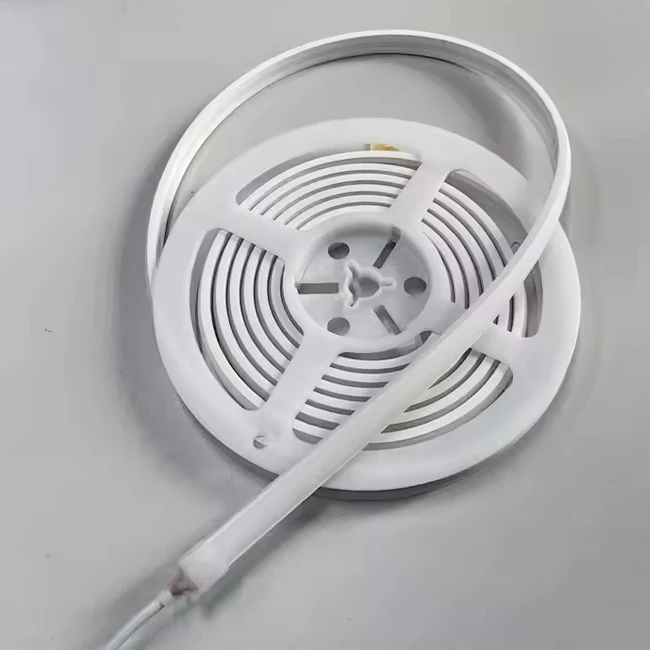

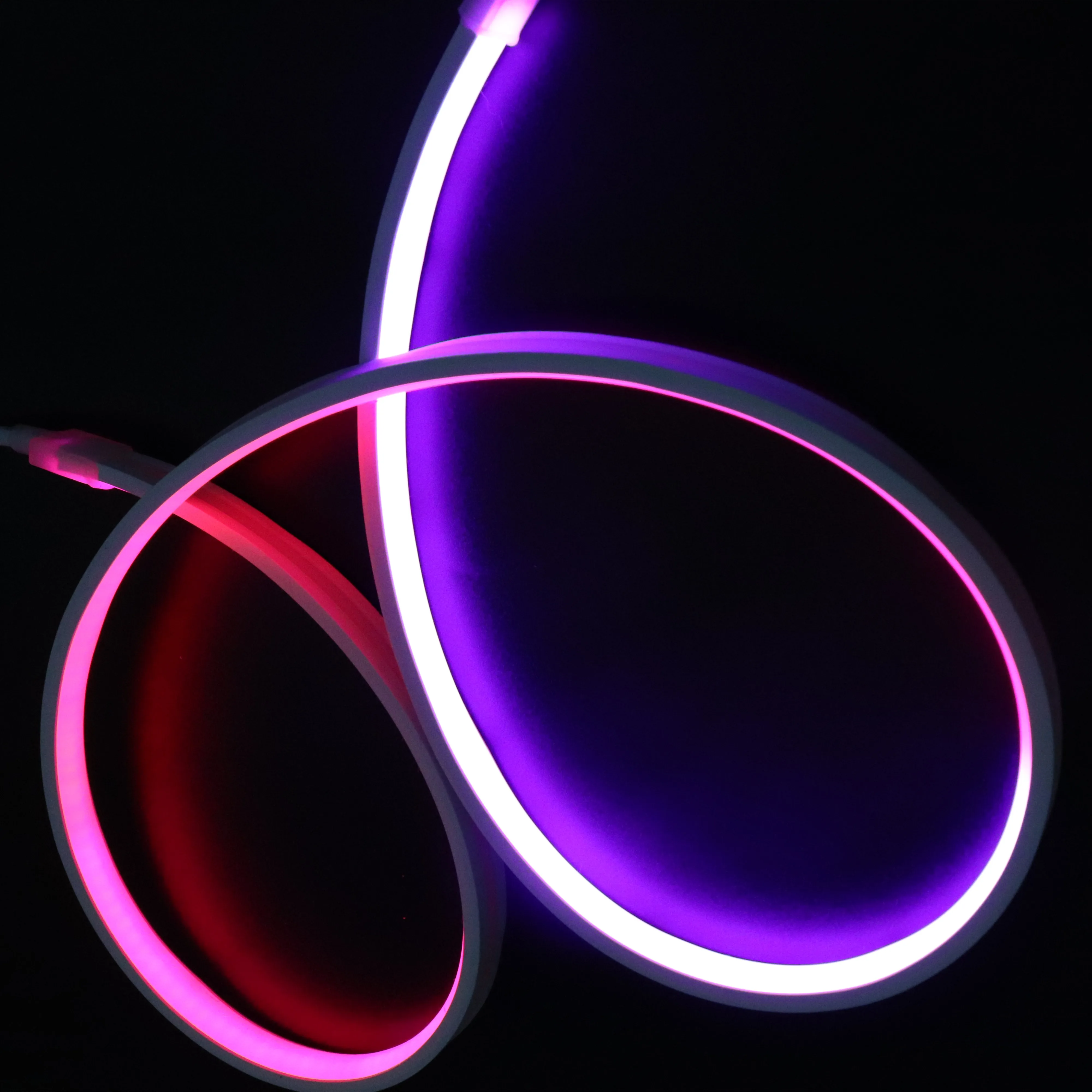

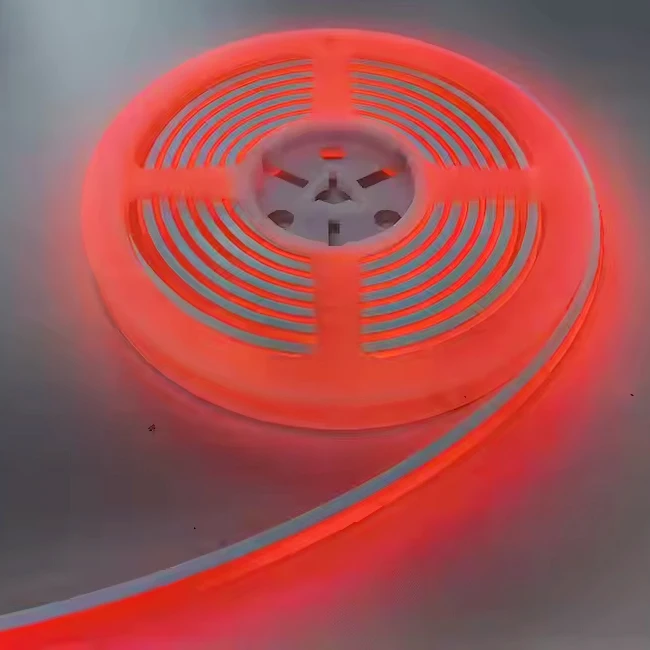

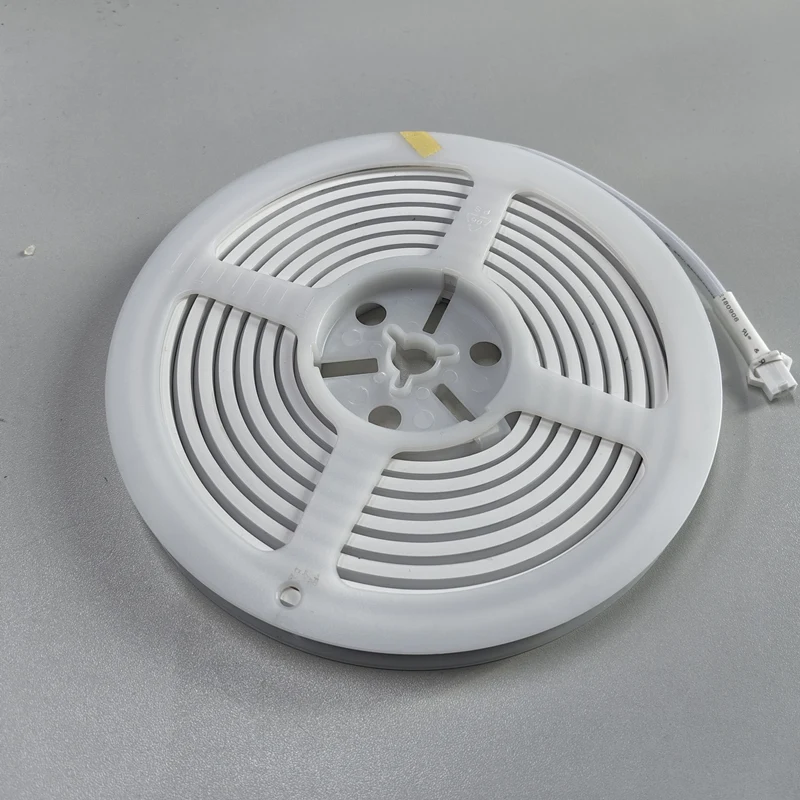

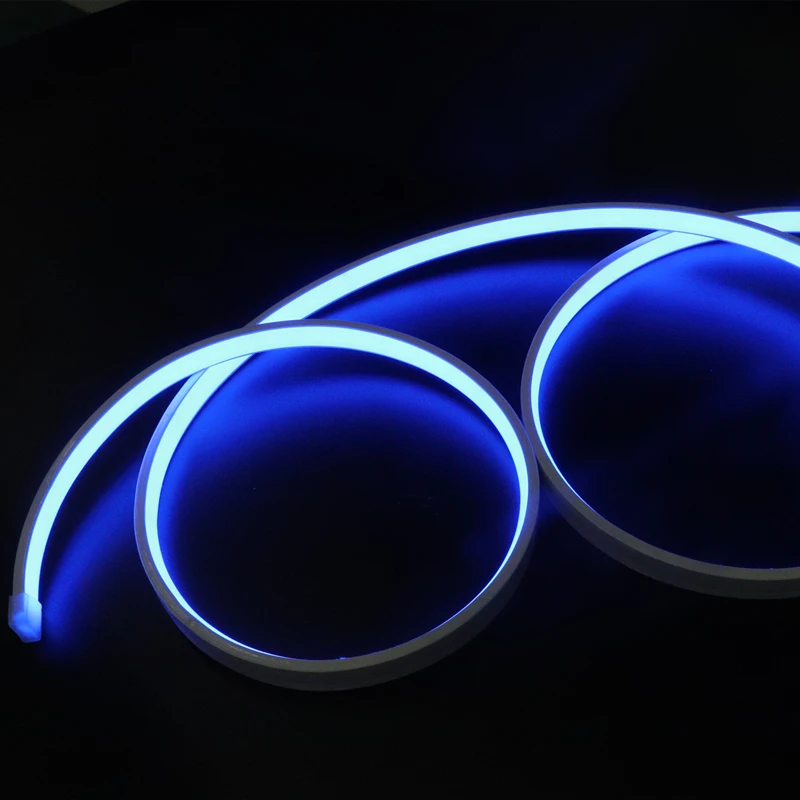

WiFi+2.4G Remote Control RN1205 RGBIC Silicone Neon Kit
Strip Length: 5 meters Packed in transparent static bag + labeling
Reel: White
Silicone 1205 U
720led/m 16W/m 14IC/m (customized power) 25+25um boards
10mm wide board PCB White
IP Rating: IP67
24VDC
Power ：16W/M（Covered board 12W)
Power Supply: ETL UL US Standard 60W 24VDC 2A max adapter 100-240VAC input
Backing: 3M 300LSE
Customized color box
2 years warranty

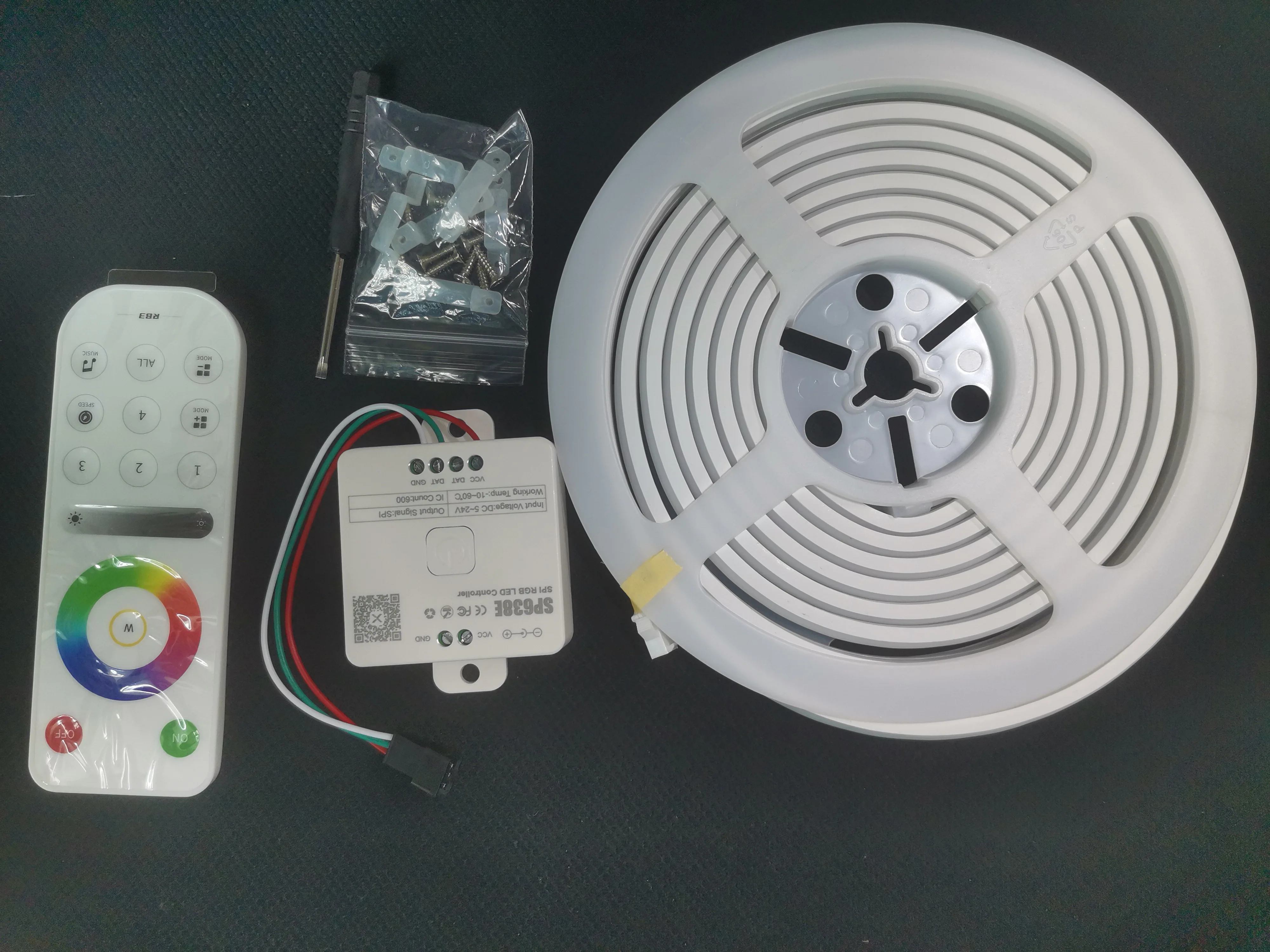

Kit List:
5m RGBIC Neon Strip 1 roll
Digital SP530E wifi & bluetooth + APP BalanX +BR3 2.4G remote control
2 copies of manual
Customized color box
Connector 1pc Board to Board
1 x Wire to Board
Reel: White
Silicone 1205 U
720led/m 16W/m 14IC/m (customized power) 25+25um boards
10mm wide board PCB White
IP Rating: IP67
24VDC
Power ：16W/M（Covered board 12W)
Power Supply: ETL UL US Standard 60W 24VDC 2A max adapter 100-240VAC input
Backing: 3M 300LSE
Customized color box
2 years warranty
Kit List:
5m RGBIC Neon Strip 1 roll
Digital SP530E wifi & bluetooth + APP BalanX +BR3 2.4G remote control
2 copies of manual
Customized color box
Connector 1pc Board to Board
1 x Wire to Board
1. Micro-radian direct surface emitting, soft and even light, without glare spots;
2. Using new technology, COB light strip;
3. Adopting WS2811IC, colourful, with SPI colorful controller control.
4. Silicone integrated extrusion technology, silicone material is soft, elastic, easy to shape, IP65 waterproof.
5. 2-year product warranty.
2. Using new technology, COB light strip;
3. Adopting WS2811IC, colourful, with SPI colorful controller control.
4. Silicone integrated extrusion technology, silicone material is soft, elastic, easy to shape, IP65 waterproof.
5. 2-year product warranty.
Product Function
What is COB Led Strip?
The full name of the COB Led Strip is: Chip on Board, Which is a method of Directly bonding the Led Chips to the PCB Board.
The ordinary Light Strip is made of Chip on the frame, and made Into SMD. Then put the Smd on the PCB. COB led strip saves a lot of ppace on PCB.
Because It saves space, More LED can be added. Generally, The 2835 Strip Light can add Maximum of 240 SMD Per meter, and the COB can add 1132 Chips or more.
And Because the cost of mounting the Chip on the frame is saved, the price of the COB Led Strip is much cheaper Than the same number of Led Strips.
The full name of the COB Led Strip is: Chip on Board, Which is a method of Directly bonding the Led Chips to the PCB Board.
The ordinary Light Strip is made of Chip on the frame, and made Into SMD. Then put the Smd on the PCB. COB led strip saves a lot of ppace on PCB.
Because It saves space, More LED can be added. Generally, The 2835 Strip Light can add Maximum of 240 SMD Per meter, and the COB can add 1132 Chips or more.
And Because the cost of mounting the Chip on the frame is saved, the price of the COB Led Strip is much cheaper Than the same number of Led Strips.
Micro-radian direct surface emitting, soft and even light, without glare spots;
Using new technology, COB light strip;
Using WS2811IC, colorful, controlled with SPI color controller;
Silicone integrated extrusion technology, silicone material is soft, elastic, easy to shape, IP67 waterproof and dustproof;
2-year product warranty.
Using new technology, COB light strip;
Using WS2811IC, colorful, controlled with SPI color controller;
Silicone integrated extrusion technology, silicone material is soft, elastic, easy to shape, IP67 waterproof and dustproof;
2-year product warranty.

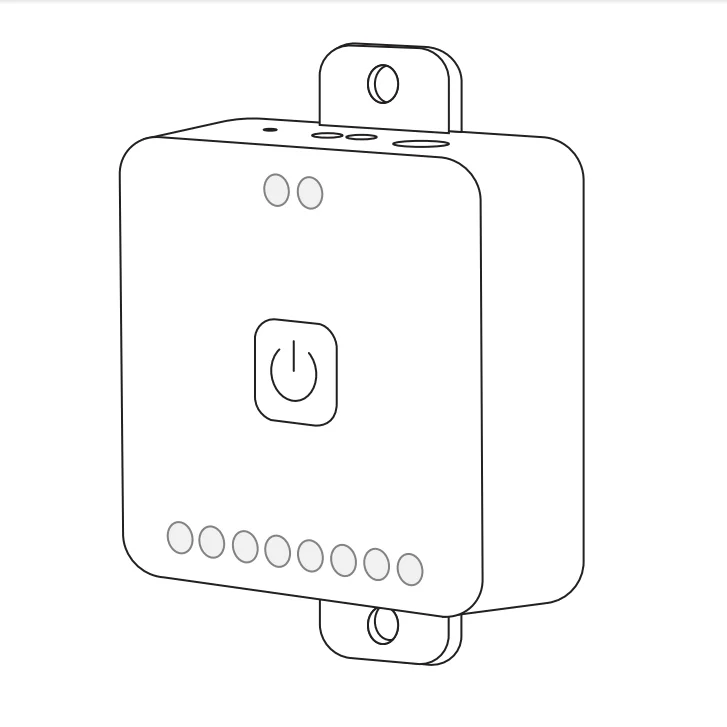

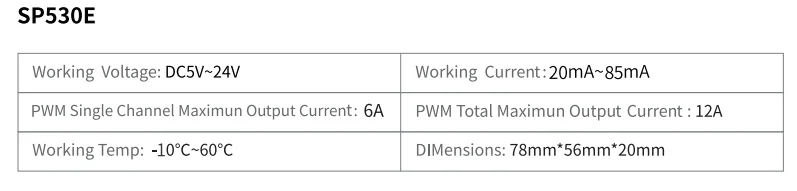

About the SP530E SPI controller:
SP530E is a versatile loT LED controller designed specifically for controlling various types of LED. lt utilizes a dual-mode (2.4GHz WiFi and Ble LE5.0)chip, enabling Ble, WiFi, local network, or cloud connection via an App. ltalso supports RF remote control.
Furthermore, the SP530E has integrated with various smart home platforms,including Alexa, Google Home, Xiao Ai, and Xiao Du, allowing you to easily control your light through voice commands. SP530E offers limitless potential for lighting and ambiance needs, delivering a more intelligent, convenient, and personalized experience to you.
Features:
①Supports multiple control methods, including App control, smart speaker voice command control, and 2.4G RF remote control, providing users with flexible control options.
②All-new upgraded music effects, featuring multi-segment LED strip music effects and Matrix LED music spectrum
Features:
①Supports multiple control methods, including App control, smart speaker voice command control, and 2.4G RF remote control, providing users with flexible control options.
②All-new upgraded music effects, featuring multi-segment LED strip music effects and Matrix LED music spectrum
effects.
● Multi-segment LED strip music effects: Users can configure multiple segments of music effects on the same LED strip,
● Multi-segment LED strip music effects: Users can configure multiple segments of music effects on the same LED strip,
each segment of the strip can feature different music effects, various pixel counts, and can be tailored to correspond
with low, mid,or high audio frequency ranges.
● Matrix LED music spectrum effects: Users can flexibly configure the size and wiring layout of a LED matrix, can set
● Matrix LED music spectrum effects: Users can flexibly configure the size and wiring layout of a LED matrix, can set
parameters for the falling dots and sound columns,such as color palette, saturation, direction, etc. Offering users even
more unique music spectrum effects.
● Various music collection methods: Supports various music collection methods including phone microphone, player
● Various music collection methods: Supports various music collection methods including phone microphone, player
streaming, and onboard microphone.
③Compatible with up to 12 different types of LED.
④Supports power on/off dynamic effects setting, timer settings, playful on/off triggering settings, and default power-on
③Compatible with up to 12 different types of LED.
④Supports power on/off dynamic effects setting, timer settings, playful on/off triggering settings, and default power-on
status setting.
⑤Supports OTA firmware upgrades, keeping the device in its optimal state. Integrated with“BanlanX" Cloud for stable loT
⑤Supports OTA firmware upgrades, keeping the device in its optimal state. Integrated with“BanlanX" Cloud for stable loT
smart home cloud connections.
Application
Suitable for living rooms, corridors, ceilings, stairs, terraces, eaves ambient lighting.
Suitable for shopping malls, hotels, showcases, advertisements, and display cabinets decorative lighting.
Company Introduction

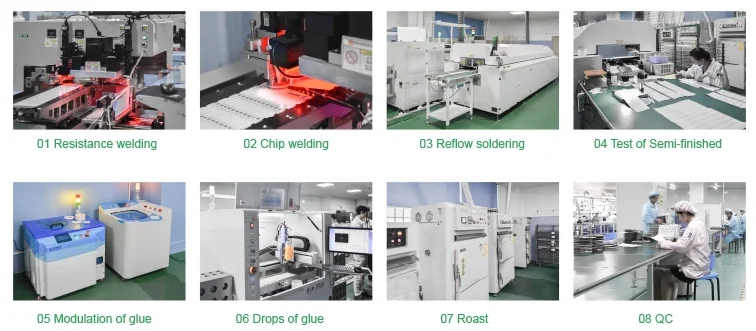

Production equipment
Manufacturing Technique
Our Certifications
FAQ
1. What is the warranty for the lights?
For the lights, we have 3- 5 years warranty. If any quality problems on our side occurred in this period, we‘ll take on the
shipping cost and replacement.
2. You are factory or trading company?
We are factory directly specialized in LED Lighting. We offer reliable quality, competitive price and short lead time for our
clients.
3. What is your sample offering time?
Within 24 hours for the samples in our stock, 1-3 days for new sample making.
4. How is your quality control?
We have strict QC process and all the lights will be 100% 24-48 hours testing before shipping.
5. What is your payment terms?
30% as deposit for production, the remaining payment will be paid before delivery.
6. What is your payment way?
T/T, PayPal and Western Union are preferred, cash, L/C, D/P or other forms of payment is also accepted depending on the order
quantity.
7. What is your shipping way?
By express(DHL, FEDEX, UPS, TNT, EMS, etc.), air, sea.
For the lights, we have 3- 5 years warranty. If any quality problems on our side occurred in this period, we‘ll take on the
shipping cost and replacement.
2. You are factory or trading company?
We are factory directly specialized in LED Lighting. We offer reliable quality, competitive price and short lead time for our
clients.
3. What is your sample offering time?
Within 24 hours for the samples in our stock, 1-3 days for new sample making.
4. How is your quality control?
We have strict QC process and all the lights will be 100% 24-48 hours testing before shipping.
5. What is your payment terms?
30% as deposit for production, the remaining payment will be paid before delivery.
6. What is your payment way?
T/T, PayPal and Western Union are preferred, cash, L/C, D/P or other forms of payment is also accepted depending on the order
quantity.
7. What is your shipping way?
By express(DHL, FEDEX, UPS, TNT, EMS, etc.), air, sea.
