Black JZH RF 998A 4 1 Great Feedback Wireless Waterproof Fishing Bite Alarm Set
- Category: >>>
- Supplier: Shenzhen JZH Technology Co. Ltd.Shenzhen Ltd.
Share on (1601356606926):
Product Overview
Description
Product description

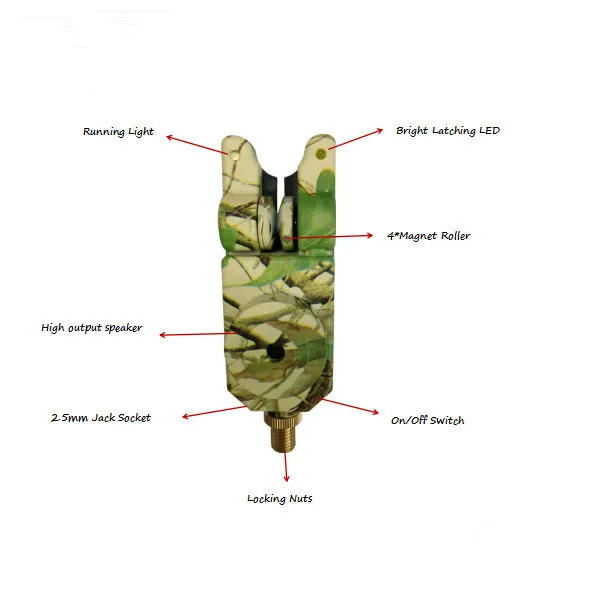

Bite Alarm details
On/Off Switch
On/Off Switch
Running led and latch led will illuminate and flash with a beep when switch on,to confirm alarm is activated.
Run Indication
On power save mode,when flash take a bait and roller wheel rotated,run led and latch led will flash,roller wheel stop rotating,run
led go out and latch led illuminate last 20s.
2.5 mm Jack Socket
For external swinger lamp
Run Indication
On power save mode,when flash take a bait and roller wheel rotated,run led and latch led will flash,roller wheel stop rotating,run
led go out and latch led illuminate last 20s.
2.5 mm Jack Socket
For external swinger lamp

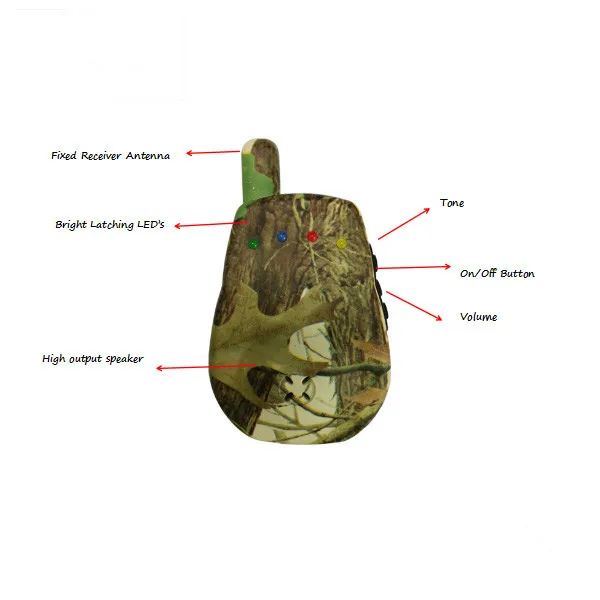

Receiver details
Power on/off
ON---Press on/off button 4 color leds will illuminate with beeps:OFF--Press and hold on/off button 2s,leds go out with a beep.
Tone adjustment
When switch on,press the tone control button"T",to choose from 4 tones.
Volume adjustment
When switch on,press the volume control button"V",to choose from 5 settings.
(5 settings include mute)
Power on/off
ON---Press on/off button 4 color leds will illuminate with beeps:OFF--Press and hold on/off button 2s,leds go out with a beep.
Tone adjustment
When switch on,press the tone control button"T",to choose from 4 tones.
Volume adjustment
When switch on,press the volume control button"V",to choose from 5 settings.
(5 settings include mute)
Alarm | Receiver | |||
Power voltage | 12 V | Power voltage | 4.5V(AAA battery) | |
Working current | 67mA | Working current | 26mA | |
Wireless transmitter working freq | 433.92MHz | Wireless transmitter working band | 433.92MHz | |
Working temp | -10-70℃ | Sensitivity | -100 dbm | |
Shut down current | 0A | Shut down current | 8 uA | |
Coverage range | 120 m | Coverage range | 120 m | |
Transmitter power | 11 dbm | Standby current | 2 mA | |
Standby current | 7 uA |
Learning code
Press and hold on"T" and “V" till get a beep,then rotate the roller wheel of alarm,one of led on receiver will
flash,it means learning successfully.
Erase code
Reset code,press and hold on "T" and "V" till get two beeps,means reset all the codes.
flash,it means learning successfully.
Erase code
Reset code,press and hold on "T" and "V" till get two beeps,means reset all the codes.
Bite alarm:
8 tons settings / 8 volume settings / 5 sensitivity settings / Low battery warning /
Green, blue, red, yellow LED / On/Off
Green, blue, red, yellow LED / On/Off
Application
Company profile
Certificate
Factory
Exhibition&Customers
Package
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2015,sell to Western Europe(28.00%),Mid East(18.00%),North America(11.00%),Africa(11.00%),Northern Europe(11.00%),Southern
Europe(6.00%). There are total about 11-50 people in our office.
Europe(6.00%). There are total about 11-50 people in our office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q3: What can you buy from us?
A3: Fishing Bite Alarm,Remote Control,Controller,Wireless Transmitter Modules,Wireless Receiver Modules
Q4: Why should you buy from us not from other suppliers?
A4:1. Our company has the professional team in developing the new products for 8 years.
2. Our company has the completed testing equipments.
3. Our company has gotten the reputation from European and America.
2. Our company has the completed testing equipments.
3. Our company has gotten the reputation from European and America.
Q5: Delivery time?
A5: Sample:7-10 working days; 50-200 sets: 10-15 working days; 200-2000 sets: 30-40 working days
