Automatic 8 Colors Roll To Roll Adhesive BOPP Tape Flexo Printing Machine

Share on (1601356652638):


Price:$20,000.00

Quantity:


Product Overview

Description



350mm 6 Color High Efficient Petal Type Paper Roll To Roll Sticker Flexographic Printing Machine


Product Description

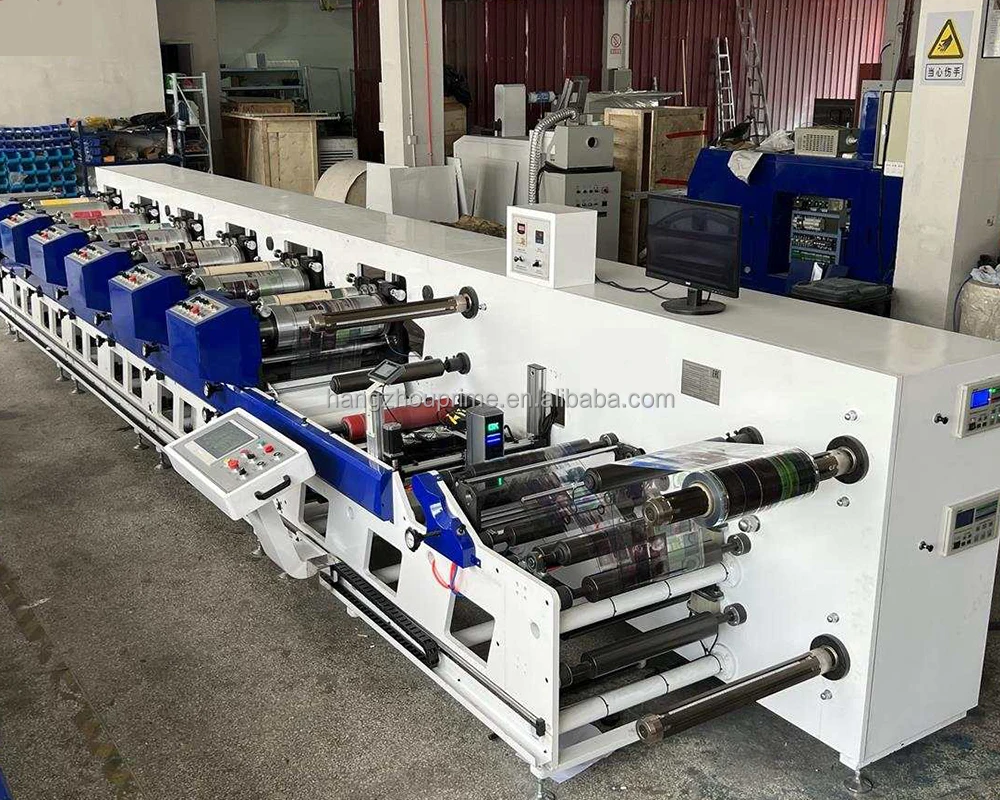

Inline flexo printing machine has all the printing stations in a horizontal line, which is widely used in printing of aluminum foil, various plastic films, such as OPP, PE, PET, PVC, shrink sleeve, labels, food packaging, paper and other materials. This type of press offers a high print quality and registration accuracy. Registration accuracy is when the ink combinations is aligned precisely on the substrate.


Specification


Main parameter
Model
PM-350-6
Width
350-1200mm
Color
1-10 colors
Max. Feeding material width
350mm
Max. Effective print length
600mm
Printing speed
100-150m/min
Max. Effective print width
350mm
Repeated printing length
190.5-609.6mm
Unwinding unit
Roller width
350mm
Air diameter
76mm
Max. Diameter of unwind
600mm
Air shaft
1PCS
Printing unit
Anilox roller
Ceramic Anilox roller 1 SET ( 6PCS)
Printing roller
1 SET (6 PCS)
Rewinding unit
Diameter of shaft
76mmф
Air shaft
1PCS
Plate Thickness (Both side adhesive tape included)
1.14/1.7mm
Plate mounting tape
0.38mm
Printing Materials
Label Sticker/PE,PET,PVC,OPP/Aluminum Foil/Paper/Paper Cup/Paper Bag,etc.


Details Images

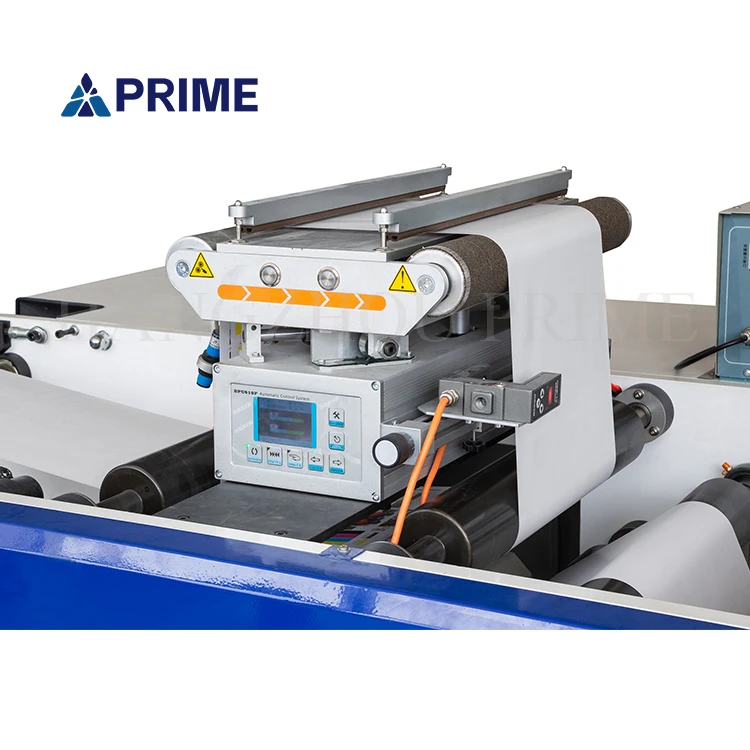

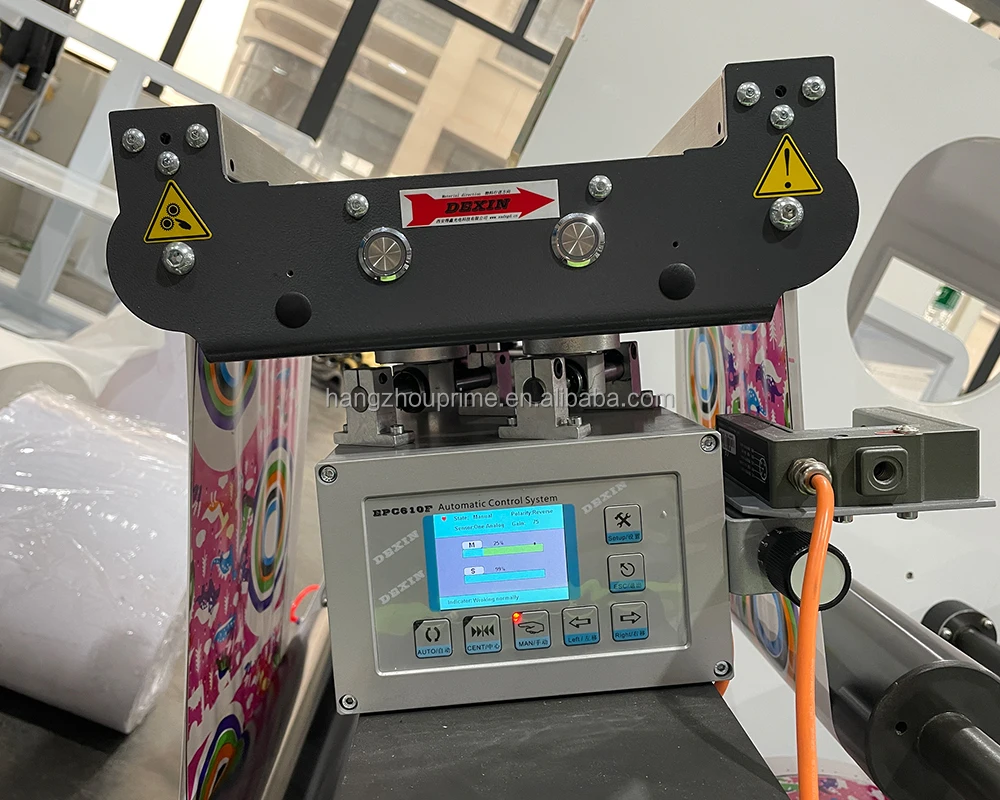

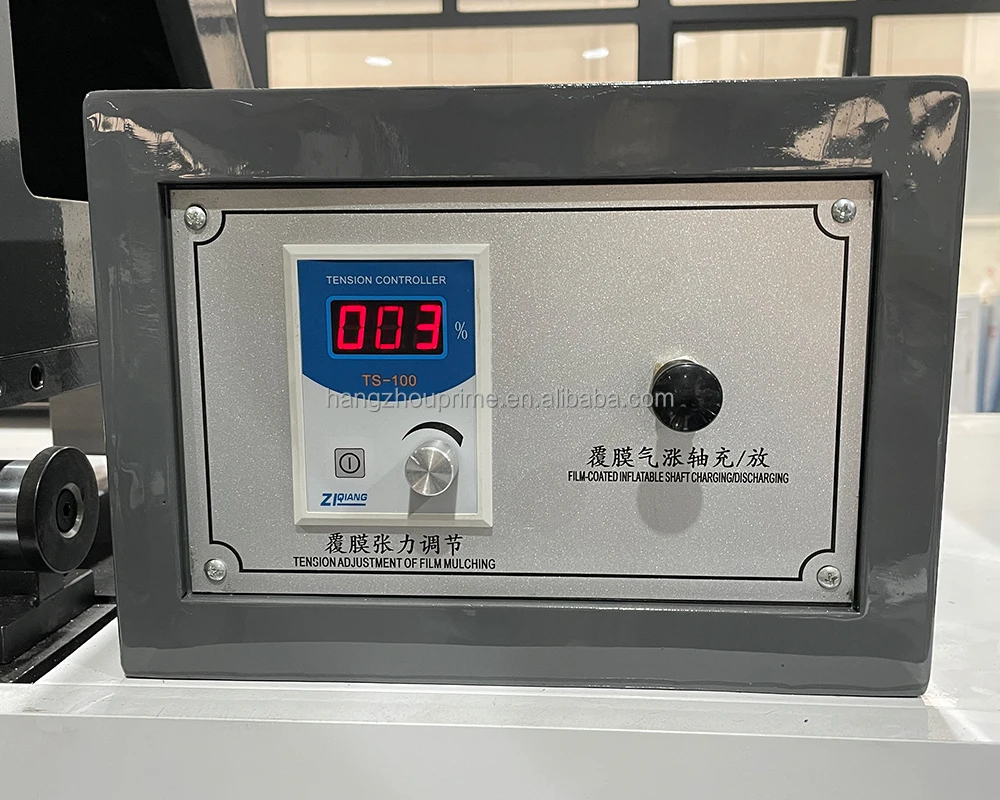

Auto Web Guide Auto Tension Controller
The photoelectric sensor is used to detect Use it to adjust the tightness of the material.
the material and correct the deviation of the
web to the correct position.

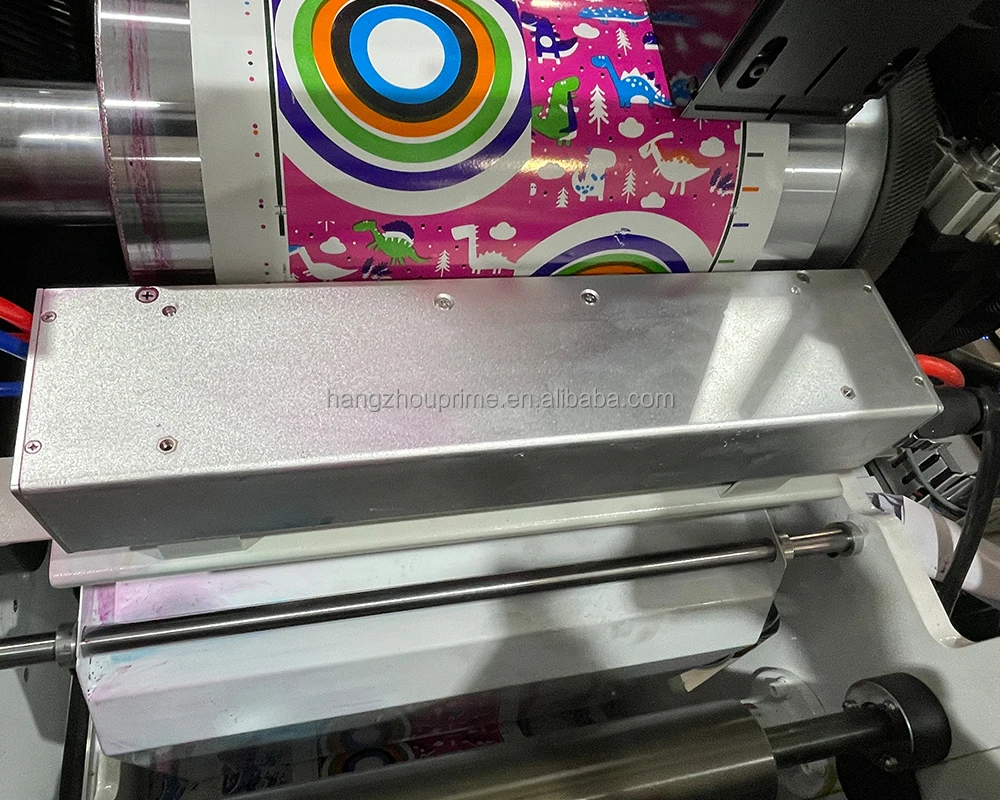

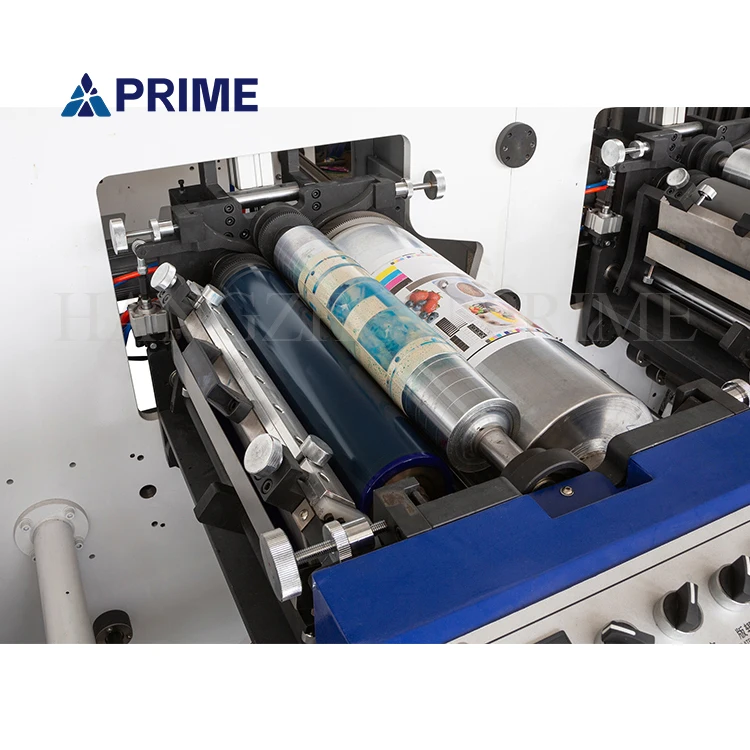

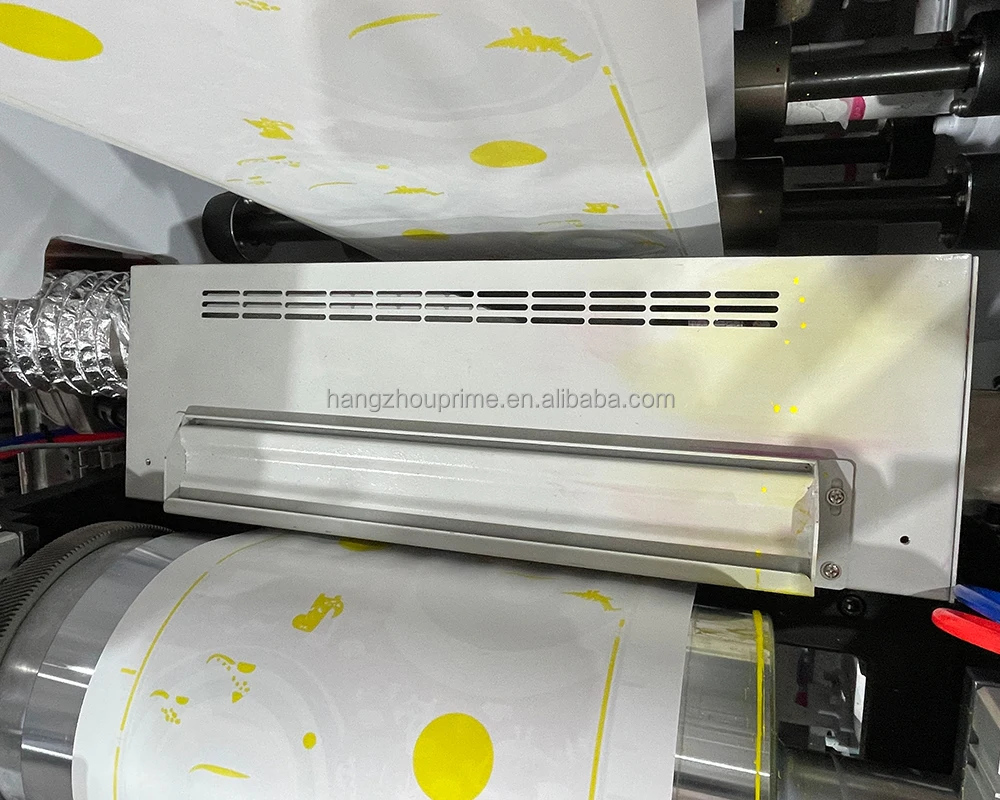

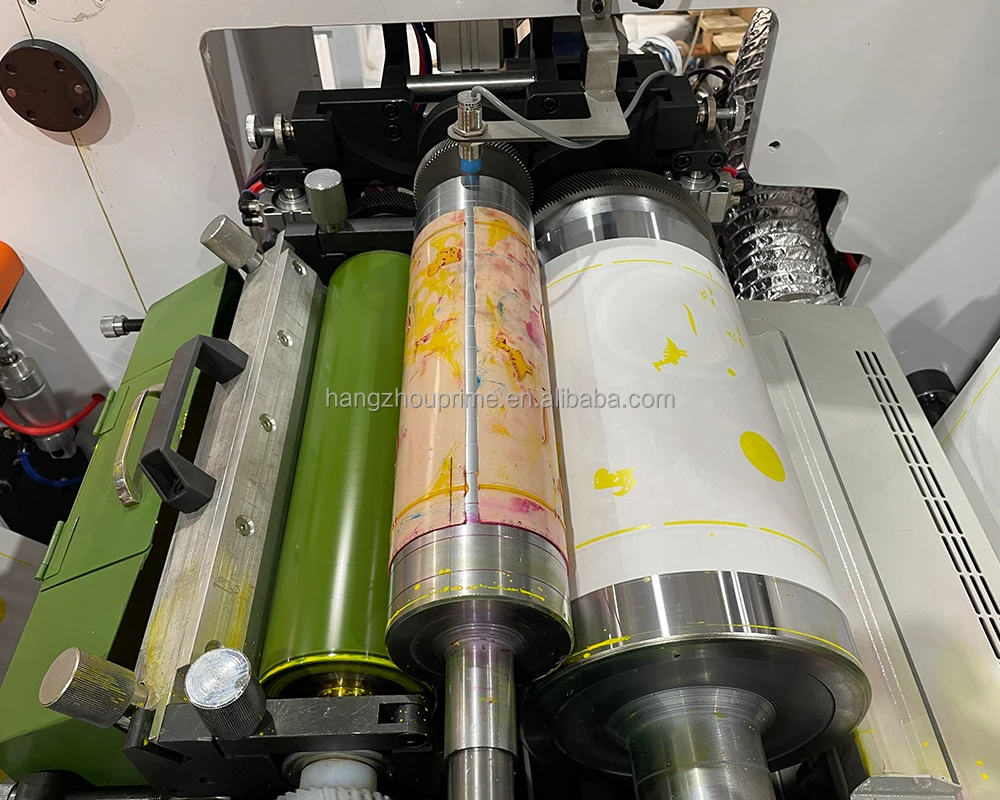

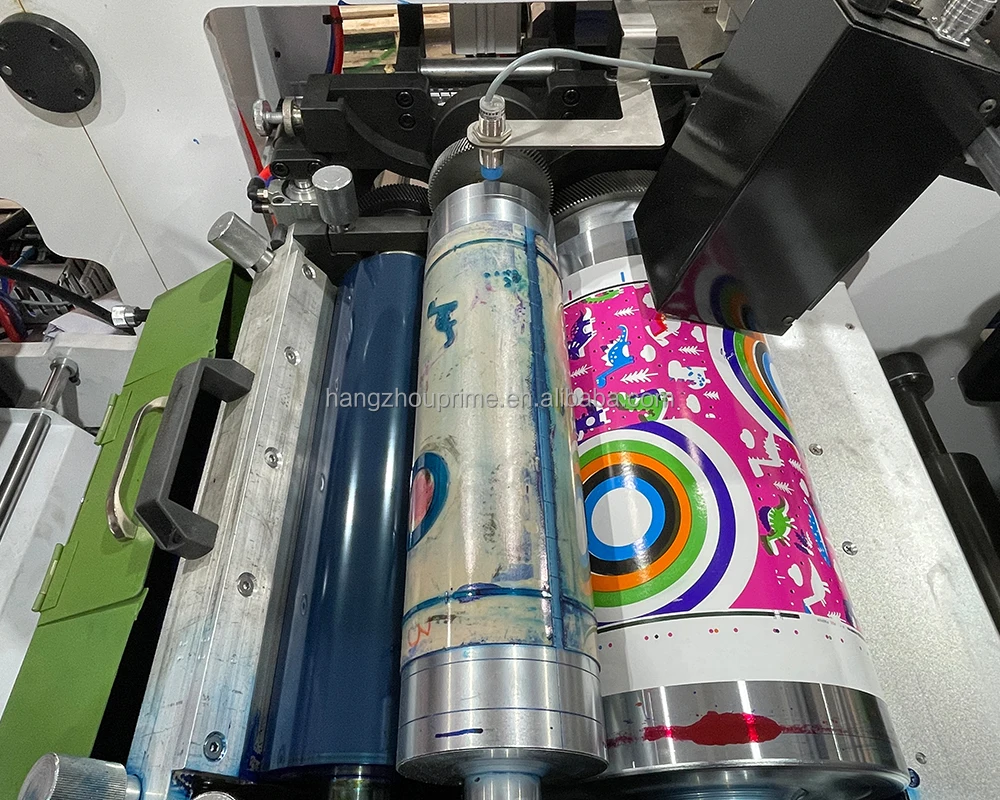

Color Printing Unit IR Dryer
It is including: ceramic anilox roller, printing Infrared (IR) short-wave heating and drying
rubber roller, doctor blade, helicar gear. system, the temperature is adjustable, and can be
controlled by independent switches.





UV Dryer LED UV Dryer
High drying intensity, short drying time LED UV has high light radiation energy, stable
and high thermal efficiency. light output, good uniform illumination effect, low
power consumption, and improves production efficiency.

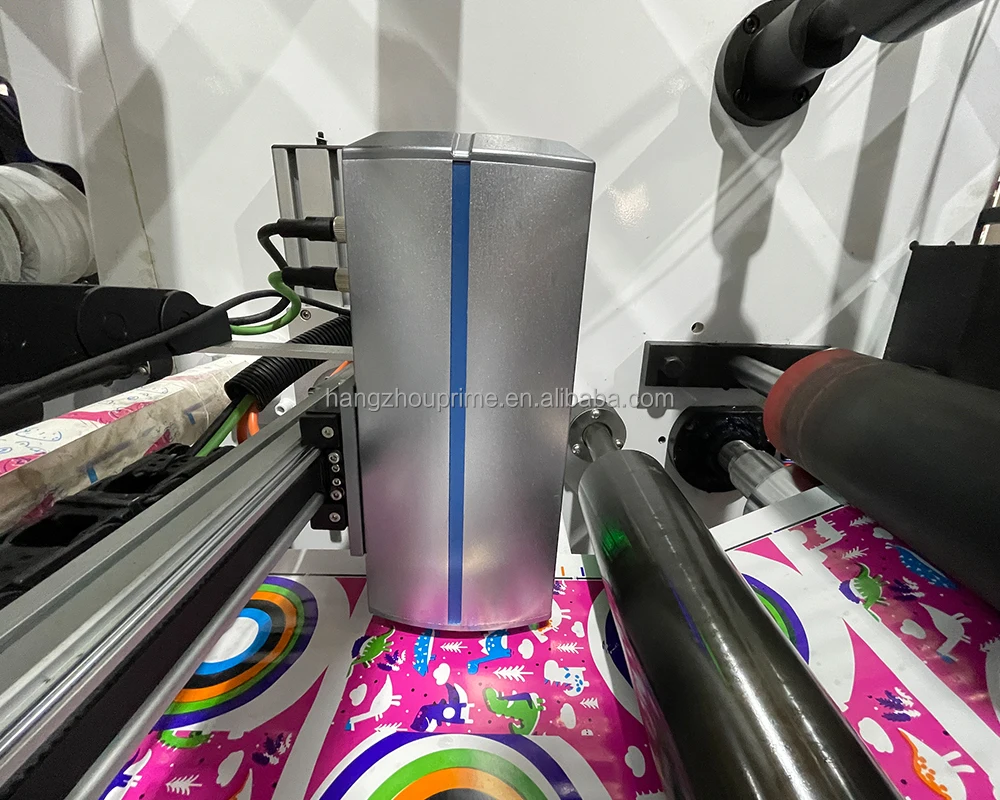

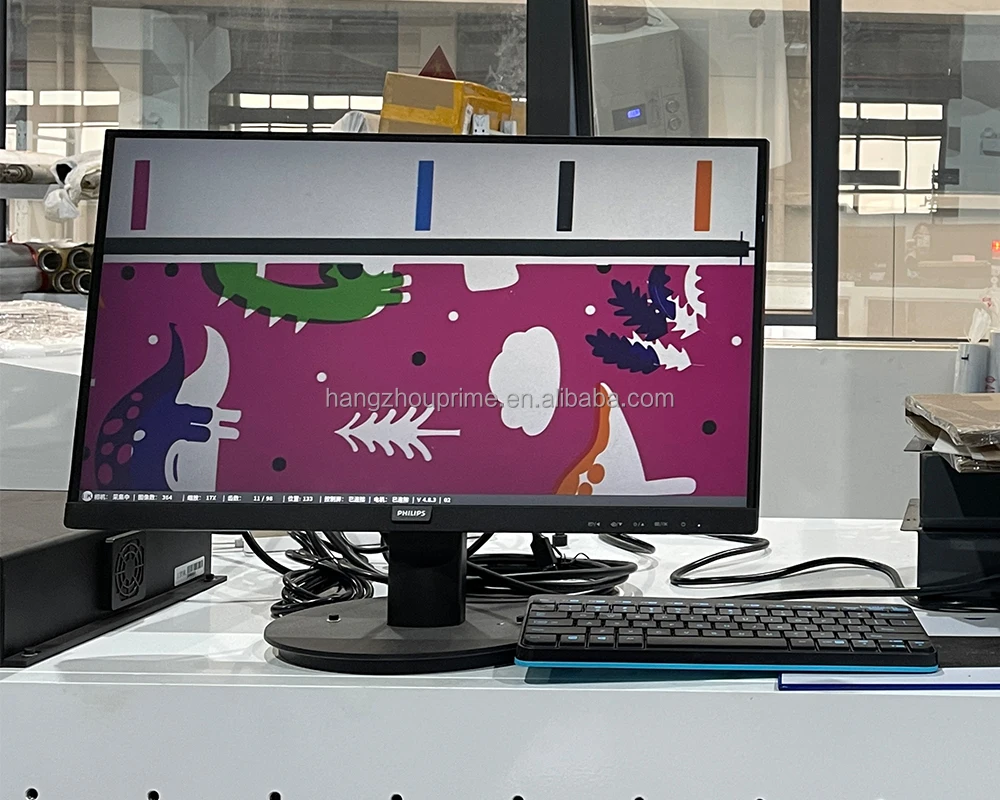

Video Inspection System
It is used to check the printing quality in real time while the machine is working. The main purposes are to reduce waste, maximize productivity and improve printing quality.




Visual overprint With Camera
Accurate printing of multiple colors can be achieved through control and adjustment.

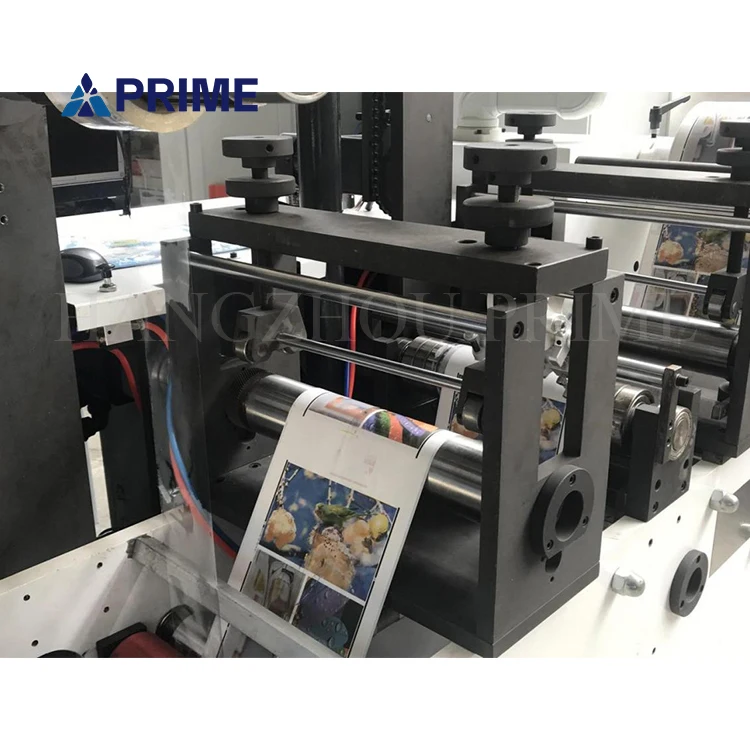

Slitting Unit Die Cutting Unit
There are multiple slitting blades, and the distance It can die cutting the labels inti different
cutters can be adjusted and controlled to realize multiple blades customized.
slitting and meet the printing requirement of various
materials. Air knives can be installed as required.

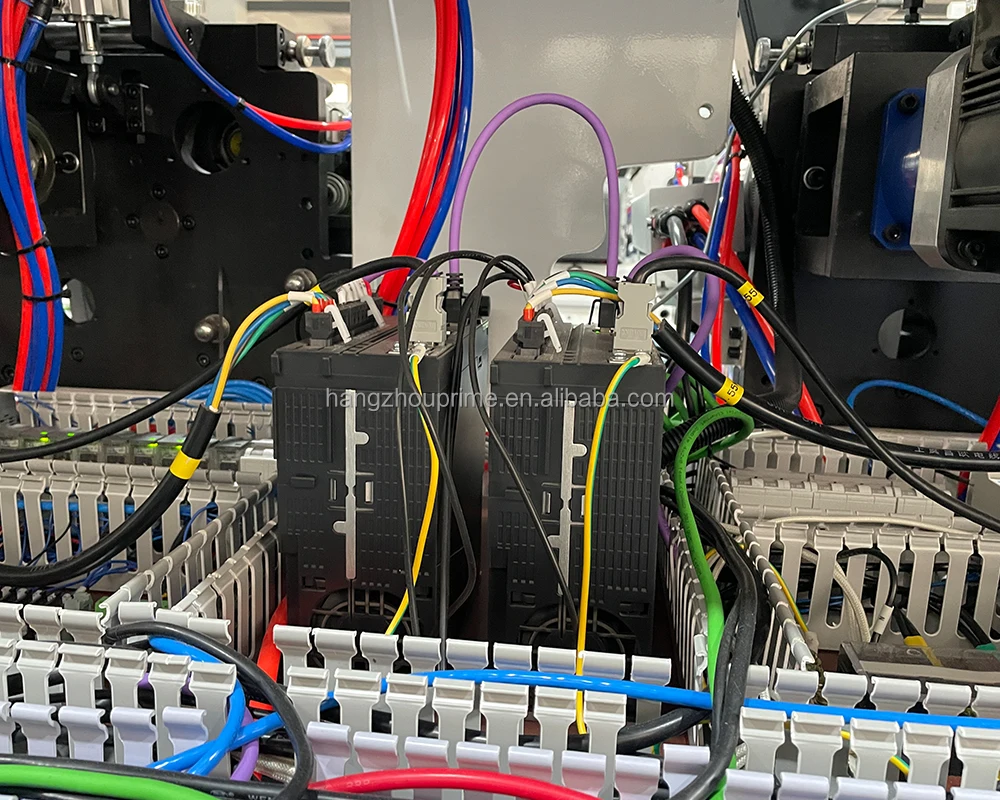

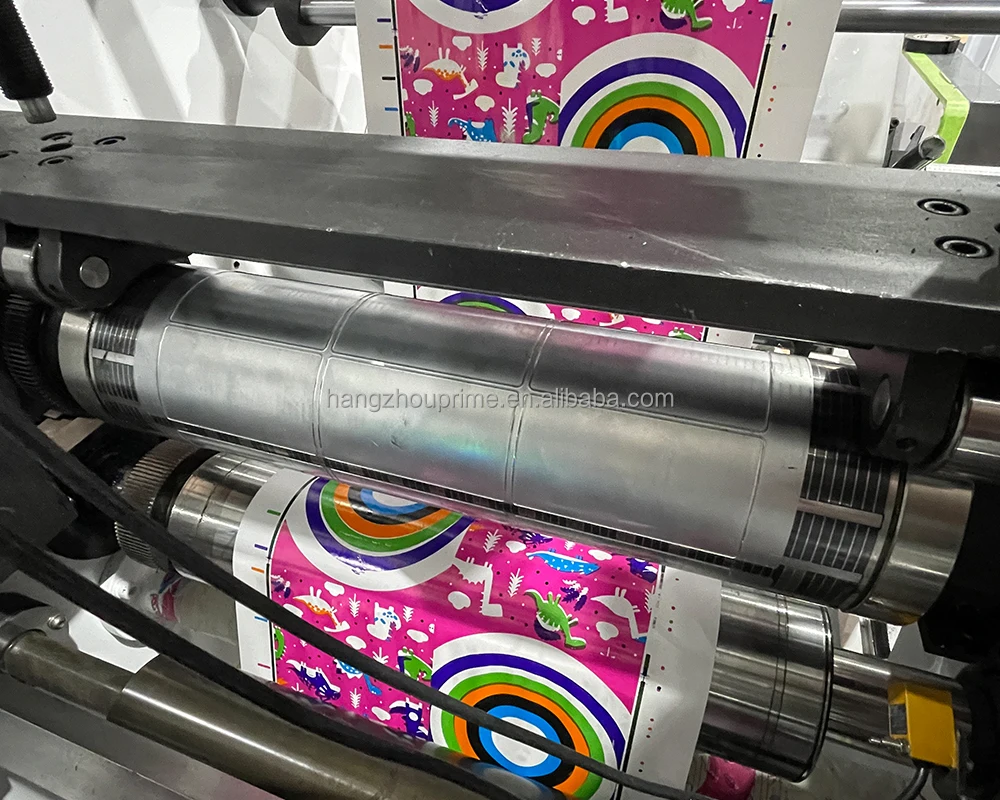

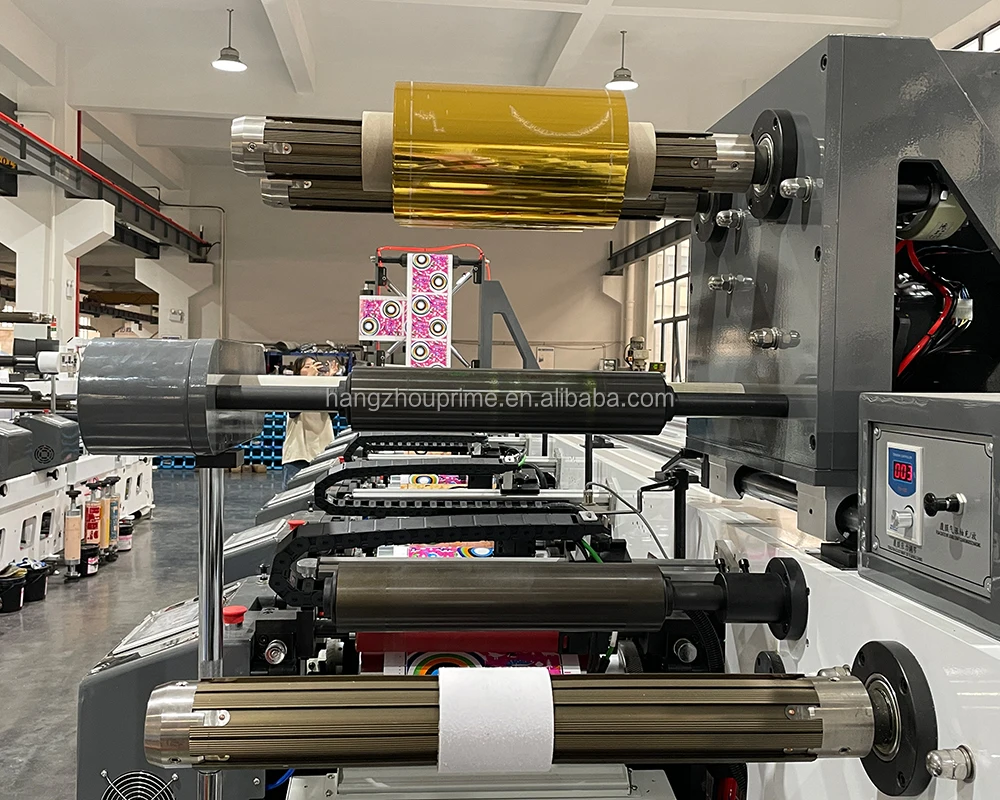

Cold Foil Stamping Servo Motor: double servo motor
With fast cold foil stamping speed and high Each color group is equipped with a servo
efficiency, the connected movable type cold foil motor control the speed and the posit1
stamping device can saturate the color and add a on accuracy is very accurate.
effect to the graphics and text.

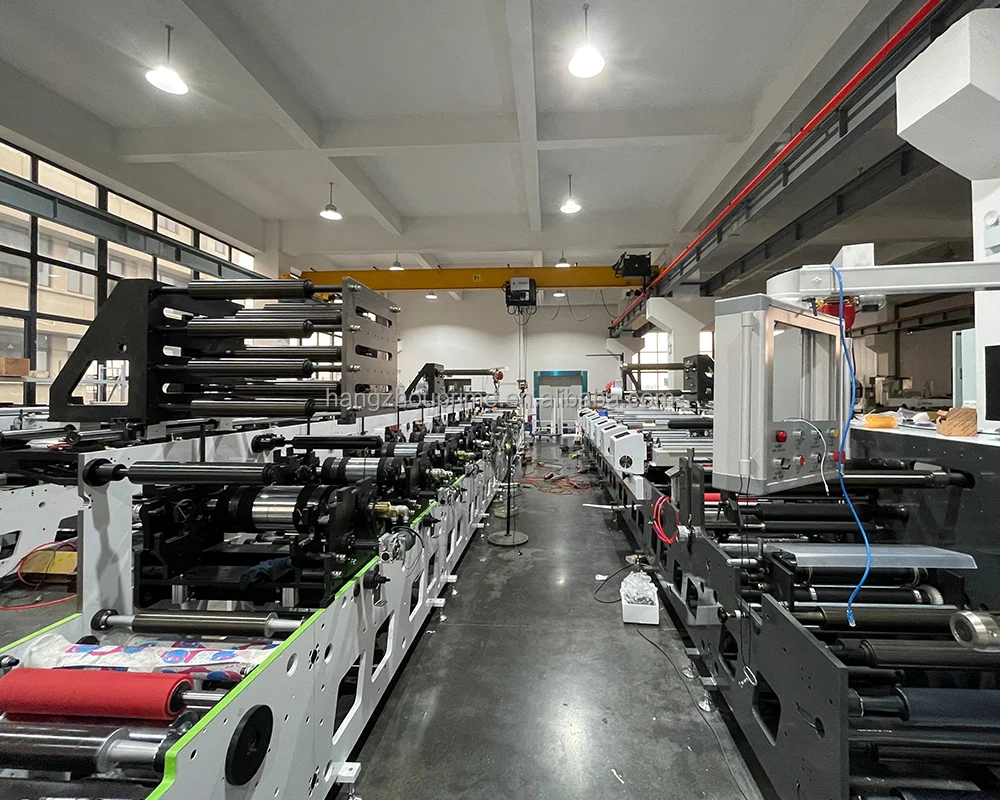

Company Profile

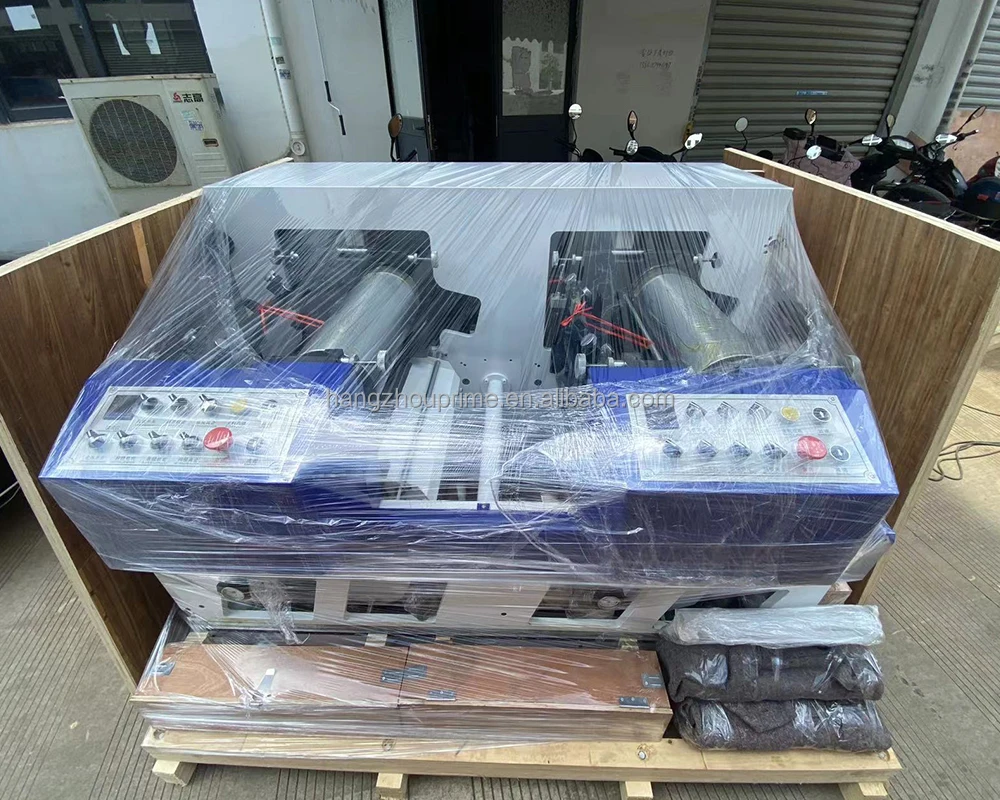

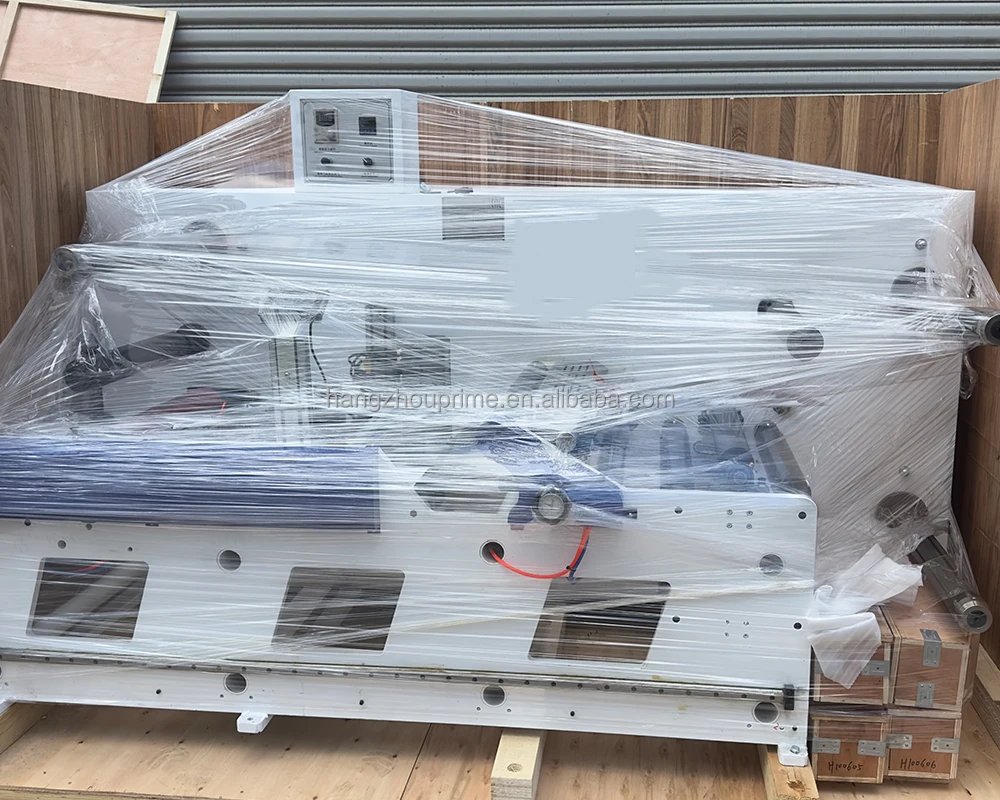

Packing & Delivery
