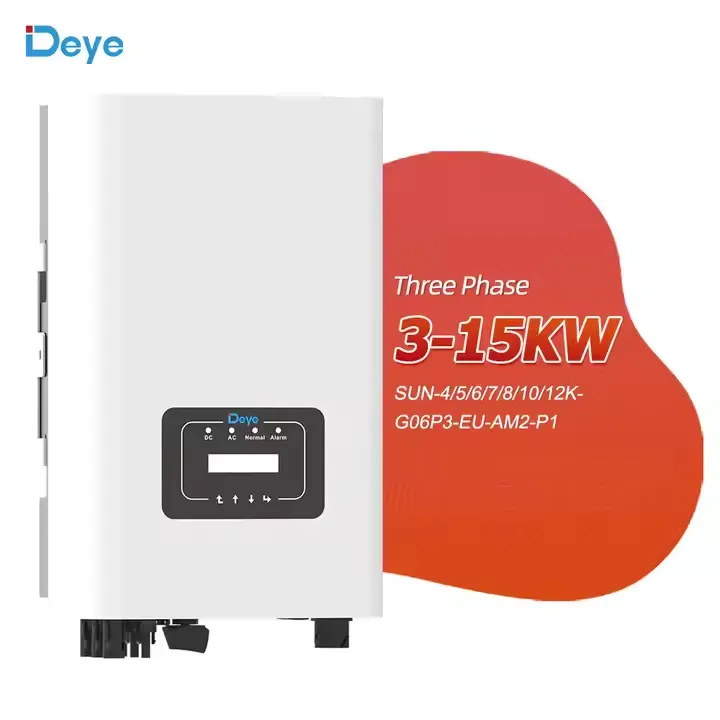

Deye High Quality Three Phase Solar on Grid Inverter SUN 4/5/6/7/8/10/12K G06P3 EU AM2 P1 for Photovoltaic Panel System
Deye High Quality Three Phase Solar on Grid Inverter SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 for Photovoltaic Panel System
Deye High Quality Three Phase Solar on Grid Inverter SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 for Photovoltaic Panel System
Deye High Quality Three Phase Solar on Grid Inverter SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 for Photovoltaic Panel System
Deye High Quality Three Phase Solar on Grid Inverter SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 for Photovoltaic Panel System
Deye High Quality Three Phase Solar on Grid Inverter SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 for Photovoltaic Panel System
Deye High Quality Three Phase Solar on Grid Inverter SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 for Photovoltaic Panel System

Deye High Quality Three Phase Solar on Grid Inverter SUN 4/5/6/7/8/10/12K G06P3 EU AM2 P1 for Photovoltaic Panel System

Share on (1601356742537):


Price:

Quantity:


Product Overview

Description



Product Description






Deye Single Phase On Grid String Inverter
The single-phase inverter is one of the best options for residential application thanks to its smaller size and local LCD display,buttons.Also,with built-in zero-export function (external CT is needed),it offers true ease and comfort for PV system operators and installers.


Specification


SUN-4-12K-G06P3-EU-AM2-P1
Models
4K
5K
6K
7K
8K
10K
12K
PV String Input Data
Max. PV Input Power (kW)
5.2
5.5
9.17.8
7.7
10.4
13
15.6
Max. input voltage
1100 V
Rated voltage
720 V
Start-up voltage
140V
MPPT voltage
140- 1000 V
Max. Operating PV Input Current (A)
13+13
Max. Input Short Circuit Current (A)
19.5+19.5
MPPT/Max. input strings number
2/1+1
Output AC
Rated output power(KW)
4
5
6
7
8
10
12
Max. apparent output power(KW)
4.4
5.5
6.6
7.7
8.8
11
13.2
Rated AC Output Current (A)
6.1/5.8
7.6/7.3
9.1/8.7
10.7/10.2
12.2/11.6
15.2/14.5
18.2/17.4
Max. AC Output Current (A)
6.7/6.4
8.4/8
10/9.6
11.7/11.2
13.4/12.8
16.7/16
20/19.2
Grid Connection Form
3L/N/PE
Power factor
> 0.99 (0.8 leading - 0.8 lagging)
THDi
< 3%
DC Injection Current
<0.5%ln


Efficiency
Max. efficiency
97.3%
97.5%
CEC efficiency
96.9%
97.0%
MPPT Efficiency
>99%


Protection
DC reverse-polarity protection
Yes
AC Output Overcurrent Protection
Yes
AC Output Overvoltage Protection
Yes
AC Output Short Circuit Protection
Yes
Thermal Protection
Yes
DC Terminal Insulation Impedance Monitoring
Yes
DC Component Monitoring
Yes


Ground Fault Current Monitoring
Yes


Arc Fault Circuit Interrupter (AFCI)
Optional


Power Network Monitoring
Yes


Island Protection Monitoring
Yes


Earth Fault Detection
Yes


Overvoltage Load Drop Protection
Yes


Residual Current (RCD) Detection
Yes


Surge protection
DC Type II / AC Type II
General Data
Inverter Topology
Non-Isolated
Grid Regulation
IEC 61727, IEC 62116, EN 50549, NRS 097, RD 140, UNE 217002, G99
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


Packing & Delivery

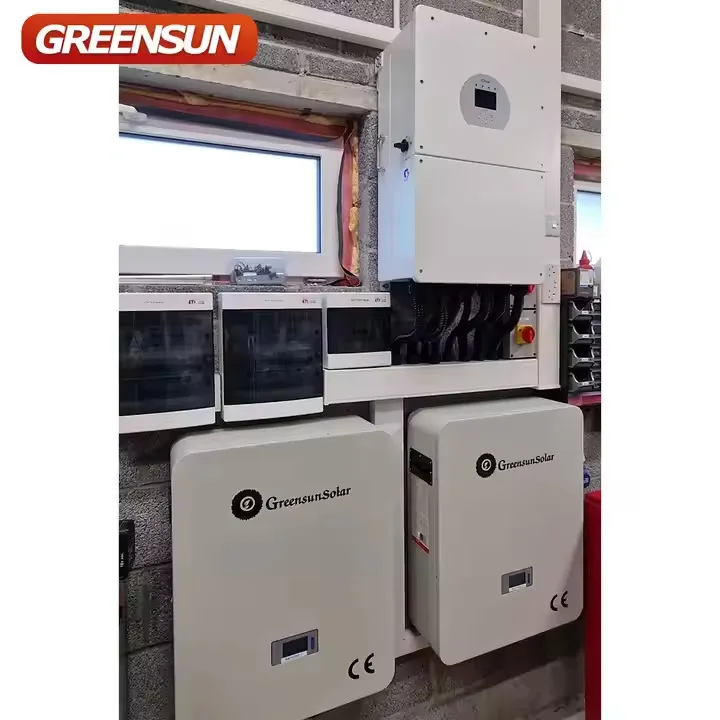

Projects
