Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
Adhesive BOPP OPP Jumbo Roll Tape Printing Slitting Machine For Sale
- Category: >>>
- Supplier: Hangzhou Prime Intelligent Technology Co. Ltd.Hangzhou Ltd.
Share on (1601356779525):
Product Overview
Description
BOPP OPP Adhesive Tape Flexo Printer printing And Slitting Machine Price
Product Description
About Machine:
Inline flexo printing machine has all the printing stations in a horizontal line, which is widely used in printing of aluminum foil, various plastic films, such as OPP, PE, PET, PVC, shrink sleeve, labels, food packaging, paper and other materials. This type of press offers a high print quality and registration accuracy. Registration accuracy is when the ink combinations is aligned precisely on the substrate.
Specification
Main parameter | |
Model | PM350-1200 |
Width | 350-1200mm |
Color | 1-10 colors |
Max. Feeding material width | 350mm |
Max. Effective print length | 600mm |
Printing speed | 100-150m/min |
Max. Effective print width | 350mm |
Repeated printing length | 190.5-609.6mm |
Unwinding unit | |
Roller width | 350mm |
Air diameter | 76mm |
Max. Diameter of unwind | 600mm |
Air shaft | 1PCS |
Printing unit | |
Anilox roller | Ceramic Anilox roller 1 SET ( 1-10PCS) |
Printing roller | 1 SET (1-10 PCS) |
Rewinding unit | |
Diameter of shaft | 76mmф |
Air shaft | 1PCS |
Plate Thickness (Both side adhesive tape included) | 1.14/1.7mm |
Plate mounting tape | 0.38mm |
Printing Materials | Label Sticker/PE,PET,PVC,OPP/Aluminum Foil/Paper/Paper Cup/Paper Bag,etc. |
Details Images
Unwinding Unit+ Rewinding Unit
Paper changing unit, with a normal maximum unwinding diameter of 600mm.

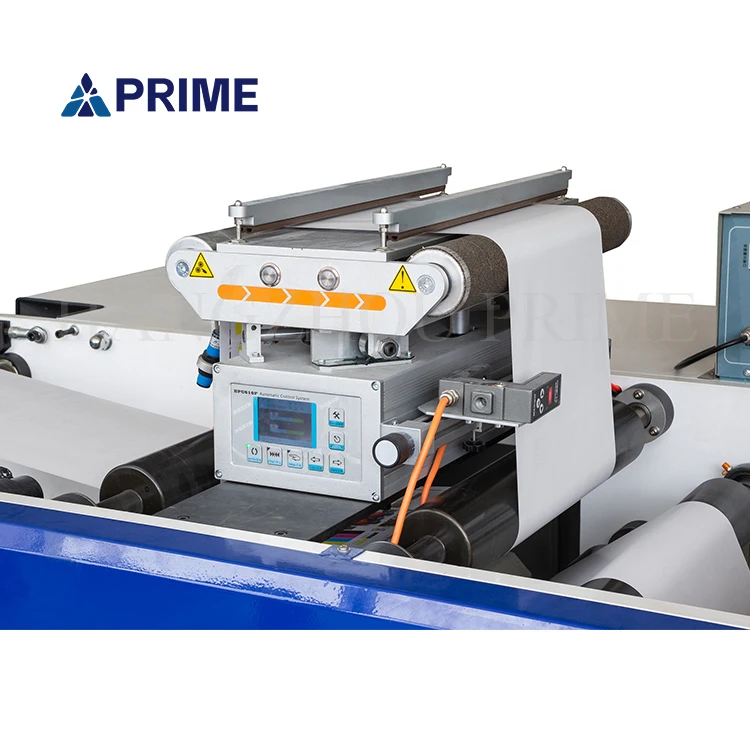

Auto Web Guide
The photoelectric sensor is used to detect the material and correct the deviation of the web to the correct position.
Tension Control
Use it to adjust the tightness of the material.
Hot Air Dryer
Hot air drying can speed up printing and improve printing quality.

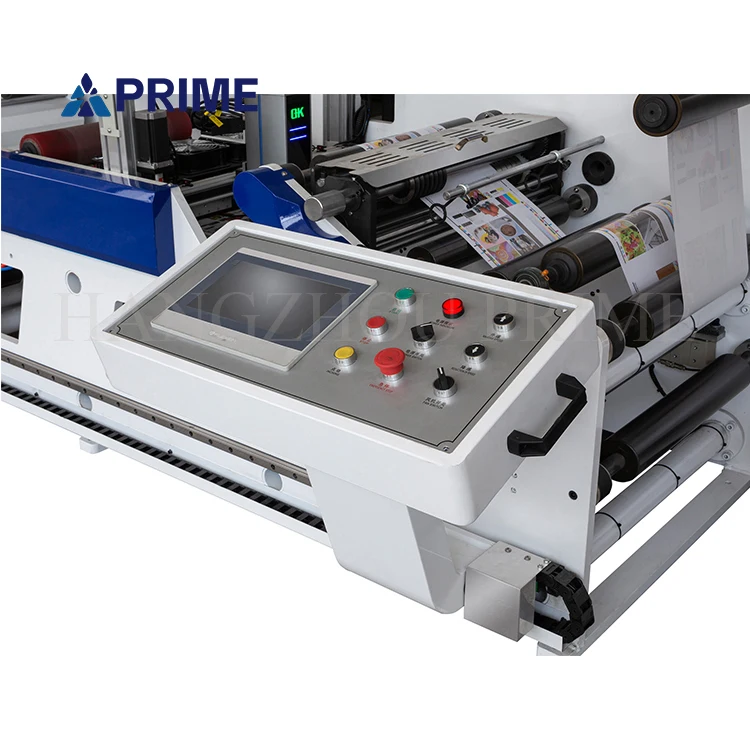

PLC Control Panel
With fast cold foil stamping speed and high efficiency, the connected movable type cold foil stamping device can saturate the color and add a effect to the graphics and text.
Independent Speeding
Independent unwinding and maximum diameter up to 1000mm.
Corona Treater
Ceramic corona can be used on aluminum foil materials.

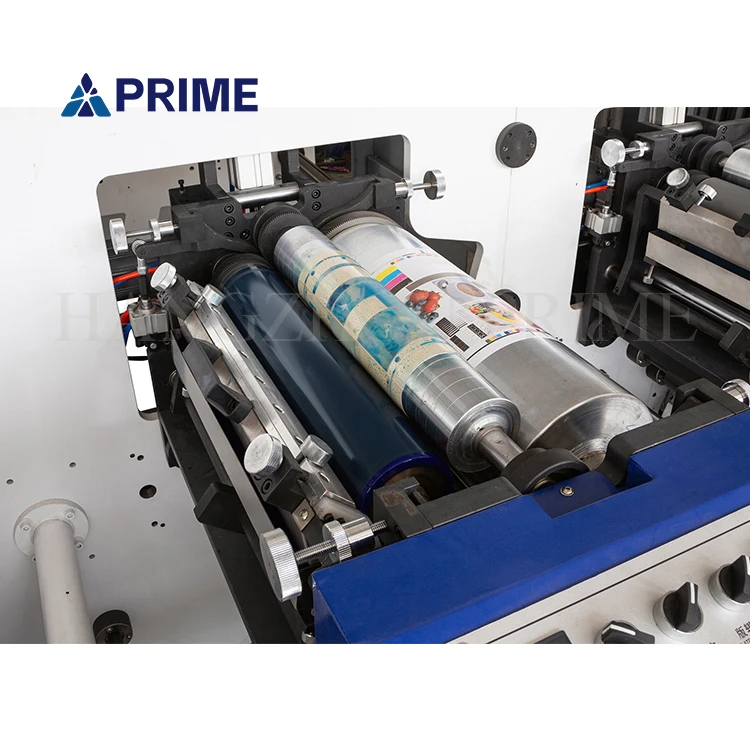

Color Printing Unit
It is including: ceramic anilox roller, printing rubber roller, doctor blade, helicar gear.
UV Dryer
High drying intensity, short drying time and high thermal efficiency.
LED UV Dryer
LED UV has high light radiation energy, stable light output, good uniform illumination effect, low power consumption, and improves production efficiency. Configuration LED UV Water Chiller LED UV Electrical Control Cabinet.
Video Inspection System
It is used to check the printing quality in real time while the machine is working. The main purposes are to reduce waste, maximize productivity and improve printing quality.
Visual Overprint With Camera
Through control and adjustment, precise printing and automatic color registration of multiple colors can be achieved.
#Single Servo # # Double Servo#
Servo Motor
Each color group is equipped with a servo motor control the speed and the posit1 on accuracy is very accurate.
Offset Printing System
Print on the side coated with adhesive.
Turn Bar
When the printing material needs to be printed on both sides, the turn bar can be used to achieve one-time completion.

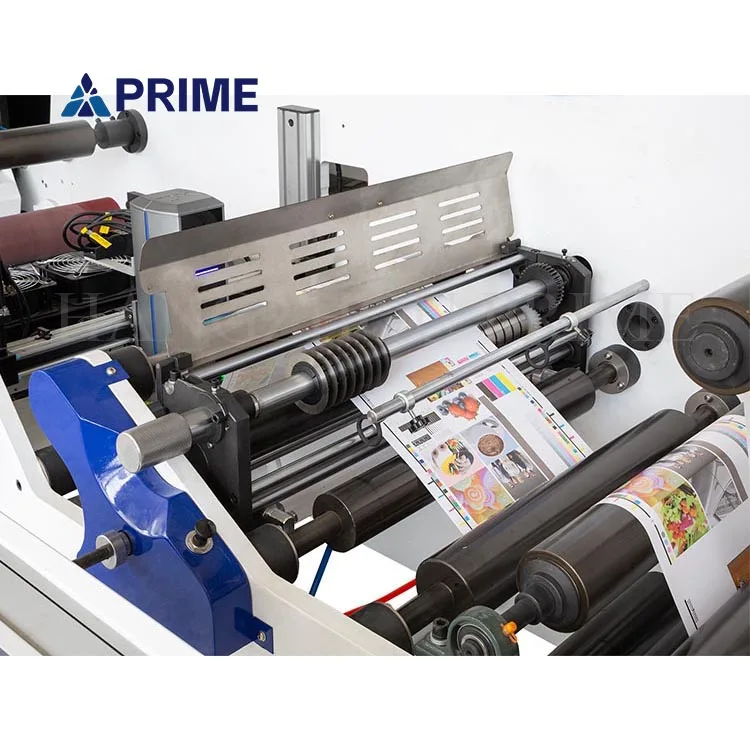

Slitting Unit: Pneumatic circular knives
Air knives can be installed as required.
Die Cutting Unit
It is suitable for self-adhesive materials, and can die-cut labels of different shapes through customized magnetic cylinders and
flexible dies.
flexible dies.
Electric crane
It is an electric lifting device and is used to change magnetic cylinder of different specifications. It is convenient, quick, and saving time and effort.
Cold Foil Stamping
With fast cold foil stamping speed and high efficiency, the connected movable type cold foil stamping device can saturate the color and add a effect to the graphics and text.
Samples
Company Profile
Packing & Delivery
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
