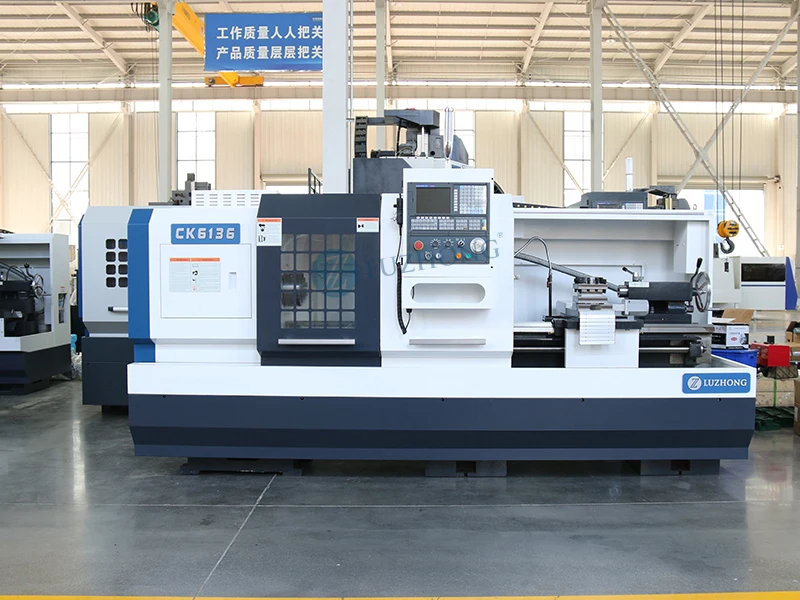

FANUC/SIEMENS/GSK CNC Lathe Machine tornos cnc CK6136 Metal torno cnc fanuc cnc lathe machine
- Category: >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.Shandong Ltd.
Share on (1601356874323):
Product Overview
Description
Products Description
* Regarding Precision, consider the spindle accuracy of the CNC lathe, as higher spindle accuracy can help you achieve more precise machining results.
* For Automation, look into the availability of automated tool changers, which can significantly increase efficiency and reduce manual intervention.
* Concerning Durability, the material of the lathe bed is crucial; cast iron beds tend to offer better vibration damping and
stability compared to other materials.
* For Automation, look into the availability of automated tool changers, which can significantly increase efficiency and reduce manual intervention.
* Concerning Durability, the material of the lathe bed is crucial; cast iron beds tend to offer better vibration damping and
stability compared to other materials.
*Regarding Power, consider the spindle motor power, as higher power can handle tougher materials and larger workpieces more efficiently.
*For Control System, look into the type of CNC control system (e.g., FANUC, Siemens) as different systems offer various levels of user-friendliness and compatibility with software.
*Concerning Tooling Capacity, the number of tool stations in the turret can affect the versatility and efficiency of your machining operations.
*For Control System, look into the type of CNC control system (e.g., FANUC, Siemens) as different systems offer various levels of user-friendliness and compatibility with software.
*Concerning Tooling Capacity, the number of tool stations in the turret can affect the versatility and efficiency of your machining operations.
Specifications
SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 | CK6160 |
Swing over bed | mm | 360 | 400 | 500 | 600 |
Swing over cross slide | mm | 190 | 210 | 260 | 350 |
Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) |
Spindle bore taper | - | MT6 | MT6 | MT6 | MT6 |
Spindle nose type | - | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) |
Spindle speed steps | rpm | Stepless | Stepless | Stepless | Stepless |
Spindle speed range | 1800 | 1800 | 1800 | 1800 | |
Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position |
Tool size | mm | 20*20 | 20*20 | 25*25 | 25*25 |
X axis travel | mm | 180 | 200 | 250 | 300 |
Z axis travel | mm | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 |
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 |
Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 |
Tailstock quill diameter | mm | 65 | 65 | 65 | 65 |
Tailstock quill taper | - | MT4 | MT4 | MT5 | MT5 |
Tailstock quill travel | mm | 140 | 140 | 140 | 140 |
Main spindle motor | kw | 5.5 | 5.5 | 5.5 | 5.5 |
Coolant pump motor | kw | 0.125 | 0.125 | 0.125 | 0.125 |
Weight for 750 | kg | 1500 | 1550 | 1600 | 1700 |
Weight for 1000 | kg | 1600 | 1650 | 1700 | 1800 |
Weight for 1500 | kg | 1800 | 1850 | 1900 | 2000 |
Weight for 2000 | kg | 2000 | 2050 | 2100 | 2200 |
Dimension for 750 | mm | 2200*1600*1650 | 2200*1650*1700 | 2200*1700*1750 | 2200*1750*1800 |
Dimension for 1000 | mm | 2500*1600*1650 | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 |
Dimension for 1500 | mm | 3000*1600*1650 | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 |
Dimension for 2000 | mm | 3500*1600*1650 | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 |

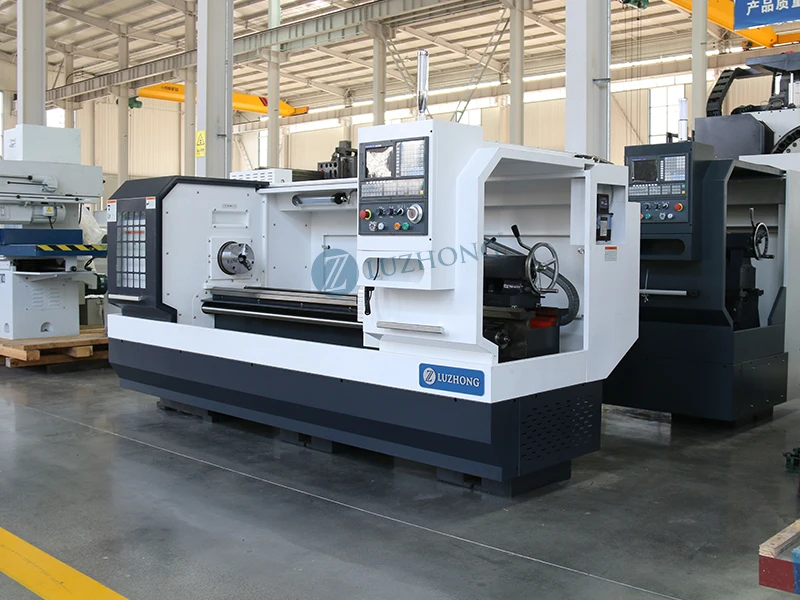

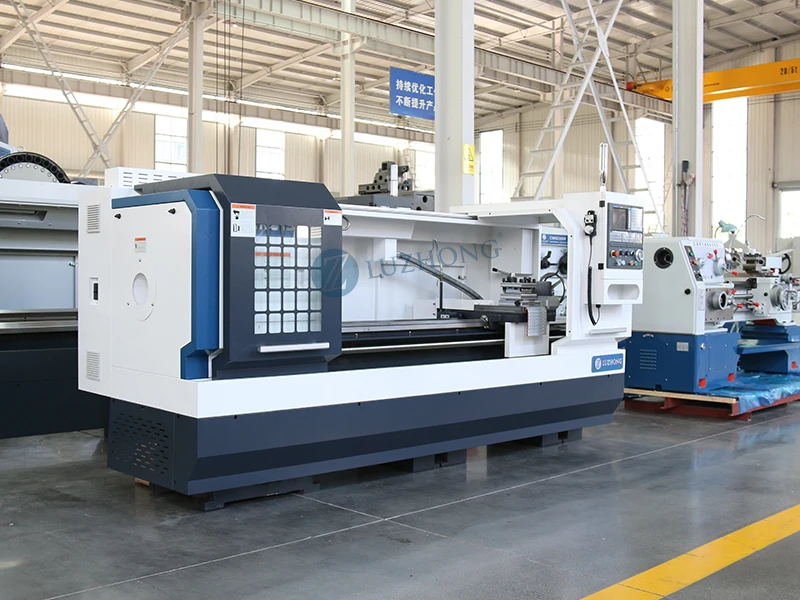

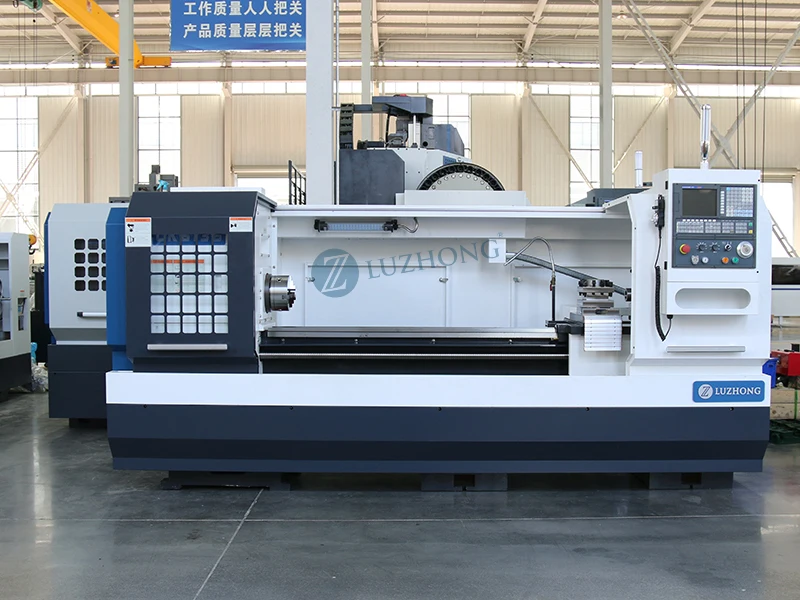

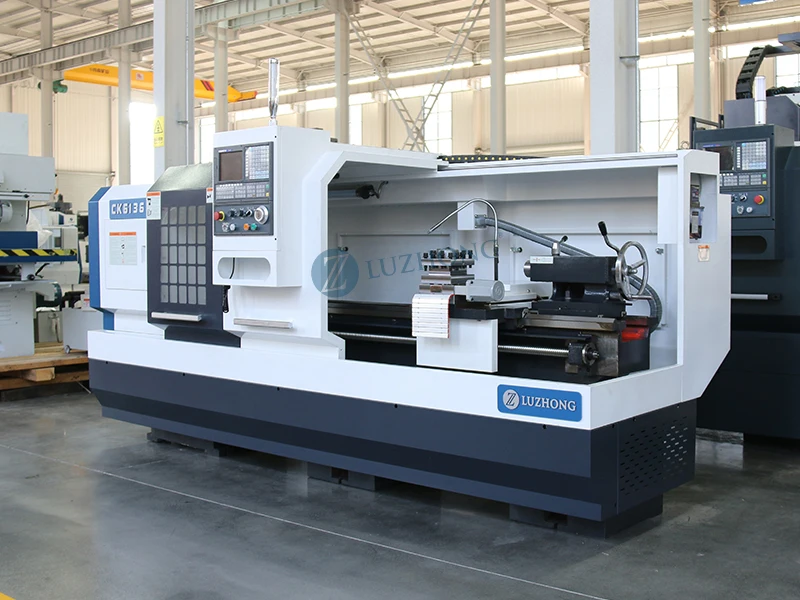

Details Images
MACHINE CONSTRUCT
High strength high quality cast iron
HARD GUIDEWAY
1. High frequency quenching guide rail with hardness HRC52
2. One mountain, one flat guideway
3. Guide width 360mm
2. One mountain, one flat guideway
3. Guide width 360mm
SPINDLE SPEED
Stepless spindle speed
SPINDLE BORE
Standard Spindle bore 52mm, 80mm as optional
Standard Spindle bore 52mm, 80mm as optional
CNC CONTROL SYSTEM
Standard:GSK 980 controller system.
MANUAL CHUCK
Standard: 3-jaw manual chuck
ELECTRIC TOOL POST/TURRET
Standard with 4 position electric tool post
TAILSTOCK
Standard with Manual tailstock
ELECTRICAL COMPONENTS
Standard With Schneider safety electrical components
TESTING
Each machine passed Renishaw laser interferometer testing

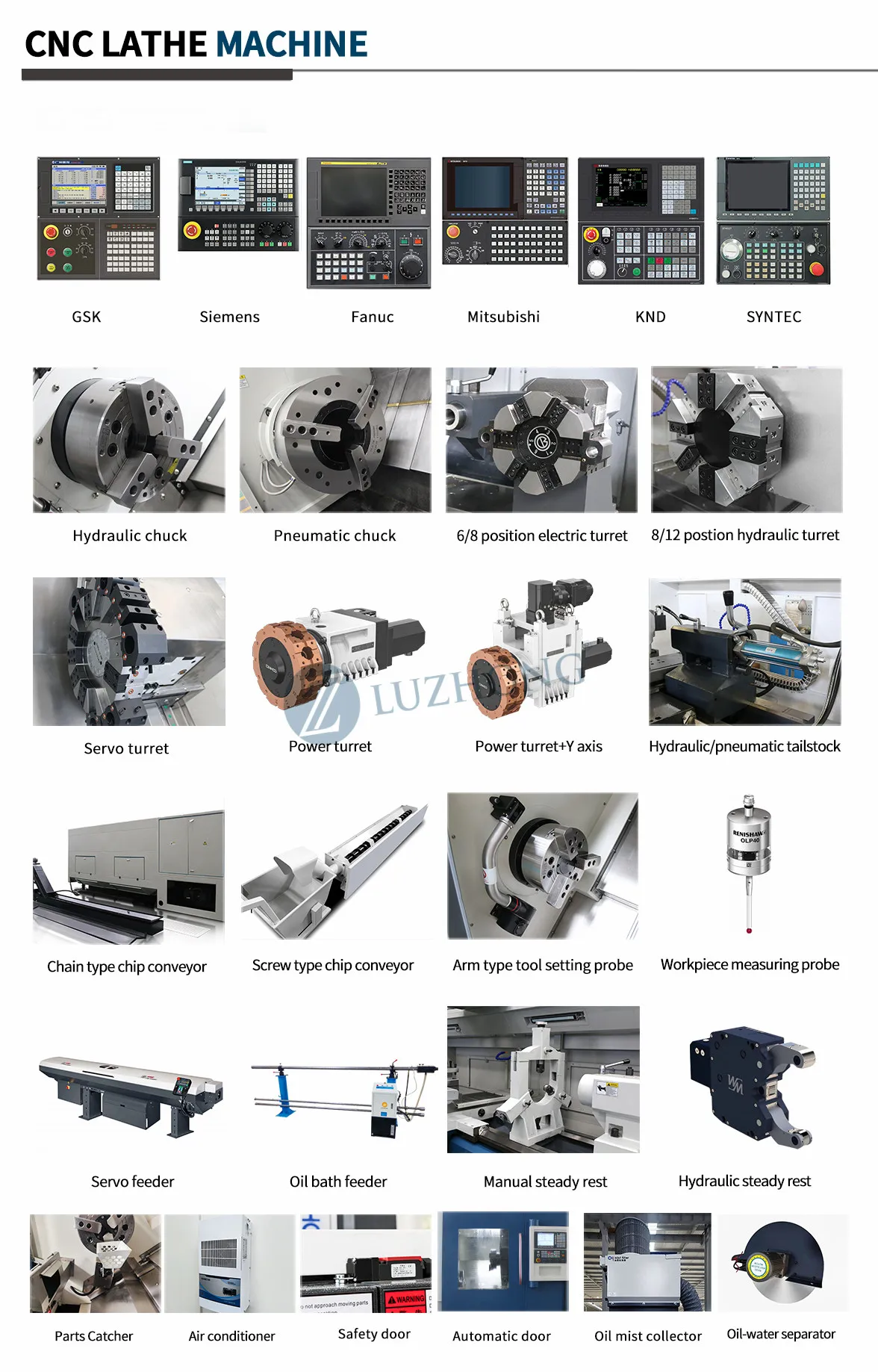

Optional Configurations
Recommend Products

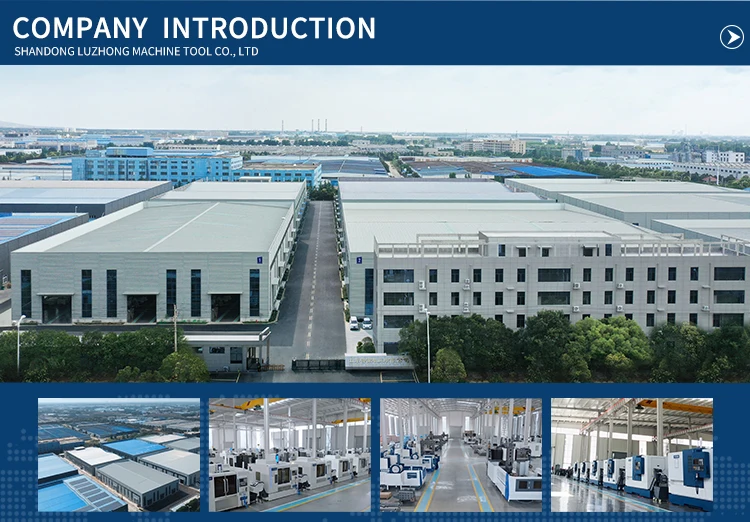

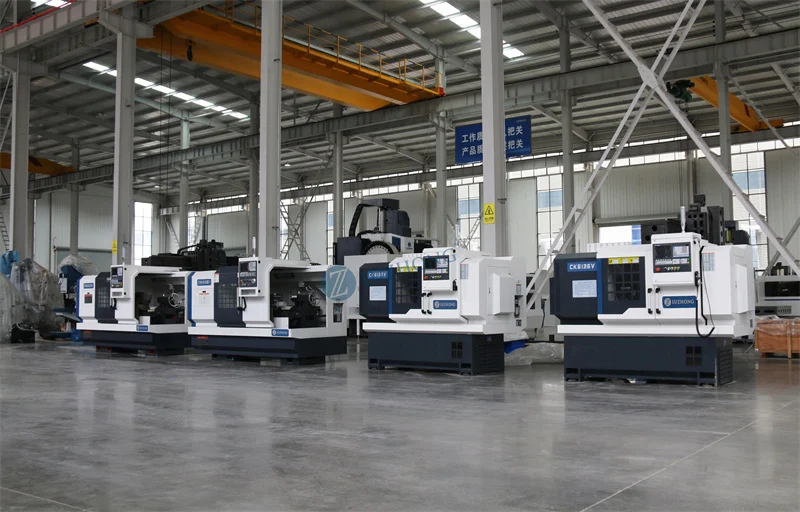

Company Profile
Shandong Luzhong Machine Tool has :
● More than 80,000m² of the factory with more than 200 workers.
● Strictly QC control with more than 24 steps testing processes
● 30+ years CNC machine manufacture experience factory
● 24 hours online service at any time
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
● Strictly QC control with more than 24 steps testing processes
● 30+ years CNC machine manufacture experience factory
● 24 hours online service at any time
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
● Support ODM OEM.
● Warranty time is 18 months。
● Warranty time is 18 months。
Shandong Luzhong Machine Tool co.,Ltd. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries .
.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
