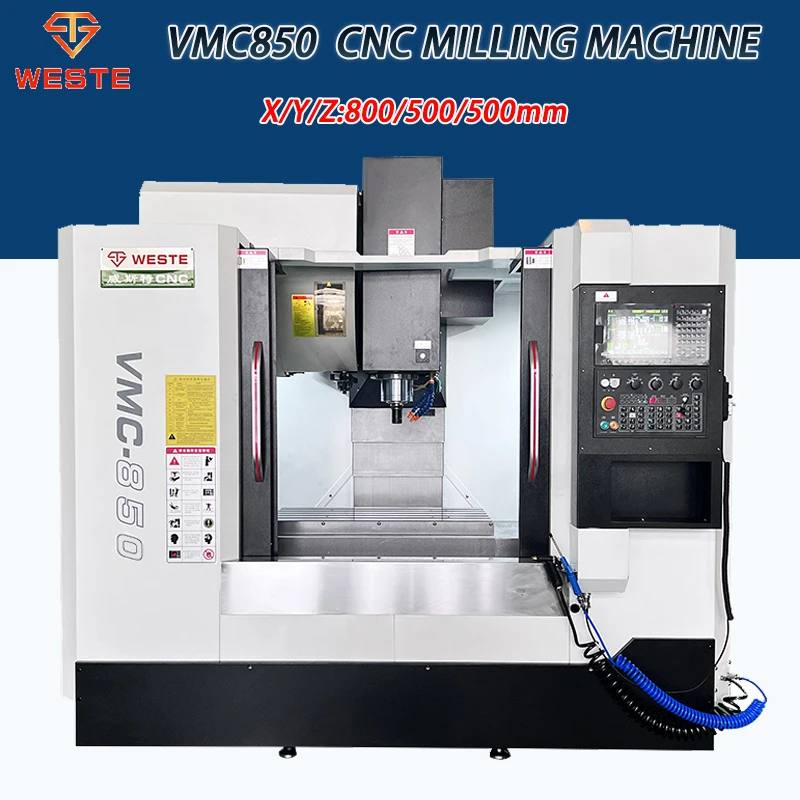

hot selling machine centre cnc vertical machining center machining centre & parts
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.Shandong Ltd.
Share on (1601356896065):
Product Overview
Description

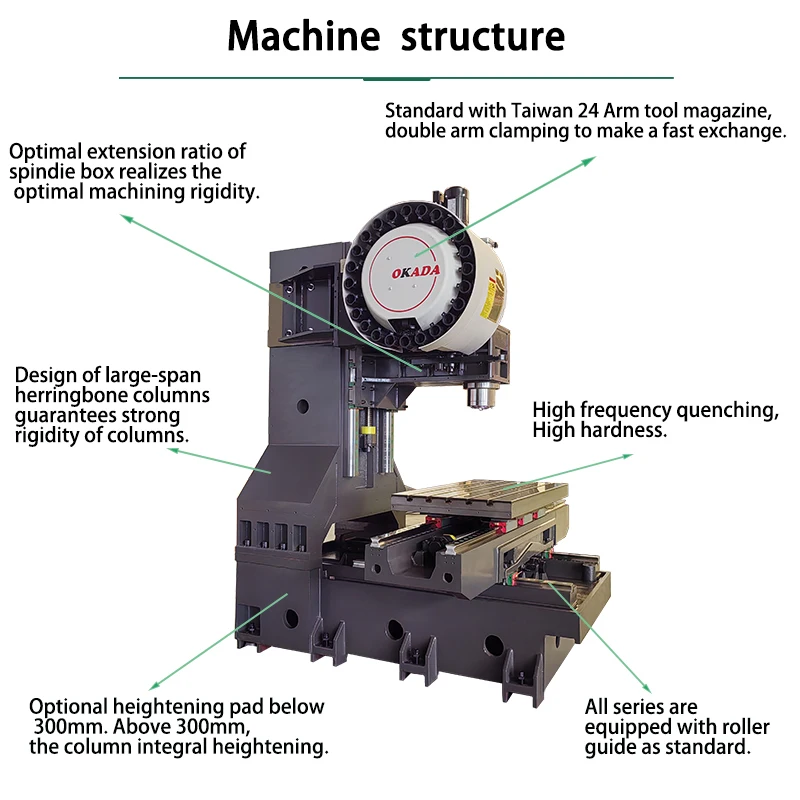

Features of machining center
Features of machining center
High quality resin sand cast iron
Taiwan main axis
Taiwan ball screw and lock nut
Taiwan booster cylinder
NSK bearing in Japan
German R + W couplingAutomatic lubrication system
Selection of chip conveyor
specifications | unit | VMC850 | VMC855 | VMC1160 |
Table size | mm | 1000*500 | 1000*550 | 1200x600 |
Max.table load | kg | 500 | 500 | 800 |
X axis travel | mm | 800 | 800 | 1100 |
Y axis travel | mm | 500 | 550 | 600 |
Z axis travel | mm | 500 | 550 | 600 |
Distance between spindle center and column surface | mm | 620 | 630 | 650 |
Distance between spindle nose and table surface | mm | 120-630 | 120-670 | 120-720 |
T slot | mm | 5-18-90 | 5-18-90 | 5-18-100 |
Spindle taper | BT40 | BT40 | BT40 | |
Max. spindle speed | rpm | 8000-12000 | 8000-12000 | 8000-12000 |
Main motor power | kw | 7.5-11 | 7.5-11 | 11/15 |
X/Y/Z axis servo motor torque | N.M | 15/15/22 | 15/15/23 | 22/22/22B |
X/Y/Z motor connection | direct | direct | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | 3 axis linear guide rail | 3 axis linear guide rail | |
Automatic tools changer | 24 arm type | 24 arm type | 24 arm type | |
X/Y/Z axis rapid traverse | M/min | 30/30/24 | 30/30/24 | 30/30/24 |
Cutting feed speed | M/min | 10 | 10 | 10 |
Position accuracy | mm | 0.005 | 0.005 | 0.005 |
Repeat positioning accuracy | mm | 0.003 | 0.003 | 0.003 |
Machine dimension | mm | 2600/2300/2500 | 2700*2350*2450 | 2850/2450/2550 |
Machine weight | kg | 5000 | 5500 | 6800 |
Optional configuration
4-axis machining
Optional configuration
5-axis machining
TAIWAN PRECISION LINEAR RAILS
1. Brand: HIWIN or PMI2. Taiwan high speed roller linear guide rail ,largebearing capacity, smallfriction loss, long servicelife.
ADOPTS Taiwan LINE RAIL
1. Brand: HIWIN or PMI2.It has the characteristics of good rigidity and high precision.

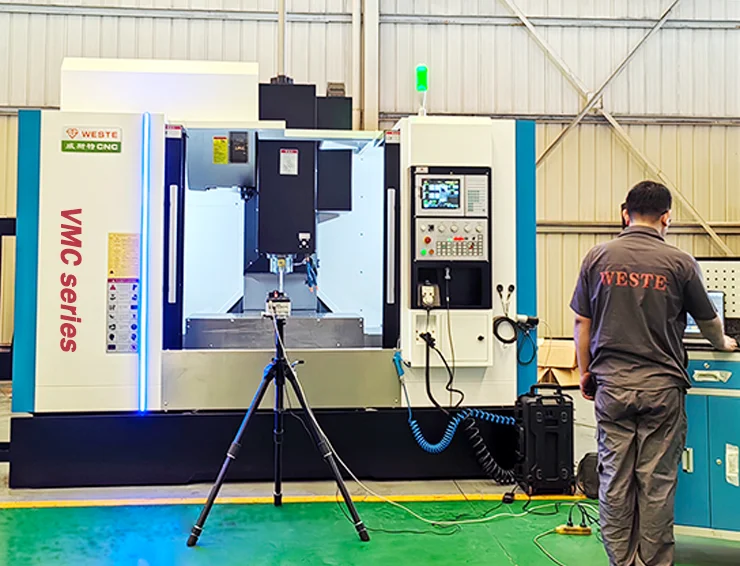

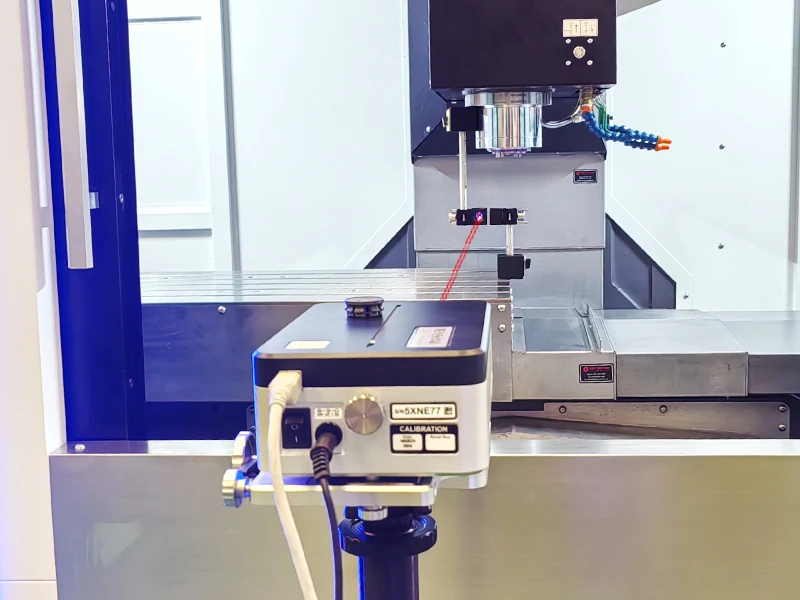

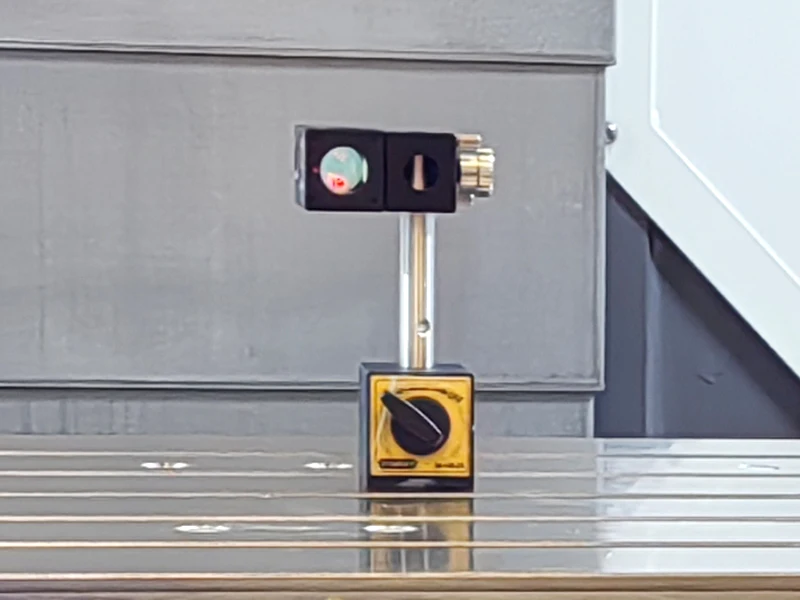

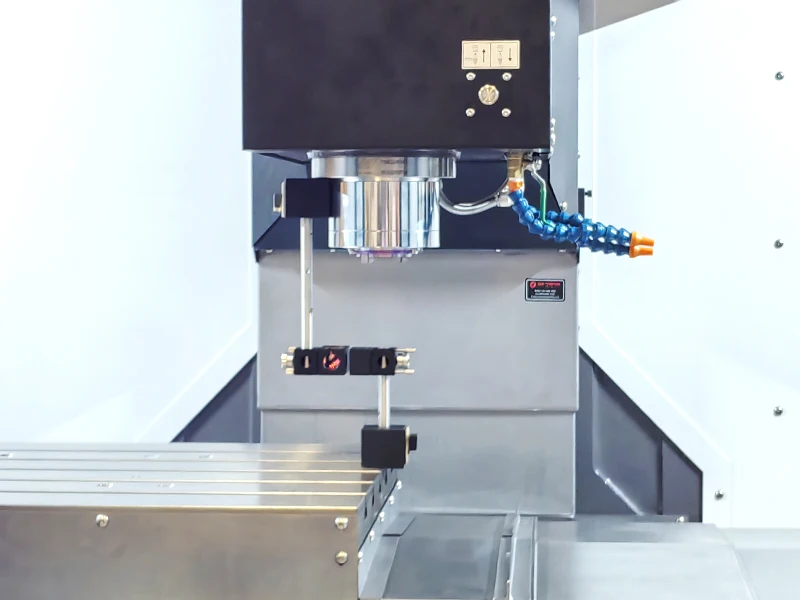

Each machine passed Renishaw laser interferometertesting

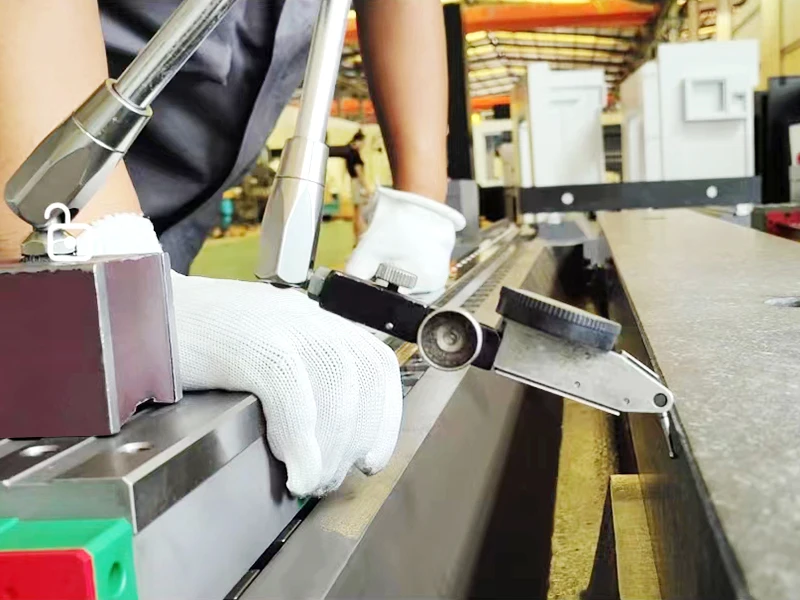

Quantitative manufacturing process
Carefully search for each accuracy: spindle runout, spindle verticality, workbench parallelism and verticality,
thescraping'grinding criterion, etc. The manufacturing process should be largely quantified, so as to improve product consistency
and accuracy retention.
thescraping'grinding criterion, etc. The manufacturing process should be largely quantified, so as to improve product consistency
and accuracy retention.
CONTROL SYSTEM
CNC control system canchoosed.
Like KND/GSK/Siemens/FANUC/MitsubishAnd other good system.
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, double arm clamping to make a fast exchange. tool change time only 2 seconds.
High-frequency hardening table
Wear-resistant cast iron, featuring a strong load-bearing capacity.
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40
2. Spindle speed 8000rpm , can enlarge to 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
2. Spindle speed 8000rpm , can enlarge to 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
SCHNEIDER ELECTRICAL
1. with Schneider safety electrical components
2. quick plug as standard
SERVO MOTOR
The unity of the system and servo motorensures the product quality
COOLING SYSTEM:
Oil circulating oil cooler for spindle。(Optional configuration)
BALL SCREW
High movement efficiencylow fever, high speed feed.
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

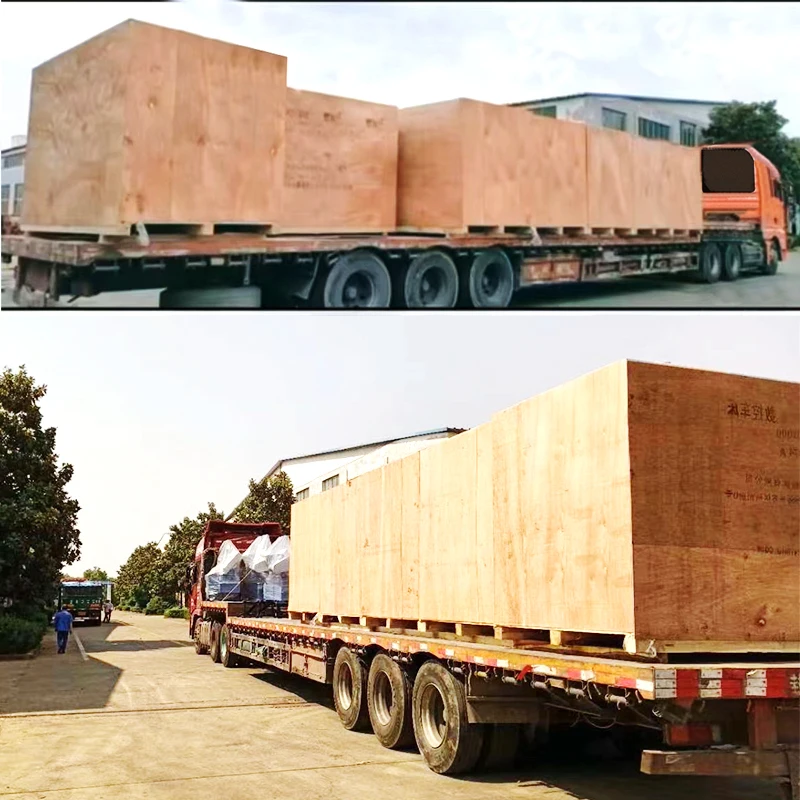

Transportation
Secure delivery ：Professional goods shipping forwarder.

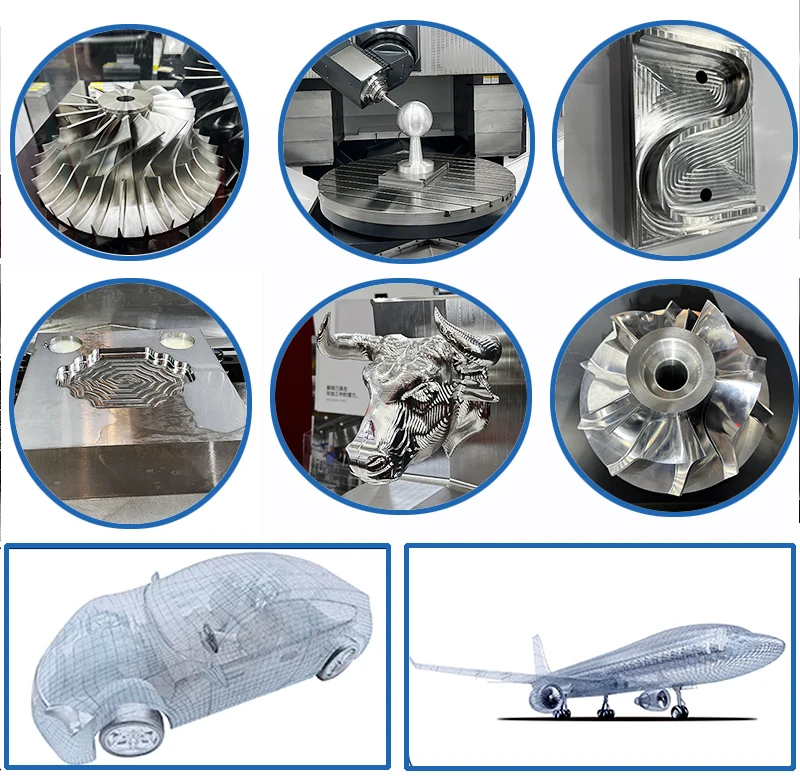

This VMC is suitable for mechanical processing and mold making ,And it can asapt to the processingrequirement from rough
Scope of application: Milling, drilling, boring, twisting, tapping and other multi-program wage efficient processing.
Suitable for processing plates, plates, shells, abrasives, etc.
Batch processing of parts with high precision, multiple processes and
complex shapes.
It can effectively improve the processing efficiency.
International level production
Shandong weste Machine Tool Co.,Ltd, Has got many international certifications suchas CE, BV, TUV, SGS, and patents. Our machines have been exported to morethan 100 countries and regions, covering North America, Europe, Europe, South America,Middle East, and Southeast Asia. And we provide long-term overseas technical guidanceand after-sales service for these countries .
1.Q: Are you a factory or a trading company?
A: We are factory.
2.Q: What are your payment terms?
A: T/T,credit card,paypal, L/C..
3.Q:How long is the delivery time?
A: 10 days(in stock).

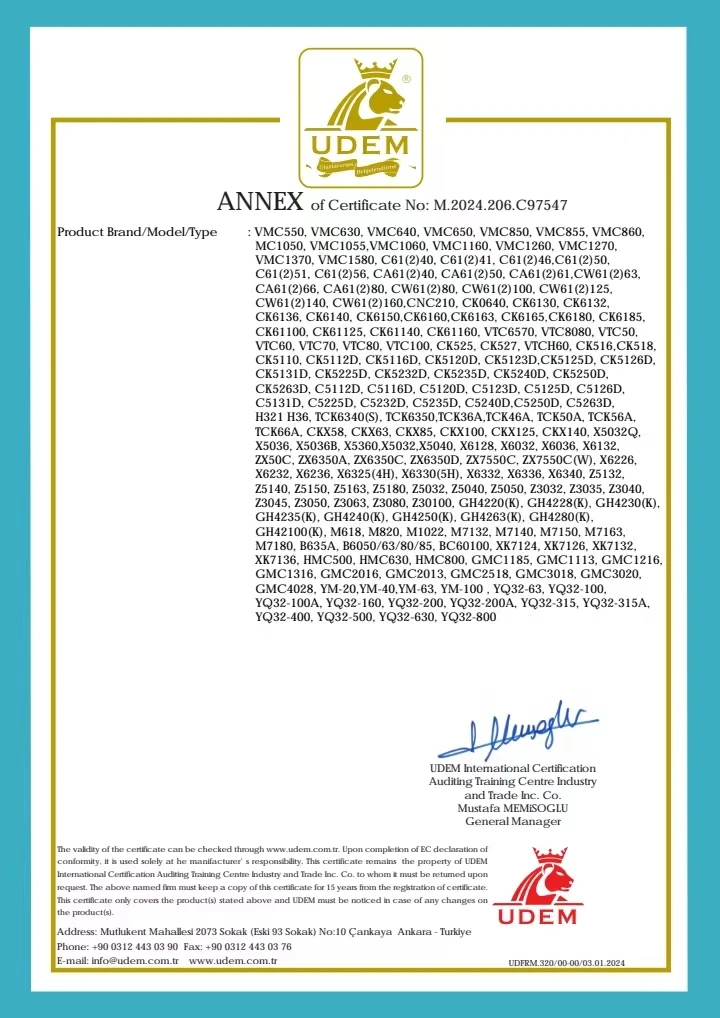

4.Q: Do you have CE certification?
A: Yes, we have multiple certifications above
5.Q: How long is the warranty period?
A: 12+1 months.
6.Q: Which countries have you sold to?
A: We sell to more than 80 countries and areas,especially Europe &America market.
A: We are factory.
2.Q: What are your payment terms?
A: T/T,credit card,paypal, L/C..
3.Q:How long is the delivery time?
A: 10 days(in stock).
4.Q: Do you have CE certification?
A: Yes, we have multiple certifications above
5.Q: How long is the warranty period?
A: 12+1 months.
6.Q: Which countries have you sold to?
A: We sell to more than 80 countries and areas,especially Europe &America market.
7.Q: what fields are your products used in ?
A: Moldsprocessing , railway,ships,etc.
A: Moldsprocessing , railway,ships,etc.
Note:Our customer service will track the product processing until you received
thegoods and verify the product quality. We would like to offer professional
servoce ifyou need ,welcome you offer us morerespond,sugges-tion and requirement.
thegoods and verify the product quality. We would like to offer professional
servoce ifyou need ,welcome you offer us morerespond,sugges-tion and requirement.
