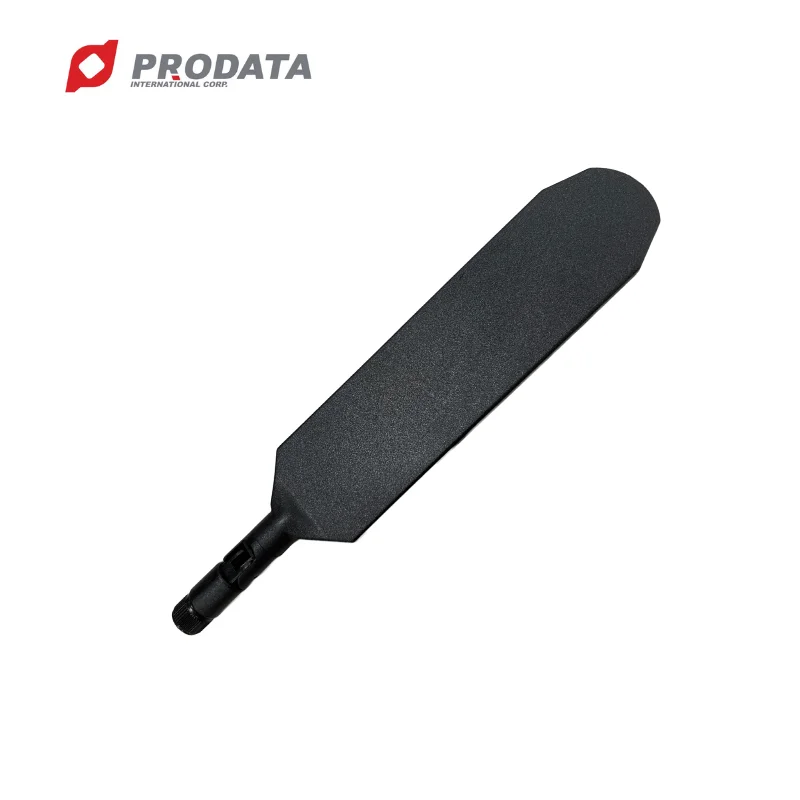

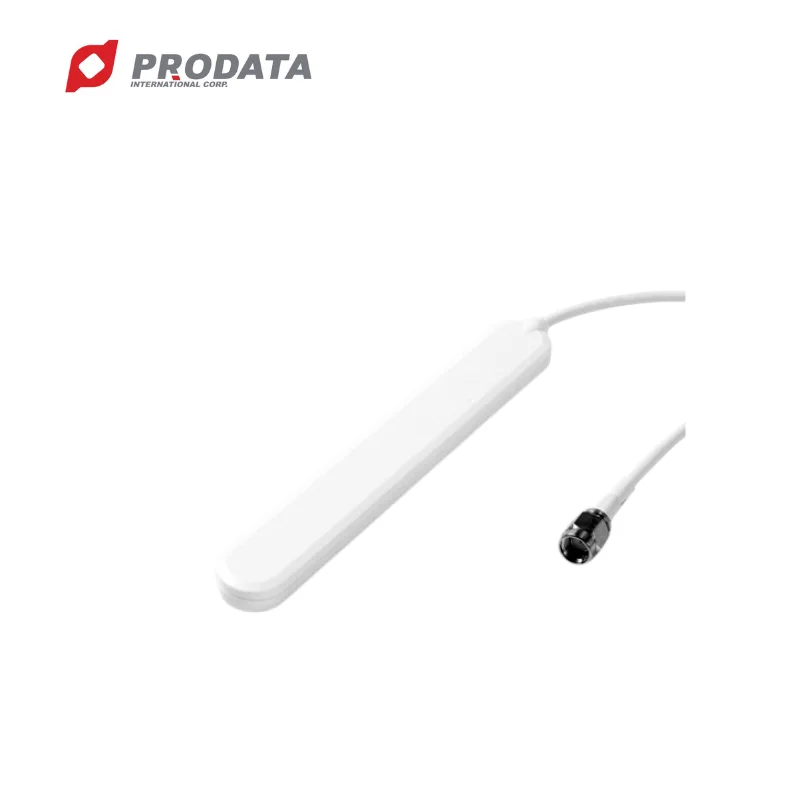

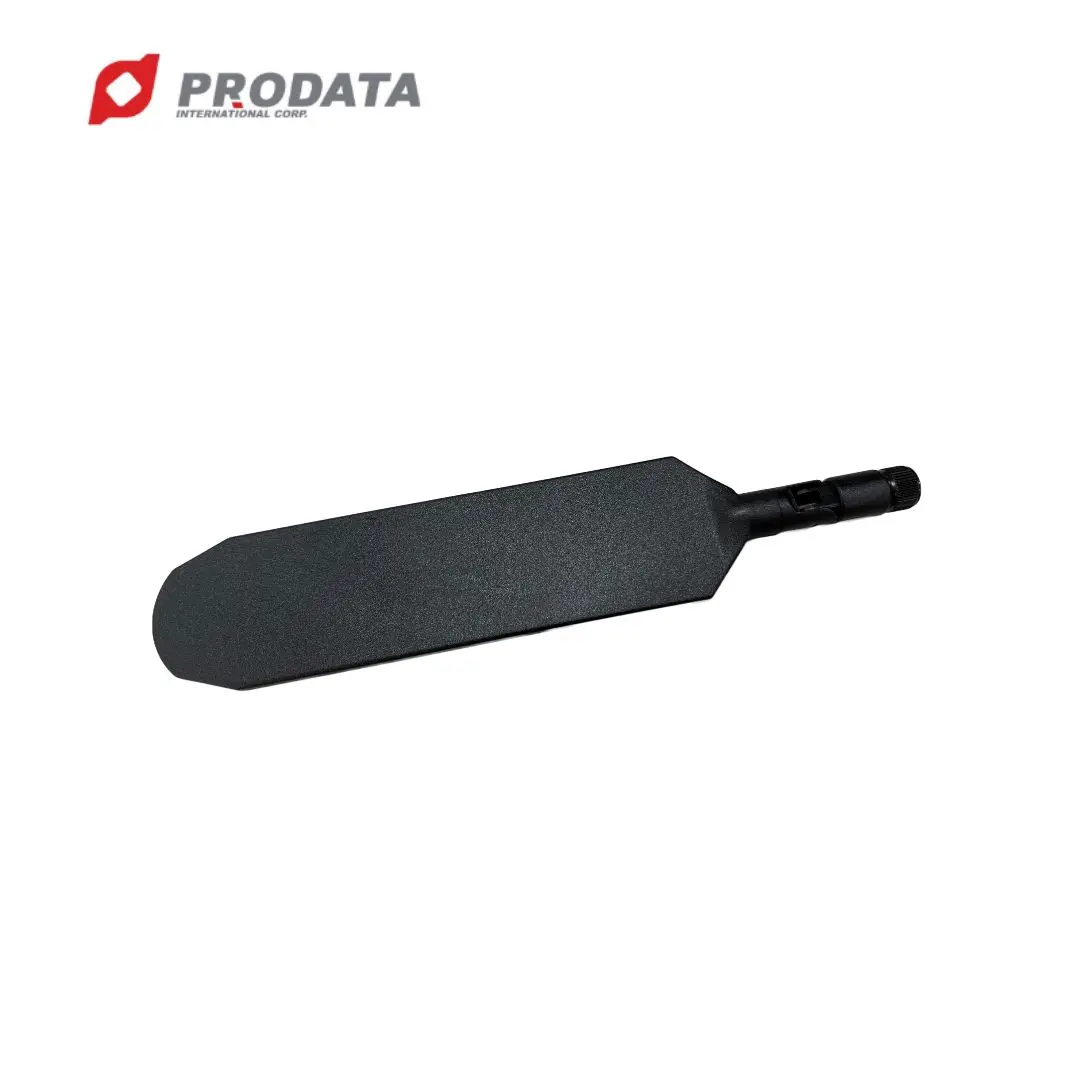

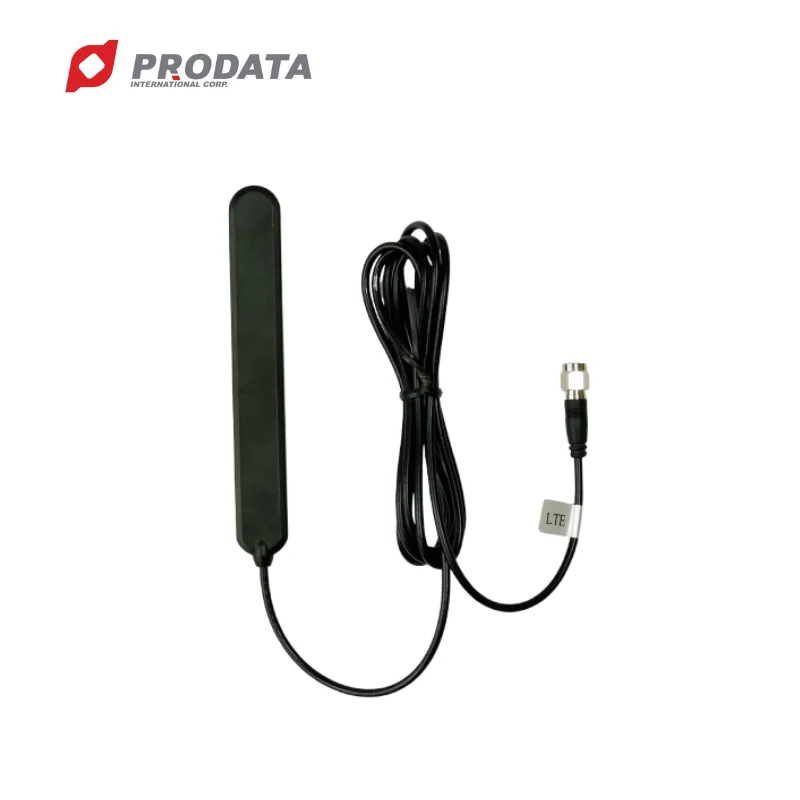

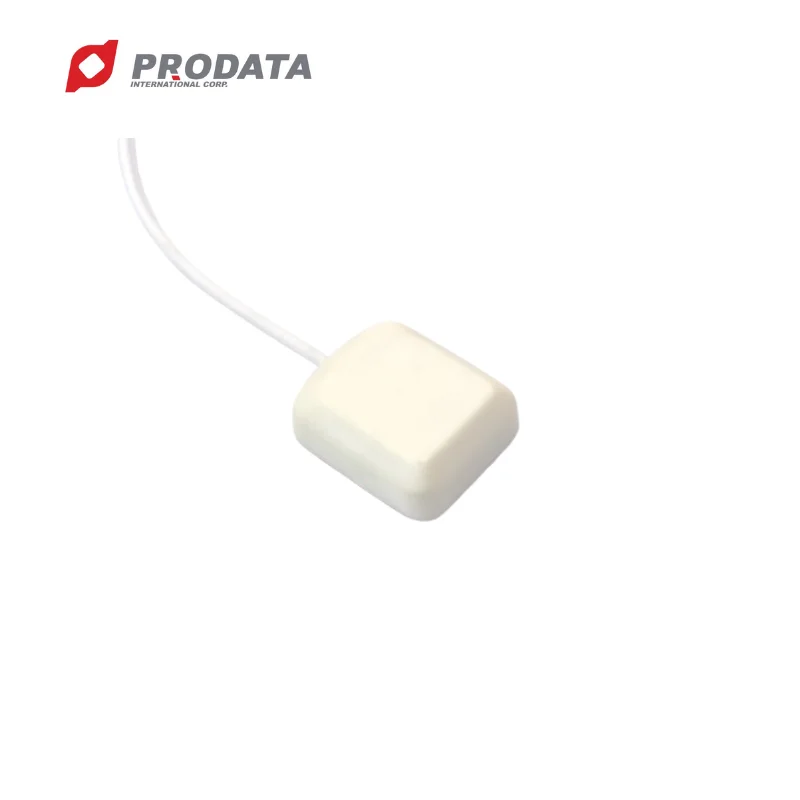

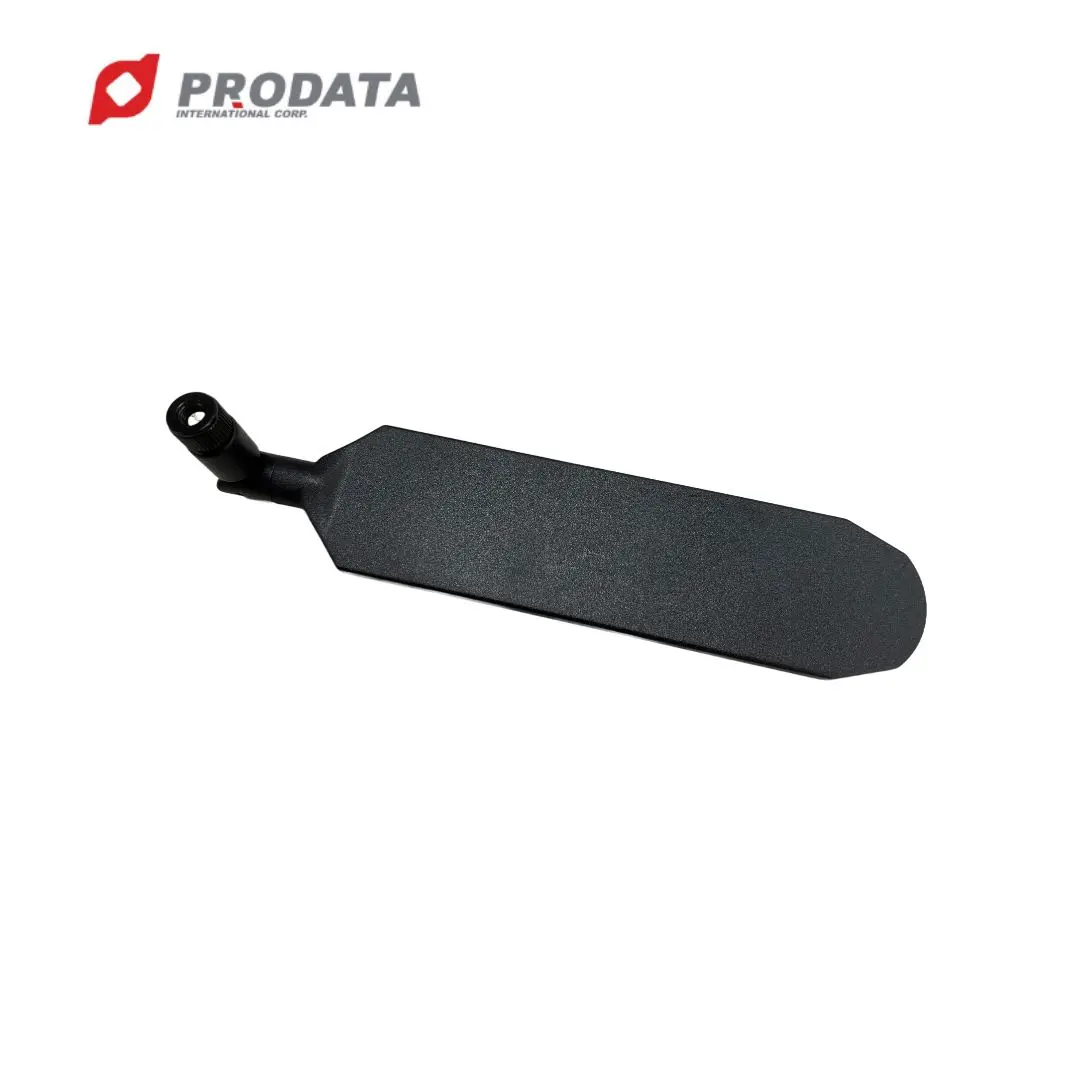

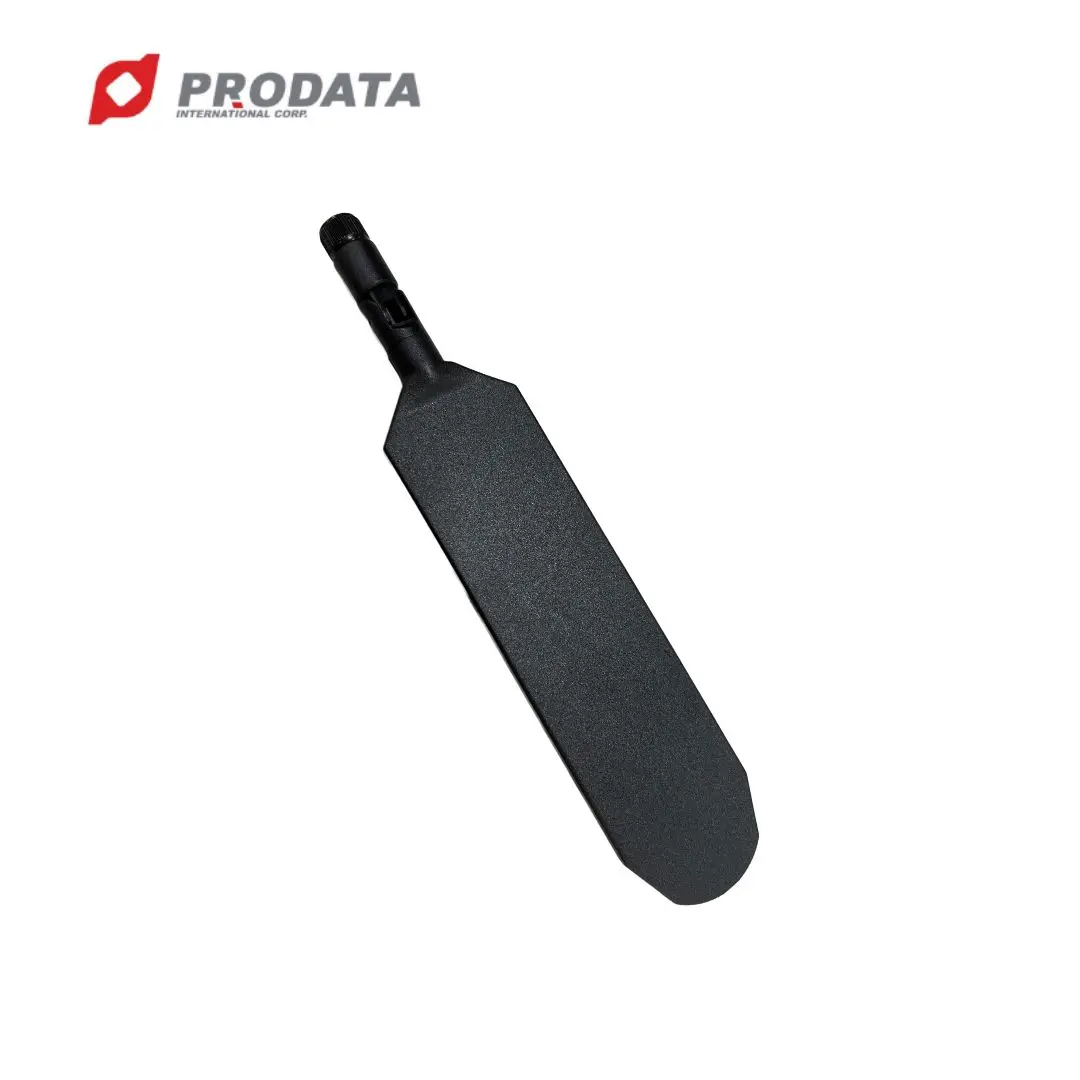

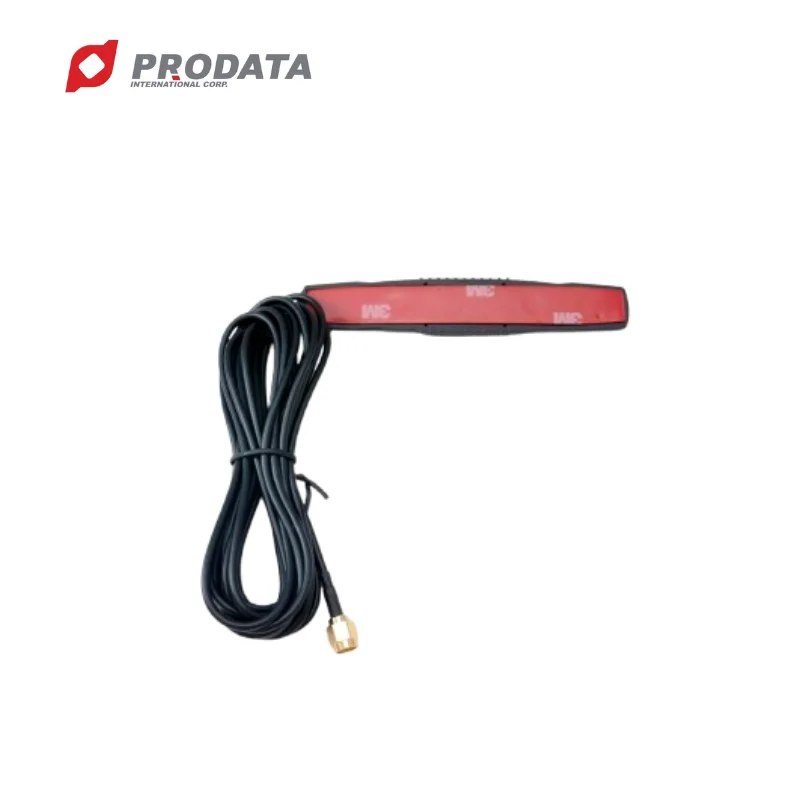

wifi antenna for cars
- Category: >>>
- Supplier: PRO-DATA INTERNATIONAL CORP.PRO-DATA CORP.
Share on (1601357545933):
Product Overview
Description
Details Images
Application
Product Description
DAB Antennas | GPS /Glonass Antennas | WLAN | 4G/5G | ISM | |
Frequency | 174-240Mhz | 1575.42 to 1602Mhz | 600~3800MHz, 2.4~5Ghz | 790-2600MHz, LTE, 5G, UHF | 790-2600MHz, LTE, 5G, UHF & LoRa |
VSWR | <2.0:1 | 1.5 to 1.8:1 | 2.0 to 2.5 | 2 | 2 |
Gain | 3dBi to 19dB±2 | 4 dBi to 2dB | 1.8dBi ~3.5dBi, 1~3.5dB | 1.8 dBi to 3.5dBi | |
Cable | RG174/U | RG174/U | COAX Cable | RG174 | RG174 |
Voltage | 5~12V (optional) | 2.7V to 5.5V | 3.3~12V | 3-12V | 3-12V |
Current Consumption | 4mA to 26mA @12V | 9mA ± @ 5V to 25mA@ 5V | 12mA @3V,40mA @12V | 12~40mA | 12-40mA |
Connector | SMB, SMA, F | SMA,SMB,SMC | SMA | RF connector | RF connector |
ESD protection | IEC61000-4-2 (ESD) | IEC61000-4-2 (ESD) | IEC61000-4-2 (ESD) | IEC61000-4-2 (ESD) | IEC61000-4-2(ESD) IEC61000- 4- 4(EFT) |
Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
For More Products
Radio antenna | |
ISM antenna | |
4G/5G antenna | |
WLAN antenna | |
GSM antenna | |
DTV antenna | |
Dual band antenna | |
GPS antenna | |
DAB antenna |
Company Information
Packaging & Shipping
FAQ
1.Can we have our own tailor-made project?
Yes, PRODATA is an experienced OEM/ODM wire harness & cable assembly supplier.we can support your custom project.
2.Where do you produce those product?
We produce most of our product in Taiwan, with some material supplier-chain both in Taiwan & China, this ensure us to organize your custom project efficiently and economically.
3.What's the MOQ?
MOQ is 100 PCS. But it also depends on the material you specify, some might need higher MOQ to make it available , while others can be available with low q'ty for the first trial order .
4.Why Choose us?
a. Dedicating most cutting edge solution and apply state- of -the-art equipment enable us to offer you quality product and efficient production.
b. Experienced staff fully recognize your needs & fulfill your tailor made project and concept.
c. We can organize local resource both in Taiwan & China to offer you cost effective solution, you name it and we make it !
d. Integrity is the most important value that we bring it to every work and deliver it with our commitment.
b. Experienced staff fully recognize your needs & fulfill your tailor made project and concept.
c. We can organize local resource both in Taiwan & China to offer you cost effective solution, you name it and we make it !
d. Integrity is the most important value that we bring it to every work and deliver it with our commitment.
