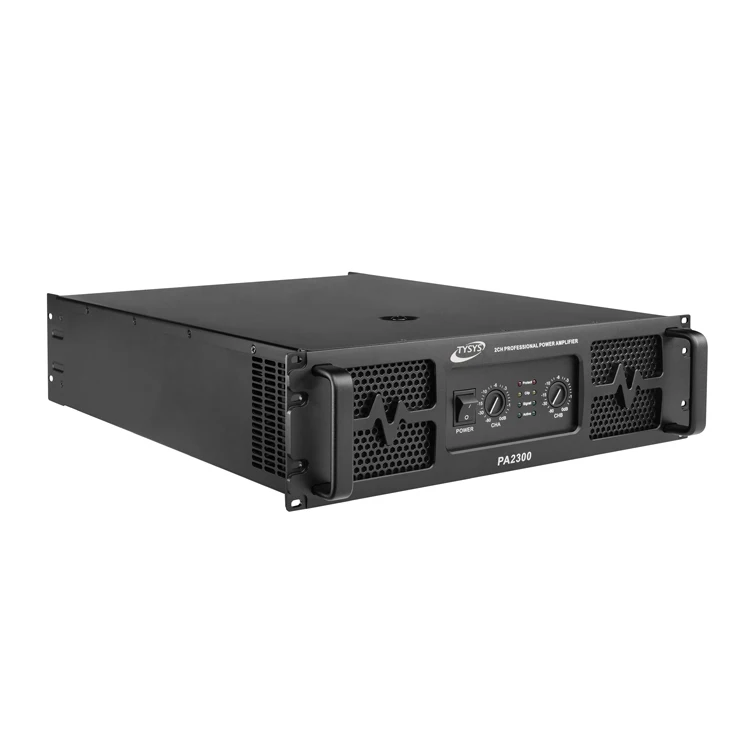

Professional Audio Power Amplifiers With CE Certificate
- Category: >>>
- Supplier: Guangzhou Tianyin Electronic Technology Co. Ltd.Guangzhou Ltd.
Share on (1601357656237):
Product Overview
Description
Product Description
Model No. | PA1300 | PA1500 | PA1800 | PA2000 | PA2300 | ||||
8Ω Stereo power (RMS) 4Ω Stereo power (RMS) | 2x1300W 2x1950W | 2x1500W 2x2250W | 2x1800W 2x2700W | 2x2000W 2x3000W | 2x2300W 2x3450W | ||||
16Ω Bridge power (RMS) 8Ω Bridge power (RMS) | 2600W 3900W | 3000W 4500W | 3600W 5400W | 4000W 6000W | 4600W 6900W | ||||
Frequency Response | 20Hz - 20KHz / ±0.5dB | ||||||||
THD+N (20Hz-20KHz) | ≤0.5% @ 8Ω1kHz | ||||||||
S/N Rate (20Hz -20 kHz) | >110dB | ||||||||
Crosstalk (1KHz) | >35dB | ||||||||
Slew Rate | >20v/μs | ||||||||
Damping Factor | >500 | ||||||||
Input Sensitivity | 0.775V/ 1V/ 1.4V | ||||||||
Input Impedance | 20K Ω balance/ 10K Ω unbalance | ||||||||
Input Connectors | XLR Active balanced / pin1 gnd/pin 2+/pin3- | ||||||||
Output Connectors | 2 Neutrik NL4 Sockets / 2 input posts | ||||||||
Protection | Power-on buffer, overheating protection, short circuit protection, output DC Protection | ||||||||
Operating Voltage | 110V/220V available | ||||||||
Circuit | Class H | ||||||||
Package (L×W×D) | 705mm×595mm×222mm | 805mm×595mm×222mm | |||||||
Gross Weight | 44kg | 45kg | 50kg | 50kg | 52kg | ||||

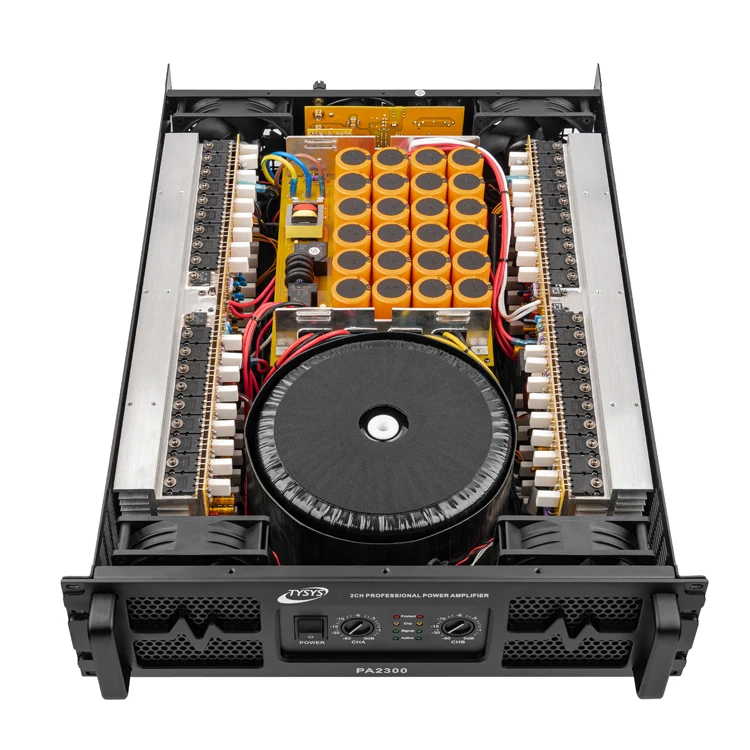

◆ Class AB/ H circuit, 2 channel, 3U transformer power amplifier, Provide 1300W,1500W, 1800W, 2000W,2300W for choose
◆ High voltage ring transformer, large volume capacitor, makes the output current more strong, output power more bigger.
◆ Use original Japan Toshiba transistor (2SC5200/1943), assure low frequency strong, high frequency sweet & clear.
◆ PCB board is AI plug-in, it can assure products high stability.
◆ Built-in soft clipping wave limit function, low noise, good sound quality.
◆ Perfect protection: power-on buffer, overheating protection, short circuit protection, output DC protection and other functions.
◆ Support 4ohm impedance, Sensitivity:0.775V/1V/1.4V
◆ Applications: KTV room, Entertainment club, Stadium, Conference room.
◆ High voltage ring transformer, large volume capacitor, makes the output current more strong, output power more bigger.
◆ Use original Japan Toshiba transistor (2SC5200/1943), assure low frequency strong, high frequency sweet & clear.
◆ PCB board is AI plug-in, it can assure products high stability.
◆ Built-in soft clipping wave limit function, low noise, good sound quality.
◆ Perfect protection: power-on buffer, overheating protection, short circuit protection, output DC protection and other functions.
◆ Support 4ohm impedance, Sensitivity:0.775V/1V/1.4V
◆ Applications: KTV room, Entertainment club, Stadium, Conference room.
