High Efficiency H13 H14 Mini Pleat HEPA Air Filter New Construction Paper Panel Filter for Industrial & Farm Dust Filter Media
- Category: >>>
- Supplier: Dongguan Senbao Purifying Equipment Co. Ltd.Dongguan Ltd.
Share on (1601357931115):
Product Overview
Description

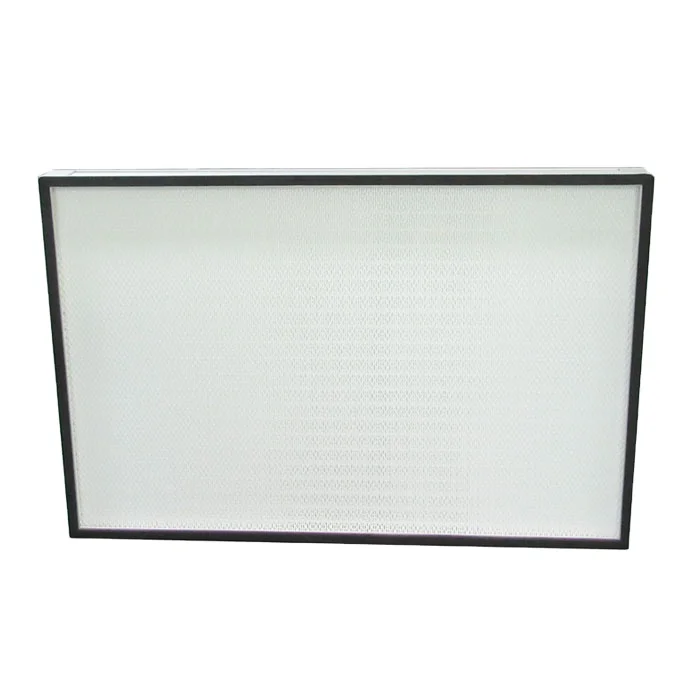

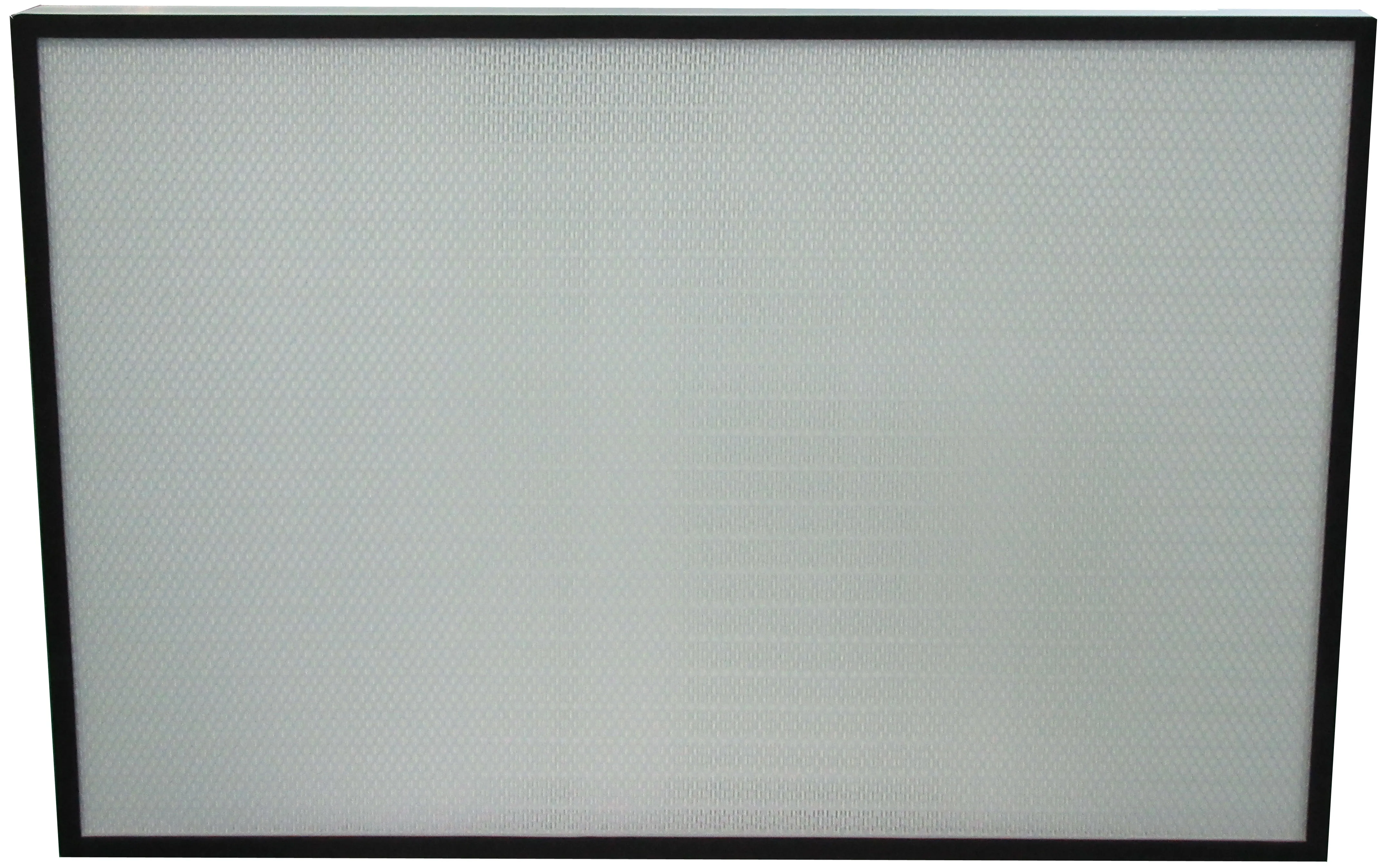

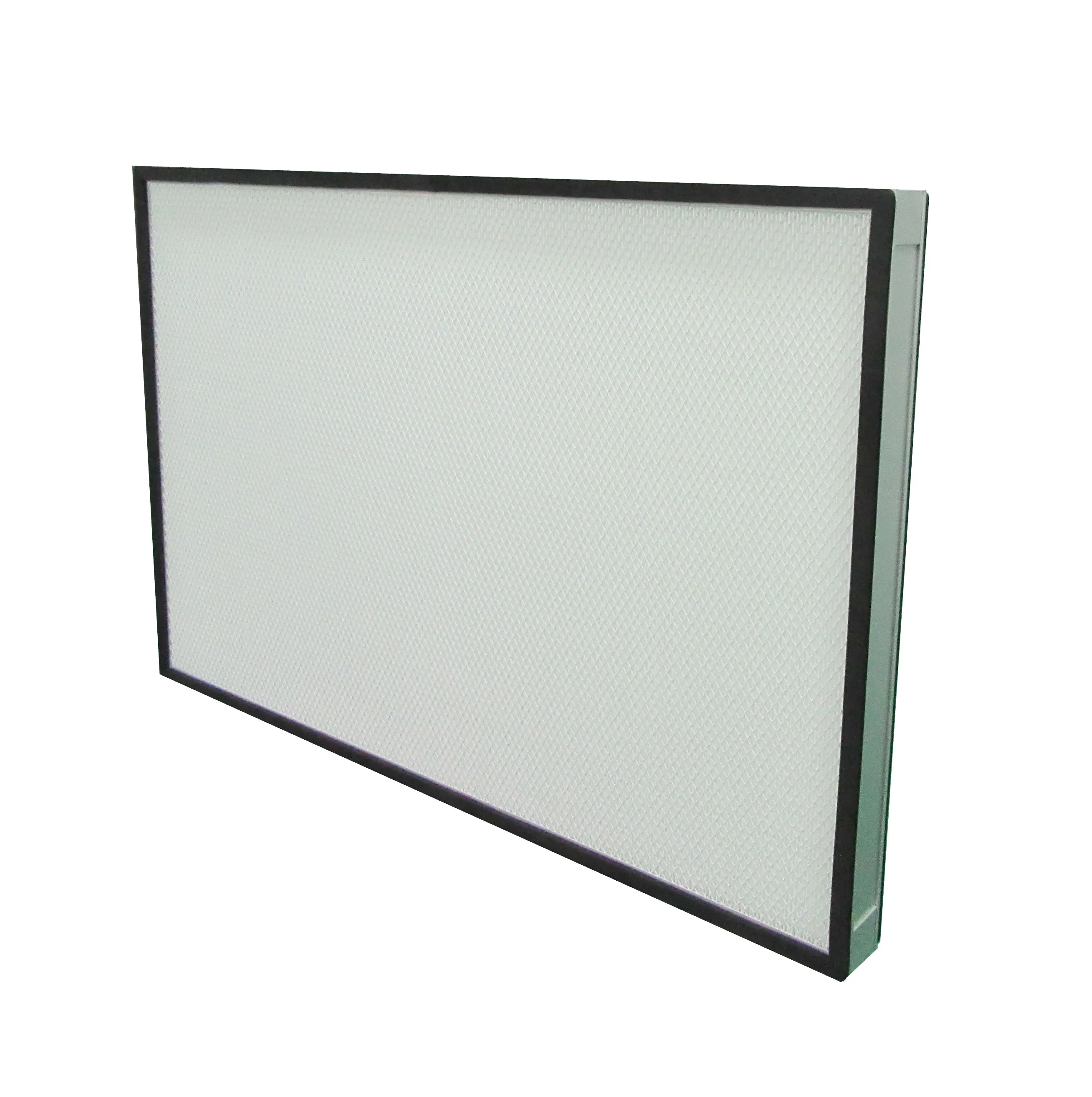

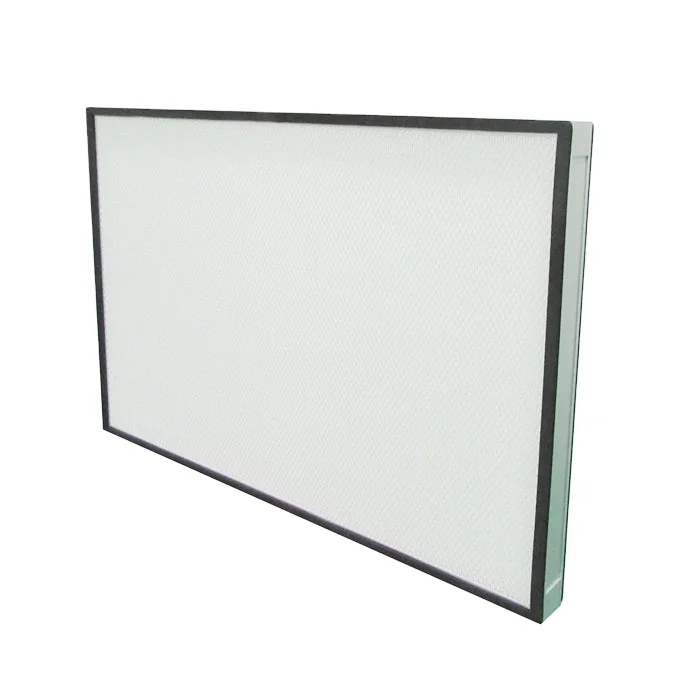

High Efficiency H13 H14 Mini-Pleat HEPA Air Filter New Construction Paper Panel Filter for Industrial & Farm Dust Filter Media
Product Description
Features
- Low resistance
- Light weight, convenient installation and replacement
- 100% factory inspection
- High efficiency
- Low operation cost
- Long life-span
- Good sealing
Specification

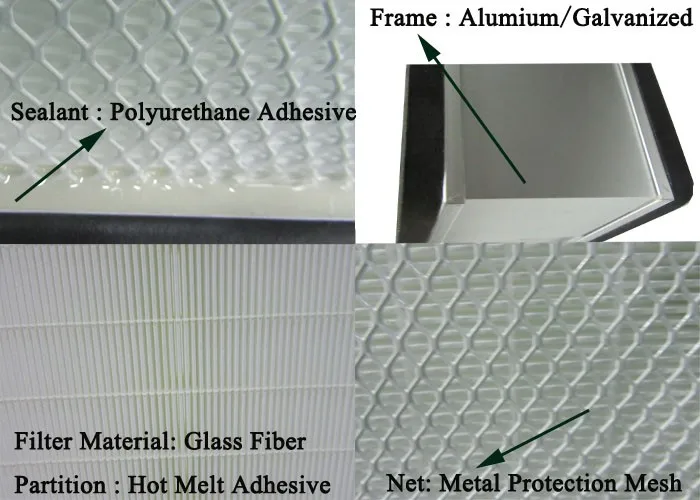

| Frame | Aluminum |
| Filter Media | Fiberglass |
| Partition | Hot melt adhesive |
| Sealant | Polyurethane adhesive |
| Max. temperature | 85°C |
| Max. humidity | 80%RH |
Model | Nominal Size WxHxD (inch) | Actual Size WxHxD(mm) | Rated Airflow (m³/h) | Surface Wind Speed (m/s) | Initial Resistance (pa) | Efficiency (Colorimetric Method) | |
GDW-008 | 12 x12 x 2 | 305x305x50 | 400 | 0.45 | 100±10%pa | H13,H14 | |
GDW-008 | 12 x 24 x 2 | 305x610x50 | 500 | 0.45 | |||
GDW-008 | 24 x 24 x 2 | 610x610x50 | 700 | 0.52 | |||
GDW-008 | 36 x 24 x 2 | 915x610x50 | 1100 | 0.52 | |||
GDW-008 | 48 x 24 x 2 | 1220x610x50 | 1400 | 0.52 | |||
GDW-008 | 24 x 24 x 2-3/4 | 610x610x69 | 1000 | 0.75 | |||
GDW-008 | 48 x 24 x 2-3/4 | 1220x610x69 | 2000 | 0.75 | |||
Special size can be customized. | |||||||

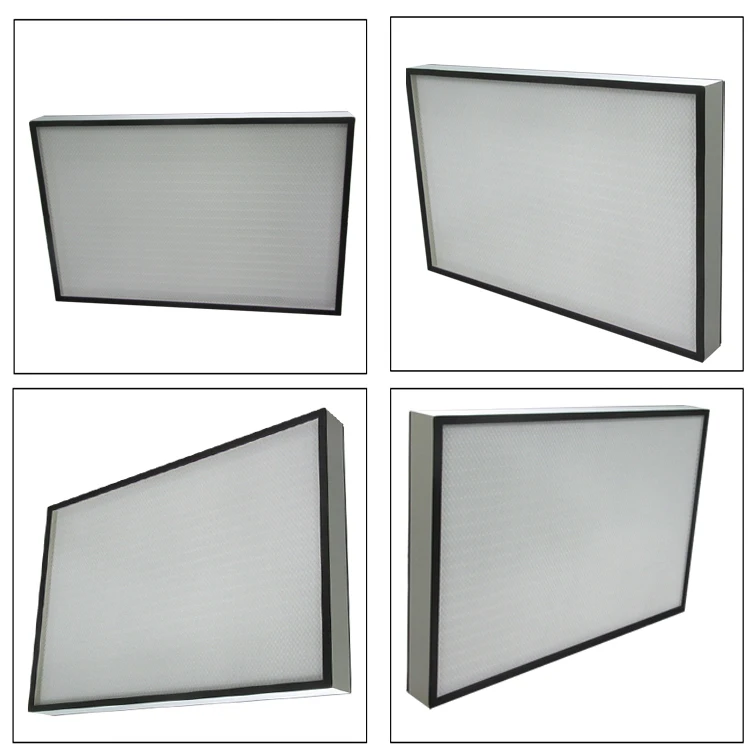

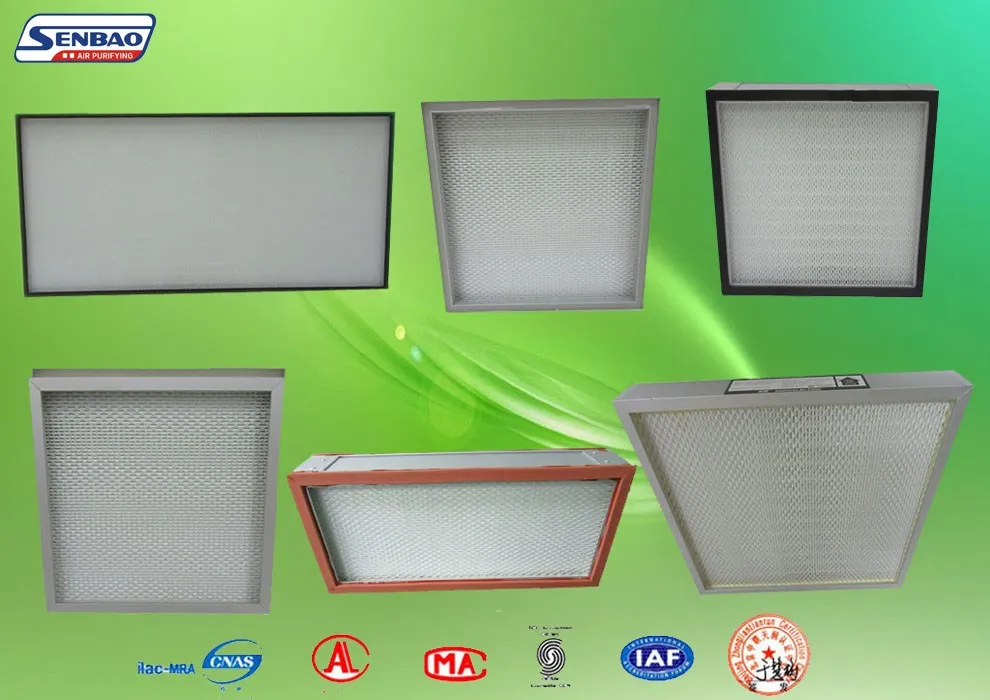

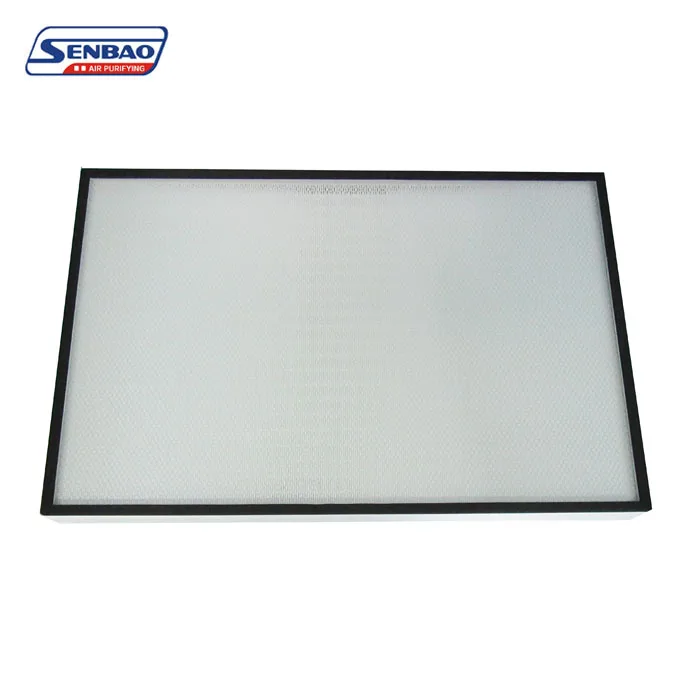

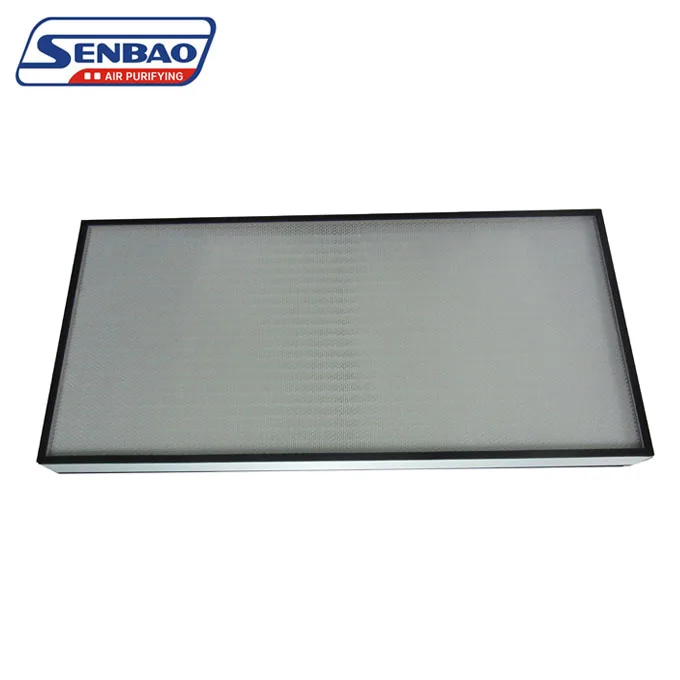

Product Display
Application

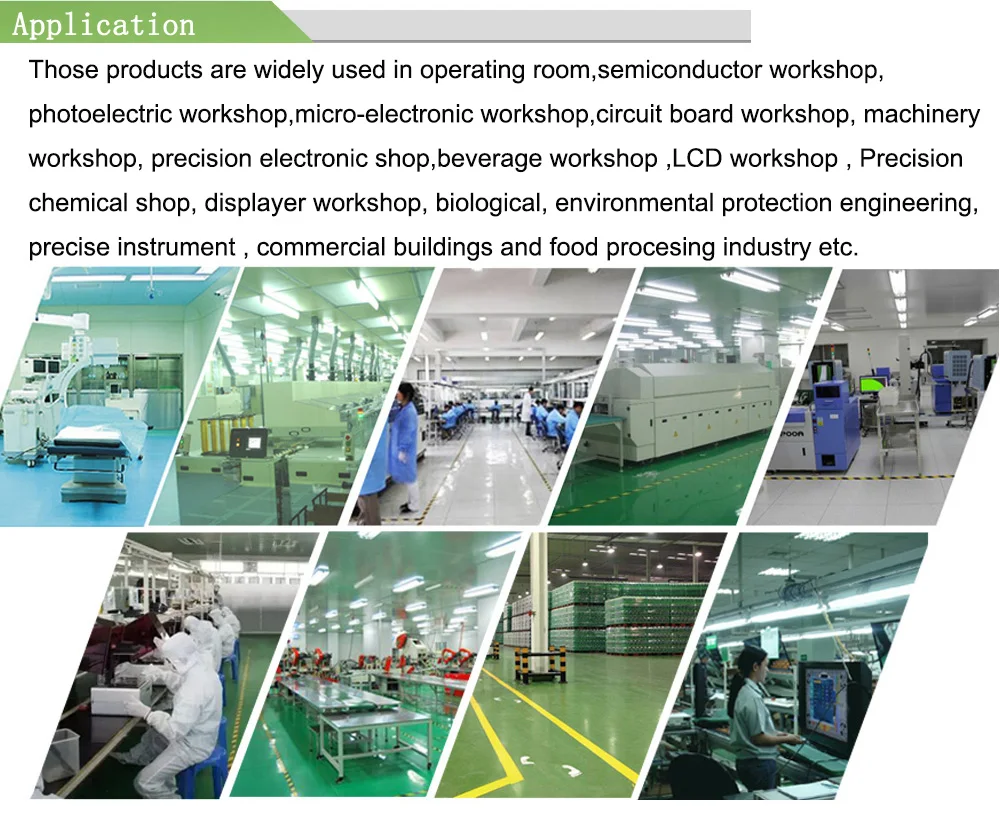

It widely used to the terminal filtration of the clean room.Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.

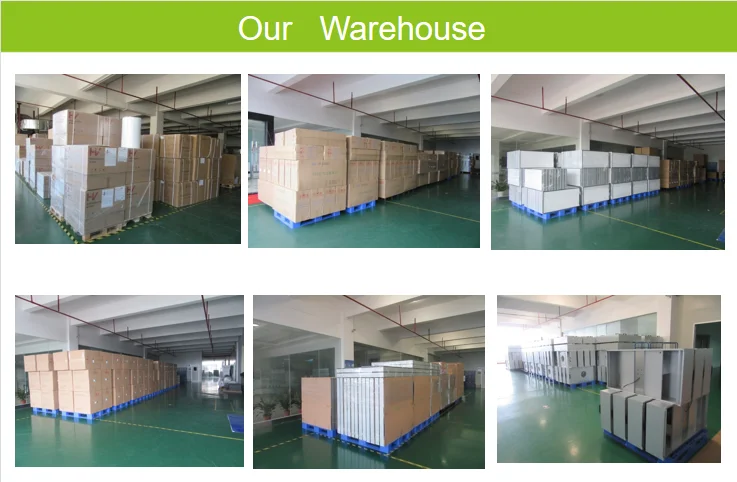

Packaging & Shipping

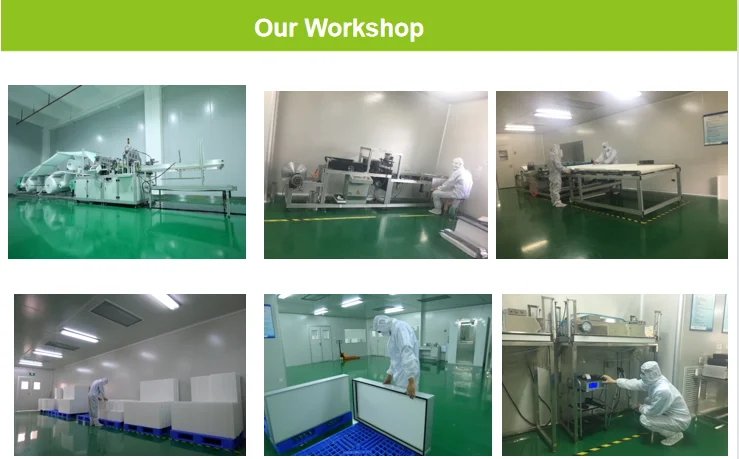

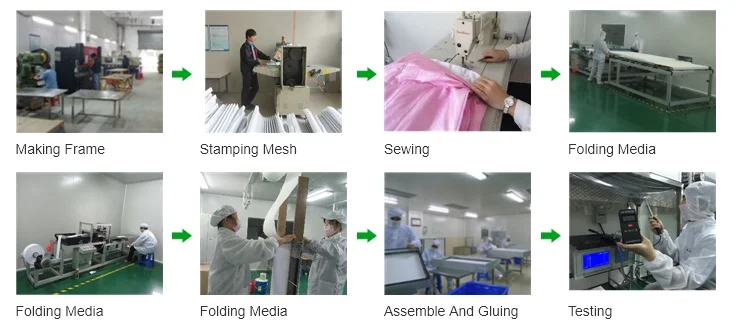

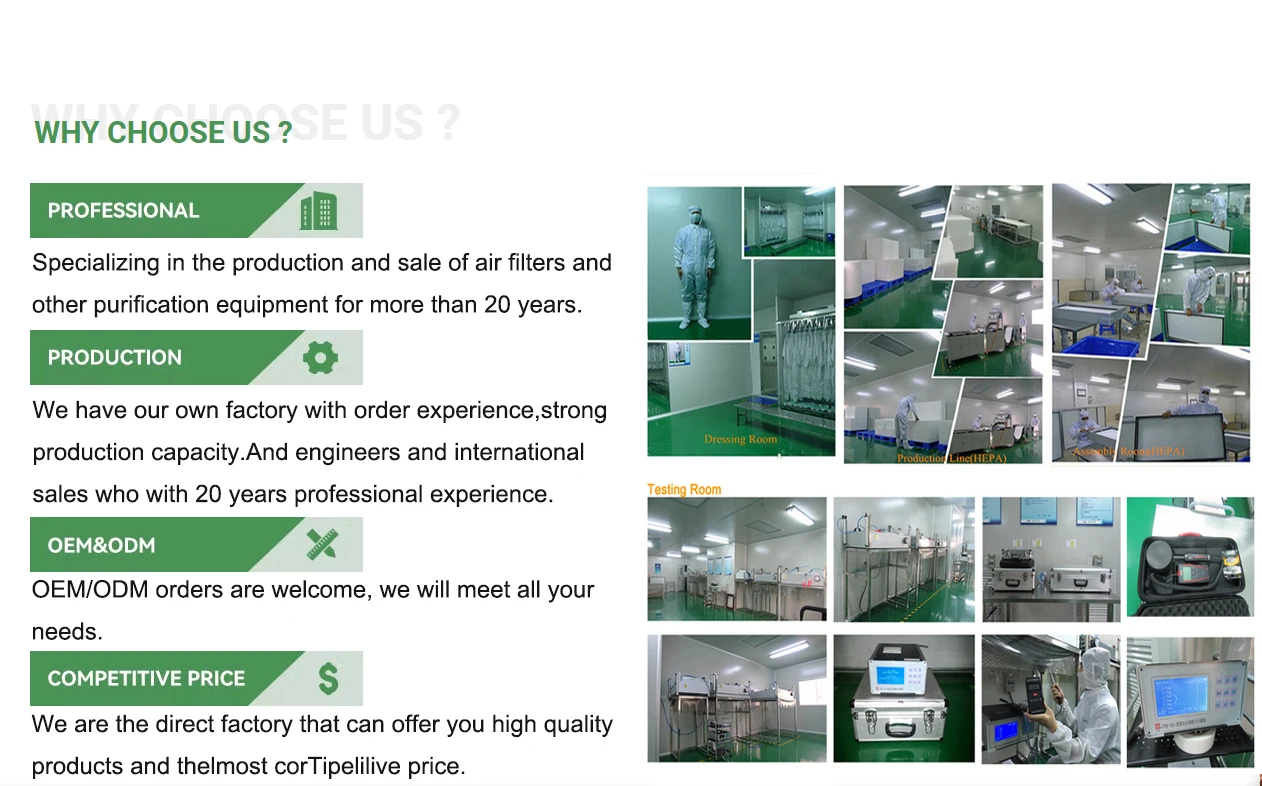

Company Information
Cooperation Partners
Senbao Purifying introduces advanced manufacturing equipments, imported high-quality filter materials. Together with strict manufacturing process control system and rich application experience of years, they make our products favored by both domestic and foreign customers.
