Tobee Effluent Handling
$12,600

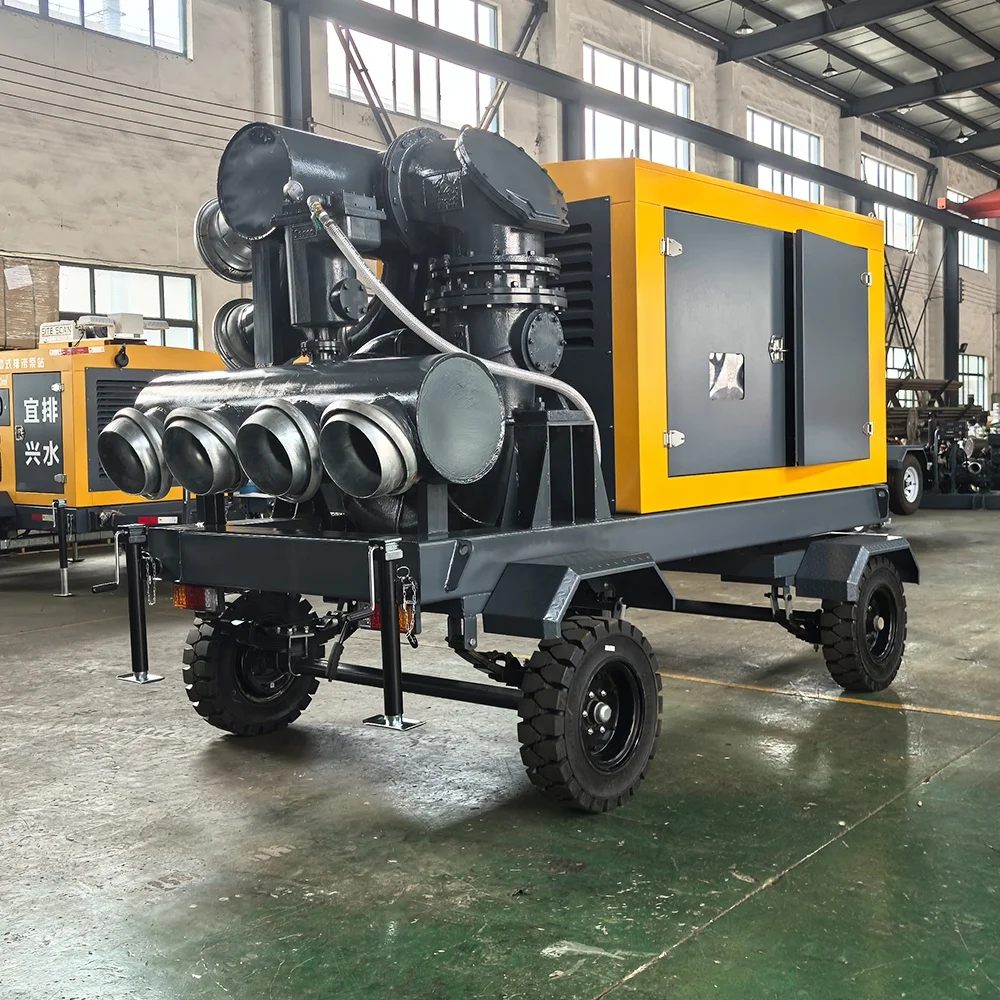

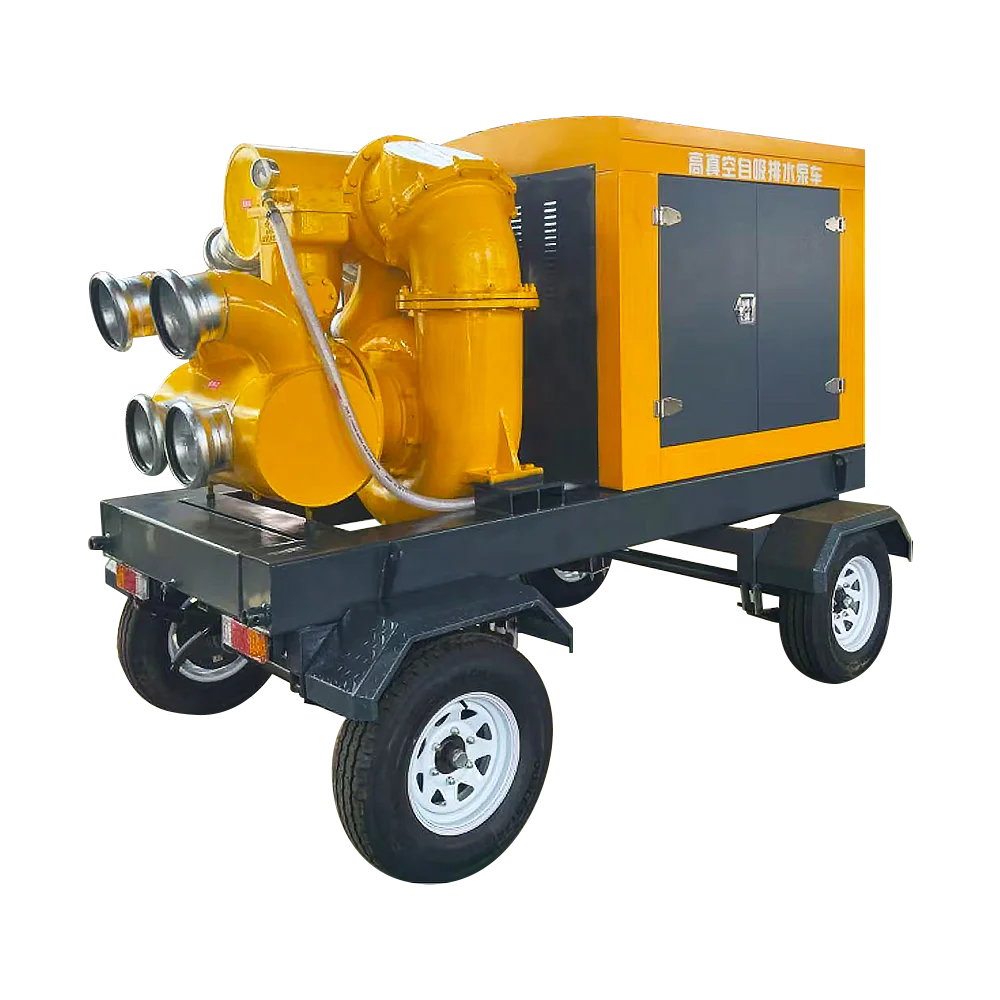

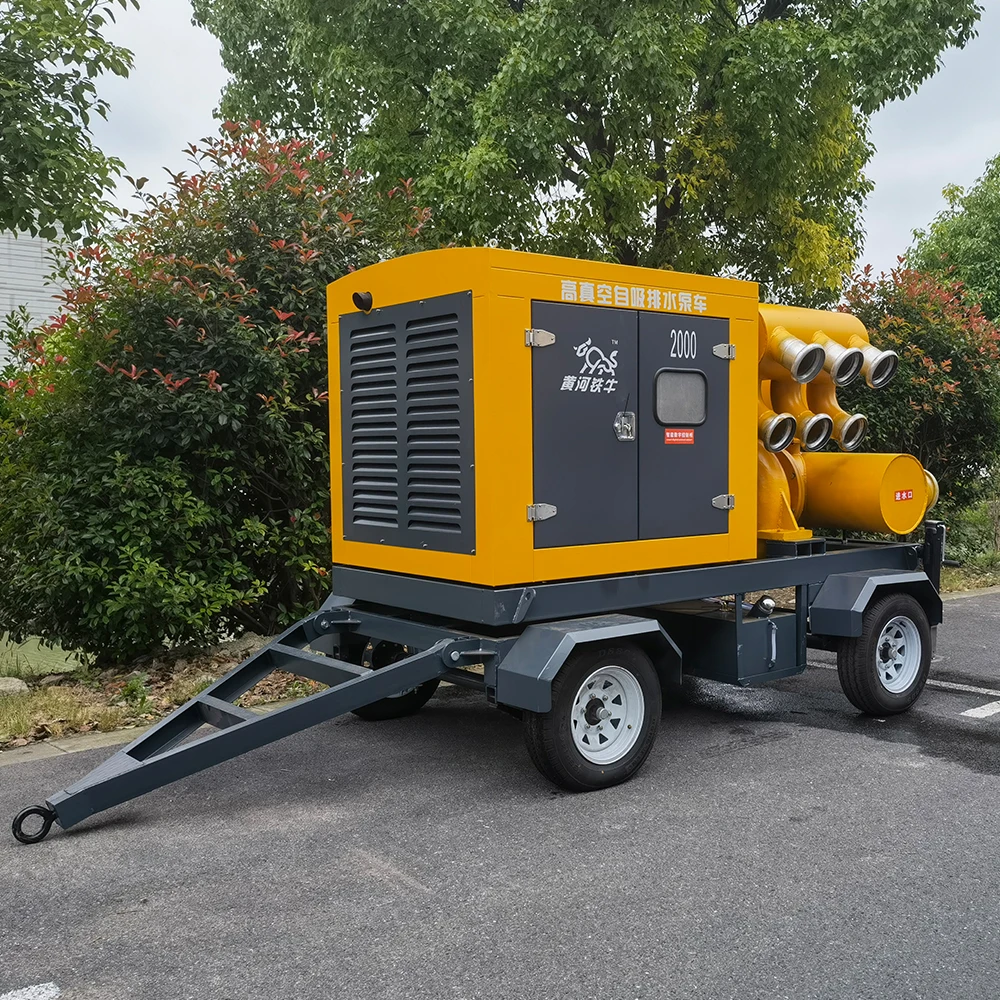

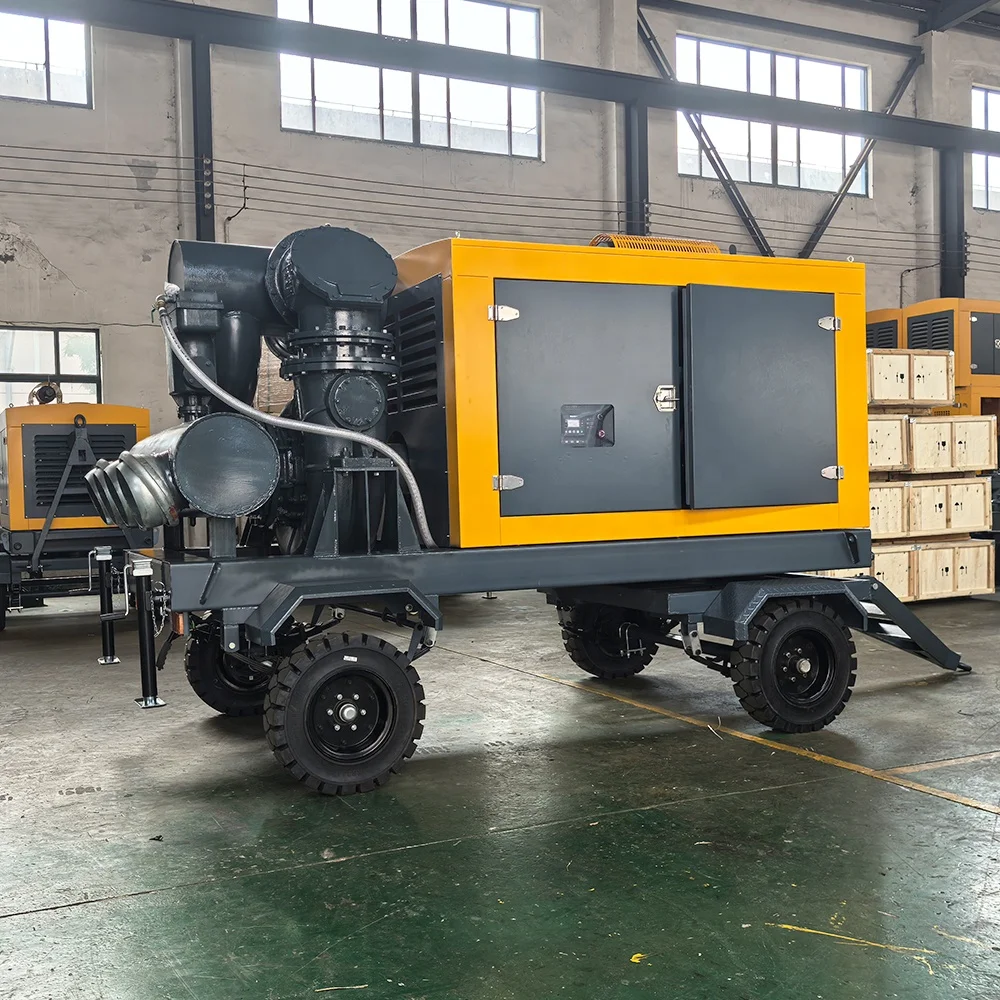

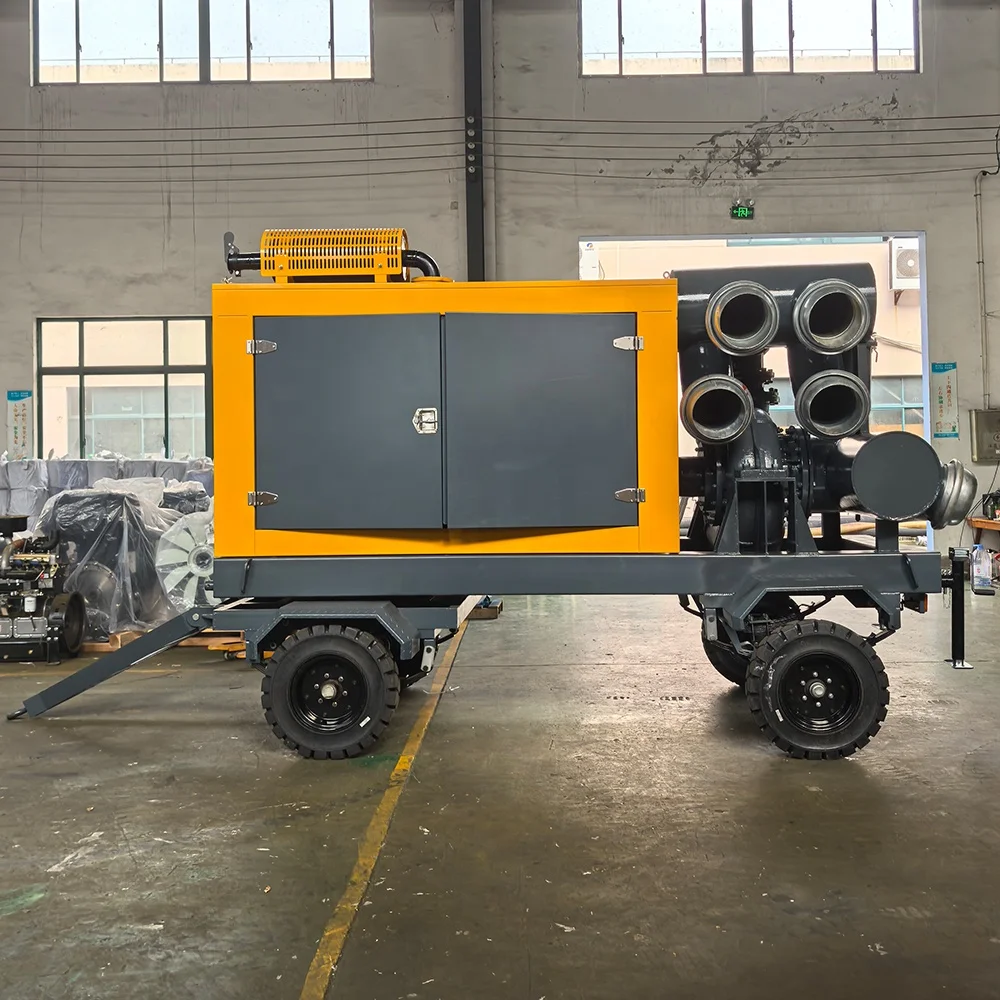

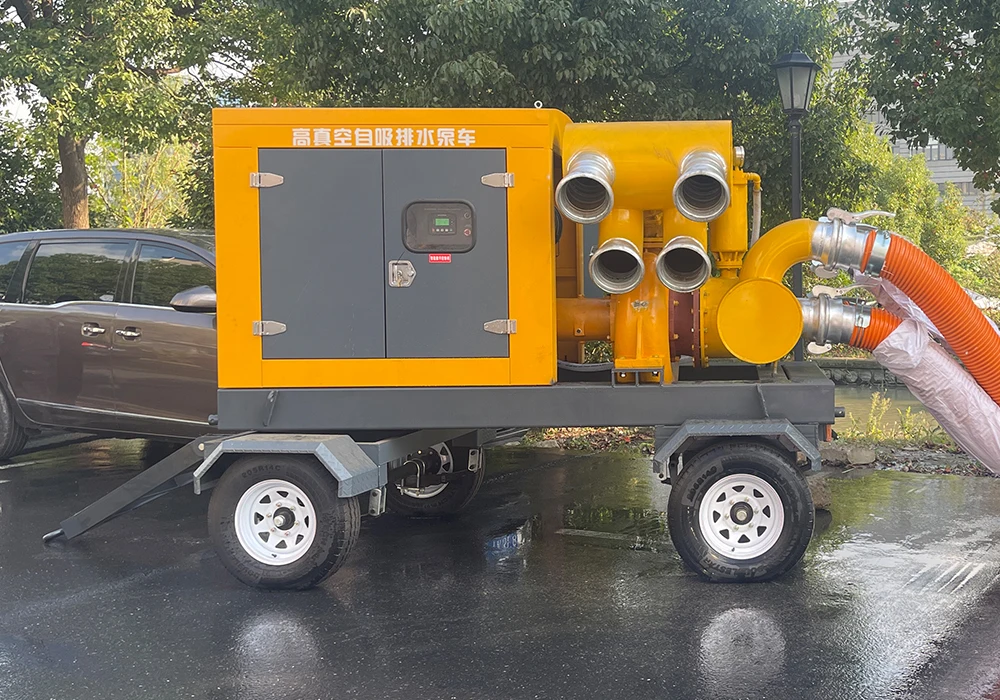

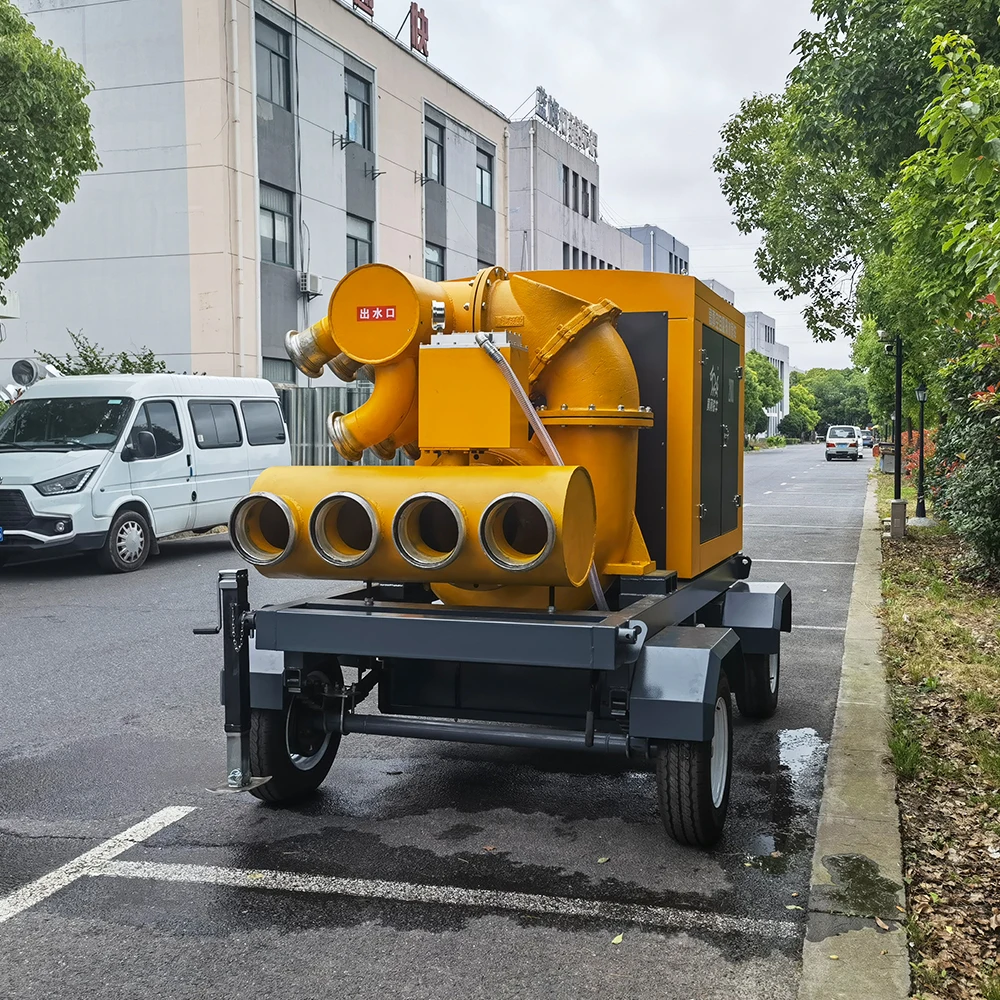

High pressure self priming irrigation diesel water pump for sale with perkins water pump
- Category: >>>
- Supplier: Shanghai Huanghe Pump Manufacture Co. Ltd.Shanghai Ltd.
Share on (1601357980375):
Product Overview
Description
Certifications
Product description

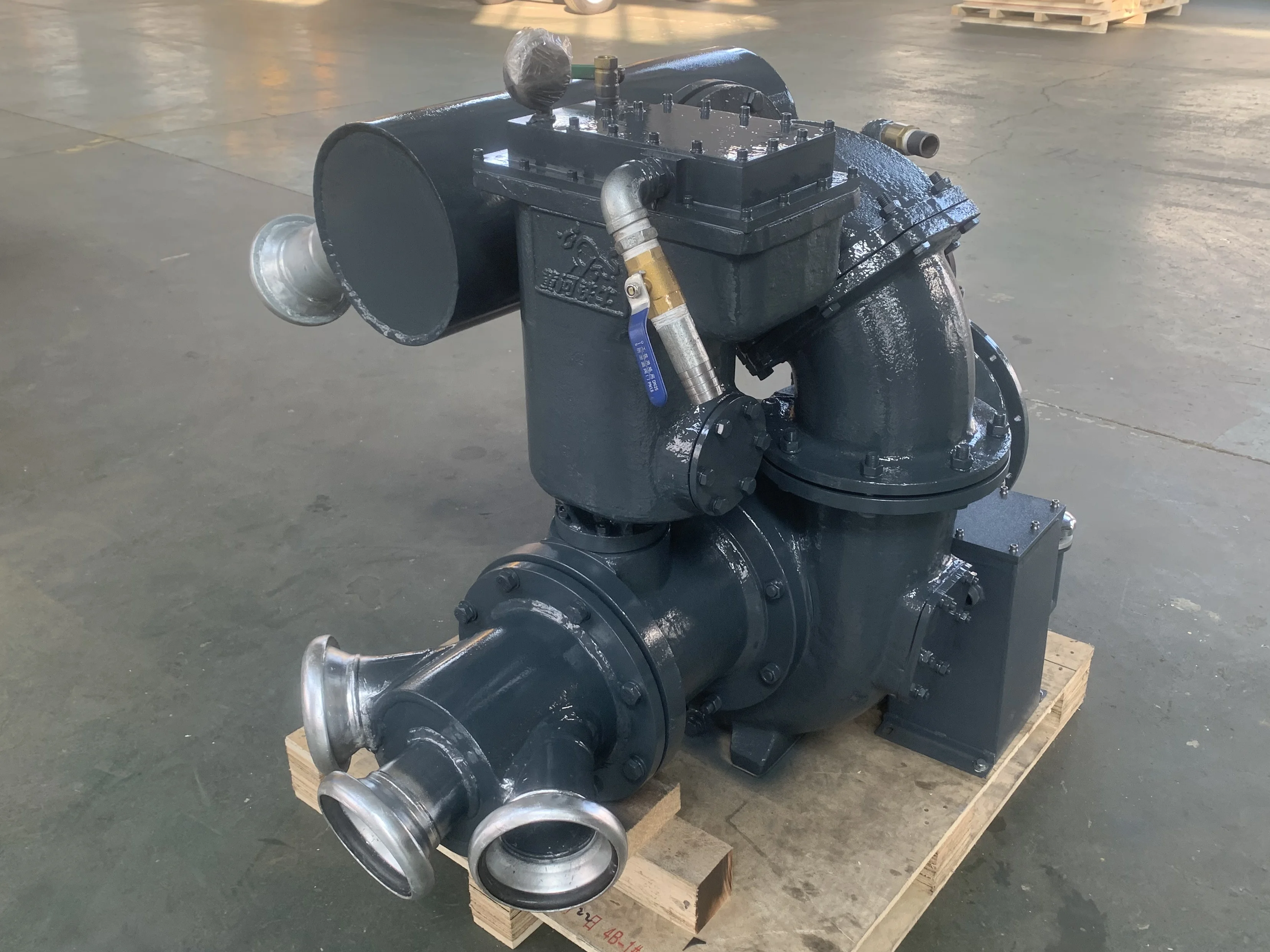

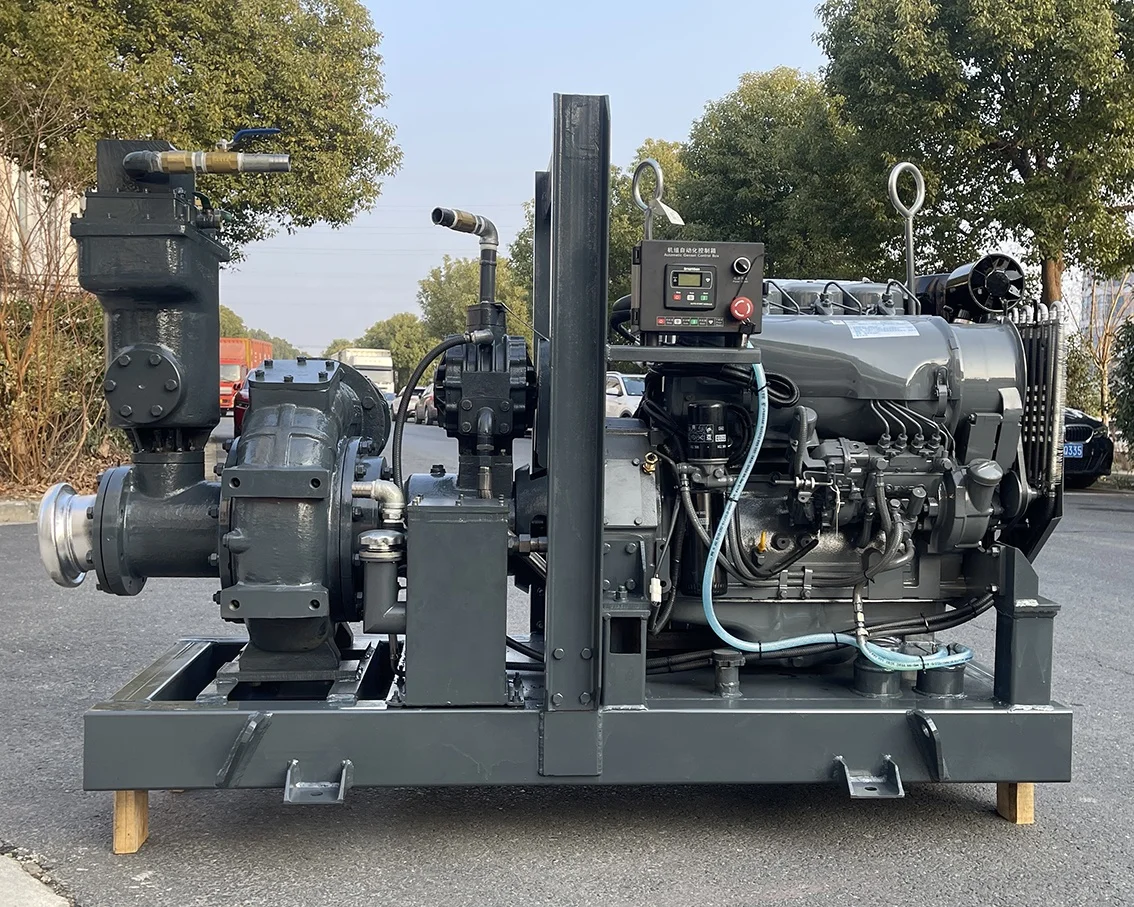

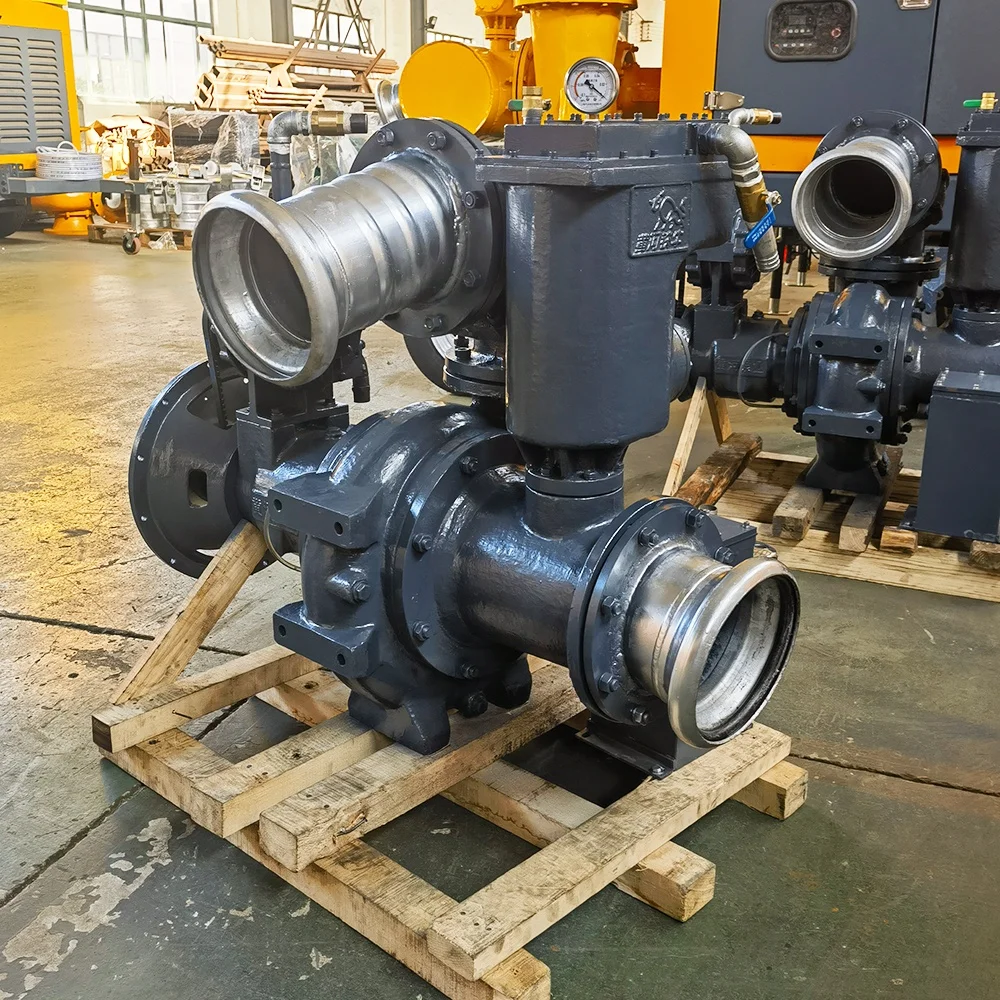

M16 series high vacuum diesel exhaust pump

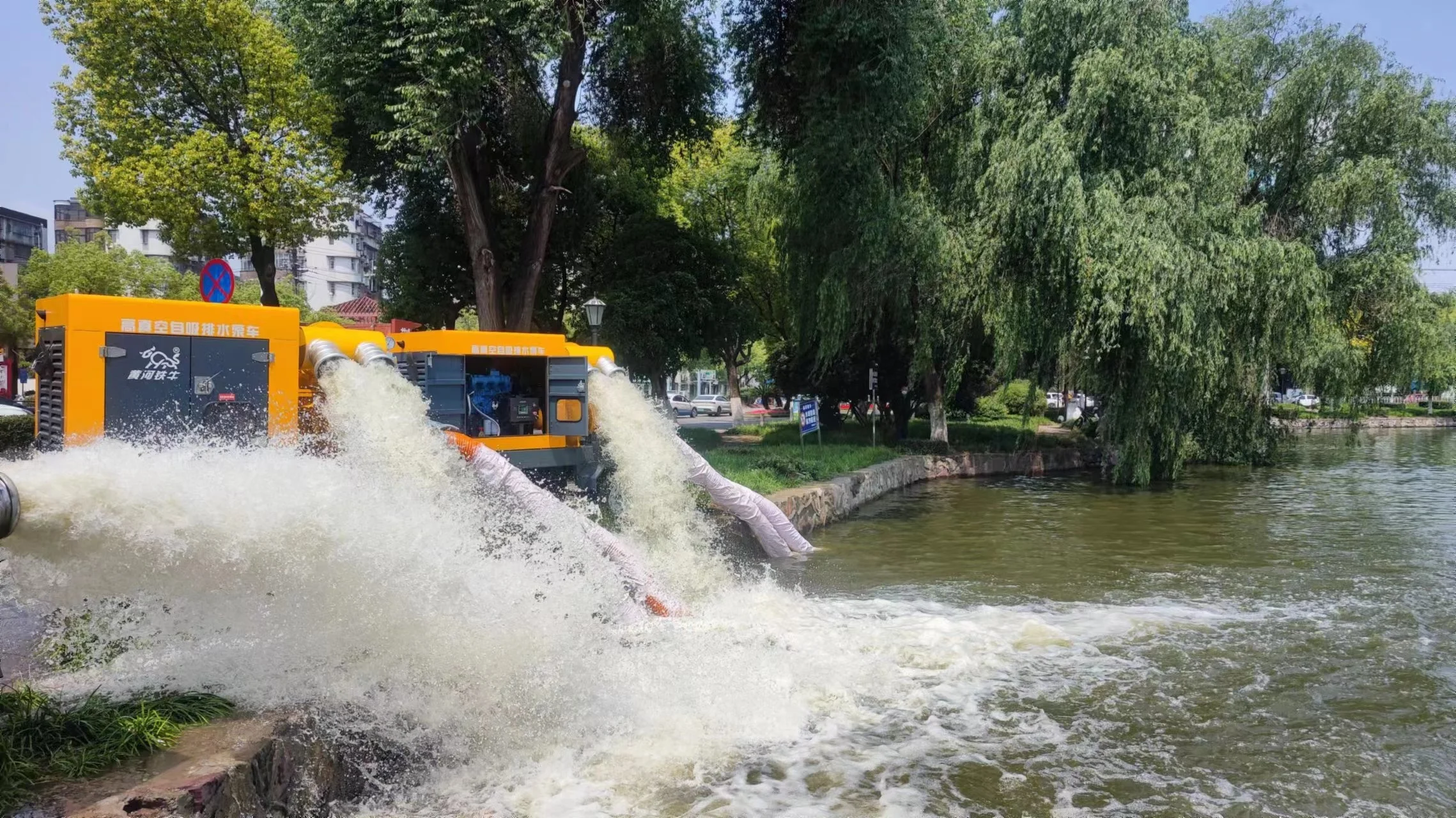

A pump is a machine that transports or pressurizes liquid.M16 series pump is one of the main products of our company, which has the characteristics of high vacuum, high suction and large flow. And easy to operate, easy to clean. If you want to solve the problems of urban drainage, industrial sewage treatment, sea water discharge and so on, this product is a good choice.
Our advantages
1.Stable performance and reliable use
2.Fast self-priming, high suction lift, and the engine comes with a vacuum assist system
3.Featuring a durable sealing system and special mechanical seals
4.Easy and convenient to operate, one click quick to use
5.Beautiful appearance and compact structure
3.Featuring a durable sealing system and special mechanical seals
4.Easy and convenient to operate, one click quick to use
5.Beautiful appearance and compact structure
Similar products
Product specifications
Model | Caliber （mm) | Flow （m³/h) | Lift (m) | Suction height (m) | Power (kw) |
M4 | 100 | 330 | 20 | 9.5 | 18 |
M4A | 100 | 280 | 15 | 9.5 | 12 |
M6 | 150 | 650 | 25 | 9.5 | 44 |
M6A | 150 | 560 | 18 | 9.5 | 30 |
M8 | 200 | 820 | 20 | 9.5 | 49 |
M8A | 200 | 700 | 15 | 9.5 | 35 |
M10 | 250 | 1150 | 20 | 9 | 65 |
M10A | 250 | 900 | 15 | 9 | 46 |
M12 | 300 | 1650 | 15 | 8.5 | 79 |
M12A | 300 | 1200 | 15 | 8.5 | 55 |
M14 | 350 | 2300 | 15 | 8 | 111 |
M16 | 400 | 3000 | 15 | 6 | 153 |
Operation guide
Method of application
1. connect suction pipe
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
Points for attention
1. the sealing O-ring should be smeared by butter before used, or it will be broken soon
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected well
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected well

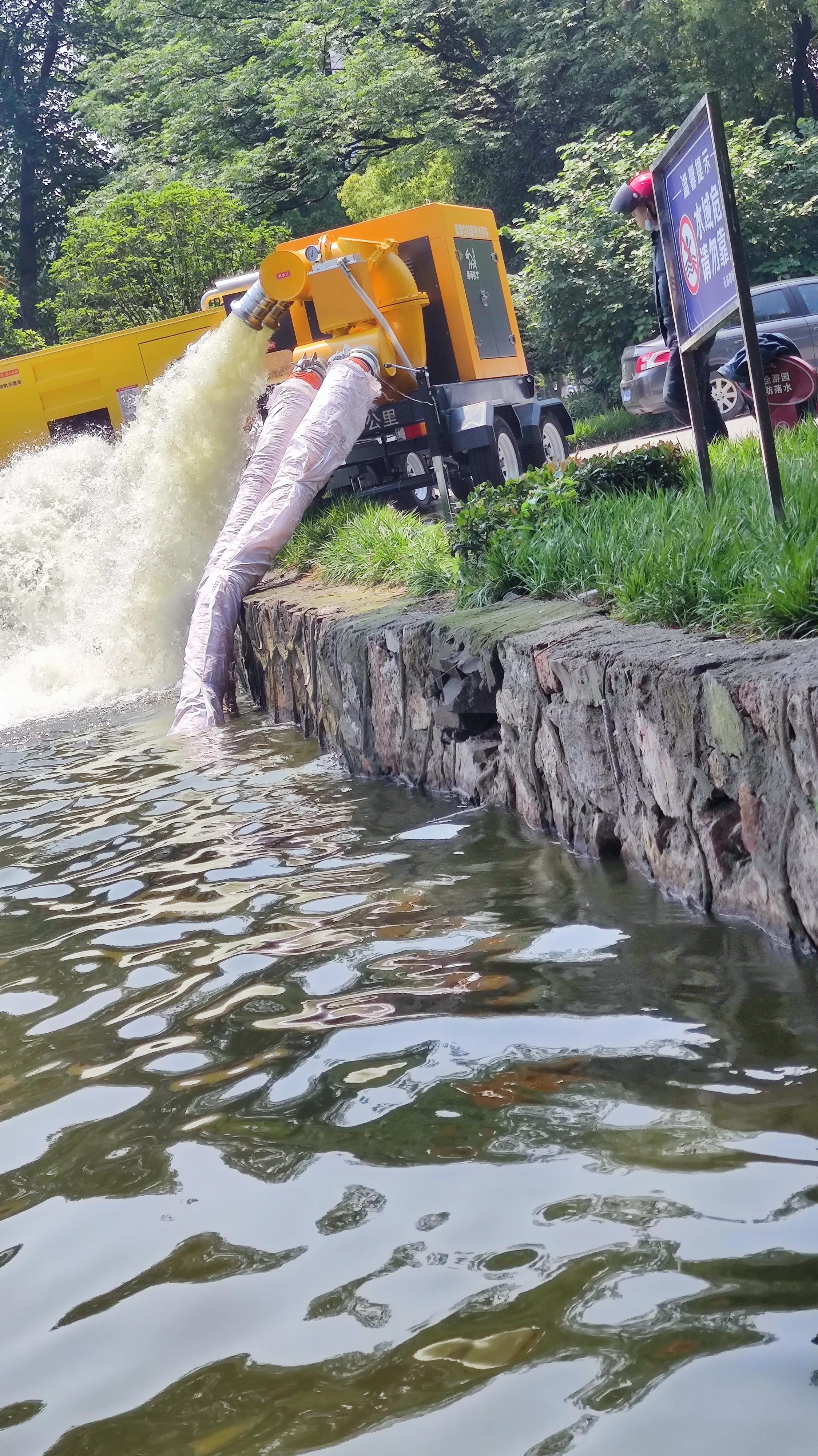

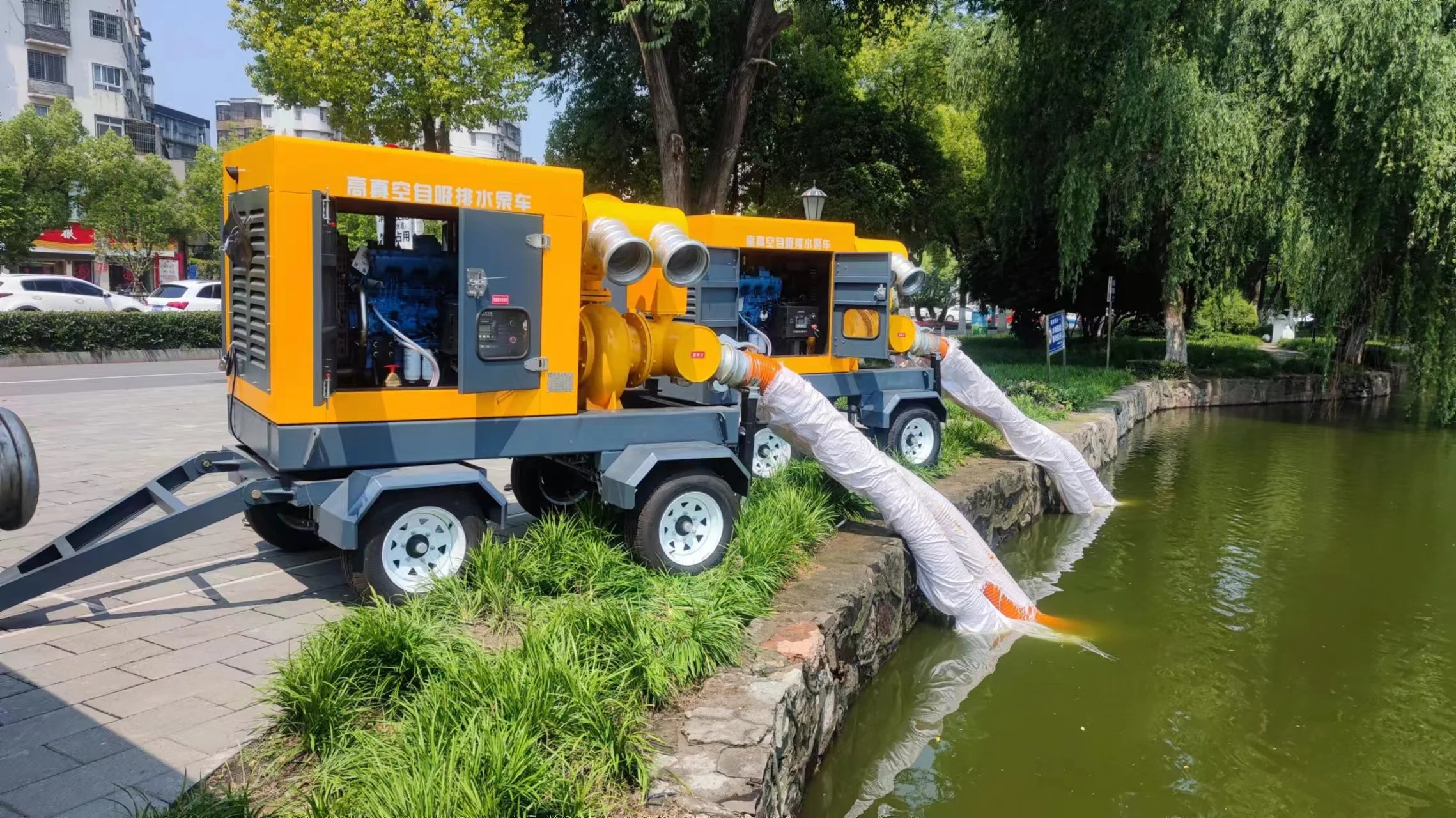

Other displays

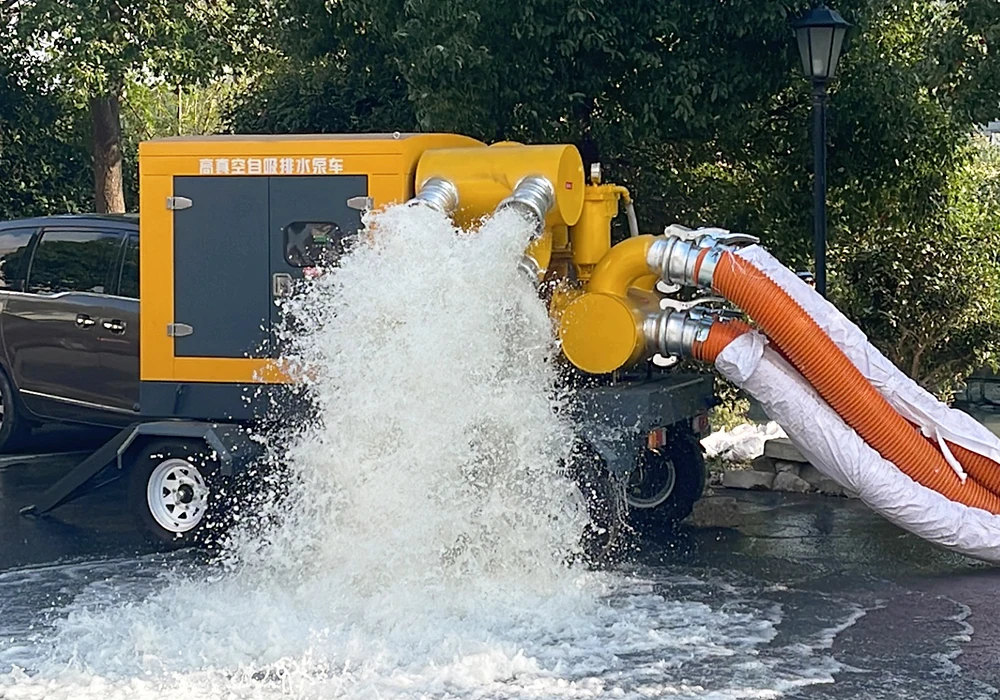

Product testing photos
Packaging and shipping
Product usage video
Secure transaction
1. You can send us an email or message(whatsApp/ wechat) to confirm the ordering details
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
