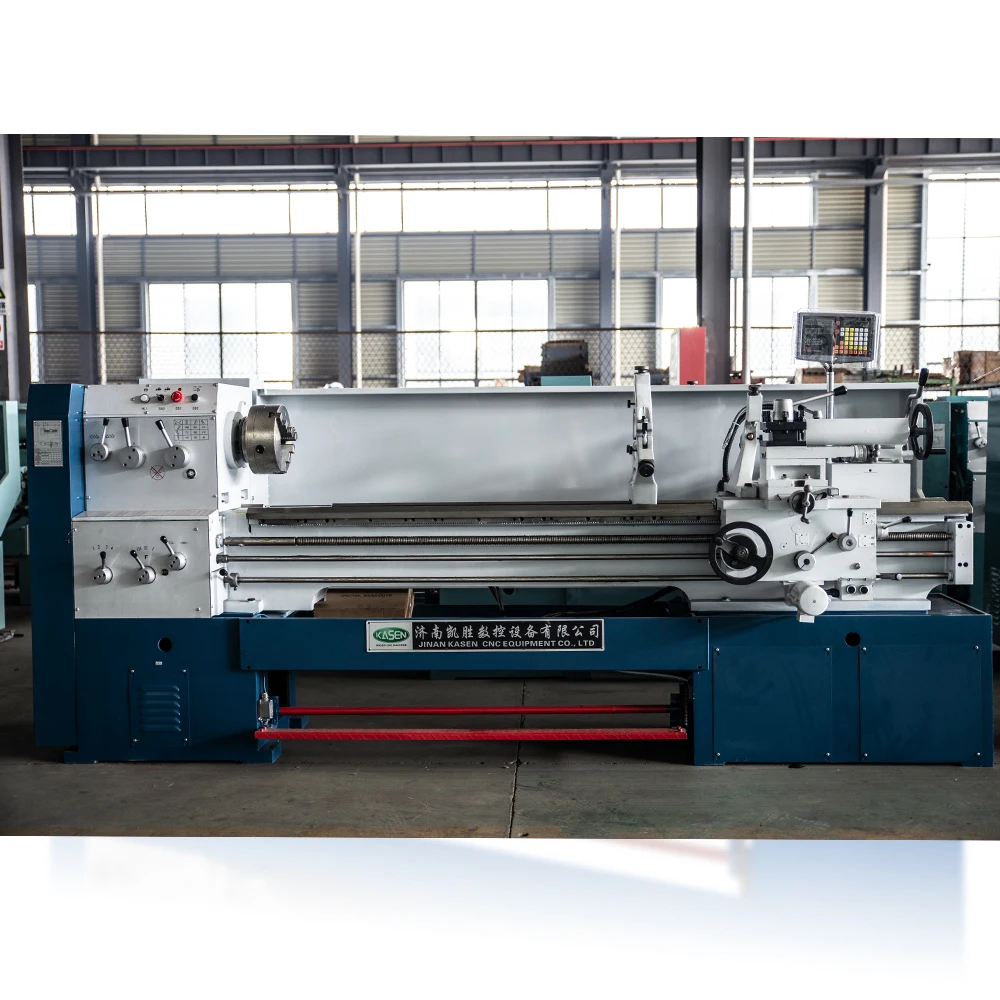

  • Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe

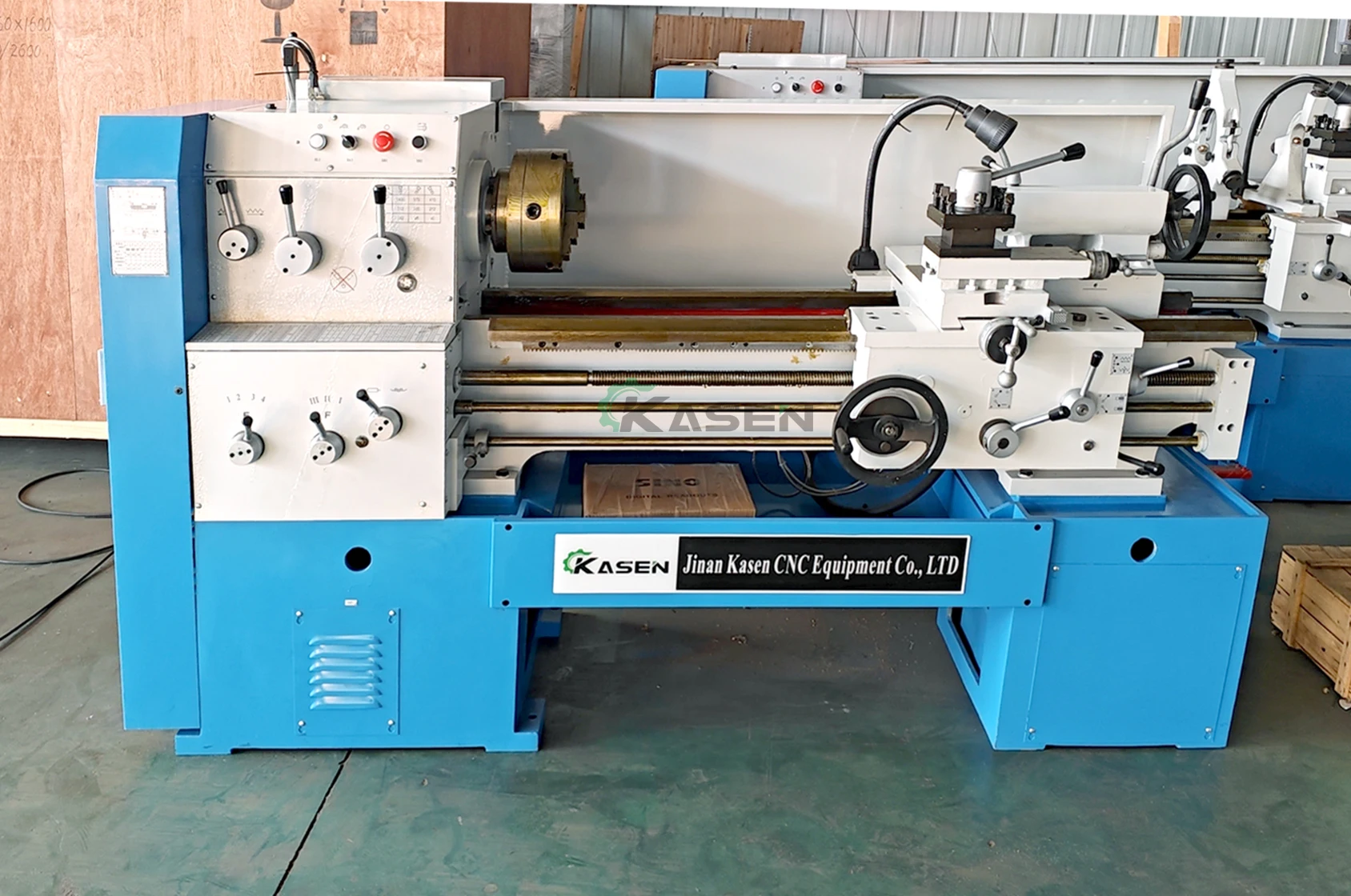

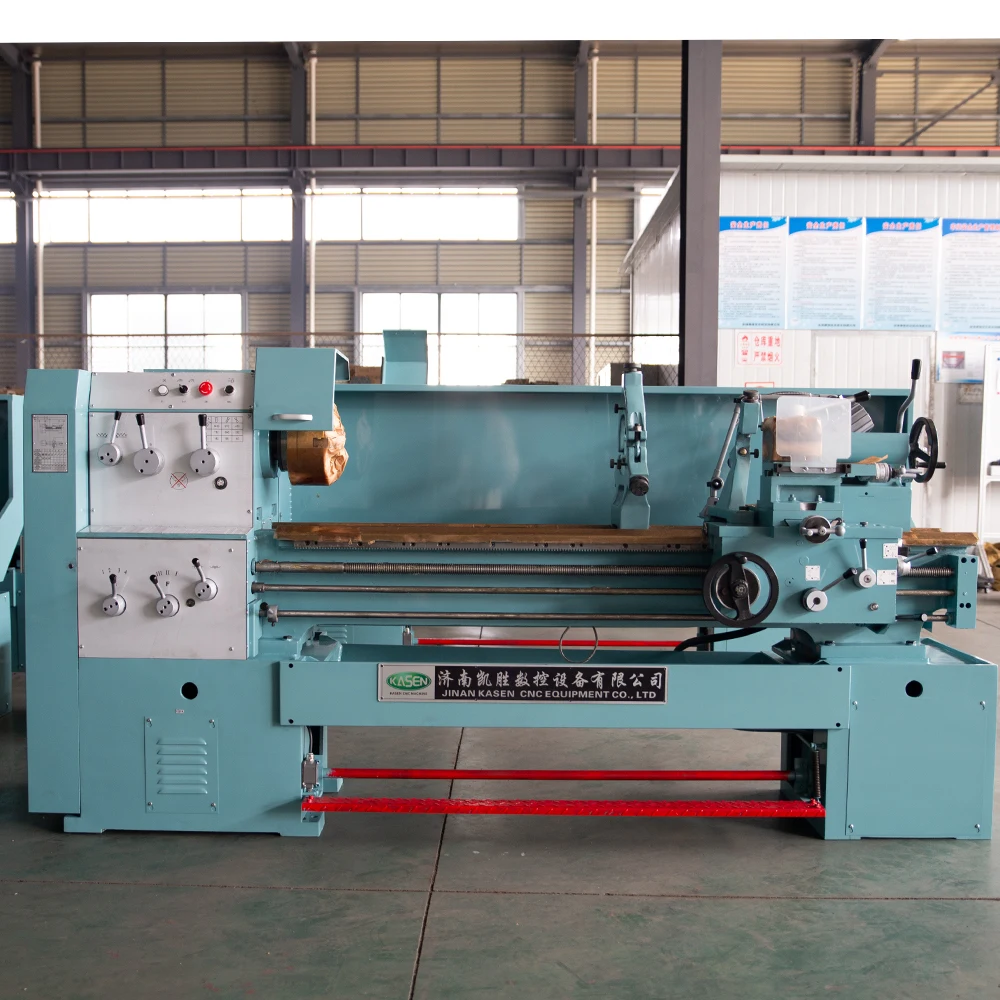

Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe
Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe
Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe
Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe
Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe
Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe
Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe

Lathe C6150x1000 Flat Bed Metal Cutting Lathe C6150 Manual Lathe

Share on (1601357981103):


Price:$4,800.00-5,600.00

Quantity:


Product Overview

Description





Product Description




Main features
* Rail width is 360mm
* Thread processing need to change gears
* Tool size is 20x20mm
* Gears is steel of precision grinding and hardened
Standard configuration Optional configuration
* Hook wrench Steady Res, Follow rest
* Inner hexagon spanner DRO
* Single-ended wrench Chuck cover ,1 post cover,Lead screw cover
* Socket wrench Foot brake

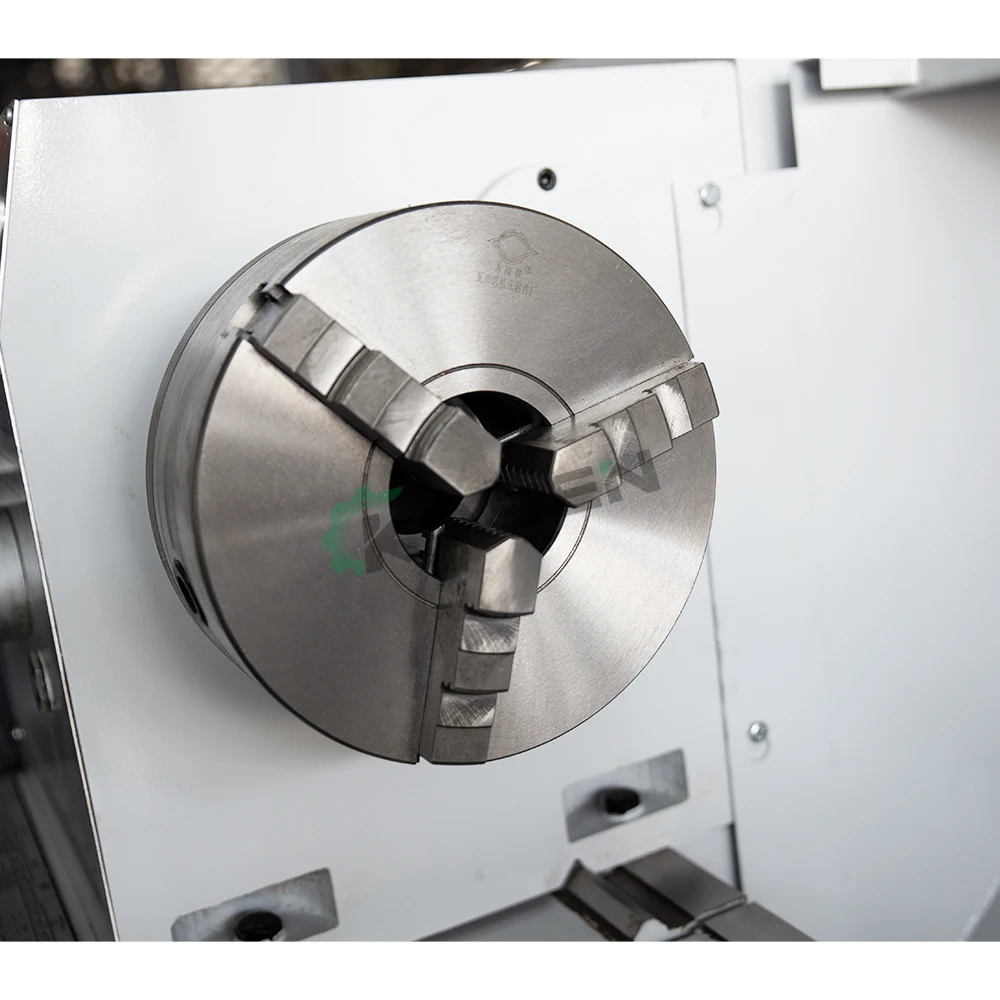

* 3-jaw chuck Fast moving
* Dead center 4 jaw chuck
* Center sleeve Drill chuck and holder
* Triangular belt Quick change tool post
* Adjustment pad iron Taper turning attachment
* Foundation bolts
* Change gears
Main technical parameters：


Specifications
C6150
Capacity
Max.Swing over bed
500mm
Max. rotating diameter
300mm
Center distance
750、1000、1500、2000mm
Spindle hole
52mm
Spindle
Spindle nose
ISO-C6
Spindle tap
MT6
Spindle speeds(Number)
36-1400rpm (12 Steps)
Feed
Metric threads range（Kinds）
0.5-14mm (18 Kinds)
Inch threads range(Kinds)
2-40/inch (28 Kinds)
Moudle threads range(Kinds)
0.25-3.5mπ (17 Kinds)
Compound rest travel
150mm
Cross slide travel
180mm
Cross-section size of toolshank
20×20mm2
Tailstock
Dia.of tailstock sleeve
75mm
Taper of tailstock sleeve
MT5
Travel of tailstock sleeve
160mm
Main motor power
5.5KW
Machine size
(L*W*H mm)
Overall dimensions for750mm
2100×1150×1550mm
Overall dimensions for1000mm
2350×1150×1550mm
Overall dimensions for1500mm
2850×1150×1550mm
Overall dimensions for2000mm
3350×1150×1550mm
Weight(kg)
Weight for 750mm
1700kg
Weight for 1000mm
1800kg
Weight for 1500mm
2000kg
Weight for 2000mm
2200kg










FAQ


1. who are we?
We are based in Shandong, China, start from 2022,sell to Southeast Asia(20.00%),Eastern Asia(20.00%),North America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Oceania(10.00%),Northern Europe(10.00%),South America(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC MACHINING CENTER,CNC lathe,wire cutting machine,sawing machine,laser cutting equipment

4. why should you buy from us not from other suppliers?
Jinan kasen CNC Equipment Co., Ltd. was founded in 1998,located in Changging District, Jinan City,Shandong Province. It is a leading backbone enterprise in Jinan.
Products are sold to 31 provinces and more than 100 countries And
regions around the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
