4K Industrial DLP 3d Printer 35um High Precise 3d Printer for Jewelry Models

Product Overview

Description

l Description:

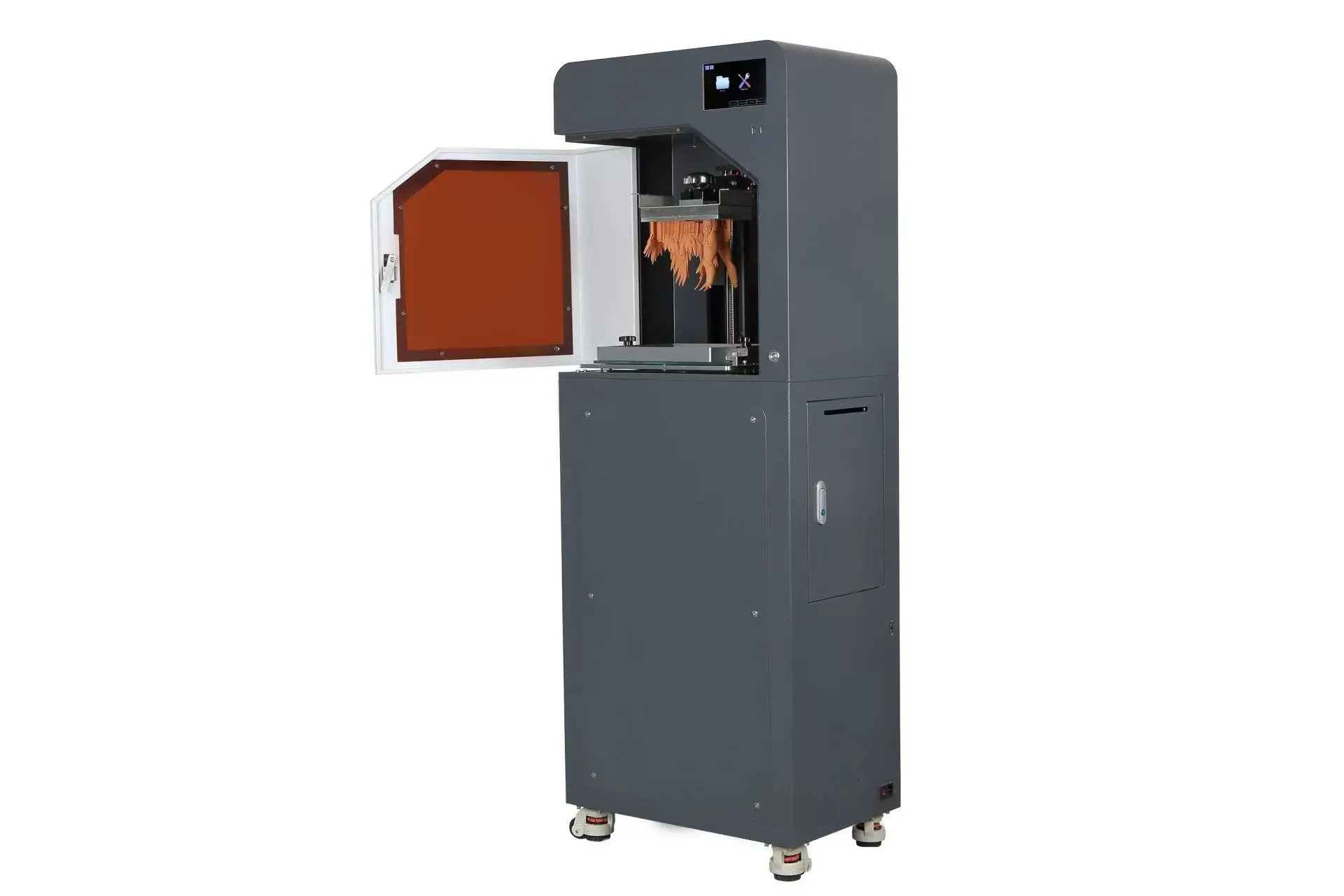

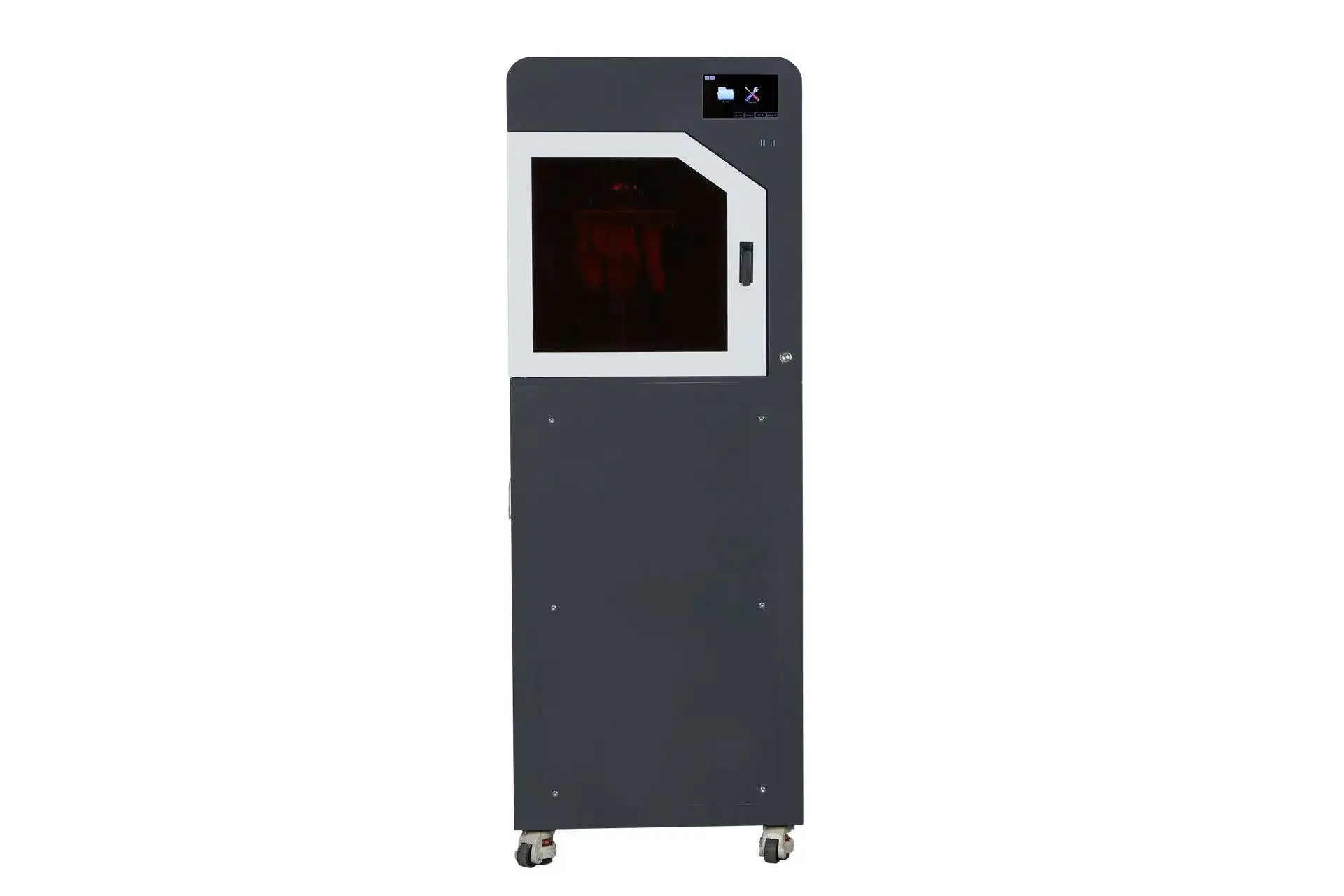

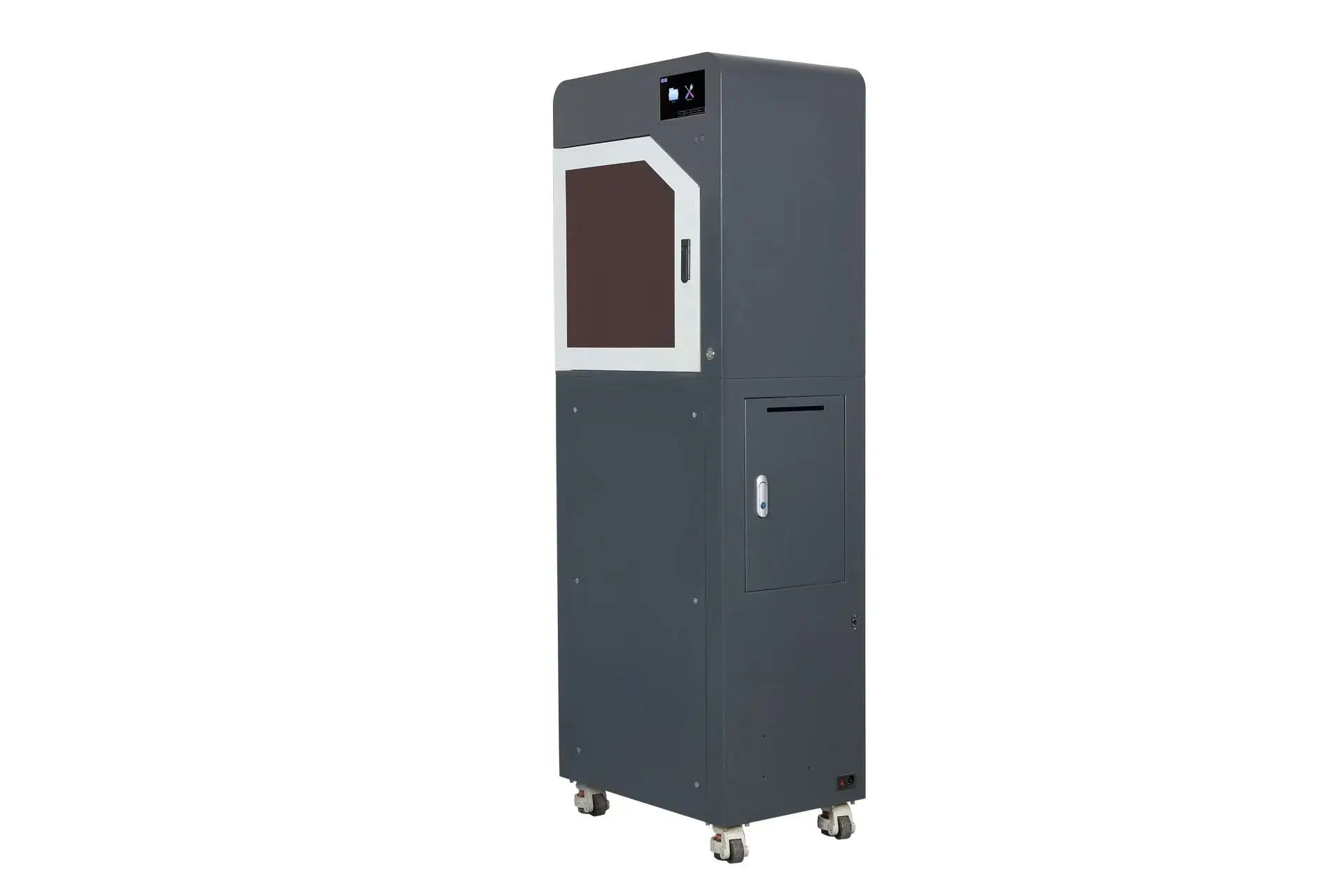

l  Prism M4S is an industrial-grade large-format DLP-3D printer with large molding space, high precision, fast printing speed, and good surface quality. As a 3D Plus high promotion-pushing model, it has become the best productivity tool with both large molding space and high printing speed. High stability and continuous working ability are recognized by professional customers.

l

l      Prism M4S uses a professional-grade Ultra-high resolution projection optical engine with a resolution of 4K(3840X2160). The high uniformity of light ensures the stable molding of each position in every molding layer. With high stability LED UV light source (its service life can be more than 20,000 hours), it ensures the reliable molding during the printing process. The printing size is 140(X)×80(Y)×300(Z)mm, and multiple or large-size models can be printed, and 100 molds can be printed every 2 hours. Or it can print 60 bracelets at one time.

l

l

l Specifications:

Model	Prism M4S
Technics	Advanced DLP Technology
Machine Size	600 x 400 x 1650 mm
Building Size	140x80x300mm
Printing Resolution	Horizontal pixel 37.5um, vertical 20um
Physical Resolution	3840x2160 Pixels
Layer thickness	0.02-0.1mm
Building speed	10-40mm/h
Light Source	Industrial UV LED, lifetime 10000 hours
After-processing	UV solidify
Resin tank	FEP/ NFEP / ACF release film, Aluminum Alloy Frame
Software	PRISM MASTER V2.0 and Chitubox
Supports	Automatic and manual support generation
Input file	STL  /  OBJ   /  SLC
Touch Screen	Yes, 7 inches Touch Screen Monitor
Connectivity	USB driver, multi-printers control
Offline print capability	Yes
Platform leveling	Leveling is finished before shipping
Resins	3KU resin, all brand 405nm resin compatible
System requirement	Windows, Mac
Power	Output: DC 12V Input: 100-240V 50-60Hz
After-processing	UV solidify
Regular Warranty	one year





Quick Detail:

1. Industrial DLP 3d Printer

2. Print Models for Jewelry with Red Wax Mold Resin

3. Resolution: 37.5um, Print size: 140x80x300mm



Description:



l Prism M4S is an industrial-grade large-format DLP-3D printer with large molding space, high precision, fast printing speed, and good surface quality. As a 3D Plus high promotion-pushing model, it has become the best productivity tool with both large molding space and high printing speed. High stability and continuous working ability are recognized by professional customers.



  Prism M4S uses a professional-grade Ultra-high resolution projection optical engine with a resolution of 4K(3840X2160). The high uniformity of light ensures the stable molding of each position in every molding layer. With high stability LED UV light source (its service life can be more than 20,000 hours), it ensures the reliable molding during the printing process. The printing size is 140(X)×80(Y)×300(Z)mm, and multiple or large-size models can be printed, and 100 molds can be printed every 2 hours. Or it can print 60 bracelets at one time.



Applications:

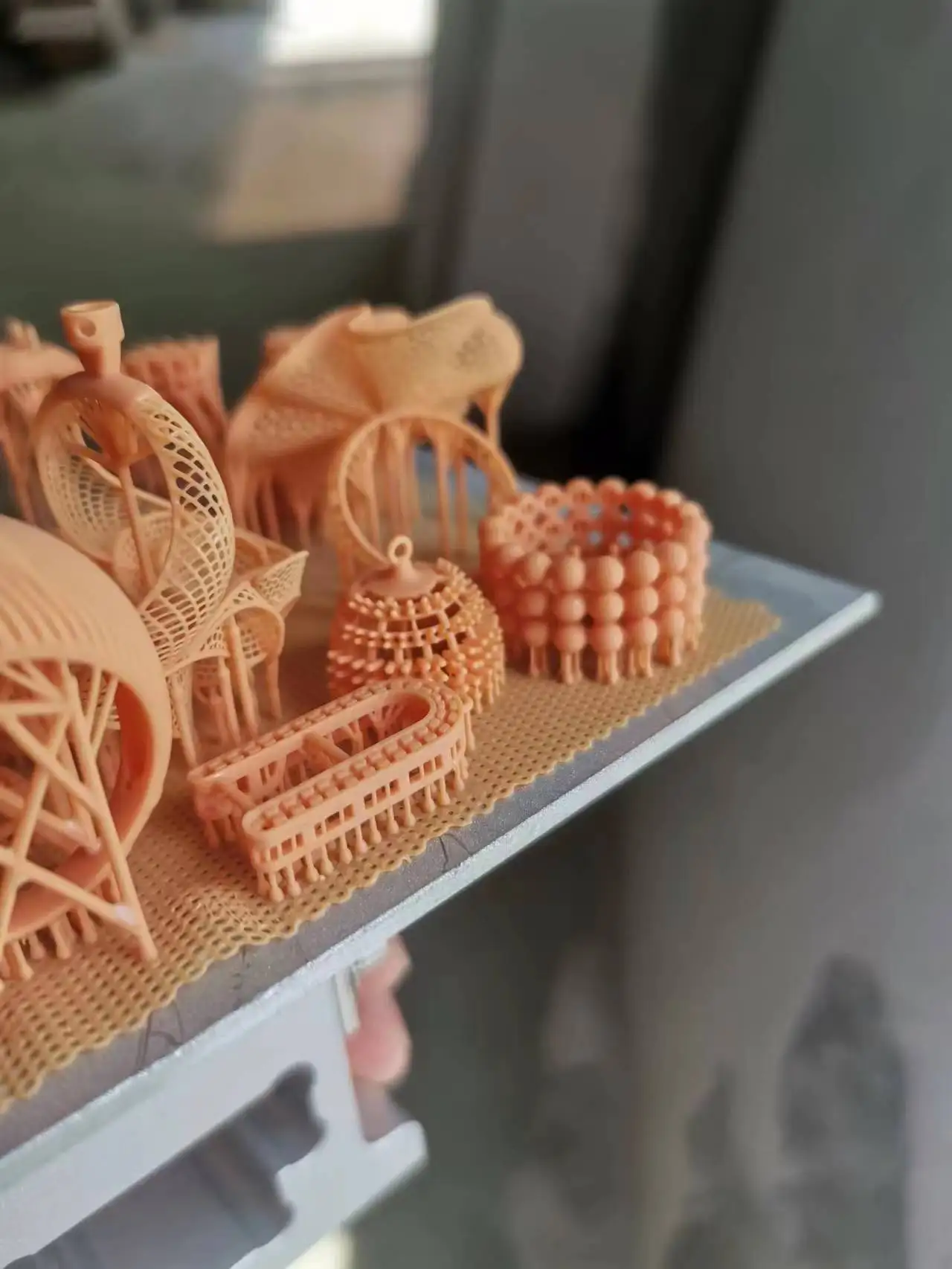

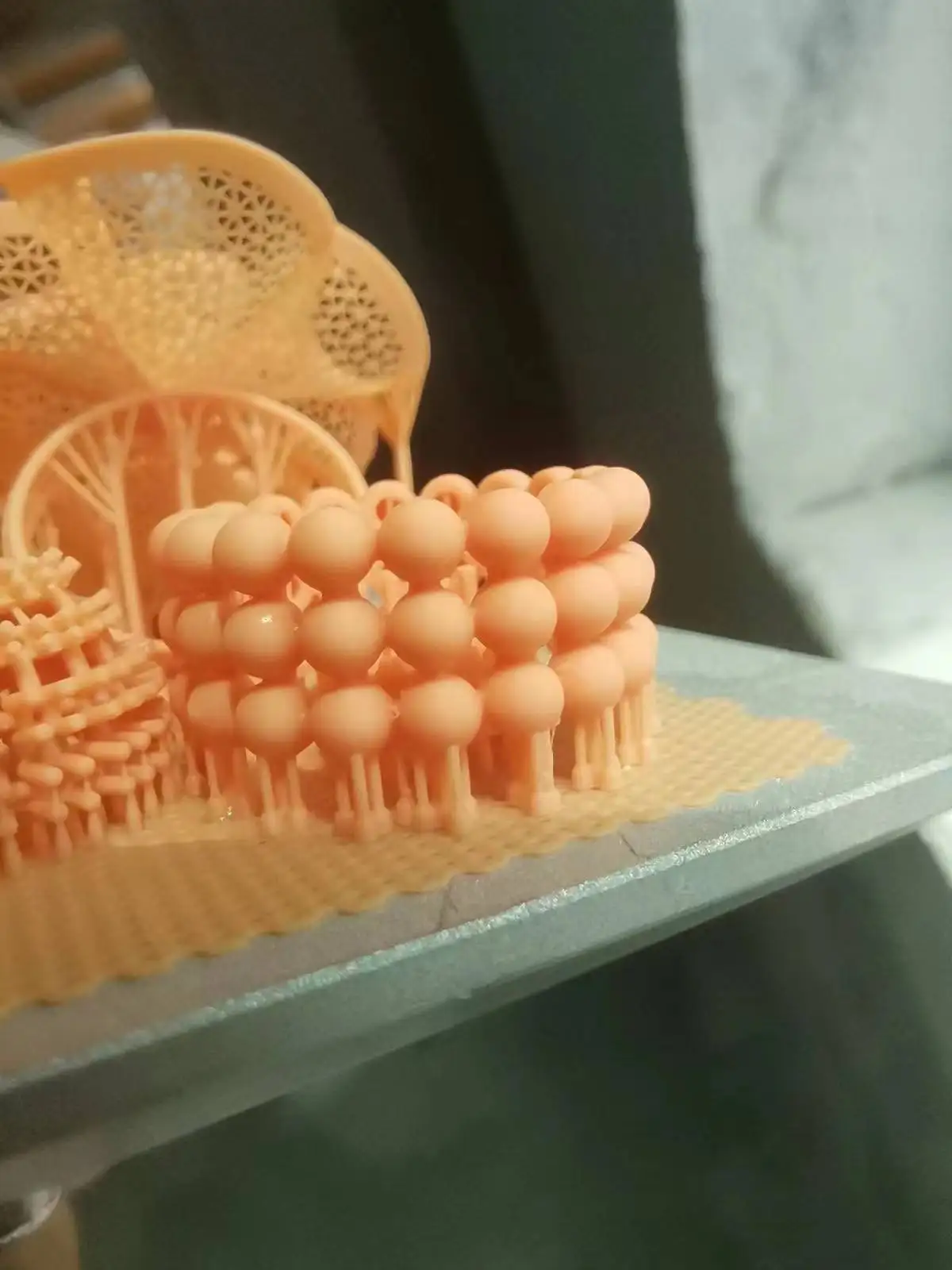

Lost wax casting for jewelry models

Specifications:



Competitive Advantage:



1,Software and touch screen support the resin locking function.

2,Time lock and offline unlocking can be realized without Ukey.

3,Directly print SLC files, support slicing files like Jewel CAD, Magics, Rhino etc.

4,Z-axis with high-precision double track guide modules ensures good surface details.

5,Automatic support function, set freely the parameters of thickness and angles of the support.

6. Compared with LCD printers, without the risk of supports broke LCD screen.
