Automatic High Speed Slitting Rewinding Machine for Paper Label Sticker
- Category: >>>
- Supplier: Ruian Loyal Machinery Co. Ltd.Ruian Ltd.
Share on (1601358078589):
Product Overview
Description
Products Description
Application:

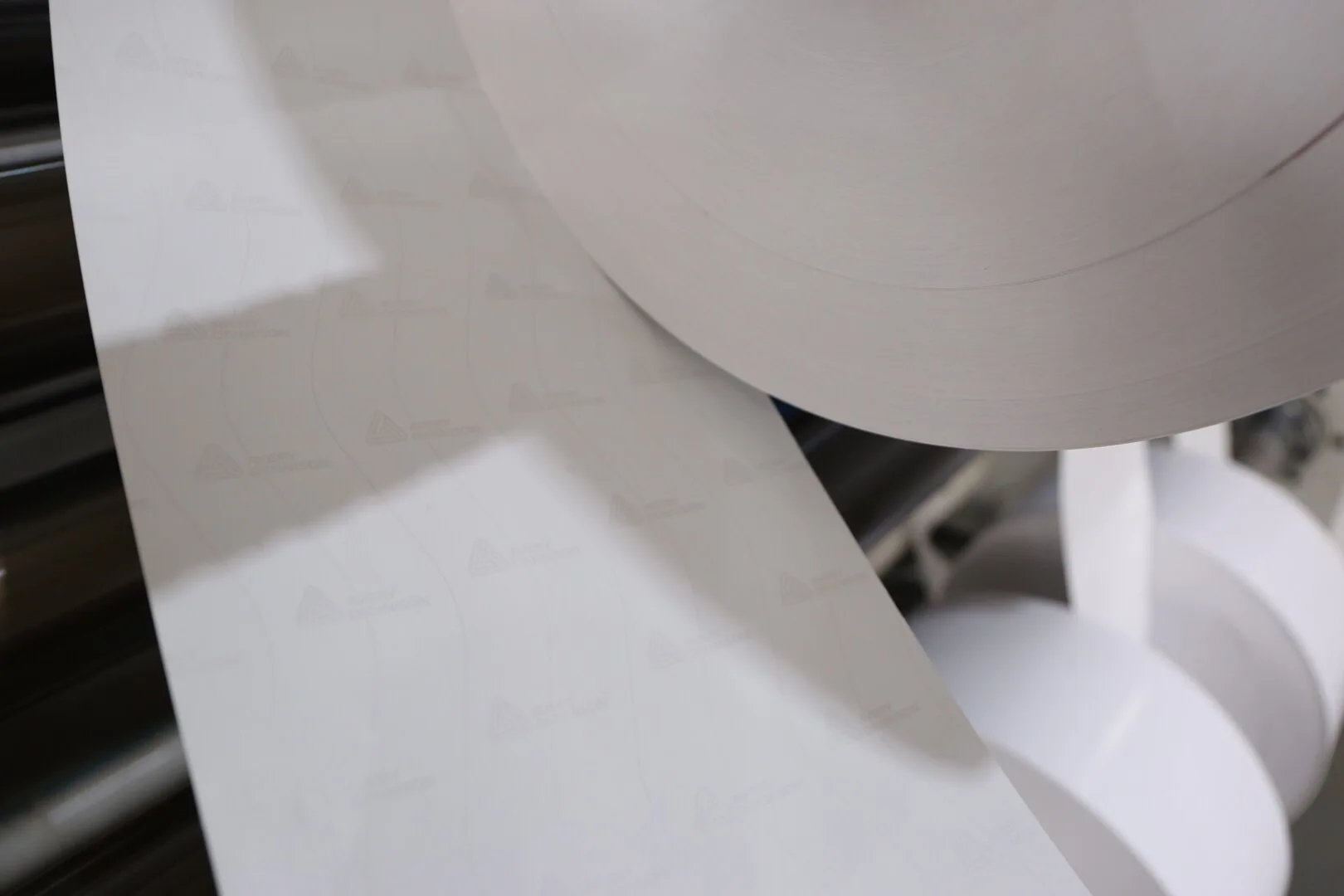

This type high speed slitting machine is the most suitable machine for high speed and precision demand of the jumbo roller material slitting and rewinding. Such as: Paper, self adhesive paper, sticker, cardboard, electric screen protective film, laminated film, etc.
Advantage:
· Automatic unloading device, increase the producitity and ensure the production safty .
· Automatic shaft-less loading for jumbo roll .
· Machine driven by 3 sets 11kw synchronous servo motors, big power, high precision.
· Double "S" material path to avoid the gum leaking.
· Overhead material path to prevent the gum dripping.
· Machine body processing by CNC ,ensure the whold machine precision and stability.
· Sovle the problem of snake shape of finished product surface.
· Double-bead duplex friciton shaft adopted.
· Semi-auto blade set. (option)
· Automatic shaft-less loading for jumbo roll .
· Machine driven by 3 sets 11kw synchronous servo motors, big power, high precision.
· Double "S" material path to avoid the gum leaking.
· Overhead material path to prevent the gum dripping.
· Machine body processing by CNC ,ensure the whold machine precision and stability.
· Sovle the problem of snake shape of finished product surface.
· Double-bead duplex friciton shaft adopted.
· Semi-auto blade set. (option)
Technical Parameter
Machine model | HCH3-1300B | HCH3-1600B | HCH3-2000B |
Unwinding width | 1300mm | 1600mm | 2000mm |
Machine speed | 500m/min | 500m/min | 500m/min |
Slitting precision | ±0.03mm | ±0.03mm | ±0.03mm |
Unwinding diameter | 1200mm | 1200mm | 1200mm |
Rewinding diameter | 600mm | 600mm | 600mm |
Main motor power | 7.5kw | 11kw | 11kw |
Rewinding motor power | 2*7.5kw | 2*11kw | 2*11kw |
Installation dimension | 3980*4600*2250 | 3980*5000*2250 | 3980*5300*2250 |
Machine weight | 6000kg | 7000kg | 9000kg |
Advantage
Web guide structure is in an independent state from the overall unwinding structure, and the adjustment of web guide will not affect the stability of the machine operation.
After the self-adhesive material is stored for a period of time, the glue will evaporate, and the material that was originally rolled tightly will loosen, causing the material to deviate. The web guide will not be able to correct the material, causing the machine to stop running. The straight bars can solve this problem，with this function as standard.
Dancer roller fine adjust, different type of material adjustable can be done easily and conveniently.

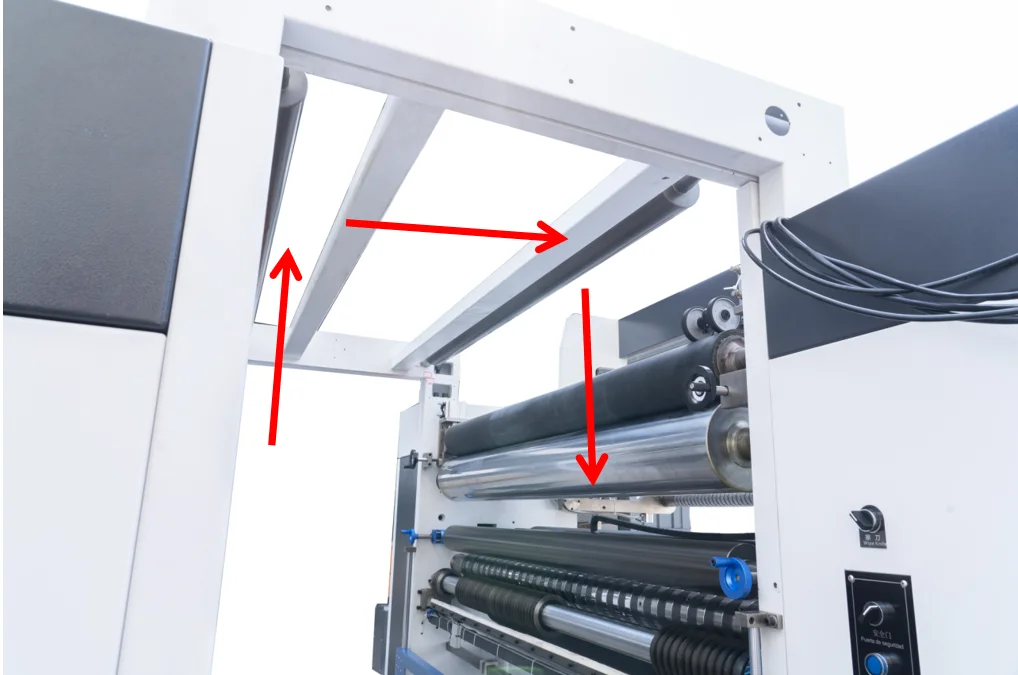

Overhead feeding structure
With the overhead feeding structure, the
hot stamping foil avoid to absorb the
dust layer during the operation of the
machine, which may cause material
contamination. With the overhead feeding structure, the material will not be contaminated
hot stamping foil avoid to absorb the
dust layer during the operation of the
machine, which may cause material
contamination. With the overhead feeding structure, the material will not be contaminated

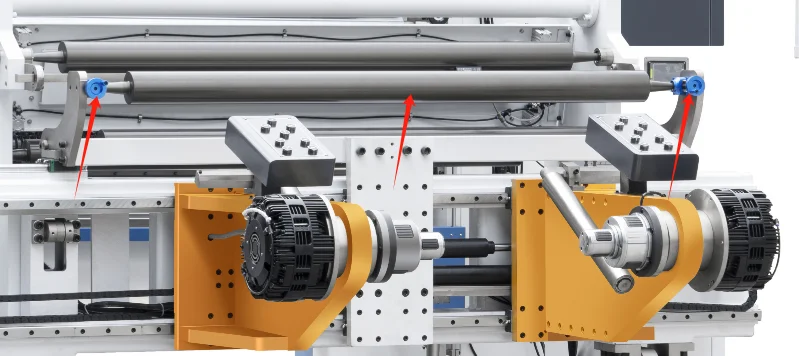

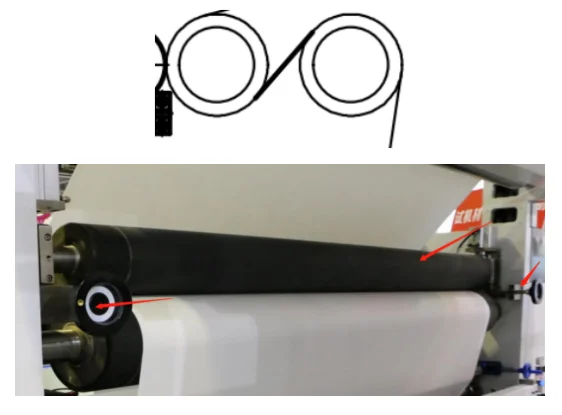

"S" traction structure
Uses an "S" type traction structure, where the traction rollers do not squeeze each other, avoiding glue overflow. Equipped with a traction lay on roller, when slitting thin materials, such as hot stamping foil, thin film the lay on roller can press the material to prevent it from floating during operation, making the operation more stable.

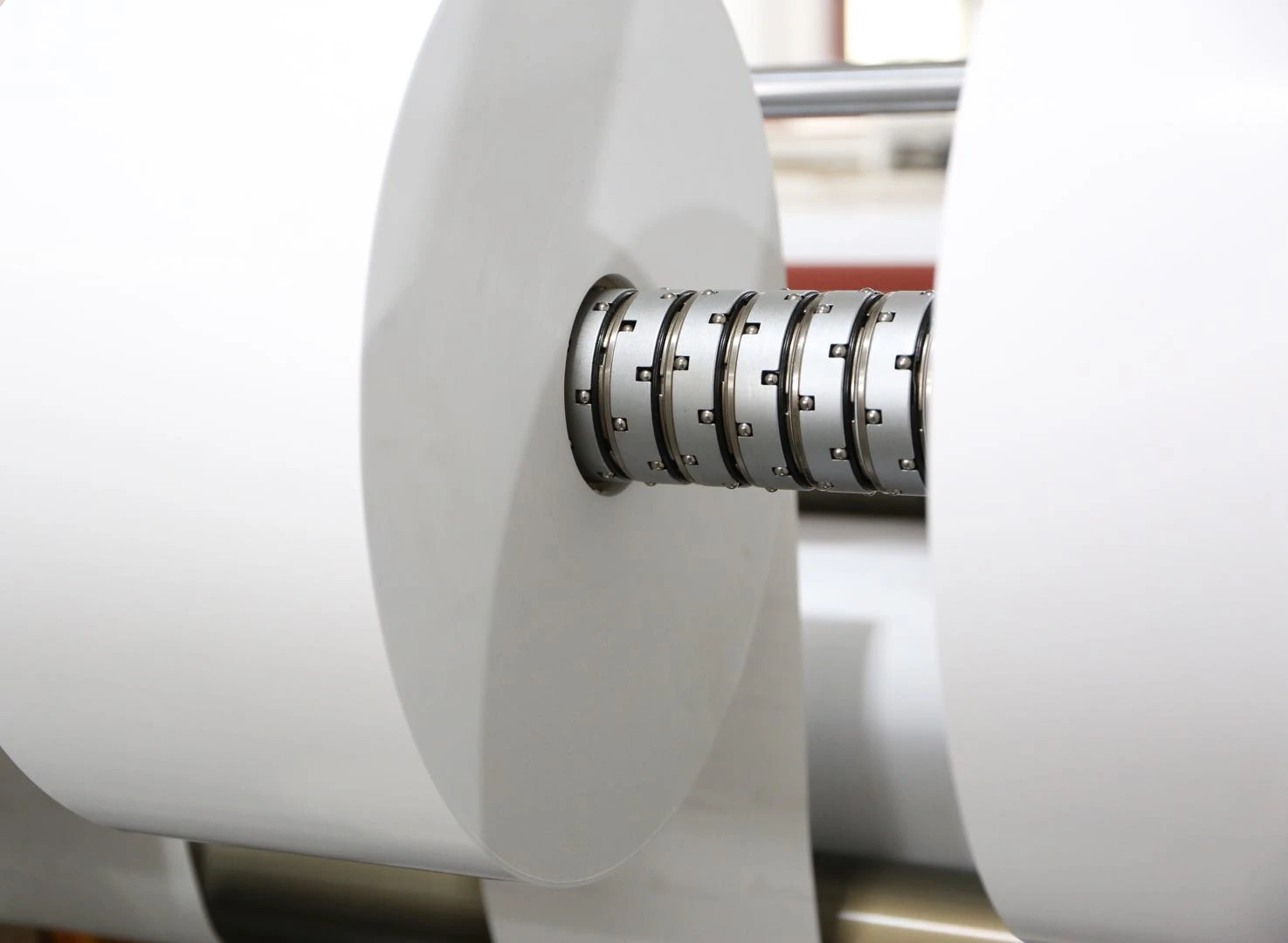

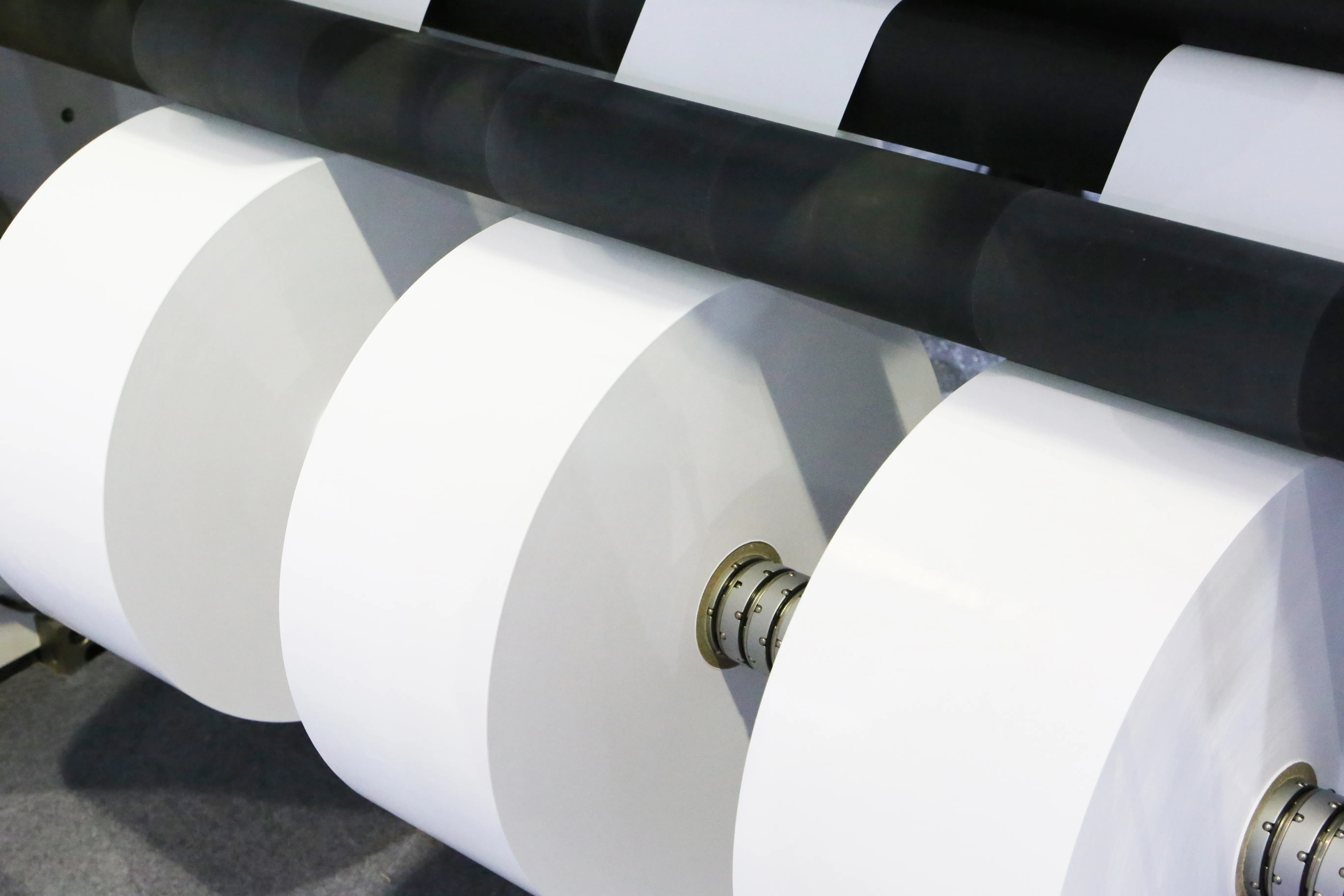

Differential friction shaft
Ф76mm differential shaft, friction unit width: 25mm
1. Separated tension automatic adjustment.
2. Achieve the perfect fixing for
different thickness, length of materials and paper core rewinding.
3. Double beads type friction shaft, with high precision.
1. Separated tension automatic adjustment.
2. Achieve the perfect fixing for
different thickness, length of materials and paper core rewinding.
3. Double beads type friction shaft, with high precision.
Web guide
Ultrasonic web guide.
Automatic length counter
Korea autonics
Rotary encoder
Knife clean device for adhesvie

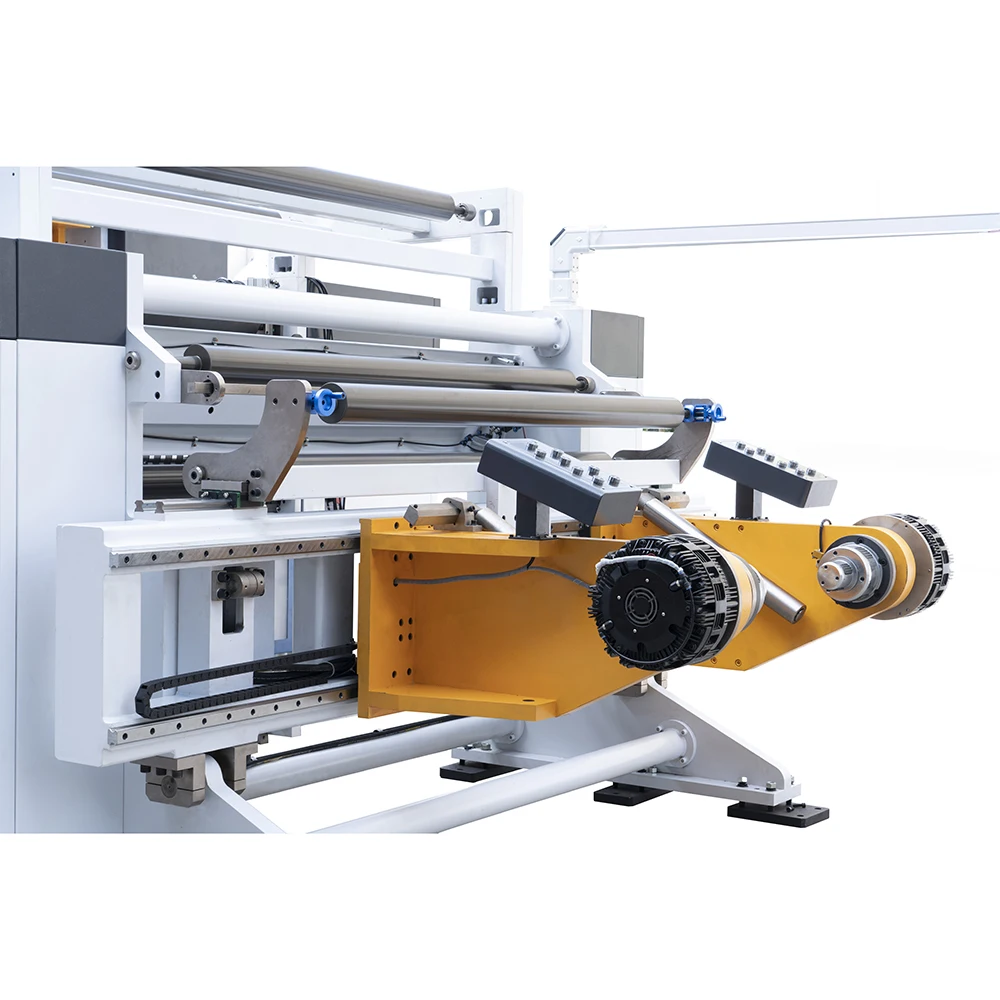

Fully automatic rotary unloading frame
Rotary double axle unloading frame.
Successful Cases and Customer Feedback
The global famous label packing company we have cooperated are：
Why Choose Us
1. Quality Control
Incoming Quality Control
Our quality team will inspect the incoming parts before storage by sampling.
Process Quality Control
Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.
Outgoing Quality Control
Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed
client’s expectation.
client’s expectation.
2. Our Service
Pre-Sales Service
Inquiry and consulting support.
Sample material testing support.
Lead the customer to visit our factory if required..
After-Sales Service
12 months guarantee, life-long time technic maintenance and support.
Online Guidance support.
Spare parts supports.
24 Hours * 7 days service online.
24 Hours * 7 days service online.

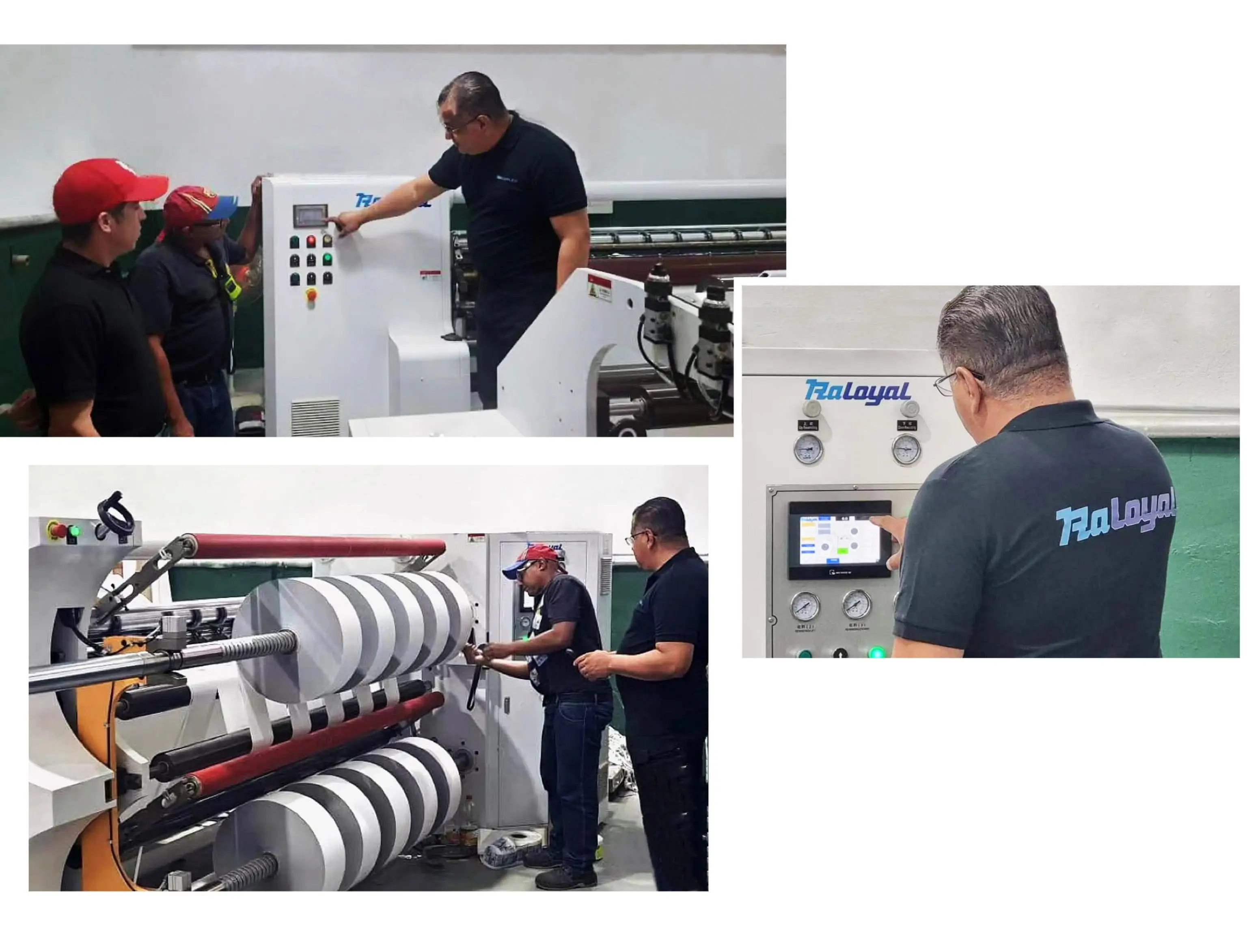

Global service center
Exclusive Agencies
√ Middle East: Egypt, Saudi Arabia, Iraq, Yemen, Libya, Oman Pre-sales and after-sales service

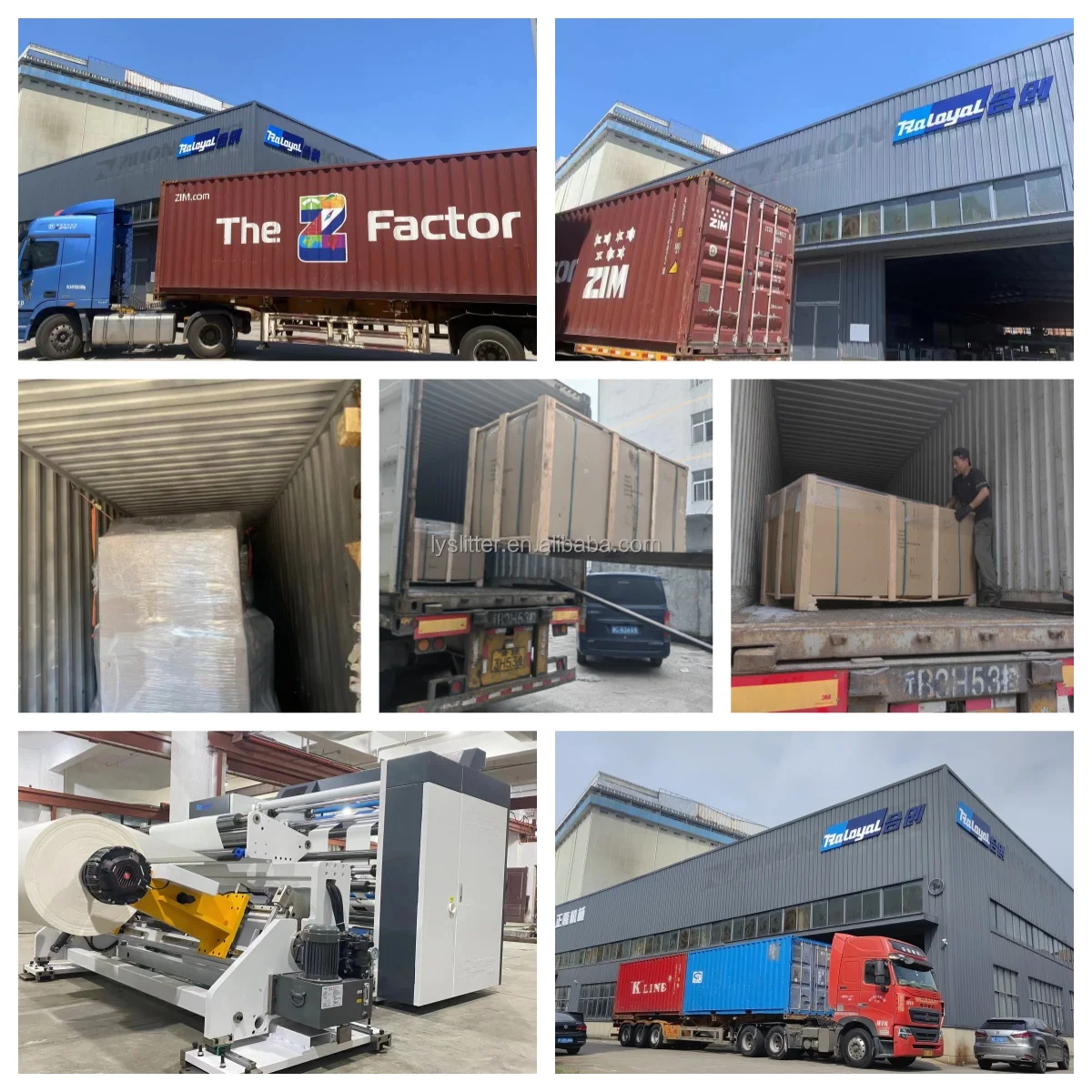

4. Packing & Delivery
5. Certifications

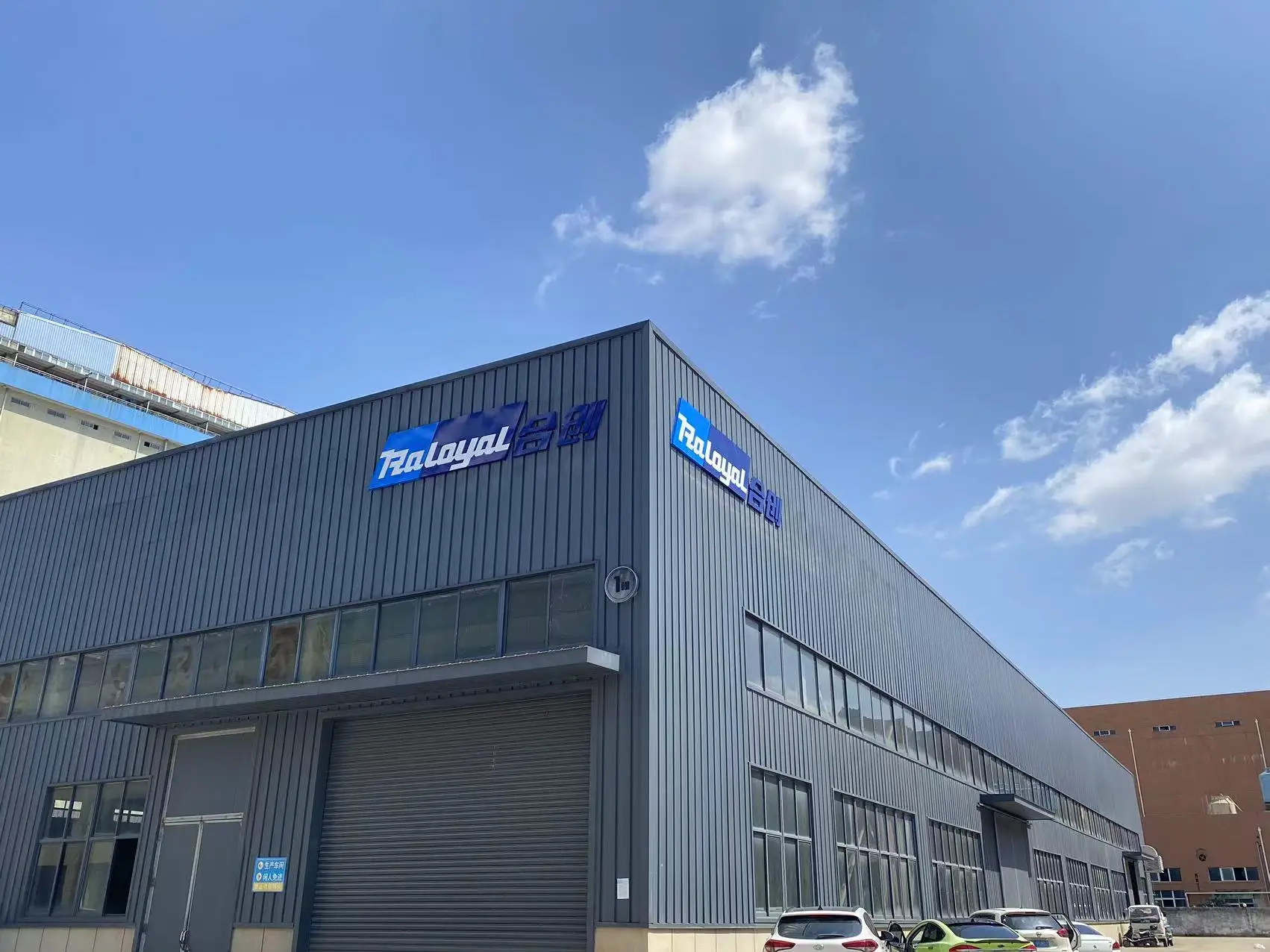

Company Profile
COMPANY PROFILE
Ruian Loyal Machinery Co.,Ltd located in Ruian city, southeast of China, specializing in the slitting machine, die cutting
machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new
energy and paper industry. RaLoyal have been always devoted to provide a global solution to the demands of markets in constant
development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability
for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the
waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new
energy and paper industry. RaLoyal have been always devoted to provide a global solution to the demands of markets in constant
development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability
for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the
waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
Exhibitions

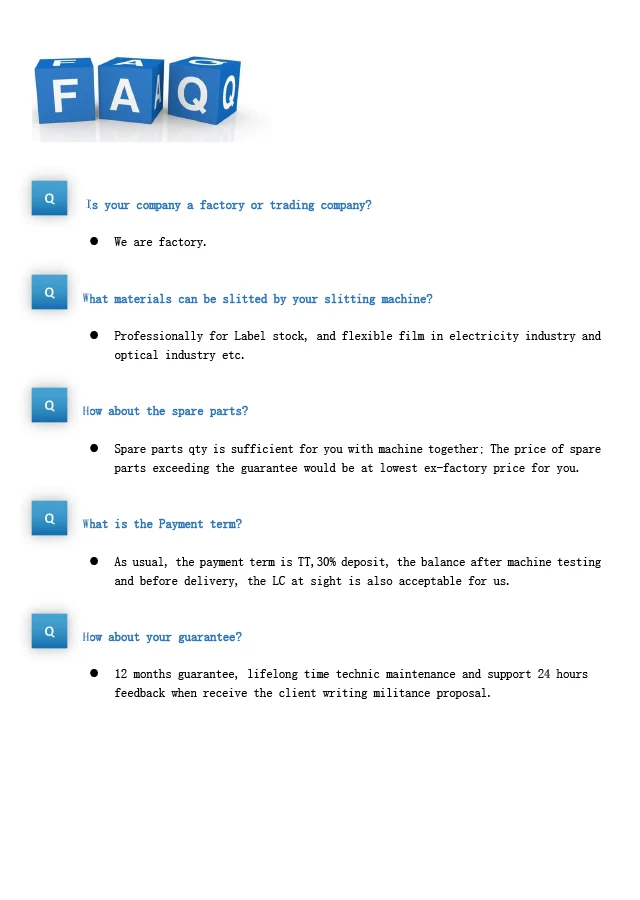

FAQ
