Tobee Effluent Handling
$12,600
3HP Stainless Steel Electric Centrifugal Water Pump SCT300 For Irrigation Wastewater Treatment Flood Control OEM Agriculture
- Category: >>>
- Supplier: Wenzhou Ace Machinery Co. Ltd.Wenzhou Ltd.
Share on (1601358083150):
Product Overview
Description
3HP Stainless Steel Electric Centrifugal Water Pump SCT300 For Irrigation Wastewater Treatment Flood Control OEM Agriculture
22 Years Of Experience. 3-7 days delivery,Reasonable Price And Best Service, CE Certificated Products.Advanced Technology.Please Contact us for the offer.
Video
Products Description
Product Features:
1) Material:SUS304/ SUS 316L
2) Flow rate: 1 - 40T/h
3) Pump head: 12–40 meter
4) Motor: Domestic/ABB/Siemens
5) Power: 0.55-18.5kw
6) Voltage: 220V/380V/415V/440V, can be customized
7) Connection type: Clamp, Union, Flange
8) Inlet size: 32-102mm, can be customized
9) Outlet size: 25-89mm, can be customized
10) Max. Inlet pressure: 0.3Mpa
11) Temperature range: -10 °C to +140 °C (EPDM)
2) Flow rate: 1 - 40T/h
3) Pump head: 12–40 meter
4) Motor: Domestic/ABB/Siemens
5) Power: 0.55-18.5kw
6) Voltage: 220V/380V/415V/440V, can be customized
7) Connection type: Clamp, Union, Flange
8) Inlet size: 32-102mm, can be customized
9) Outlet size: 25-89mm, can be customized
10) Max. Inlet pressure: 0.3Mpa
11) Temperature range: -10 °C to +140 °C (EPDM)
Profile type | Sanitary centrifugal pumps | ||||
material | SS304 or SS316L | ||||
Pressure | 0-8bar | ||||
Flow Viscosity | 1-50pas | ||||
Impeller type | Closed impeller/Open impeller | ||||
temperature | 0-140 celsius degree | ||||
mechnical seal type | Sinlge mechanical seal | Double flushed mechanical seal | |||
connection type | Clamp | Union | Flange | ||
motor type | Normal | Ex-Proof | inverter | ||
motor cover | Round/Square | ||||
Speed | 2900RPM/3400RPM | ||||
Sanitary Centrifugal pump Model Sheet | ||||||||
Model | FLOW(T/H) | Lift(M) | Speed(RPM) | Motor(KW) | ||||
ACE-1-14 | 1T | 14 | 2900/3400 | 0.55 | ||||
ACE-3-16 | 3T | 16 | 2900/3400 | 0.75 | ||||
ACE-3-20 | 3T | 20 | 2900/3400 | 1.1 | ||||
ACE-5-24 | 5T | 24 | 2900/3400 | 1.5 | ||||
ACE-3-30 | 3T | 30 | 2900/3400 | 2.2 | ||||
ACE-5-36 | 5T | 36 | 2900/3400 | 2.2 | ||||
ACE-10-24 | 10T | 24 | 2900/3400 | 2.2 | ||||
ACE-15-24 | 15T | 24 | 2900/3400 | 3 | ||||
ACE-10-36 | 10T | 36 | 2900/3400 | 3 | ||||
ACE-20-24 | 20T | 24 | 2900/3400 | 4 | ||||
ACE-15-36 | 15T | 36 | 2900/3400 | 4 | ||||
ACE-20-36 | 20T | 36 | 2900/3400 | 5.5 | ||||
ACE-30-36 | 30T | 36 | 2900/3400 | 7.5 | ||||
ACE-40-36 | 40T | 36 | 2900/3400 | 11 | ||||
We can customize the equipment according to customer requirements. | ||||||||

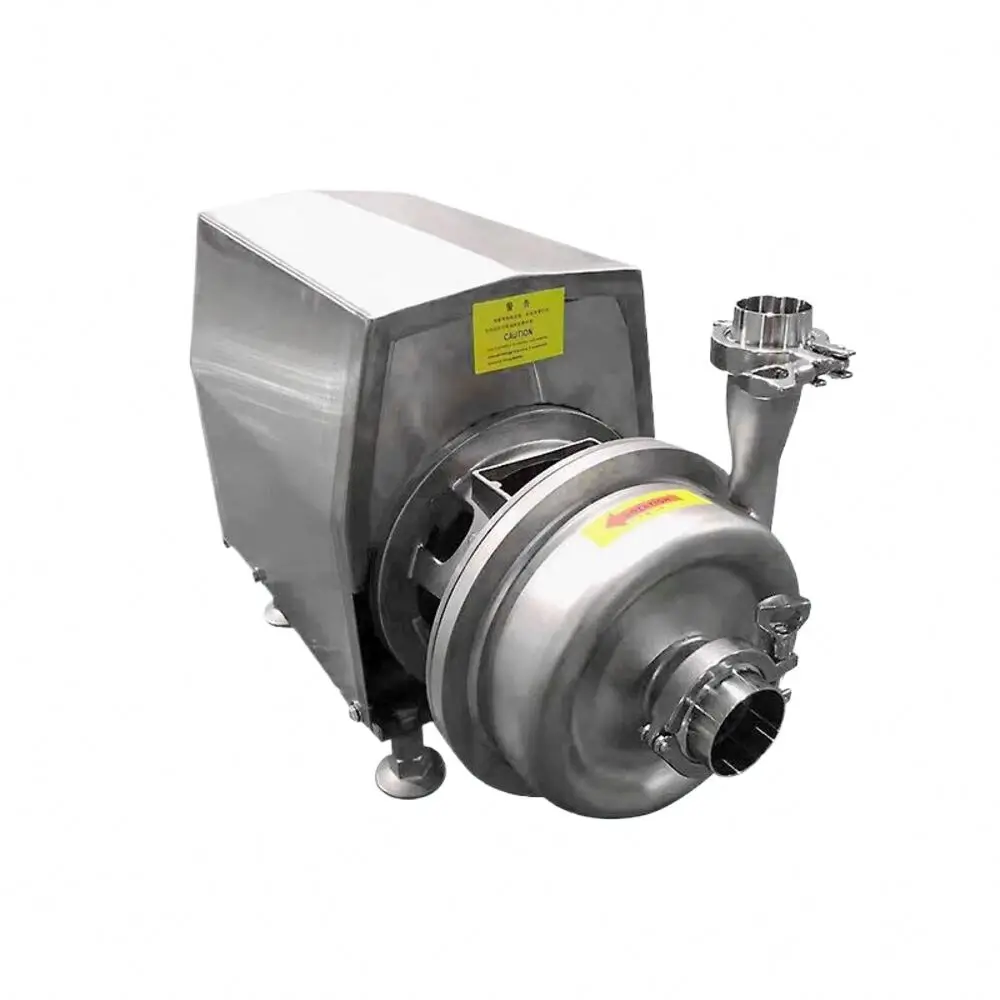

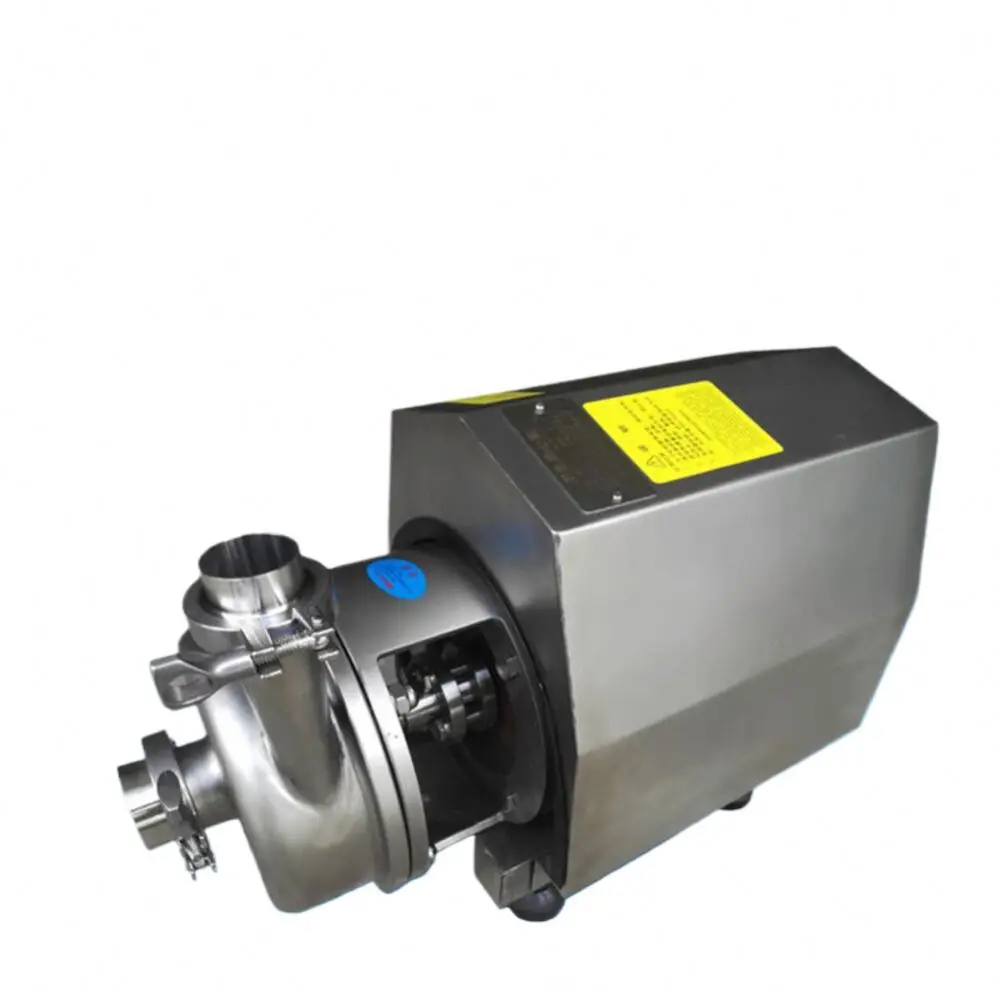

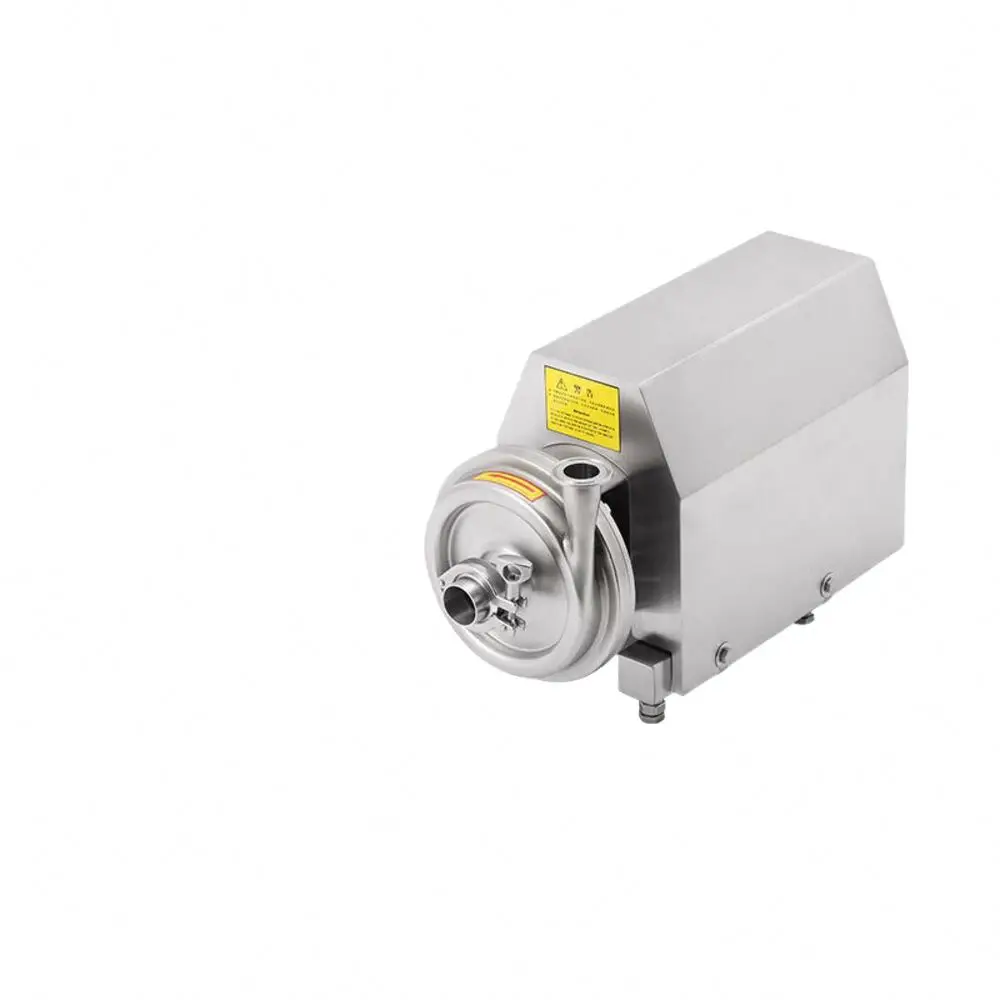

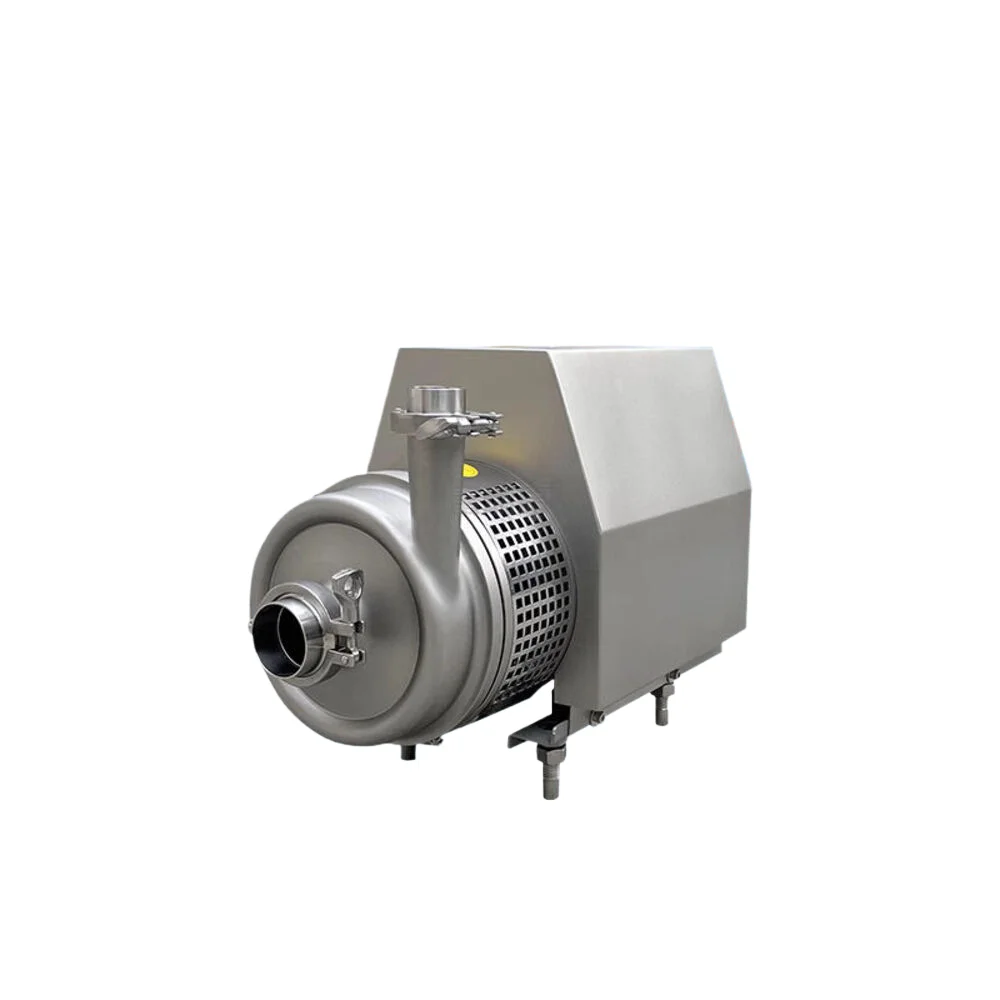

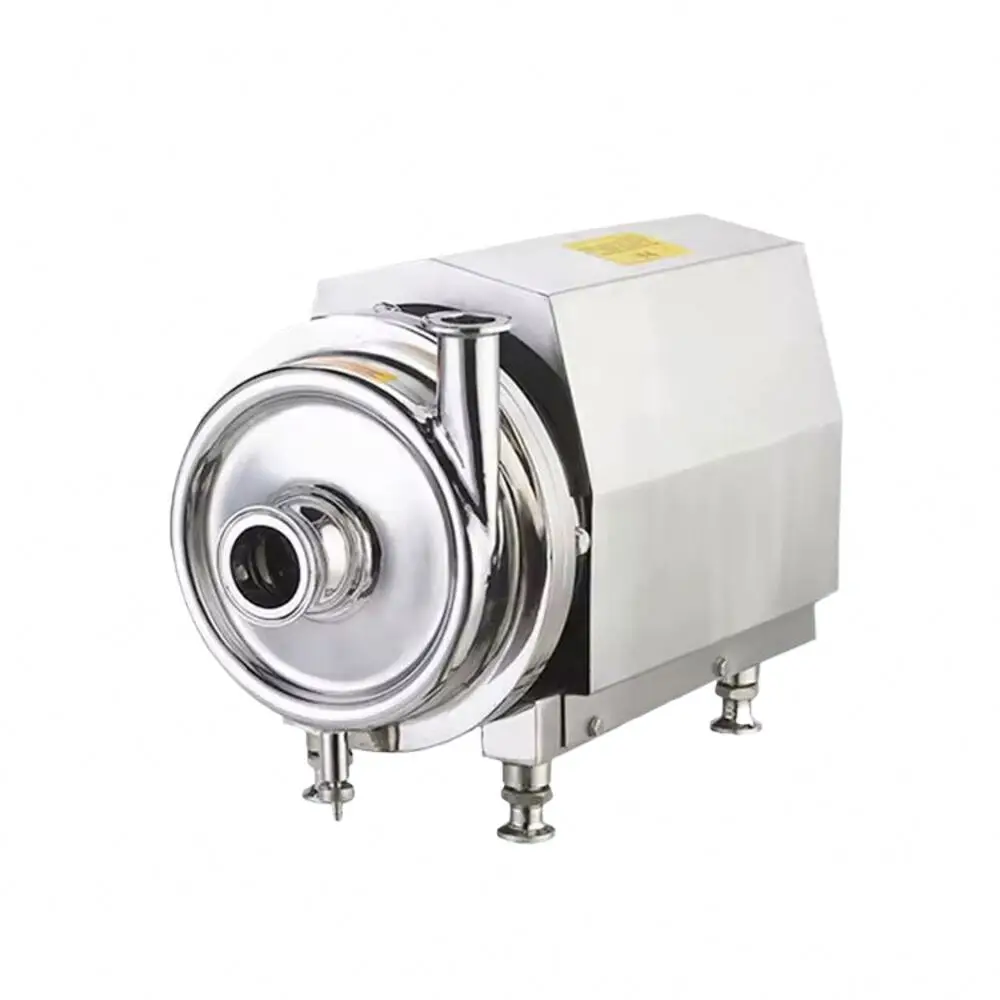

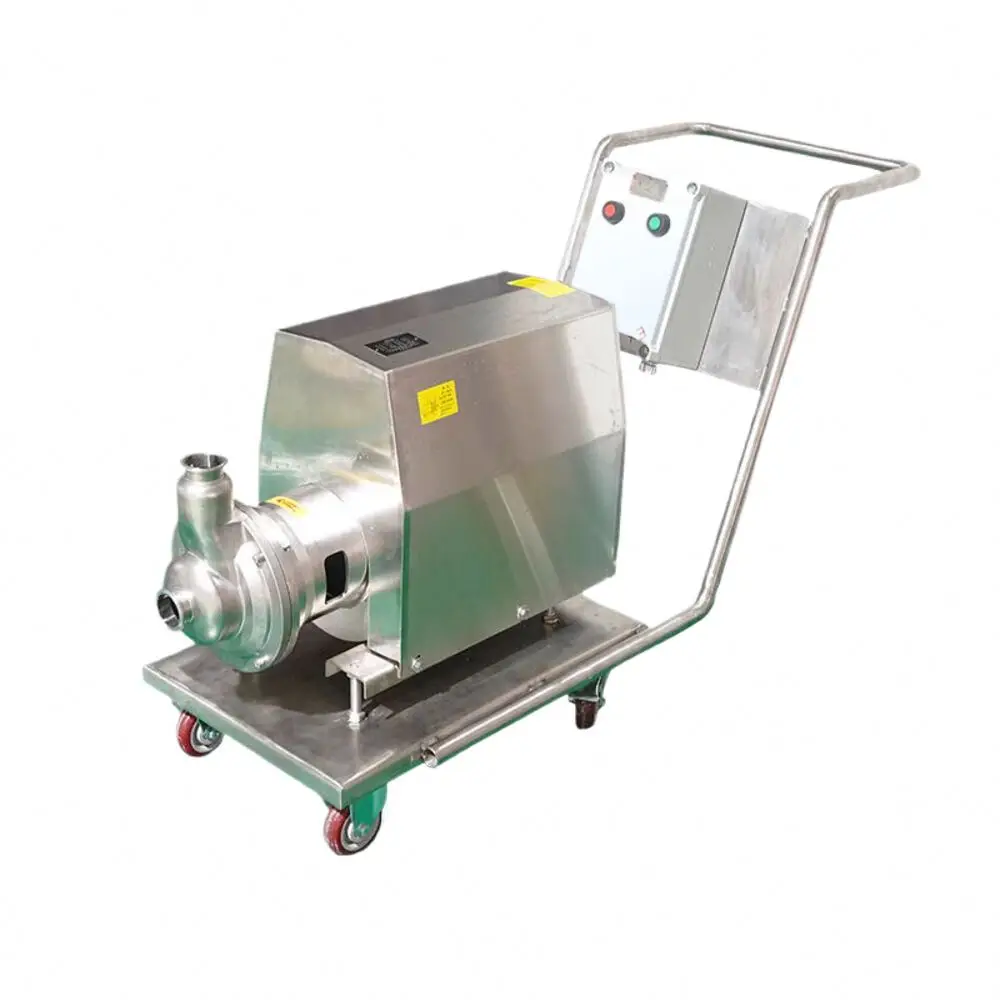

Details Images
Other pumps
Screw Pumps
Screw pump rotor for food industry is also called progressive cavity pump, Is widely used in delivery of high viscosity products such as chocolate, syrup and jams etc.
Homogenization pumps
The machine disperses, shears and emulsifiers the material in shortest time, and the diameter range of the particles gets smaller so that fine and stable produced.
Rotor pump is suitable for transporting high viscosity, ensity and any medium containing particle.
Packaging & Shipping
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
FAQ
Q | Are you trade or manufacturer? | ||||||
A | We are a factory with an international sales company specialized in support for global distributors. | ||||||
Q | Can you provide instant technical consulting services? | ||||||
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | ||||||
Q | What's the difference between Ready-To-Ship and Customized products? | ||||||
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. | ||||||
Q | What is the payment terms? | ||||||
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. | ||||||
Q | How to choose the shipment way? | ||||||
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | ||||||
Q | How about the after-sales service? | ||||||
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. | ||||||
