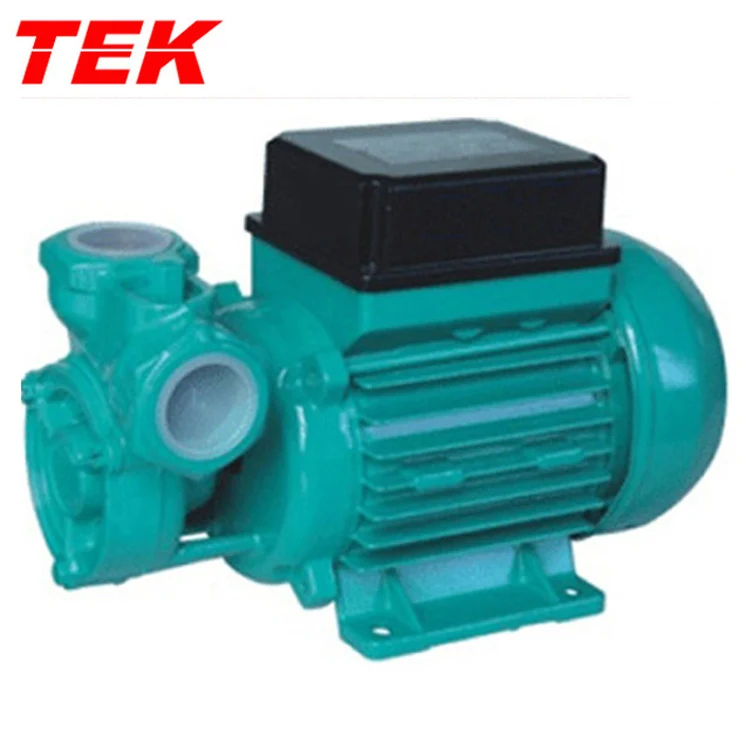

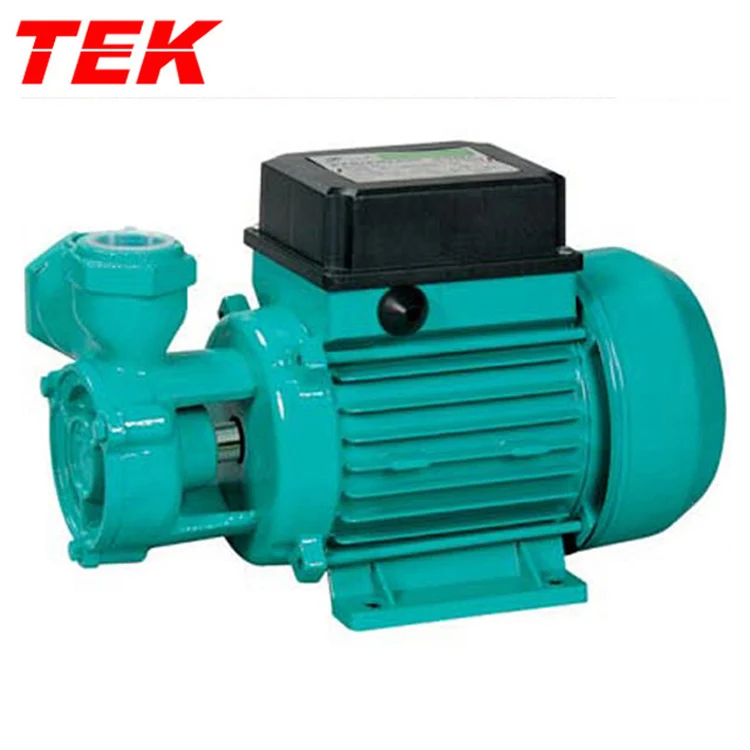

KF/2 KF2 KF 2 0.55kw Copper Wire Winding Motor Cast Iron Body Vortex Peripheral Clean Water Pump Factory OEM

Product Overview

Description

KF/2 KF2 KF-2 0.55kw Copper Wire Winding Motor Cast Iron Body Vortex Peripheral Clean Water Pump Factory OEM



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year

Product Power: 0.37kw

-- View technical --

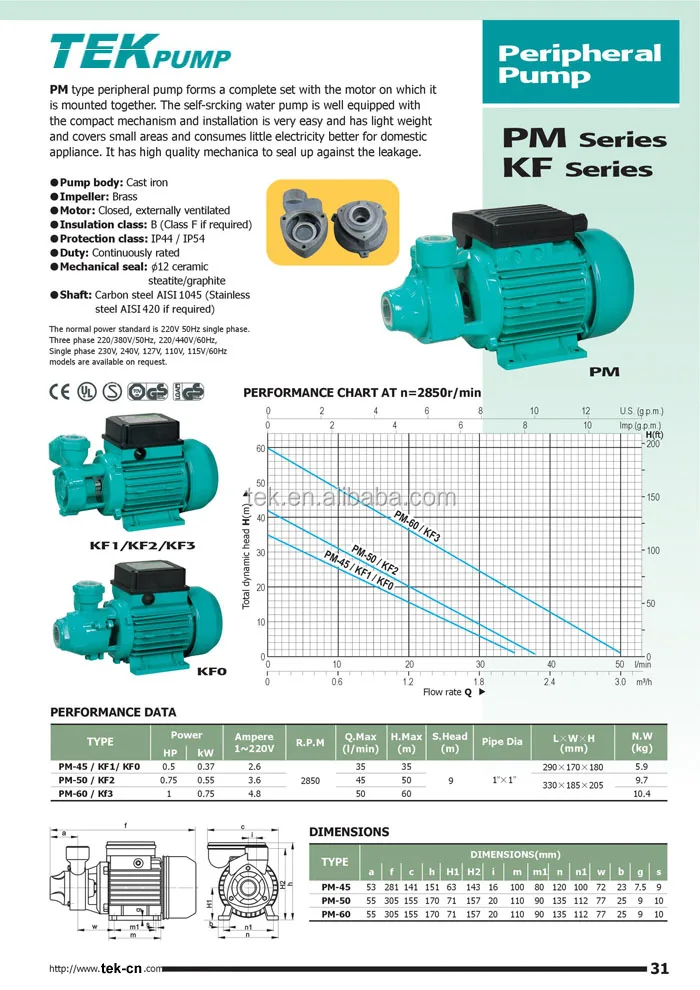

Model	Power		Max.Flow	Max.Head	Max.Suct	In/Outlet	Packing Dim.	GW	Qty
	kw	hp	L/min	m	m	mm	mm	kg	pcs
KF/1	0.37	0.5	35	35	9	25X25	270*150*185	5.9	3400
KF/2	0.55	0.75	40	40	9	25X25	285*165*210	9.7	2000
KF/3	0.75	1	50	50	9	25X25	285*165*210	10.4	2000
KF/4	1.1	1.5	60	60	9	40X40	330*230*290	17.5	1280
